Model LG NB2338A – Common Parts & Diagrams
Diagram 0

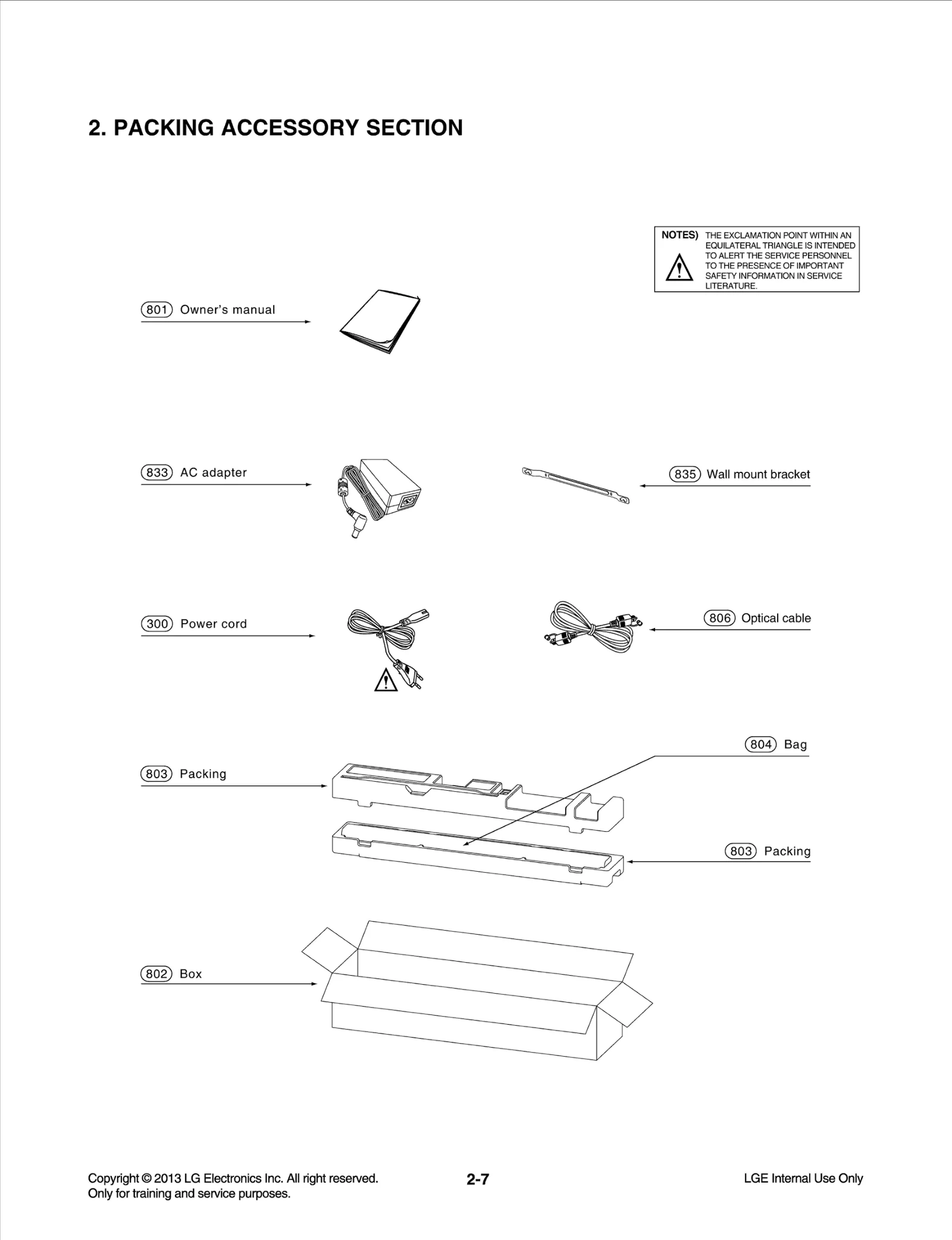

Diagram 1
Diagram 2
Common parts from model LG NB2338A
253
Cover LGE MCK67475901 Contact Us For Availability
254
Cover LGE MCK67475902 Contact Us For Availability
260
Panel,Rear LGE MGC63081701 Contact Us For Availability
300
Power Cord LGE EAD60816745 Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
479
SCREW,DRAWING LGE 1SZZR-0098D Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75876688 Contact Us For Availability
802
Box,Master LGE MAY65713691 Contact Us For Availability
803
Packing LGE MFZ63582701 Contact Us For Availability
804
Bag LGE MAF61906413 Contact Us For Availability
806
Cable,Assembly LGE EAD61071205 Contact Us For Availability
833
Adapters LGE EAY62771602 Contact Us For Availability
835
Bracket LGE MAZ63733401 Contact Us For Availability
A41
Panel Assembly LGE AGL74117501 Contact Us For Availability
A42
Cover Assembly LGE ACQ86371401 Contact Us For Availability
A43L
Frame Assembly LGE ADV74428501 Contact Us For Availability
A43R
Frame Assembly LGE ADV74428601 Contact Us For Availability
A44A
Frame Assembly LGE ADV74428401 Contact Us For Availability
A44B
Panel Assembly,Rear LGE AGL74075502 Contact Us For Availability
A46
Option Code Assembly LGE EBR76810601 Contact Us For Availability
A48
PCB Assembly LGE EBR77133101 Contact Us For Availability
A55
Holder Assembly LGE AEJ73760102 Contact Us For Availability
C103
Capacitor,Ceramic,Chip LGE 0CH1223K562 Contact Us For Availability
C106
Capacitor,Ceramic,Chip LGE 0CC4R7BHFAA Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C206
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C315
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C328
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C360
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C363
Capacitor,Ceramic,Ch LGE 0CK103BKK6A Contact Us For Availability
C367
Capacitor,Ceramic,Ch LGE 0CK100BK4EA Contact Us For Availability
C369
Capacitor,Ceramic,Ch LGE 0CK225DD56A Contact Us For Availability
C373
Capacitor,Ceramic,Chip LGE EAE30276501 Contact Us For Availability
C375
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C602
Capacitor,Ceramic,Chip LGE 0CH1822K562 Contact Us For Availability
C604
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C605
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C607
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C610
Capacitor,Ceramic,Chip LGE 0CH1152K562 Contact Us For Availability
C612
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C613
Capacitor,Ceramic,Chip LGE 0CH4391K412 Contact Us For Availability
C619
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C621
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C623
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C624
Capacitor,Ceramic,Chip LGE 0CZZB00019A Contact Us For Availability
C625
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C630
Capacitor,Ceramic,Ch LGE 0CK472BHG6A Contact Us For Availability
C631
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C642
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C651
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C704
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C709
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C715
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C717
Capacitor,Ceramic,Ch LGE 0CK333DN56A Contact Us For Availability
C718
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C720
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C725
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C729
Capacitor,Ceramic,Chip LGE 0CH1562K562 Contact Us For Availability
C732
Capacitor,Ceramic,Chip LGE EAE61381601 Contact Us For Availability
CA201
Capacitor,AL,Chip LGE 0CE226SF6DD Contact Us For Availability
CA302
Capacitor,AL,Chip LGE 0CZZQE2018B Contact Us For Availability
CA602
Capacitor,AL,Chip LGE 0CH8107F692 Contact Us For Availability
CA612
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
CA616
Capacitor,AL,Chip LGE EAE30174502 Contact Us For Availability
CA702
Capacitor,AL,Chip LGE EAE62971801 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62246511 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD39304210 Contact Us For Availability
CABLE3
PCB Assembly,Sub LGE EBR76401401 Contact Us For Availability
CABLE4
PCB Assembly,Sub LGE EBR76401501 Contact Us For Availability
CN101
CONNECTOR (CIRC),FFC LGE 6630XE00313 Contact Us For Availability
CN201
Connector,FFC/FPC/PIC LGE 6630R-FB11M Contact Us For Availability
CN301
Connector,Wafer LGE 6630R3S006A Contact Us For Availability
CN302
Connector,Wafer LGE EAG62611104 Contact Us For Availability
D605
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D606
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D609
Diode,TVS LGE EAH61853401 Contact Us For Availability
F601
Fuse,Non Time Delay LGE EAF61631901 Contact Us For Availability
FC602
Filter,EMI/Power LGE EAM62092401 Contact Us For Availability
FL301
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
IC100
IC,Microcontrollers LGE EAN60807601 Contact Us For Availability
IC101A
S/W,System Program LGE SAA36426001 Contact Us For Availability
IC102
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC301
IC,Digital Signal Processors LGE EAN62408102 Contact Us For Availability
IC302
IC,SDRAM LGE EAN62355001 Contact Us For Availability
IC302
IC,SDRAM LGE EAN34123102 Contact Us For Availability
IC303
IC,Serial Flash Memory LGE EAN59369902 Contact Us For Availability
IC303
IC,Serial Flash Memory LGE EAN42836702 Contact Us For Availability
IC304A
S/W,System Program LGE SAA36425901 Contact Us For Availability
IC501A
S/W,System Program LGE SAA36426101 Contact Us For Availability
IC602
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC603
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
IC608
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
JK301
Jack,Fiber Optic LGE EAG37842006 Contact Us For Availability
JK302
Connector,USB LGE EAG35130503 Contact Us For Availability
L606
Filter,Bead LGE EAM38769505 Contact Us For Availability
L607
Inductor,Wire Wound,Chip LGE EAP39307701 Contact Us For Availability
L621
Filter,Bead LGE EAM42641607 Contact Us For Availability
L714
Inductor,Wire Wound,Chip LGE EAP62267601 Contact Us For Availability
Q101
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q506
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q508
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q701
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q702
TRANSISTOR,BIPOLARS LGE 0TR150409AB Contact Us For Availability
R100
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R101
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R115
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R162
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R163
Resistor,Chip LGE 0RH2702C422 Contact Us For Availability
R187
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R201
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R211
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R333
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R341
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R365
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R369
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R375
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R380
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R516
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R601
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R602
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R603
RESISTOR,METAL GLAZE LGE 0RH2402C422 Contact Us For Availability
R604
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R605
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R606
Resistor,Chip LGE 0RH4701C422 Contact Us For Availability
R607
Resistor,Chip LGE 0RJ5602C477 Contact Us For Availability
R608
Resistor,Chip LGE 0RH3001C422 Contact Us For Availability
R609
Resistor,Chip LGE 0RH1302C422 Contact Us For Availability
R610
Resistor,Chip LGE 0RH9100C622 Contact Us For Availability
R611
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R612
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R614
Resistor,Chip LGE 0RH7501C422 Contact Us For Availability
R616
Resistor,Chip LGE 0RJ7500C477 Contact Us For Availability
R617
Resistor,Chip LGE 0RH1801C422 Contact Us For Availability
R618
Resistor,Chip LGE 0RH3902C422 Contact Us For Availability
R620
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R621
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R622
Resistor,Chip LGE 0RJ1503C678 Contact Us For Availability
R629
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R631
Resistor,Chip LGE 0RH5100D622 Contact Us For Availability
R632
Resistor,Chip LGE 0RH1600D622 Contact Us For Availability
R634
Resistor,Chip LGE 0RJ2200C477 Contact Us For Availability
R635
Resistor,Chip LGE 0RH2401C622 Contact Us For Availability
R636
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R641
RESISTOR,METAL GLAZE LGE 0RJ1501C477 Contact Us For Availability
R642
Resistor,Chip LGE 0RH6800C422 Contact Us For Availability
R704
Resistor,Chip LGE 0RH8202B622 Contact Us For Availability
R712
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R713
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
RC201
Receiver Module LGE EAV61333201 Contact Us For Availability
TM1
Connector,Wafer LGE 6602T25009A Contact Us For Availability
TM2
Connector,Wafer LGE 6602T25009B Contact Us For Availability
X100
Crystal LGE 6212AB2220C Contact Us For Availability
X300
Crystal LGE EAW32919201 Contact Us For Availability
ZD101
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD103
Diode,Zener LGE 0DZPH00098A Contact Us For Availability
ZD601
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
ZD703
Diode,Zener LGE EAH39305801 Contact Us For Availability
× ![]()
