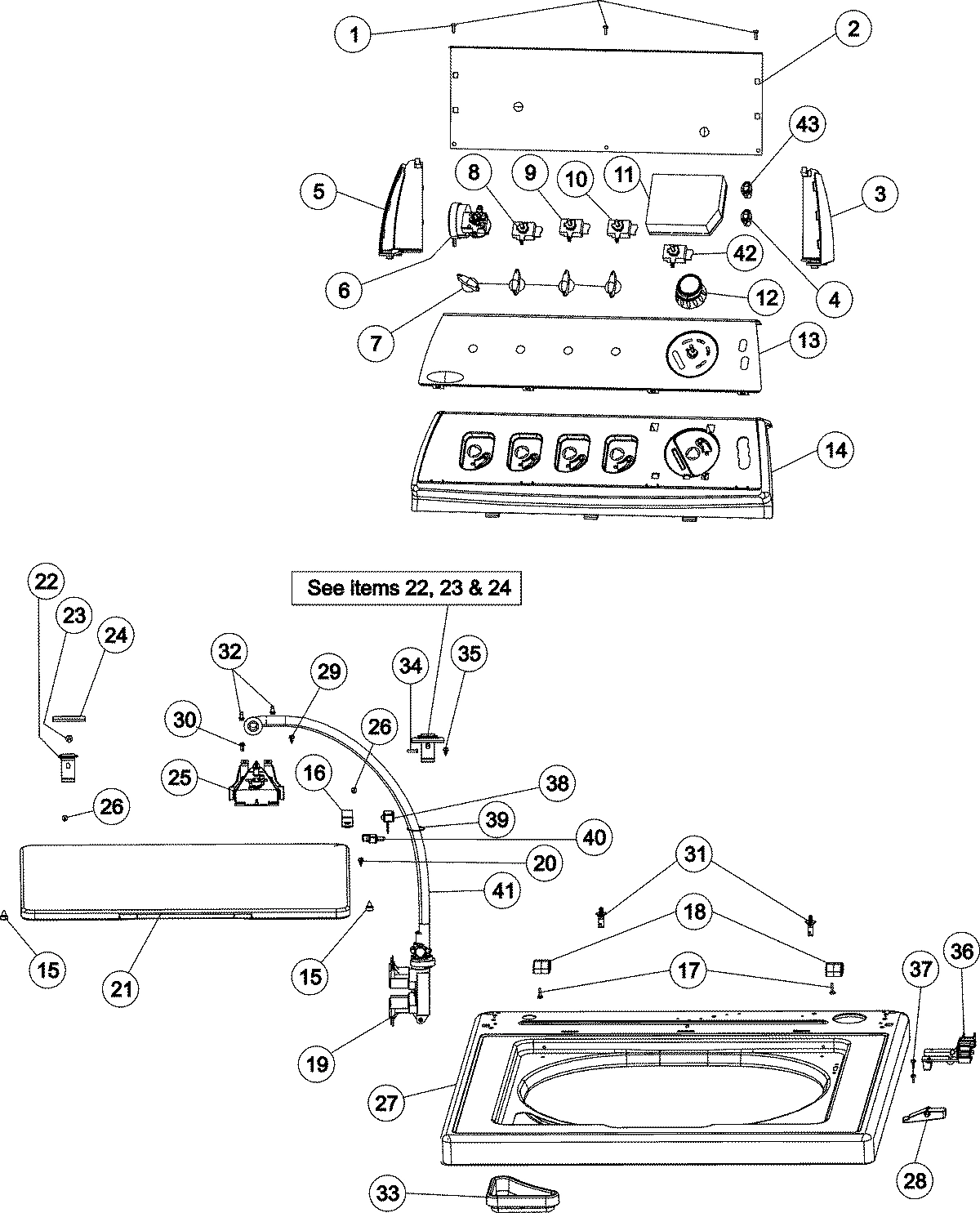

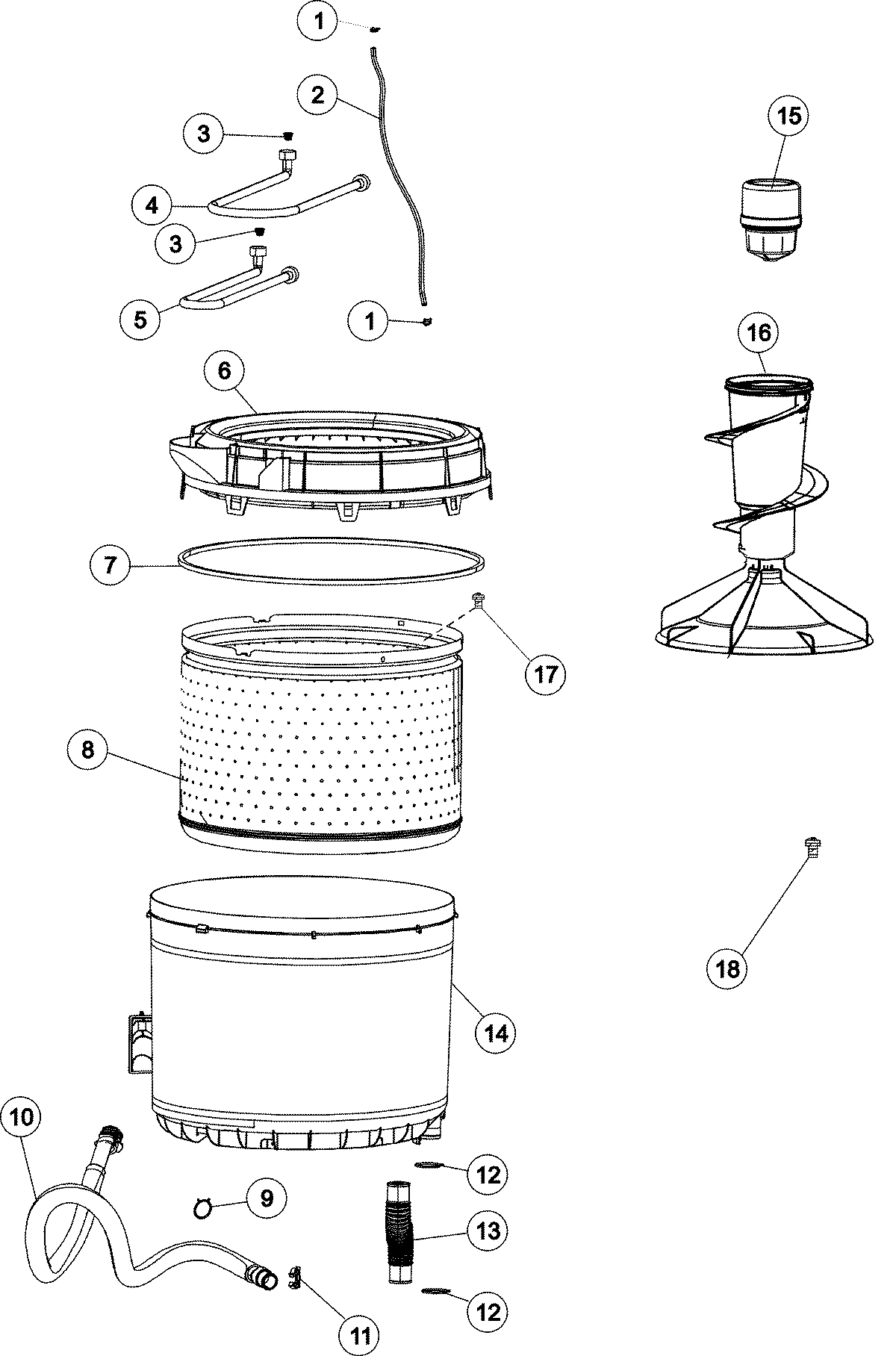

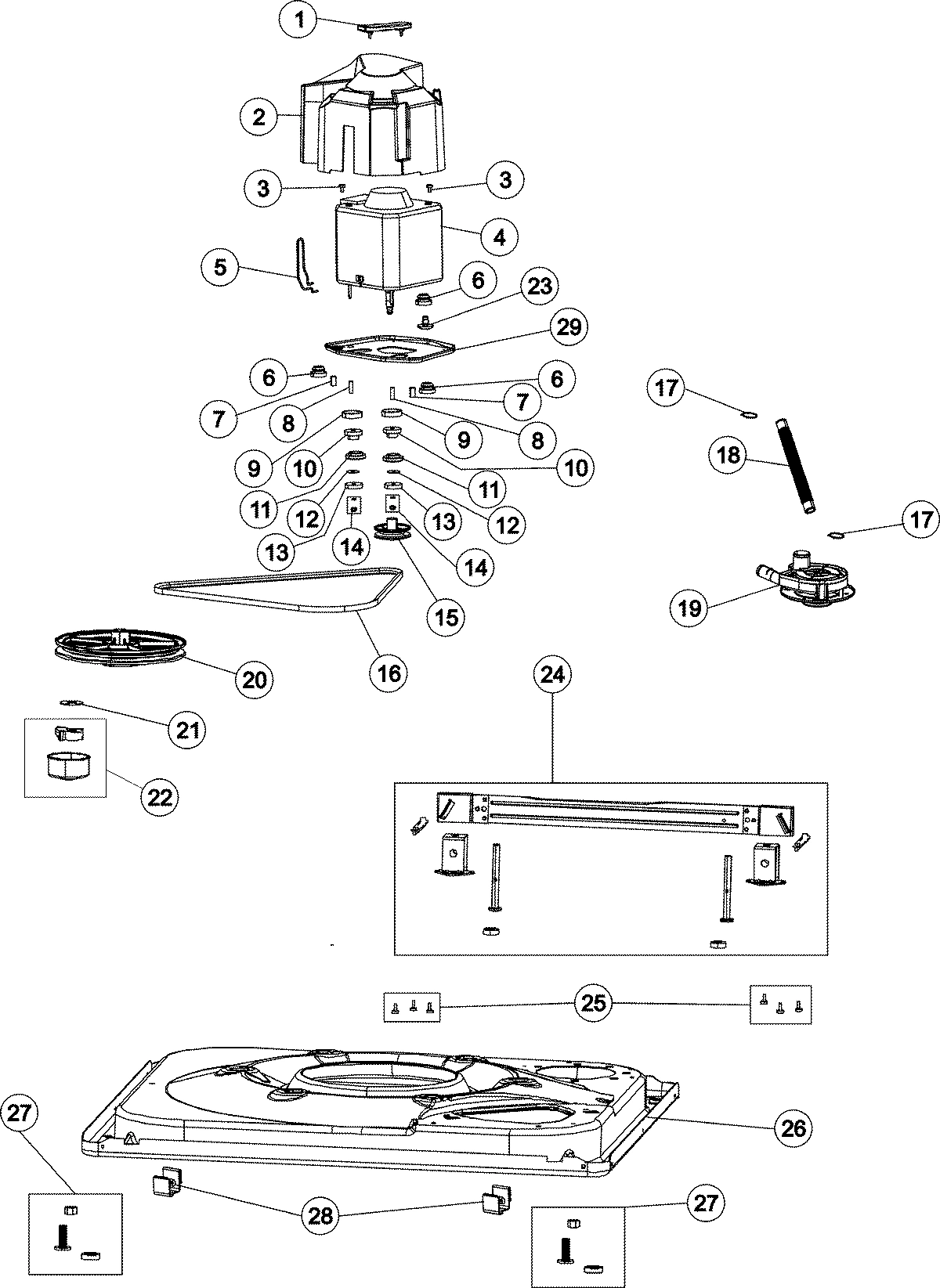

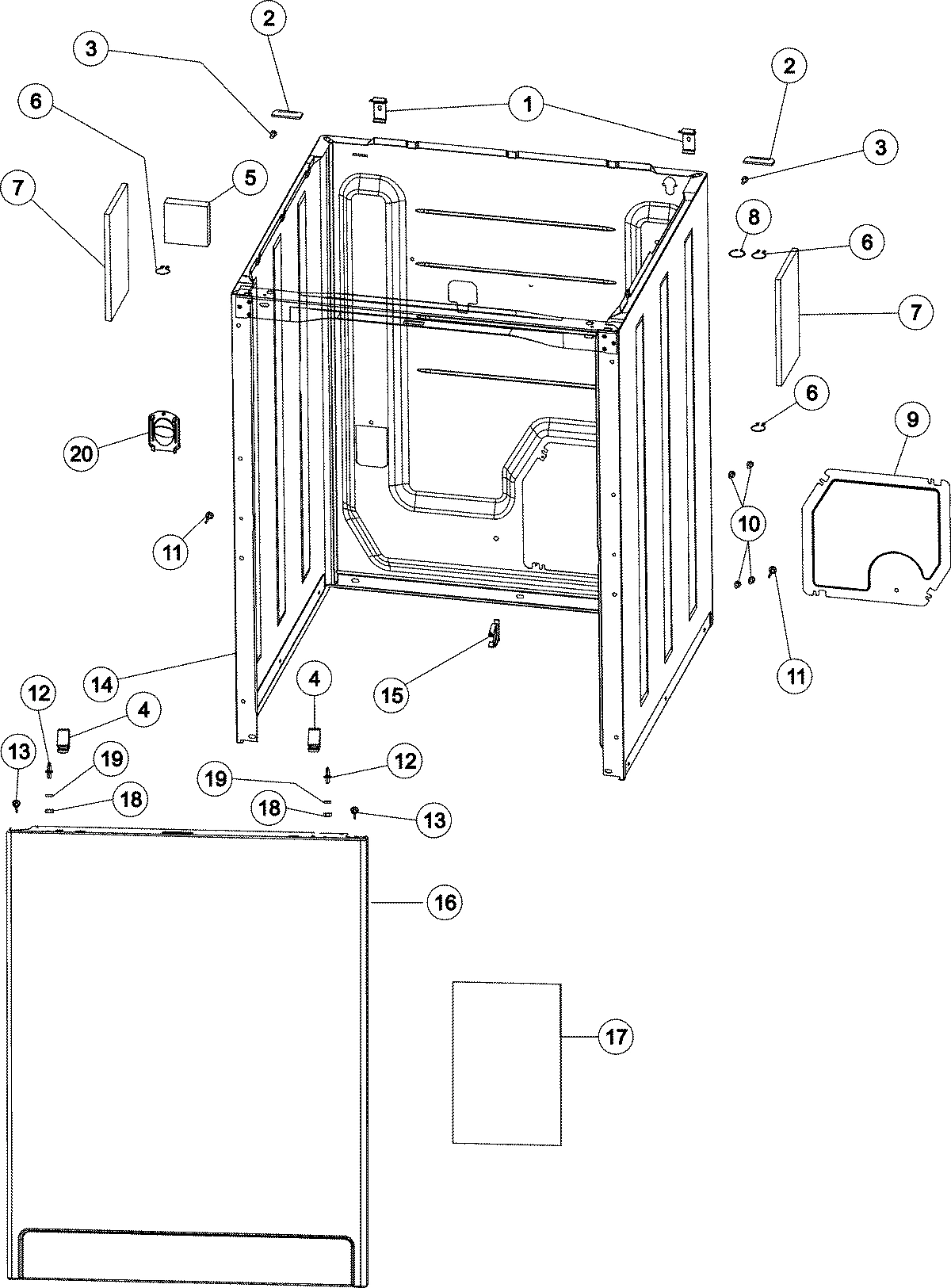

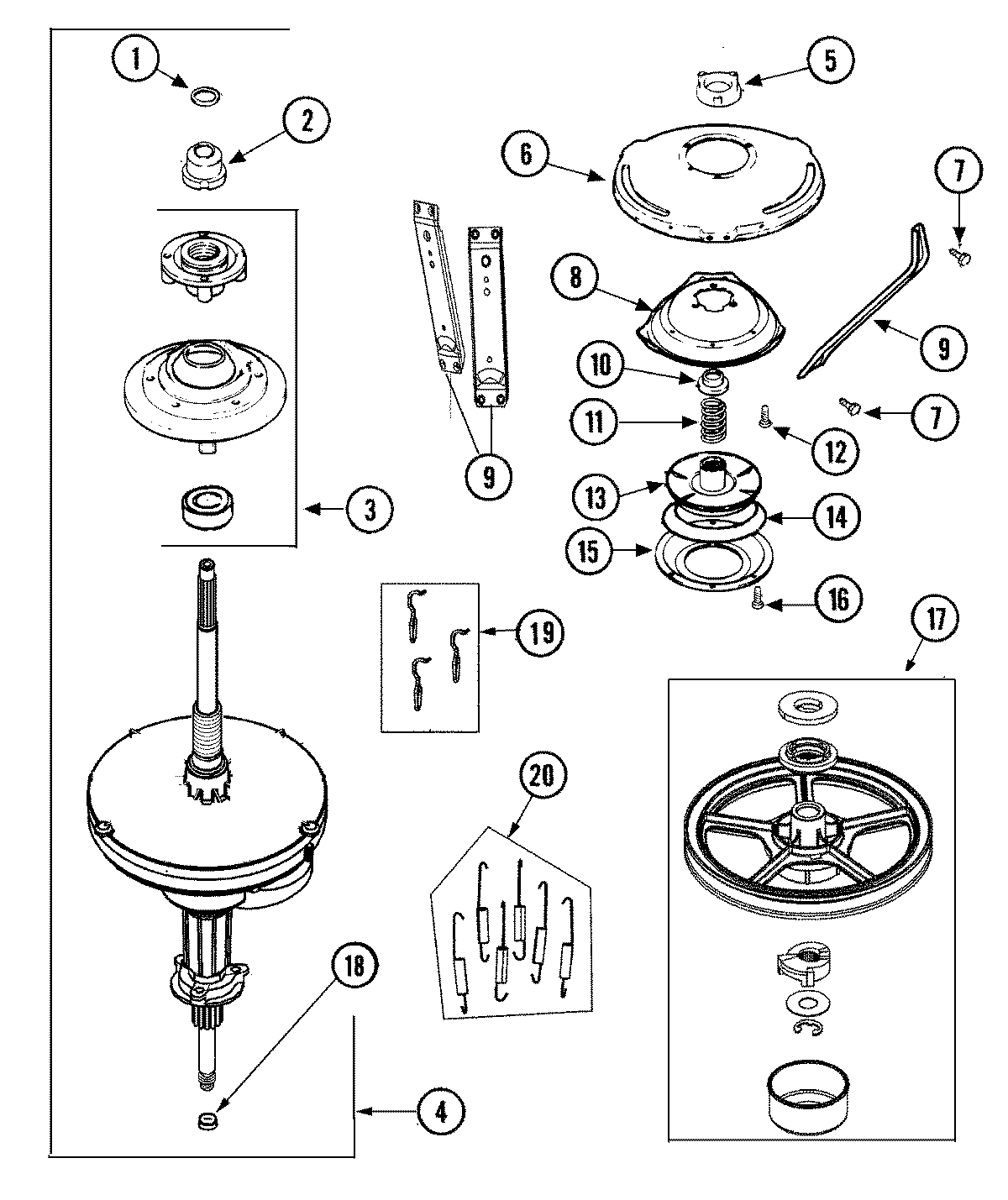

Model Whirlpool NAV8805EWW WASHER – Common Parts &amp; Diagrams

1

CLAMP, PRESSURE SWITCH HOSE WPL 257796 Contact Us For Availability

1

HARNESS, WIRE WPL 21002090 Contact Us For Availability

1

``O`` RING WPL 257941 Contact Us For Availability

2

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

2

SHIELD, REAR (BACK PANEL) WPL 21001527 Contact Us For Availability

2

CORD, POWER WPL 21001592 Contact Us For Availability

2

SEAL NUT ASSEMBLY WPL 21001533 Contact Us For Availability

3

ENDCAP, PANEL (RT-WHT) WPL 21001547 Contact Us For Availability

3

LABEL, ENERGY GUIDE - NAV WPL 21002204 Contact Us For Availability

3

SEAL HUB ASSEMBLY (HT TRAN) WPL 21001868 Contact Us For Availability

4

CLIP, CABINET TOP WPL 257220 Contact Us For Availability

4

DAMPER, SOUND PAD WPL 21001281 Contact Us For Availability

4

HOSE, INLET WPL 350874 Contact Us For Availability

4

SWITCH - ROCKER WPL 37001248 Contact Us For Availability

4

SOUND FOAM KIT WPL 21002229 Contact Us For Availability

4

HT TRANS/SEAL HUB ASSEMBLY WPL 21001867 Contact Us For Availability

5

PAD, FOAM WPL 350706 Contact Us For Availability

5

HOSE, 4` INLET WPL 337891 Contact Us For Availability

5

ENDCAP, PANEL (LT-WHT) WPL 21001546 Contact Us For Availability

5

LEAD ASSEMBLY (DR SWITCH) WPL 21001979 Contact Us For Availability

5

HOUSING/LWR.BEARING ASSY. WPL 21001511 Contact Us For Availability

6

16515 Whirlpool Clip Backorder WPL 16515 $12.46

6

ISOLATOR, MOTOR PLATE WPL 353646 Contact Us For Availability

6

TOP, TUB (PLASTIC) WPL 21001531 Contact Us For Availability

6

SWITCH, PRESSURE WPL Y2201474 Contact Us For Availability

6

HARNESS, WIRE - DOUBLE UPPER WPL 21002096 Contact Us For Availability

6

SUPPORT, TUB WPL 21001518 Contact Us For Availability

7

SPACER WPL 257831 Contact Us For Availability

7

PAD, CABINET WPL 21002011 Contact Us For Availability

7

SEAL, TUB TOP WPL 352328 Contact Us For Availability

7

KNOB ASSEMBLY WPL 37001180 Contact Us For Availability

7

SVC MAN, DOM WASHER WPL 16026502 Contact Us For Availability

7

SCREW 5/16-18X1/2 WPL 21001858 Contact Us For Availability

8

SPACER WPL 257830 Contact Us For Availability

8

S/S SPINNER AS-PAK WPL 12002680 Contact Us For Availability

8

ENCODER, ROTARY 4 POSITION WPL 37001263 Contact Us For Availability

8

MANUAL, USE & CARE WPL 2204617 Contact Us For Availability

8

MANUAL, USE & CARE AMANA WPL 2206664 Contact Us For Availability

8

HOUSING, SUSPENSION WPL 21001163 Contact Us For Availability

9

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

9

WASHER, MOTOR PIVOT WPL 353570 Contact Us For Availability

9

SHIELD, REAR WPL 21001876 Contact Us For Availability

9

ENCODER, ROTARY 2 POSITION WPL 37001265 Contact Us For Availability

9

TECH SHT, DOM WASHER WPL 16026747 Contact Us For Availability

9

BRACE, TUB WPL 21001532 Contact Us For Availability

WP21001872 Whirlpool Hose Backorder WPL WP21001872 $60.95

ISOLATOR, MOTOR WPL 339946 Contact Us For Availability

SCREW WPL 257733 Contact Us For Availability

ENCODER, ROTARY 3 POSITION WPL 21002198 Contact Us For Availability

RETAINER, BRAKE SPRING WPL 352017 Contact Us For Availability

11

WP22002765 Whirlpool Hose Clip Backorder WPL WP22002765 $6.93

11

SLIDE, MOTOR PIVOT WPL 353571 Contact Us For Availability

11

POST, LOCATING WPL 21001829 Contact Us For Availability

WASHER, FLAT WPL 257047 Contact Us For Availability

CLAMP, HOSE WPL 256068 Contact Us For Availability

PIN, LOCATOR WPL 530643 Contact Us For Availability

KNOB ASSEMBLY WPL 37001182 Contact Us For Availability

SCREW,HIGH PERFORMANCE PLASTIC WPL 21001509 Contact Us For Availability

WP21001915 Whirlpool Hose Tub In Stock WPL WP21001915 $19.37

WASHER, MOTOR ISOLATOR WPL 339967 Contact Us For Availability

FACIA AS PACK WPL 12002670 Contact Us For Availability

BRAKE ROTOR & LINING ASM WPL 21002010 Contact Us For Availability

WP21002026 Whirlpool Snubber Assembly In Stock WPL WP21002026 $6.81

WP22002933 Whirlpool Screw Backorder WPL WP22002933 $4.55

WPY707702 Whirlpool Locknut Backorder WPL WPY707702 $4.82

CABINET (WHT) WPL 21001871 Contact Us For Availability

TUB ASSEMBLY (PLASTIC) WPL 353700 Contact Us For Availability

SUPPORT, CONTROL WPL 37001267 Contact Us For Availability

15

FABRIC DISP ASSEMBLY (WHT) WPL 21002006 Contact Us For Availability

15

BUMPER, DOOR (LID) WPL 350581 Contact Us For Availability

15

STATOR, BRAKE WPL 356918 Contact Us For Availability

WP21352320 Whirlpool Washer Drive Belt In Stock WPL WP21352320 $17.32

AUGER ASSEMBLY AS PACK WPL 27001230 Contact Us For Availability

PANEL, FRONT (WHT) WPL 352084 Contact Us For Availability

SWITCH, LID/DOOR SAFETY SPIN WPL 21001148 Contact Us For Availability

17

SCREW, SHOULDER WPL 257967 Contact Us For Availability

NUT, LOCATOR PIN WPL 250224 Contact Us For Availability

SCREW, AGITATOR RETENTION WPL 257948 Contact Us For Availability

HINGE, LID WPL 352044 Contact Us For Availability

SEAL,TRANSMISSION HOUSING(LIP) WPL 352010 Contact Us For Availability

WP21001166 Whirlpool Hook Backorder WPL WP21001166 $4.82

WP35-6780 Whirlpool Water Pump In Stock WPL WP35-6780 $119.24

BUMPER, CABINET WPL 354129 Contact Us For Availability

VALUE, WATER (2T ATC) WPL 21001827 Contact Us For Availability

20

12002213 Whirlpool Washer Pulley and Thrust B In Stock WPL 12002213 $34.02

20

12002773 Whirlpool Spring Kit (Pack of 6) In Stock WPL 12002773 $61.88

20

OUTLET, DRAIN HOSE WPL 21001874 Contact Us For Availability

21

WASHER,1.25ODX.530IDX.032 WPL 352132 Contact Us For Availability

21

LID (WHT) (DOOR) WPL 352026 Contact Us For Availability

22

HINGE, CABINET TOP WPL 352846 Contact Us For Availability

23

SLIDE, FOOT WPL 21001486 Contact Us For Availability

23

SCREW WPL 257732 Contact Us For Availability

24

STABILIZER BAR KIT WPL 21002221 Contact Us For Availability

24

PAD, HINGE WPL 354128 Contact Us For Availability

25

SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability

25

FLUME ASSEMBLY /WATER DIVERTER WPL 21001760 Contact Us For Availability

26

BASE, WASHER WPL 21001893 Contact Us For Availability

26

SCREW WPL 257893 Contact Us For Availability

27

FOOT & PAD ASSEMBLY WPL 25001119 Contact Us For Availability

27

TOP, CABINET (WHT) WPL 21001602 Contact Us For Availability

28

LEVER, LID SWITCH WPL 21001134 Contact Us For Availability

28

CLIP, FRONT PANEL WPL 530120 Contact Us For Availability

29

PLATE, MOTOR WPL 21001366 Contact Us For Availability

29

SCREW WPL 253092 Contact Us For Availability

30

WASHER, ROLLER WPL 31001560 Contact Us For Availability

31

CLIP, PLASTIC SNAP-IN WPL 21001857 Contact Us For Availability

33

DISPENSER, BLEACH WPL 21001597 Contact Us For Availability

34

SCREW WPL 257438 Contact Us For Availability

35

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

36

WP21001135 Whirlpool Housing Backorder WPL WP21001135 $2.34

37

WP3400872 Whirlpool Screw Backorder WPL WP3400872 $4.82

38

ACTUATOR, DOOR SWITCH WPL 430057 Contact Us For Availability

39

CLIP, WIRING HARNESS WPL 257430 Contact Us For Availability

40

PIN, HINGE WPL 352045 Contact Us For Availability

41

12002749 Whirlpool Flume Hose Kit Backorder WPL 12002749 $18.28

41

HOSE, FLUME/DIVERTER (RUBBER) WPL 352378 Contact Us For Availability

42

ENCODER, ROTARY 32 POSITION WPL 37001266 Contact Us For Availability

43

SWITCH-ROCKER MOMENTARY WPL 21002179 Contact Us For Availability

NI

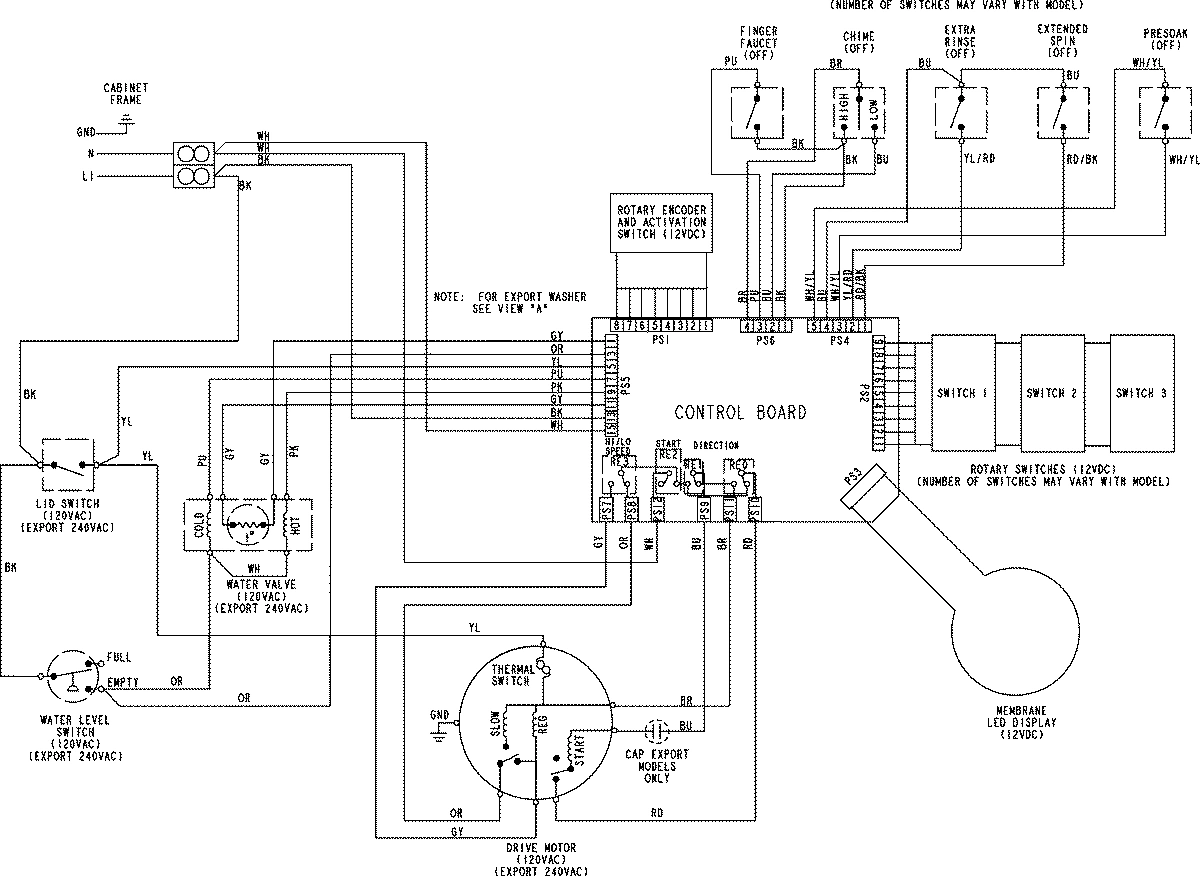

WIRING INFORMATION WPL 15003788 Contact Us For Availability
