Model LG N2R1DD2 Network Storage – Common Parts & Diagrams

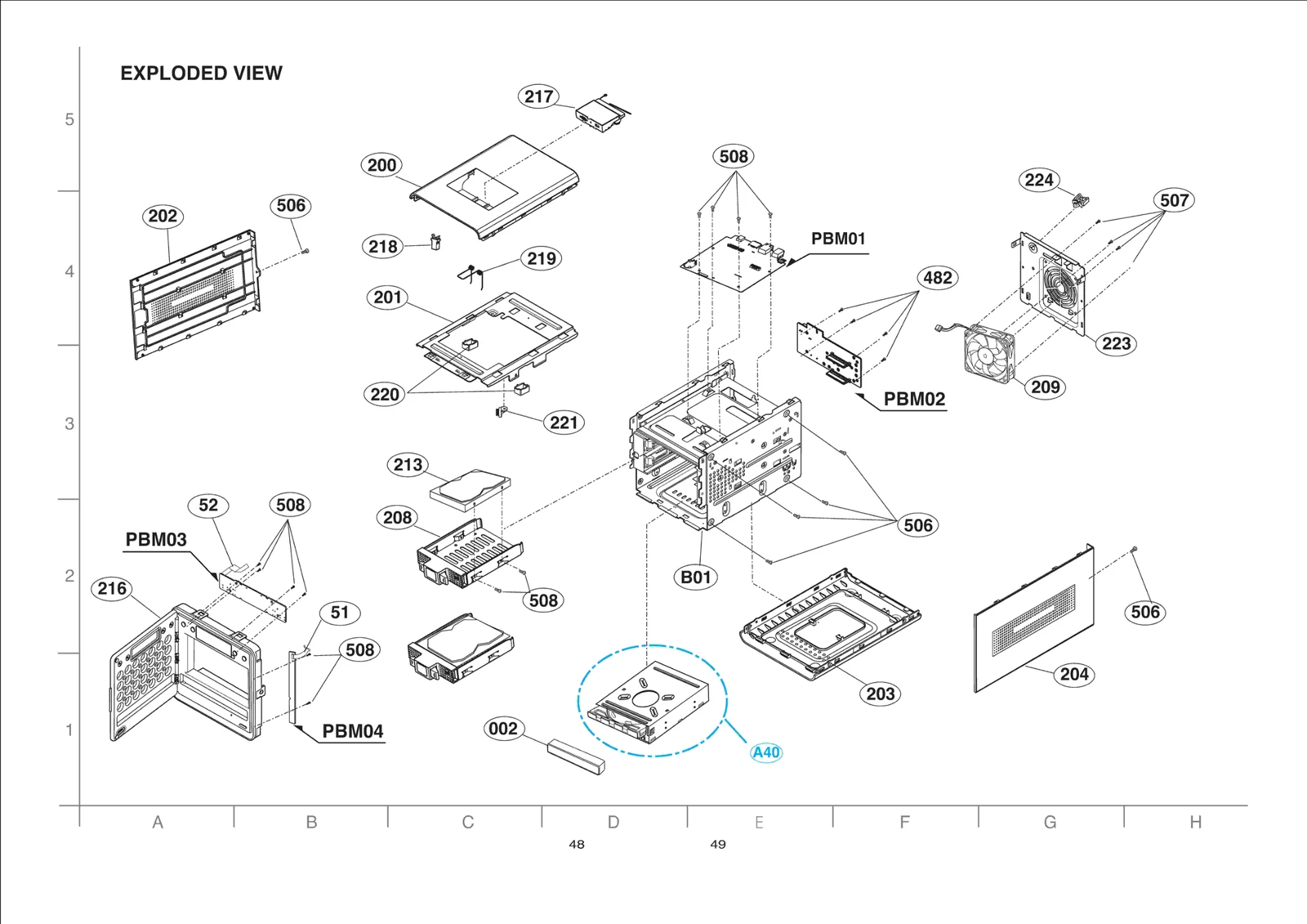

Diagram 0
Diagram 1
Common parts from model LG N2R1DD2 Network Storage
001
Case Assembly LGE ABQ72911102 Contact Us For Availability
002
Cover Assembly LGE ACQ73708602 Contact Us For Availability
004
Case LGE 3090H-1046D Contact Us For Availability
005
CLAMP ASSEMBLY LGE 4861H-1002A Contact Us For Availability
006
Case Assembly LGE ABQ62359902 Contact Us For Availability
007
Tray LGE MJS36955410 Contact Us For Availability
008
Belt LGE 4400H-1014D Contact Us For Availability
008
Belt LGE MAS51174302 Contact Us For Availability
008
Belt LGE MAS51174301 Contact Us For Availability
009
PULLEY LGE 4560H-1018A Contact Us For Availability
010
GEAR LGE 4470H-1164A Contact Us For Availability
011
GEAR LGE 4470H-1163A Contact Us For Availability
012
LEVER LGE 4510H-1070A Contact Us For Availability
013
Motor,DC LGE 4680HP2010A Contact Us For Availability
013
Motor,DC LGE EAU41741701 Contact Us For Availability
014
Base LGE MAM39408201 Contact Us For Availability
015
Base LGE MAM36955311 Contact Us For Availability
016
GUIDE LGE 4974H-1117A Contact Us For Availability
020
Damper LGE MCQ57032202 Contact Us For Availability
020
Damper LGE MCQ57032201 Contact Us For Availability
020
Damper LGE MCQ57032203 Contact Us For Availability
021
Damper LGE MCQ57032102 Contact Us For Availability
021
Damper LGE MCQ57032101 Contact Us For Availability
021
Damper LGE 5040H-1106E Contact Us For Availability
027
Spring LGE 4970H-1136A Contact Us For Availability
028
SHAFT LGE 4370H-1140A Contact Us For Availability
031
Bracket LGE MAZ38992301 Contact Us For Availability
032
Motor, DC Stepping LGE EAU39283802 Contact Us For Availability
032
Motor, DC Stepping LGE EAU38912101 Contact Us For Availability
035
COVER LGE 3550H-1116A Contact Us For Availability
050
Base LGE MAM39861305 Contact Us For Availability
51
Cable,FFC LGE EAD60846201 Contact Us For Availability
52
Cable,FFC LGE EAD60846301 Contact Us For Availability
57
Cable,Assembly LGE EAD60846501 Contact Us For Availability
200
Cover LGE MCK62189001 Contact Us For Availability
201
Chassis LGE MBS61843001 Contact Us For Availability
202
Cover Assembly LGE ACQ74993401 Contact Us For Availability
203
Cover Assembly LGE ACQ74993402 Contact Us For Availability
204
Cover Assembly LGE ACQ73709401 Contact Us For Availability
208
Lever Assembly LGE AFF72909702 Contact Us For Availability
209
Fan Module LGE EAL60659801 Contact Us For Availability
213
HDD LGE EAZ57735605 Contact Us For Availability
213
HDD LGE EAZ57735612 Contact Us For Availability
213
HDD LGE EAZ57735610 Contact Us For Availability
216
Cover Assembly LGE ACQ73708701 Contact Us For Availability
217
Cover Assembly LGE ACQ74528501 Contact Us For Availability
218
Locker,Lever LGE MFG61866801 Contact Us For Availability
219
Spring LGE MHY61858901 Contact Us For Availability
220
Guide LGE MEA61860501 Contact Us For Availability
221
Gear LGE MDT61844901 Contact Us For Availability
223
Chassis LGE MBS61843201 Contact Us For Availability
224
Holder LGE MEG61893501 Contact Us For Availability
225
Power Cord LGE EAD59495601 Contact Us For Availability
226
Cable,Assembly LGE EAD59551401 Contact Us For Availability
228
Title LGE SAC34174513 Contact Us For Availability
229
Adapters LGE EAY60798601 Contact Us For Availability
430
Screw,Customized LGE 1SZZH-1003H Contact Us For Availability
434
Screw,Customized LGE 1SZZH-1007E Contact Us For Availability
481
Screw,Customized LGE 1SZZH-1004C Contact Us For Availability
482
SCREW,DRAWING LGE 1SZZH-1212A Contact Us For Availability
484
SCREW,DRAWING LGE 1SZZH-1214A Contact Us For Availability
500
Screw,Customized LGE FAB30056301 Contact Us For Availability
501
Screw,Customized LGE FAB30107601 Contact Us For Availability
507
Screw,Taptite LGE FAB30260001 Contact Us For Availability
508
Screw,Tapping LGE FAB30260101 Contact Us For Availability
802
Manual,Installation LGE 3828HN1004K Contact Us For Availability
803
CARD,REGISTRATION LGE 3840HR1010A Contact Us For Availability
804
Card,Warranty LGE 3840HW1023C Contact Us For Availability
805
Card,Information LGE MBM31885031 Contact Us For Availability
806
Box LGE MAY62293701 Contact Us For Availability
807
Bag LGE MAF61907201 Contact Us For Availability
808
Packing LGE MFZ62058601 Contact Us For Availability
A01
Mechanism Assembly LGE AFP73046301 Contact Us For Availability
A40
DVD ROM Driver Assembly LGE EAZ60674502 Contact Us For Availability
B01
Base Assembly LGE AAN72927502 Contact Us For Availability
BZ701
Buzzer,Piezo LGE EAB32746101 Contact Us For Availability
C140
Capacitor,Ceramic,Chip LGE 0CK103BF56A Contact Us For Availability
C209
Capacitor,Ceramic,Chip LGE 0CK683BF5CA Contact Us For Availability
C217
Capacitor,Ceramic,Chip LGE 0CC100BK41A Contact Us For Availability
C310
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C332
Capacitor,Ceramic,Chip LGE 0CK473BD56A Contact Us For Availability
C333
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C368
Capacitor,Ceramic,Chip LGE 0CK226DC67A Contact Us For Availability
C372
Capacitor,Ceramic,Chip LGE 0CK104BF94A Contact Us For Availability
C401
Capacitor,Ceramic,Chip LGE 0CK475CCG7A Contact Us For Availability
C410
Capacitor,Ceramic,Chip LGE 0CK105CC5CA Contact Us For Availability
C492
Capacitor,Ceramic,Chip LGE 0CK220BK4CA Contact Us For Availability
C507
Capacitor,Ceramic,Chip LGE 0CC3R9BKF1A Contact Us For Availability
C511
Capacitor,Ceramic,Chip LGE EAE39040201 Contact Us For Availability
C513
Capacitor,Ceramic,Chip LGE 0CK476FFK7A Contact Us For Availability
C514
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C516
Capacitor,Ceramic,Chip LGE 0CC150BK41A Contact Us For Availability
C516
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C517
Capacitor,Ceramic,Chip LGE 0CK476FC66A Contact Us For Availability
C518
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C537
Capacitor,AL,Chip LGE 0CH8476F621 Contact Us For Availability
C546
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C555
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C602
Capacitor,Ceramic,Chip LGE 0CK106FF94A Contact Us For Availability
C603
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C606
CAPACITOR,FIXED CERA LGE 0CK106EFG7A Contact Us For Availability
C614
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C615
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C705
Capacitor,Ceramic,Chip LGE 0CK102BK5CA Contact Us For Availability
C706
Capacitor,AL,Chip LGE DCH8107F621 Contact Us For Availability
C706
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
C720
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C802
Capacitor,Ceramic,Chip LGE 0CC101BK41A Contact Us For Availability
C802
Capacitor,Ceramic,Chip LGE 0CK101BK4CA Contact Us For Availability
C805
Capacitor,Ceramic,Chip LGE 0CK470BK4BA Contact Us For Availability
C807
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C811
Capacitor,Ceramic,Chip LGE 0CK152BK5CA Contact Us For Availability
C813
Capacitor,Ceramic,Chip LGE 0CK821BK56A Contact Us For Availability
C904
Capacitor,Ceramic,Chip LGE 0CK106DC66A Contact Us For Availability
C904
Capacitor,Ceramic,Chip LGE 0CK153BF56A Contact Us For Availability
C907
Capacitor,Ceramic,Chip LGE 0CK104BD56A Contact Us For Availability
C912
Capacitor,Ceramic,Chip LGE 0CK331BK56A Contact Us For Availability
C918
Capacitor,Ceramic,Chip LGE 0CK681BK56A Contact Us For Availability
CP501
Capacitor,AL,Chip LGE EAE60988201 Contact Us For Availability
CP502
Capacitor,AL,Chip LGE EAE60988301 Contact Us For Availability
IC101
IC,Memory Controller LGE EAN58585302 Contact Us For Availability
IC102
IC,SDRAM LGE EAN58639602 Contact Us For Availability
IC201
IC,Digital Signal Processors LGE EAN54942703 Contact Us For Availability
IC201
IC,NAND Flash Memory LGE EAN60762401 Contact Us For Availability
IC202
IC,Clock Generator LGE EAN58643201 Contact Us For Availability
IC401
Sensor,Temperature LGE EBD60664101 Contact Us For Availability
IC401
IC,TTL LGE EAN60792401 Contact Us For Availability
IC402
IC,Receiver LGE EAN58585101 Contact Us For Availability
IC501
IC,DC,DC Converter LGE EAN60793101 Contact Us For Availability
IC502
FET LGE EBK60707901 Contact Us For Availability
IC502
IC,Data Controller LGE EAN58587002 Contact Us For Availability
IC503
FET LGE EBK60707801 Contact Us For Availability
IC505
IC,LDO Voltage Regulator LGE 0IPMG78419D Contact Us For Availability
IC506
Fuse,Non Time Delay LGE EAF58239501 Contact Us For Availability
IC601
IC,Motor Driver LGE EAN38787803 Contact Us For Availability
IC602
IC,Bus Controller LGE EAN32038601 Contact Us For Availability
IC604
IC,Analog Switch LGE EAN58667701 Contact Us For Availability
IC604
IC,Analog Switch LGE EAN60792801 Contact Us For Availability
IC703
IC,Microcontrollers LGE EAN33391102 Contact Us For Availability
IC710
IC,TTL LGE EAN60792601 Contact Us For Availability
IC713
IC,TTL LGE EAN60792501 Contact Us For Availability
IC901
IC,LDO Voltage Regul LGE EAN33989101 Contact Us For Availability
IC901
IC,LDO Voltage Regul LGE 0IPMG78417A Contact Us For Availability
IC902
IC,DC,DC Converter LGE EAN51398405 Contact Us For Availability
IC903
IC,Power Generator LGE EAN58591402 Contact Us For Availability
IC904
IC,DC,DC Converter LGE EAN51398404 Contact Us For Availability
IC906
IC,Line Driver LGE EAN58593701 Contact Us For Availability
IC907
IC,DC,DC Converter LGE EAN51398403 Contact Us For Availability
IC1004
IC,LDO Voltage Regulator LGE EAN60814201 Contact Us For Availability
JK1
Jack,DC Power LGE EAG60926701 Contact Us For Availability
L402
Filter,Bead LGE 6200JB8011H Contact Us For Availability
L502
Inductor,Wire Wound,Chip LGE EAP60909301 Contact Us For Availability
L503
Filter,Bead LGE EAM60876601 Contact Us For Availability
L602
FILTER,BEAD,CHIP LGE SFBH0000909 Contact Us For Availability
L607
Filter,Bead LGE 6200J000179 Contact Us For Availability
L904
Inductor,Wire Wound,Chip LGE EAP58113901 Contact Us For Availability
LED101
LED,Chip LGE EAV36824801 Contact Us For Availability
LED202
LED,Chip LGE 0DLRH0378AA Contact Us For Availability
PBF00
PCB Assembly,Front LGE EBR63984001 Contact Us For Availability
PBM00
PCB Assembly,Main LGE EBR63983601 Contact Us For Availability
PBM01
PCB Assembly,Main LGE EBR62362301 Contact Us For Availability
PBM01
Auto Insert PCB Assembly LGE EBR62362501 Contact Us For Availability
PBM02
PCB Assembly,Main LGE EBR62362801 Contact Us For Availability
PBM03
PCB Assembly,Main LGE EBR62364001 Contact Us For Availability
PBM04
PCB Assembly,Main LGE EBR62364201 Contact Us For Availability
Q402
TR,Bipolar LGE 0TR113209AB Contact Us For Availability
Q651
TR,Array LGE EBK56604801 Contact Us For Availability
Q651
TR,Array LGE 0TRRH80017A Contact Us For Availability
R103
Resistor,Chip LGE 0RJ0512C478 Contact Us For Availability
R111
Resistor,Chip LGE 0RH0512C622 Contact Us For Availability
R211
Resistor,Chip LGE 0RJ5100C678 Contact Us For Availability
R218
Resistor,Chip LGE 0RJ1602C678 Contact Us For Availability
R221
Resistor,Chip LGE 0RJ4991C478 Contact Us For Availability
R372
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R401
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R419
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R492
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R501
Resistor,Chip LGE 0RJ4992C478 Contact Us For Availability
R502
Resistor,Chip LGE 0RJ2613C478 Contact Us For Availability
R506
Resistor,Chip LGE EBC60966801 Contact Us For Availability
R509
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R511
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R513
Resistor,Chip LGE EBC60966701 Contact Us For Availability
R515
Resistor,Chip LGE EBC31026001 Contact Us For Availability
R521
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R539
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R552
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R602
Resistor,Chip LGE 0RJ2431C478 Contact Us For Availability
R610
Resistor,Chip LGE 0RJ5103C678 Contact Us For Availability
R631
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R651
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R710
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R732
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R733
Resistor,Chip LGE 0RH0512D622 Contact Us For Availability
R801
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R802
Resistor,Chip LGE 0RH8202B622 Contact Us For Availability
R803
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R805
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R809
Resistor,Chip LGE 0RJ3902C678 Contact Us For Availability
R812
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R813
Resistor,Chip LGE 0RJ1503C678 Contact Us For Availability
R903
Resistor,Chip LGE 0RJ6201C478 Contact Us For Availability
R903
Resistor,Chip LGE 0RJ0392C478 Contact Us For Availability
R904
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R905
Resistor,Chip LGE 0RJ1601C478 Contact Us For Availability
R910
Resistor,Chip LGE 0RH0102E622 Contact Us For Availability
R912
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R918
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R919
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R923
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R934
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R1009
Resistor,Chip LGE 0RJ5602C678 Contact Us For Availability
RA202
RESISTOR,DRAWING LGE 0RR0472C675 Contact Us For Availability
RC502
Resistor,Chip LGE EBC60966901 Contact Us For Availability
SW104
SWITCH,TACT LGE 6600R00004A Contact Us For Availability
TR701
TR,Bipolar LGE 0TR178109AB Contact Us For Availability
X202
Crystal LGE EAW58239601 Contact Us For Availability
X331
Crystal LGE EAW36251601 Contact Us For Availability
X331
Crystal LGE EAW36663701 Contact Us For Availability
X501
Crystal LGE EAW50208002 Contact Us For Availability
X601
Crystal LGE EAW50208003 Contact Us For Availability
ZD401
Diode,TVS LGE EAH58242901 Contact Us For Availability
ZD501
Diode,Schottky LGE EAH60703202 Contact Us For Availability
ZD906
Diode,TVS LGE EAH60689303 Contact Us For Availability
× ![]()
Login and Registration Form
