Model LG N2311AZ-BF – Common Parts & Diagrams

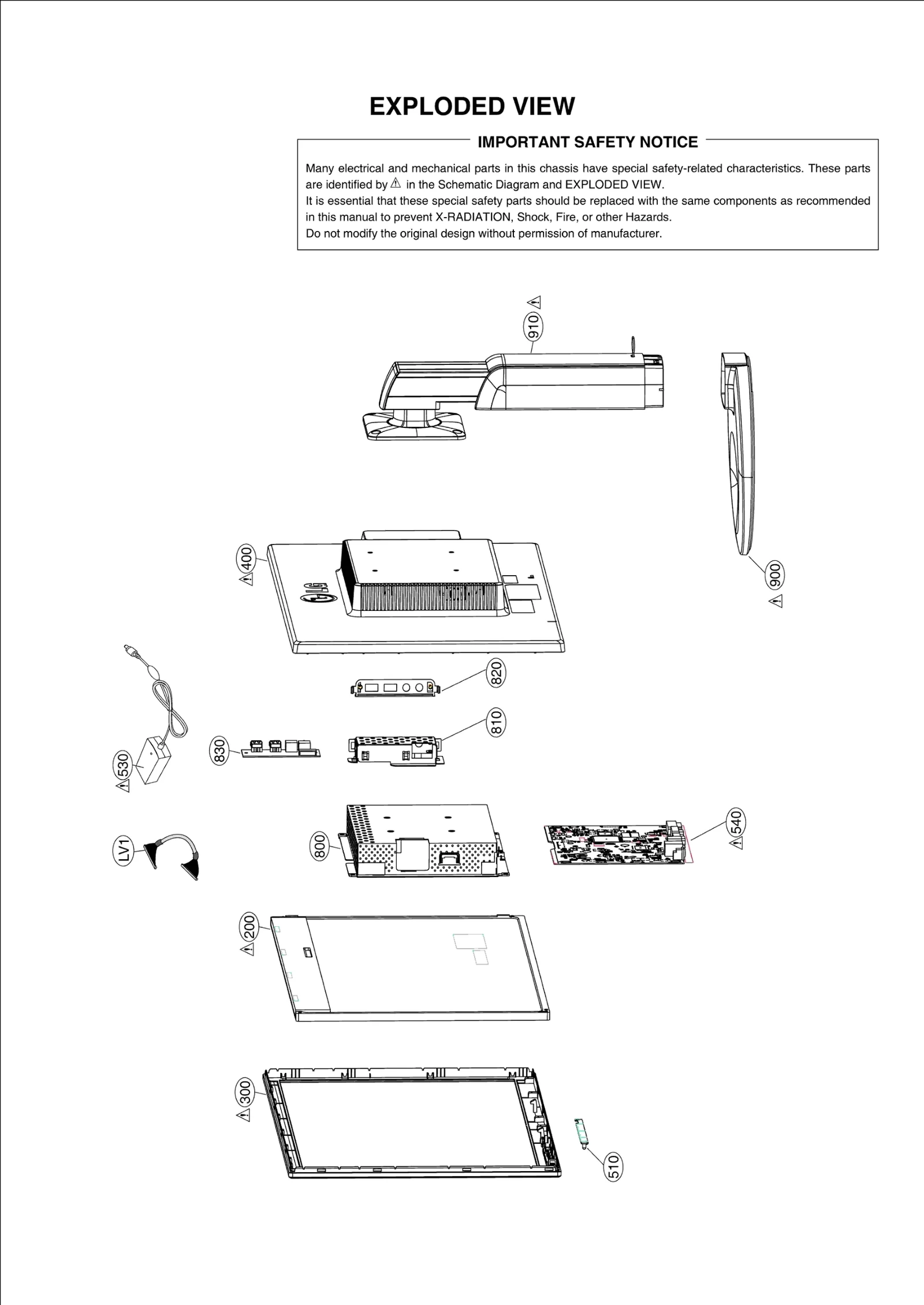

Diagram 0
Diagram 1
Common parts from model LG N2311AZ-BF
200
LCD,Module-TFT LGE EAJ62071601 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85973001 Contact Us For Availability
480
Power Cord,Detach LGE 6410VUH007B Contact Us For Availability
490
Cable,Assembly LGE EAD57734001 Contact Us For Availability
510
PCB Assembly LGE EBR72346202 Contact Us For Availability
530
Adapters LGE EAY61231403 Contact Us For Availability
540
BPR Total Assembly LGE EBU61371505 Contact Us For Availability
800
DMS Chassis Assembly LGE EBT61716413 Contact Us For Availability
810
DMS Chassis Assembly LGE EBT62113901 Contact Us For Availability
820
Cover,Rear LGE MCK67155101 Contact Us For Availability
830
Frame Assembly LGE ADV74072204 Contact Us For Availability
900
Base Assembly LGE AAN73910102 Contact Us For Availability
910
Base Assembly LGE AAN73069032 Contact Us For Availability
A4
Card LGE MBM63077607 Contact Us For Availability
C1
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C3
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C102
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C103
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C111
CAPACITOR,FIXED CERA LGE 0CK271CK46A Contact Us For Availability
C115
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C130
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C135
Capacitor,Ceramic,Ch LGE 0CC390BK4AA Contact Us For Availability
C140
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C197
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C201
Capacitor,AL,Chip LGE EAE62301701 Contact Us For Availability
C206
Capacitor,Ceramic,Chip LGE EAE61103401 Contact Us For Availability
C207
Capacitor,Ceramic,Ch LGE 0CH2102K566 Contact Us For Availability
C227
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C275
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C277
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C325
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C339
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C383
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C417
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C466
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C483
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C489
Capacitor,Ceramic,Chip LGE 0CK152BKG6A Contact Us For Availability
C514
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C519
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C528
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C529
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C532
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C535
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C544
Capacitor,AL,Chip LGE EAE60171702 Contact Us For Availability
C578
Capacitor,Ceramic,Chip LGE 0CK683CK56A Contact Us For Availability
C584
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C595
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C597
Capacitor,Ceramic,Chip LGE EAE60663801 Contact Us For Availability
C607
Capacitor,AL,Chip LGE EAE61782302 Contact Us For Availability
C611
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
D110
DIODE,SWITCHING LGE 0DD226239AA Contact Us For Availability
D111
DIODE,RECTIFIER LGE 0DR340009AA Contact Us For Availability
IC104
IC,MEMORIES LGE 0ISG240860B Contact Us For Availability
IC104
IC,EEPROM LGE 0IMMR00203A Contact Us For Availability
IC105
IC,LED Driver LGE EAN60866801 Contact Us For Availability
IC106
IC,Video Processors LGE EAN35997702 Contact Us For Availability
IC109
S/W,Firmware LGE SAA36006001 Contact Us For Availability
IC112
IC,PLL/Synthesizer LGE 0IMCRIC001B Contact Us For Availability
IC114
IC,Audio Codec LGE EAN36135105 Contact Us For Availability
IC117
IC,LDO Voltage Regulator LGE EAN61573601 Contact Us For Availability
IC121
IC,DC,DC Converter LGE EAN52430801 Contact Us For Availability
IC122
IC,DC,DC Converter LGE EAN61950702 Contact Us For Availability
IC124
IC,Microprocessors LGE EAN61956601 Contact Us For Availability
IC125
IC,DC,DC Converter LGE EAN50480501 Contact Us For Availability
IC128
IC,Audio Amplifier LGE EAN48899201 Contact Us For Availability
JK101
CONNECTOR (CIRC),D-S LGE 6630TGA004F Contact Us For Availability
L124
Inductor,Wire Wound,Chip LGE EAP61007301 Contact Us For Availability
L146
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L158
Inductor,Wire Wound,Chip LGE EAP38274503 Contact Us For Availability
L163
Inductor,Wire Wound,Chip LGE EAP38274505 Contact Us For Availability
LD102
LED LGE 0DLBE0158AA Contact Us For Availability
LV1
Cable,FFC LGE EAD61217859 Contact Us For Availability
LV2
Harness,Single LGE EAD61426313 Contact Us For Availability
P111
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
Q112
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q112
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
R2
Resistor,Chip LGE EBC61939001 Contact Us For Availability
R3
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R3
Resistor,Chip LGE 0RJ3000C478 Contact Us For Availability
R100
Resistor,Chip LGE 0RJ0822C478 Contact Us For Availability
R102
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R103
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R104
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R127
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R139
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R146
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R168
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R176
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R189
Resistor,Chip LGE 0RJ0221J688 Contact Us For Availability
R197
Resistor,Chip LGE EBC00711602 Contact Us For Availability
R199
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R200
RESISTOR,METAL GLAZE LGE 0RJ1302E472 Contact Us For Availability
R203
Resistor,Chip LGE 0RH7501D422 Contact Us For Availability
R205
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R218
Resistor,Chip LGE 0RJ0100J488 Contact Us For Availability
R236
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R240
RESISTOR CHIP 470K 1/10W 5 D. LGE 0RH4703D622 Contact Us For Availability
R246
Resistor,Chip LGE 0RJ1400D477 Contact Us For Availability
R248
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R254
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R262
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R268
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R275
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R280
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R291
Resistor,Chip LGE 0RJ2003C478 Contact Us For Availability
R301
Resistor,Chip LGE 0RJ0642D477 Contact Us For Availability
R303
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R309
Resistor,Chip LGE 0RJ0392C478 Contact Us For Availability
R320
Resistor,Chip LGE EBC41415401 Contact Us For Availability
R329
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R330
Resistor,Chip LGE EBC41410301 Contact Us For Availability
R334
Resistor,Chip LGE EBC61939101 Contact Us For Availability
R340
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R342
Resistor,Chip LGE EBC33834501 Contact Us For Availability
R346
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R347
Resistor,Chip LGE 0RJ4750D477 Contact Us For Availability
R387
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R409
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R415
Resistor,Chip LGE 0RJ2402D677 Contact Us For Availability
R421
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R428
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R429
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R431
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R432
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R448
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R470
Resistor,Chip LGE EBC61676401 Contact Us For Availability
R479
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R485
Resistor,Chip LGE EBC60966801 Contact Us For Availability
R532
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R534
Resistor,Chip LGE EBC61939201 Contact Us For Availability
R539
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R552
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R567
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R571
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R576
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R578
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R581
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R604
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R606
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
X102
Crystal LGE 6212AB2015L Contact Us For Availability
ZD102
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
