Model LG N1T1DD1 Network Storage – Common Parts & Diagrams

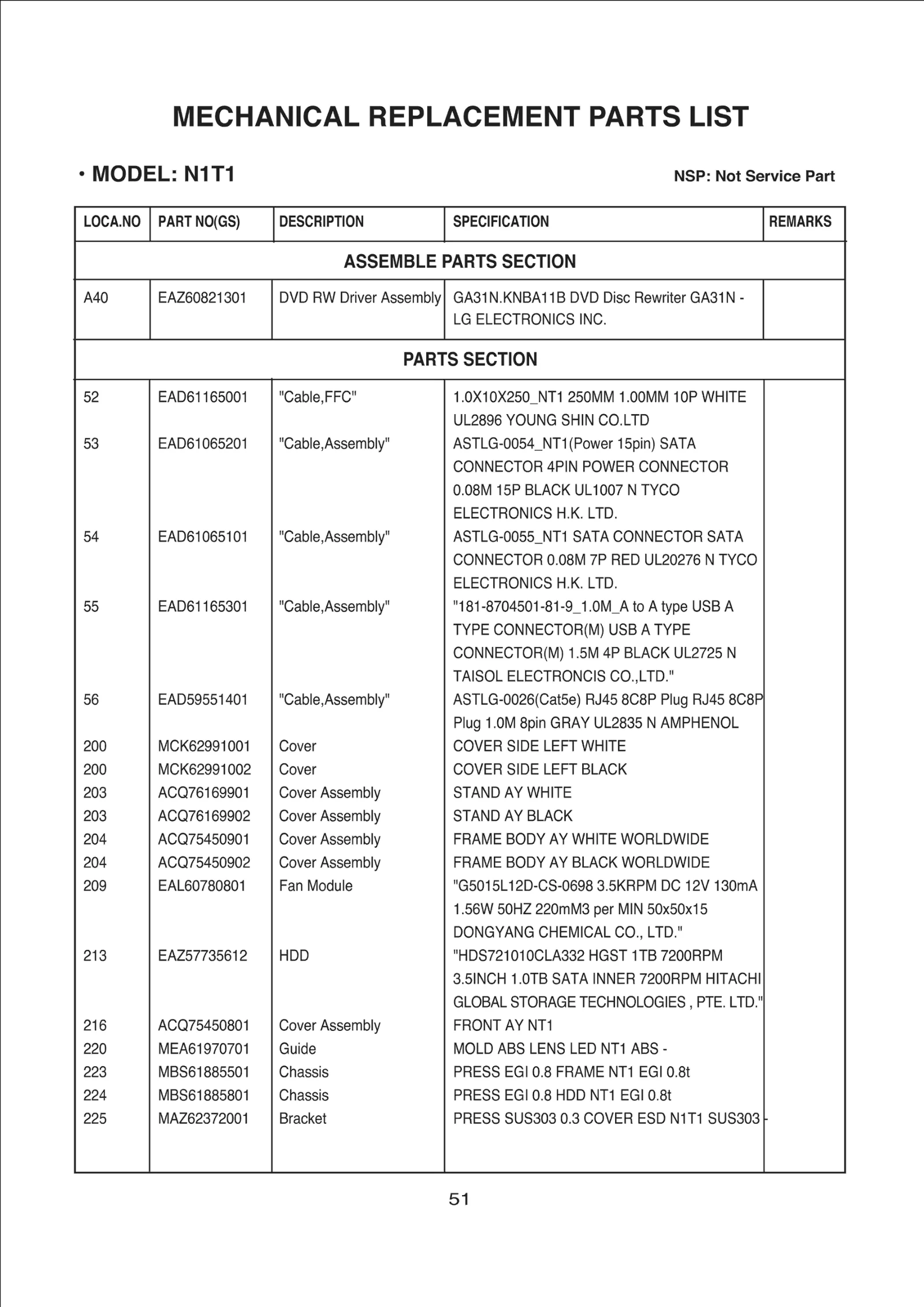

Diagram 0
Diagram 1
Common parts from model LG N1T1DD1 Network Storage
052
Cable,FFC LGE EAD61165001 Contact Us For Availability
053
Cable,Assembly LGE EAD61065201 Contact Us For Availability
054
Cable,Assembly LGE EAD61065101 Contact Us For Availability
055
Cable,Assembly LGE EAD61165301 Contact Us For Availability
056
Cable,Assembly LGE EAD59551401 Contact Us For Availability
200
Cover LGE MCK62991001 Contact Us For Availability
203
Cover Assembly LGE ACQ76169901 Contact Us For Availability
204
Cover Assembly LGE ACQ75450901 Contact Us For Availability
209
Fan Module LGE EAL60780801 Contact Us For Availability
213
HDD LGE EAZ57735612 Contact Us For Availability
213
HDD LGE EAZ60666808 Contact Us For Availability
216
Cover Assembly LGE ACQ75450801 Contact Us For Availability
220
Guide LGE MEA61970701 Contact Us For Availability
223
Chassis LGE MBS61885501 Contact Us For Availability
224
Chassis LGE MBS61885801 Contact Us For Availability
225
Bracket LGE MAZ62372001 Contact Us For Availability
227
Title LGE SAC34174528 Contact Us For Availability
228
Title LGE SAC34174527 Contact Us For Availability
229
Adapters LGE EAY61208601 Contact Us For Availability
419
SCREW,DRAWING LGE 1SZZH-1219A Contact Us For Availability
436
Screw,Customized LGE 1SZZH-1009R Contact Us For Availability
508
Screw,Tapping LGE FAB30260101 Contact Us For Availability
520
Screw,Customized LGE FAB30621801 Contact Us For Availability
801
Manual,Installation LGE MFL40014140 Contact Us For Availability
802
Card,Information LGE MBM31885039 Contact Us For Availability
806
Box LGE MAY62868401 Contact Us For Availability
807
Bag LGE MAF62407301 Contact Us For Availability
808
Packing LGE MFZ62591601 Contact Us For Availability
811
Power Cord LGE EAD31044501 Contact Us For Availability
811
Power Cord LGE EAD51204601 Contact Us For Availability
A40
DVD RW Driver Assembly LGE EAZ60821401 Contact Us For Availability
BZ701
Buzzer,Piezo LGE EAB32746101 Contact Us For Availability
C208
Capacitor,Ceramic,Chip LGE 0CK220BK4CA Contact Us For Availability
C212
Capacitor,Ceramic,Chip LGE 0CK103BF56A Contact Us For Availability
C214
Capacitor,Ceramic,Chip LGE 0CC100BK41A Contact Us For Availability
C303
Capacitor,Ceramic,Chip LGE 0CK475CCG7A Contact Us For Availability
C310
Capacitor,Ceramic,Chip LGE 0CK104BD56A Contact Us For Availability
C415
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C501
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C507
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C508
Capacitor,Ceramic,Chip LGE 0CK476FC66A Contact Us For Availability
C509
Capacitor,Ceramic,Chip LGE 0CK476FFK7A Contact Us For Availability
C602
Capacitor,Ceramic,Chip LGE 0CK226DC67A Contact Us For Availability
C709
Capacitor,AL,Chip LGE 0CH8476F621 Contact Us For Availability
C716
Capacitor,Ceramic,Chip LGE 0CK101BK4CA Contact Us For Availability
C902
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
C903
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C904
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C910
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C911
Capacitor,Ceramic,Chip LGE EAE61443501 Contact Us For Availability
C911
Capacitor,Ceramic,Chip LGE 0CK562BH56A Contact Us For Availability
C918
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C921
Capacitor,Ceramic,Chip LGE 0CK106DC66A Contact Us For Availability
IC101
IC,Memory Controller LGE EAN58585304 Contact Us For Availability
IC102
IC,SDRAM LGE EAN58639602 Contact Us For Availability
IC401
IC,Receiver LGE EAN58585102 Contact Us For Availability
IC501
IC,Analog Switch LGE EAN58667501 Contact Us For Availability
IC502
IC,Analog Switch LGE EAN58667701 Contact Us For Availability
IC601
IC,Analog Switch LGE EAN61146001 Contact Us For Availability
IC701
IC,LDO Voltage Regulator LGE EAN60814201 Contact Us For Availability
IC702
IC,OP Amplifier LGE EAN51397002 Contact Us For Availability
IC703
IC,Microcontrollers LGE EAN33391102 Contact Us For Availability
IC704
FET LGE EBK60991801 Contact Us For Availability
IC901
IC,DC,DC Converter LGE EAN61108001 Contact Us For Availability
IC903
IC,DC,DC Converter LGE EAN61108101 Contact Us For Availability
IC904
IC,DC,DC Converter LGE EAN61108201 Contact Us For Availability
IC905
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
L402
Filter,Bead LGE 6200JB8011H Contact Us For Availability
L901
Filter,Bead LGE EAM61230001 Contact Us For Availability
L903
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
LED104
LED,Chip LGE EAV59499801 Contact Us For Availability
LED201
LED,Chip LGE 0DLRH0378AA Contact Us For Availability
PBM01
PCB Assembly,Main LGE EBR64968501 Contact Us For Availability
PBM02
PCB Assembly,Main LGE EBR64968901 Contact Us For Availability
Q704
TR,Bipolar LGE 0TR178109AB Contact Us For Availability
R104
Resistor,Chip LGE 0RJ0512C478 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ0562C678 Contact Us For Availability
R207
Resistor,Chip LGE 0RJ1602C678 Contact Us For Availability
R208
Resistor,Chip LGE EBC43209201 Contact Us For Availability
R209
Resistor,Chip LGE 0RJ4992C478 Contact Us For Availability
R210
Resistor,Chip LGE 0RJ4991C478 Contact Us For Availability
R215
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R219
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R224
Resistor,Chip LGE 0RJ1005C678 Contact Us For Availability
R416
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R417
Resistor,Chip LGE 0RJ2001C478 Contact Us For Availability
R421
Resistor,Chip LGE 0RJ5100C678 Contact Us For Availability
R503
Resistor,Chip LGE 0RJ5602C678 Contact Us For Availability
R601
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R603
Resistor,Chip LGE 0RJ3002C678 Contact Us For Availability
R701
Resistor,Chip LGE 0RH0512D622 Contact Us For Availability
R713
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R719
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R724
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R736
RESISTOR,METAL GLAZE LGE 0RJ8201C678 Contact Us For Availability
R737
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R906
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R910
Resistor,Chip LGE 0RJ5232C478 Contact Us For Availability
R911
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R916
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R917
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R918
Resistor,Chip LGE EBC61295601 Contact Us For Availability
R920
Resistor,Chip LGE EBC61295701 Contact Us For Availability
R922
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R923
Resistor,Chip LGE EBC61196101 Contact Us For Availability
R926
Resistor,Chip LGE EBC61295501 Contact Us For Availability
R927
Resistor,Chip LGE EBC60661901 Contact Us For Availability
RA601
Filter,Line Noise LGE 6200JB8014F Contact Us For Availability
SW102
SWITCH,TACT LGE 6600R00004A Contact Us For Availability
SW601
Switch,Slide LGE EBF60934501 Contact Us For Availability
SW901
Switch,Tact LGE EBF52268801 Contact Us For Availability
SW901
Switch,Tact LGE 6600HRA003A Contact Us For Availability
X201
Crystal LGE EAW50208002 Contact Us For Availability
X202
Crystal LGE EAW58239601 Contact Us For Availability
ZD301
Diode,Schottky LGE EAH60703202 Contact Us For Availability
× ![]()
