Model LG N194WA-BF – Common Parts & Diagrams

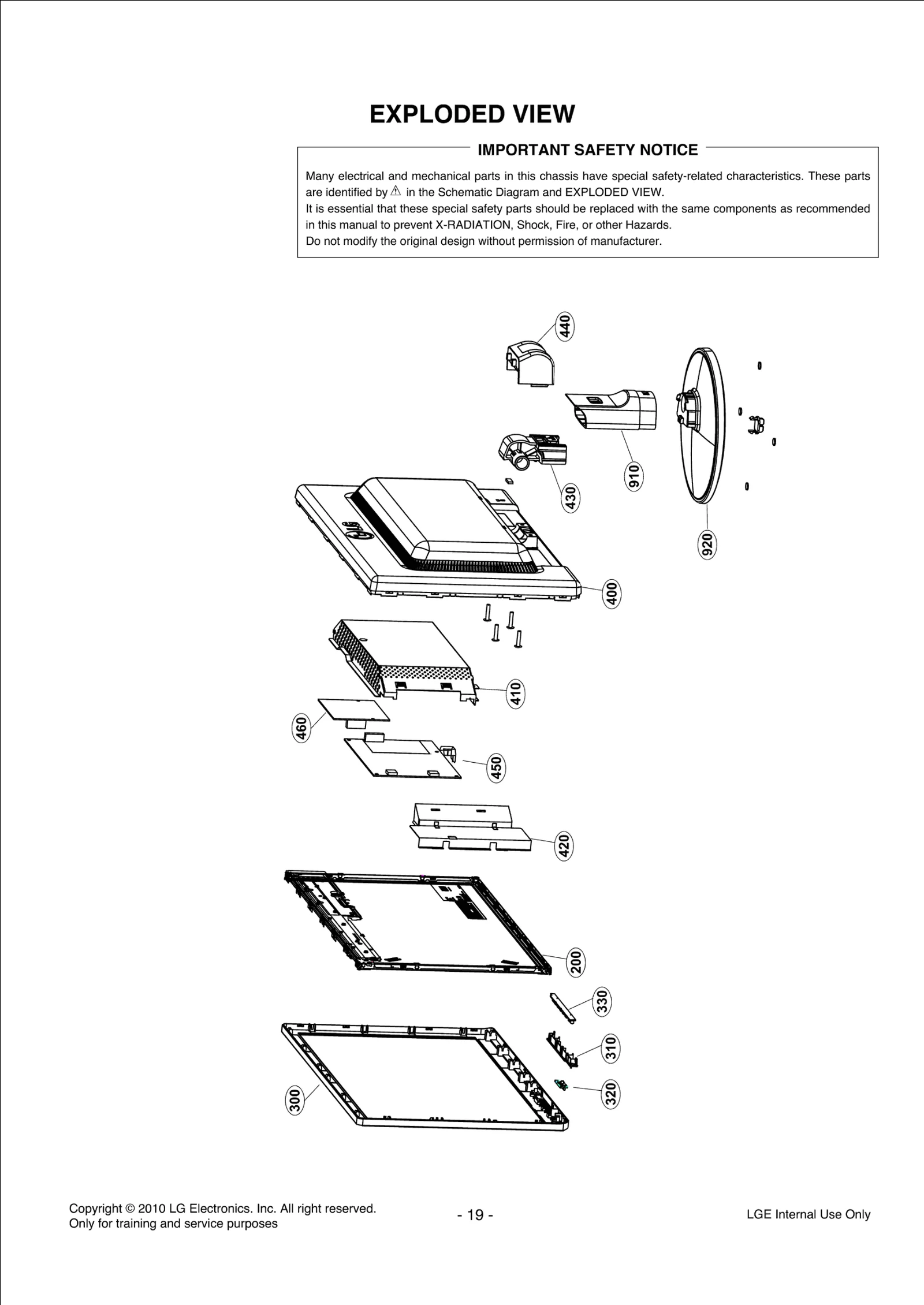

Diagram 0
Diagram 1
Common parts from model LG N194WA-BF
200
LCD,Module-TFT LGE EAJ60828001 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60888101 Contact Us For Availability
300
Cabinet Assembly LGE ABJ35714251 Contact Us For Availability
310
Knob LGE MEY40926601 Contact Us For Availability
320
Button,Power LGE MBG41956001 Contact Us For Availability
330
PCB Assembly LGE EBR41617001 Contact Us For Availability
410
Frame LGE MDQ41956337 Contact Us For Availability
420
Frame LGE MDQ41956804 Contact Us For Availability
430
Cover LGE MCK40926801 Contact Us For Availability
440
Cover LGE MCK40927901 Contact Us For Availability
450
Power Supply Assembly LGE EAY60829501 Contact Us For Availability
460
Main Total Assembly LGE EBU61142601 Contact Us For Availability
910
Base Assembly LGE AAN59846101 Contact Us For Availability
920
Base Assembly LGE AAN35581001 Contact Us For Availability
A1
S/W Package LGE SAB34379221 Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
C115
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C123
Capacitor,Ceramic,Chip LGE 0CC821CK41A Contact Us For Availability
C126
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C131
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C133
CAPACITOR,FIXED CERA LGE 0CK222CK56A Contact Us For Availability
C137
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C168
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C205
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C215
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C250
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C271
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C291
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C310
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C318
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C330
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C332
Capacitor,Ceramic,Chip LGE 0CK822BH56A Contact Us For Availability
C346
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
IC112
IC,PERIPHERALS LGE 0IPRP00639A Contact Us For Availability
L100
COIL,CHOKE LGE 61409B0002A Contact Us For Availability
Q109
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q109
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q109
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q109
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
R1
Resistor,Chip LGE 0RJ1602D677 Contact Us For Availability
R3
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R5
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R9
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R111
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R120
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R121
Resistor,Chip LGE 0RJ2402D677 Contact Us For Availability
R125
Resistor,Chip LGE 0RH1102D422 Contact Us For Availability
R126
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R127
RESISTOR,METAL GLAZE LGE 0RJ5902C477 Contact Us For Availability
R144
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R157
Resistor,Chip LGE 0RJ5100D477 Contact Us For Availability
R168
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R171
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R182
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R185
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R216
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R242
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R247
Resistor,Chip LGE 0RJ0822C478 Contact Us For Availability
R269
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R271
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R275
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R279
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R289
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R293
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R353
Resistor,Chip LGE 0RJ8202D677 Contact Us For Availability
R359
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R364
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R369
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R370
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R380
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R388
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R389
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R398
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R402
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R421
Resistor,Chip LGE 0RH0181D422 Contact Us For Availability
R422
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R423
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R438
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
SW5
SWITCH LGE 140-058E Contact Us For Availability
SW5
Switch,Tact LGE 6600R000133 Contact Us For Availability
SW100
SWITCH,POLY LGE 6600AR9458Q Contact Us For Availability
X101
Crystal LGE 6212AB2015C Contact Us For Availability
ZD1
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
ZD1
Diode,Zener LGE EAH60661201 Contact Us For Availability
× ![]()
