Model LG N1941WP-PF – Common Parts & Diagrams

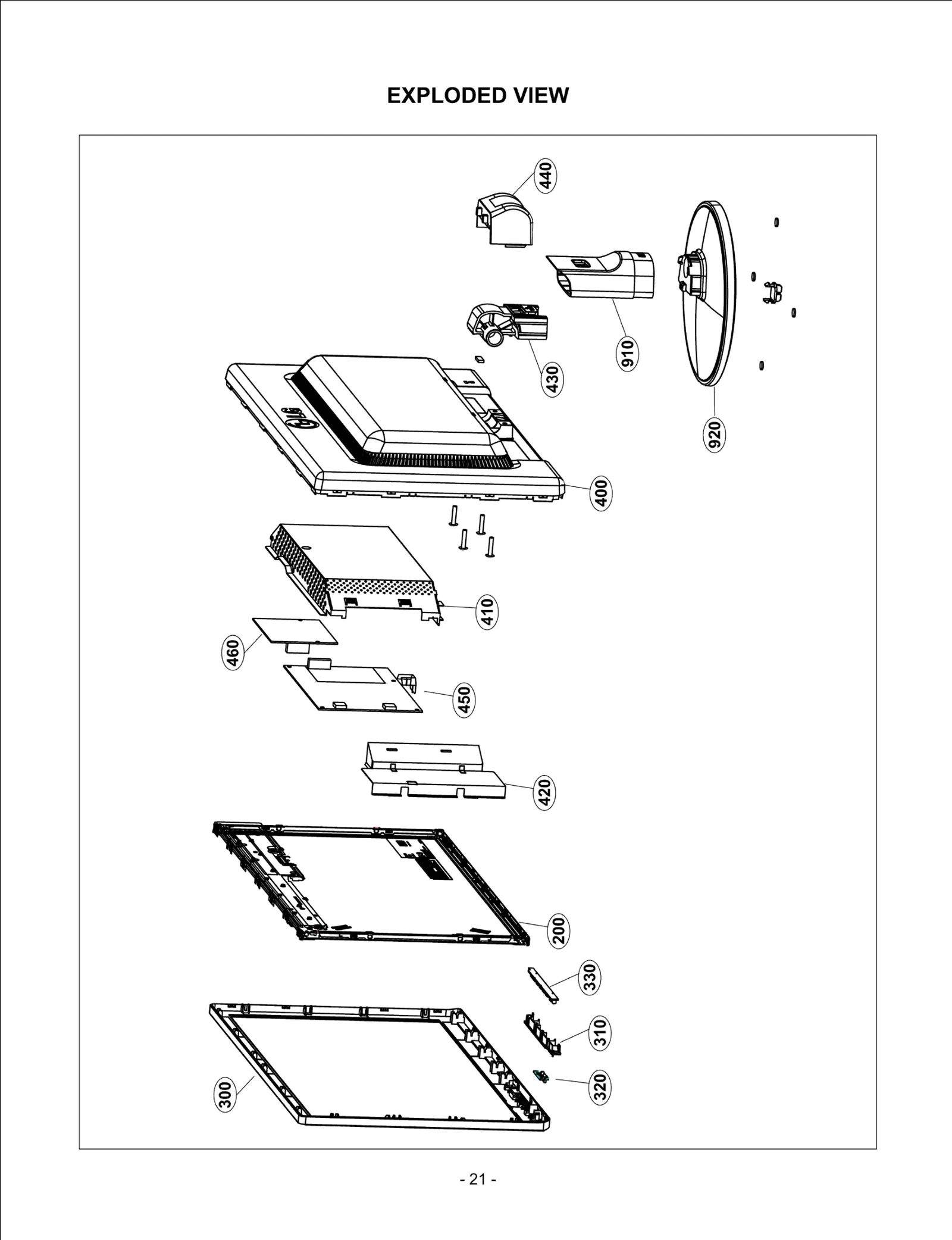

Diagram 0
Diagram 1
Common parts from model LG N1941WP-PF
200
LCD,Module-TFT LGE EAJ61310001 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60890501 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60890601 Contact Us For Availability
300
Cabinet Assembly LGE ABJ62781815 Contact Us For Availability
310
Knob LGE MEY40926601 Contact Us For Availability
320
Button,Power LGE MBG41956001 Contact Us For Availability
330
PCB Assembly LGE EBR41617001 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ73224304 Contact Us For Availability
410
Frame LGE MDQ41956350 Contact Us For Availability
430
Cover LGE MCK40926801 Contact Us For Availability
440
Cover LGE MCK40927901 Contact Us For Availability
450
Power Supply Assembly LGE EAY56379401 Contact Us For Availability
910
Cover LGE MCK62135301 Contact Us For Availability
920
Base Assembly LGE AAN35581001 Contact Us For Availability
A1
S/W Package LGE SAB34046602 Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
C103
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C109
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C201
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C212
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C214
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C217
Capacitor,AL,Radial LGE 0CE227EF638 Contact Us For Availability
C220
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C303
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C319
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C325
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C328
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
IC100
IC,Microprocessors LGE 0IPRP00704A Contact Us For Availability
IC102
IC Assembly LGE EAN50484409 Contact Us For Availability
IC103
IC,EEPROM LGE 0IMMR00203A Contact Us For Availability
IC202
IC,PERIPHERALS LGE 0IPRP00639A Contact Us For Availability
IC204
IC,LDO Voltage Regul LGE EAN33480501 Contact Us For Availability
IC204
IC,LDO Voltage Regulator LGE EAN52781401 Contact Us For Availability
P204
Connector,Wafer LGE 6630V90220K Contact Us For Availability
P300
Connector,Wafer LGE 6602T20008E Contact Us For Availability
Q100
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q100
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q201
TR,Bipolar LGE EBK39150701 Contact Us For Availability
Q302
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q302
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R2
Resistor,Chip LGE 0RJ1602D677 Contact Us For Availability
R4
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R6
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R9
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R103
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R104
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R200
RESISTOR,FIXED SMALL LGE 0RX0681K668 Contact Us For Availability
R208
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R222
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R225
Resistor,Chip LGE 0RJ1600D677 Contact Us For Availability
R229
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R232
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R239
Resistor,Chip LGE 0RJ8202D677 Contact Us For Availability
R270
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R281
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R302
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R303
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R307
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R312
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R318
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R341
Resistor,Chip LGE 0RJ3601D677 Contact Us For Availability
R352
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
SW2
Switch,Tact LGE 6600R000133 Contact Us For Availability
SW2
SWITCH LGE 140-058E Contact Us For Availability
X100
Crystal LGE 6212AA2001H Contact Us For Availability
ZD4
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
ZD4
Diode,Zener LGE EAH60661201 Contact Us For Availability
× ![]()
