Model LG N1910LZ-BF – Common Parts & Diagrams

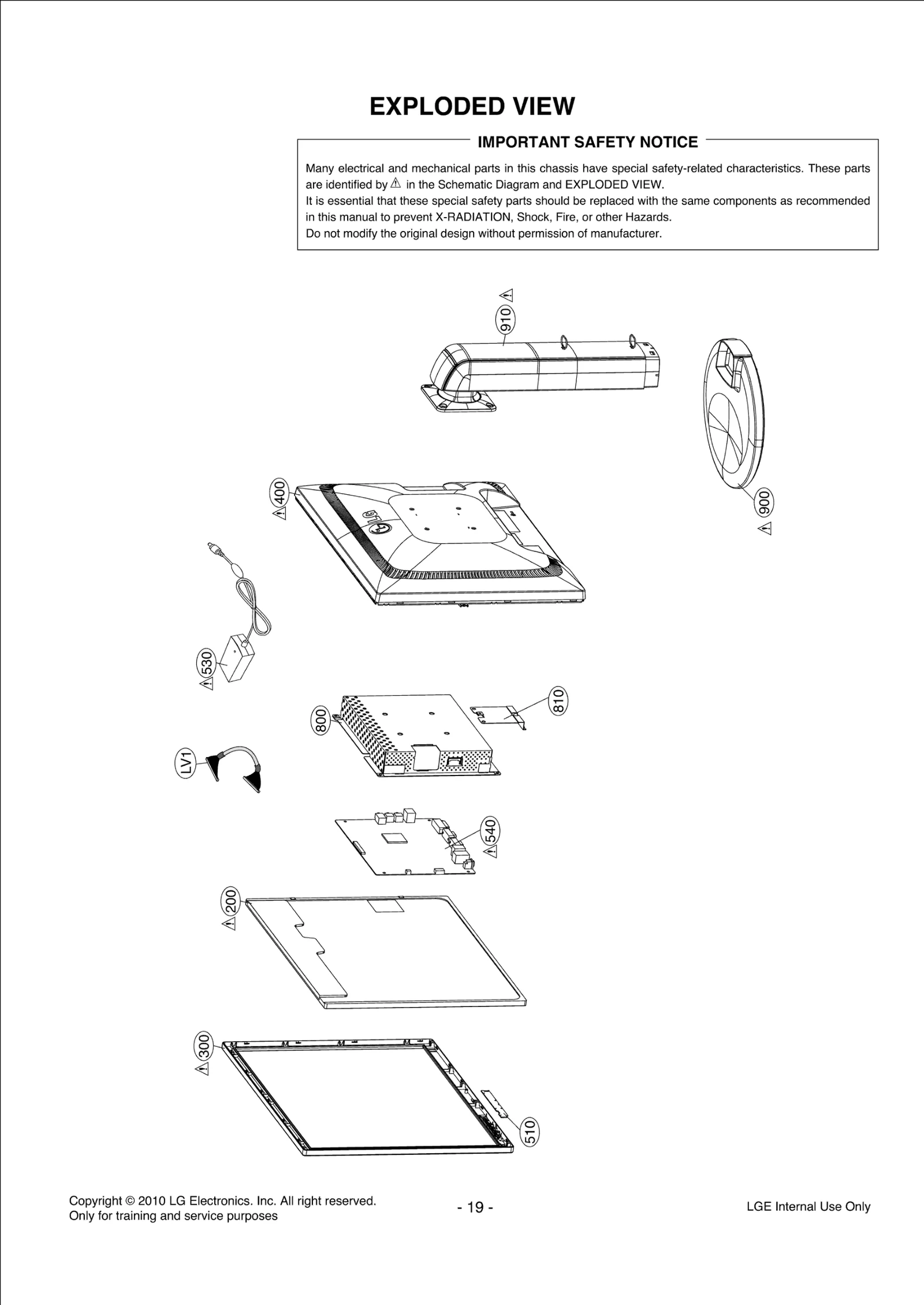

Diagram 0
Diagram 1
Common parts from model LG N1910LZ-BF
200
LCD,Module-TFT LGE EAJ61348001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73147420 Contact Us For Availability
400
Cover Assembly LGE ACQ85305203 Contact Us For Availability
510
PCB Assembly LGE EBR71535101 Contact Us For Availability
530
Adapters LGE EAY61231401 Contact Us For Availability
540
BPR Insert PCB Assembly LGE EBR73259901 Contact Us For Availability
800
Frame LGE MDQ62817101 Contact Us For Availability
810
Frame LGE MDQ62817401 Contact Us For Availability
900
Base Assembly LGE AAN73068903 Contact Us For Availability
910
Base Assembly LGE AAN73069010 Contact Us For Availability
A1
S/W Package LGE SAB34686614 Contact Us For Availability
A3
Power Cord,Detach LGE 6410VUH007B Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
C1
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C3
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C121
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C134
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C150
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C174
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C177
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C181
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C192
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C197
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C205
Capacitor,Ceramic,Ch LGE 0CH2102K566 Contact Us For Availability
C216
Capacitor,Ceramic,Ch LGE 0CC390BK4AA Contact Us For Availability
C332
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C339
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C383
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C417
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C429
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C489
Capacitor,Ceramic,Chip LGE 0CK152BKG6A Contact Us For Availability
C514
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C529
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C530
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C535
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C561
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C578
Capacitor,Ceramic,Chip LGE 0CK683CK56A Contact Us For Availability
C581
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C584
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C604
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
IC102
IC Assembly LGE EAN61980301 Contact Us For Availability
IC104
IC,MEMORIES LGE 0ISG240860B Contact Us For Availability
IC107
IC,LDO Voltage Regulator LGE EAN56764801 Contact Us For Availability
L160
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD61217808 Contact Us For Availability
R2
Resistor,Chip LGE 0RH1602D422 Contact Us For Availability
R3
Resistor,Chip LGE 0RJ3000C478 Contact Us For Availability
R4
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R5
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R103
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R119
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R127
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R136
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R156
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R175
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R178
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R180
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R199
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R202
Resistor,Chip LGE 0RJ5102E472 Contact Us For Availability
R226
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R233
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R236
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R240
RESISTOR CHIP 470K 1/10W 5 D. LGE 0RH4703D622 Contact Us For Availability
R246
Resistor,Chip LGE 0RJ1400D477 Contact Us For Availability
R248
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R255
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R265
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R268
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R279
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R280
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R291
Resistor,Chip LGE 0RJ2003C478 Contact Us For Availability
R301
Resistor,Chip LGE 0RJ0642D477 Contact Us For Availability
R318
Resistor,Chip LGE 0RJ0392C478 Contact Us For Availability
R320
Resistor,Chip LGE EBC41415401 Contact Us For Availability
R328
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R330
Resistor,Chip LGE EBC41410301 Contact Us For Availability
R334
Resistor,Chip LGE EBC61939101 Contact Us For Availability
R340
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R346
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R347
Resistor,Chip LGE 0RJ4750D477 Contact Us For Availability
R363
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R382
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R394
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R415
Resistor,Chip LGE 0RJ2402D677 Contact Us For Availability
R420
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R428
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R429
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R473
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R479
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R532
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R533
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R539
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R548
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R567
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R570
Resistor,Chip LGE 0RJ0221J688 Contact Us For Availability
R574
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
SW5
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
ZD4
Diode,Zener LGE EAH60661201 Contact Us For Availability
× ![]()
