Model Maytag MVWX655DW2 LAUNDRY, RESIDENTIAL, WASHER – Common Parts & Diagrams
01 - COVER SHEET

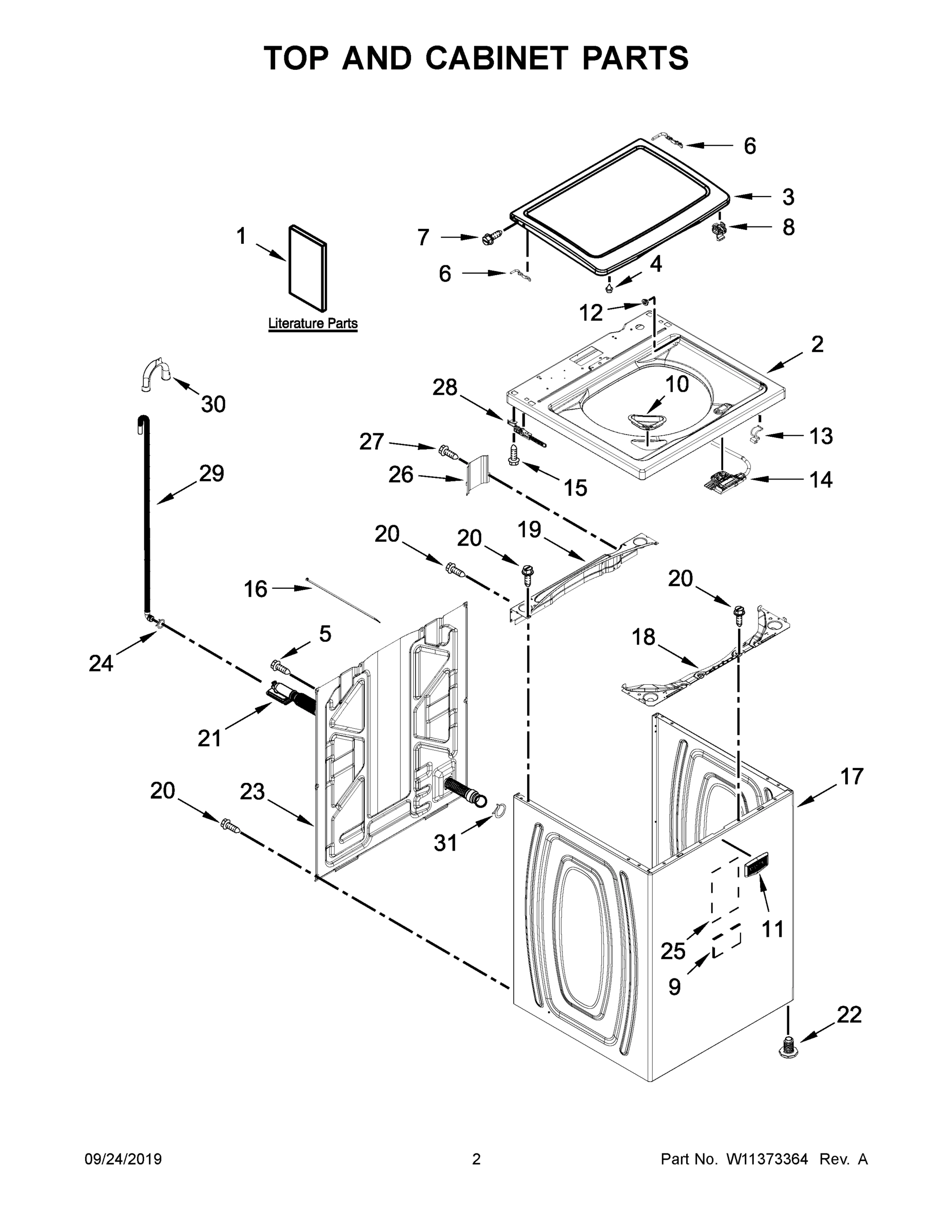

02 - TOP AND CABINET PARTS

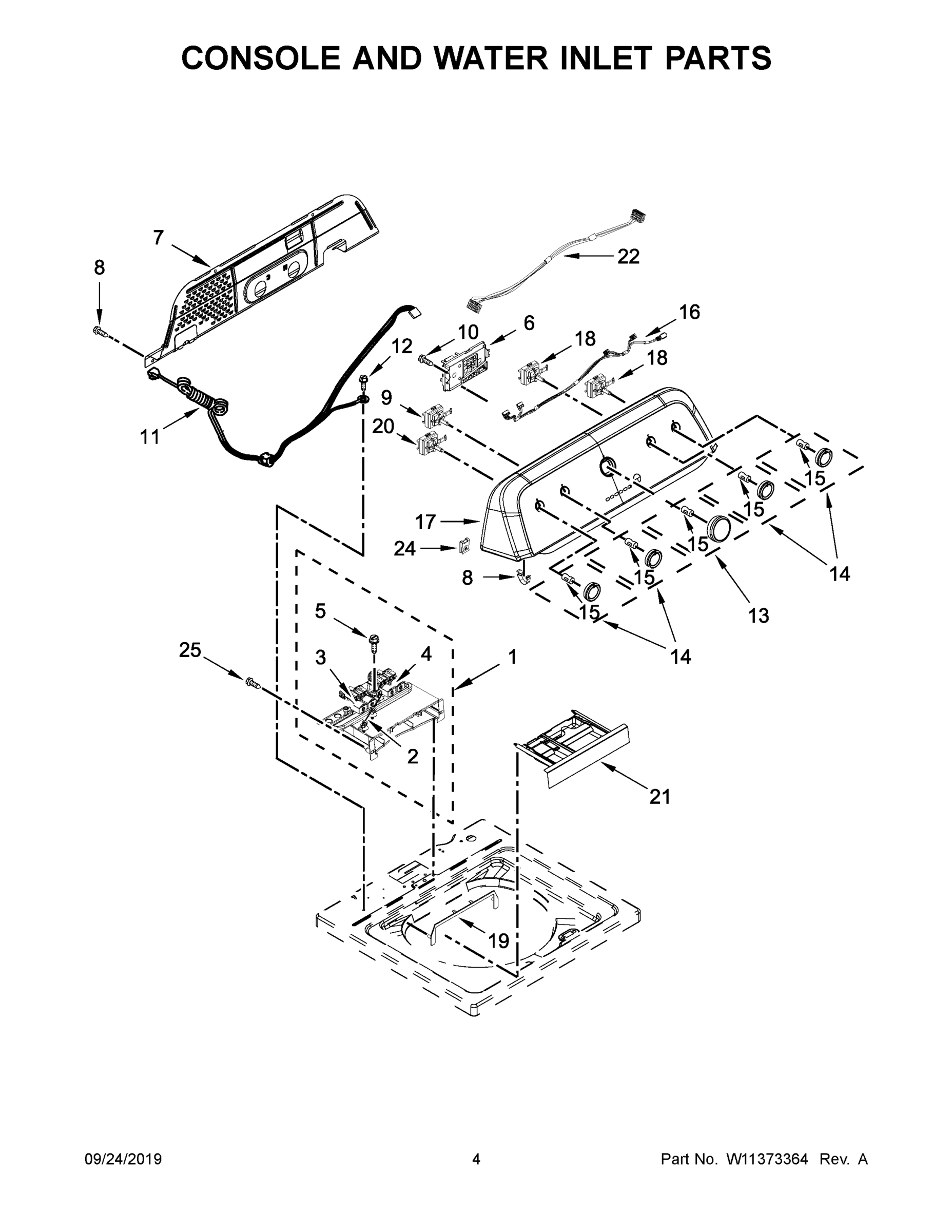

03 - CONSOLE AND WATER INLET PARTS

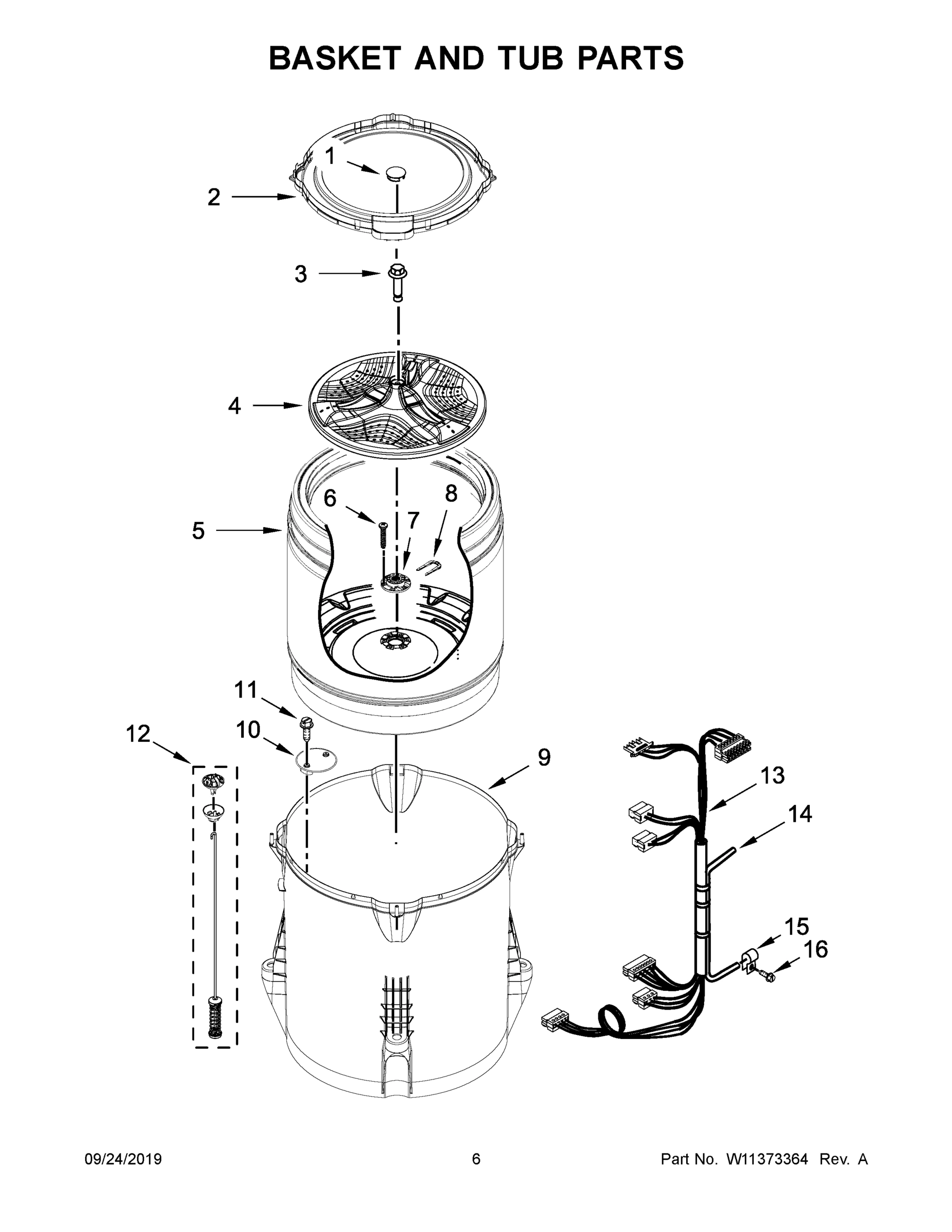

04 - BASKET AND TUB PARTS

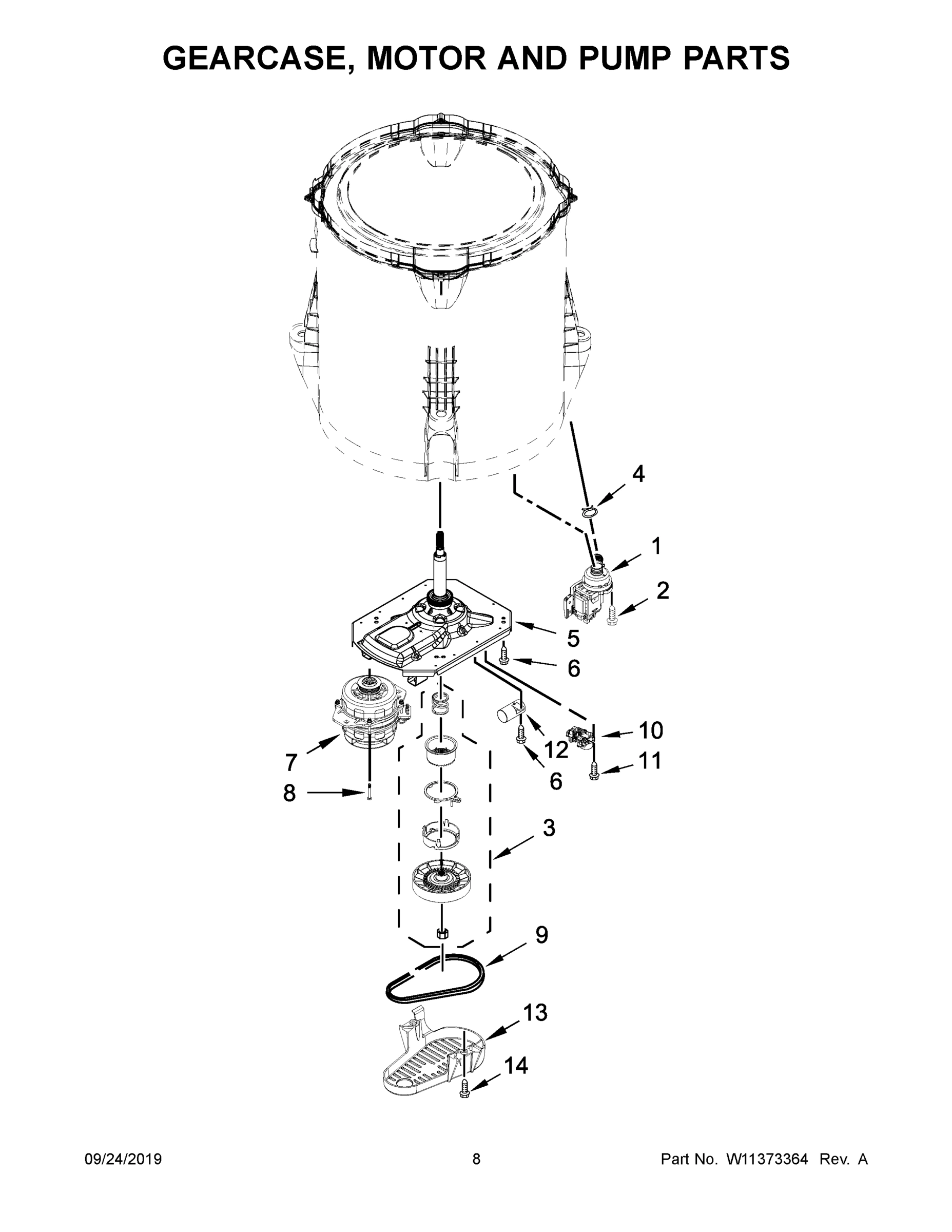

05 - GEARCASE, MOTOR AND PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MVWX655DW2 LAUNDRY, RESIDENTIAL, WASHER
1
OWNERS MANUAL MAY W10783959 Contact Us For Availability
1
HOUSING ASSEMBLY MAY W10921581 Contact Us For Availability
1
CAP, IMPELLER MAY W10609549 Contact Us For Availability
1
MAY W11259498 MAY W11259498 Contact Us For Availability
1A
MAY W11348221 MAY W11348221 Contact Us For Availability
1B
MAY W11348497 MAY W11348497 Contact Us For Availability
1C
MAY W11360551 MAY W11360551 Contact Us For Availability
1D
QUICK START GUIDE MAY W10783949 Contact Us For Availability
2
TOP (WHITE) MAY W10768758 Contact Us For Availability
2
HARNESS, VALVE MAY W10847170 Contact Us For Availability
2
TUB RING MAY W10578859 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
LID (WHITE) MAY W10793620 Contact Us For Availability
3
VALVE, COLD WATER INLET MAY W10921514 Contact Us For Availability
3
SCREW MAY W10625252 Contact Us For Availability
3
SPLUTCH KIT (60HZ) MAY W10721967 Contact Us For Availability
4
BUMPER MAY 9724509 Contact Us For Availability
4
CLAMP, HOSE MAY 8317496 Contact Us For Availability
4
VALVE, HOT WATER INLET MAY W10921515 Contact Us For Availability
4
IMPELLER (WASHPLATE) MAY W10834917 Contact Us For Availability
5
SCREW MAY W10660565 Contact Us For Availability
5
BASKET ASSEMBLY MAY W10586077 Contact Us For Availability
5
GEARCASE ASSEMBLY MAY W10870913 Contact Us For Availability
6
HINGE, WIRE (LEFT) MAY 8563965 Contact Us For Availability
6
MAY W11320239 MAY W11320239 Contact Us For Availability
6
SCREW MAY 8533953 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
6A
HINGE, WIRE (RIGHT) MAY 8572974 Contact Us For Availability
7
SCREW MAY W10339706 Contact Us For Availability
7
PANEL, CONSOLE REAR COVER MAY W10641337 Contact Us For Availability
7
HUB - DRIVEN, BASKET MAY W10396887 Contact Us For Availability
7
MOTOR, DRIVE MAY W10677717 Contact Us For Availability
8
STRIKE, LID LOCK (WHITE) MAY W11199930 Contact Us For Availability
8
CLIP, CONSOLE MAY 8312709 Contact Us For Availability
8
MAY W11284133 MAY W11284133 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
ABSORBER, IMPACT MAY 8564458 Contact Us For Availability
9
SWITCH, ROTARY ENCODER (5 POSITION) MAY W10584423 Contact Us For Availability
9
MAY W11219115 MAY W11219115 Contact Us For Availability
9
BELT, DRIVE MAY W10808317 Contact Us For Availability
10
SCREW MAY 9740848 Contact Us For Availability
10
BEZEL, BLEACH DISPENSER (WHITE) MAY W10240977 Contact Us For Availability
10
FILTER, DRAIN PUMP MAY W11089264 Contact Us For Availability
10
ACTUATOR- SHIFT MAY W10815026 Contact Us For Availability
11
BADGE MAY W10612925 Contact Us For Availability
11
CORD, POWER MAY W10779058 Contact Us For Availability
11
SCREW MAY 8533928 Contact Us For Availability
11
SCREW MAY 9741052 Contact Us For Availability
12
BEARING, LID HINGE (LEFT HAND) MAY W10293653 Contact Us For Availability
12
SCREW MAY 3400076 Contact Us For Availability
12
DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INC MAY W11228718 Contact Us For Availability
12
CAPACITOR, MOTOR RUN MAY W10866238 Contact Us For Availability
12A
BEARING, LID HINGE (RIGHT HAND) MAY W10293293 Contact Us For Availability
13
CLIP, HARNESS MAY 90016 Contact Us For Availability
13
KNOB, TIMER (GREY) MAY W10558463 Contact Us For Availability
13
MAY W11255099 MAY W11255099 Contact Us For Availability
13
SHIELD, PULLEY COVER MAY W10427633 Contact Us For Availability
14
LATCH, LID LOCK ASSEMBLY MAY W10682535 Contact Us For Availability
14
KNOB, CONTROL (GREY) MAY W10562155 Contact Us For Availability
14
HOSE, PRESSURE SWITCH MAY W10236981 Contact Us For Availability
14
SCREW MAY 357640 Contact Us For Availability
15
SCREW MAY 693995 Contact Us For Availability
15
CLIP, SPRING MAY 688805 Contact Us For Availability
15
CLAMP, CABLE MAY W10005430 Contact Us For Availability
16
TIE, CABLE MAY W10339879 Contact Us For Availability
16
HARNESS, UPPER MAY W10694680 Contact Us For Availability
16
SCREW MAY 8533943 Contact Us For Availability
17
CABINET (WHITE) MAY W10676680 Contact Us For Availability
17
PANEL, CONSOLE MAY W10682735 Contact Us For Availability
18
CHANNEL, TOP FRONT (WHITE) MAY W11172902 Contact Us For Availability
18
SWITCH, ROTARY ENCODER (2 POSITION) MAY W10584420 Contact Us For Availability
19
CHANNEL, TOP REAR MAY W10512626 Contact Us For Availability
19
BEZEL, DISPENSER MAY W10601843 Contact Us For Availability
20
SWITCH, ROTARY ENCODER (4 POSITION) MAY W10584422 Contact Us For Availability
21
HOSE, INNER DRAIN ASSEMBLY MAY W10763078 Contact Us For Availability
21
DRAWER, DISPENSER ASSEMBLY MAY W10919590 Contact Us For Availability
22
FOOT ASSEMBLY, LEVELING MAY W10687506 Contact Us For Availability
22
HARNESS, JUMPER MAY W10786100 Contact Us For Availability
23
PANEL, REAR MAY W10250884 Contact Us For Availability
24
CLAMP, HOSE MAY 356138 Contact Us For Availability
24
NUT, "U" MAY W10298336 Contact Us For Availability
25
ABSORBER, IMPACT MAY W10834527 Contact Us For Availability
25
SCREW MAY 97787 Contact Us For Availability
26
COVER, HARNESS MAY W10648853 Contact Us For Availability
28
HINGE, LID (LEFT) MAY W10270398 Contact Us For Availability
28A
HINGE, LID (RIGHT) MAY W10270399 Contact Us For Availability
29
HOSE, OUTER DRAIN ASSEMBLY MAY W11203364 Contact Us For Availability
30
U-BEND, DRAIN HOSE MAY W10280024 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
WATER SYSTEM PARTS, SIPHON BREAK KIT MAY 285834 Contact Us For Availability
NI
WATER SYSTEM PARTS, CONNECTOR ASSEMBLY MAY 285835 Contact Us For Availability
NI
WATER SYSTEM PARTS, 4' DRAIN HOSE W/CLAMP MAY 285863 Contact Us For Availability
NI
WATER SYSTEM PARTS, ADAPTER, STANDPIPE 2" DIA MAY 3363920 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RP Contact Us For Availability
NI
ACCESSORY MAY 8212641RP Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
× ![]()
