Model Maytag MVWX500XW0 WASHER – Common Parts & Diagrams

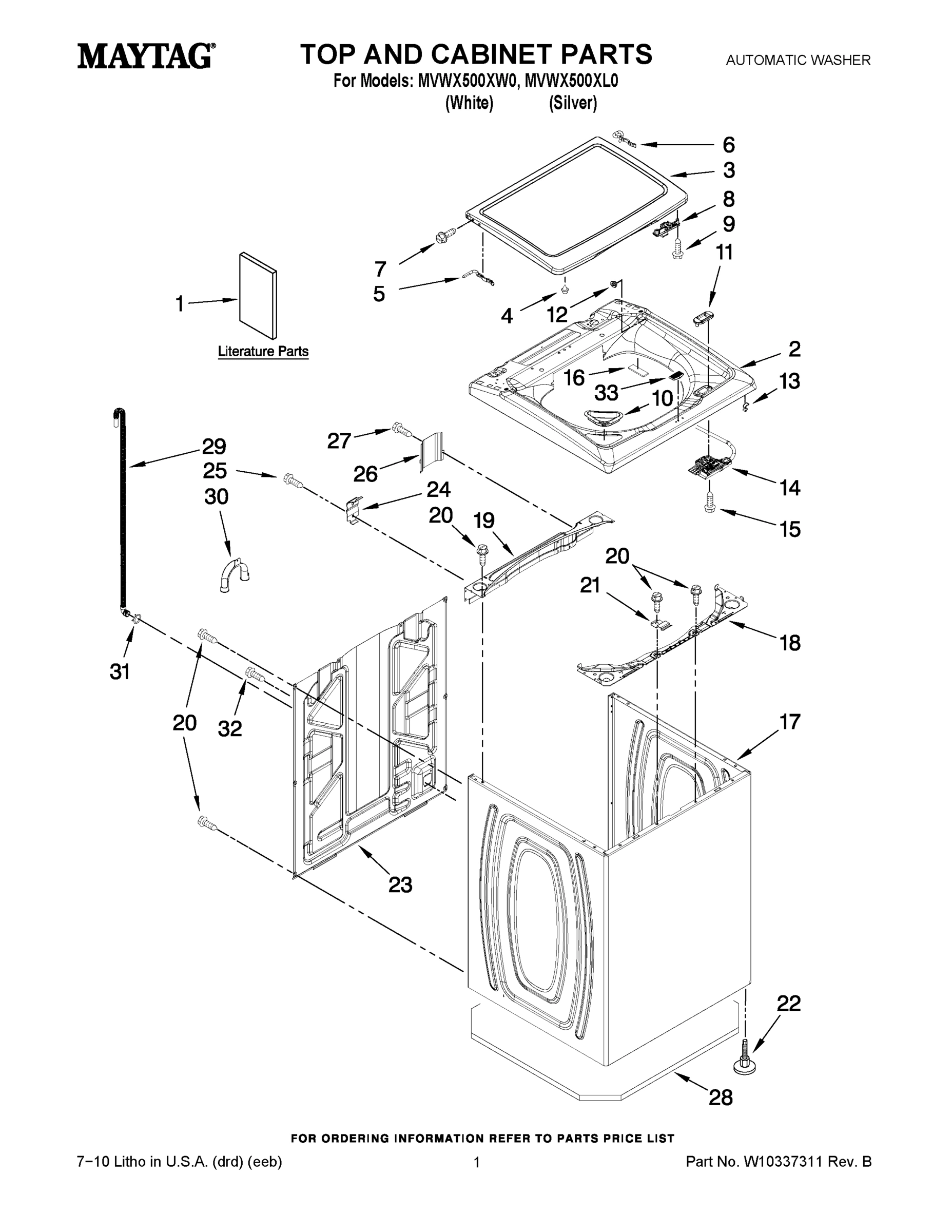

01 - TOP AND CABINET PARTS

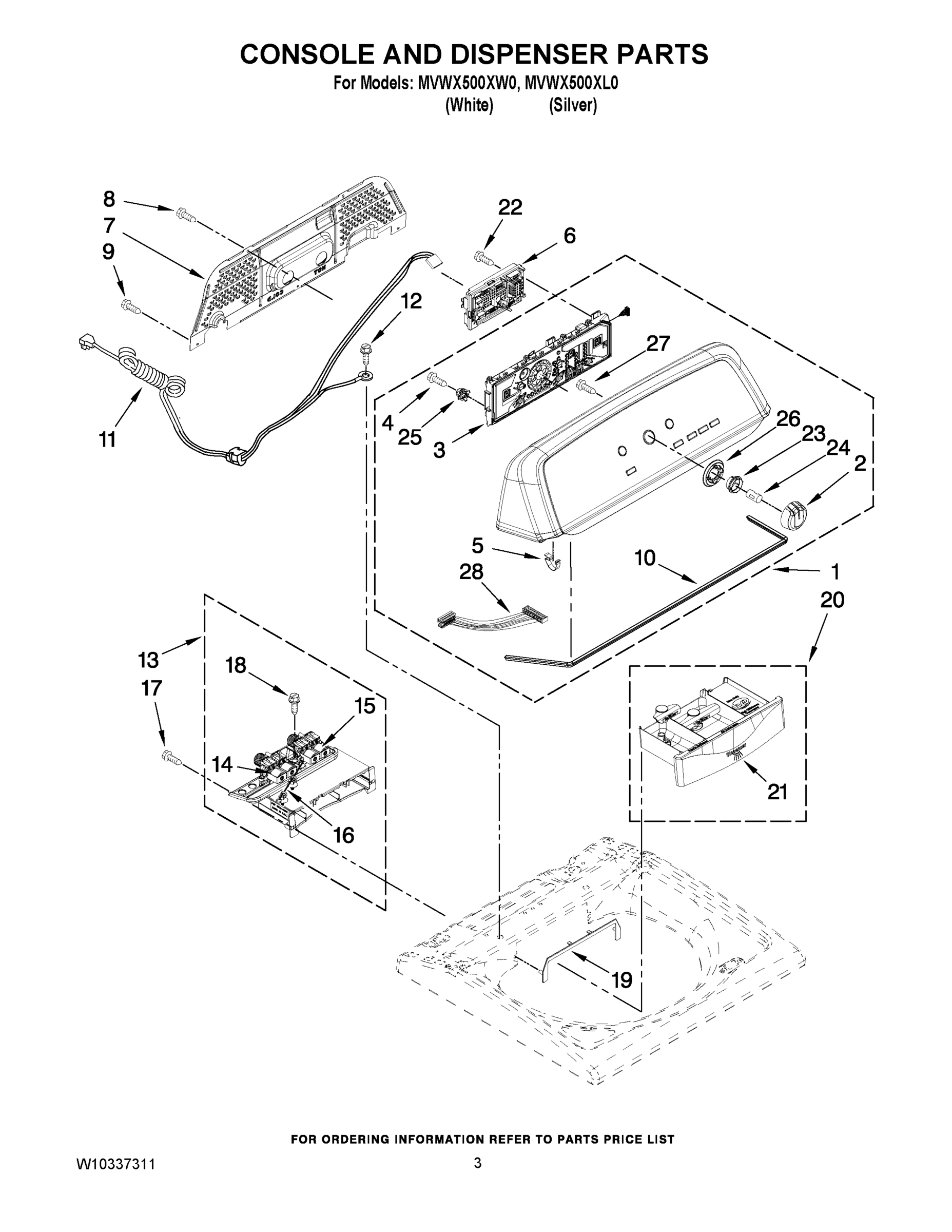

02 - CONSOLE AND DISPENSER PARTS

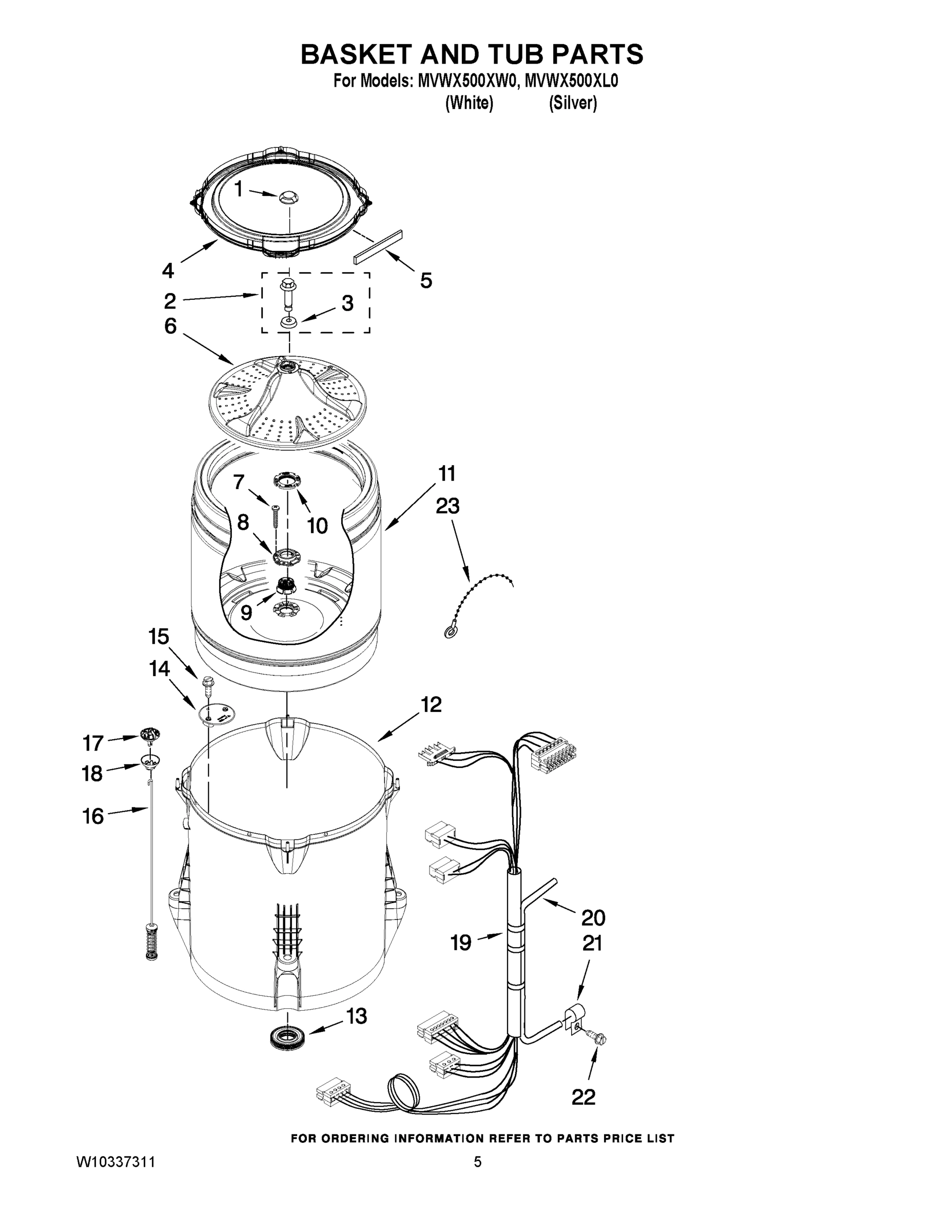

03 - BASKET AND TUB PARTS

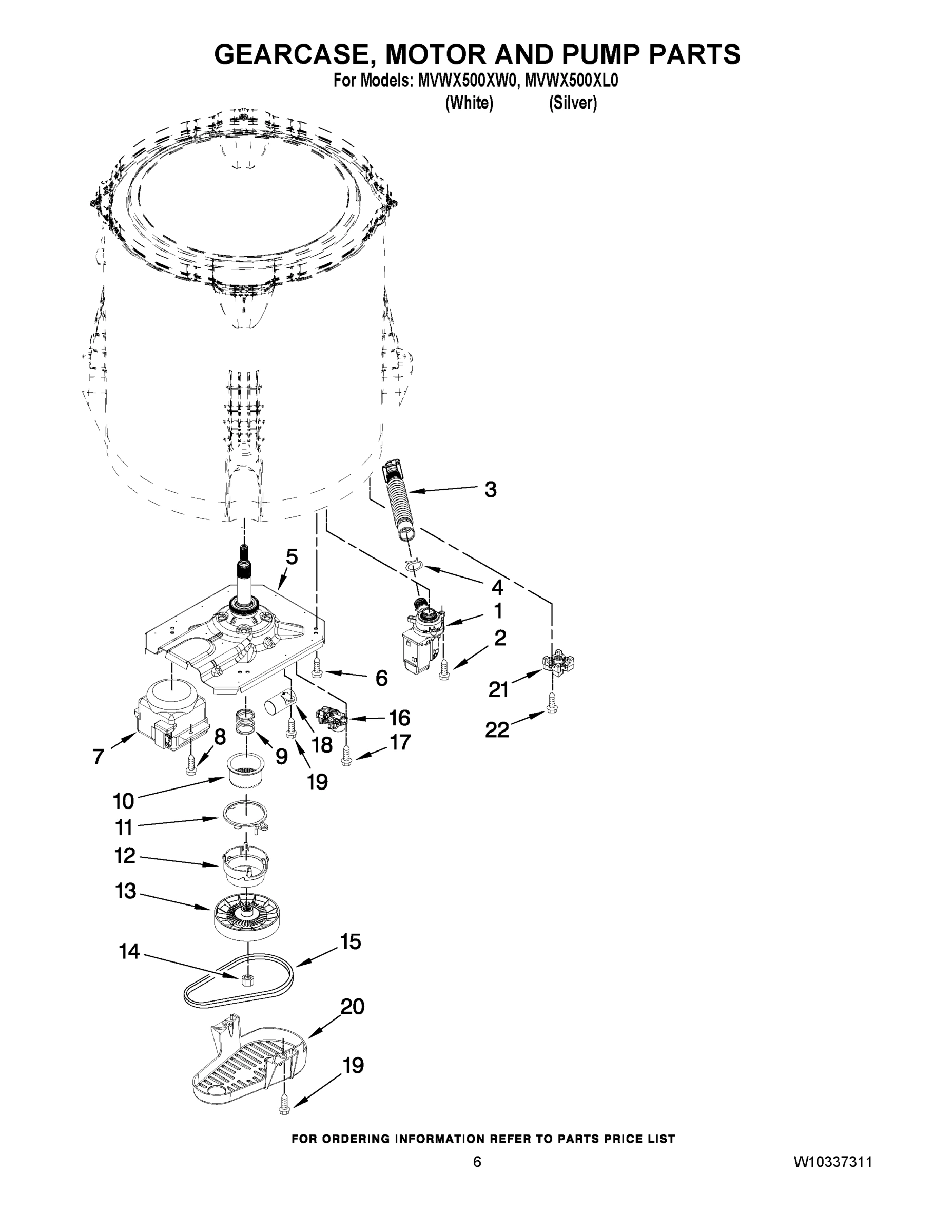

04 - GEARCASE, MOTOR AND PUMP PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MVWX500XW0 WASHER
1
MAY W10062924 MAY W10062924 Contact Us For Availability
1
MAY W10240504 MAY W10240504 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH) MAY W10240509 Contact Us For Availability
1
MAY W10240510 MAY W10240510 Contact Us For Availability
1
MAY W10280467 MAY W10280467 Contact Us For Availability
1
MAY W10280498 MAY W10280498 Contact Us For Availability
1
MAY W10280504 MAY W10280504 Contact Us For Availability
1
MAY W10272444 MAY W10272444 Contact Us For Availability
1
MAY W10293204 MAY W10293204 Contact Us For Availability
1
MAY W10305251 MAY W10305251 Contact Us For Availability
1
MAY W10276397 MAY W10276397 Contact Us For Availability
2
TOP (WHITE) MAY W10238290 Contact Us For Availability
2
MAY W10268719 MAY W10268719 Contact Us For Availability
2
KNOB, CONTROL (INCLUDES ITEM 24) (WHITE) MAY W10251381 Contact Us For Availability
2
KNOB, CONTROL (INCLUDES ITEM 24) (SILVER) MAY W10251384 Contact Us For Availability
2
MAY W10003790 MAY W10003790 Contact Us For Availability
2
MAY W10004910 MAY W10004910 Contact Us For Availability
3
LID (INCLUDES ITEM 4) (WHITE) MAY W10270565 Contact Us For Availability
3
MAY W10270567 MAY W10270567 Contact Us For Availability
3
MAY W10272630 MAY W10272630 Contact Us For Availability
3
MAY 3949550 MAY 3949550 Contact Us For Availability
3
MAY W10215091 MAY W10215091 Contact Us For Availability
4
BUMPER, LID MAY 9724509 Contact Us For Availability
4
Screw, 8-16 X 3/4 MAY W10219342 Contact Us For Availability
4
MAY W10215146 MAY W10215146 Contact Us For Availability
4
MAY 8317496 MAY 8317496 Contact Us For Availability
5
MAY W10295775 MAY W10295775 Contact Us For Availability
5
MAY 8312709 MAY 8312709 Contact Us For Availability
5
MAY W10205824 MAY W10205824 Contact Us For Availability
5
MAY W10006401 MAY W10006401 Contact Us For Availability
6
MAY W10294031 MAY W10294031 Contact Us For Availability
6
MAY W10296020 MAY W10296020 Contact Us For Availability
6
MAY W10215119 MAY W10215119 Contact Us For Availability
6
MAY W10249633 MAY W10249633 Contact Us For Availability
7
SCREW, LID HINGE MAY W10119828 Contact Us For Availability
7
MAY W10269597 MAY W10269597 Contact Us For Availability
7
Screw, 8-16 x 1.000 (6) MAY 8533953 Contact Us For Availability
7
MAY W10249628 MAY W10249628 Contact Us For Availability
8
STRIKE, LID LOCK (WHITE) MAY W10240513 Contact Us For Availability
8
MAY W10240514 MAY W10240514 Contact Us For Availability
8
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
8
MAY W10291415 MAY W10291415 Contact Us For Availability
8
MAY W10094780 MAY W10094780 Contact Us For Availability
9
MAY W10273971 MAY W10273971 Contact Us For Availability
9
Screw, 8-18 X 3/8 MAY 1157158 Contact Us For Availability
9
MAY W10291416 MAY W10291416 Contact Us For Availability
9
SPRING, SPLUTCH (INCLUDES ITEMS 0, 11, 12 & 1 MAY W10326374 Contact Us For Availability
10
DISPENSER, BLEACH (WHITE) MAY W10240977 Contact Us For Availability
10
MAY W10304138 MAY W10304138 Contact Us For Availability
10
MAY W10280079 MAY W10280079 Contact Us For Availability
10
MAY W10291417 MAY W10291417 Contact Us For Availability
10
MAY W10006352 MAY W10006352 Contact Us For Availability
11
BEZEL, LID LOCK (WHITE) MAY W10240511 Contact Us For Availability
11
MAY W10240512 MAY W10240512 Contact Us For Availability
11
MAY W10266797 MAY W10266797 Contact Us For Availability
11
MAY W10238268 MAY W10238268 Contact Us For Availability
11
MAY W10006353 MAY W10006353 Contact Us For Availability
12
MAY W10293230 MAY W10293230 Contact Us For Availability
12
MAY W10293272 MAY W10293272 Contact Us For Availability
12
SCREW, POWER CORD GROUND MAY 3400076 Contact Us For Availability
12
MAY W10238301 MAY W10238301 Contact Us For Availability
12
MAY W10006354 MAY W10006354 Contact Us For Availability
13
CLIP, LID LOCK HARNESS MAY 90016 Contact Us For Availability
13
MAY W10240963 MAY W10240963 Contact Us For Availability
13
MAY W10006371 MAY W10006371 Contact Us For Availability
13
MAY W10006356 MAY W10006356 Contact Us For Availability
14
MAY W10238287 MAY W10238287 Contact Us For Availability
14
MAY W10240949 MAY W10240949 Contact Us For Availability
14
MAY W10215093 MAY W10215093 Contact Us For Availability
14
MAY W10163336 MAY W10163336 Contact Us For Availability
15
Screw, 8-16 x 1/2 MAY 8281163 Contact Us For Availability
15
MAY W10240948 MAY W10240948 Contact Us For Availability
15
MAY 8533928 MAY 8533928 Contact Us For Availability
16
MAY W10333228 MAY W10333228 Contact Us For Availability
16
MAY W10240967 MAY W10240967 Contact Us For Availability
16
MAY W10257085 MAY W10257085 Contact Us For Availability
16
MAY W10006355 MAY W10006355 Contact Us For Availability
17
CABINET (INCLUDES ITEMS 18, 19, 20 & 22) (WHI MAY W10319849 Contact Us For Availability
17
MAY W10319854 MAY W10319854 Contact Us For Availability
17
SCREW, DISPENSER HOUSING MOUNTING MAY 3400061 Contact Us For Availability
17
BALL, SUSPENSION (SET OF 4 - INCLUDES ITEM 18 MAY W10215136 Contact Us For Availability
17
MAY 9741052 MAY 9741052 Contact Us For Availability
18
MAY W10215098 MAY W10215098 Contact Us For Availability
18
SCREW, INLET VALVE MOUNTING MAY 97787 Contact Us For Availability
18
BUSHING, SUSPENSION (SET OF 4 - INCLUDES ITEM MAY W10256551 Contact Us For Availability
18
MAY W10278117 MAY W10278117 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10215099 Contact Us For Availability
19
MAY W10240946 MAY W10240946 Contact Us For Availability
19
MAY W10252578 MAY W10252578 Contact Us For Availability
19
MAY 357640 MAY 357640 Contact Us For Availability
20
MAY W10240960 MAY W10240960 Contact Us For Availability
20
MAY W10312655 MAY W10312655 Contact Us For Availability
20
MAY W10006383 MAY W10006383 Contact Us For Availability
21
MAY W10248088 MAY W10248088 Contact Us For Availability
21
MAY W10287478 MAY W10287478 Contact Us For Availability
21
MAY W10005430 MAY W10005430 Contact Us For Availability
21
MAY W10238318 MAY W10238318 Contact Us For Availability
22
MAY W10335586 MAY W10335586 Contact Us For Availability
22
MAY 9740848 MAY 9740848 Contact Us For Availability
22
MAY 8533943 MAY 8533943 Contact Us For Availability
22
MAY W10238319 MAY W10238319 Contact Us For Availability
23
PANEL, REAR MAY W10250884 Contact Us For Availability
23
MAY W10326923 MAY W10326923 Contact Us For Availability
23
MAY 3347868 MAY 3347868 Contact Us For Availability
24
MAY W10215102 MAY W10215102 Contact Us For Availability
24
MAY 8536939 MAY 8536939 Contact Us For Availability
25
MAY W10142728 MAY W10142728 Contact Us For Availability
25
MAY W10274524 MAY W10274524 Contact Us For Availability
26
MAY W10215139 MAY W10215139 Contact Us For Availability
26
MAY W10305134 MAY W10305134 Contact Us For Availability
27
SCREW, 6-19 X 3/8 MAY 3196172 Contact Us For Availability
28
MAY W10317148 MAY W10317148 Contact Us For Availability
28
HARNESS, USER INTERFACE MAY W10285493 Contact Us For Availability
29
HOSE, OUTER DRAIN ASSEMBLY (INCLUDES ITEMS 30 MAY W10221546 Contact Us For Availability
30
MAY W10280024 MAY W10280024 Contact Us For Availability
31
MAY 356138 MAY 356138 Contact Us For Availability
33
BADGE, MAYTAG MAY W10323735 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
MAY 285448A MAY 285448A Contact Us For Availability
NI
MAY 285452A MAY 285452A Contact Us For Availability
NI
MAY 285834 MAY 285834 Contact Us For Availability
NI
WATER SYSTEM PARTS (CONNECTOR KIT, 4`` HOSE W MAY 285835 Contact Us For Availability
NI
WATER SYSTEM PARTS (HOSE EXTENSION - 4 FOOT W MAY 285863 Contact Us For Availability
NI
MAY 3363920 MAY 3363920 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN PROTECTOR MAY 367031 Contact Us For Availability
NI
MAY 384496 MAY 384496 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Inlet Hoses, 5 Ft. (Two Braided Hoses W/Strai MAY 8212487RP Contact Us For Availability
NI
INLET HOSES, 5 FT. (ONE RED HOSE & ONE BLUE H MAY 8212545RP Contact Us For Availability
NI
MAY 8212546RP MAY 8212546RP Contact Us For Availability
NI
INLET HOSES, 6 FT. (TWO BLACK HOSES W/ ONE ST MAY 8212637RP Contact Us For Availability
NI
INLET HOSES, 6 FT. (TWO BRAIDED HOSES W/ ONE MAY 8212638RP Contact Us For Availability
NI
Inlet Hoses, 5 Ft. (Two Black Hoses W/Straigh MAY 8212641RP Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (MERCURY SILVER) MAY W10268217 Contact Us For Availability
× ![]()
