Model Maytag MVWP475EW0 WASHER – Common Parts & Diagrams
01 - COVER SHEET

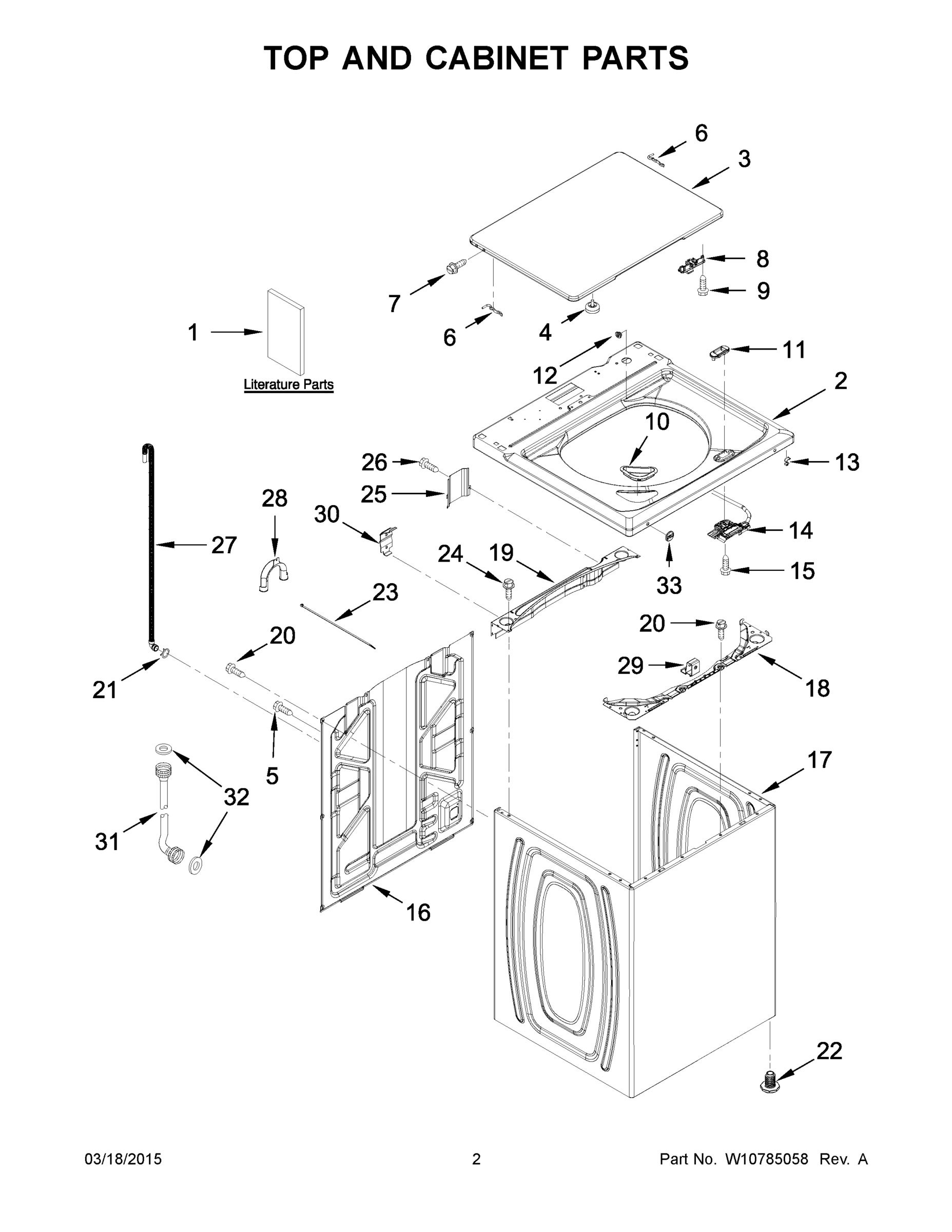

02 - TOP AND CABINET PARTS

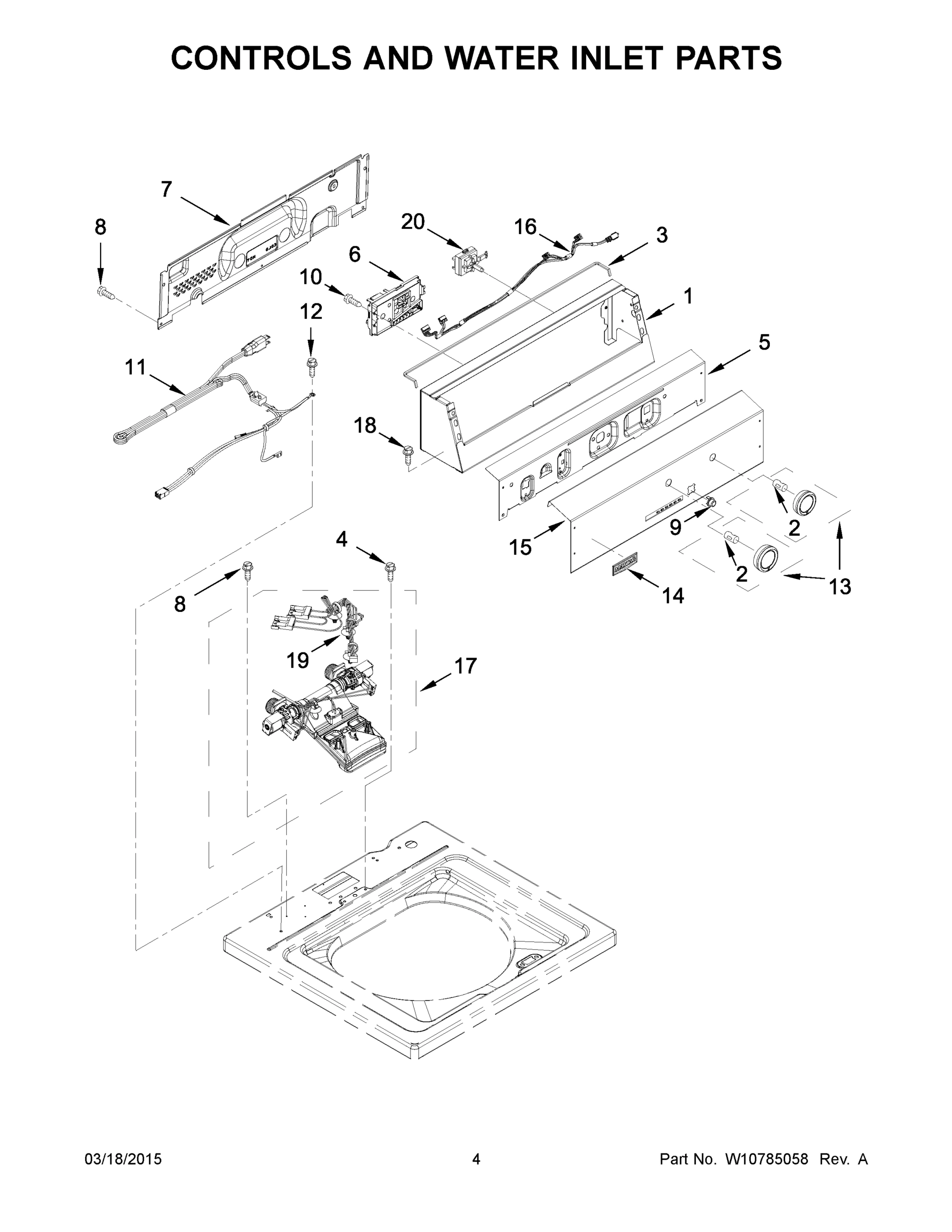

03 - CONTROLS AND WATER INLET PARTS

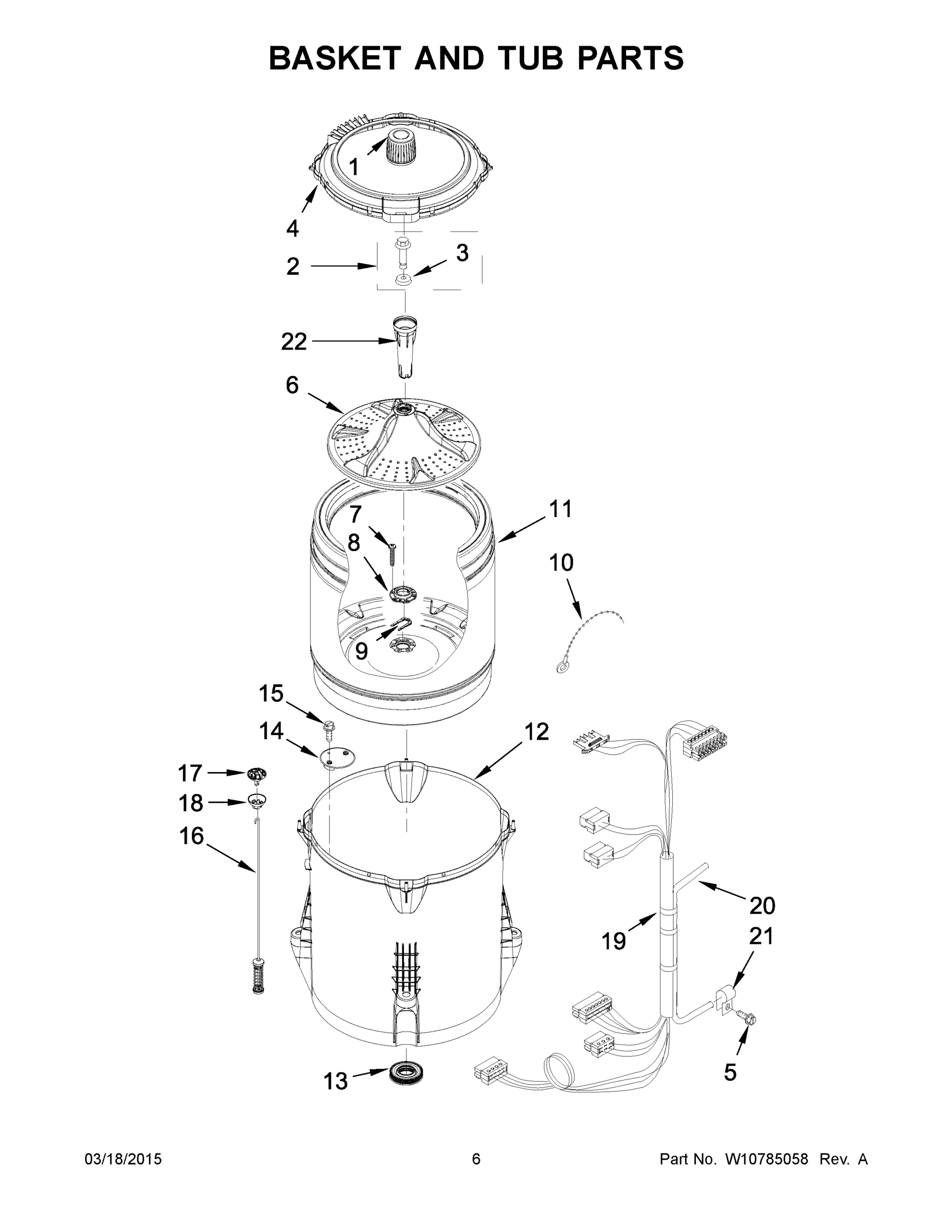

04 - BASKET AND TUB PARTS

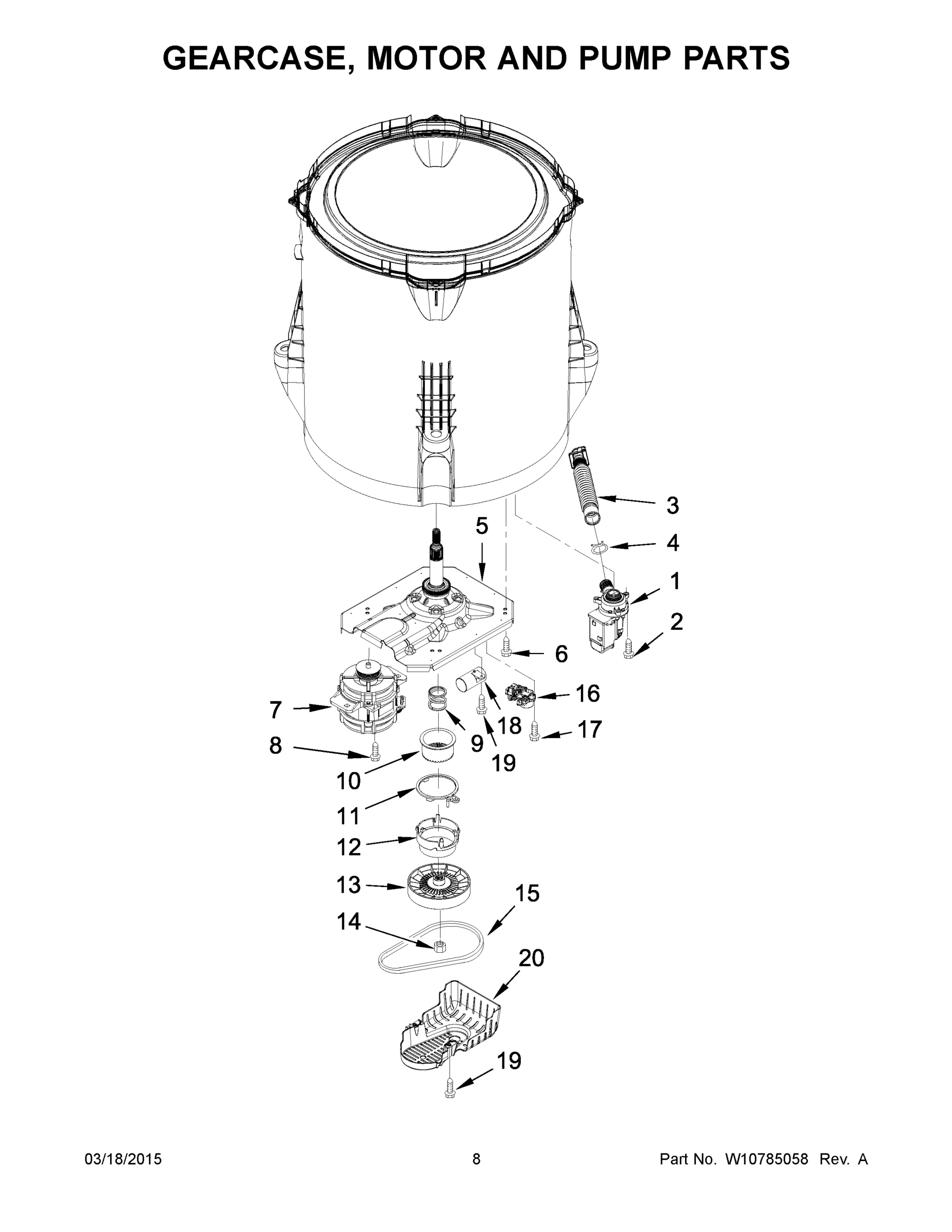

05 - GEARCASE, MOTOR AND PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MVWP475EW0 WASHER
1
MAY W10677676 MAY W10677676 Contact Us For Availability
1
MAY W10461095 MAY W10461095 Contact Us For Availability
1
MAY W10777971 MAY W10777971 Contact Us For Availability
1
MAY W10276397 MAY W10276397 Contact Us For Availability
1A
MAY W10755027 MAY W10755027 Contact Us For Availability
1B
MAY W10755025 MAY W10755025 Contact Us For Availability
1C
MAY W10757440 MAY W10757440 Contact Us For Availability
2
MAY W10461170 MAY W10461170 Contact Us For Availability
2
CLIP, SPRING MAY 8536939 Contact Us For Availability
2
SCREW AND WASHER MAY W10003790 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
ASSEMBLY, LID AND BUMPER (WHITE) MAY W10251302 Contact Us For Availability
3
SEAL, FOAM MAY 8318396 Contact Us For Availability
3
MAY 3949550 MAY 3949550 Contact Us For Availability
3
MAY W10763078 MAY W10763078 Contact Us For Availability
4
MAY W10525268 MAY W10525268 Contact Us For Availability
4
SCREW (STAINLESS) MAY 8281163 Contact Us For Availability
4
MAY W10556325 MAY W10556325 Contact Us For Availability
4
MAY 8317496 MAY 8317496 Contact Us For Availability
5
SCREW MAY 9740848 Contact Us For Availability
5
MAY W10461066 MAY W10461066 Contact Us For Availability
5
SCREW MAY 8533943 Contact Us For Availability
5
MAY W10772256 MAY W10772256 Contact Us For Availability
6
HINGE, LID (LEFT) MAY 91770 Contact Us For Availability
6
MAY W10719321 MAY W10719321 Contact Us For Availability
6
MAY W10680217 MAY W10680217 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
6A
MAY W10545835 MAY W10545835 Contact Us For Availability
7
SCREW MAY W10119872 Contact Us For Availability
7
MAY W10461159 MAY W10461159 Contact Us For Availability
7
SCREW MAY 8533953 Contact Us For Availability
7
MAY W10416664 MAY W10416664 Contact Us For Availability
8
STRIKE, LID LOCK (WHITE) MAY W10240513 Contact Us For Availability
8
MAY 1157158 MAY 1157158 Contact Us For Availability
8
MAY W10396887 MAY W10396887 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
MAY W10755537 MAY W10755537 Contact Us For Availability
9
MAY W10402178 MAY W10402178 Contact Us For Availability
9
SPRING, SPLUTCH MAY W10326374 Contact Us For Availability
10
MAY W10192089 MAY W10192089 Contact Us For Availability
10
SCREW MAY 90767 Contact Us For Availability
10
MAY W10298887 MAY W10298887 Contact Us For Availability
10
MAY W10239971 MAY W10239971 Contact Us For Availability
11
BEZEL, LID LOCK (WHITE) MAY W10392041 Contact Us For Availability
11
MAY W10482500 MAY W10482500 Contact Us For Availability
11
MAY W10521298 MAY W10521298 Contact Us For Availability
11
CAM RING, SPLUTCH MAY W10006353 Contact Us For Availability
12
BEARING, LID HINGE MAY 21258 Contact Us For Availability
12
SCREW MAY 3400076 Contact Us For Availability
12
TUB MAY W10238301 Contact Us For Availability
12
CAM, SPLUTCH MAY W10006354 Contact Us For Availability
13
MAY 90016 MAY 90016 Contact Us For Availability
13
MAY W10738283 MAY W10738283 Contact Us For Availability
13
MAY W10424291 MAY W10424291 Contact Us For Availability
13
MAY W10239973 MAY W10239973 Contact Us For Availability
14
MAY W10744659 MAY W10744659 Contact Us For Availability
14
BADGE (GREY) MAY W10612926 Contact Us For Availability
14
MAY W10215093 MAY W10215093 Contact Us For Availability
14
MAY W10604214 MAY W10604214 Contact Us For Availability
15
MAY W10763073 MAY W10763073 Contact Us For Availability
15
SCREW (STAINLESS) MAY 8533928 Contact Us For Availability
15
MAY W10006384 MAY W10006384 Contact Us For Availability
16
PANEL, REAR MAY W10250884 Contact Us For Availability
16
MAY W10291184 MAY W10291184 Contact Us For Availability
16
MAY W10748954 MAY W10748954 Contact Us For Availability
16
MAY W10597177 MAY W10597177 Contact Us For Availability
17
MAY W10478060 MAY W10478060 Contact Us For Availability
17
MAY W10683603 MAY W10683603 Contact Us For Availability
17
BALL, SUSPENSION (SET OF 4 - INCLUDES SUSPENS MAY W10583768 Contact Us For Availability
17
SCREW MAY 9741052 Contact Us For Availability
18
MAY W10215098 MAY W10215098 Contact Us For Availability
18
SCREW MAY 3390631 Contact Us For Availability
18
BUSHING - UPPER SUSPENSION (SET OF 4 - INCLUD MAY W10256551 Contact Us For Availability
18
MAY W10625046 MAY W10625046 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10512626 Contact Us For Availability
19
MAY W10684972 MAY W10684972 Contact Us For Availability
19
MAY W10610081 MAY W10610081 Contact Us For Availability
19
SCREW MAY 357640 Contact Us For Availability
20
MAY W10701088 MAY W10701088 Contact Us For Availability
20
MAY W10236981 MAY W10236981 Contact Us For Availability
20
MAY W10550173 MAY W10550173 Contact Us For Availability
21
MAY 356138 MAY 356138 Contact Us For Availability
21
CLAMP, CABLE MAY W10005430 Contact Us For Availability
22
MAY W10556332 MAY W10556332 Contact Us For Availability
22
MAY W10680218 MAY W10680218 Contact Us For Availability
23
TIE, CABLE MAY W10339879 Contact Us For Availability
24
SCREW MAY W10142728 Contact Us For Availability
25
MAY W10676061 MAY W10676061 Contact Us For Availability
27
HOSE, OUTER DRAIN ASSEMBLY MAY W10221546 Contact Us For Availability
28
MAY W10280024 MAY W10280024 Contact Us For Availability
29
MAY W10461182 MAY W10461182 Contact Us For Availability
30
MAY W10461176 MAY W10461176 Contact Us For Availability
31
MAY W10458855 MAY W10458855 Contact Us For Availability
31A
MAY W10458856 MAY W10458856 Contact Us For Availability
32
WASHER, INLET HOSE MAY W10242307 Contact Us For Availability
33
MAY W10461181 MAY W10461181 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
MAY 285834 MAY 285834 Contact Us For Availability
NI
MAY 285835 MAY 285835 Contact Us For Availability
NI
MAY 285863 MAY 285863 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN PROTECTOR MAY 367031 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487RP Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 10 FT. (TWO BLA MAY 8212656RP Contact Us For Availability
NI
WATER SYST MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
MAY W10355010 MAY W10355010 Contact Us For Availability
× ![]()
