Model Maytag MVWC6ESWW1 WASHER – Common Parts & Diagrams
01 - TOP AND CABINET PARTS

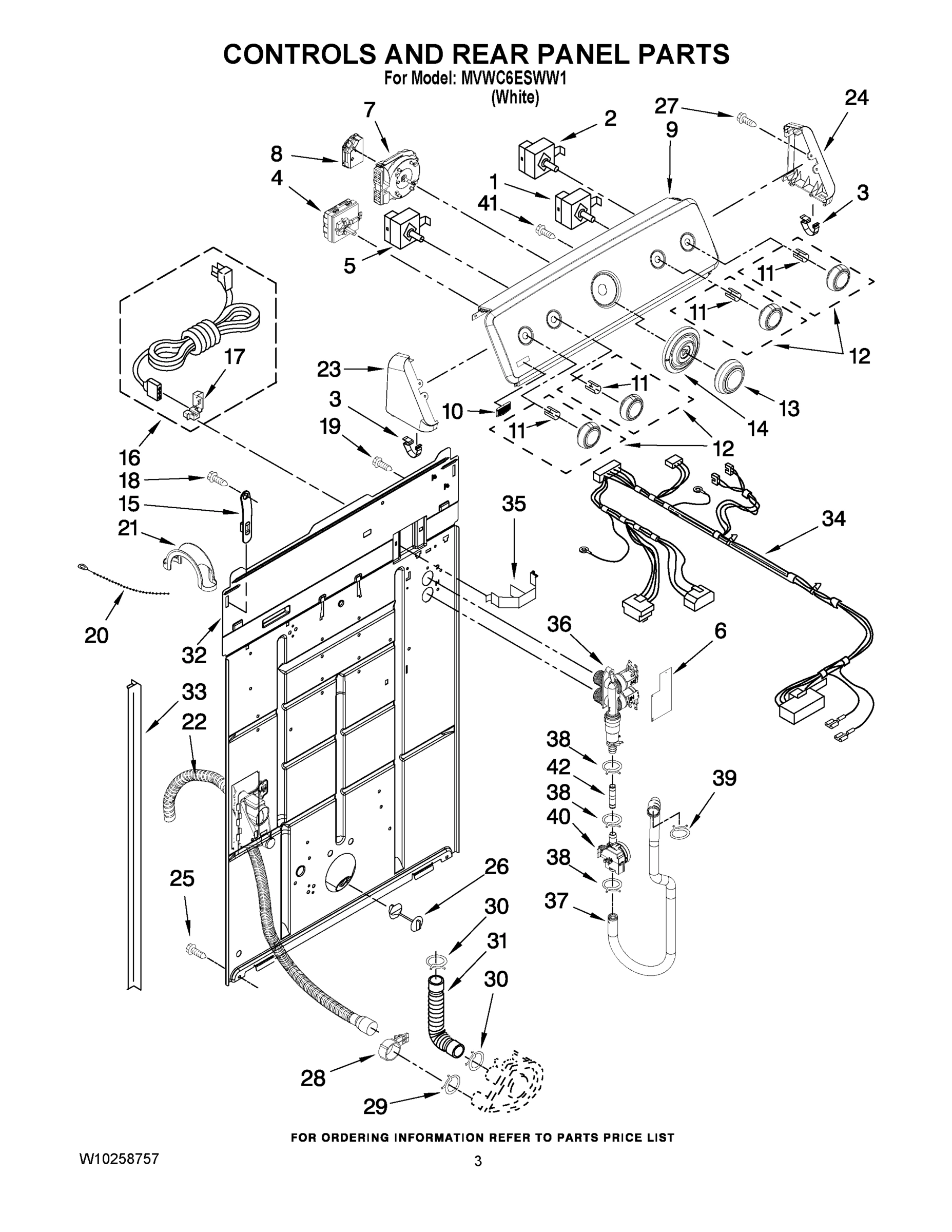

02 - CONTROLS AND REAR PANEL PARTS

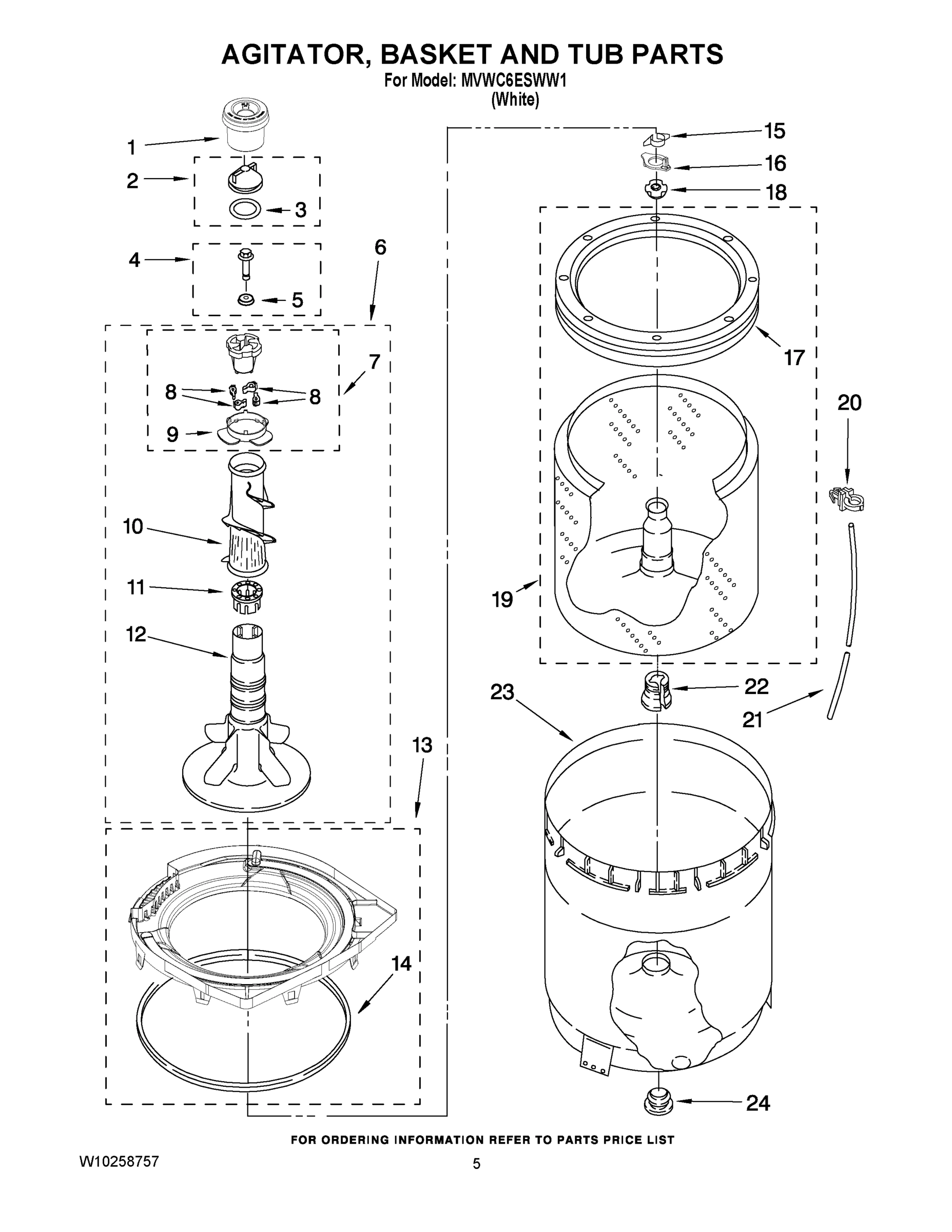

03 - AGITATOR, BASKET AND TUB PARTS

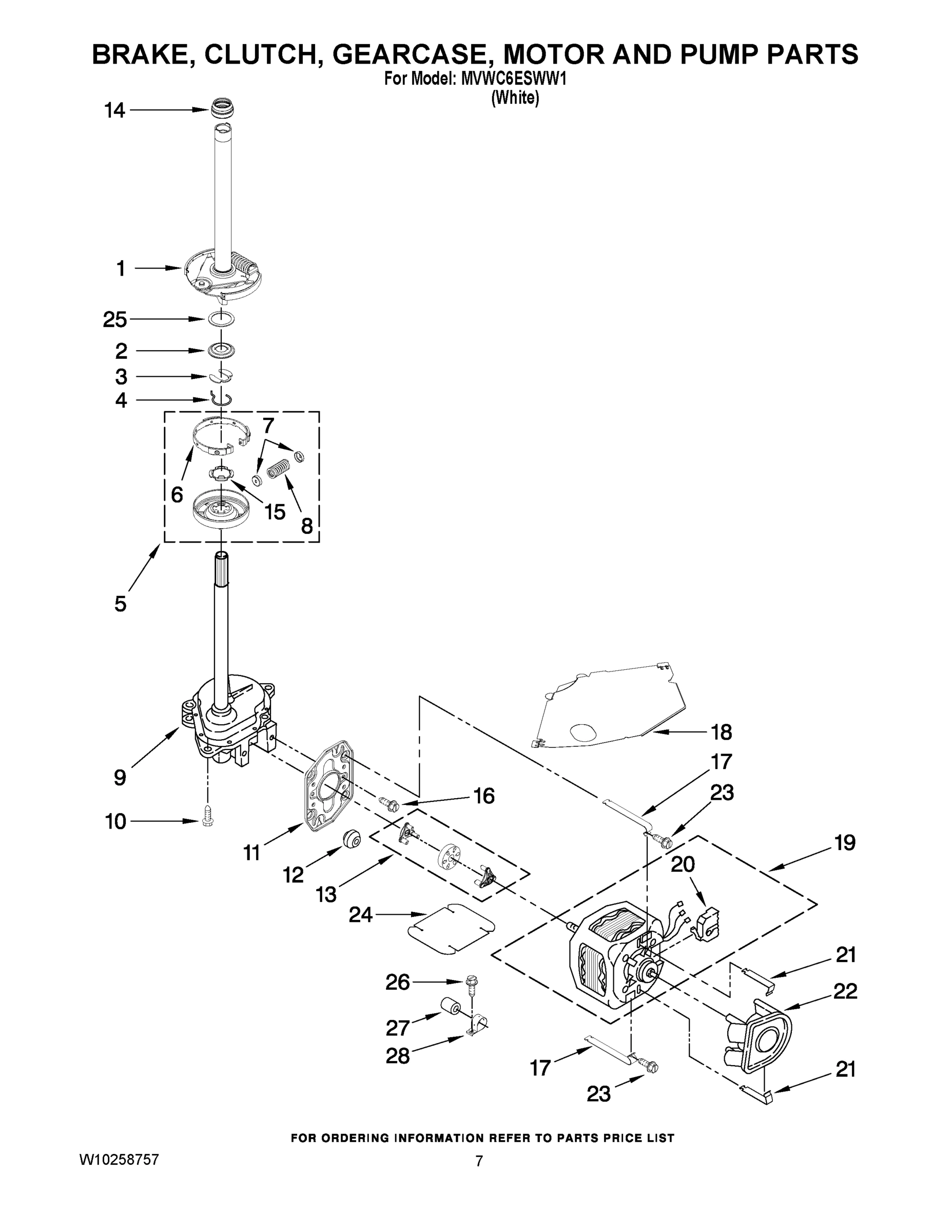

04 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

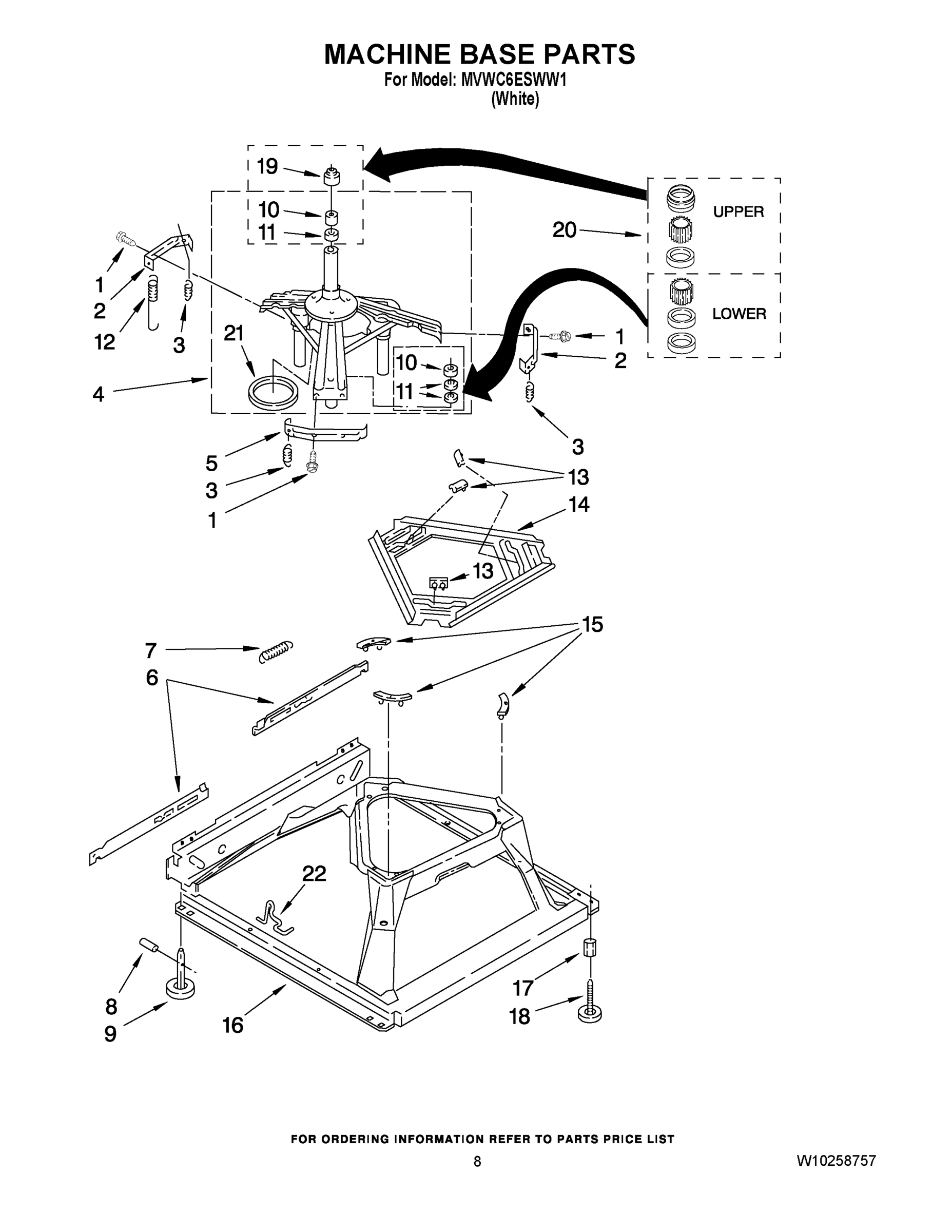

05 - MACHINE BASE PARTS

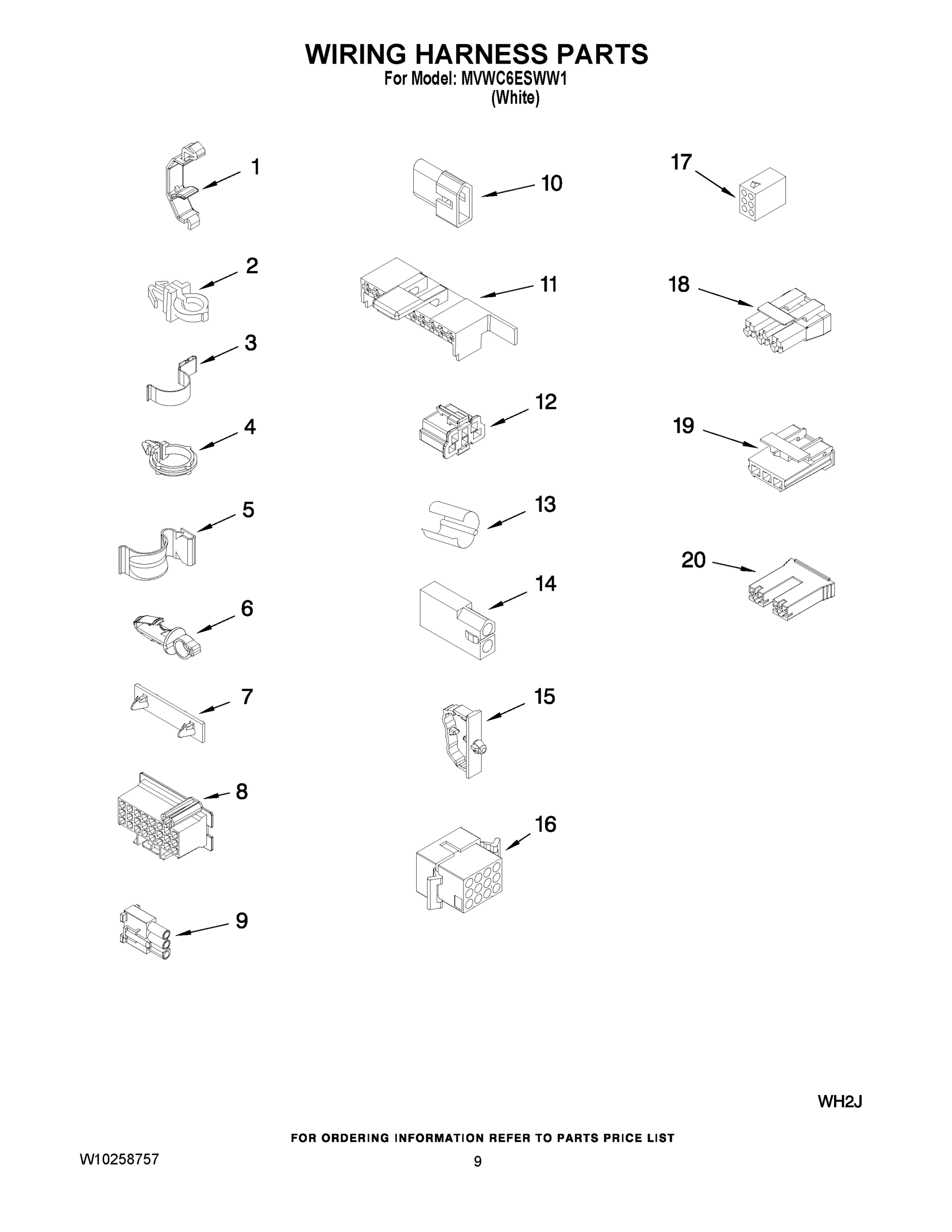

06 - WIRING HARNESS PARTS

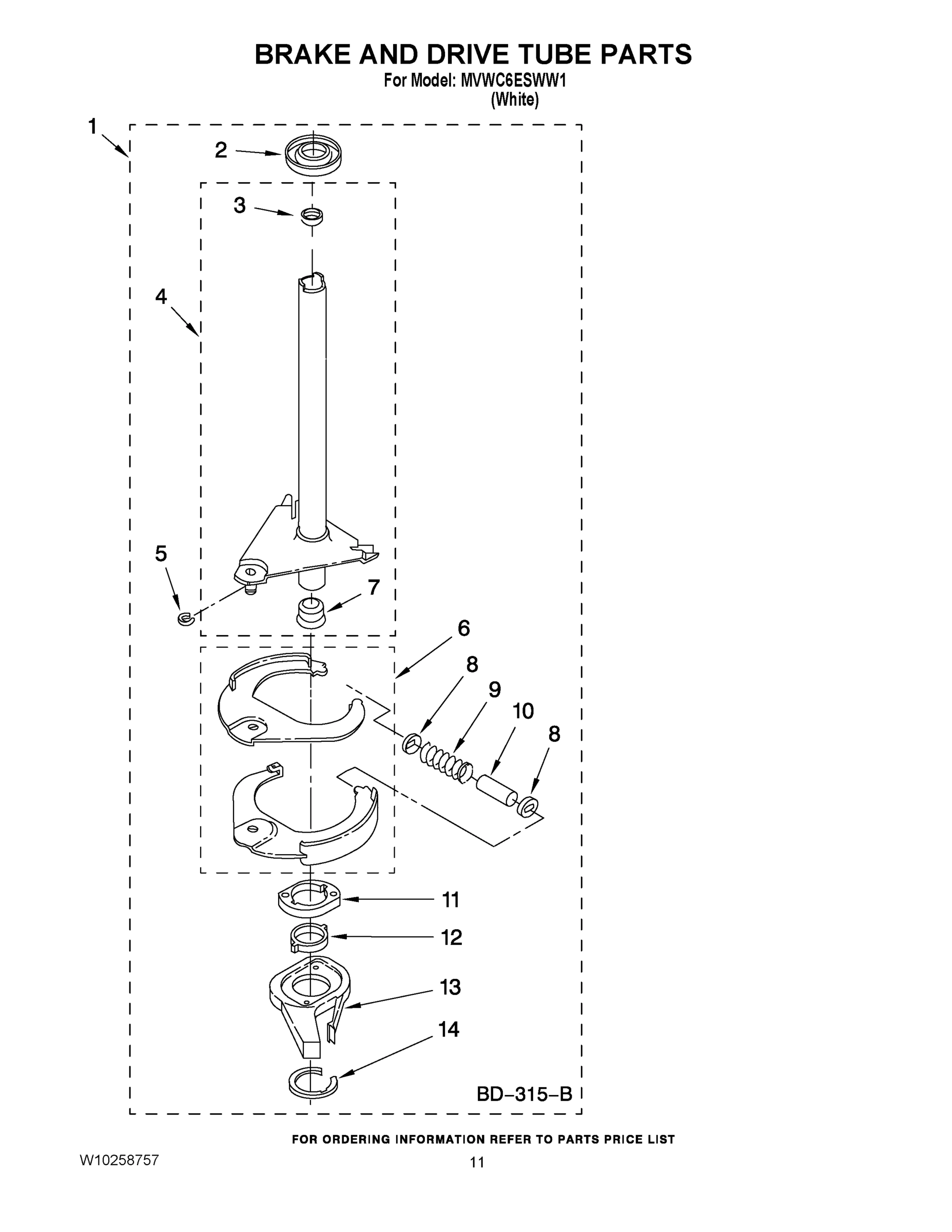

07 - BRAKE AND DRIVE TUBE PARTS

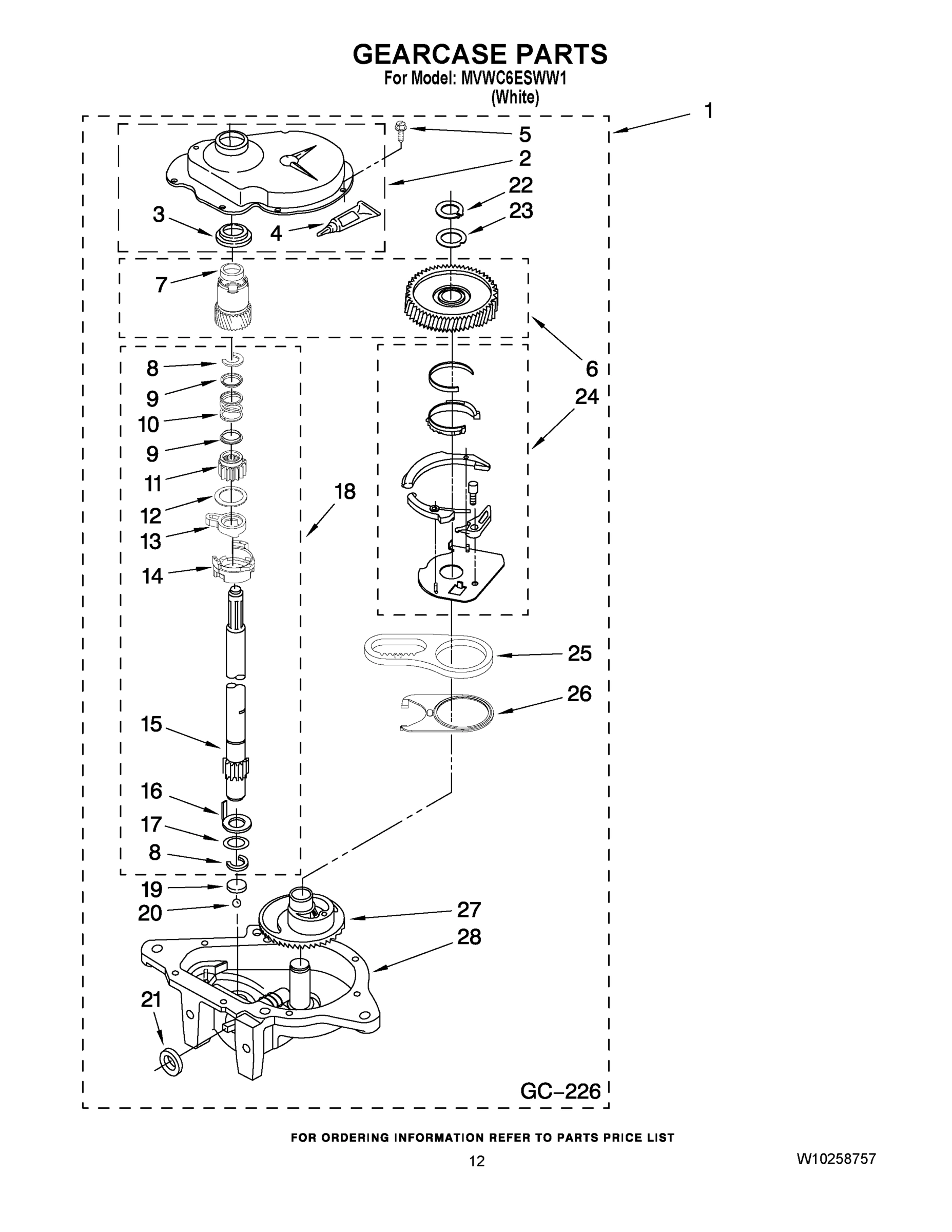

08 - GEARCASE PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MVWC6ESWW1 WASHER
1
MAY W10092798 MAY W10092798 Contact Us For Availability
1
MAY W10092799 MAY W10092799 Contact Us For Availability
1
MAY W10092811 MAY W10092811 Contact Us For Availability
1
MAY W10092812 MAY W10092812 Contact Us For Availability
1
MAY W10092828 MAY W10092828 Contact Us For Availability
1
MAY W10196538 MAY W10196538 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH) MAY W10200890 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS (SPANISH) MAY W10200891 Contact Us For Availability
1
MAY W10248232 MAY W10248232 Contact Us For Availability
1
MAY 8578416 MAY 8578416 Contact Us For Availability
1
MAY 8575076 MAY 8575076 Contact Us For Availability
1
Brake And Drive Tube (Complete) MAY 388952 Contact Us For Availability
1
GEARCASE (COMPLETE) MAY W10251783 Contact Us For Availability
1
MAY 3400076 MAY 3400076 Contact Us For Availability
1
Retainer, Harness MAY 3349557 Contact Us For Availability
2
MAY W10093782 MAY W10093782 Contact Us For Availability
2
MAY 3354733 MAY 3354733 Contact Us For Availability
2
MAY 63292 MAY 63292 Contact Us For Availability
2
MAY 64067 MAY 64067 Contact Us For Availability
2
MAY 388498 MAY 388498 Contact Us For Availability
2
MAY 62658 MAY 62658 Contact Us For Availability
2
MAY 285202 MAY 285202 Contact Us For Availability
3
MAY W10119828 MAY W10119828 Contact Us For Availability
3
Clip-Console (2) MAY 8312709 Contact Us For Availability
3
MAY W10072840 MAY W10072840 Contact Us For Availability
3
MAY 62697 MAY 62697 Contact Us For Availability
3
SPRING, SUSPENSION(3) MAY 63907 Contact Us For Availability
3
MAY 3347812 MAY 3347812 Contact Us For Availability
3
MAY 356427 MAY 356427 Contact Us For Availability
3
MAY 3349985 MAY 3349985 Contact Us For Availability
4
MAY 8319539 MAY 8319539 Contact Us For Availability
4
MAY W10248240 MAY W10248240 Contact Us For Availability
4
Screw & Washer (5/16-24 x 1) MAY 358237 Contact Us For Availability
4
MAY 63283 MAY 63283 Contact Us For Availability
4
MAY 8575214 MAY 8575214 Contact Us For Availability
4
Clip, Harness (Push-In) MAY 3352501 Contact Us For Availability
4
MAY 64027 MAY 64027 Contact Us For Availability
5
SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X MAY 3351614 Contact Us For Availability
5
Switch, Rotary MAY 3949180 Contact Us For Availability
5
MAY 3949550 MAY 3949550 Contact Us For Availability
5
MAY 8299642 MAY 8299642 Contact Us For Availability
5
MAY 64065 MAY 64065 Contact Us For Availability
5
Clip, Harness (Half-Harness) MAY 90016 Contact Us For Availability
5
MAY 64035 MAY 64035 Contact Us For Availability
6
MAY 8318084 MAY 8318084 Contact Us For Availability
6
MAY W10245838 MAY W10245838 Contact Us For Availability
6
MAY W10093672 MAY W10093672 Contact Us For Availability
6
Band & Lining, Clutch MAY 3951993 Contact Us For Availability
6
MAY 63466 MAY 63466 Contact Us For Availability
6
MAY 3390496 MAY 3390496 Contact Us For Availability
6
MAY 64232 MAY 64232 Contact Us For Availability
6
MAY W10172898 MAY W10172898 Contact Us For Availability
7
MAY W10225136 MAY W10225136 Contact Us For Availability
7
MAY W10243947 MAY W10243947 Contact Us For Availability
7
MAY 3363663 MAY 3363663 Contact Us For Availability
7
MAY 62646 MAY 62646 Contact Us For Availability
7
MAY 62597 MAY 62597 Contact Us For Availability
7
Retainer, Harness MAY 389379 Contact Us For Availability
7
MAY 62703 MAY 62703 Contact Us For Availability
8
MAY 91770 MAY 91770 Contact Us For Availability
8
MAY W10104800 MAY W10104800 Contact Us For Availability
8
MAY 3366877 MAY 3366877 Contact Us For Availability
8
Spring, Clutch MAY 8559387 Contact Us For Availability
8
MAY 62837 MAY 62837 Contact Us For Availability
8
MAY 352089 MAY 352089 Contact Us For Availability
8
Timer, Block Disconnect (Natural) MAY 3948614 Contact Us For Availability
8
MAY 3353956 MAY 3353956 Contact Us For Availability
8
MAY 90369 MAY 90369 Contact Us For Availability
9
MAY 62780 MAY 62780 Contact Us For Availability
9
MAY W10089738 MAY W10089738 Contact Us For Availability
9
BEARING, DRIVEN CAM MAY 3363661 Contact Us For Availability
9
MAY 62596 MAY 62596 Contact Us For Availability
9
Receptacle, Terminal (3-Way) MAY 62889 Contact Us For Availability
9
MAY 387806 MAY 387806 Contact Us For Availability
9
Retainer, Spring (2) MAY 62677 Contact Us For Availability
10
MAY W10192089 MAY W10192089 Contact Us For Availability
10
MAY W10101390 MAY W10101390 Contact Us For Availability
10
MAY 3349019 MAY 3349019 Contact Us For Availability
10
MAY 3357334 MAY 3357334 Contact Us For Availability
10
MAY 8546455 MAY 8546455 Contact Us For Availability
10
Plug, Terminal (3-Way) MAY 353424 Contact Us For Availability
10
MAY 3355360 MAY 3355360 Contact Us For Availability
10
MAY 62676 MAY 62676 Contact Us For Availability
11
MAY W10194868 MAY W10194868 Contact Us For Availability
11
MAY 8536939 MAY 8536939 Contact Us For Availability
11
Spacer, Thrust MAY 3350389 Contact Us For Availability
11
MAY 62611 MAY 62611 Contact Us For Availability
11
MAY 357409 MAY 357409 Contact Us For Availability
11
Block, Disconnect (Motor 2 Speed) MAY 62505 Contact Us For Availability
11
MAY 661516 MAY 661516 Contact Us For Availability
11
Gear, Agitate (Includes Items 15 & 17) MAY W10110245 Contact Us For Availability
12
MAY 62750 MAY 62750 Contact Us For Availability
12
Knob, Control MAY W10180218 Contact Us For Availability
12
MAY W10110020 MAY W10110020 Contact Us For Availability
12
MAY 62691 MAY 62691 Contact Us For Availability
12
MAY 388492 MAY 388492 Contact Us For Availability
12
Block, Disconnect MAY 3347243 Contact Us For Availability
12
MAY 63022 MAY 63022 Contact Us For Availability
12
MAY 62619 MAY 62619 Contact Us For Availability
13
Cabinet MAY 63424 Contact Us For Availability
13
MAY W10180213 MAY W10180213 Contact Us For Availability
13
Tub Ring MAY W10167984 Contact Us For Availability
13
MAY 3978849 MAY 3978849 Contact Us For Availability
13
MAY 62568 MAY 62568 Contact Us For Availability
13
MAY 63523 MAY 63523 Contact Us For Availability
13
MAY 64194 MAY 64194 Contact Us For Availability
13
Cam Follower (Includes Item 14) MAY 62580 Contact Us For Availability
14
MAY W10165554 MAY W10165554 Contact Us For Availability
14
MAY W10180214 MAY W10180214 Contact Us For Availability
14
MAY 3359585 MAY 3359585 Contact Us For Availability
14
MAY 8577374 MAY 8577374 Contact Us For Availability
14
Plate, Suspension (Includes Item 13) MAY 3946509 Contact Us For Availability
14
Connector (2-Way) MAY 717252 Contact Us For Availability
14
MAY 90368 MAY 90368 Contact Us For Availability
14
MAY 3976349 MAY 3976349 Contact Us For Availability
15
MAY 9724509 MAY 9724509 Contact Us For Availability
15
Strap, Console MAY 8568314 Contact Us For Availability
15
MAY 3354845 MAY 3354845 Contact Us For Availability
15
MAY 3355454 MAY 3355454 Contact Us For Availability
15
MAY 3363660 MAY 3363660 Contact Us For Availability
15
MAY 3352944 MAY 3352944 Contact Us For Availability
15
MAY 389231 MAY 389231 Contact Us For Availability
16
MAY W10177046 MAY W10177046 Contact Us For Availability
16
Cord, Power MAY 8578842 Contact Us For Availability
16
MAY 8543666 MAY 8543666 Contact Us For Availability
16
MAY 3400516 MAY 3400516 Contact Us For Availability
16
Base Assembly (Includes Items 6, 7, 8, 9, 13, MAY 3946512 Contact Us For Availability
16
Block, Disconnect (12-Way) MAY 3390423 Contact Us For Availability
16
MAY 62618 MAY 62618 Contact Us For Availability
17
MAY 3952821 MAY 3952821 Contact Us For Availability
17
MAY W10006326 MAY W10006326 Contact Us For Availability
17
MAY W10086010 MAY W10086010 Contact Us For Availability
17
MAY 3359452 MAY 3359452 Contact Us For Availability
17
Receptacle (6-Way) MAY 3347730 Contact Us For Availability
17
MAY 388815 MAY 388815 Contact Us For Availability
18
MAY 9740848 MAY 9740848 Contact Us For Availability
18
MAY W10116602 MAY W10116602 Contact Us For Availability
18
MAY 3362089 MAY 3362089 Contact Us For Availability
18
MAY W10001130 MAY W10001130 Contact Us For Availability
18
Connector (T.P.A.) (3-Circuit) MAY 3948617 Contact Us For Availability
18
MAY 389387 MAY 389387 Contact Us For Availability
19
MAY W10006327 MAY W10006327 Contact Us For Availability
19
MAY 661600 MAY 661600 Contact Us For Availability
19
MAY 8577376 MAY 8577376 Contact Us For Availability
19
Plug (T.P.A) (3-Circuit) (Pressure Switch) MAY 3360056 Contact Us For Availability
19
BEARING, THRUST (INCLUDES ITEM 20) MAY 16018 Contact Us For Availability
20
MAY 3347868 MAY 3347868 Contact Us For Availability
20
MAY 2219077 MAY 2219077 Contact Us For Availability
20
MAY 62850 MAY 62850 Contact Us For Availability
20
Centerpost Bearing Kit (Includes Items 10, 11 MAY 285203 Contact Us For Availability
20
Block, Connector (Natural) MAY 3354925 Contact Us For Availability
20
Block, Connector (Red) MAY 3354926 Contact Us For Availability
20
BALL BEARING (INCLUDES ITEM 19) MAY 85529 Contact Us For Availability
21
MAY 8577378 MAY 8577378 Contact Us For Availability
21
MAY W10240485 MAY W10240485 Contact Us For Availability
21
MAY 8546127 MAY 8546127 Contact Us For Availability
21
MAY 63134 MAY 63134 Contact Us For Availability
21
MAY W10111745 MAY W10111745 Contact Us For Availability
22
Drain Hose Assembly (Includes Item 28) MAY W10189267 Contact Us For Availability
22
MAY 389140 MAY 389140 Contact Us For Availability
22
MAY 3363394 MAY 3363394 Contact Us For Availability
22
MAY W10145155 MAY W10145155 Contact Us For Availability
22
MAY 3362552 MAY 3362552 Contact Us For Availability
23
Cap, End (L.H.) (Includes Item 3) MAY W10193824 Contact Us For Availability
23
MAY 63849 MAY 63849 Contact Us For Availability
23
MAY 3387485 MAY 3387485 Contact Us For Availability
23
MAY 285766 MAY 285766 Contact Us For Availability
24
Cap, End (R.H.) (Includes Item 3) MAY W10193821 Contact Us For Availability
24
MAY 383727 MAY 383727 Contact Us For Availability
24
MAY 3946532 MAY 3946532 Contact Us For Availability
24
NUETRAL ASSEMBLY MAY 388253 Contact Us For Availability
25
MAY 8578981 MAY 8578981 Contact Us For Availability
25
MAY 8546456 MAY 8546456 Contact Us For Availability
26
MAY 62863 MAY 62863 Contact Us For Availability
26
MAY 8519200 MAY 8519200 Contact Us For Availability
26
MAY 62621 MAY 62621 Contact Us For Availability
27
Screw, 8-18 x 1/2 MAY 359625 Contact Us For Availability
27
Capacitor MAY 8572717 Contact Us For Availability
28
MAY 8541668 MAY 8541668 Contact Us For Availability
28
MAY 3949496 MAY 3949496 Contact Us For Availability
29
MAY 8317496 MAY 8317496 Contact Us For Availability
30
MAY 3363366 MAY 3363366 Contact Us For Availability
31
Hose, Pump To Tub (Includes Item 30) MAY 3951449 Contact Us For Availability
32
MAY W10194451 MAY W10194451 Contact Us For Availability
33
MAY 62747 MAY 62747 Contact Us For Availability
34
MAY W10204122 MAY W10204122 Contact Us For Availability
35
MAY 8055003 MAY 8055003 Contact Us For Availability
36
MAY W10175893 MAY W10175893 Contact Us For Availability
37
MAY W10166732 MAY W10166732 Contact Us For Availability
38
MAY W10185367 MAY W10185367 Contact Us For Availability
39
MAY W10117298 MAY W10117298 Contact Us For Availability
40
MAY W10176591 MAY W10176591 Contact Us For Availability
41
MAY 3400073 MAY 3400073 Contact Us For Availability
42
MAY W10166731 MAY W10166731 Contact Us For Availability
NI
Lubricant (Use Only in Brake Shoe Assembly On MAY 285208 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
MAY 280129 MAY 280129 Contact Us For Availability
NI
MAY 280130 MAY 280130 Contact Us For Availability
NI
MAY 280131 MAY 280131 Contact Us For Availability
NI
MAY 285448A MAY 285448A Contact Us For Availability
NI
MAY 285452A MAY 285452A Contact Us For Availability
NI
MAY 350572 MAY 350572 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
Drain Protector MAY 367031 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Inlet Hoses, 5 Ft. (Two Braided Hoses W/Strai MAY 8212487RP Contact Us For Availability
NI
INLET HOSES, 5 FT. (ONE RED HOSE & ONE BLUE H MAY 8212545RP Contact Us For Availability
NI
MAY 8212546RP MAY 8212546RP Contact Us For Availability
NI
INLET HOSES, 6 FT. (TWO BLACK HOSES W/ ONE ST MAY 8212637RP Contact Us For Availability
NI
INLET HOSES, 6 FT. (TWO BRAIDED HOSES W/ ONE MAY 8212638RP Contact Us For Availability
NI
Inlet Hoses, 5 Ft. (Two Black Hoses W/Straigh MAY 8212641RP Contact Us For Availability
× ![]()
Login and Registration Form
