Model Maytag MVWC415EW2 LAUNDRY, WASHER – Common Parts & Diagrams
01 - COVER SHEET

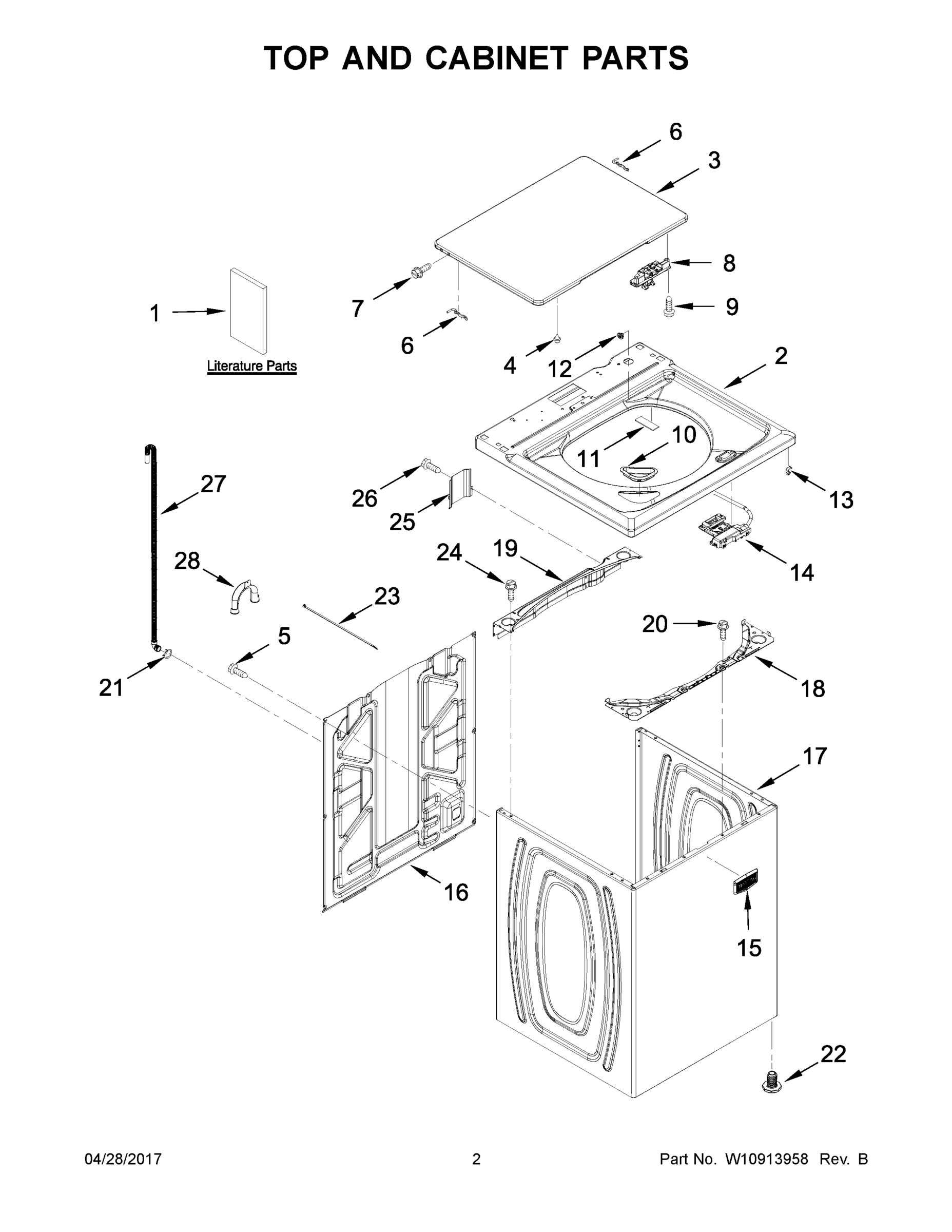

02 - TOP AND CABINET PARTS

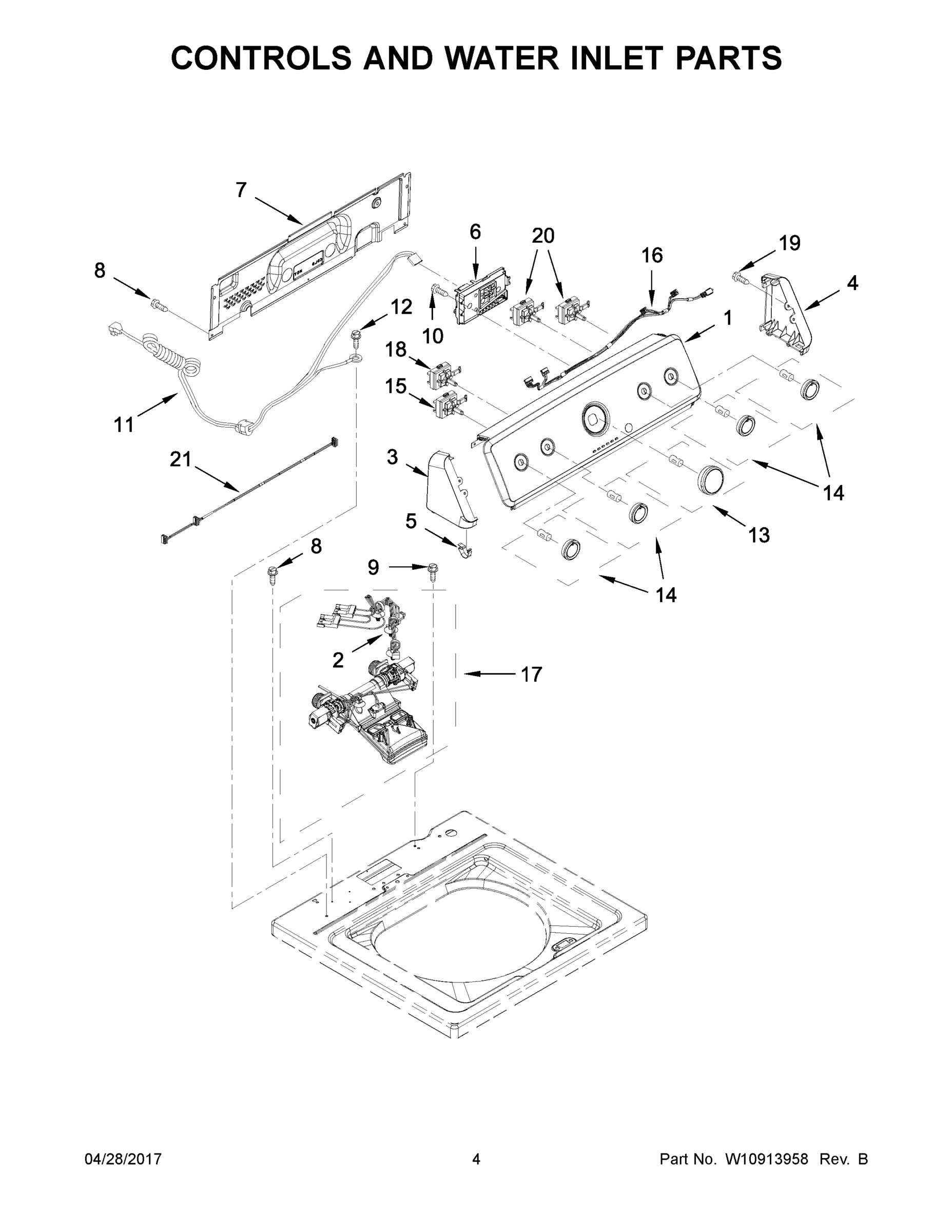

03 - CONTROLS AND WATER INLET PARTS

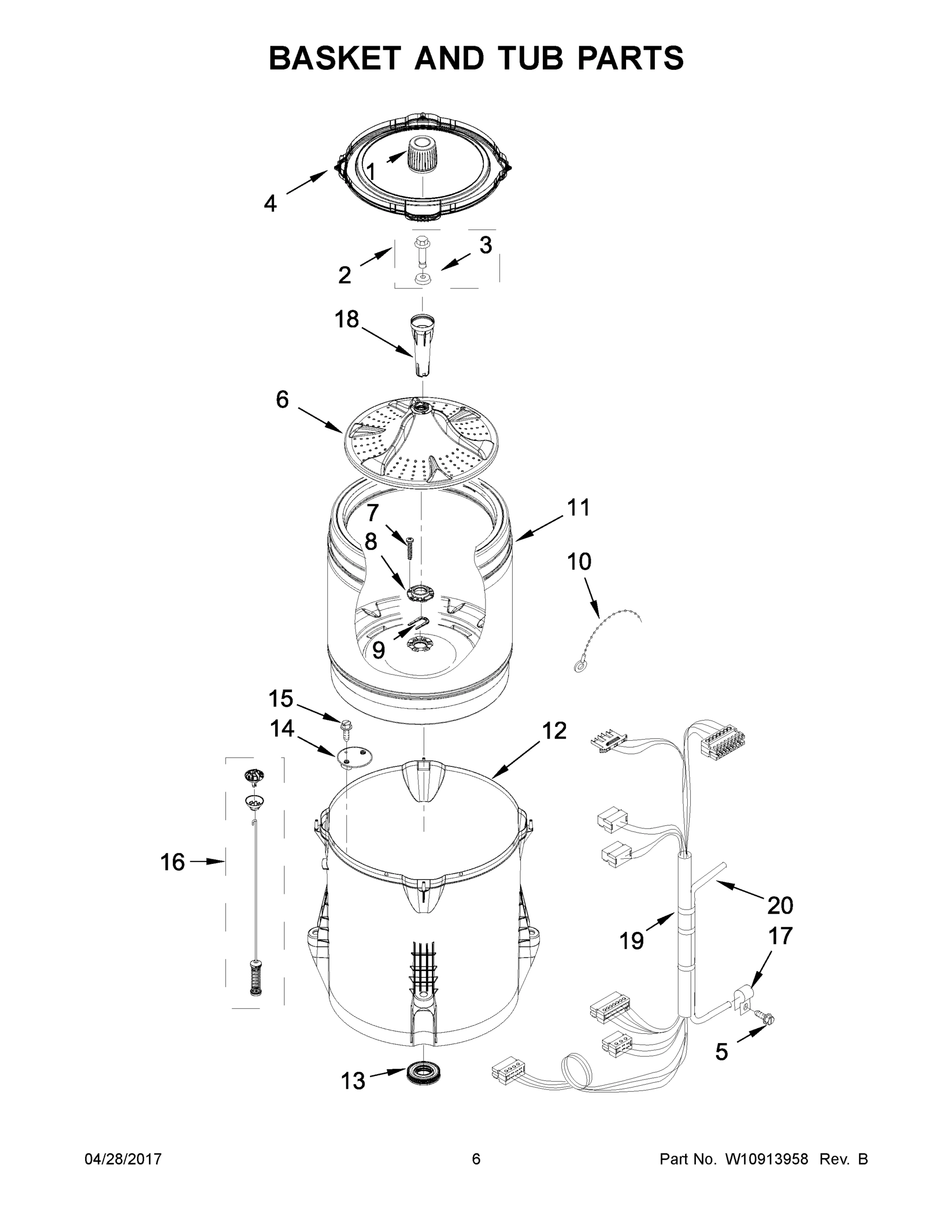

04 - BASKET AND TUB PARTS

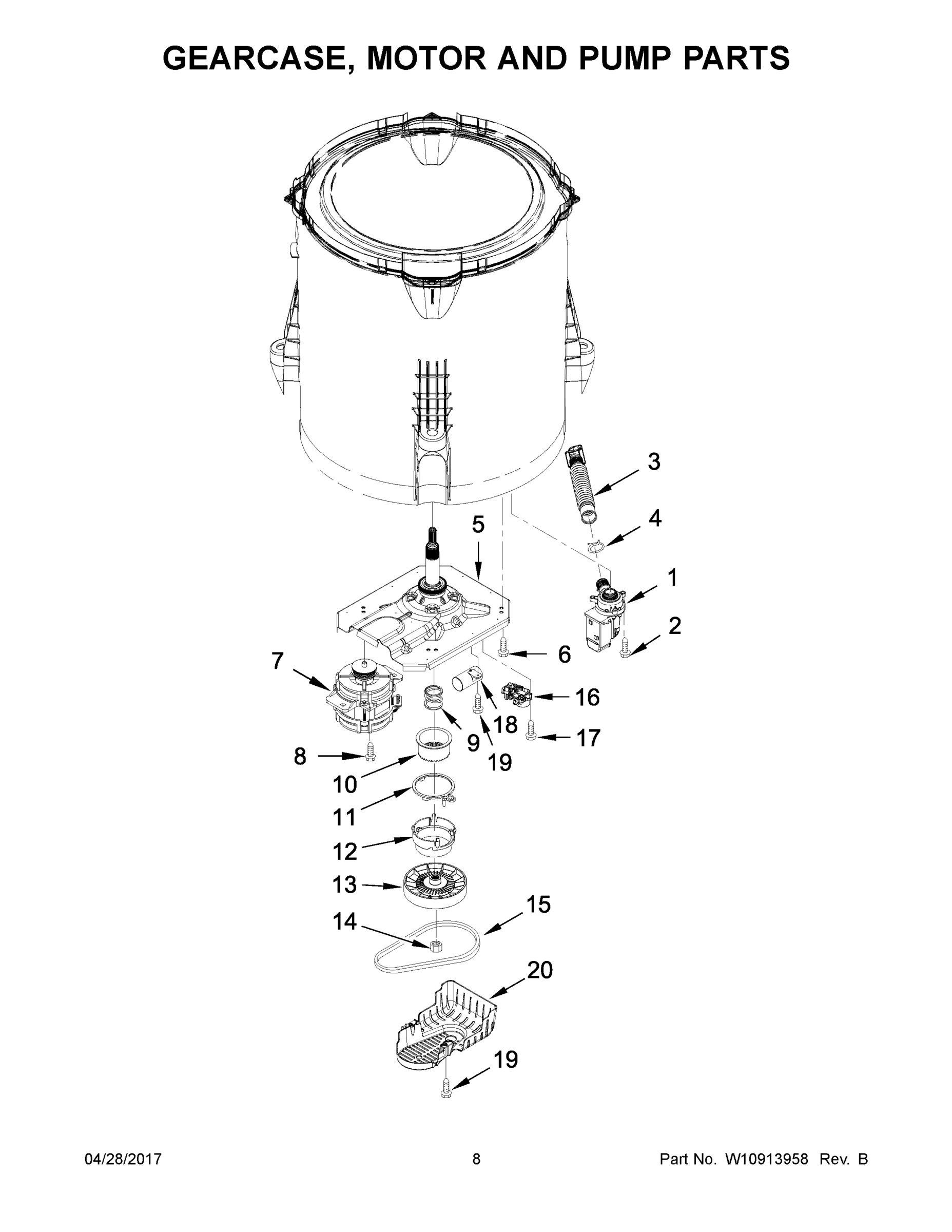

05 - GEARCASE, MOTOR AND PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MVWC415EW2 LAUNDRY, WASHER
1
TECH SHEET MAY W10740624 Contact Us For Availability
1
PANEL, CONSOLE MAY W10774044 Contact Us For Availability
1
DISPENSER, FABRIC SOFTENER MAY W10777971 Contact Us For Availability
1
PUMP ASSEMBLY, DRAIN MAY W10775446 Contact Us For Availability
1A
INSTALLATION INSTRUCTIONS MAY W10240509 Contact Us For Availability
1B
OWNERS MANUAL MAY W10845225 Contact Us For Availability
1C
ENERGY GUIDE MAY W10811317 Contact Us For Availability
2
TOP (WHITE) MAY W10686446 Contact Us For Availability
2
HARNESS, VALVE MAY W10868094 Contact Us For Availability
2
SCREW AND WASHER MAY W10003790 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
ASSEMBLY, LID AND BUMPER (WHITE) MAY W10027624 Contact Us For Availability
3
END CAP (LEFT) (WHITE) MAY W10193824 Contact Us For Availability
3
WASHER MAY 3949550 Contact Us For Availability
3
HOSE, INNER DRAIN ASSEMBLY MAY W10763078 Contact Us For Availability
4
BUMPER MAY 9724509 Contact Us For Availability
4
END CAP (RIGHT) (WHITE) MAY W10193821 Contact Us For Availability
4
TUB RING MAY W10556325 Contact Us For Availability
4
CLAMP, HOSE MAY 8317496 Contact Us For Availability
5
SCREW MAY 9740848 Contact Us For Availability
5
CLIP, CONSOLE MAY 8312709 Contact Us For Availability
5
SCREW MAY 8533943 Contact Us For Availability
5
GEARCASE ASSEMBLY MAY W10795114 Contact Us For Availability
6
HINGE, LID (LEFT) MAY 91770 Contact Us For Availability
6
CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR MAY W10864962 Contact Us For Availability
6
IMPELLER (WASHPLATE) MAY W10680217 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
6A
HINGE, LID (RIGHT) MAY 54583 Contact Us For Availability
7
SCREW MAY W10119872 Contact Us For Availability
7
PANEL, CONSOLE REAR COVER MAY W10461159 Contact Us For Availability
7
SCREW MAY 8533953 Contact Us For Availability
7
MOTOR, DRIVE MAY W10677719 Contact Us For Availability
8
STRIKE, LID LOCK (WHITE) MAY W10714899 Contact Us For Availability
8
SCREW MAY 1157158 Contact Us For Availability
8
HUB - DRIVEN, BASKET MAY W10396887 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
SCREW MAY W10213953 Contact Us For Availability
9
RETAINER, DRIVE BLOCK MAY W10402178 Contact Us For Availability
9
SPRING, SPLUTCH MAY W10326374 Contact Us For Availability
10
DISPENSER, BLEACH MAY W10192089 Contact Us For Availability
10
SCREW MAY 90767 Contact Us For Availability
10
CABLE TIE MAY W10339680 Contact Us For Availability
10
SLIDER, SPLUTCH MAY W10239971 Contact Us For Availability
11
PAD, LID HINGE MAY W10684258 Contact Us For Availability
11
CORD, POWER MAY W10737739 Contact Us For Availability
11
BASKET ASSEMBLY MAY W10521298 Contact Us For Availability
11
CAM RING, SPLUTCH MAY W10006353 Contact Us For Availability
12
BEARING, LID HINGE MAY 21258 Contact Us For Availability
12
SCREW MAY 3400076 Contact Us For Availability
12
TUB MAY W10238301 Contact Us For Availability
12
CAM, SPLUTCH MAY W10006354 Contact Us For Availability
13
CLIP, HARNESS MAY 90016 Contact Us For Availability
13
ASSEMBLY, TIMER KNOB (GREY) MAY W10558463 Contact Us For Availability
13
SEAL, TUB MAY W10006371 Contact Us For Availability
13
PULLEY MAY W10239973 Contact Us For Availability
14
LATCH, LID LOCK ASSEMBLY MAY W10682535 Contact Us For Availability
14
ASSEMBLY, CONTROL KNOB (GREY) MAY W10562155 Contact Us For Availability
14
FILTER, DRAIN PUMP MAY W10215093 Contact Us For Availability
14
NUT MAY W10604214 Contact Us For Availability
15
BADGE MAY W10612925 Contact Us For Availability
15
SWITCH, ROTARY ENCODER (3 POSITION) MAY W10285517 Contact Us For Availability
15
SCREW MAY 8533928 Contact Us For Availability
15
BELT, DRIVE MAY W10006384 Contact Us For Availability
16
PANEL, REAR MAY W10250884 Contact Us For Availability
16
HARNESS, UPPER MAY W10694685 Contact Us For Availability
16
DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INC MAY W10821954 Contact Us For Availability
16
ACTUATOR- SHIFT MAY W10815026 Contact Us For Availability
17
CABINET (WHITE) MAY W10478060 Contact Us For Availability
17
INLET ASSEMBLY, WATER MAY W10869799 Contact Us For Availability
17
CLAMP, CABLE MAY W10005430 Contact Us For Availability
17
SCREW MAY 9741052 Contact Us For Availability
18
BRACE, CABINET TOP - FRONT MAY W10215098 Contact Us For Availability
18
SWITCH, ROTARY ENCODER (5 POSITION) MAY W10285518 Contact Us For Availability
18
BARREL, AGITATOR MAY W10680218 Contact Us For Availability
18
CAPACITOR, MOTOR RUN MAY W10625046 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10512626 Contact Us For Availability
19
SCREW MAY 359625 Contact Us For Availability
19
MAY W10899775 MAY W10899775 Contact Us For Availability
19
SCREW MAY 357640 Contact Us For Availability
20
SWITCH, ROTARY ENCODER (2 POSITION) MAY W10285511 Contact Us For Availability
20
HOSE, PRESSURE SWITCH MAY W10236981 Contact Us For Availability
20
SHIELD, PULLEY COVER MAY W10550173 Contact Us For Availability
21
CLAMP, HOSE MAY 356138 Contact Us For Availability
21
HARNESS, JUMPER MAY W10694669 Contact Us For Availability
22
FOOT ASSEMBLY, LEVELING MAY W10556332 Contact Us For Availability
23
TIE, CABLE MAY W10339879 Contact Us For Availability
24
SCREW MAY W10142728 Contact Us For Availability
25
COVER, HARNESS MAY W10676061 Contact Us For Availability
27
HOSE, OUTER DRAIN ASSEMBLY MAY W10221546 Contact Us For Availability
28
U-BEND, DRAIN HOSE MAY W10280024 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
WATER SYSTEM PARTS, SIPHON BREAK KIT MAY 285834 Contact Us For Availability
NI
WATER SYSTEM PARTS, CONNECTOR ASSEMBLY MAY 285835 Contact Us For Availability
NI
WATER SYSTEM PARTS, 4' DRAIN HOSE W/CLAMP MAY 285863 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BRAI MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BL MAY 8212641RP Contact Us For Availability
NI
MAY 8212656RP MAY 8212656RP Contact Us For Availability
NI
MAY DRNEXT4 MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
MAY W10355010 MAY W10355010 Contact Us For Availability
× ![]()
