Model Maytag MVWB965HC0 LAUNDRY, RESIDENTIAL, WASHER – Common Parts & Diagrams

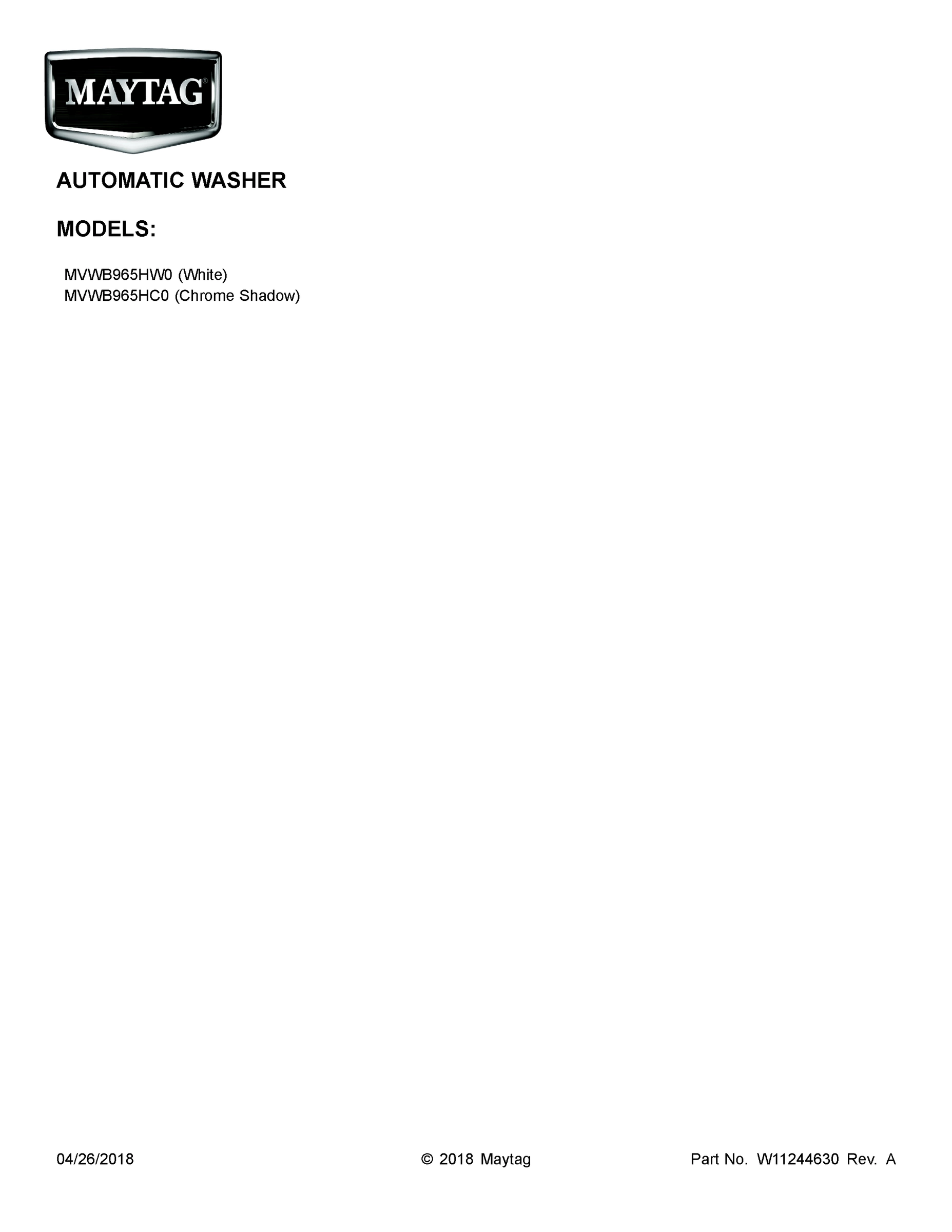

01 - COVER SHEET

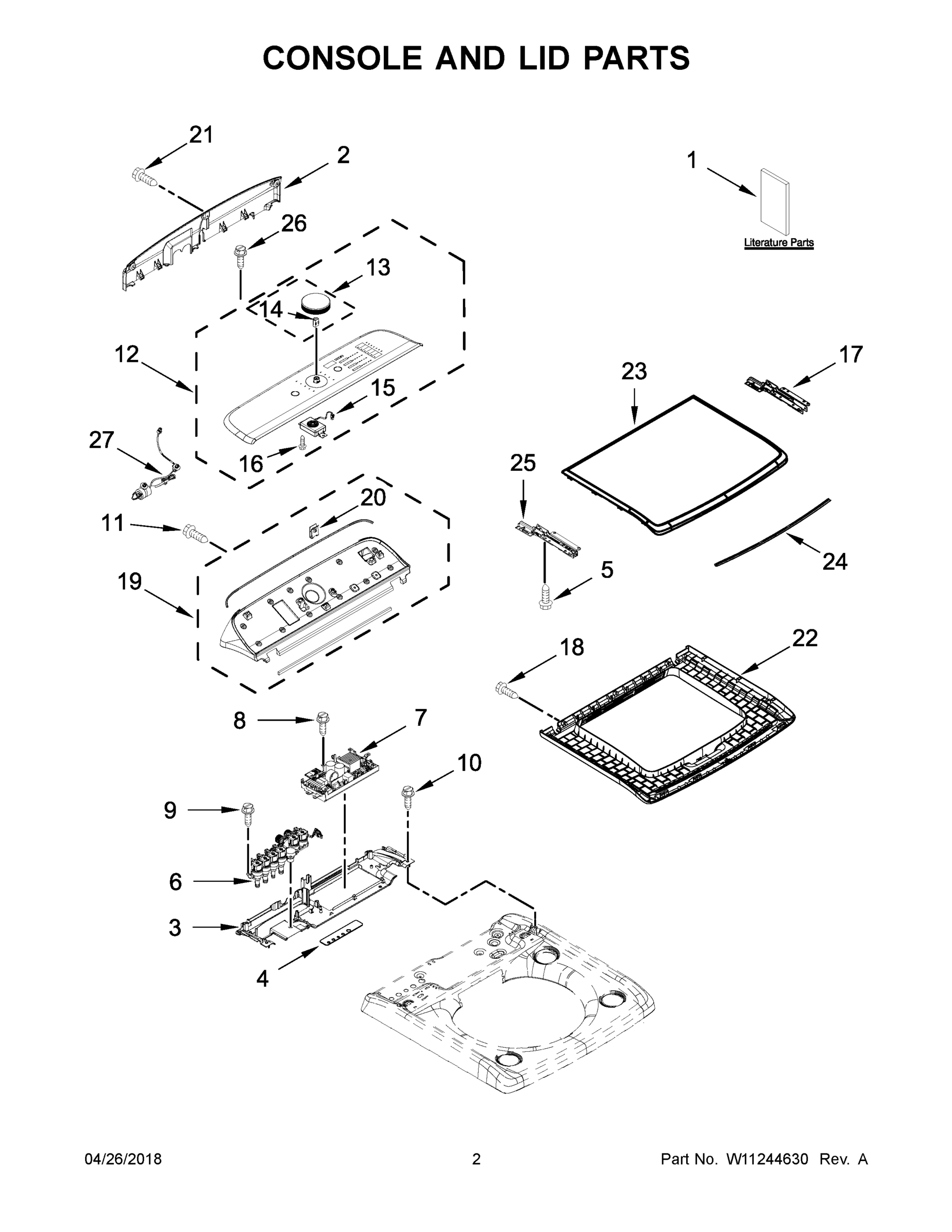

02 - CONSOLE AND LID PARTS

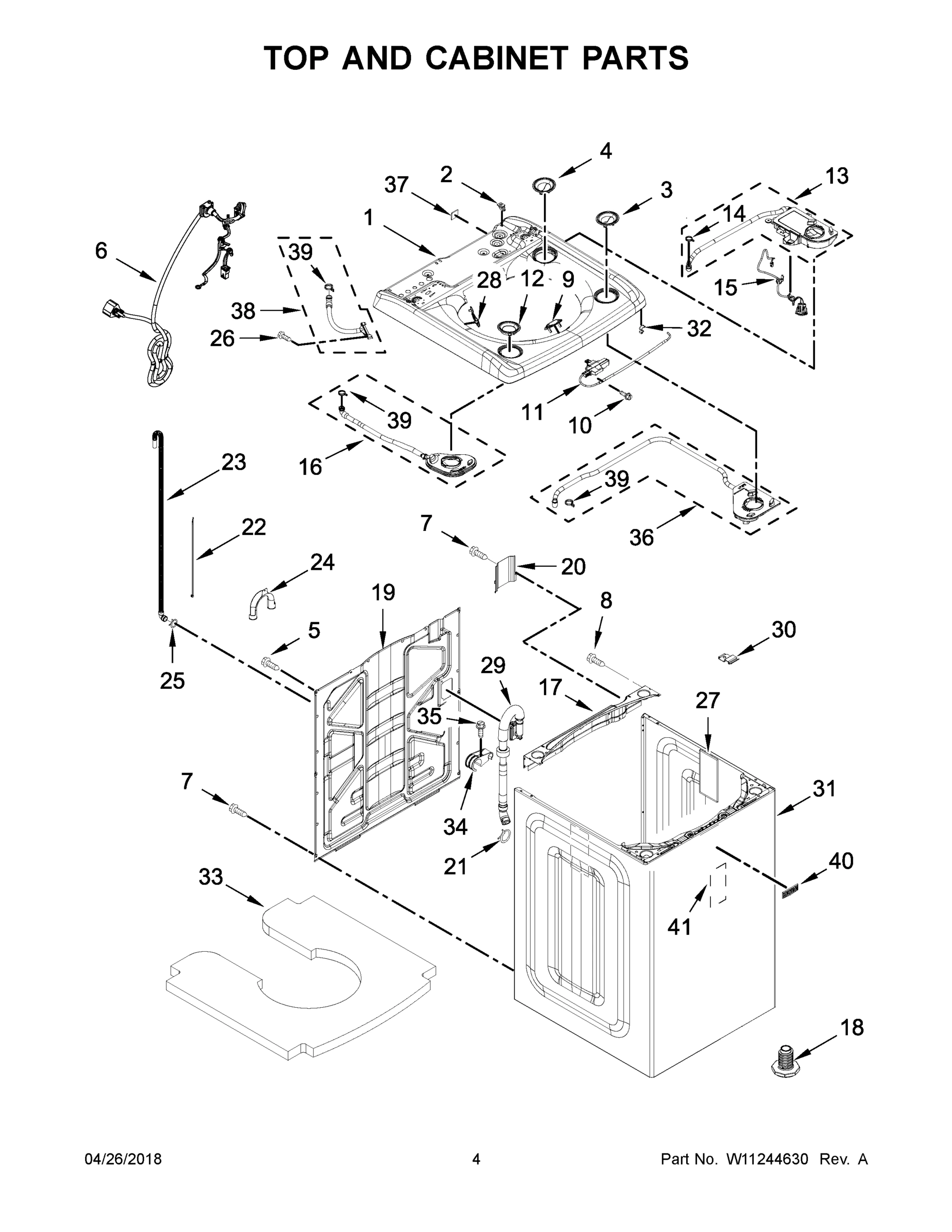

03 - TOP AND CABINET PARTS

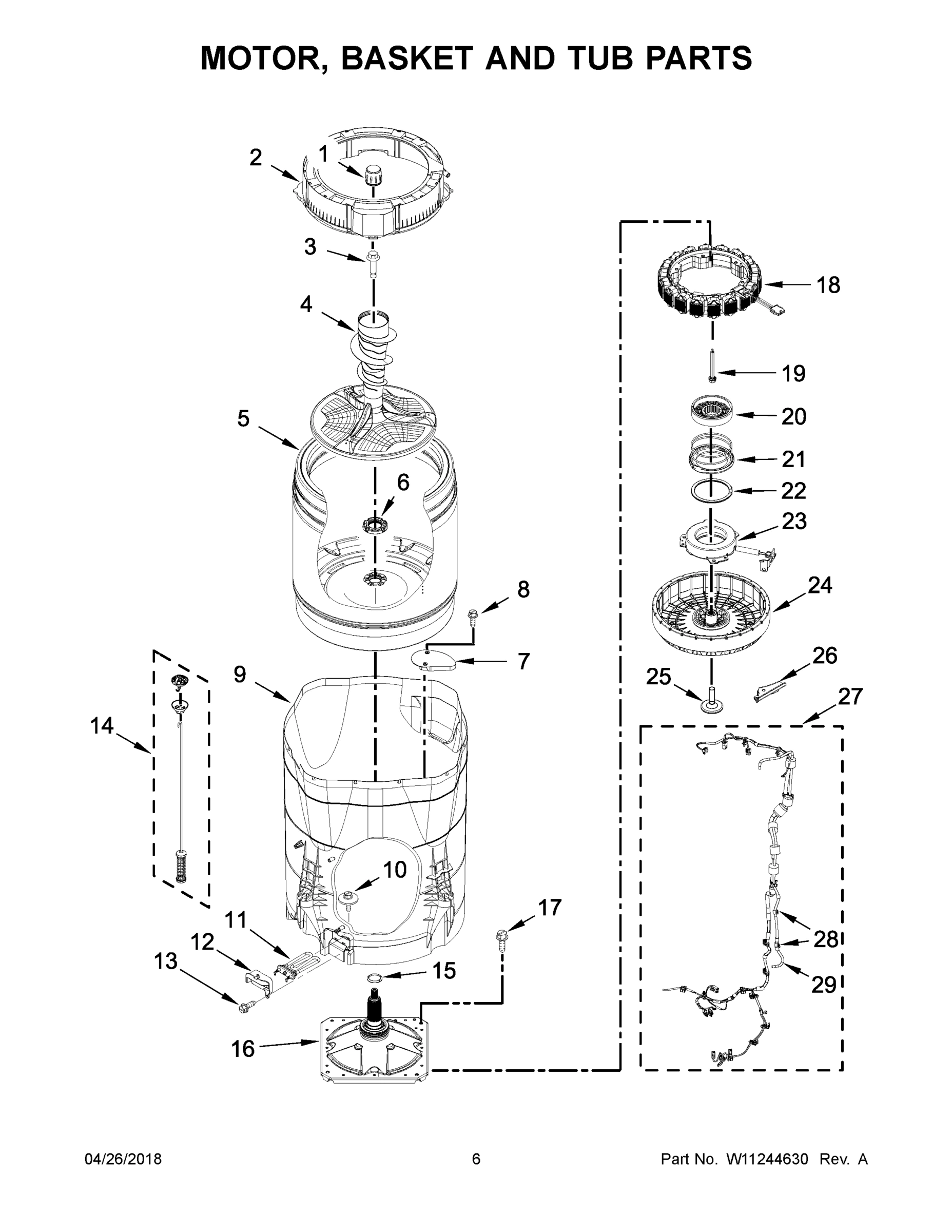

04 - MOTOR, BASKET AND TUB PARTS

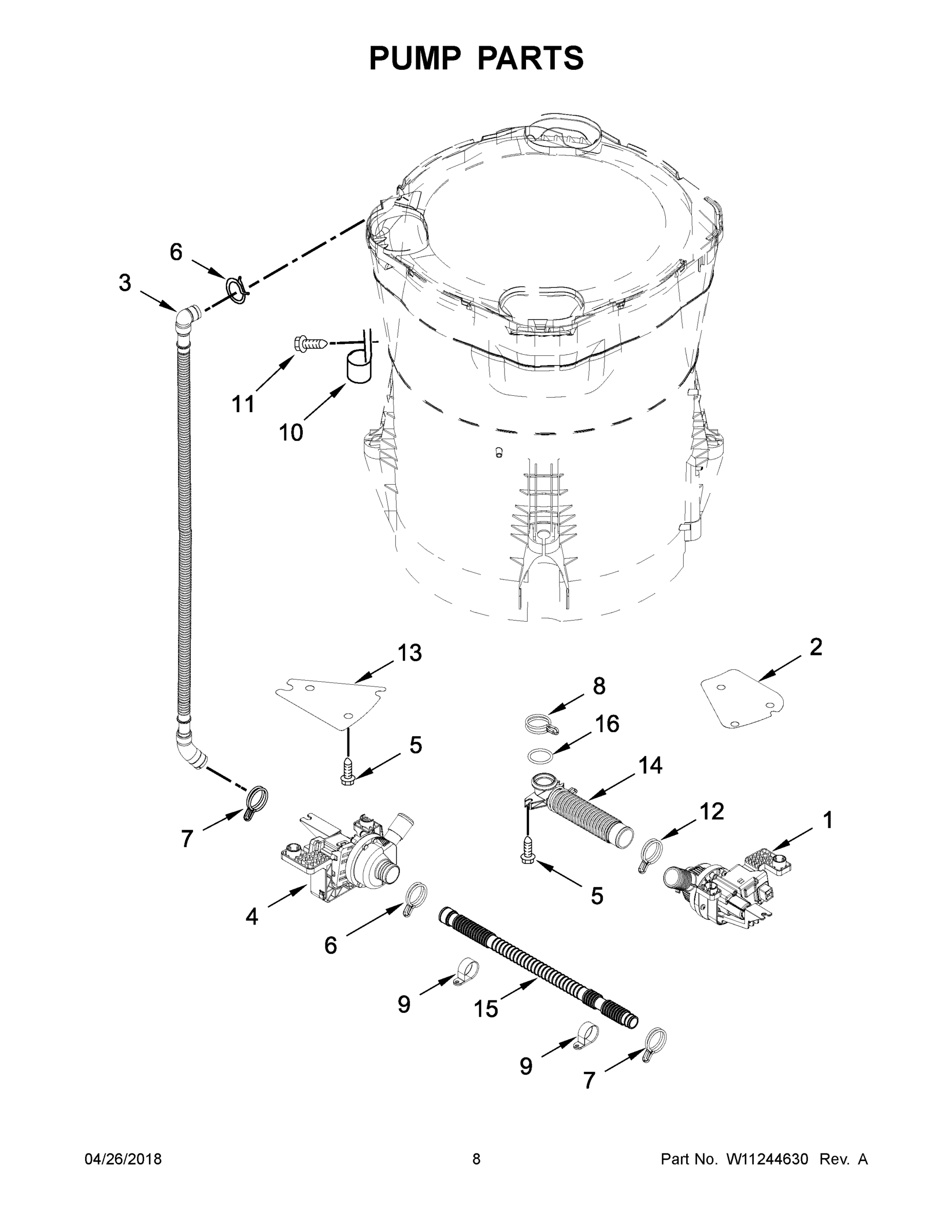

05 - PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MVWB965HC0 LAUNDRY, RESIDENTIAL, WASHER
1
TECH SHEET MAY W10828193 Contact Us For Availability
1
TOP (WHITE) MAY W10747122 Contact Us For Availability
1
CAP, AGITATOR MAY W11111466 Contact Us For Availability
1
PUMP ASSEMBLY, DRAIN MAY W10727777 Contact Us For Availability
1A
INSTALLATION INSTRUCTIONS MAY W10754826 Contact Us For Availability
1A
TOP (CHROME SHADOW) MAY W10747123 Contact Us For Availability
1B
MAY W11196460 MAY W11196460 Contact Us For Availability
1C
MAY W11196465 MAY W11196465 Contact Us For Availability
1D
MAY W11236221 MAY W11236221 Contact Us For Availability
1E
MAY W10494090 MAY W10494090 Contact Us For Availability
2
REAR PANEL, CONSOLE (WHITE) MAY W10798419 Contact Us For Availability
2
GROMMET, SCREW MAY W10711050 Contact Us For Availability
2
TUB RING MAY W10512171 Contact Us For Availability
2
SHIELD, HEAT MAY W10808661 Contact Us For Availability
2A
REAR PANEL, CONSOLE (CHROME SHADOW) MAY W10798420 Contact Us For Availability
3
TRAY ASSEMBLY, LOWER REAR MAY W10738088 Contact Us For Availability
3
BEZEL, FABRIC SOFTENER DISPENSER (WHITE) MAY W10712202 Contact Us For Availability
3
SCREW MAY W10625252 Contact Us For Availability
3
HOSE, RECIRCULATION MAY W10622692 Contact Us For Availability
3A
BEZEL, FABRIC SOFTENER DISPENSER (GREY) MAY W10749759 Contact Us For Availability
4
SEAL PAD, WATER VALVE MAY W10481887 Contact Us For Availability
4
BEZEL, BLEACH DISPENSER (WHITE) MAY W10712204 Contact Us For Availability
4
AGITATOR (COMPLETE) MAY W10821990 Contact Us For Availability
4
PUMP ASSEMBLY, RECIRCULATION MAY W10698222 Contact Us For Availability
4A
BEZEL, BLEACH DISPENSER (GREY) MAY W10749769 Contact Us For Availability
5
SCREW MAY 96435 Contact Us For Availability
5
SCREW MAY W10660565 Contact Us For Availability
5
SCREW MAY W10004910 Contact Us For Availability
5
MAY W11208267 MAY W11208267 Contact Us For Availability
6
VALVE ASSEMBLY (4 PORT) MAY W10465981 Contact Us For Availability
6
POWER CORD MAY W10734500 Contact Us For Availability
6
NUT, LOCK MAY W10726440 Contact Us For Availability
6
CLAMP, HOSE MAY 3363365 Contact Us For Availability
7
MAY W11196392 MAY W11196392 Contact Us For Availability
7
SCREW MAY 3400076 Contact Us For Availability
7
HOOD, DUAL PUMP MAY W10597575 Contact Us For Availability
7
CLAMP, HOSE MAY 8269146 Contact Us For Availability
8
SCREW MAY 693995 Contact Us For Availability
8
SCREW MAY 9740848 Contact Us For Availability
8
SCREW MAY 8533928 Contact Us For Availability
8
CLAMP, HOSE MAY 370445 Contact Us For Availability
9
SCREW MAY W10142290 Contact Us For Availability
9
BEZEL, LID LOCK (WHITE) MAY W10687095 Contact Us For Availability
9
TUB MAY W10704196 Contact Us For Availability
9
CLAMP, CABLE MAY W10832445 Contact Us For Availability
9A
BEZEL, LID LOCK (GREY) MAY W10747826 Contact Us For Availability
10
SCREW MAY 3387485 Contact Us For Availability
10
SCREW MAY 8533961 Contact Us For Availability
10
SCREW MAY W10743982 Contact Us For Availability
10
CLAMP, RECIRC HOSE RETAINER MAY 8534021 Contact Us For Availability
11
SCREW MAY 12990204 Contact Us For Availability
11
ASSEMBLY, LID LOCK MAY W10727693 Contact Us For Availability
11
HEATER, TUB MAY W10325894 Contact Us For Availability
11
SCREW MAY 8533943 Contact Us For Availability
12
ASSEMBLY, FASCIA (GREY) MAY W10830753 Contact Us For Availability
12
BEZEL, DETERGENT DISPENSER (WHITE) MAY W10712200 Contact Us For Availability
12
COVER, TUB HEATER MAY W10297450 Contact Us For Availability
12
CLAMP, HOSE MAY 8317496 Contact Us For Availability
12A
BEZEL, DETERGENT DISPENSER (GREY) MAY W10749749 Contact Us For Availability
13
KNOB ASSEMBLY MAY W10830755 Contact Us For Availability
13
DISPENSER ASSEMBLY, BLEACH (WHITE) MAY W10749370 Contact Us For Availability
13
SHIELD, RECIRCULATION PUMP MAY W10808660 Contact Us For Availability
13A
DISPENSER ASSEMBLY, BLEACH (GREY) MAY W10749756 Contact Us For Availability
14
CLIP, SPRING MAY 8536939 Contact Us For Availability
14
CLAMP, HOSE MAY 370451 Contact Us For Availability
14
DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INC MAY W11033800 Contact Us For Availability
14
HOSE, TUB TO PUMP MAY W10804012 Contact Us For Availability
15
ASSEMBLY, SPEAKER MAY W10568405 Contact Us For Availability
15
LIGHT ASSEMBLY, BASKET MAY W10591941 Contact Us For Availability
15
WASHER, THRUST MAY W10726428 Contact Us For Availability
15
HOSE, RECIRCULATION PUMP MAY W10702876 Contact Us For Availability
16
SCREW MAY 9740849 Contact Us For Availability
16
DISPENSER ASSEMBLY, DETERGENT (WHITE) MAY W10749363 Contact Us For Availability
16
DRIVE ASSEMBLY MAY W10006491 Contact Us For Availability
16
O-RING MAY W10804010 Contact Us For Availability
16A
DISPENSER ASSEMBLY, DETERGENT (GREY) MAY W10749750 Contact Us For Availability
17
HINGE, LID (RIGHT) MAY W10523940 Contact Us For Availability
17
CHANNEL, FRONT REAR MAY W10463933 Contact Us For Availability
17
SCREW MAY W10249633 Contact Us For Availability
18
SCREW MAY W10589828 Contact Us For Availability
18
FOOT ASSEMBLY, LEVELING MAY W10715265 Contact Us For Availability
18
STATOR, MOTOR MAY W10579778 Contact Us For Availability
19
CONSOLE (INCLUDES SEALS) (WHITE) MAY W10795794 Contact Us For Availability
19
PANEL, REAR MAY W10464765 Contact Us For Availability
19
SCREW MAY W10644129 Contact Us For Availability
19A
CONSOLE (INCLUDES SEALS) (CHROME SHADOW) MAY W10795799 Contact Us For Availability
20
NUT, "U" MAY W10298336 Contact Us For Availability
20
COVER, HARNESS MAY W10676061 Contact Us For Availability
20
SLIDER MAY W10447975 Contact Us For Availability
21
SCREW MAY W10567155 Contact Us For Availability
21
CLAMP, HOSE MAY W10142630 Contact Us For Availability
21
ASSEMBLY, SPRING MAY W10006494 Contact Us For Availability
22
LID FRAME, LOWER ASSEMBLY (WHITE) MAY W10761647 Contact Us For Availability
22
TIE, CABLE MAY W10339879 Contact Us For Availability
22
RING, SNAP MAY W10275082 Contact Us For Availability
22A
LID FRAME, LOWER ASSEMBLY (GREY) MAY W10767515 Contact Us For Availability
23
LID ASSEMBLY, UPPER MAY W10761648 Contact Us For Availability
23
MAY W11199768 MAY W11199768 Contact Us For Availability
23
ASSEMBLY, CLUTCH MAY W10817398 Contact Us For Availability
24
SEAL, LID MAY W10842587 Contact Us For Availability
24
U-BEND, DRAIN HOSE MAY W10280024 Contact Us For Availability
24
ROTOR, MOTOR MAY W10447979 Contact Us For Availability
25
HINGE, LID (LEFT) MAY W10781540 Contact Us For Availability
25
CLAMP, HOSE MAY 356138 Contact Us For Availability
25
SCREW MAY W10636382 Contact Us For Availability
26
SCREW MAY 8565324 Contact Us For Availability
26
SCREW MAY 3400061 Contact Us For Availability
26
SHIELD, MOTOR HARNESS MAY W10802382 Contact Us For Availability
27
HARNESS, USER INTERFACE MAY W10479823 Contact Us For Availability
27
ABSORBER, IMPACT MAY 8564458 Contact Us For Availability
27
HARNESS, LOWER MAY W10883005 Contact Us For Availability
28
BEZEL, FRESH FILL (CHROME) MAY W10522542 Contact Us For Availability
28
CLAMP, CABLE MAY W10005430 Contact Us For Availability
29
HOSE, INTERNAL DRAIN MAY W10786890 Contact Us For Availability
29
HOSE PRESSURE SWITCH MAY W10590949 Contact Us For Availability
30
LOCK, TOP MAY W10248088 Contact Us For Availability
31
CABINET (WHITE) MAY W10753693 Contact Us For Availability
31A
CABINET (CHROME SHADOW) MAY W10763699 Contact Us For Availability
32
CLIP, HARNESS MAY 90016 Contact Us For Availability
33
ABSORBER, SOUND MAY W10825092 Contact Us For Availability
34
CLIP, HOSE MAY W10652932 Contact Us For Availability
36
DISPENSER ASSEMBLY, FABRIC SOFTENER (WHITE) MAY W10749366 Contact Us For Availability
36A
DISPENSER ASSEMBLY, FABRIC SOFTENER (GREY) MAY W10749753 Contact Us For Availability
37
TOP, FOAM SEAL MAY W10161707 Contact Us For Availability
38
NOZZLE ASSEMBLY, FRESH FILL MAY W10749373 Contact Us For Availability
39
CLAMP, HOSE MAY 371503 Contact Us For Availability
40
BADGE MAY W10612926 Contact Us For Availability
41
ABSORBER, IMPACT MAY W10688364 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
WATER SYSTEM PARTS, SIPHON BREAK KIT MAY 285834 Contact Us For Availability
NI
WATER SYSTEM PARTS, ADAPTER, STANDPIPE 2" DIA MAY 3363920 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. TWO BRAID MAY 8212487 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
A MAY 8212656RP Contact Us For Availability
NI
MAY DRNEXT4 MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
MAY W10446202 MAY W10446202 Contact Us For Availability
× ![]()
