Model Maytag MVWB725BW0 WASHER – Common Parts & Diagrams
01 - COVER SHEET

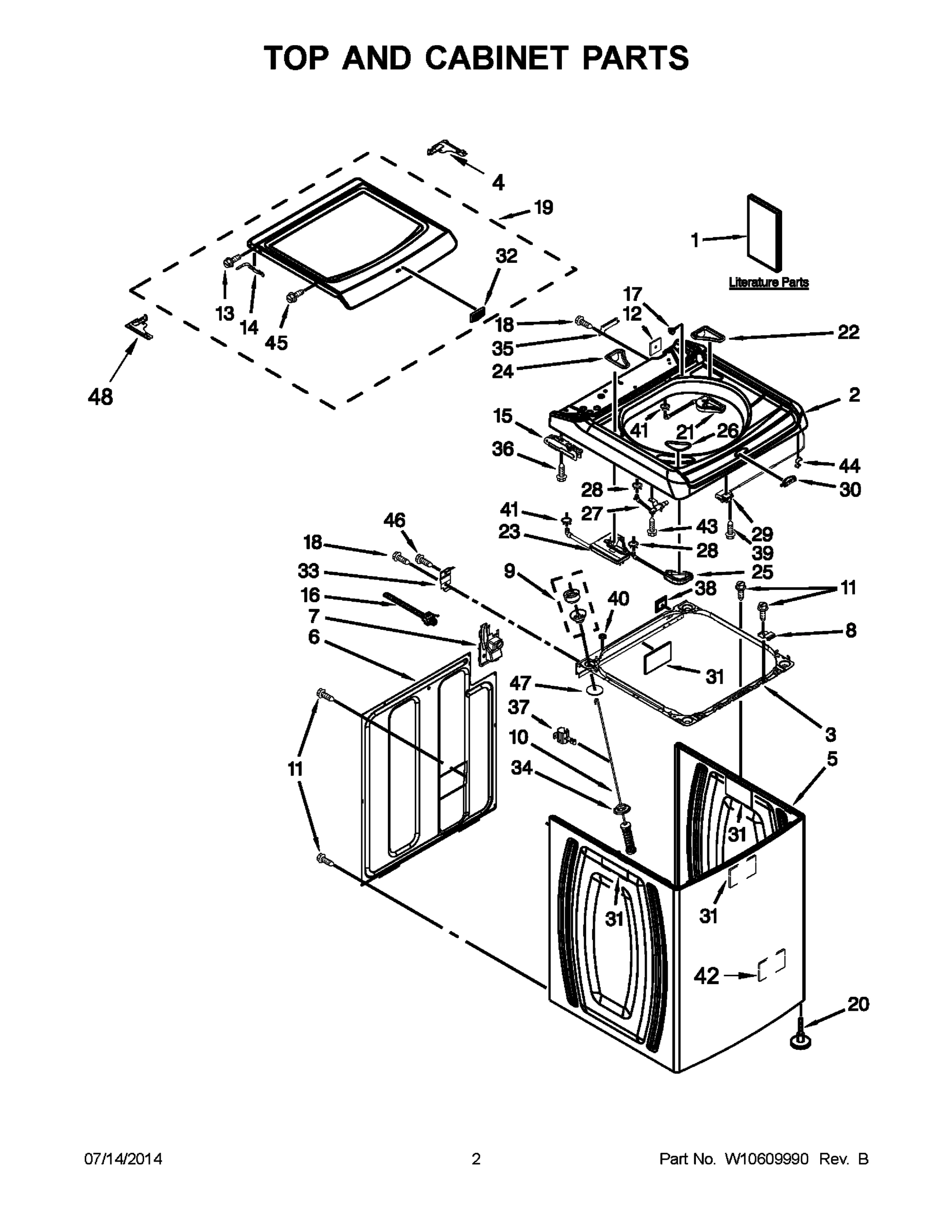

02 - TOP AND CABINET PARTS

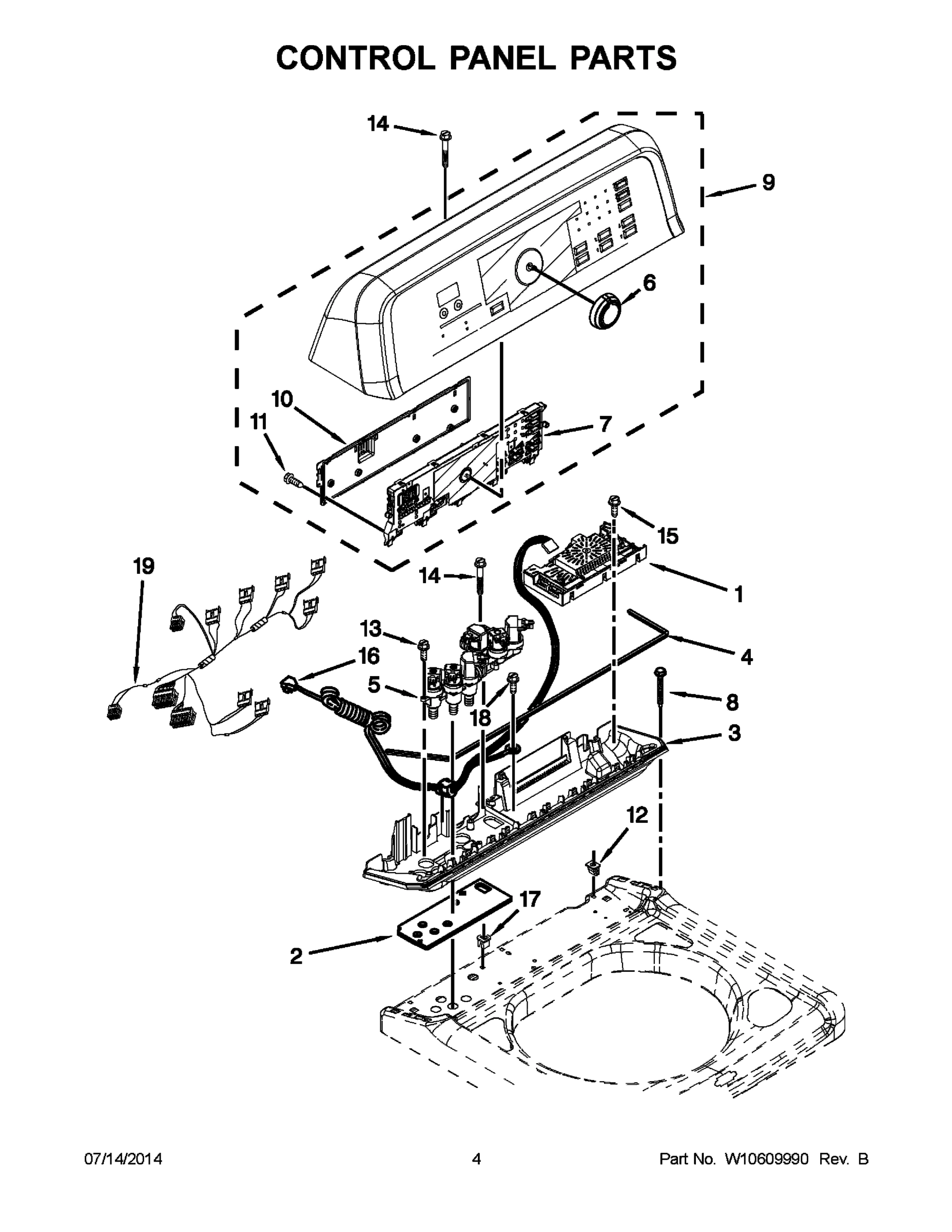

03 - CONTROL PANEL PARTS

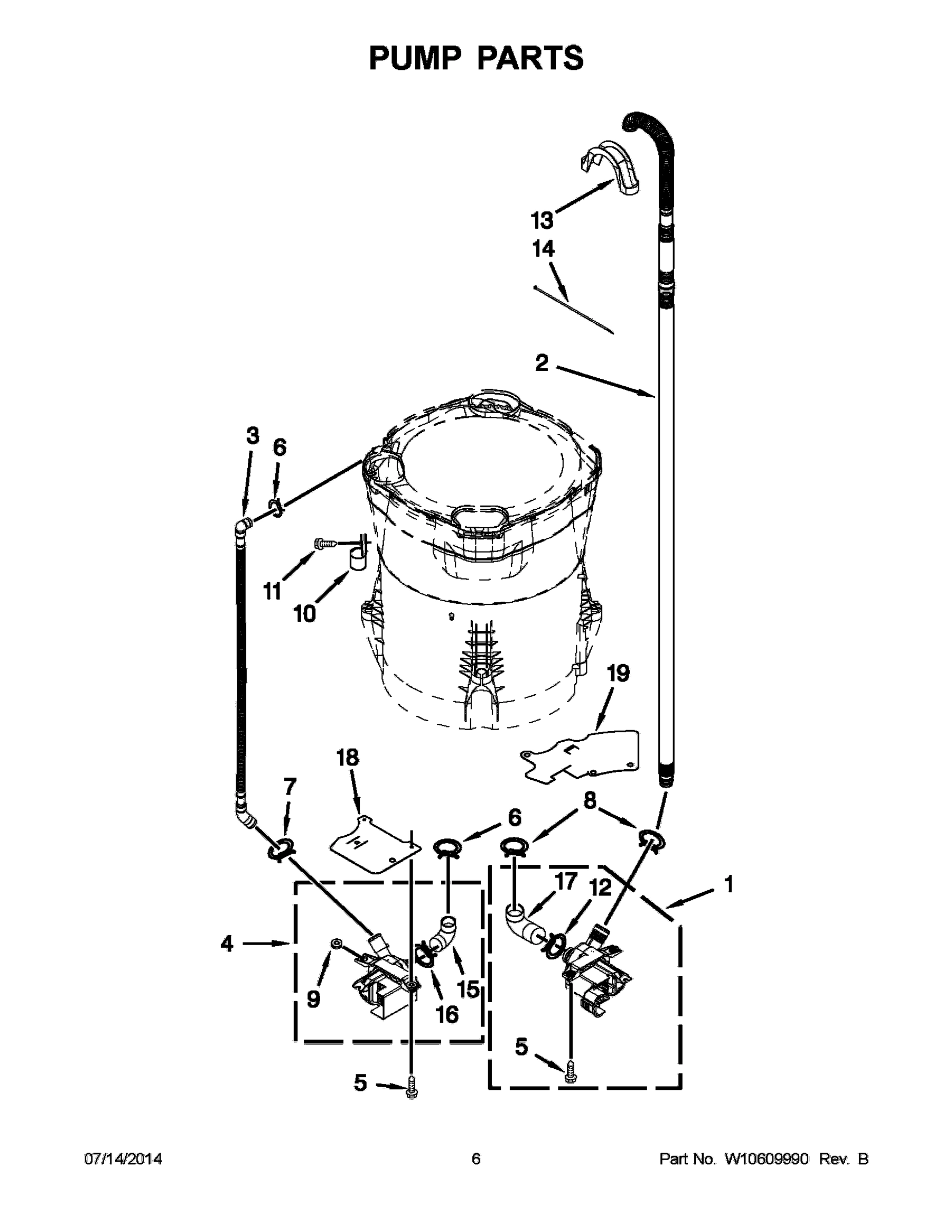

04 - PUMP PARTS

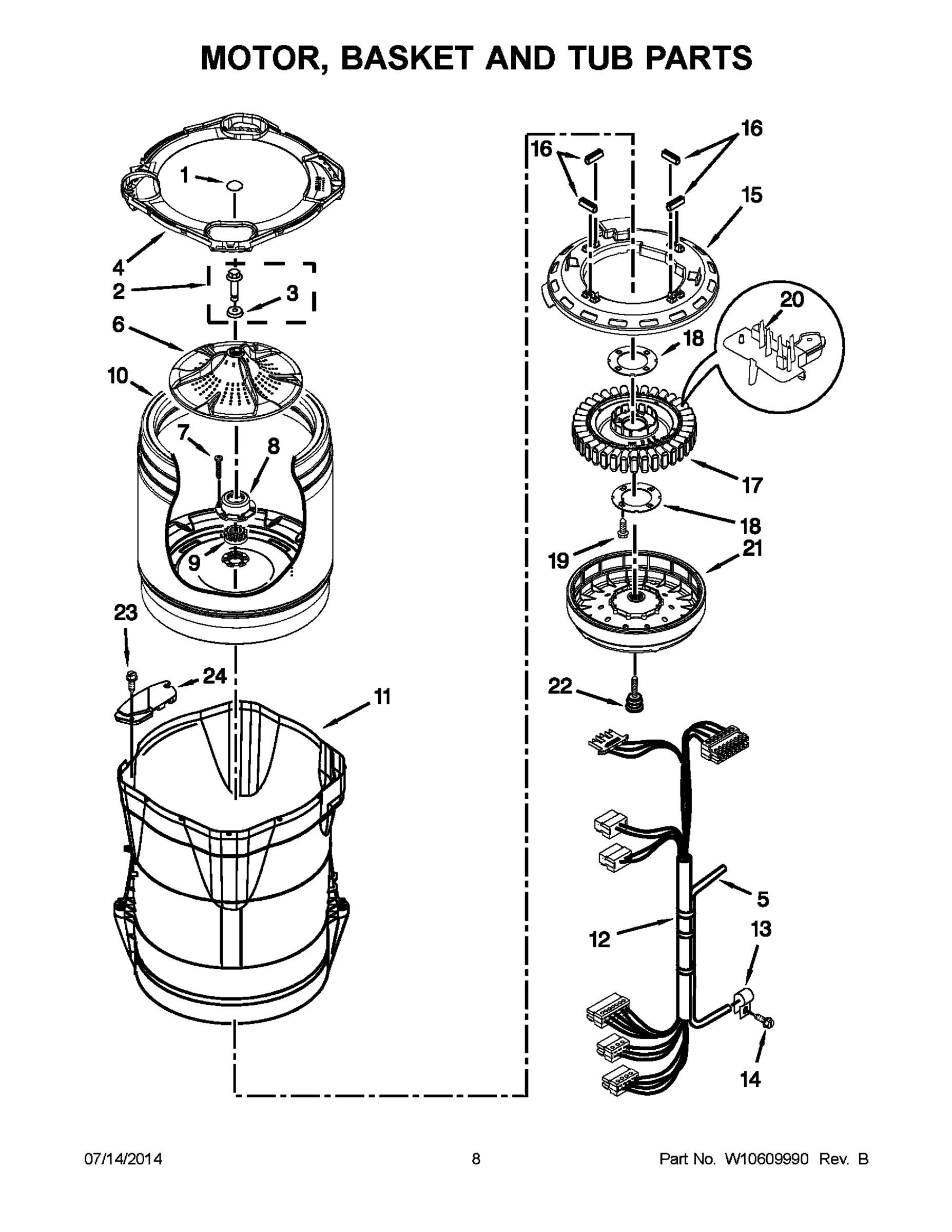

05 - MOTOR, BASKET AND TUB PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MVWB725BW0 WASHER
1
MAY W10303822 MAY W10303822 Contact Us For Availability
1
MAY W10522399 MAY W10522399 Contact Us For Availability
1
MAY W10409079 MAY W10409079 Contact Us For Availability
1
MAY W10305251 MAY W10305251 Contact Us For Availability
1A
INSTALLATION INSTRUCTIONS MAY W10196566 Contact Us For Availability
1B
MAY W10550269 MAY W10550269 Contact Us For Availability
1C
MAY W10550277 MAY W10550277 Contact Us For Availability
1D
MAY W10403990 MAY W10403990 Contact Us For Availability
2
MAY W10552507 MAY W10552507 Contact Us For Availability
2
MAY W10141695 MAY W10141695 Contact Us For Availability
2
MAY W10236686 MAY W10236686 Contact Us For Availability
2
SCREW AND WASHER ASSEMBLY MAY W10076270 Contact Us For Availability
2A
MAY W10552508 MAY W10552508 Contact Us For Availability
3
MAY W10386349 MAY W10386349 Contact Us For Availability
3
TRAY ASSEMBLY (WHITE) MAY W10356745 Contact Us For Availability
3
MAY 8543774 MAY 8543774 Contact Us For Availability
3
MAY W10076260 MAY W10076260 Contact Us For Availability
3A
TRAY ASSEMBLY (GRAY) MAY W10356746 Contact Us For Availability
4
CAP, HINGE (RIGHT) (WHITE) MAY W10119508 Contact Us For Availability
4
MAY W10141693 MAY W10141693 Contact Us For Availability
4
MAY W10403803 MAY W10403803 Contact Us For Availability
4
MAY W10591323 MAY W10591323 Contact Us For Availability
4A
CAP, HINGE (RIGHT) (GRAY) MAY W10093813 Contact Us For Availability
5
CABINET (WHITE) MAY 8566097 Contact Us For Availability
5
MAY W10342320 MAY W10342320 Contact Us For Availability
5
SCREW MAY W10004910 Contact Us For Availability
5
MAY 8572540 MAY 8572540 Contact Us For Availability
5A
MAY W10304158 MAY W10304158 Contact Us For Availability
6
MAY 8566090 MAY 8566090 Contact Us For Availability
6
MAY W10571098 MAY W10571098 Contact Us For Availability
6
CLAMP, DRAIN HOSE MAY 370449 Contact Us For Availability
6
MAY W10286241 MAY W10286241 Contact Us For Availability
7
MAY W10160572 MAY W10160572 Contact Us For Availability
7
MAY W10536856 MAY W10536856 Contact Us For Availability
7
MAY 8269146 MAY 8269146 Contact Us For Availability
7
SCREW MAY 8533953 Contact Us For Availability
8
MAY W10248088 MAY W10248088 Contact Us For Availability
8
SCREW MAY W10004990 Contact Us For Availability
8
MAY 8317496 MAY 8317496 Contact Us For Availability
8
HUB, BASKET-DRIVEN MAY W10118114 Contact Us For Availability
9
BUSHING - UPPER SUSPENSION (SET OF 4 - INCLUD MAY W10256551 Contact Us For Availability
9
CONSOLE (WHITE) MAY W10521059 Contact Us For Availability
9
MAY 8182771 MAY 8182771 Contact Us For Availability
9
HUB, BASKET DRIVER MAY 8545953 Contact Us For Availability
9A
MAY W10521060 MAY W10521060 Contact Us For Availability
10
DAMPER ASSEMBLY, TUB SUSPENSION MAY W10237427 Contact Us For Availability
10
COVER, UI REAR MAY W10051124 Contact Us For Availability
10
MAY 8534021 MAY 8534021 Contact Us For Availability
10
MAY W10518300 MAY W10518300 Contact Us For Availability
11
MAY 1157158 MAY 1157158 Contact Us For Availability
11
MAY W10003770 MAY W10003770 Contact Us For Availability
11
ASSEMBLY, TUB AND DRIVE SHAFT MAY W10381078 Contact Us For Availability
12
TOP, FOAM SEAL MAY W10161707 Contact Us For Availability
12
NUT, PUSH IN MAY W10022060 Contact Us For Availability
12
MAY 8182768 MAY 8182768 Contact Us For Availability
12
MAY W10504822 MAY W10504822 Contact Us For Availability
13
SCREW, LID HINGE MAY W10119828 Contact Us For Availability
13
SCREW MAY W10142290 Contact Us For Availability
13
MAY 8576642 MAY 8576642 Contact Us For Availability
13
CLAMP, CABLE MAY W10005430 Contact Us For Availability
14
MAY 8563964 MAY 8563964 Contact Us For Availability
14
SCREW MAY 8565324 Contact Us For Availability
14
SCREW MAY 8533943 Contact Us For Availability
14
TIE, CABLE MAY W10339879 Contact Us For Availability
15
HINGE, SPRING ASSEMBLY (LEFT HAND) MAY W10141682 Contact Us For Availability
15
MAY W10133427 MAY W10133427 Contact Us For Availability
15
MAY 8182769 MAY 8182769 Contact Us For Availability
15
SHIELD, DRIVE MOTOR MAY W10137698 Contact Us For Availability
15A
HINGE, SPRING ASSEMBLY (RIGHT HAND) MAY W10141681 Contact Us For Availability
16
MAY W10155270 MAY W10155270 Contact Us For Availability
16
MAY W10547372 MAY W10547372 Contact Us For Availability
16
MAY 8182770 MAY 8182770 Contact Us For Availability
16
MAY 8565172 MAY 8565172 Contact Us For Availability
17
MAY W10119519 MAY W10119519 Contact Us For Availability
17
NUT, PUSH-IN MAY 98460 Contact Us For Availability
17
MAY 8182767 MAY 8182767 Contact Us For Availability
17
MAY W10419333 MAY W10419333 Contact Us For Availability
18
SCREW MAY 3390647 Contact Us For Availability
18
SCREW MAY 3351614 Contact Us For Availability
18
MAY 8578572 MAY 8578572 Contact Us For Availability
18
PLATE, STATOR MAY 8557836 Contact Us For Availability
19
LID AND BUMPER ASSEMBLY (WHITE) MAY W10119492 Contact Us For Availability
19
MAY W10404419 MAY W10404419 Contact Us For Availability
19
MAY 8578925 MAY 8578925 Contact Us For Availability
19
SCREW MAY 8534042 Contact Us For Availability
19A
MAY W10304154 MAY W10304154 Contact Us For Availability
20
MAY W10240448 MAY W10240448 Contact Us For Availability
20
MAY W10178988 MAY W10178988 Contact Us For Availability
21
MAY W10553370 MAY W10553370 Contact Us For Availability
21
ROTOR, MAIN DRIVE MOTOR MAY 8565177 Contact Us For Availability
22
BEZEL, FABRIC SOFTENER DISPENSER (WHITE) MAY W10136371 Contact Us For Availability
22
BOLT, ROTOR ASSEMBLY (NON-SERVICEABLE (SUPPLI MAY N/P Contact Us For Availability
22A
BEZEL, FABRIC SOFTENER DISPENSER (GRAY) MAY W10093807 Contact Us For Availability
23
MAY W10554110 MAY W10554110 Contact Us For Availability
23
SCREW (STAINLESS) MAY 8533928 Contact Us For Availability
24
BEZEL, BLEACH DISPENSER (WHITE) MAY 8563876 Contact Us For Availability
24
MAY W10222008 MAY W10222008 Contact Us For Availability
24A
BEZEL, BLEACH DISPENSER (GRAY) MAY W10093808 Contact Us For Availability
25
MAY W10552116 MAY W10552116 Contact Us For Availability
26
BEZEL, DETERGENT DISPENSER (WHITE) MAY 8563877 Contact Us For Availability
26A
BEZEL, DETERGENT DISPENSER (GRAY) MAY W10093809 Contact Us For Availability
27
MAY W10552206 MAY W10552206 Contact Us For Availability
28
MAY 371503 MAY 371503 Contact Us For Availability
29
MAY W10059230 MAY W10059230 Contact Us For Availability
30
BEZEL, LID LOCK (WHITE) MAY 8572019 Contact Us For Availability
30A
BEZEL, LID LOCK (GRAY) MAY W10093806 Contact Us For Availability
31
MAY 8564458 MAY 8564458 Contact Us For Availability
32
MAY W10492808 MAY W10492808 Contact Us For Availability
33
MAY W10432012 MAY W10432012 Contact Us For Availability
34
MAY 8564017 MAY 8564017 Contact Us For Availability
35
MAY 8563941 MAY 8563941 Contact Us For Availability
36
SCREW MAY 693995 Contact Us For Availability
37
MAY 8543784 MAY 8543784 Contact Us For Availability
38
MAY 8578386 MAY 8578386 Contact Us For Availability
39
MAY 8533961 MAY 8533961 Contact Us For Availability
40
MAY 8576476 MAY 8576476 Contact Us For Availability
41
MAY 370451 MAY 370451 Contact Us For Availability
42
MAY W10414221 MAY W10414221 Contact Us For Availability
43
SCREW MAY 3400061 Contact Us For Availability
44
MAY 90016 MAY 90016 Contact Us For Availability
45
SCREW MAY 8563892 Contact Us For Availability
46
SCREW MAY 3400076 Contact Us For Availability
47
MAY 8577896 MAY 8577896 Contact Us For Availability
48
CAP-HINGE, LEFT (WHITE) MAY W10119509 Contact Us For Availability
48A
CAP-HINGE, LEFT (GRAY) MAY W10093814 Contact Us For Availability
NI
ACCESSORY PARTS, LAUNDRY SUPPLY STORAGE CART MAY 1903WH Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
MAY 285834 MAY 285834 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN PROTECTOR MAY 367031 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487RP Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 10 FT. (TWO BLA MAY 8212656RP Contact Us For Availability
NI
MAY DRNEXT4 MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
MAY W10355010 MAY W10355010 Contact Us For Availability
NI
MAY WHITE MAY WHITE Contact Us For Availability
× ![]()
