Model Maytag MVW18PDAWW0 COMMERCIAL WASHER – Common Parts & Diagrams
01 - COVER SHEET

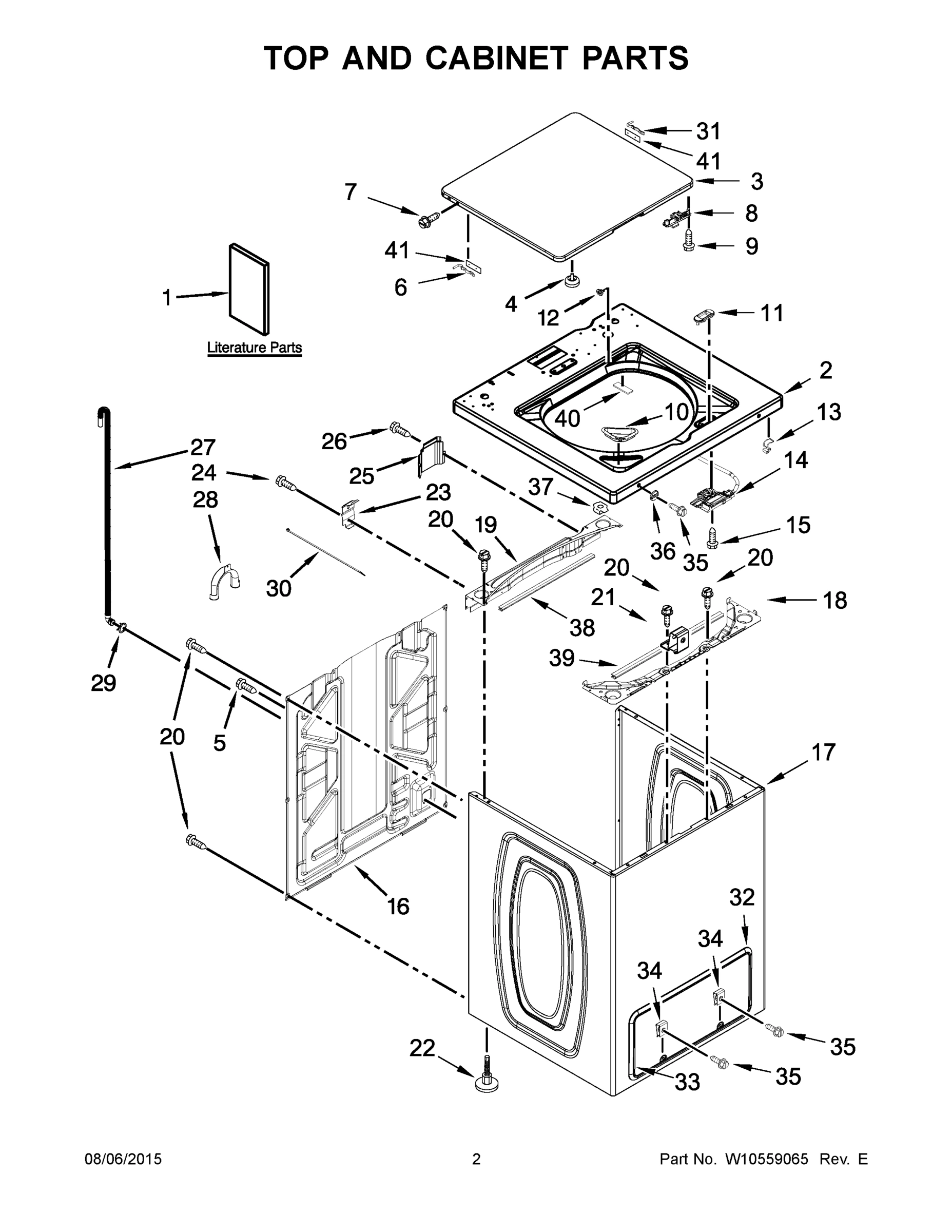

02 - TOP AND CABINET PARTS

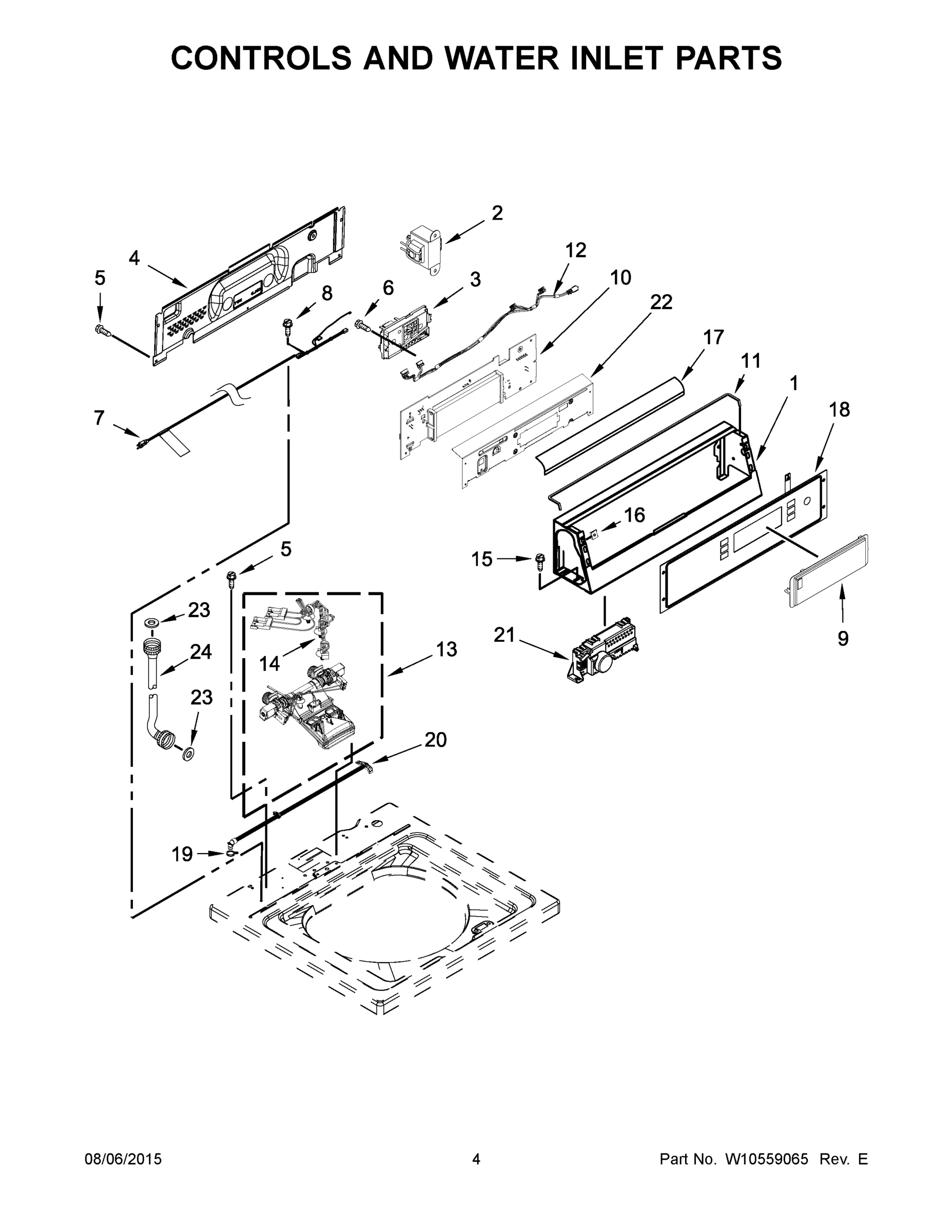

03 - CONTROLS AND WATER INLET PARTS

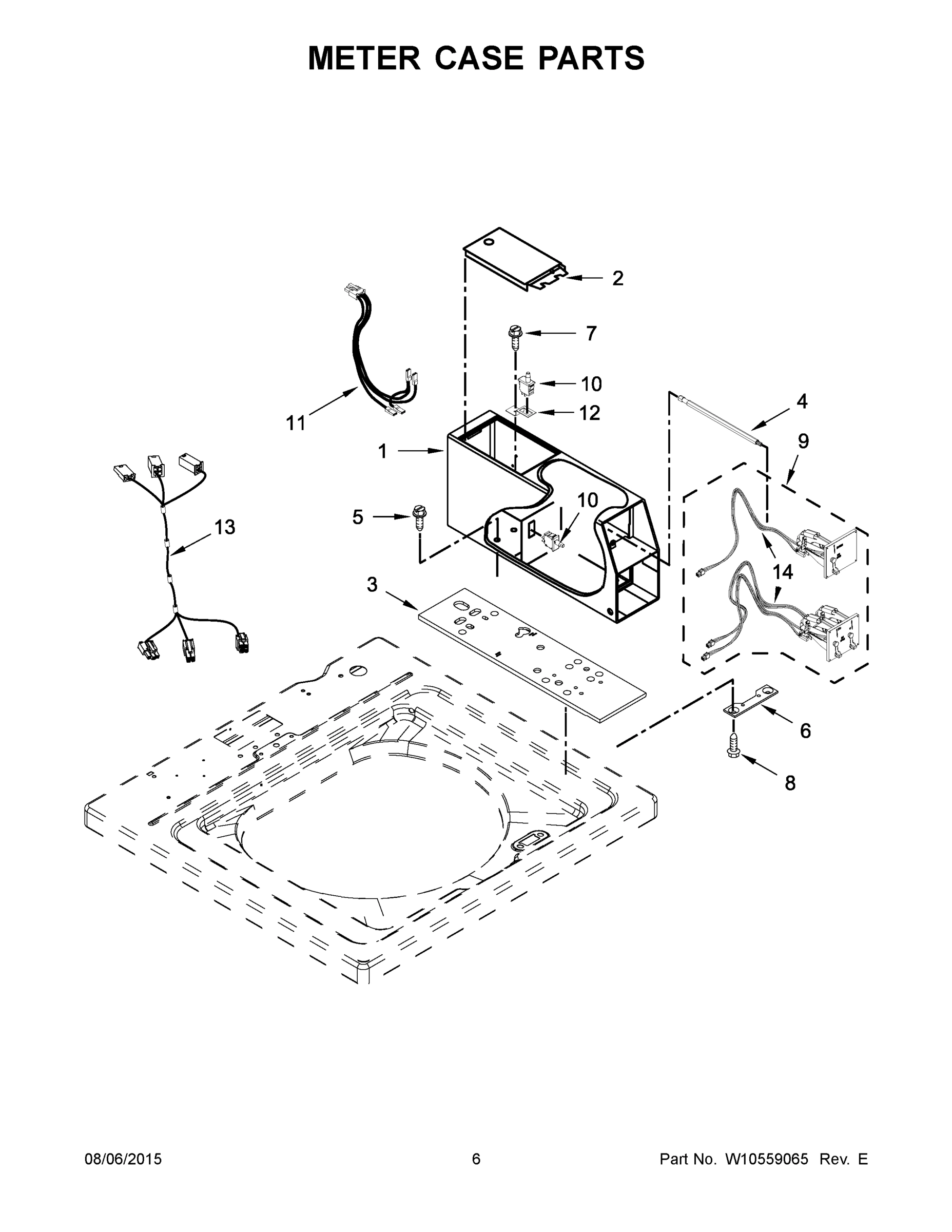

04 - METER CASE PARTS

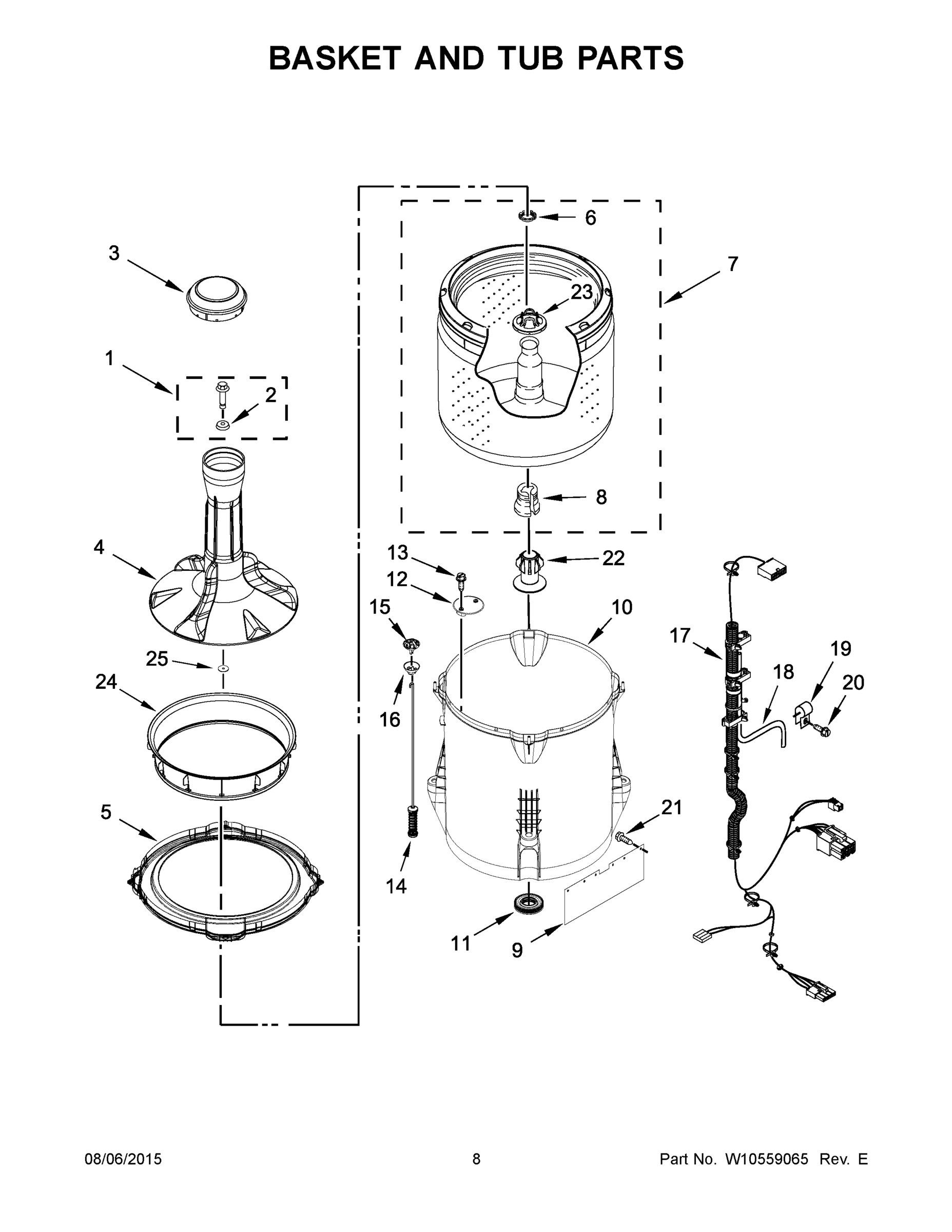

05 - BASKET AND TUB PARTS

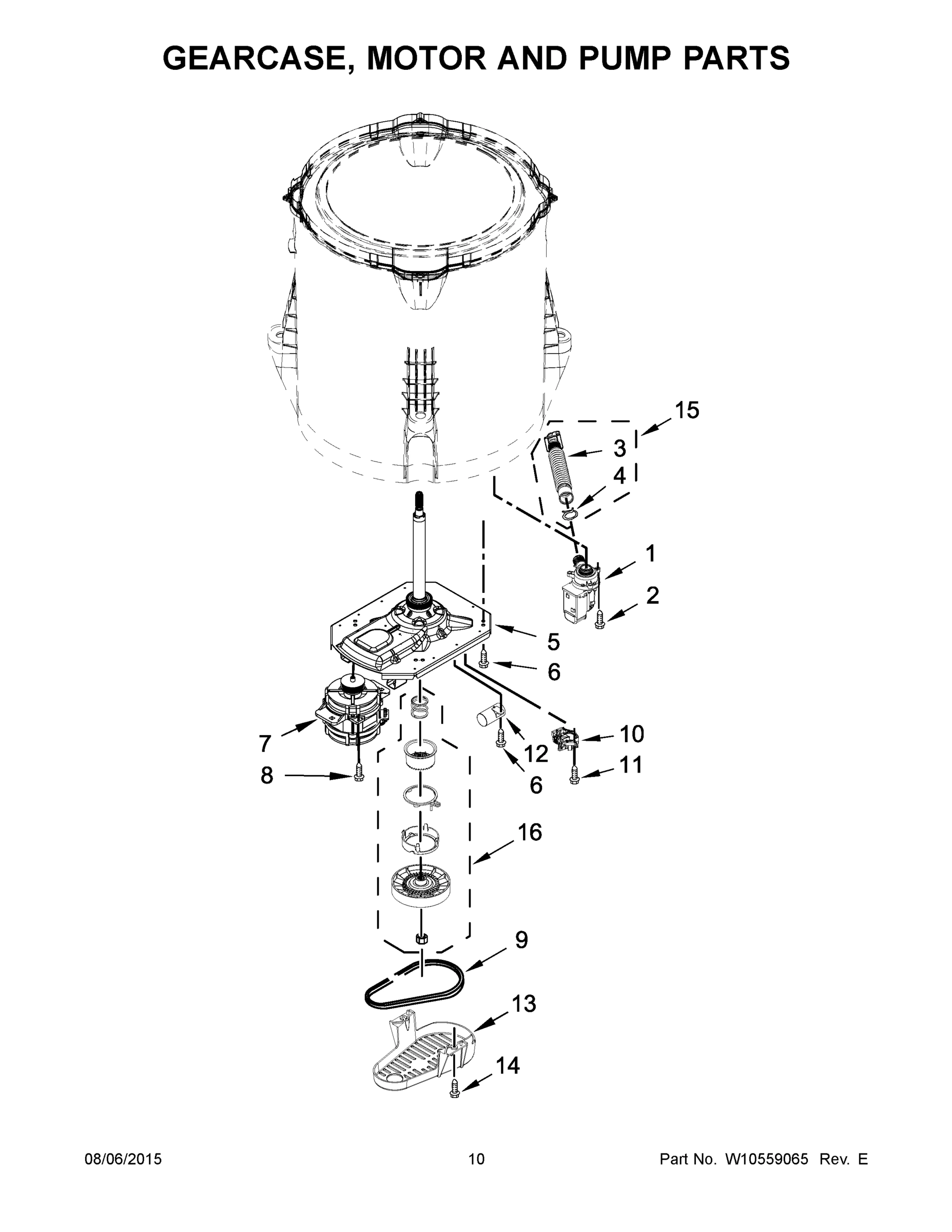

06 - GEARCASE, MOTOR AND PUMP PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MVW18PDAWW0 COMMERCIAL WASHER
1
MAY W10474266 MAY W10474266 Contact Us For Availability
1
MAY W10461094 MAY W10461094 Contact Us For Availability
1
MAY W10529176 MAY W10529176 Contact Us For Availability
1
SCREW AND WASHER MAY W10003790 Contact Us For Availability
1
MAY W10276397 MAY W10276397 Contact Us For Availability
1A
MAY W10531646 MAY W10531646 Contact Us For Availability
1B
MAY W10554751 MAY W10554751 Contact Us For Availability
1C
MAY W10761288 MAY W10761288 Contact Us For Availability
2
MAY W10461168 MAY W10461168 Contact Us For Availability
2
MAY W10131839 MAY W10131839 Contact Us For Availability
2
ASSEMBLY, SERVICE DOOR MAY 3351136 Contact Us For Availability
2
MAY 3949550 MAY 3949550 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
MAY W10461179 MAY W10461179 Contact Us For Availability
3
MAY W10491728 MAY W10491728 Contact Us For Availability
3
CUSHION, METER CASE MAY 3954812 Contact Us For Availability
3
MAY W10424292 MAY W10424292 Contact Us For Availability
3
MAY W10763078 MAY W10763078 Contact Us For Availability
4
MAY W10525268 MAY W10525268 Contact Us For Availability
4
MAY W10461159 MAY W10461159 Contact Us For Availability
4
BOLT, HEX BAR MAY W10137319 Contact Us For Availability
4
MAY W10424311 MAY W10424311 Contact Us For Availability
4
MAY 8317496 MAY 8317496 Contact Us For Availability
5
SCREW MAY 9740848 Contact Us For Availability
5
MAY 1157158 MAY 1157158 Contact Us For Availability
5
BOLT MAY 3349065 Contact Us For Availability
5
MAY W10461196 MAY W10461196 Contact Us For Availability
5
MAY W10521293 MAY W10521293 Contact Us For Availability
6
HINGE, LID (LEFT) MAY 91770 Contact Us For Availability
6
SCREW MAY 90767 Contact Us For Availability
6
MAY 3347825 MAY 3347825 Contact Us For Availability
6
MAY 21366 MAY 21366 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
7
SCREW MAY W10119872 Contact Us For Availability
7
MAY W10472992 MAY W10472992 Contact Us For Availability
7
MAY W10139210 MAY W10139210 Contact Us For Availability
7
MAY W10389330 MAY W10389330 Contact Us For Availability
7
MAY W10490819 MAY W10490819 Contact Us For Availability
8
STRIKE, LID LOCK (WHITE) MAY W10240513 Contact Us For Availability
8
SCREW MAY 3400076 Contact Us For Availability
8
SCREW MAY 98445 Contact Us For Availability
8
MAY W10198148 MAY W10198148 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
COVER, DISPLAY MAY W10267645 Contact Us For Availability
9
ASSEMBLY, SINGLE COIN DROP (MVW18PDAWW) MAY W10133242 Contact Us For Availability
9
MAY W10339098 MAY W10339098 Contact Us For Availability
9
MAY W10006384 MAY W10006384 Contact Us For Availability
9A
ASSEMBLY, DUAL COIN DROP (MVW18PDAXW) MAY W10198395 Contact Us For Availability
10
MAY W10515627 MAY W10515627 Contact Us For Availability
10
MAY W10647075 MAY W10647075 Contact Us For Availability
10
MAY W10131838 MAY W10131838 Contact Us For Availability
10
TUB (INCLUDES TUB SEAL) MAY W10238320 Contact Us For Availability
10
MAY W10389471 MAY W10389471 Contact Us For Availability
11
BEZEL, LID LOCK (WHITE) MAY W10392041 Contact Us For Availability
11
SEAL, FOAM MAY W10157932 Contact Us For Availability
11
MAY W10211244 MAY W10211244 Contact Us For Availability
11
MAY W10424291 MAY W10424291 Contact Us For Availability
11
SCREW MAY 9741052 Contact Us For Availability
12
BEARING, LID HINGE MAY 21258 Contact Us For Availability
12
MAY W10480949 MAY W10480949 Contact Us For Availability
12
MAY W10133508 MAY W10133508 Contact Us For Availability
12
MAY W10215093 MAY W10215093 Contact Us For Availability
12
MAY W10625046 MAY W10625046 Contact Us For Availability
13
MAY 90016 MAY 90016 Contact Us For Availability
13
MAY W10486031 MAY W10486031 Contact Us For Availability
13
MAY W10491633 MAY W10491633 Contact Us For Availability
13
SCREW (STAINLESS) MAY 8533928 Contact Us For Availability
13
MAY W10427633 MAY W10427633 Contact Us For Availability
14
MAY W10482836 MAY W10482836 Contact Us For Availability
14
MAY W10472990 MAY W10472990 Contact Us For Availability
14
COIN OPTIC SENSOR ASSEMBLY (WHITE) MAY W10247389 Contact Us For Availability
14
MAY W10748950 MAY W10748950 Contact Us For Availability
14
SCREW MAY 357640 Contact Us For Availability
14A
COIN OPTIC SENSOR ASSEMBLY (BLACK) MAY W10247388 Contact Us For Availability
15
MAY W10588613 MAY W10588613 Contact Us For Availability
15
SCREW MAY 3390631 Contact Us For Availability
15
BALL, SUSPENSION (SET OF 4 - INCLUDES SUSPENS MAY W10583768 Contact Us For Availability
15
MAY W10444123 MAY W10444123 Contact Us For Availability
16
PANEL, REAR MAY W10250884 Contact Us For Availability
16
MAY W10131123 MAY W10131123 Contact Us For Availability
16
BUSHING - UPPER SUSPENSION (SET OF 4 - INCLUD MAY W10256551 Contact Us For Availability
16
MAY W10721967 MAY W10721967 Contact Us For Availability
17
MAY W10464748 MAY W10464748 Contact Us For Availability
17
MAY W10133515 MAY W10133515 Contact Us For Availability
17
MAY W10472988 MAY W10472988 Contact Us For Availability
18
MAY W10215098 MAY W10215098 Contact Us For Availability
18
MAY W10461104 MAY W10461104 Contact Us For Availability
18
MAY W10531633 MAY W10531633 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10512626 Contact Us For Availability
19
MAY W10117298 MAY W10117298 Contact Us For Availability
19
CLAMP, CABLE MAY W10005430 Contact Us For Availability
20
MAY W10461189 MAY W10461189 Contact Us For Availability
20
SCREW MAY 8533943 Contact Us For Availability
21
MAY W10461182 MAY W10461182 Contact Us For Availability
21
MAY W10482833 MAY W10482833 Contact Us For Availability
21
MAY W10429200 MAY W10429200 Contact Us For Availability
22
MAY W10397767 MAY W10397767 Contact Us For Availability
22
MAY W10461068 MAY W10461068 Contact Us For Availability
22
MAY W10424298 MAY W10424298 Contact Us For Availability
23
MAY W10461176 MAY W10461176 Contact Us For Availability
23
WASHER, INLET HOSE MAY W10242307 Contact Us For Availability
23
MAY W10461124 MAY W10461124 Contact Us For Availability
24
SCREW MAY W10142728 Contact Us For Availability
24
MAY W10458855 MAY W10458855 Contact Us For Availability
24
MAY W10424289 MAY W10424289 Contact Us For Availability
24A
MAY W10458856 MAY W10458856 Contact Us For Availability
25
MAY W10461180 MAY W10461180 Contact Us For Availability
25
MAY W10755559 MAY W10755559 Contact Us For Availability
27
HOSE, OUTER DRAIN ASSEMBLY MAY W10221546 Contact Us For Availability
28
MAY W10280024 MAY W10280024 Contact Us For Availability
29
MAY 356138 MAY 356138 Contact Us For Availability
30
TIE, CABLE MAY W10339879 Contact Us For Availability
31
HINGE, LID (RIGHT) MAY 54583 Contact Us For Availability
32
MAY W10464746 MAY W10464746 Contact Us For Availability
33
MAY W10464747 MAY W10464747 Contact Us For Availability
34
MAY 3400915 MAY 3400915 Contact Us For Availability
35
MAY W10486616 MAY W10486616 Contact Us For Availability
36
MAY W10461181 MAY W10461181 Contact Us For Availability
37
MAY 90406 MAY 90406 Contact Us For Availability
38
MAY W10521454 MAY W10521454 Contact Us For Availability
39
MAY W10521453 MAY W10521453 Contact Us For Availability
40
MAY W10684257 MAY W10684257 Contact Us For Availability
41
PAD, LID HINGE MAY 21097 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
MAY 285834 MAY 285834 Contact Us For Availability
NI
MAY 285835 MAY 285835 Contact Us For Availability
NI
MAY 285863 MAY 285863 Contact Us For Availability
NI
WATER SYSTEM PARTS, ADAPTER, STANDPIPE 2" DIA MAY 3363920 Contact Us For Availability
NI
MAY 350008 MAY 350008 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 76314 MAY 76314 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, AFFRESH ODOR REMOVER MAY W10135699 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
MAY W10461164 MAY W10461164 Contact Us For Availability
NI
MAY W10515386 MAY W10515386 Contact Us For Availability
NI
MAY W10575888 MAY W10575888 Contact Us For Availability
NI
MAY W10576550 MAY W10576550 Contact Us For Availability
× ![]()
