Model LG MU-42PZ41VB – Common Parts & Diagrams

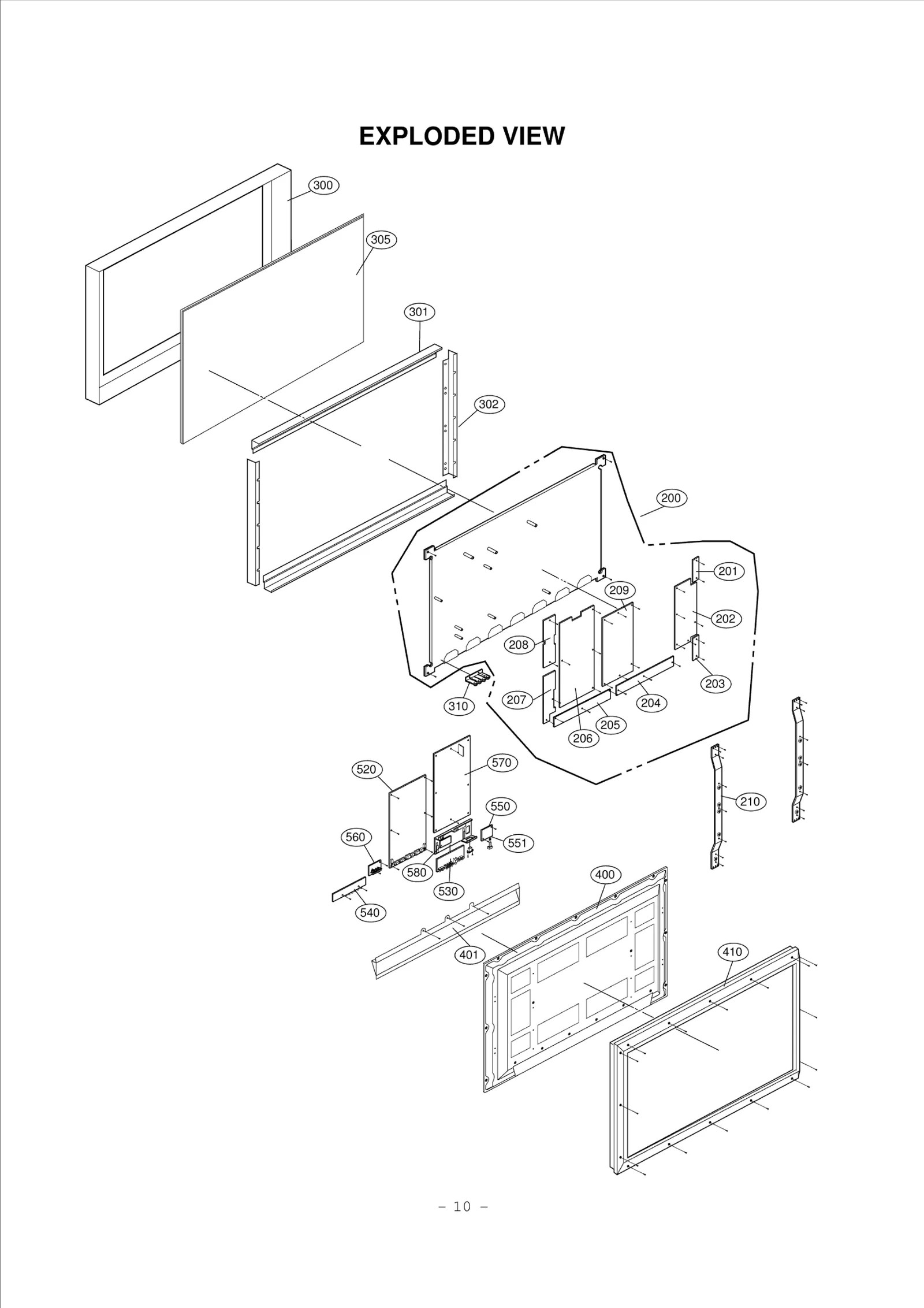

Diagram 0
Diagram 1
Common parts from model LG MU-42PZ41VB
200
PLASMA DISPLAY PANEL NO FILTER LGE 6348Q-E034A Contact Us For Availability
201
PWB(PCB) ASSEMBLY,DI LGE 6871QTH025A Contact Us For Availability
202
PWB(PCB) ASSEMBLY,DI LGE 6871QZH023A Contact Us For Availability
203
PWB(PCB) ASSEMBLY,DI LGE 6871QTH026A Contact Us For Availability
204
PWB(PCB) ASSEMBLY,DI LGE 6871QRH021A Contact Us For Availability
205
PWB(PCB) ASSEMBLY,DI LGE 6871QLH021A Contact Us For Availability
206
PWB(PCB) ASSEMBLY,DI LGE 6871QYH022A Contact Us For Availability
207
PWB(PCB) ASSEMBLY,DI LGE 6871QDH061A Contact Us For Availability
208
PWB(PCB) ASSEMBLY,DI LGE 6871QDH060A Contact Us For Availability
209
PWB(PCB) ASSEMBLY,DI LGE 6871QCH024A Contact Us For Availability
210
SUPPORTER LGE 4980V00460A Contact Us For Availability
300
LGE 3091V00B01H LGE 3091V00B01H Contact Us For Availability
301
LGE 4980V00457A LGE 4980V00457A Contact Us For Availability
302
LGE 4980V00458A LGE 4980V00458A Contact Us For Availability
305
LGE 3790V00281D LGE 3790V00281D Contact Us For Availability
310
LGE 5020V00667B LGE 5020V00667B Contact Us For Availability
400
LGE 3809V00A47D LGE 3809V00A47D Contact Us For Availability
401
LGE 3301V00010C LGE 3301V00010C Contact Us For Availability
410
LGE 3809V00A58C LGE 3809V00A58C Contact Us For Availability
520
PWB(PCB) ASSEMBLY,MA LGE 6871VMMD05A Contact Us For Availability
530
PWB(PCB) ASSEMBLY,SU LGE 6871VSMD84A Contact Us For Availability
540
PWB(PCB) ASSEMBLY,SU LGE 6871VSMD92A Contact Us For Availability
550
LGE 6871VSMD94A LGE 6871VSMD94A Contact Us For Availability
551
LGE 5020V00666B LGE 5020V00666B Contact Us For Availability
560
PWB(PCB) ASSEMBLY,SU LGE 6871VSMD93A Contact Us For Availability
570
BOARD ASSEMBLY LGE 3501V00115A Contact Us For Availability
580
PWB(PCB) ASSEMBLY,SU LGE 6871VSMD85A Contact Us For Availability
A1
LGE 3828VA0361C LGE 3828VA0361C Contact Us For Availability
A2
LGE 6710V00092J LGE 6710V00092J Contact Us For Availability
A3
POWER CORD LGE 6410VUH005A Contact Us For Availability
A4
JACK,DRAWING LGE 6612VMV002B Contact Us For Availability
A5
CABLE,DVI LGE 6850J00002A Contact Us For Availability
A6
SIGNAL CABLE LGE 6866VA9001B Contact Us For Availability
AR511
RESISTOR,ARRAY LGE 0RRZVTA001D Contact Us For Availability
AR905
RESISTOR,ARRAY LGE 0RRZVTA001A Contact Us For Availability
C002
Capacitor,AL,Radial LGE 0CE4763F618 Contact Us For Availability
C031
Capacitor,AL,Chip LGE 0CE105SK6DC Contact Us For Availability
C129
Capacitor,AL,Radial LGE 0CE105CK636 Contact Us For Availability
C335
CAPACITOR,FIXED CERAMIC(High d LGE 0CK224DF56A Contact Us For Availability
C439
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C608
CAPACITOR 100UF STD 25V M FL T LGE 0CE107DH618 Contact Us For Availability
C613
LGE 0CQ1231N419 LGE 0CQ1231N419 Contact Us For Availability
C615
LGE 0CQ1041N509 LGE 0CQ1041N509 Contact Us For Availability
C627
Capacitor,AL,Chip LGE 0CE335SK6DC Contact Us For Availability
C630
Capacitor,AL,Chip LGE 0CE474SK6DC Contact Us For Availability
C672
LGE 0CE477DK618 LGE 0CE477DK618 Contact Us For Availability
C676
LGE 181-120K LGE 181-120K Contact Us For Availability
C813
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C1133
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE106SF6DC Contact Us For Availability
C1160
CAPACITOR,FIXED CERA LGE 0CK823DK56A Contact Us For Availability
C1841
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
D1804
DIODE,SWITCHING LGE 0DD226239AA Contact Us For Availability
F602
FILTER(CIRC),EMC LGE 6200VJS001B Contact Us For Availability
IC001
IC,SONY LGE 0ISO208900A Contact Us For Availability
IC101
LGE 0IBB368200A LGE 0IBB368200A Contact Us For Availability
IC103
IC,TTL LGE 0IFA741230A Contact Us For Availability
IC104
IC,EEPROM LGE 0IAL242110A Contact Us For Availability
IC105
LGE 0IPH740800M LGE 0IPH740800M Contact Us For Availability
IC107
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
IC201
IC,DALLAS SEMICONDUCTOR LGE 0IDS232000A Contact Us For Availability
IC202
IC,MICRO CONTROLLER LGE 0IMCRS5003A Contact Us For Availability
IC205
LGE 0IMCRTI021A LGE 0IMCRTI021A Contact Us For Availability
IC301
LGE 0ISA715100D LGE 0ISA715100D Contact Us For Availability
IC302
IC,ITT LGE 0IIT323000E Contact Us For Availability
IC304
IC,Multiplexer LGE 0IMCRTI001A Contact Us For Availability
IC401
IC,Video Processors LGE 0IMMRNE002A Contact Us For Availability
IC402
LGE 0IS5160000A LGE 0IS5160000A Contact Us For Availability
IC501
LGE 0IMCRGN001A LGE 0IMCRGN001A Contact Us For Availability
IC502
IC,MEMORIES LGE 0IMMRHY033A Contact Us For Availability
IC601
IC,MICRO CONTROLLER LGE 0IMCRMN014A Contact Us For Availability
IC603
IC,Voltage Regulator LGE 0IKE780800J Contact Us For Availability
IC802
IC SANYO LA4282(AUDIO-AMP) LGE 0ISA428200A Contact Us For Availability
IC803
IC,MICRO CONTROLLER LGE 0IMCRFA010A Contact Us For Availability
IC804
LGE 0ISH122100A LGE 0ISH122100A Contact Us For Availability
IC901
LGE 0ICTMMI038A LGE 0ICTMMI038A Contact Us For Availability
IC902
LGE 0IMMRMR009A LGE 0IMMRMR009A Contact Us For Availability
IC904
LGE 0IAL241610A LGE 0IAL241610A Contact Us For Availability
IC905
LGE 0IPH740400G LGE 0IPH740400G Contact Us For Availability
IC906
LGE 0IPH743200A LGE 0IPH743200A Contact Us For Availability
IC1101
LGE 0IMCRSO008A LGE 0IMCRSO008A Contact Us For Availability
IC1102
IC,MICRO CONTROLLER LGE 0IMCRAD002A Contact Us For Availability
IC1700
IC,MICRO CONTROLLER LGE 0IMCRG2004B Contact Us For Availability
IC1701
LGE 0ISS464323A LGE 0ISS464323A Contact Us For Availability
IC1805
IC,LDO Voltage Regulator LGE 0IPRPML001A Contact Us For Availability
IC1806
IC,MICRO CONTROLLER LGE 0IMCRSJ001A Contact Us For Availability
IC1810
IC,MICRO CONTROLLER LGE 0IMCRRH001A Contact Us For Availability
L100
Filter,Bead LGE 6210VC0005A Contact Us For Availability
L807
Filter,Bead LGE 6210VC0006A Contact Us For Availability
LA601
LGE 150-F09A LGE 150-F09A Contact Us For Availability
LD001
LED LGE 0DL200000CA Contact Us For Availability
LD802
LED LGE 0DL233309AC Contact Us For Availability
LT402
FILTER(CIRC),BAND PA LGE 6200C000010 Contact Us For Availability
LT404
FILTER(CIRC),BAND PA LGE 6200C000009 Contact Us For Availability
P102
JACK,RCA LGE 6612J00010A Contact Us For Availability
P102
CONNECTOR (CIRC),D-S LGE 6630VGA004B Contact Us For Availability
P103
JACK,DIN LGE 380-363K Contact Us For Availability
P103
JACK,DIN LGE 6612BBBHN6A Contact Us For Availability
P104
JACK,DRAWING LGE 6612VMV002A Contact Us For Availability
P105
JACK,RCA LGE 6612JH003CA Contact Us For Availability
P106
CONNECTOR (CIRC),D-SUB LGE 6630VGA001C Contact Us For Availability
P107
JACK LGE 380-068B Contact Us For Availability
P108
SWITCH,PUSH LGE 140-275A Contact Us For Availability
PA001
PRE-AMP LGE 6726VH0001A Contact Us For Availability
Q302
TRANSISTOR LGE 0TR102009AG Contact Us For Availability
Q405
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
R614
RESISTOR FUSIBLE LGE 0RF0221H609 Contact Us For Availability
R656
RESISTOR FIXED CARBON FILM KKN LGE 0RD4700H609 Contact Us For Availability
SW001
SWITCH TACT 4LEAD 160G H4.7 LGE 140-315A Contact Us For Availability
T1102
FILTER(CIRC),BAND PA LGE 6200VKR002A Contact Us For Availability
X301
CRYSTAL,STANDARD LGE 6202VDT002E Contact Us For Availability
X401
Crystal LGE 6212AB2015B Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6202VDT002J Contact Us For Availability
X601
CRYSTAL LGE 156-A02M Contact Us For Availability
X700
LGE 6204B47985E LGE 6204B47985E Contact Us For Availability
X901
RESONATOR,CRYSTAL LGE 6202VDT002B Contact Us For Availability
X1101
Crystal LGE 6212AB2015A Contact Us For Availability
ZD302
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
× ![]()
