Model LG MU-42PZ15B – Common Parts & Diagrams

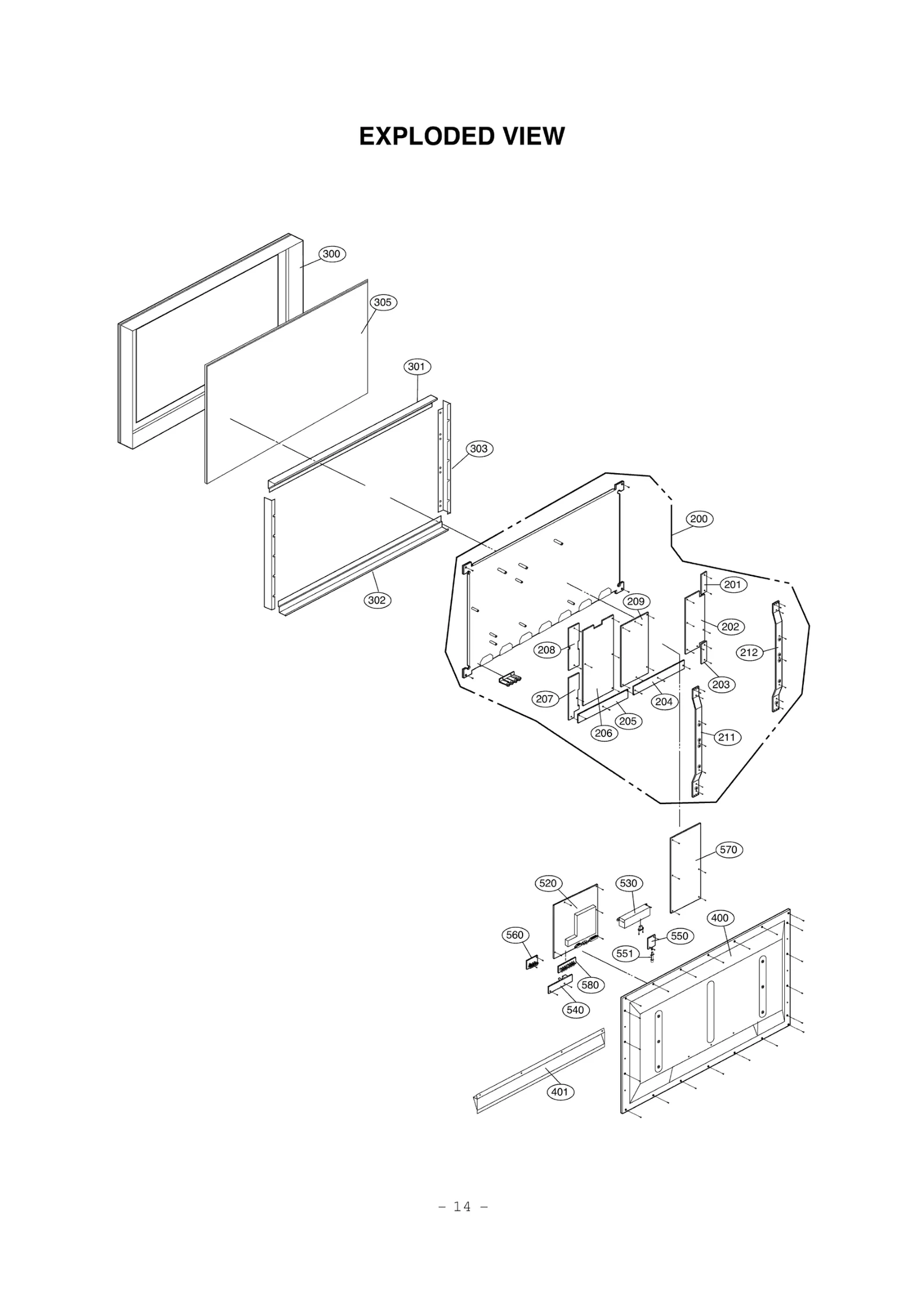

Diagram 0
Common parts from model LG MU-42PZ15B
200
PLASMA DISPLAY PANEL NO FILTER LGE 6348Q-E032D Contact Us For Availability
201
PWB(PCB) ASSEMBLY,DI LGE 6871QTH023A Contact Us For Availability
202
PWB(PCB) ASSEMBLY (ZSUS) LGE 6871QZH020A Contact Us For Availability
203
PWB(PCB) ASSEMBLY,DI LGE 6871QTH024A Contact Us For Availability
204
PWB(PCB) ASSEMBLY,DI LGE 6871QRH013A Contact Us For Availability
205
PWB(PCB) ASSEMBLY,DI LGE 6871QLH015A Contact Us For Availability
206
PWB(PCB) ASSEMBLY (YSUS) LGE 6871QYH018A Contact Us For Availability
207
PWB(PCB) ASSEMBLY,DI LGE 6871QDP026A Contact Us For Availability
208
PWB(PCB) ASSEMBLY,DI LGE 6871QDP025A Contact Us For Availability
209
PWB(PCB) ASSEMBLY (CTRL) LGE 6871QCH013A Contact Us For Availability
211
SUPPORTER LGE 4980V00240A Contact Us For Availability
212
SUPPORTER LGE 4980V00240B Contact Us For Availability
300
CABINET ASSEMBLY LGE 3091V00333C Contact Us For Availability
301
SUPPORTER LGE 4980V00266A Contact Us For Availability
302
SUPPORTER LGE 4980V00267A Contact Us For Availability
303
SUPPORTER LGE 4980V00268A Contact Us For Availability
305
LGE 3790V00281C LGE 3790V00281C Contact Us For Availability
401
PLATE ASSY (A/V) LGE 3300V00096F Contact Us For Availability
520
PCB ASSY (VSC MAIN) LGE 6871VMMB73A Contact Us For Availability
530
BOARD ASSEMBLY (EMI FILTER) LGE 3501V00053B Contact Us For Availability
540
PCB ASSY (MNT CONT) LGE 6871VSM909A Contact Us For Availability
550
PCB ASSY (MNT POWER) LGE 6871VSM911A Contact Us For Availability
551
BUTTON LGE 5020V00457B Contact Us For Availability
560
BOARD ASSY (MNT SPK) LGE 6871VSM910A Contact Us For Availability
570
BOARD ASSY (AC/DC CONVERTOR) LGE 3501V00052B Contact Us For Availability
580
LGE 6871VSMA90B LGE 6871VSMA90B Contact Us For Availability
A1
MANUAL,OWNERS LGE 3828VA0296J Contact Us For Availability
A2
REMOTE CONTROLLER LGE 6710V00067K Contact Us For Availability
A3
POWER CORD LGE 6410VUH005A Contact Us For Availability
A4
SIGNAL CABLE LGE 6866VA9001B Contact Us For Availability
AR201
RESISTOR,ARRAY LGE 0RRZVTA001A Contact Us For Availability
C001
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C002
CAPACITOR 47UF STD 10V M FL TP LGE 0CE476DD618 Contact Us For Availability
C221
CAPACITOR,FIXED CERAMIC(High d LGE 0CK224DF56A Contact Us For Availability
C373
LGE 0CE1051K636 LGE 0CE1051K636 Contact Us For Availability
C439
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C612
Capacitor,AL,Chip LGE 0CE335SK6DC Contact Us For Availability
C626
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107SF6DC Contact Us For Availability
C644
Capacitor,AL,Chip LGE 0CE474SK6DC Contact Us For Availability
C652
Capacitor,AL,Chip LGE 0CE105SK6DC Contact Us For Availability
C653
CAPACITOR 100UF STD 25V M FL T LGE 0CE107DH618 Contact Us For Availability
C660
LGE 0CQ6821N509 LGE 0CQ6821N509 Contact Us For Availability
C661
LGE 0CQ1041N509 LGE 0CQ1041N509 Contact Us For Availability
C674
LGE 0CE477DK618 LGE 0CE477DK618 Contact Us For Availability
C676
LGE 181-120K LGE 181-120K Contact Us For Availability
C828
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE106SF6DC Contact Us For Availability
C843
CAPACITOR,FIXED ELEC LGE 0CE227VF6DC Contact Us For Availability
C863
Capacitor,AL,Radial LGE 0CE477BF618 Contact Us For Availability
C869
CAPACITOR ELECTROLYTIC 1000UF LGE 0CE108DF618 Contact Us For Availability
D102
DIODE,SWITCHING LGE 0DD226239AA Contact Us For Availability
F601
FILTER(CIRC),EMI LGE 6200VJS001A Contact Us For Availability
IC102
IC,DALLAS SEMICONDUCTOR LGE 0IDS232000A Contact Us For Availability
IC104
IC,TTL LGE 0IFA741230A Contact Us For Availability
IC105
LGE 0IPH740800M LGE 0IPH740800M Contact Us For Availability
IC201
LGE 0IIT323000C LGE 0IIT323000C Contact Us For Availability
IC203
IC,SONY LGE 0ISO210100B Contact Us For Availability
IC204
LGE 0ISH092100A LGE 0ISH092100A Contact Us For Availability
IC301
LGE 0IMCRFA012A LGE 0IMCRFA012A Contact Us For Availability
IC403
IC,Video Processors LGE 0IMCRG2001A Contact Us For Availability
IC404
LGE 0IMCRG2002A LGE 0IMCRG2002A Contact Us For Availability
IC406
LGE 0IMCRAD001A LGE 0IMCRAD001A Contact Us For Availability
IC501
LGE 0IMCRG2004A LGE 0IMCRG2004A Contact Us For Availability
IC502
LGE 0ISS464323A LGE 0ISS464323A Contact Us For Availability
IC601
LGE 0IMCRMN002A LGE 0IMCRMN002A Contact Us For Availability
IC603
IC SANYO LA4282(AUDIO-AMP) LGE 0ISA428200A Contact Us For Availability
IC605
LGE 0IKE780800A LGE 0IKE780800A Contact Us For Availability
IC703
IC,MITSUBISHI LGE 0IMI623200B Contact Us For Availability
IC704
LGE 0IAL241610A LGE 0IAL241610A Contact Us For Availability
IC706
LGE 0IMCRNS001A LGE 0IMCRNS001A Contact Us For Availability
IC707
LGE 0IPH740400G LGE 0IPH740400G Contact Us For Availability
IC708
LGE 0IPH806520A LGE 0IPH806520A Contact Us For Availability
IC709
LGE 0IZZVA0051A LGE 0IZZVA0051A Contact Us For Availability
IC710
LGE 0IPH743730E LGE 0IPH743730E Contact Us For Availability
IC802
IC,MICRO CONTROLLER LGE 0IMCRRH001A Contact Us For Availability
IC803
IC,LINEAR TECHNOLOGY LGE 0ILT176425A Contact Us For Availability
IC904
LGE 0IPH745410A LGE 0IPH745410A Contact Us For Availability
IC1101
LGE 0IMCRAT003A LGE 0IMCRAT003A Contact Us For Availability
L001
INDUCTOR AXIAL LEAD KCN20A82G LGE 0LA0102K119 Contact Us For Availability
L601
LGE 150-F09A LGE 150-F09A Contact Us For Availability
L802
Filter,Bead LGE 6210VC0006A Contact Us For Availability
LD001
LED LGE 0DL200000CA Contact Us For Availability
LD803
LED LGE 0DL233309AC Contact Us For Availability
P007B
CONNECTOR ASSY LGE 387-A04H Contact Us For Availability
P101
CONNECTOR (CIRC),D-SUB LGE 6630VGA001C Contact Us For Availability
P101
JACK,RCA LGE 6612J00010B Contact Us For Availability
P102
CONNECTOR (CIRC),D-S LGE 6630GL00181 Contact Us For Availability
P102
JACK,RCA LGE 6612J00010A Contact Us For Availability
P103
JACK,DIN LGE 380-363K Contact Us For Availability
P201B
JACK,RCA LGE 6612VJH018A Contact Us For Availability
P1001
CONNECTOR (CIRC),D-S LGE 6630VGA004B Contact Us For Availability
PA001
PRE-AMP LGE 6726VH0001A Contact Us For Availability
Q001
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
Q405
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
R006
Resistor,Carbon Film LGE 0RD3300F609 Contact Us For Availability
R134
Filter,Bead LGE 6210VC0005A Contact Us For Availability
R624
LGE 0RS0221H609 LGE 0RS0221H609 Contact Us For Availability
R628
LGE 0RS2701K607 LGE 0RS2701K607 Contact Us For Availability
R656
RESISTOR FIXED CARBON FILM KKN LGE 0RD4700H609 Contact Us For Availability
SW002
SWITCH TACT 4LEAD 160G H4.7 LGE 140-315A Contact Us For Availability
SW800
SWITCH,PUSH LGE 6600VM2006A Contact Us For Availability
X201
CRYSTAL,STANDARD LGE 6202VDB007B Contact Us For Availability
X601
CRYSTAL LGE 156-A02M Contact Us For Availability
X701
RESONATOR,CRYSTAL LGE 6202VDT002B Contact Us For Availability
X1101
LGE 6204V00001K LGE 6204V00001K Contact Us For Availability
ZD104
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
× ![]()
