Model Maytag MTN1852VRW00 REFRIGERATOR – Common Parts & Diagrams

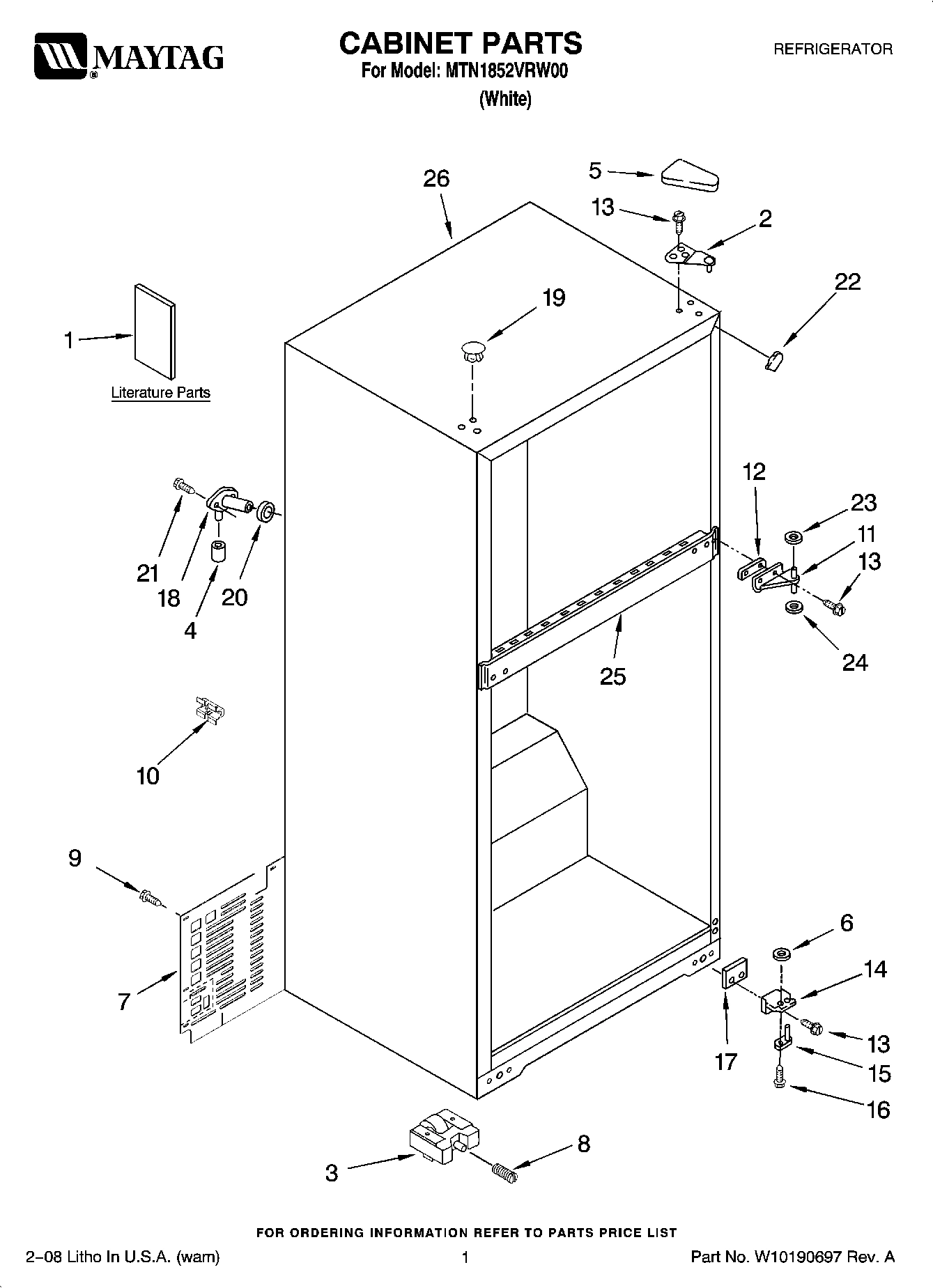

01 - CABINET PARTS

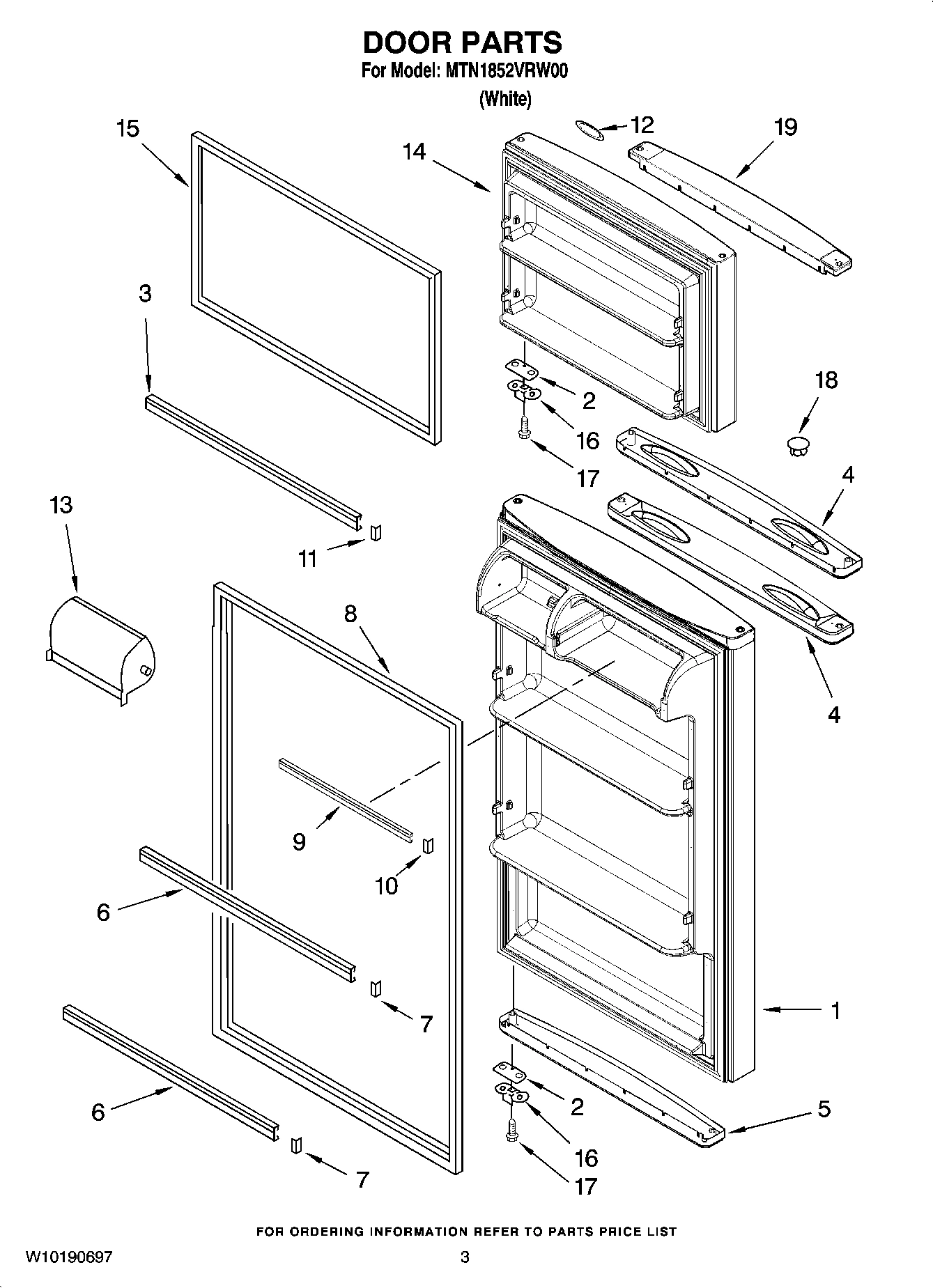

02 - DOOR PARTS

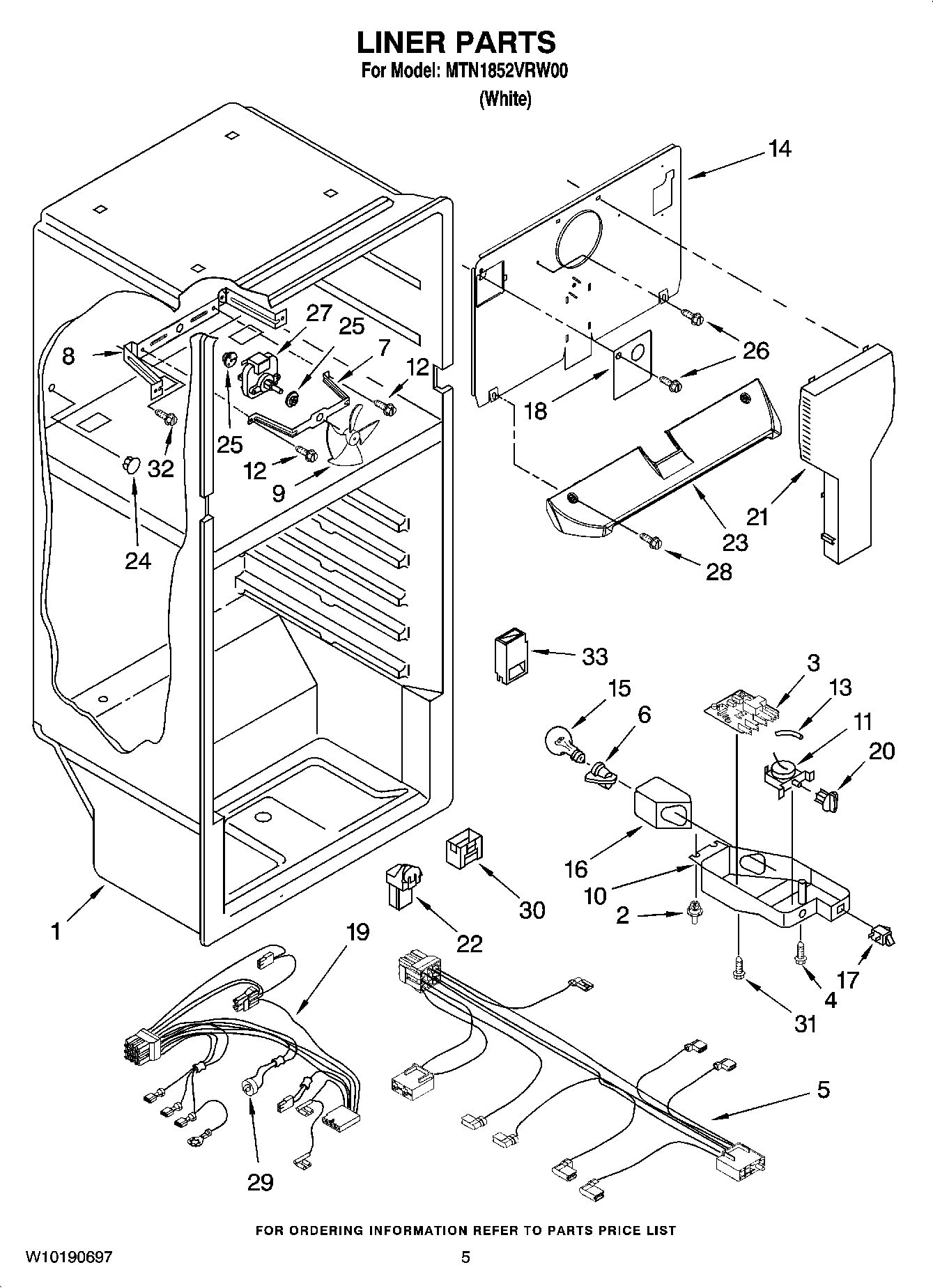

03 - LINER PARTS

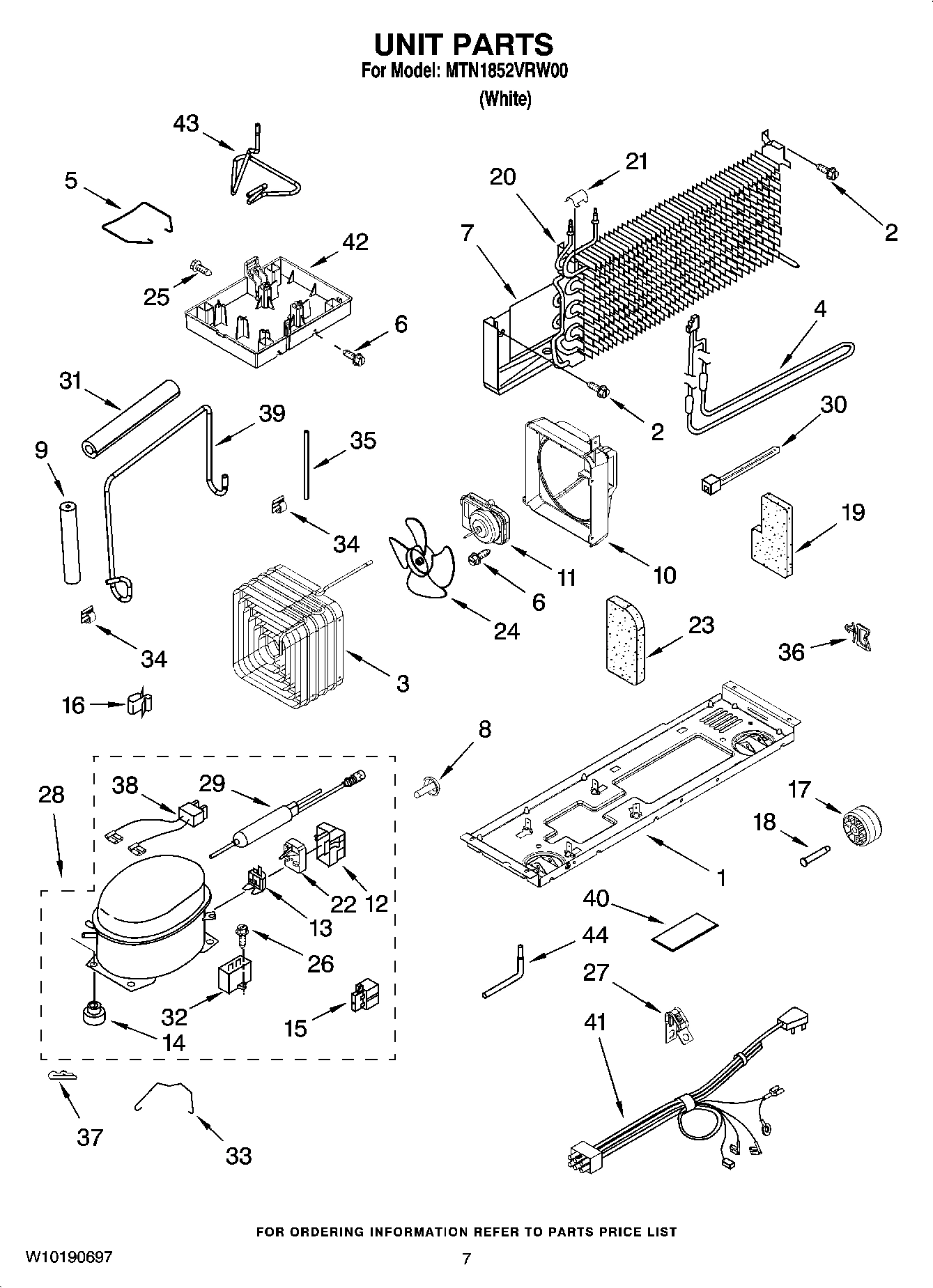

04 - UNIT PARTS

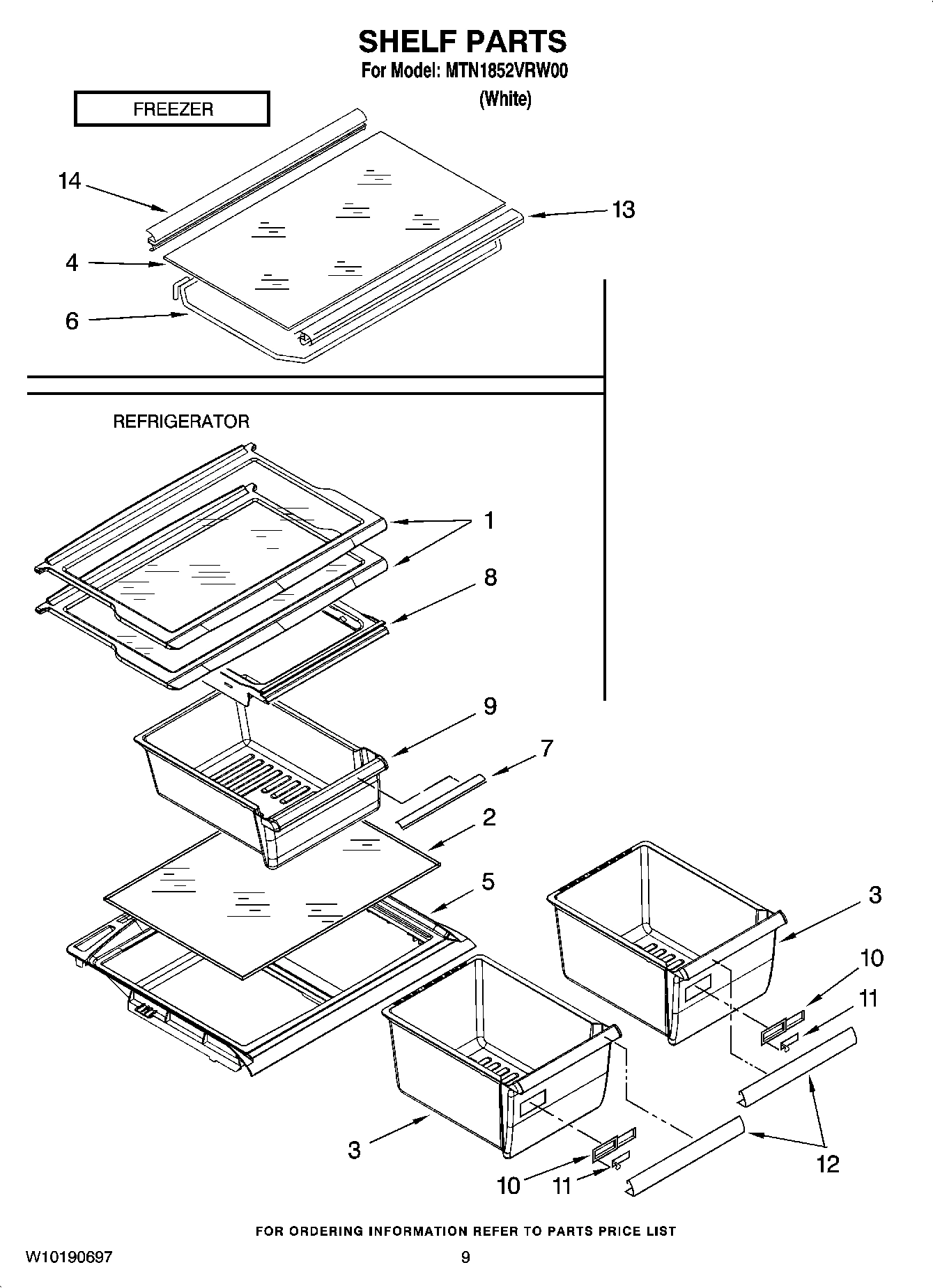

05 - SHELF PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MTN1852VRW00 REFRIGERATOR
MAY 876764 MAY 876764 Contact Us For Availability
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
MAY 1117510 MAY 1117510 Contact Us For Availability
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
FIELD INSTALLABLE ICE MAKER (ECKMF90) MAY 2155469 Contact Us For Availability
Enamel, White (12 Oz. Spray Can) MAY 350930 Contact Us For Availability
Enamel, Black (12 Oz. Spray Can) MAY 350939 Contact Us For Availability
Primer, White (12 Oz. Spray Can) MAY 350942 Contact Us For Availability
Brush Touch-Up Kit (Biscuit) MAY 4392899 Contact Us For Availability
Enamel, Biscuit (1 Qt. Uncut) MAY 4392900 Contact Us For Availability
Enamel, Biscuit (12 Oz. Spray Can) MAY 4392901 Contact Us For Availability
MAY 479502 MAY 479502 Contact Us For Availability
MAY 503695 MAY 503695 Contact Us For Availability
MAY 505587 MAY 505587 Contact Us For Availability
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
MAY 542638 MAY 542638 Contact Us For Availability
MAY 542639 MAY 542639 Contact Us For Availability
MAY 606755 MAY 606755 Contact Us For Availability
Brush Touch-Up Kit (White) MAY 72017 Contact Us For Availability
Brush Touch-Up Kit (Black) MAY 72032 Contact Us For Availability
MAY 799340 MAY 799340 Contact Us For Availability
Enamel, White (1 Qt. Uncut) MAY 799344 Contact Us For Availability
MAY 799832 MAY 799832 Contact Us For Availability
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
MAY 833938 MAY 833938 Contact Us For Availability
MAY 876029 MAY 876029 Contact Us For Availability
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
MAY 978941 MAY 978941 Contact Us For Availability
1
MAY 2265591 MAY 2265591 Contact Us For Availability
1
MAY 2326159 MAY 2326159 Contact Us For Availability
1
DO-IT-YOURSELF MANUAL REF./FZR. MAY 677969 Contact Us For Availability
1
MAY W10182817 MAY W10182817 Contact Us For Availability
1
Refrigerator Door (Includes Illus. 4,5 & 8) ( MAY 2316159W Contact Us For Availability
1
MAY W10127456 MAY W10127456 Contact Us For Availability
1
MAY 2263641 MAY 2263641 Contact Us For Availability
2
Hinge Butt, Top MAY 2261963 Contact Us For Availability
2
MAY 489442 MAY 489442 Contact Us For Availability
2
Shim, Door Stop (White) MAY 2258681W Contact Us For Availability
2
Rivet MAY 939962 Contact Us For Availability
2
GLASS, COVER MAY 2262441 Contact Us For Availability
3
Roller-Front MAY 2324094 Contact Us For Availability
3
Trim, Door Shelf MAY 2266727 Contact Us For Availability
3
MAY 2303825 MAY 2303825 Contact Us For Availability
3
MAY 2264004 MAY 2264004 Contact Us For Availability
3
Crisper Pan (Includes Items 10, 11 & 12) MAY 2326139 Contact Us For Availability
4
CAP BUSHING MAY 487996 Contact Us For Availability
4
Handle (White, RC & FC) MAY 2265645W Contact Us For Availability
4
MAY 489174 MAY 489174 Contact Us For Availability
4
MAY 2176942 MAY 2176942 Contact Us For Availability
4
MAY 2262442 MAY 2262442 Contact Us For Availability
5
Cover, Hinge (White) MAY 2213360 Contact Us For Availability
5
Endcap, Bottom (White) MAY 2265647W Contact Us For Availability
5
MAY 2265930 MAY 2265930 Contact Us For Availability
5
Clip, Condensor MAY 2264835 Contact Us For Availability
5
MAY 2222031 MAY 2222031 Contact Us For Availability
6
Washer MAY 488296 Contact Us For Availability
6
MAY 2266738 MAY 2266738 Contact Us For Availability
6
Socket, Light MAY 2162085 Contact Us For Availability
6
MAY 8533859 MAY 8533859 Contact Us For Availability
6
MAY 2252848 MAY 2252848 Contact Us For Availability
7
MAY 2264132 MAY 2264132 Contact Us For Availability
7
END CAP, TRIM MAY 2195916 Contact Us For Availability
7
MAY 2197404 MAY 2197404 Contact Us For Availability
7
MAY 2319224 MAY 2319224 Contact Us For Availability
7
MAY 2176356 MAY 2176356 Contact Us For Availability
8
SCREW MAY 2222100 Contact Us For Availability
8
Gasket - (Assy Door, R.C.) MAY W10190032 Contact Us For Availability
8
MAY 2197405 MAY 2197405 Contact Us For Availability
8
Snap Rivet MAY 2264516 Contact Us For Availability
8
MAY 2256601 MAY 2256601 Contact Us For Availability
9
MAY 2266729 MAY 2266729 Contact Us For Availability
9
Fan Blade MAY 2169142 Contact Us For Availability
9
MAY 2161302 MAY 2161302 Contact Us For Availability
9
Meat Pan (Includes 7) MAY 2261880 Contact Us For Availability
10
SPACER, BACK CB MAY 2266506 Contact Us For Availability
10
Plug-Trim MAY 2156007 Contact Us For Availability
10
MAY 2215210 MAY 2215210 Contact Us For Availability
10
MAY 2263929 MAY 2263929 Contact Us For Availability
10
MAY 2212446 MAY 2212446 Contact Us For Availability
11
MAY 2166086 MAY 2166086 Contact Us For Availability
11
END CAP, TRIM MAY 2156003 Contact Us For Availability
11
MAY 2325701 MAY 2325701 Contact Us For Availability
11
Motor, Condensor MAY 2188875 Contact Us For Availability
11
Slide, Humidity Control MAY 2176222 Contact Us For Availability
12
SHIM, HINGE CENTER (WHITE) MAY 2166043 Contact Us For Availability
12
MAY 2324038 MAY 2324038 Contact Us For Availability
12
MAY 489399 MAY 489399 Contact Us For Availability
12
COVER ((SERVICE ONLY)) MAY 4387731 Contact Us For Availability
12
MAY 2326140 MAY 2326140 Contact Us For Availability
13
MAY 489497 MAY 489497 Contact Us For Availability
13
MAY 2207942 MAY 2207942 Contact Us For Availability
13
MAY 1118680 MAY 1118680 Contact Us For Availability
13
OVERLOAD ((SERVICE ONLY)) MAY 4390624 Contact Us For Availability
13
MAY 2215011 MAY 2215011 Contact Us For Availability
14
Hinge Butt, Bottom MAY 2221926 Contact Us For Availability
14
Freezer Door (Includes Illus. 4,15 & 19) (Whi MAY 2316367W Contact Us For Availability
14
MAY 2264669 MAY 2264669 Contact Us For Availability
14
Grommet (Production) MAY 2264447 Contact Us For Availability
14
Grommet (Service) MAY 4387558 Contact Us For Availability
14
MAY 2215010 MAY 2215010 Contact Us For Availability
15
Hinge-Pin, Bottom MAY 9791682 Contact Us For Availability
15
Gasket - (Assy Door, F.C.) MAY W10190031 Contact Us For Availability
15
MAY 2311792 MAY 2311792 Contact Us For Availability
15
Start Relay (Service Only) MAY 2183454 Contact Us For Availability
16
MAY 3428970 MAY 3428970 Contact Us For Availability
16
MAY 2189202 MAY 2189202 Contact Us For Availability
16
MAY 9791702 MAY 9791702 Contact Us For Availability
16
MAY 939054 MAY 939054 Contact Us For Availability
17
MAY 2201567 MAY 2201567 Contact Us For Availability
17
MAY 8533904 MAY 8533904 Contact Us For Availability
17
MAY 1118894 MAY 1118894 Contact Us For Availability
17
Roller MAY 2150304 Contact Us For Availability
18
MAY 2174760 MAY 2174760 Contact Us For Availability
18
Hole Plug (White) MAY 2212648 Contact Us For Availability
18
MAY 2217784 MAY 2217784 Contact Us For Availability
18
MAY 2264756 MAY 2264756 Contact Us For Availability
19
Hole Plug (6) (White) MAY 2201012 Contact Us For Availability
19
Endcap, Top (White) MAY 2265644W Contact Us For Availability
19
Wiring, Freezer (Includes Item 29) MAY 2319442 Contact Us For Availability
19
MAY 2262191 MAY 2262191 Contact Us For Availability
20
Seal MAY 1106508 Contact Us For Availability
20
MAY 2202885 MAY 2202885 Contact Us For Availability
20
EVAPORATOR ASSY MAY 2263920 Contact Us For Availability
21
MAY 2262176 MAY 2262176 Contact Us For Availability
21
MAY 9790408 MAY 9790408 Contact Us For Availability
21
Clip, Evaporator Tube MAY 9791833 Contact Us For Availability
22
MAY 2166003 MAY 2166003 Contact Us For Availability
22
Hood And Foil Assembly MAY 2197052 Contact Us For Availability
22
Start Device Combination (Start Relay and Ove MAY 2225929 Contact Us For Availability
23
MAY 489341 MAY 489341 Contact Us For Availability
23
MAY 2261978 MAY 2261978 Contact Us For Availability
23
MAY 2262192 MAY 2262192 Contact Us For Availability
24
MAY 487576 MAY 487576 Contact Us For Availability
24
MAY 941839 MAY 941839 Contact Us For Availability
24
MAY 2264129 MAY 2264129 Contact Us For Availability
25
MAY 2264462 MAY 2264462 Contact Us For Availability
25
MAY 2264841 MAY 2264841 Contact Us For Availability
26
MAY 489478 MAY 489478 Contact Us For Availability
26
MAY 8533919 MAY 8533919 Contact Us For Availability
27
Evaporator, Fan Motor MAY 2201212 Contact Us For Availability
27
MAY 549193 MAY 549193 Contact Us For Availability
28
MAY 2262178 MAY 2262178 Contact Us For Availability
28
Compressor (Includes Items 12,13,14,15,29 32 MAY 2217634 Contact Us For Availability
29
MAY 2266066 MAY 2266066 Contact Us For Availability
29
MAY W10143759 MAY W10143759 Contact Us For Availability
30
Air Diffuser Cover MAY 2183061 Contact Us For Availability
30
MAY 2263990 MAY 2263990 Contact Us For Availability
31
Screw MAY 488693 Contact Us For Availability
31
MAY 2264838 MAY 2264838 Contact Us For Availability
32
Capacitor (Service) MAY 1118576 Contact Us For Availability
32
Capacitor (Production) MAY 2264017 Contact Us For Availability
33
AIR DIFFUSER ASSY MAY 2221992 Contact Us For Availability
33
MAY 2212996 MAY 2212996 Contact Us For Availability
34
MAY 1114718 MAY 1114718 Contact Us For Availability
35
MAY 2264278 MAY 2264278 Contact Us For Availability
36
CLIP-HARNESS MAY 2266467 Contact Us For Availability
37
MAY 24364001 MAY 24364001 Contact Us For Availability
38
Wire Assembly (Service Only) MAY 4387765 Contact Us For Availability
39
MAY 2264131 MAY 2264131 Contact Us For Availability
40
SHIELD-ELECTRICAL MAY 2266360 Contact Us For Availability
41
Wire Assy. Unit MAY W10151677 Contact Us For Availability
42
Evaporator Tray MAY 2263928 Contact Us For Availability
43
MAY 2316181 MAY 2316181 Contact Us For Availability
44
MAY VS20001 MAY VS20001 Contact Us For Availability
× ![]()
