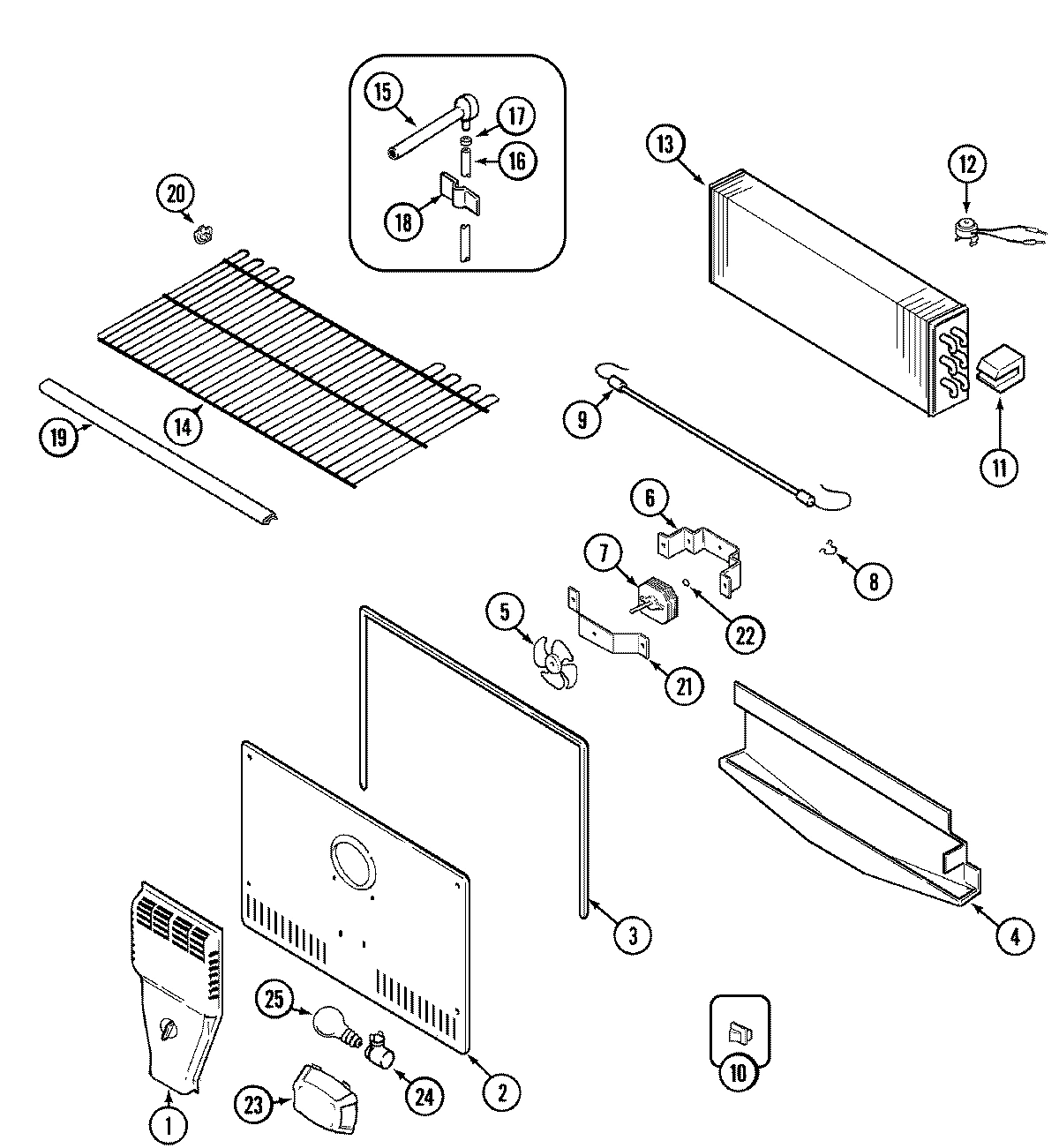

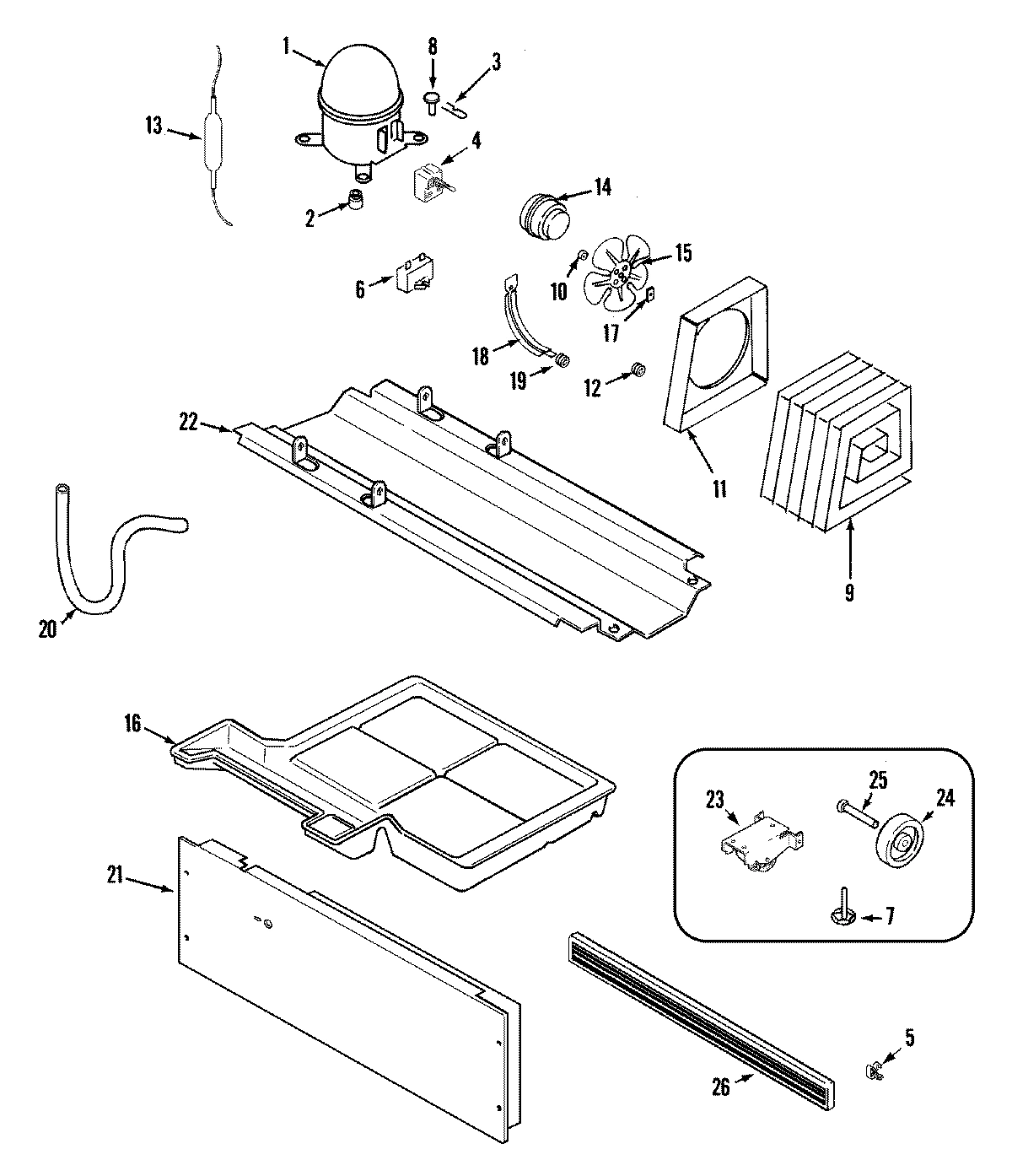

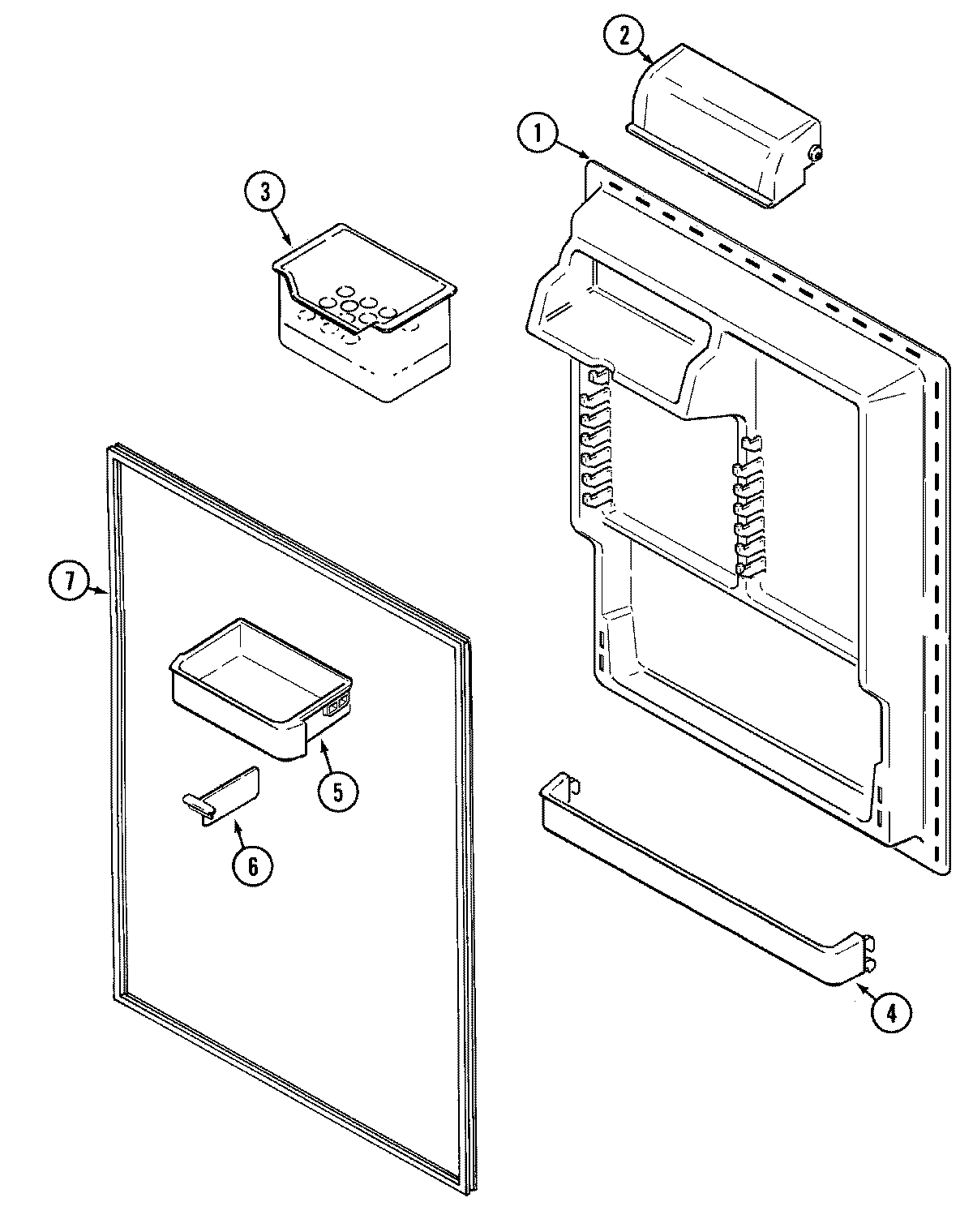

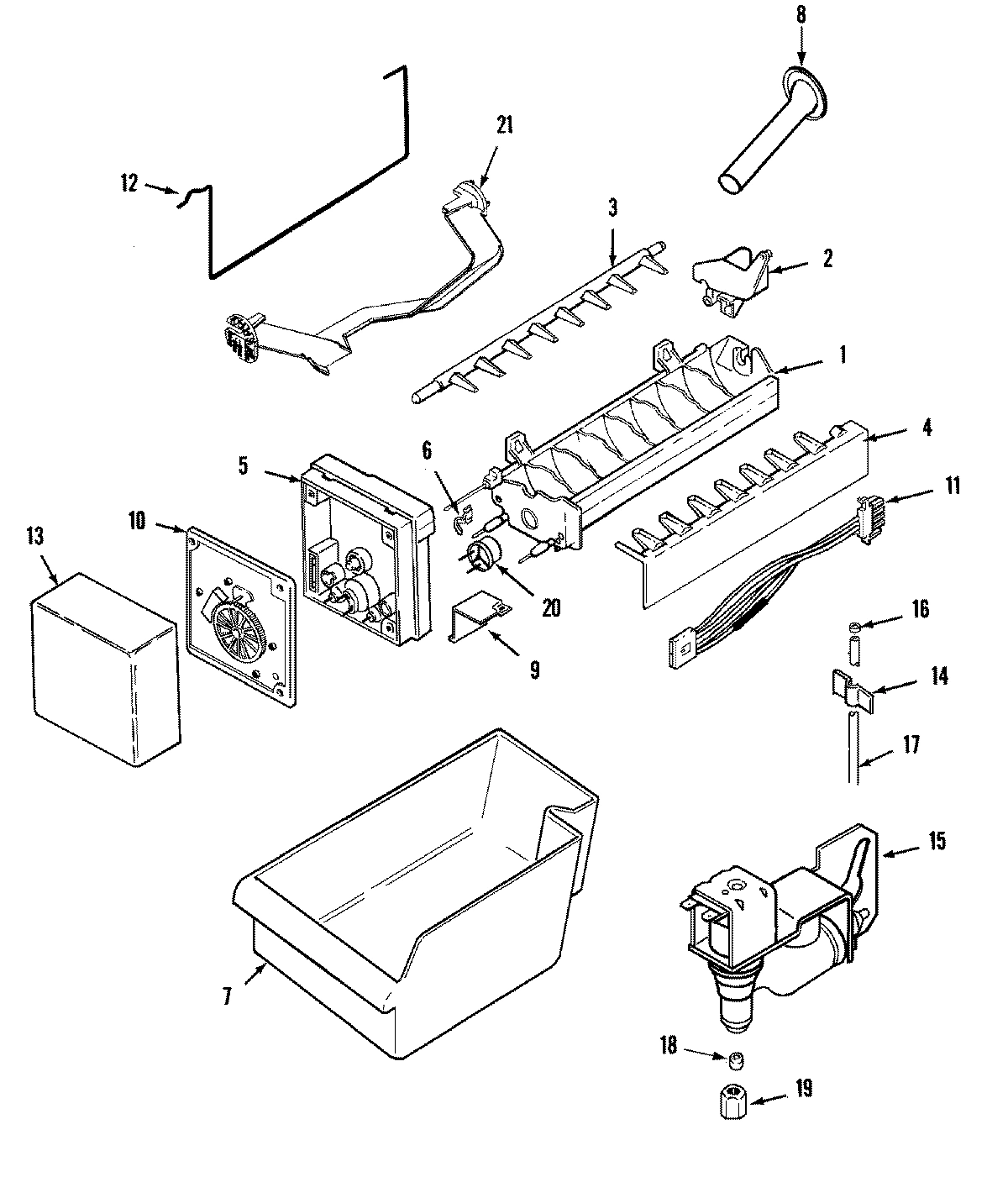

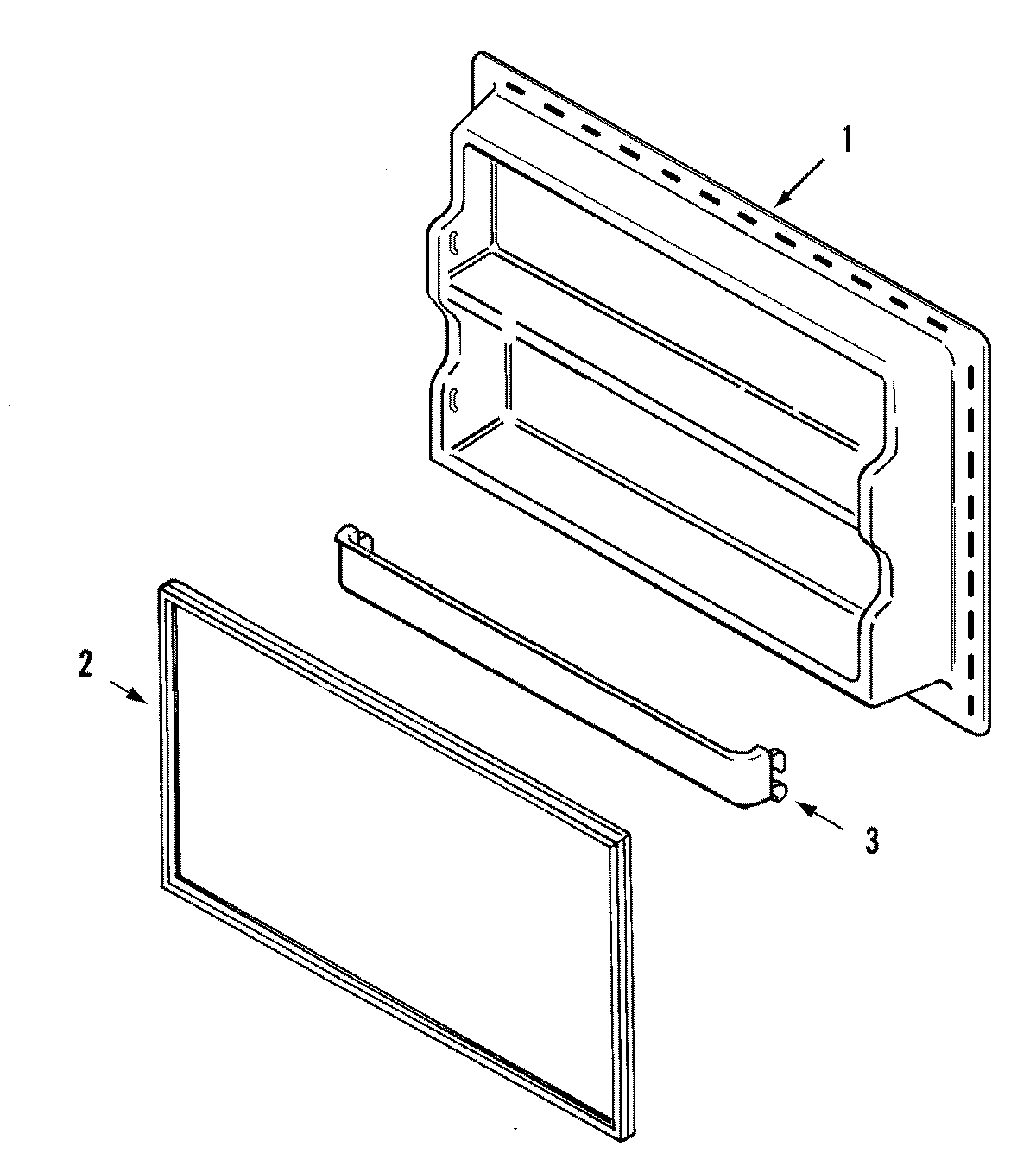

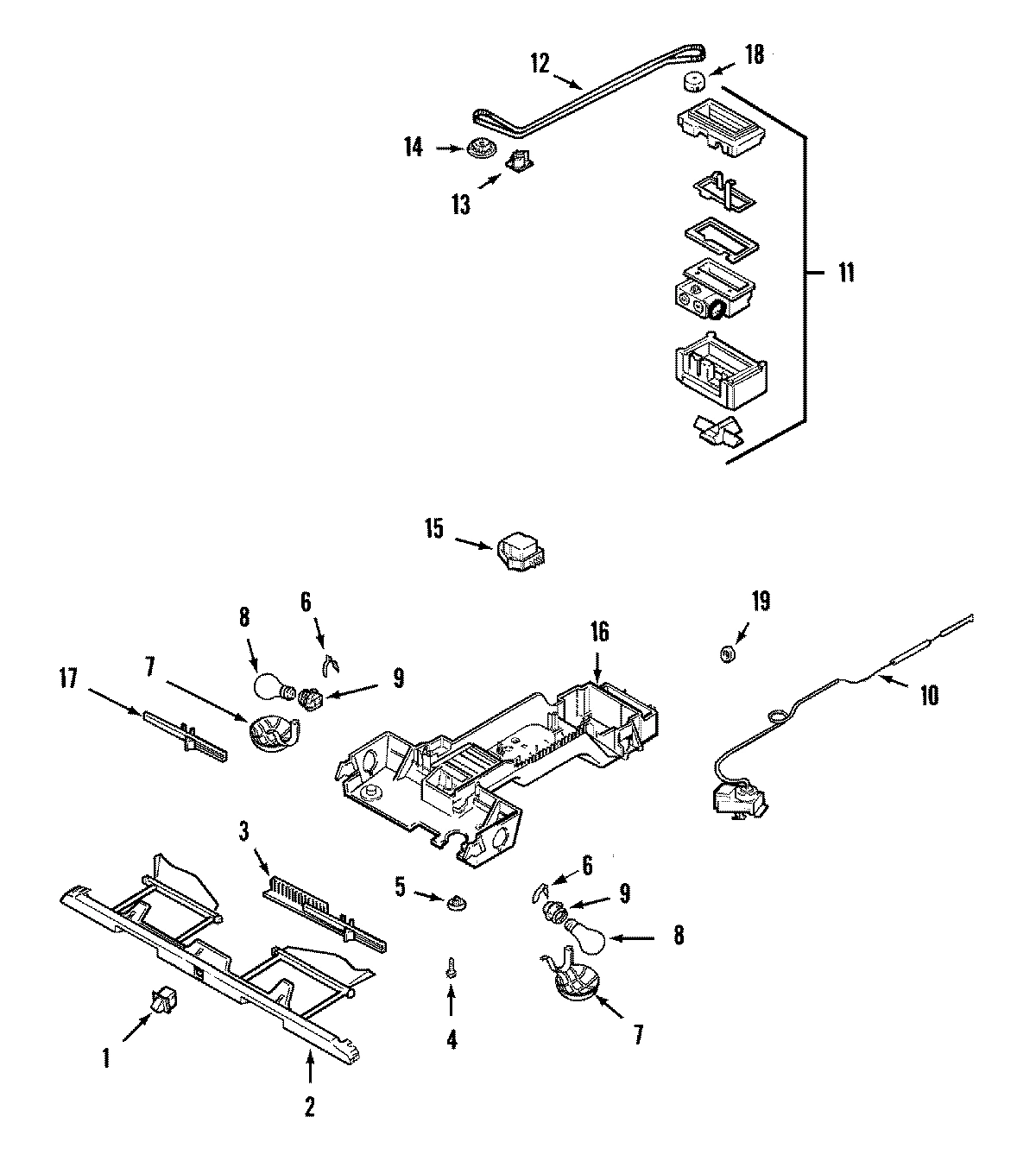

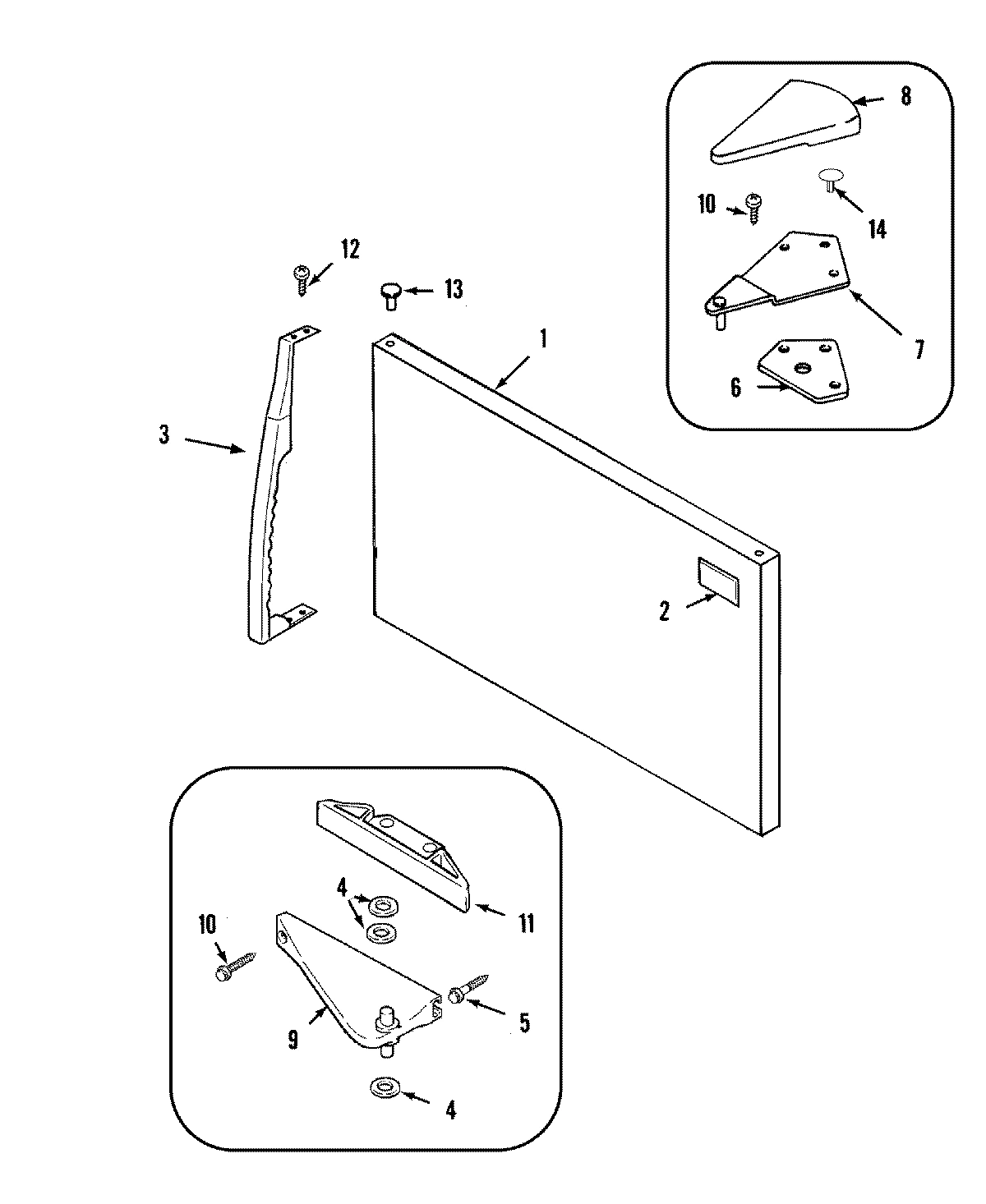

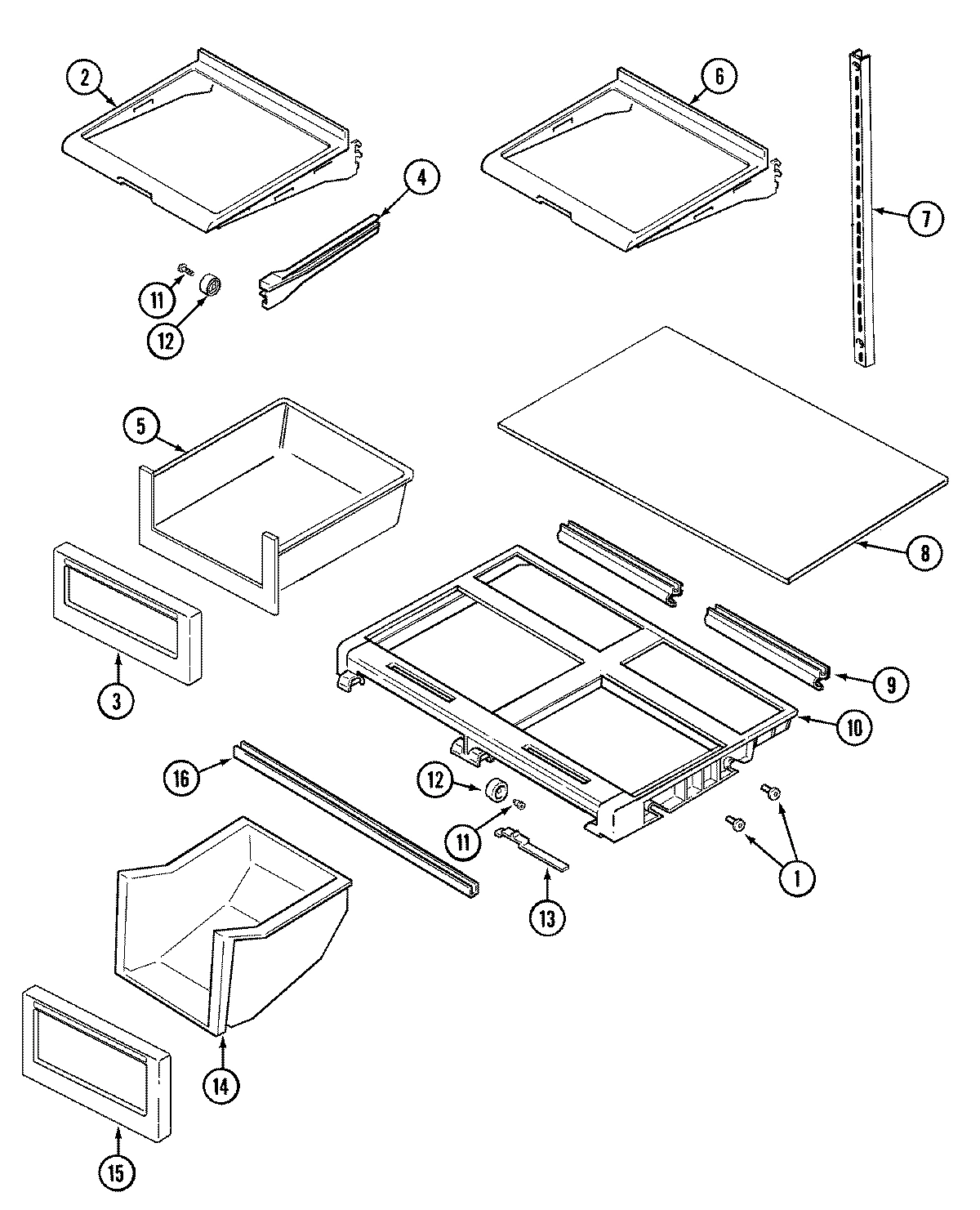

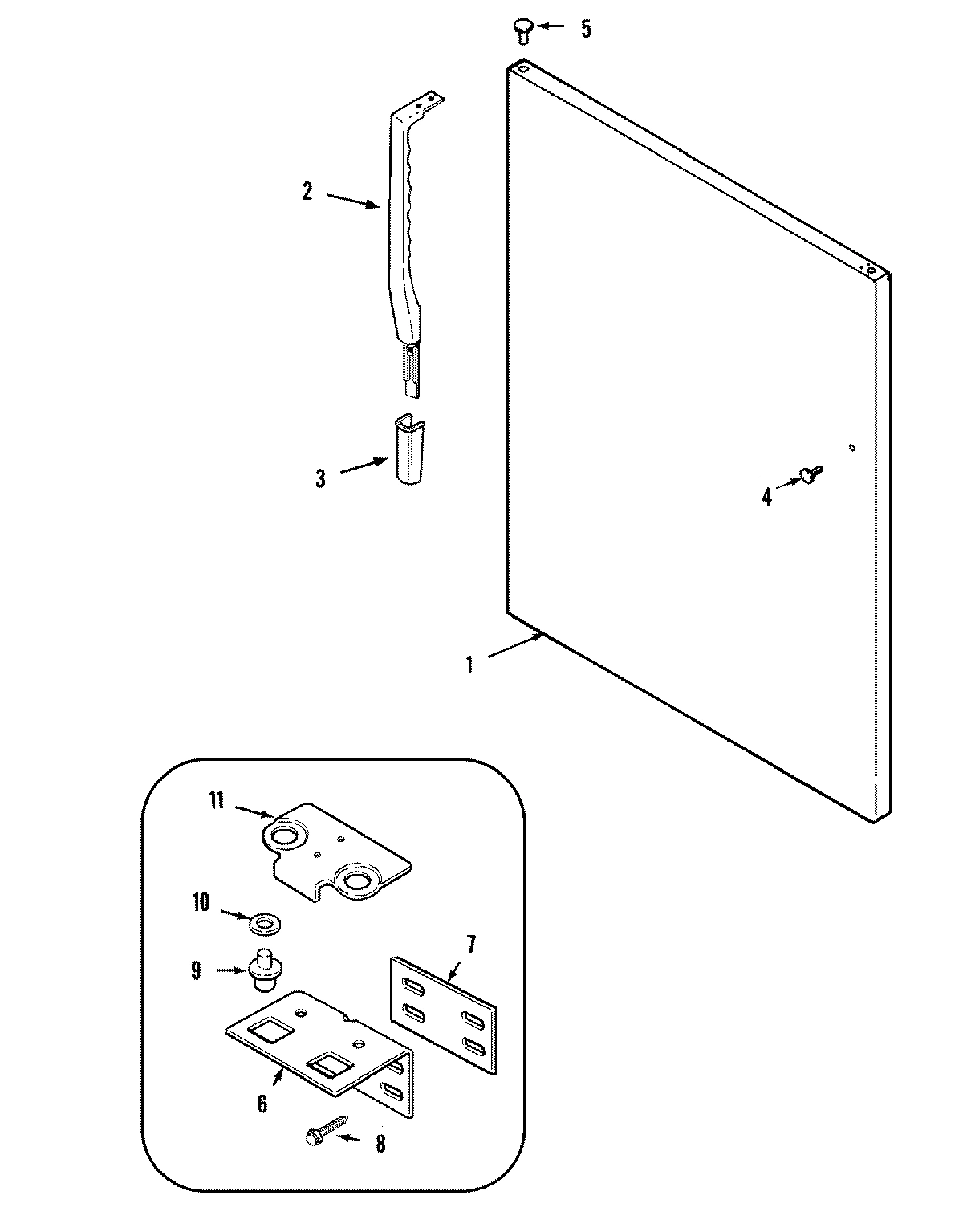

Model Whirlpool MTF2155GRQ REFRIGERATOR – Common Parts &amp; Diagrams

1

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $25.74

1

PANEL, FRZ. DOOR (BSQ) WPL 61004908 Contact Us For Availability

1

LABEL, DUAL ENERGY GUIDE WPL 61005663 Contact Us For Availability

1

PANEL, F.F. DOOR (BSQ) WPL 61004902 Contact Us For Availability

1

INSERT, LINER SUPPORT WPL 61002557 Contact Us For Availability

1

LINER, FRZ. DOOR WPL 61002601 Contact Us For Availability

1

INSERT, LINER SUPPORT WPL 61004652 Contact Us For Availability

1

SCREW WPL 61005388 Contact Us For Availability

1

KIT, COMPRESSOR WPL 12002059 Contact Us For Availability

1

WIRE HARNESS, COMPRESSOR WPL 61006032 Contact Us For Availability

1

WIRE HARNESS, COMPRESSOR WPL 61004917 Contact Us For Availability

1

SWITCH, LIGHT WPL 61006075 Contact Us For Availability

1

TUNNEL, AIR WPL 61002266 Contact Us For Availability

1

SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability

1

KIT, COMPRESSOR (R134A) WPL 12001872 Contact Us For Availability

1

LINER, F.F. DOOR WPL 61002592 Contact Us For Availability

1

INSERT, LINER SUPPORT WPL 61002741 Contact Us For Availability

1

INSERT, LINER SUPPORT WPL 61002742 Contact Us For Availability

2

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

2

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

2

WP61004009 Whirlpool Refrigerator Seal Backorder WPL WP61004009 $235.67

2

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $6.02

2

INLET, WATER WPL 951001 Contact Us For Availability

2

NAMEPLATE (BSQ) WPL 61005024 Contact Us For Availability

2

SCREW WPL 61005394 Contact Us For Availability

2

HANDLE, F.F. DOOR (BSQ) WPL 61005485 Contact Us For Availability

2

PANEL, CONTROL WPL 61002568 Contact Us For Availability

2

PLUG BUTTON, EVAP. COVER WPL 61001952 Contact Us For Availability

2

COVER, EVAPORATOR WPL 61002585 Contact Us For Availability

2

SHELF, MEAT WPL 61002675 Contact Us For Availability

2

DOOR, DAIRY WPL 61002593 Contact Us For Availability

3

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

HANDLE, FRZ. DOOR (BSQ) WPL 61005400 Contact Us For Availability

3

CAP, HANDLE (BSQ) WPL 61005396 Contact Us For Availability

3

FRONT, PICK-OFF WPL 61005185 Contact Us For Availability

3

CLIP, COMPRESSOR WPL 61003099 Contact Us For Availability

3

SLIDE, CONTROL (FRZ.) WPL 61002295 Contact Us For Availability

3

SEAL, EVAPORATOR COVER WPL 61004498 Contact Us For Availability

3

FRONT, MEAT PAN WPL 61002676 Contact Us For Availability

3

TRAY, EGG WPL 672152 Contact Us For Availability

4

12002782 Whirlpool Refrigerator Overload Rela Backorder WPL 12002782 $85.92

4

12002794 Whirlpool Refrigerator Overload Rela Backorder WPL 12002794 $144.97

4

61005136 Whirlpool Refrigerator Front Pickoff Backorder WPL 61005136 $93.31

4

WP67002191 Whirlpool Refrigerator Crisper Mea Backorder WPL WP67002191 $19.51

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

PLUG BUTTON, HANDLE TOP (BSQ) WPL 61004907 Contact Us For Availability

4

PLUG BUTTON, HANDLE HOLE (BSQ) WPL 61004906 Contact Us For Availability

4

RELAY/OVERLOAD ASSY. WPL 61006022 Contact Us For Availability

4

CLIP, RETAINER WPL 61006029 Contact Us For Availability

4

CLIP, RELAY/OVERLOAD ASSY. WPL 61006187 Contact Us For Availability

4

SCREW WPL 61004485 Contact Us For Availability

4

BARRIER, FOIL WPL 61004832 Contact Us For Availability

4

TRAY, DRIP WPL 61004861 Contact Us For Availability

4

RAIL, MEAT PAN (LT) WPL 61002304 Contact Us For Availability

4

CLIP, RELAY/OVERLOAD ASSY.-NA WPL 61005620 Contact Us For Availability

5

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

5

SCREW WPL 951061 Contact Us For Availability

5

SCREW WPL 61002025 Contact Us For Availability

5

PLUG BUTTON, HINGE CUP (BSQ) WPL 61004898 Contact Us For Availability

5

CLIP, KICKPLATE WPL 61001975 Contact Us For Availability

5

GEAR, CONTROL (F.F.) WPL 61002288 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability

5

PAN, MEAT WPL 61002581 Contact Us For Availability

5

SHELF, PICK-OFF WPL 61005137 Contact Us For Availability

6

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

6

SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability

6

HINGE, LOWER (BSQ) WPL 61004764 Contact Us For Availability

6

CAPACITOR, RUN WPL 658894 Contact Us For Availability

6

CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability

6

BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability

6

SHELF, SPILLPROOF WPL 61002677 Contact Us For Availability

6

ORGANIZER, SHELF WPL 61002274 Contact Us For Availability

7

WP61004010 Whirlpool Refrigerator Door Seal In Stock WPL WP61004010 $170.16

7

WP61004888 Whirlpool Refrigerator Evaporator In Stock WPL WP61004888 $93.05

7

PAN, ICE WPL 61001886 Contact Us For Availability

7

HINGE, UPPER WPL 61004896 Contact Us For Availability

7

SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability

7

LEG, LEVELING WPL 61002014 Contact Us For Availability

7

GUARD, LIGHT WPL 61002286 Contact Us For Availability

7

SCREW WPL 40003728 Contact Us For Availability

7

RAIL, CANT. SHELF WPL 61002253 Contact Us For Availability

7

RAIL, SHELF SUPPORT (LT/RT) WPL 61002254 Contact Us For Availability

8

3400112 Whirlpool Refrigerator Screw Backorder WPL 3400112 $51.24

8

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $10.86

8

WP61002623 Whirlpool Crisper Glass Shelf Backorder WPL WP61002623 $146.25

8

COVER, UPPER HINGE (BSQ) WPL 61004786 Contact Us For Availability

8

PLUG, COMPRESSOR WPL 526562 Contact Us For Availability

8

CLIP, DEFROST HEATER WPL 61004834 Contact Us For Availability

9

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $3.49

9

WP61001925 Whirlpool Refrigerator Lower Pin Backorder WPL WP61001925 $19.46

9

WP61002046 Whirlpool Defrost Heater Backorder WPL WP61002046 $148.09

9

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $71.05

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

9

HINGE, CENTER (BSQ) WPL 61004897 Contact Us For Availability

9

CONDENSER WPL 61005454 Contact Us For Availability

9

SEAL, CRISPER SHELF (REAR) WPL 61002574 Contact Us For Availability

WP3-24838-048 Whirlpool Refrigerator Screw Backorder WPL WP3-24838-048 $4.82

WP61002043 Whirlpool Refrigerator Control Backorder WPL WP61002043 $159.23

WP61002231 Whirlpool Refrigerator Washer Hing Backorder WPL WP61002231 $7.55

SCREW WPL 4000311 Contact Us For Availability

ICEMAKER WPL 951091 Contact Us For Availability

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

SCREW WPL 6527581 Contact Us For Availability

SWITCH, LIGHT WPL 61006157 Contact Us For Availability

SWITCH, LIGHT WPL 669871 Contact Us For Availability

SHELF, CRISPER WPL 61004708 Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

WP61002308 Whirlpool Refrigerator Screw Backorder WPL WP61002308 $5.02

WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability

STOP, DOOR (BSQ) WPL 61004912 Contact Us For Availability

SCREW WPL 61001876 Contact Us For Availability

STOP, DOOR WPL 61001969 Contact Us For Availability

SHROUD, CONDENSER WPL 61001941 Contact Us For Availability

DAMPER/INSULATION KIT WPL 61002092 Contact Us For Availability

SUPPORT, EVAPORATOR (LT) WPL 61004835 Contact Us For Availability

SUPPORT, EVAPORATOR (RT) WPL 61004836 Contact Us For Availability

WP61005254 Whirlpool Refrigerator Thermostat In Stock WPL WP61005254 $78.61

ARM, SENSOR WPL 61005173 Contact Us For Availability

CLIP, SENSOR ARM WPL 61005175 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability

BELT, DAMPER WPL 61002290 Contact Us For Availability

ROLLER WPL 61002307 Contact Us For Availability

COVER, ICE MAKER WPL 61005374 Contact Us For Availability

DRIER WPL 139001 Contact Us For Availability

TENSIONER, BELT WPL 61002289 Contact Us For Availability

EVAP/HEAT EXCH. ASSY. 21 & 24` WPL 12001398 Contact Us For Availability

SLIDE, CONTROL WPL 61002310 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $60.81

CLAMP, TUBING WPL 535168 Contact Us For Availability

PLUG BUTTON, HINGE (BSQ) WPL 61004899 Contact Us For Availability

SCREW WPL 6527533 Contact Us For Availability

GEAR, DAMPER BELT (FRT) WPL 61002291 Contact Us For Availability

SHELF, FRZ. WPL 61002544 Contact Us For Availability

WP61005273 Whirlpool Refrigerator Inlet Valve In Stock WPL WP61005273 $95.51

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

GROMMET, WATER ENTRY WPL 61001888 Contact Us For Availability

BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

TIMER, DEFROST WPL 682333 Contact Us For Availability

FRONT, CRISPER PAN (RT) WPL 61002578 Contact Us For Availability

FRONT, CRISPER PAN (LT) WPL 61002579 Contact Us For Availability

SEAL, CRISPER (FRT) WPL 61002732 Contact Us For Availability

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $6.80

SCREW WPL 4000171 Contact Us For Availability

PAN, DRAIN WPL 61001955 Contact Us For Availability

SHIELD, HEAT (LT) WPL 61002296 Contact Us For Availability

SHIELD, HEAT (RT) WPL 61002297 Contact Us For Availability

HOUSING, CONTROL WPL 61004643 Contact Us For Availability

RAIL, CRISPER SUPPORT WPL 61004645 Contact Us For Availability

17

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

17

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $7.20

17

SLIDE, CONTROL (F.F.) WPL 61002294 Contact Us For Availability

CLIP, WATER LINE (ADHESIVE) WPL 61004913 Contact Us For Availability

SLEEVE, BRASS WPL 694311 Contact Us For Availability

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

GEAR, DAMPER BELT (REAR) WPL 61002292 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

SEAL, DRAIN WPL 61001977 Contact Us For Availability

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

TRIM, FRZ. SHELF WPL 61002678 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 61002316 Contact Us For Availability

SUPPORT, FRZ. SHELF (FRT) WPL 61002142 Contact Us For Availability

SUPPORT, FRZ. SHELF (REAR) WPL 61002143 Contact Us For Availability

ADJUSTER, ICE LEVEL WPL 61005174 Contact Us For Availability

COVER, COMPRESSOR COMPARTMENT WPL 61005061 Contact Us For Availability

SCREW WPL 652751 Contact Us For Availability

RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability

22

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $4.82

22

PAN, COMPRESSOR MTG. WPL 61005268 Contact Us For Availability

22

BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

SCREW WPL 4000161 Contact Us For Availability

WHEEL ASSY. (FRT) WPL 61005216 Contact Us For Availability

SHIELD, LIGHT WPL 61002272 Contact Us For Availability

24

RECEPTACLE, BULB WPL 61005748 Contact Us For Availability

24

RECEPTACLE, BULB WPL 689743 Contact Us For Availability

25

WP61003826 Whirlpool Wheel Backorder WPL WP61003826 $4.82

25

BULB, LIGHT WPL 319561 Contact Us For Availability

26

KICKPLATE W/CLIPS (BSQ) WPL 61004901 Contact Us For Availability

26

WIRE HARNESS, FRZ. WPL 61005033 Contact Us For Availability

27

YODER LOOP HEATER REPAIR (115V WPL 12001492 Contact Us For Availability

28

MANUAL, USE & CARE (TRILNGUL) WPL 16010376 Contact Us For Availability

29

MANUAL, SERVICE-NO REFUND WPL 16008248 Contact Us For Availability

NI

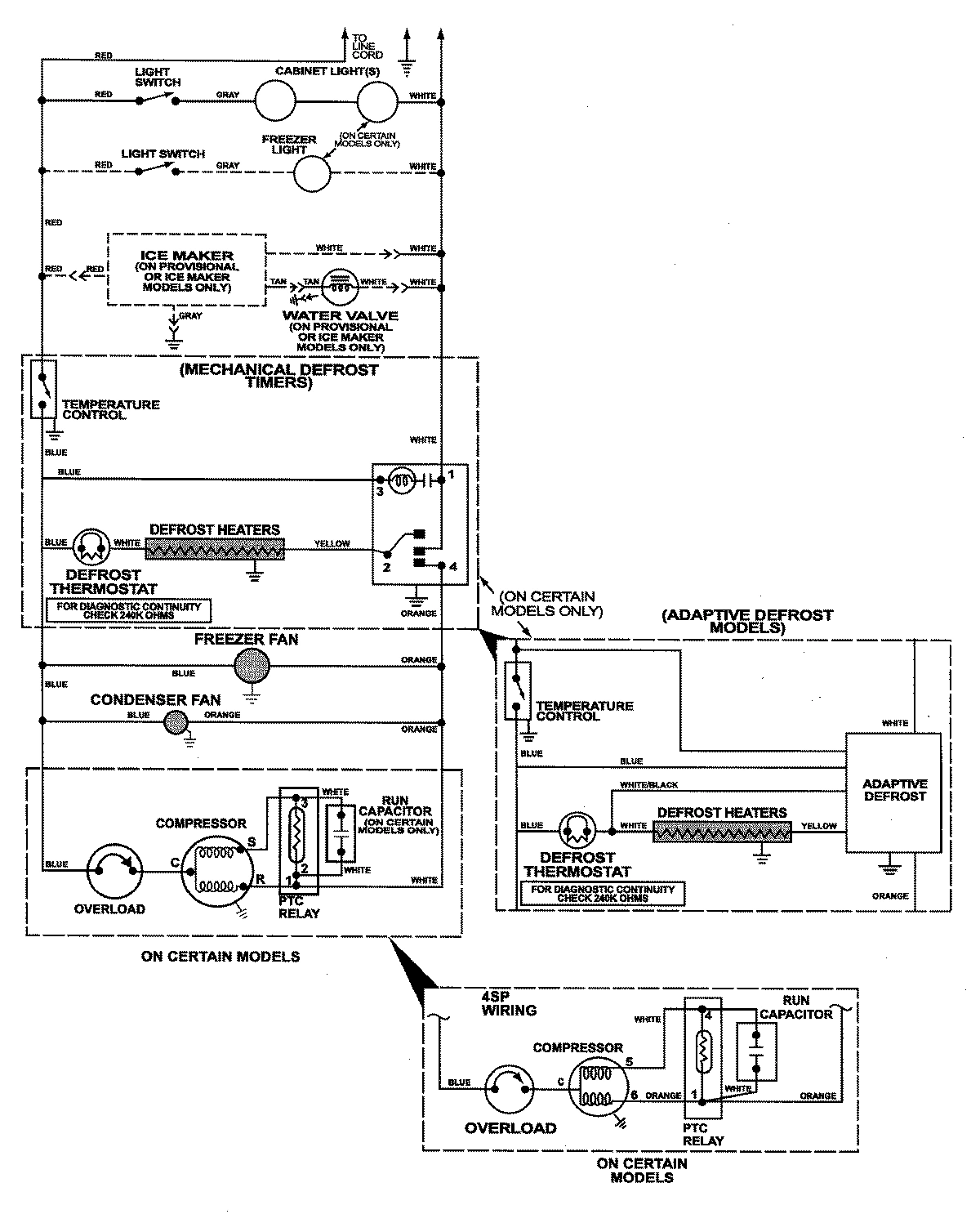

WIRING INFORMATION WPL 15002787 Contact Us For Availability
