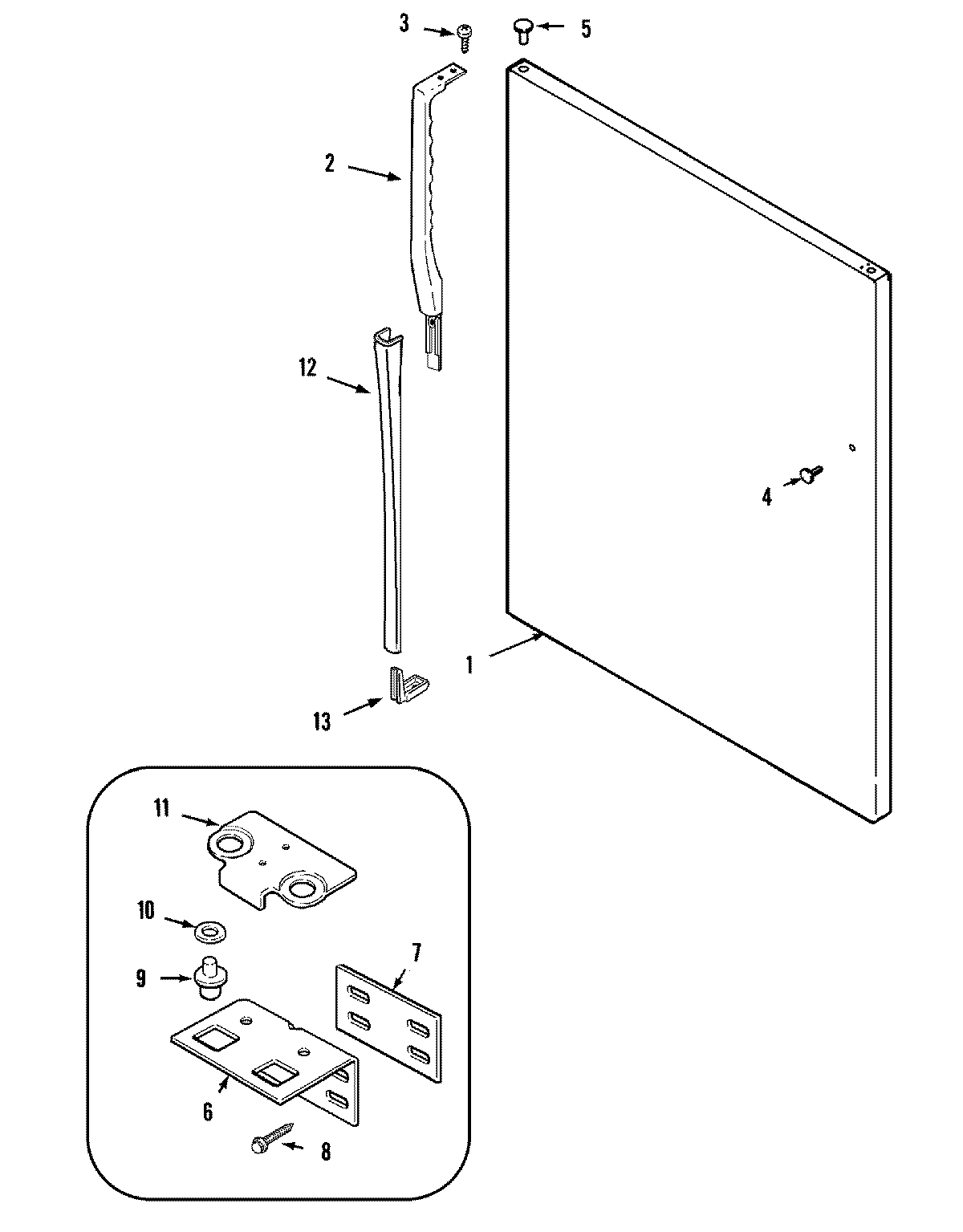

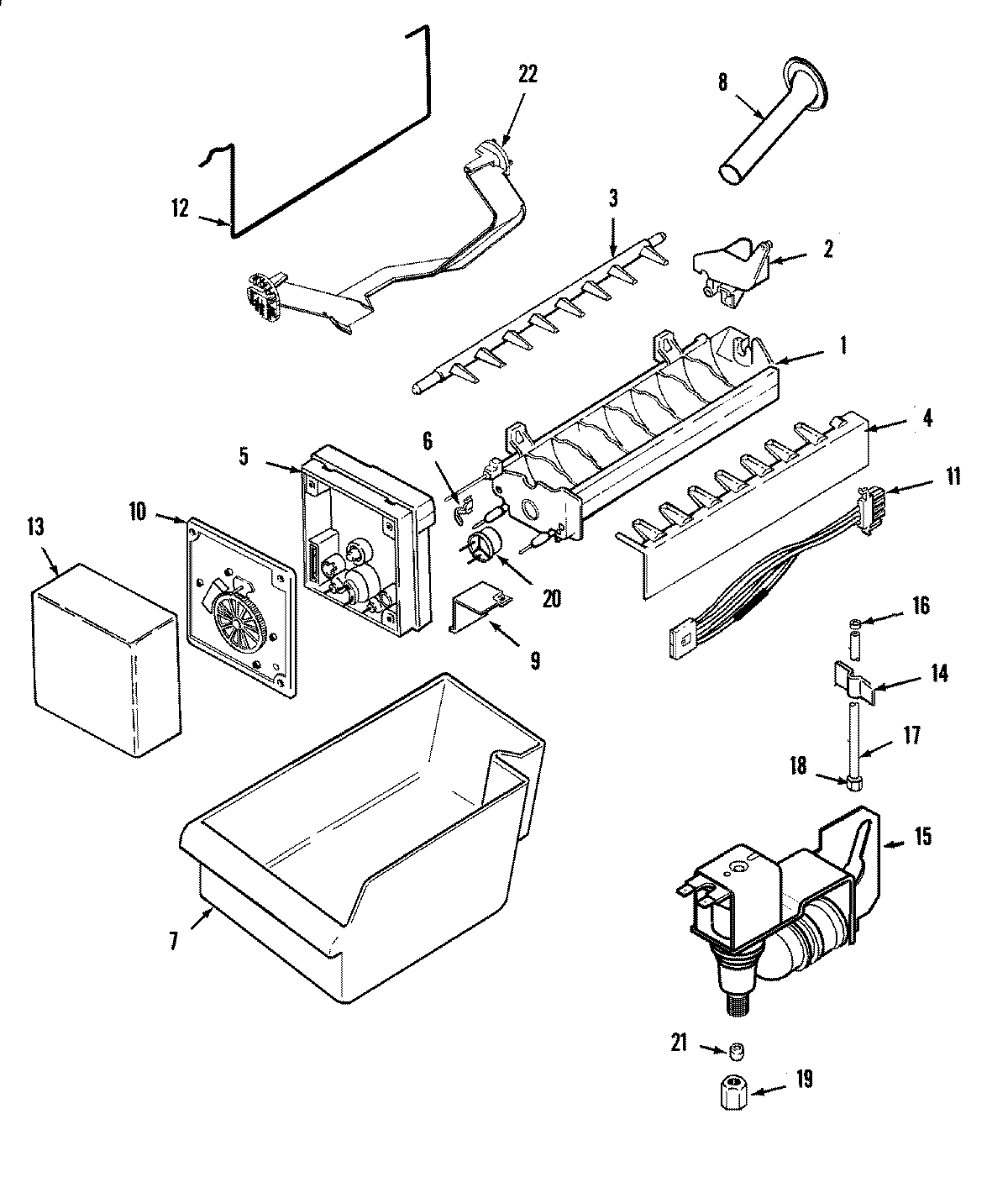

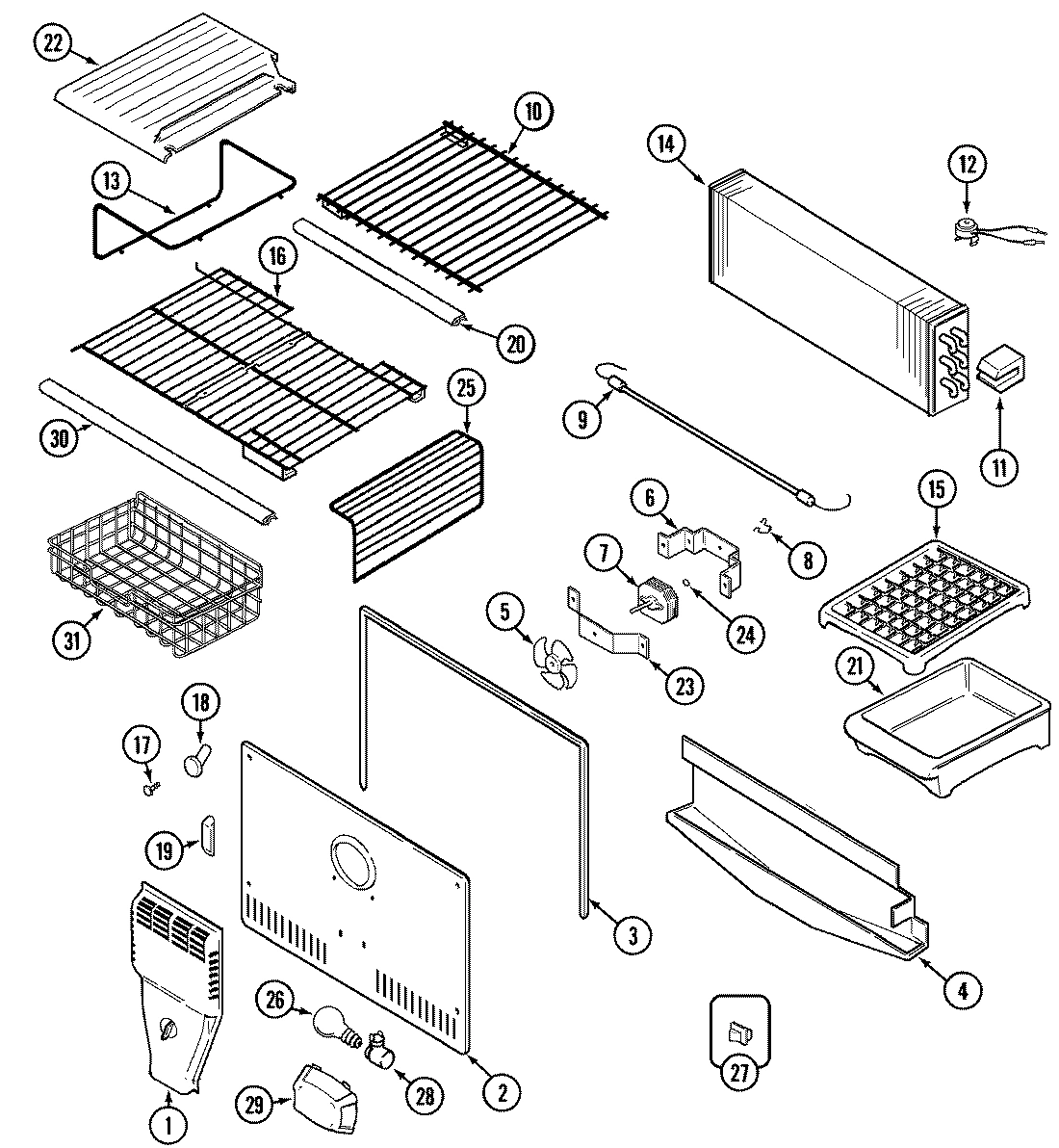

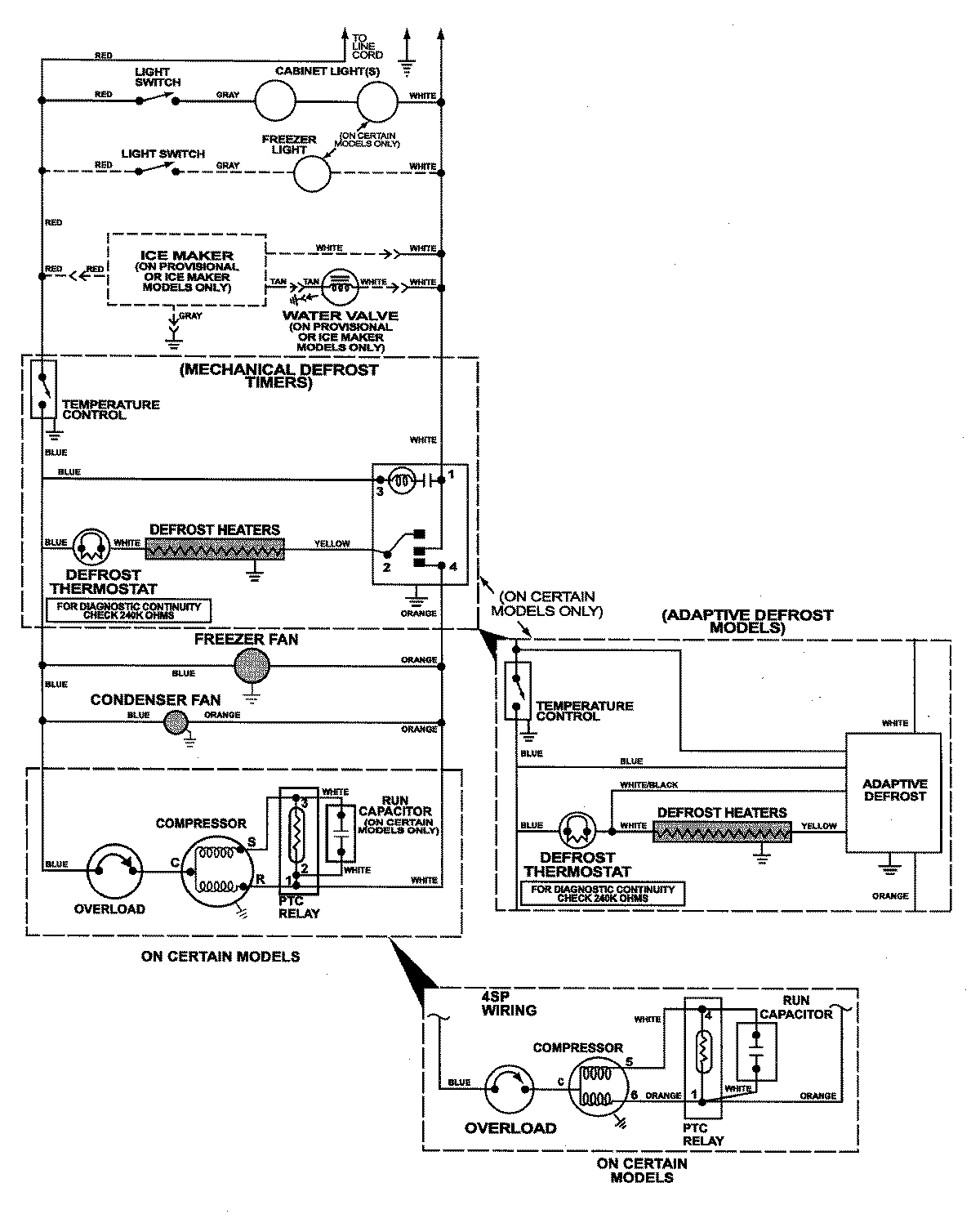

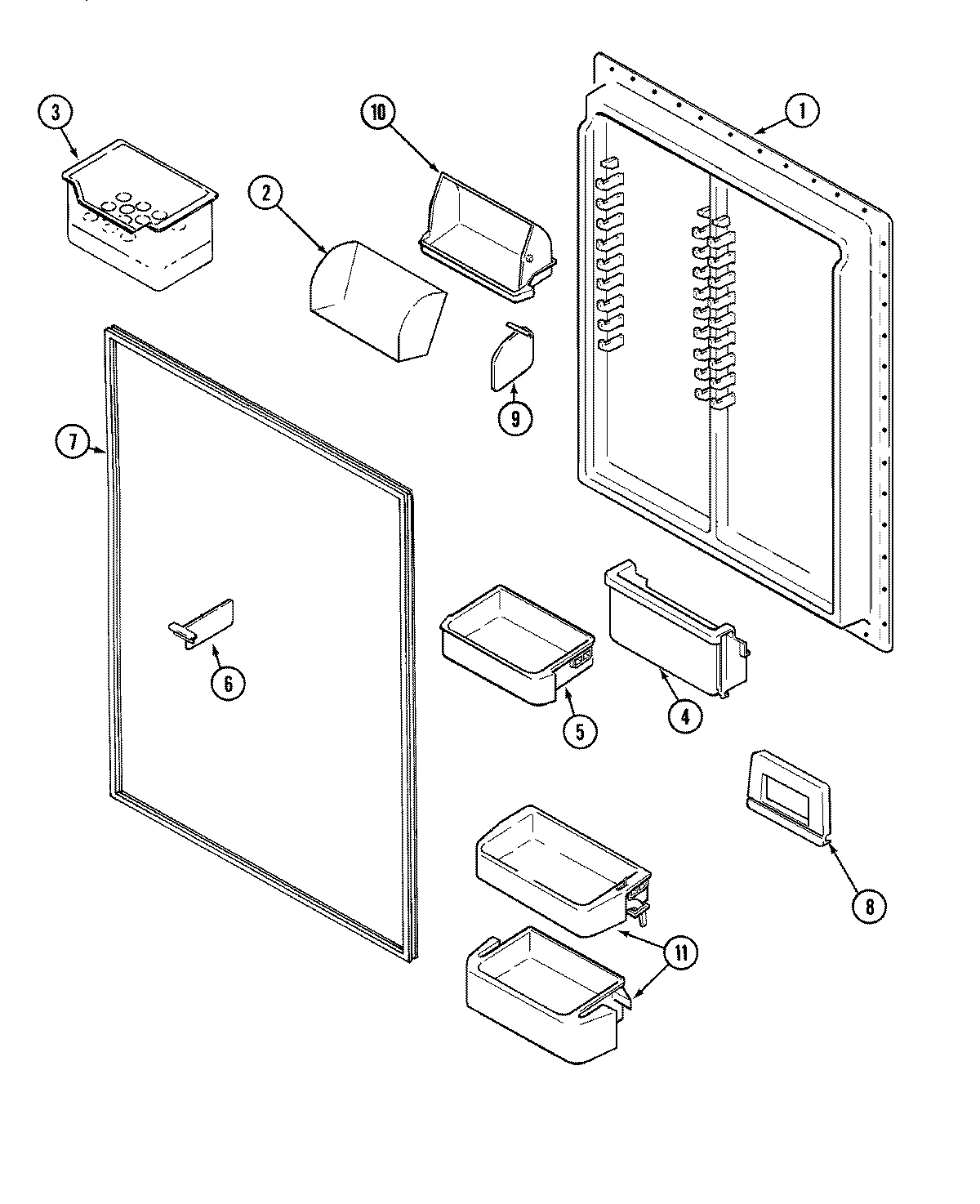

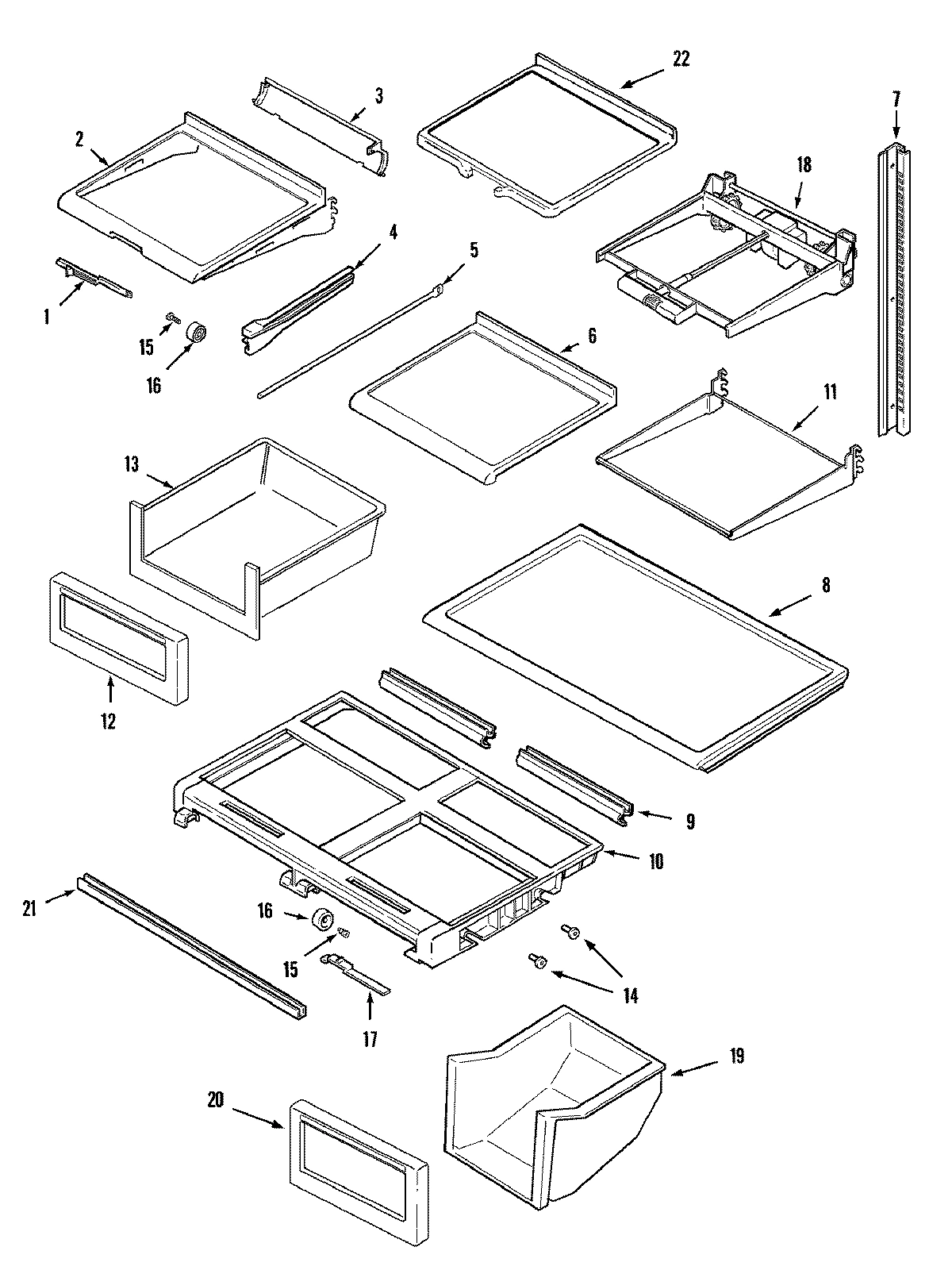

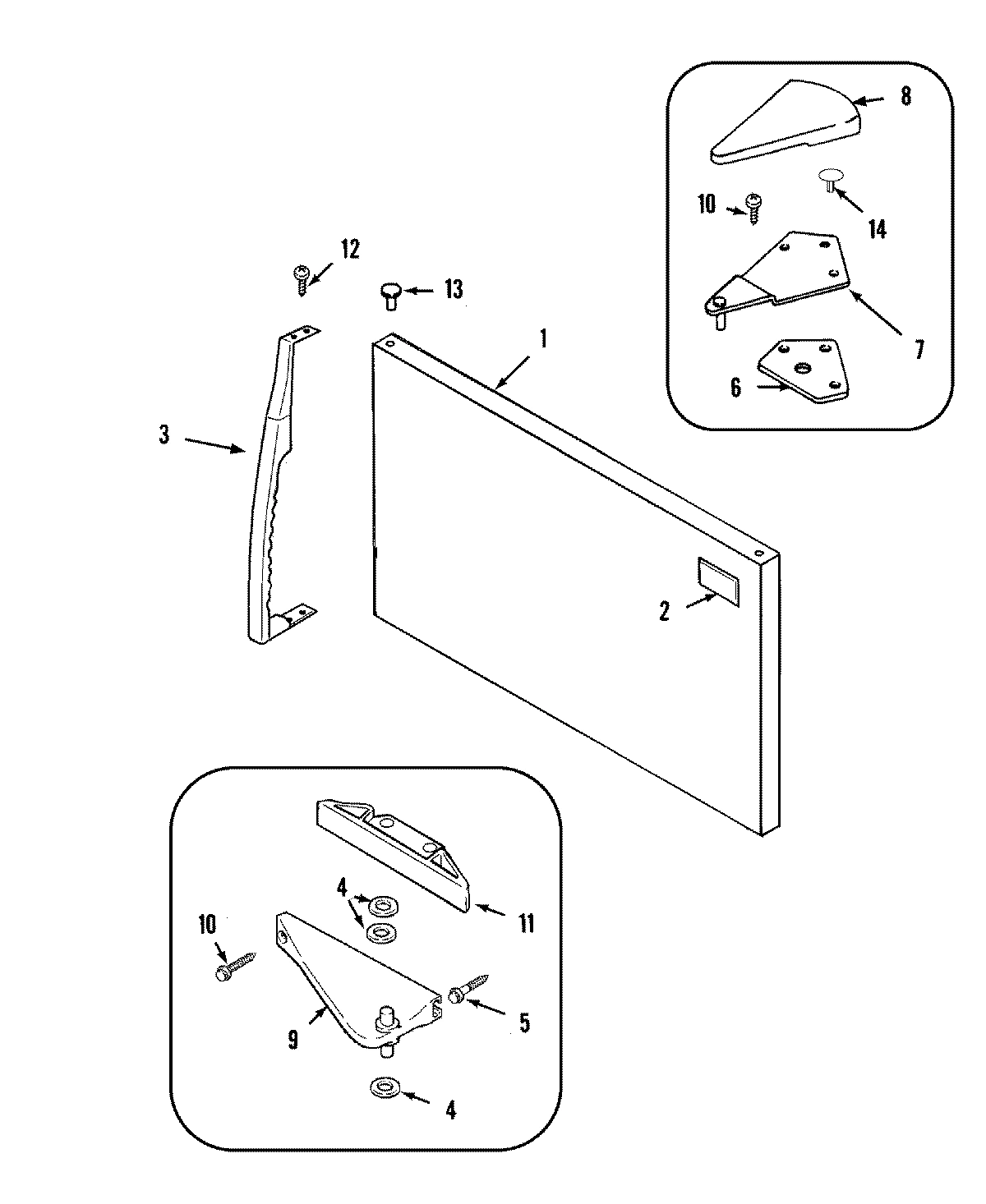

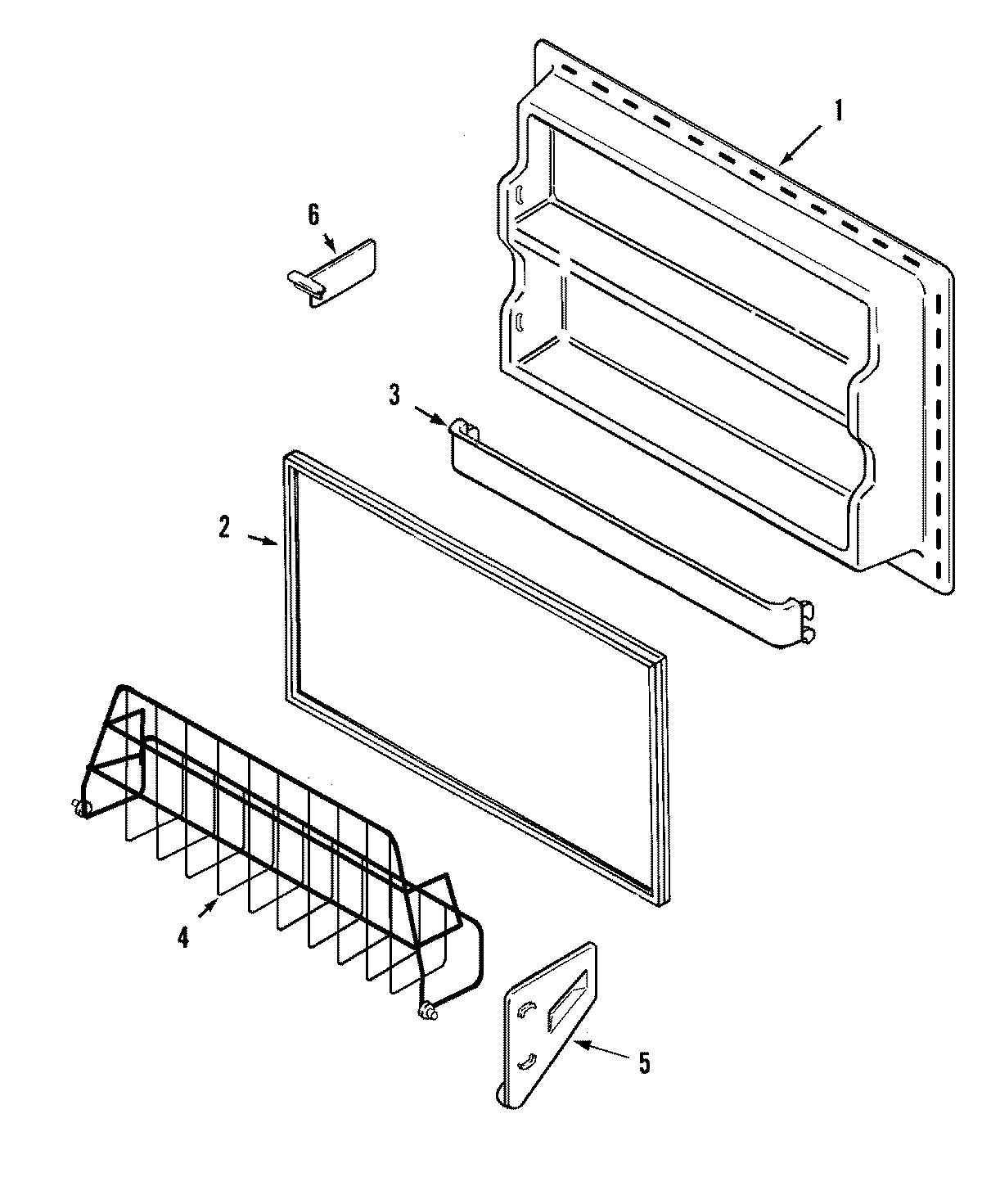

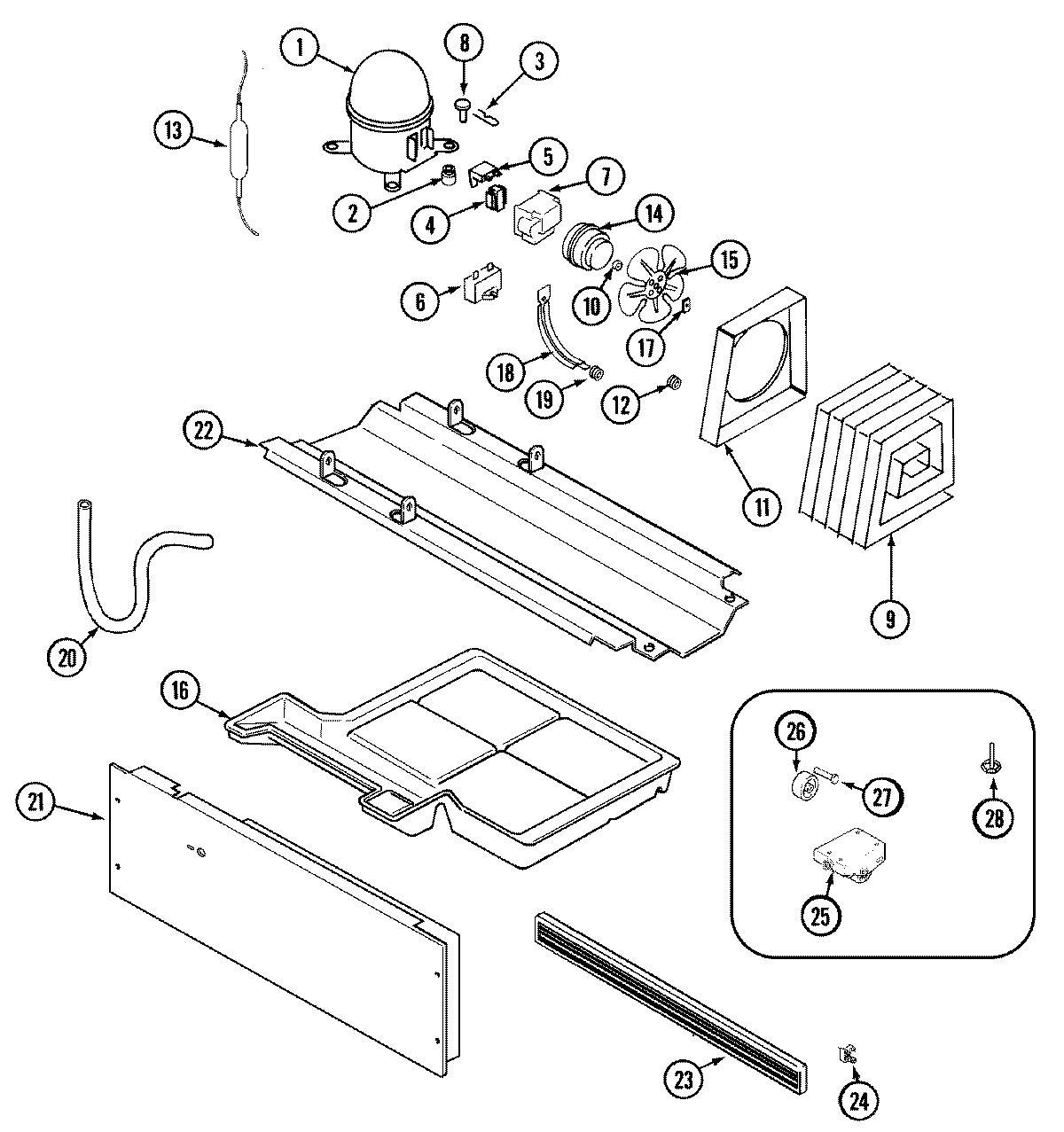

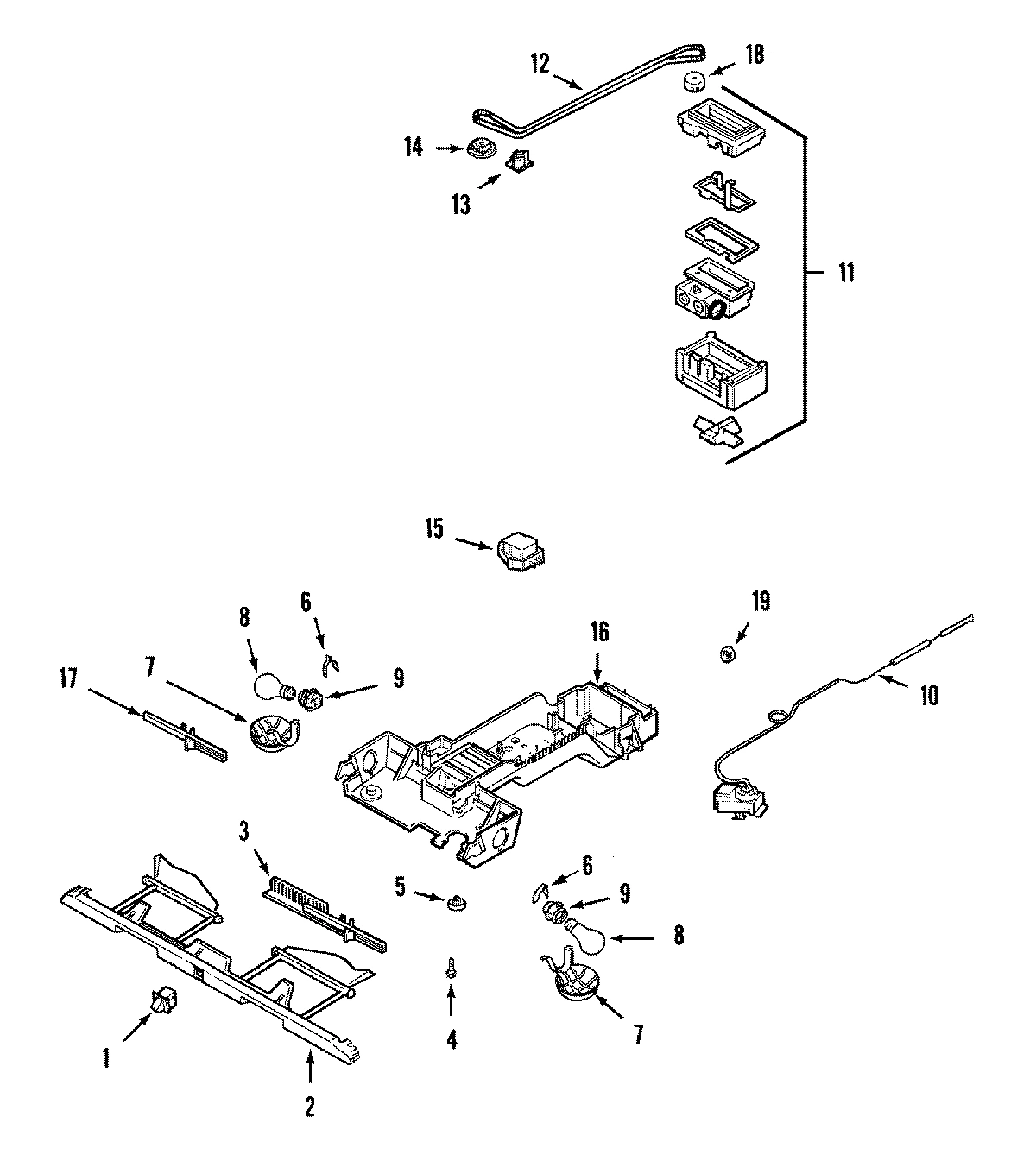

Model Whirlpool MTB2456FEW REFRIGERATOR – Common Parts &amp; Diagrams

1

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $25.74

1

INSULATION, LINER SUPPORT WPL 61002674 Contact Us For Availability

1

SCREW WPL 61005388 Contact Us For Availability

1

PANEL, F.F. DOOR (WHT) WPL 61002589 Contact Us For Availability

1

SLIDE, CONTROL WPL 61002302 Contact Us For Availability

1

SCREW WPL 61002584 Contact Us For Availability

1

WIRE HARNESS, COMPRESSOR WPL 61002223 Contact Us For Availability

1

LINER, F.F. DOOR WPL 61002665 Contact Us For Availability

1

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

1

GREASE, SILICONE WPL 950991 Contact Us For Availability

1

TUNNEL, AIR WPL 61002658 Contact Us For Availability

1

PANEL, FRZ. DOOR (WHT) WPL 61002669 Contact Us For Availability

1

LABEL, DUAL ENERGY GUIDE WPL 61005717 Contact Us For Availability

2

61005484 Whirlpool Refrigerator White F.F. Do Backorder WPL 61005484 $122.72

2

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

2

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

2

WP61004011 Whirlpool Refrigerator Seal Backorder WPL WP61004011 $215.30

2

HANDLE, F.F. DOOR (WHT) WPL 61005391 Contact Us For Availability

2

SHELF, MEAT WPL 61002652 Contact Us For Availability

2

DOOR, DAIRY WPL 61002666 Contact Us For Availability

2

INLET, WATER WPL 951001 Contact Us For Availability

2

COVER, EVAPORATOR WPL 61002318 Contact Us For Availability

2

NAMEPLATE (WHT) WPL 61003616 Contact Us For Availability

2

PANEL, CONTROL WPL 61002568 Contact Us For Availability

3

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

3

FRONT, PICK-OFF WPL 61005185 Contact Us For Availability

3

PLUG BUTTON (WHT) WPL 61001795 Contact Us For Availability

3

SCOOP, MEAT PAN WPL 61004703 Contact Us For Availability

3

CLIP, COMPRESSOR WPL 61003099 Contact Us For Availability

3

TRAY, EGG WPL 672152 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

SEAL, EVAPORAT0R COVER WPL 61004624 Contact Us For Availability

3

HANDLE, FRZ. DOOR (WHT) WPL 61005434 Contact Us For Availability

3

SLIDE, CONTROL (FRZ.) WPL 61002295 Contact Us For Availability

4

WP61002231 Whirlpool Refrigerator Washer Hing Backorder WPL WP61002231 $7.55

4

BASKET, TILT-OUT WPL 61002604 Contact Us For Availability

4

PLUG BUTTON (WHT) WPL 676782 Contact Us For Availability

4

RAIL, MEAT PAN (LT) WPL 61002304 Contact Us For Availability

4

RAIL, MEAT PAN (RT) WPL 61002653 Contact Us For Availability

4

RELAY, START WPL 688572 Contact Us For Availability

4

BUCKET, TIP OUT WPL 61002667 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

BARRIER, FOIL WPL 61004832 Contact Us For Availability

4

TRAY, DRIP WPL 61004861 Contact Us For Availability

4

SCREW WPL 61004485 Contact Us For Availability

5

STOP, BASKET (LT) WPL 61004465 Contact Us For Availability

5

STOP, BASKET (RT) WPL 61004466 Contact Us For Availability

5

LINKAGE, ACTUATOR WPL 61004727 Contact Us For Availability

5

OVERLOAD WPL 61002037 Contact Us For Availability

5

SHELF, PICK-OFF WPL 61005137 Contact Us For Availability

5

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

5

SCREW WPL 951061 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 61005066 Contact Us For Availability

5

SCREW WPL 61002025 Contact Us For Availability

5

GEAR, CONTROL (F.F.) WPL 61002288 Contact Us For Availability

6

ORGANIZER, SHELF WPL 61002274 Contact Us For Availability

6

HINGE, LOWER (WHT) WPL 61001918 Contact Us For Availability

6

SHELF, SPILLPROOF WPL 61002745 Contact Us For Availability

6

CAPACITOR, RUN WPL 658894 Contact Us For Availability

6

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

6

BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability

6

SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability

6

CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability

7

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

7

WP61002138 Whirlpool Refrigerator Terminal Co Backorder WPL WP61002138 $6.66

7

WP61004010 Whirlpool Refrigerator Door Seal In Stock WPL WP61004010 $170.16

7

WP61004888 Whirlpool Refrigerator Evaporator In Stock WPL WP61004888 $93.05

7

SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability

7

SCREW WPL 40003728 Contact Us For Availability

7

RAIL, SHELF SUPPORT (CTR) WPL 61004705 Contact Us For Availability

7

RAIL, SHELF SUPPORT (LT/RT) WPL 61004706 Contact Us For Availability

7

PAN, ICE WPL 61001886 Contact Us For Availability

7

HINGE, UPPER WPL 61004896 Contact Us For Availability

7

GUARD, LIGHT WPL 61002286 Contact Us For Availability

8

3400112 Whirlpool Refrigerator Screw Backorder WPL 3400112 $51.24

8

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $10.86

8

GLASS, CRISPER SHELF WPL 61002573 Contact Us For Availability

8

PLUG, COMPRESSOR WPL 526562 Contact Us For Availability

8

RETAINER, BOTTLE WPL 61002273 Contact Us For Availability

8

GROMMET, WATER ENTRY WPL 61001888 Contact Us For Availability

8

CLIP, DEFROST HEATER WPL 61004834 Contact Us For Availability

8

COVER, UPPER HINGE (WHT) WPL 61002076 Contact Us For Availability

9

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $3.49

9

WP61001925 Whirlpool Refrigerator Lower Pin Backorder WPL WP61001925 $19.46

9

WP61002046 Whirlpool Defrost Heater Backorder WPL WP61002046 $148.09

9

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $71.05

9

SEAL, CRISPER SHELF (REAR) WPL 61002574 Contact Us For Availability

9

CONDENSER WPL 61005427 Contact Us For Availability

9

ORGANIZER, DAIRY COMPT. WPL 61002760 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

9

HINGE, CENTER (WHT) WPL 61001920 Contact Us For Availability

WP3-24838-048 Whirlpool Refrigerator Screw Backorder WPL WP3-24838-048 $4.82

WP61002043 Whirlpool Refrigerator Control Backorder WPL WP61002043 $159.23

SHELF, CRISPER WPL 61004708 Contact Us For Availability

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

SHELF, P.O. DAIRY WPL 61002668 Contact Us For Availability

SCREW WPL 4000211 Contact Us For Availability

ICEMAKER WPL 951091 Contact Us For Availability

SHELF, FRZ. (UPPER) WPL 61002714 Contact Us For Availability

SCREW WPL 6527581 Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

SCREW WPL 61001876 Contact Us For Availability

STOP, DOOR WPL 61001969 Contact Us For Availability

FRAME, SPILLPROOF SHELF WPL 61002708 Contact Us For Availability

SHROUD, CONDENSER WPL 61001941 Contact Us For Availability

DRAWER ASSY., UTILITY WPL 61005433 Contact Us For Availability

WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability

SUPPORT, EVAPORATOR (LT) WPL 61004835 Contact Us For Availability

SUPPORT, EVAPORATOR (RT) WPL 61004836 Contact Us For Availability

STOP, DOOR (WHT) WPL 61004481 Contact Us For Availability

DAMPER/INSULATION KIT WPL 61002092 Contact Us For Availability

WP61005254 Whirlpool Refrigerator Thermostat In Stock WPL WP61005254 $78.61

EXTENSION, HANDLE (WHT) WPL 61005421 Contact Us For Availability

EXTENSION, HANDLE (WHT) WPL 61005487 Contact Us For Availability

SCREW WPL 61005394 Contact Us For Availability

FRONT, MEAT PAN WPL 61002580 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability

ARM, SENSOR WPL 61005173 Contact Us For Availability

CLIP, SENSOR ARM WPL 61005175 Contact Us For Availability

BELT, DAMPER WPL 61002650 Contact Us For Availability

PLUG BUTTON, HINGE CUP (WHT) WPL 61001908 Contact Us For Availability

BRACKET, HANDLE EXT. (WHT) WPL 61005422 Contact Us For Availability

BRACKET, HANDLE EXT. (WHT) WPL 61005490 Contact Us For Availability

PAN, MEAT WPL 61002656 Contact Us For Availability

DRIER WPL 139001 Contact Us For Availability

COVER, ICE MAKER WPL 61004594 Contact Us For Availability

LEG, SHELF (UPPER) WPL 61002715 Contact Us For Availability

TENSIONER, BELT WPL 61002289 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $60.81

SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability

SCREW WPL 6527533 Contact Us For Availability

SCREW WPL 4000161 Contact Us For Availability

CLAMP, TUBING WPL 535168 Contact Us For Availability

CLIP, WATER LINE (ADHESIVE) WPL 61004913 Contact Us For Availability

EVAP/HEAT EXCH. ASSY. 21 & 24` WPL 12001398 Contact Us For Availability

PLUG BUTTON, HINGE (WHT) WPL 61001923 Contact Us For Availability

GEAR, DAMPER BELT (FRT) WPL 61002291 Contact Us For Availability

WP61002140 Whirlpool Ice Cube Tray Backorder WPL WP61002140 $11.04

WP61002308 Whirlpool Refrigerator Screw Backorder WPL WP61002308 $5.02

WP61005273 Whirlpool Refrigerator Inlet Valve In Stock WPL WP61005273 $95.51

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

TIMER, DEFROST WPL 682333 Contact Us For Availability

SCREW WPL 4000171 Contact Us For Availability

ROLLER WPL 61002307 Contact Us For Availability

PAN, DRAIN WPL 61002649 Contact Us For Availability

CLAMP, SPRING WPL 603334 Contact Us For Availability

SHELF, FRZ. WPL 61002711 Contact Us For Availability

SHIELD, HEAT (LT) WPL 61002296 Contact Us For Availability

SHIELD, HEAT (RT) WPL 61002297 Contact Us For Availability

HOUSING, CONTROL WPL 61004691 Contact Us For Availability

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $6.80

SLIDE, CONTROL WPL 61002310 Contact Us For Availability

PLUG BUTTON, ICE MAKER WPL 61005015 Contact Us For Availability

SLIDE, CONTROL (F.F.) WPL 61002294 Contact Us For Availability

GLIDE, SHELF WPL 61004480 Contact Us For Availability

FRAME ASSY., ELEVATOR SHELF WPL 61005428 Contact Us For Availability

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability

CAP, FILL TUBE WPL 61002026 Contact Us For Availability

GEAR, DAMPER BELT (REAR) WPL 61002292 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

SEAL, DRAIN WPL 61001977 Contact Us For Availability

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

CAP, I/M WIRE HARNESS WPL 61002027 Contact Us For Availability

FRONT, CRISPER PAN (RT) WPL 61002578 Contact Us For Availability

FRONT, CRISPER PAN (LT) WPL 61002579 Contact Us For Availability

TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

TRIM, SHELF (UPPER) WPL 61002716 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 61002316 Contact Us For Availability

RAIL, CRISPER SUPPORT WPL 61004645 Contact Us For Availability

COVER, COMPRESSOR COMPARTMENT WPL 61005061 Contact Us For Availability

SCREW WPL 652751 Contact Us For Availability

SLEEVE, BRASS WPL 694311 Contact Us For Availability

PAN, ICE WPL 61002177 Contact Us For Availability

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $4.82

SHELF, ELEVATOR WPL 61004730 Contact Us For Availability

PAN, COMPRESSOR MTG. WPL 61005268 Contact Us For Availability

ADJUSTER, ICE LEVEL WPL 61005174 Contact Us For Availability

SHELF, ICE TRAY WPL 61002712 Contact Us For Availability

23

KICKPLATE W/CLIPS (WHT) WPL 61002536 Contact Us For Availability

23

RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability

24

CLIP, KICKPLATE WPL 61001975 Contact Us For Availability

24

BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability

25

WHEEL ASSY. (FRT) WPL 61005232 Contact Us For Availability

25

LEG, FRZ. SHELF WPL 61002662 Contact Us For Availability

26

WP61003826 Whirlpool Wheel Backorder WPL WP61003826 $4.82

26

BULB, LIGHT WPL 319561 Contact Us For Availability

27

SWITCH, LIGHT WPL 669871 Contact Us For Availability

28

LEG, LEVELING WPL 61002014 Contact Us For Availability

28

RECEPTACLE, BULB WPL 689743 Contact Us For Availability

29

YODER LOOP HEATER REPAIR (115V WPL 12001492 Contact Us For Availability

29

SHIELD, LIGHT WPL 61002272 Contact Us For Availability

30

MANUAL, USE & CARE (TRILNGUL) WPL 16010376 Contact Us For Availability

30

TRIM, FRZ. SHELF WPL 61002587 Contact Us For Availability

31

MANUAL, SERVICE-NO REFUND WPL 16008248 Contact Us For Availability

31

CLIP, BASKET WPL 61002356 Contact Us For Availability

31

BASKET, FRZ. WPL 61002713 Contact Us For Availability

32

WIRE HARNESS, FRZ. WPL 61003004 Contact Us For Availability

NI

WIRING INFORMATION WPL 15002787 Contact Us For Availability
