Model Whirlpool MTB2176HRB REFRIGERATOR – Common Parts &amp; Diagrams

1

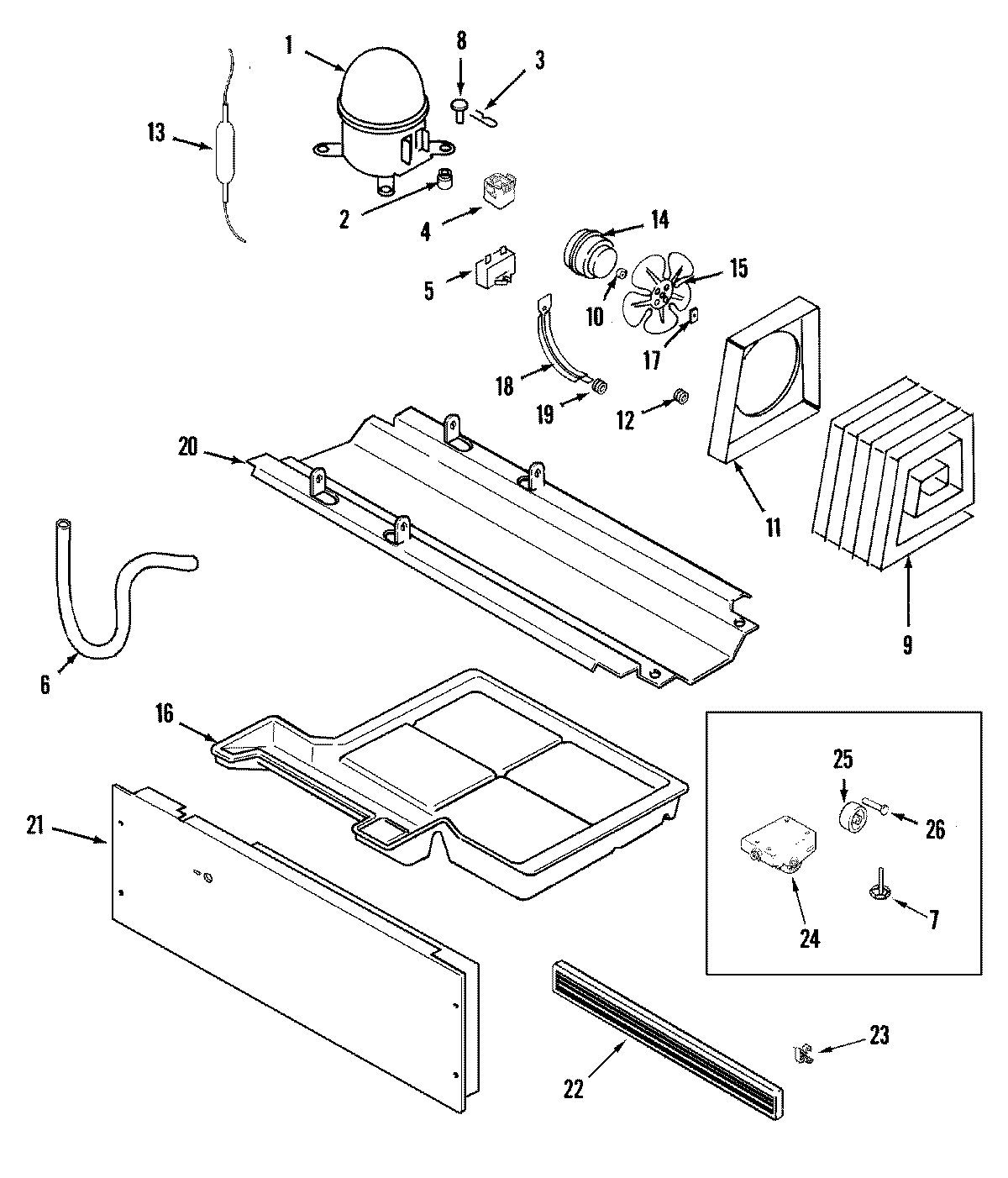

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $428.79

1

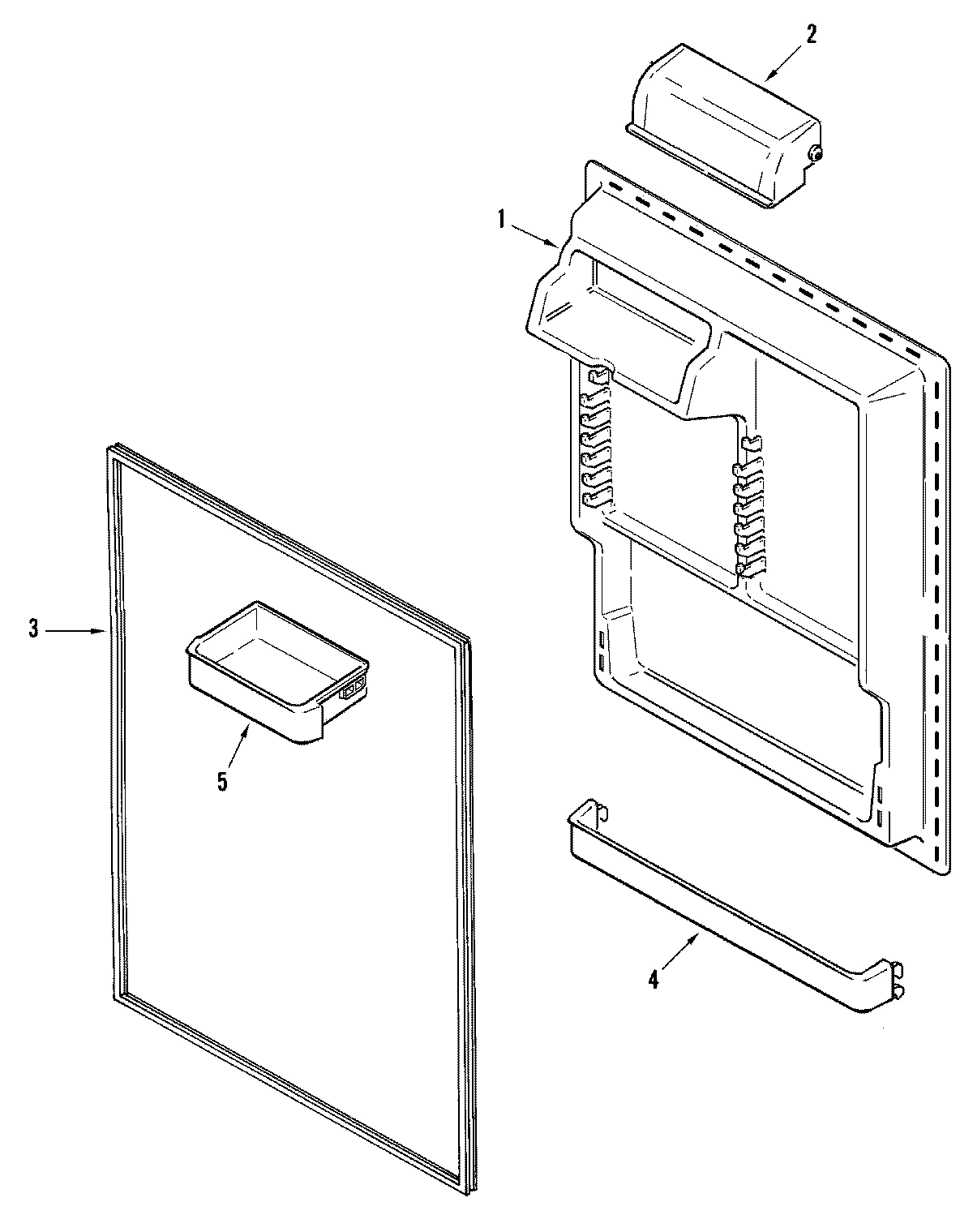

LINER, F.F. DOOR WPL 61002592 Contact Us For Availability

1

INSERT, LINER SUPPORT WPL 61002741 Contact Us For Availability

1

INSERT, LINER SUPPORT WPL 61002742 Contact Us For Availability

1

SCREW WPL 61005749 Contact Us For Availability

1

WIRE HARNESS, COMPRESSOR WPL 61004917 Contact Us For Availability

1

SCREW WPL 4000211 Contact Us For Availability

1

GREASE, SILICONE WPL 950991 Contact Us For Availability

1

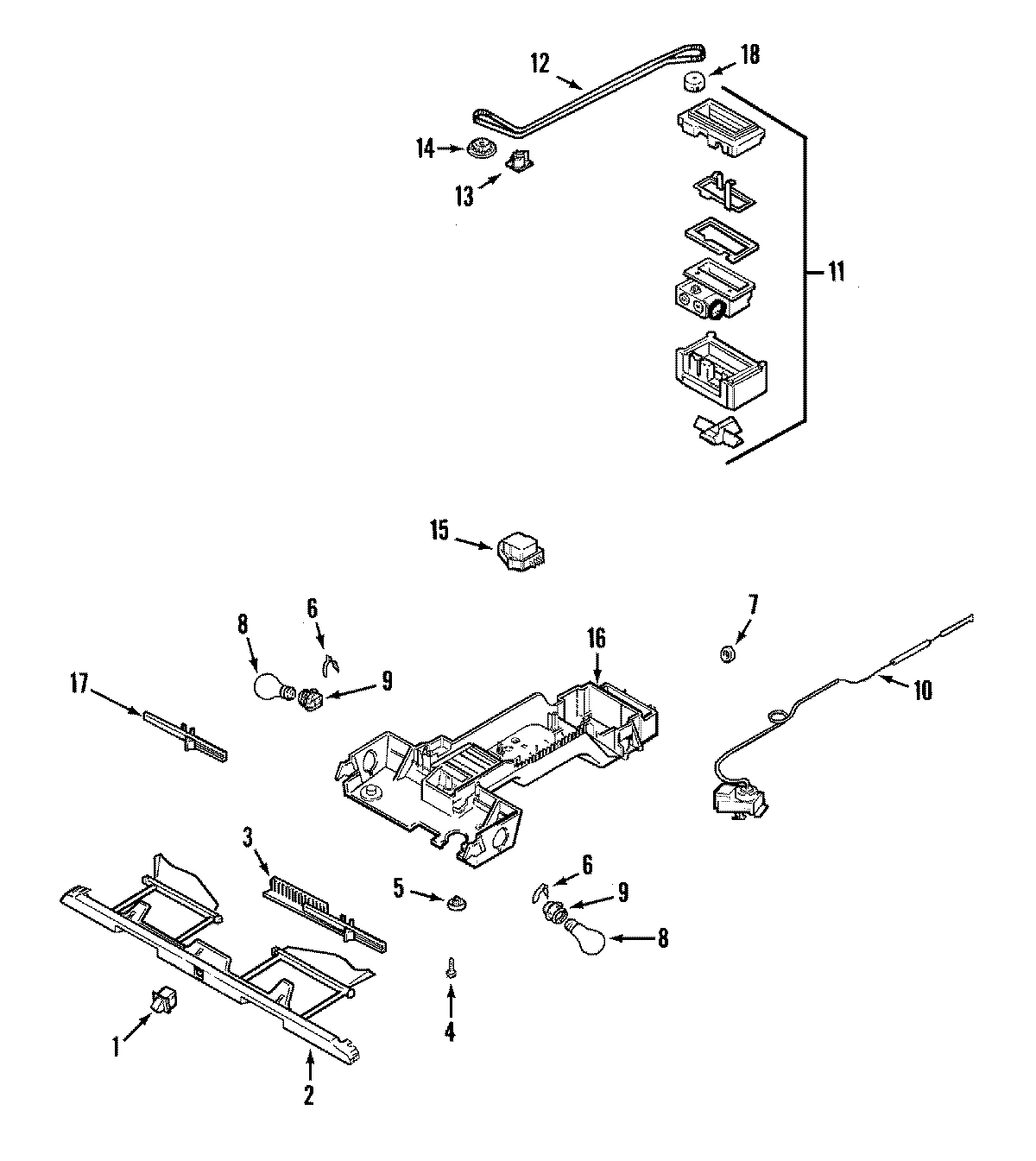

SLIDE, CONTROL WPL 61002302 Contact Us For Availability

1

SCREW WPL 61002584 Contact Us For Availability

1

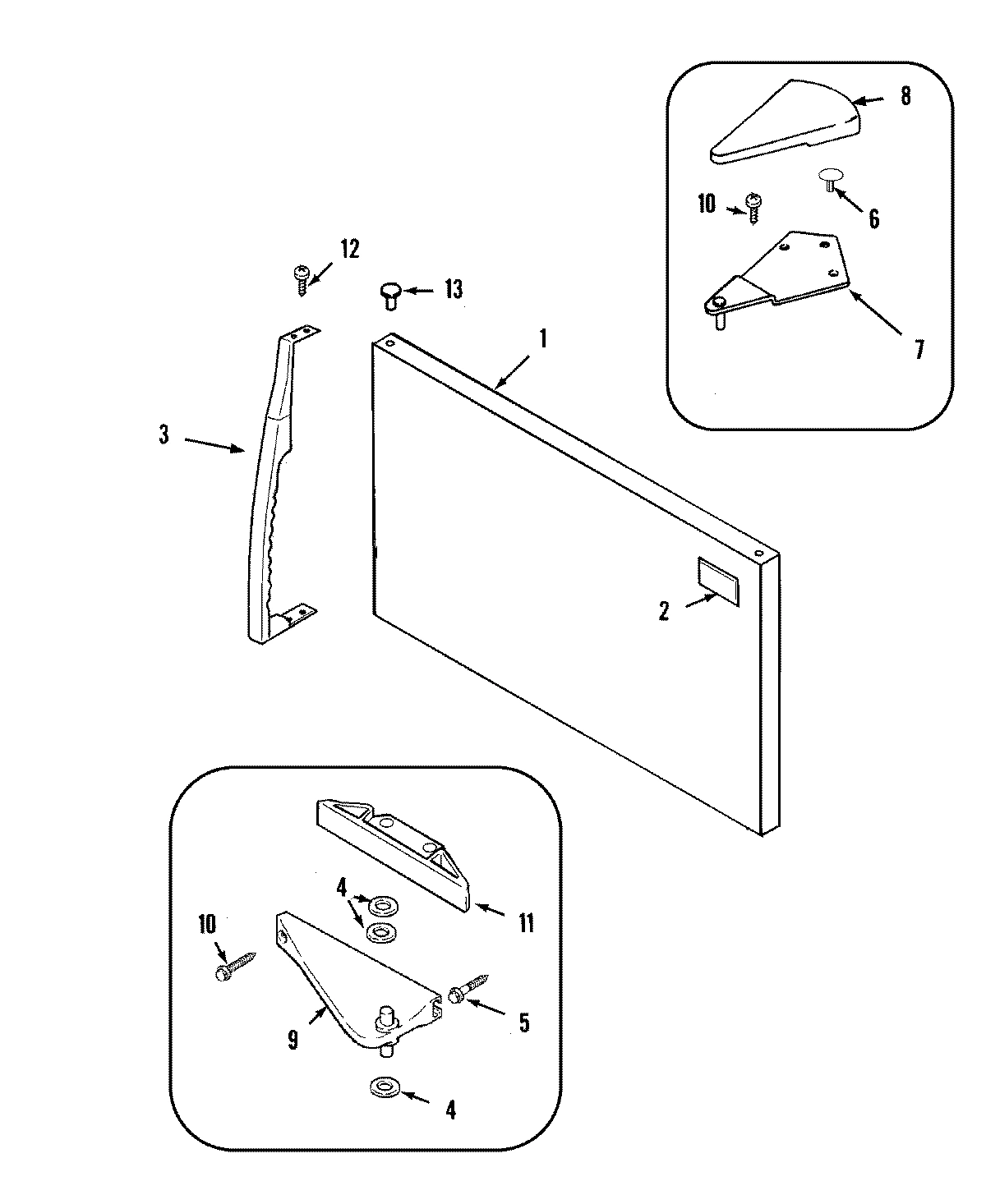

PANEL, FRZ. DOOR (BLK) WPL 61002797 Contact Us For Availability

1

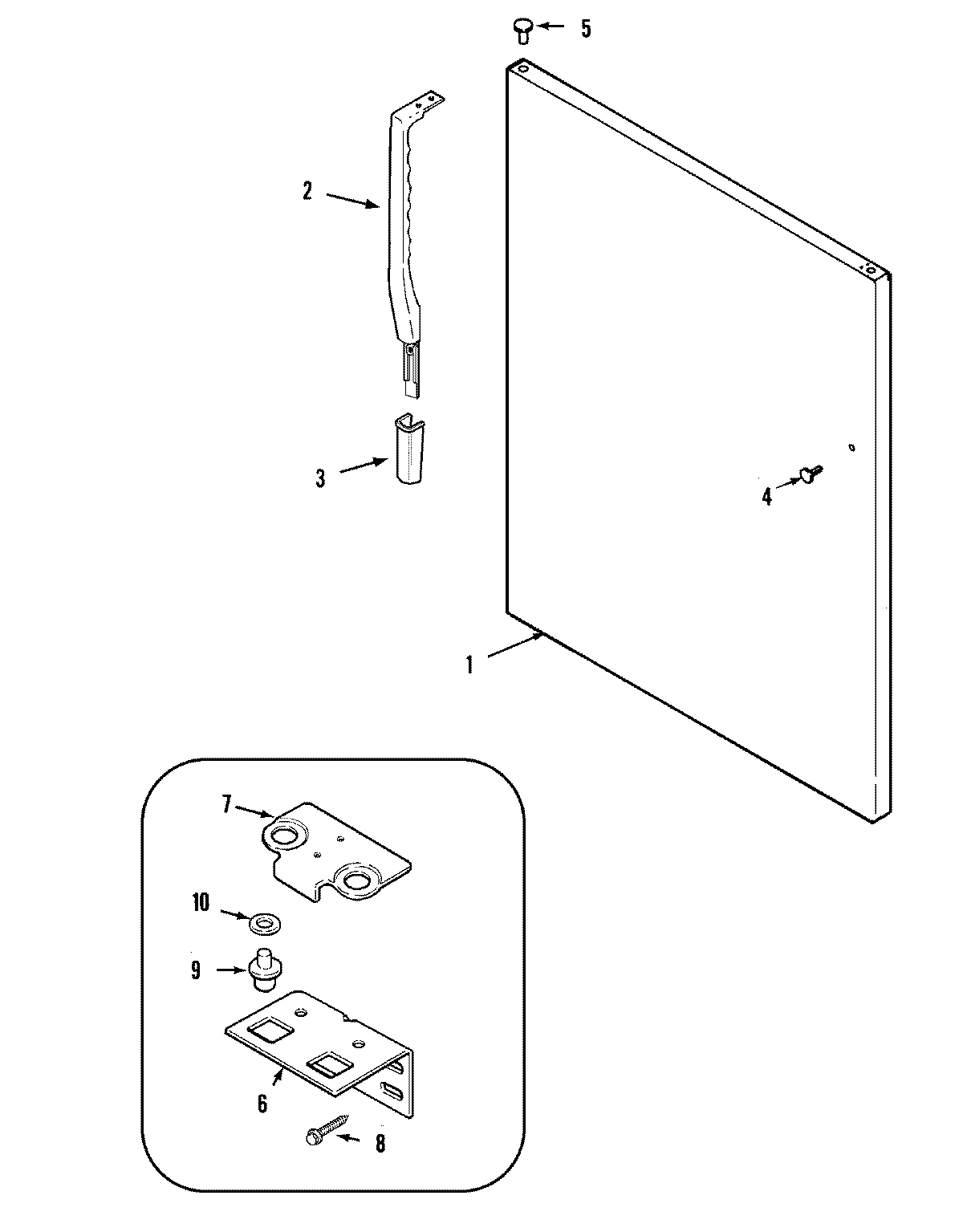

PANEL, F.F. DOOR (BLK) WPL 61002825 Contact Us For Availability

1

SWITCH, LIGHT WPL 61006075 Contact Us For Availability

1

TUNNEL, AIR WPL 61002266 Contact Us For Availability

1

MANUAL, USE & CARE (TRILNGUL) WPL 16010376 Contact Us For Availability

2

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

2

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $6.02

2

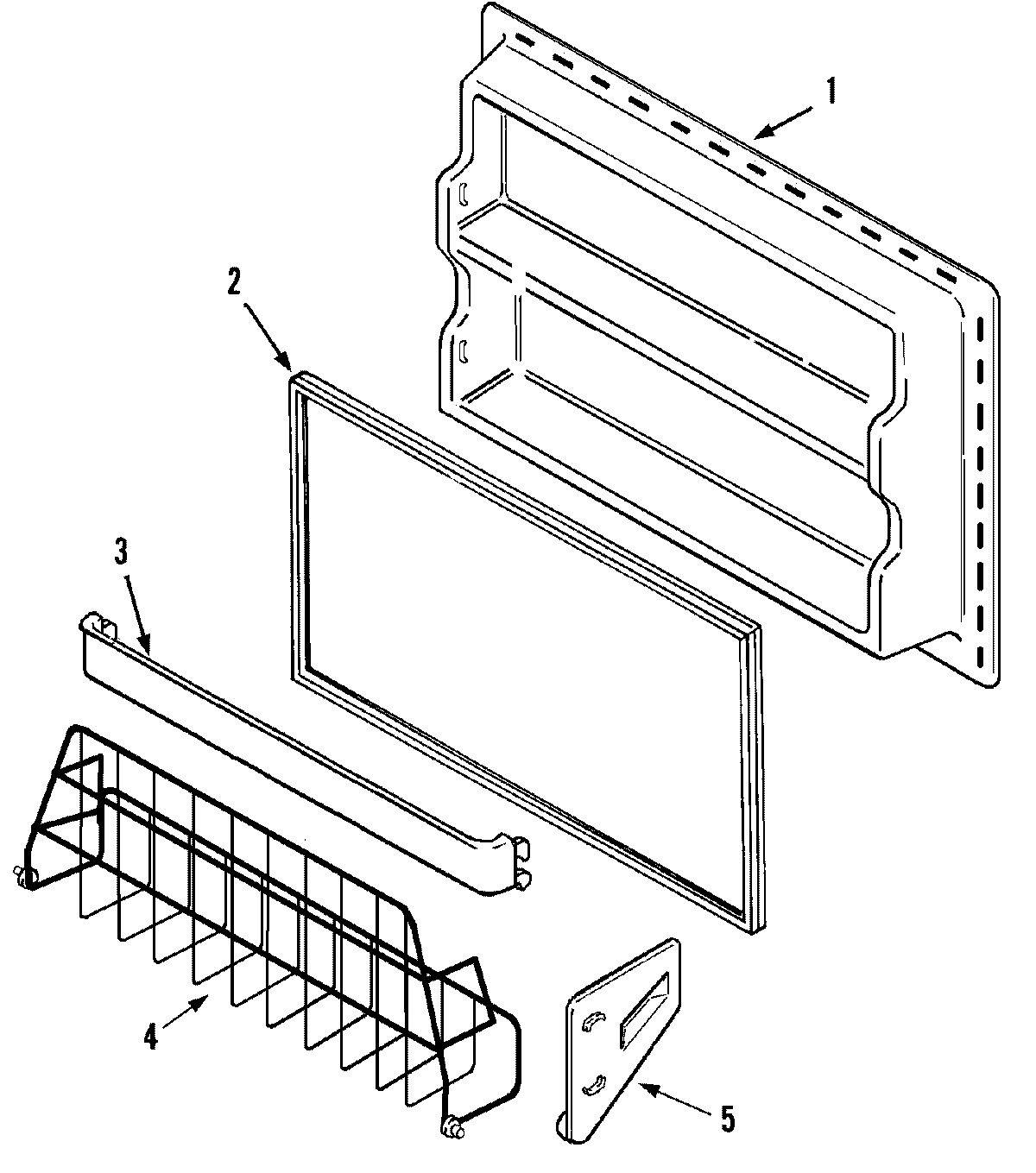

SEAL, FRZ. DOOR (BLK) WPL 61004016 Contact Us For Availability

2

DOOR, DAIRY WPL 61002593 Contact Us For Availability

2

INLET, WATER WPL 951001 Contact Us For Availability

2

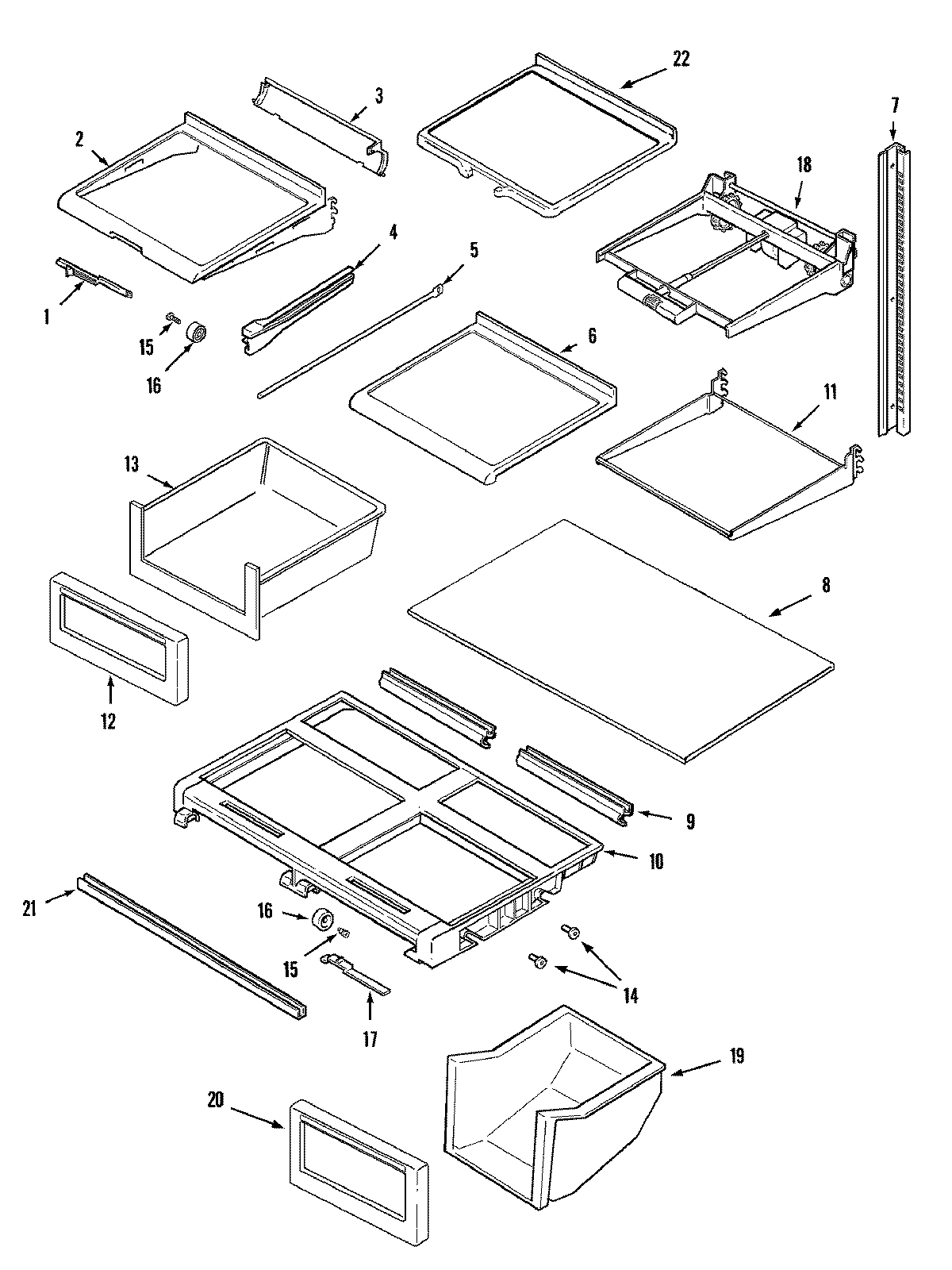

SHELF, MEAT WPL 61005787 Contact Us For Availability

2

NAMEPLATE (BLK) WPL 61004649 Contact Us For Availability

2

SCREW WPL 61005394 Contact Us For Availability

2

HANDLE, F.F. DOOR (BLK) WPL 61005486 Contact Us For Availability

2

PANEL, CONTROL WPL 61002568 Contact Us For Availability

2

PLUG BUTTON, EVAP. COVER WPL 61001952 Contact Us For Availability

2

COVER, EVAPORATOR WPL 61002585 Contact Us For Availability

2

SEAL, FOAM (CTR) WPL 61005920 Contact Us For Availability

2

MANUAL, SERVICE-NO REFUND WPL 16008248 Contact Us For Availability

3

WP61004017 Whirlpool Refrigerator Seal Backorder WPL WP61004017 $238.65

3

FRONT, PICK-OFF WPL 61005185 Contact Us For Availability

3

CLIP, COMPRESSOR WPL 61005561 Contact Us For Availability

3

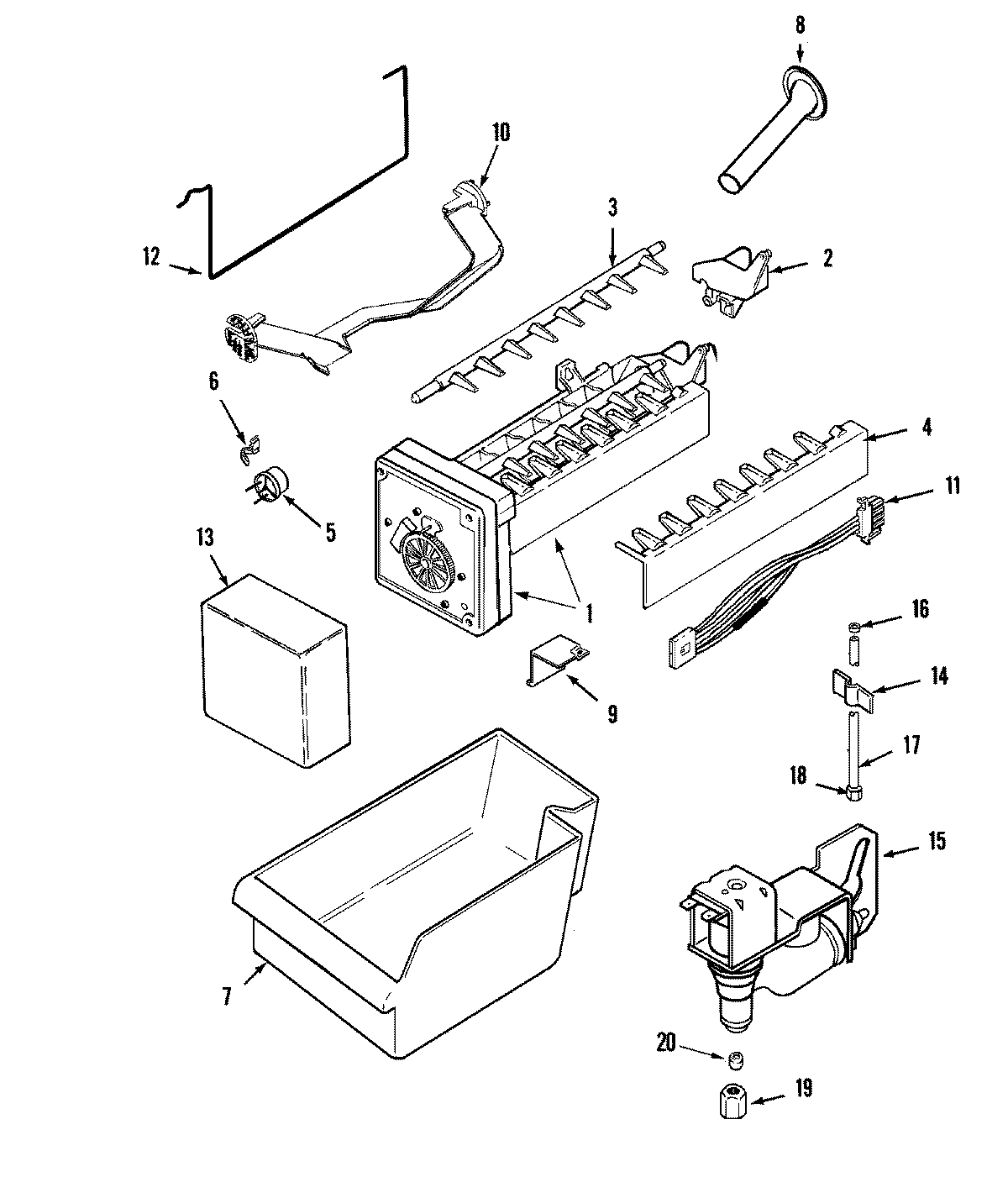

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

SCOOP, MEAT PAN WPL 61004703 Contact Us For Availability

3

HANDLE, FRZ. DOOR (BLK) WPL 61005401 Contact Us For Availability

3

CAP, HANDLE (BLK) WPL 61005397 Contact Us For Availability

3

SLIDE, CONTROL (FRZ.) WPL 61002295 Contact Us For Availability

3

CAP, I/M WIRE HARNESS WPL 61002027 Contact Us For Availability

3

LABEL, DUAL ENERGY GUIDE WPL 61006265 Contact Us For Availability

4

12002794 Whirlpool Refrigerator Overload Rela Backorder WPL 12002794 $144.97

4

61005136 Whirlpool Refrigerator Front Pickoff Backorder WPL 61005136 $93.31

4

WP67002191 Whirlpool Refrigerator Crisper Mea Backorder WPL WP67002191 $19.51

4

BASKET, TILT-OUT WPL 61002604 Contact Us For Availability

4

CLIP, RELAY/OVERLOAD ASSY. WPL 61006187 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

RAIL, MEAT PAN (LT) WPL 61002304 Contact Us For Availability

4

PLUG BUTTON, HANDLE MTG. (BLK) WPL 61002443 Contact Us For Availability

4

PLUG BUTTON, HANDLE HOLE (BLK) WPL 676785 Contact Us For Availability

4

SCREW WPL 61004485 Contact Us For Availability

4

BARRIER, FOIL WPL 61004832 Contact Us For Availability

4

TRAY, DRIP WPL 61004861 Contact Us For Availability

5

STOP, BASKET (LT) WPL 61004465 Contact Us For Availability

5

STOP, BASKET (RT) WPL 61004466 Contact Us For Availability

5

SHELF, PICK-OFF WPL 61005137 Contact Us For Availability

5

CAPACITOR, RUN WPL 658894 Contact Us For Availability

5

THERMOSTAT WPL 950921 Contact Us For Availability

5

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

5

LINKAGE, ACTUATOR WPL 61004704 Contact Us For Availability

5

SCREW WPL 61002025 Contact Us For Availability

5

PLUG BUTTON, HINGE CUP (BLK) WPL 61002360 Contact Us For Availability

5

GEAR, CONTROL (F.F.) WPL 61002288 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability

6

TUBE, DRAIN TRAP WPL 61006123 Contact Us For Availability

6

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

6

SHELF, SPILLPROOF WPL 61002572 Contact Us For Availability

6

PLUG BUTTON, HINGE (BLK) WPL 61002374 Contact Us For Availability

6

HINGE, LOWER (ZINC) WPL 61006113 Contact Us For Availability

6

CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability

6

BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability

7

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

7

WP61004888 Whirlpool Refrigerator Evaporator In Stock WPL WP61004888 $93.05

7

SEAL, DRAIN WPL 61001977 Contact Us For Availability

7

LEG, LEVELING WPL 61002014 Contact Us For Availability

7

PAN, ICE WPL 61001886 Contact Us For Availability

7

SCREW WPL 40003728 Contact Us For Availability

7

RAIL, SHELF SUPPORT (CTR) WPL 61004705 Contact Us For Availability

7

RAIL, SHELF SUPPORT (LT/RT) WPL 61004706 Contact Us For Availability

7

HINGE, UPPER WPL 61006257 Contact Us For Availability

7

SCREW WPL 61001876 Contact Us For Availability

7

STOP, DOOR WPL 61006147 Contact Us For Availability

8

3400112 Whirlpool Refrigerator Screw Backorder WPL 3400112 $51.24

8

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $10.86

8

WP61002623 Whirlpool Crisper Glass Shelf Backorder WPL WP61002623 $146.25

8

PLUG, COMPRESSOR WPL 61006030 Contact Us For Availability

8

GROMMET, WATER ENTRY WPL 61001888 Contact Us For Availability

8

COVER, UPPER HINGE (BLK) WPL 61002375 Contact Us For Availability

8

CLIP, DEFROST HEATER WPL 61006173 Contact Us For Availability

9

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $3.49

9

WP61001925 Whirlpool Refrigerator Lower Pin Backorder WPL WP61001925 $19.46

9

WP61002046 Whirlpool Defrost Heater Backorder WPL WP61002046 $148.09

9

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $71.05

9

CONDENSER WPL 61005454 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

9

SEAL, CRISPER SHELF (REAR) WPL 61002574 Contact Us For Availability

9

HINGE, CENTER (BLK) WPL 61002373 Contact Us For Availability

WP61002043 Whirlpool Refrigerator Control Backorder WPL WP61002043 $159.23

WP61002231 Whirlpool Refrigerator Washer Hing Backorder WPL WP61002231 $7.55

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

ADJUSTER, ICE LEVEL WPL 61005174 Contact Us For Availability

SHELF, CRISPER WPL 61004708 Contact Us For Availability

SCREW WPL 6527581 Contact Us For Availability

BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

SHROUD, CONDENSER WPL 61001941 Contact Us For Availability

WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability

FRAME, SHELF WPL 61005964 Contact Us For Availability

STOP, DOOR (BLK) WPL 61004547 Contact Us For Availability

DAMPER/INSULATION KIT WPL 61002092 Contact Us For Availability

SUPPORT, EVAPORATOR (LT) WPL 61006174 Contact Us For Availability

SUPPORT, EVAPORATOR (RT) WPL 61006175 Contact Us For Availability

WP61005254 Whirlpool Refrigerator Thermostat In Stock WPL WP61005254 $78.61

GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability

ARM, SENSOR WPL 61005173 Contact Us For Availability

CLIP, SENSOR ARM WPL 61005175 Contact Us For Availability

FRONT, MEAT PAN WPL 61002580 Contact Us For Availability

BELT, DAMPER WPL 61002290 Contact Us For Availability

DRIER WPL 139001 Contact Us For Availability

COVER, ICE MAKER WPL 61004594 Contact Us For Availability

PAN, MEAT WPL 61006181 Contact Us For Availability

TENSIONER, BELT WPL 61002289 Contact Us For Availability

RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $60.81

SCREW WPL 4000171 Contact Us For Availability

SCREW WPL 6527533 Contact Us For Availability

SCREW WPL 4000161 Contact Us For Availability

CLAMP, TUBING WPL 535168 Contact Us For Availability

CLIP, WATER LINE (ADHESIVE) WPL 61004913 Contact Us For Availability

SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability

GEAR, DAMPER BELT (FRT) WPL 61002291 Contact Us For Availability

EVAP/HEAT EXCH. ASSY. 21 & 24` WPL 12001398 Contact Us For Availability

WP61002308 Whirlpool Refrigerator Screw Backorder WPL WP61002308 $5.02

WP61005273 Whirlpool Refrigerator Inlet Valve In Stock WPL WP61005273 $95.51

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

TIMER, DEFROST WPL 682333 Contact Us For Availability

TRAY, ICE WPL 592812 Contact Us For Availability

PAN, DRAIN WPL 61004095 Contact Us For Availability

CLAMP, SPRING WPL 603334 Contact Us For Availability

ROLLER WPL 61002307 Contact Us For Availability

SHIELD, HEAT (LT) WPL 61002296 Contact Us For Availability

SHIELD, HEAT (RT) WPL 61002297 Contact Us For Availability

HOUSING, CONTROL WPL 61004643 Contact Us For Availability

SHELF, FREEZER WPL 61002586 Contact Us For Availability

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $6.80

SLIDE, CONTROL WPL 61002310 Contact Us For Availability

SLIDE, CONTROL (F.F.) WPL 61002294 Contact Us For Availability

PLUG BUTTON, ICE MAKER WPL 61005015 Contact Us For Availability

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability

FRAME ASSY., ELEVATOR SHELF WPL 61006021 Contact Us For Availability

GEAR, DAMPER BELT (REAR) WPL 61002292 Contact Us For Availability

CAP, FILL TUBE WPL 61002026 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 61006262 Contact Us For Availability

SWITCH, LIGHT WPL 61006157 Contact Us For Availability

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $4.82

FRONT, CRISPER PAN (LT) WPL 61006203 Contact Us For Availability

PAN, COMPRESSOR MTG. WPL 61005268 Contact Us For Availability

SLEEVE, BRASS WPL 694311 Contact Us For Availability

FRONT, CRISPER PAN (RT) WPL 61006202 Contact Us For Availability

RECEPTACLE, BULB WPL 61005748 Contact Us For Availability

21

COVER, COMPRESSOR COMPARTMENT WPL 61005751 Contact Us For Availability

21

RAIL, CRISPER SUPPORT WPL 61004645 Contact Us For Availability

21

BULB, LIGHT WPL 319561 Contact Us For Availability

22

KICKPLATE W/CLIPS (BLK) WPL 61002576 Contact Us For Availability

22

SHELF, ELEVATOR WPL 61004709 Contact Us For Availability

22

SHIELD, LIGHT WPL 61002272 Contact Us For Availability

23

CLIP, KICKPLATE WPL 61001975 Contact Us For Availability

23

LEG, FRZ. SHELF WPL 61002270 Contact Us For Availability

24

SCREW WPL 6527550 Contact Us For Availability

24

WHEEL ASSY. (FRT) WPL 61005232 Contact Us For Availability

24

TRIM, FRZ. SHELF WPL 61002587 Contact Us For Availability

25

WP61003826 Whirlpool Wheel Backorder WPL WP61003826 $4.82

25

CLIP, BASKET WPL 61002356 Contact Us For Availability

25

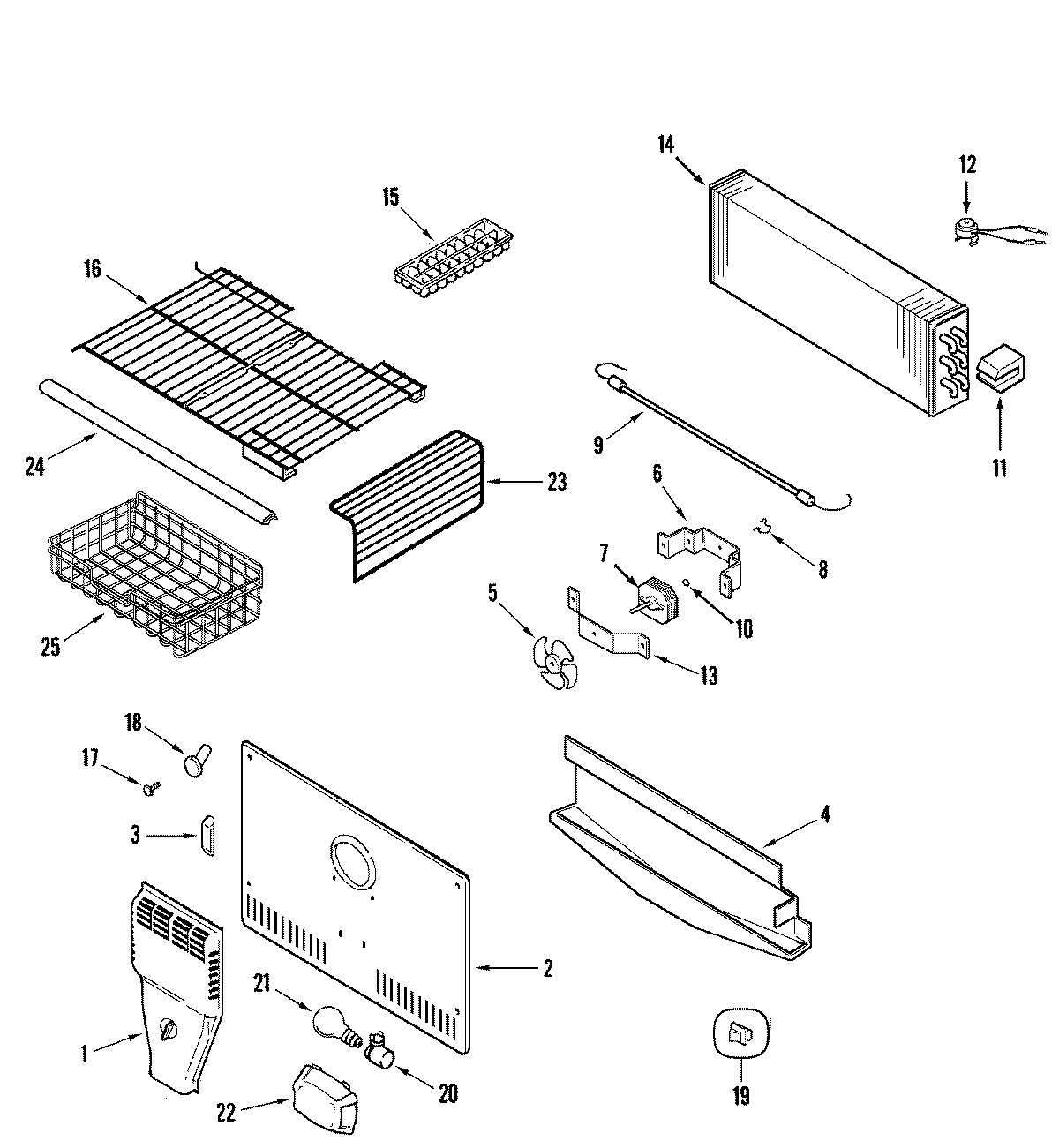

BASKET, FRZ. WPL 61002588 Contact Us For Availability

26

WIRE HARNESS, FRZ. WPL 61005033 Contact Us For Availability

27

YODER LOOP HEATER REPAIR (115V WPL 12001492 Contact Us For Availability

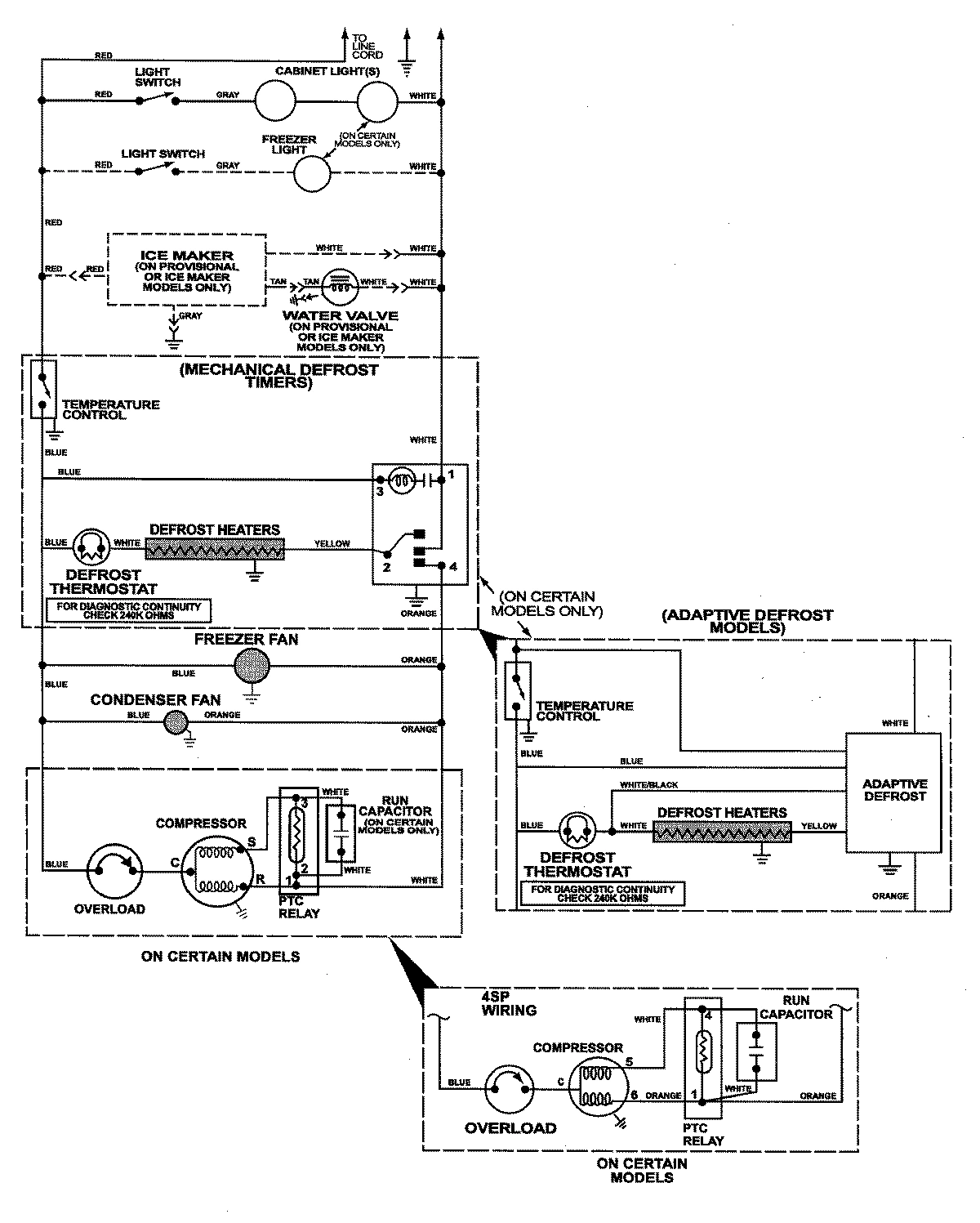

NI

WIRING INFORMATION WPL 15002787 Contact Us For Availability
