Model Whirlpool MTB2155BRA REFRIGERATOR – Common Parts & Diagrams

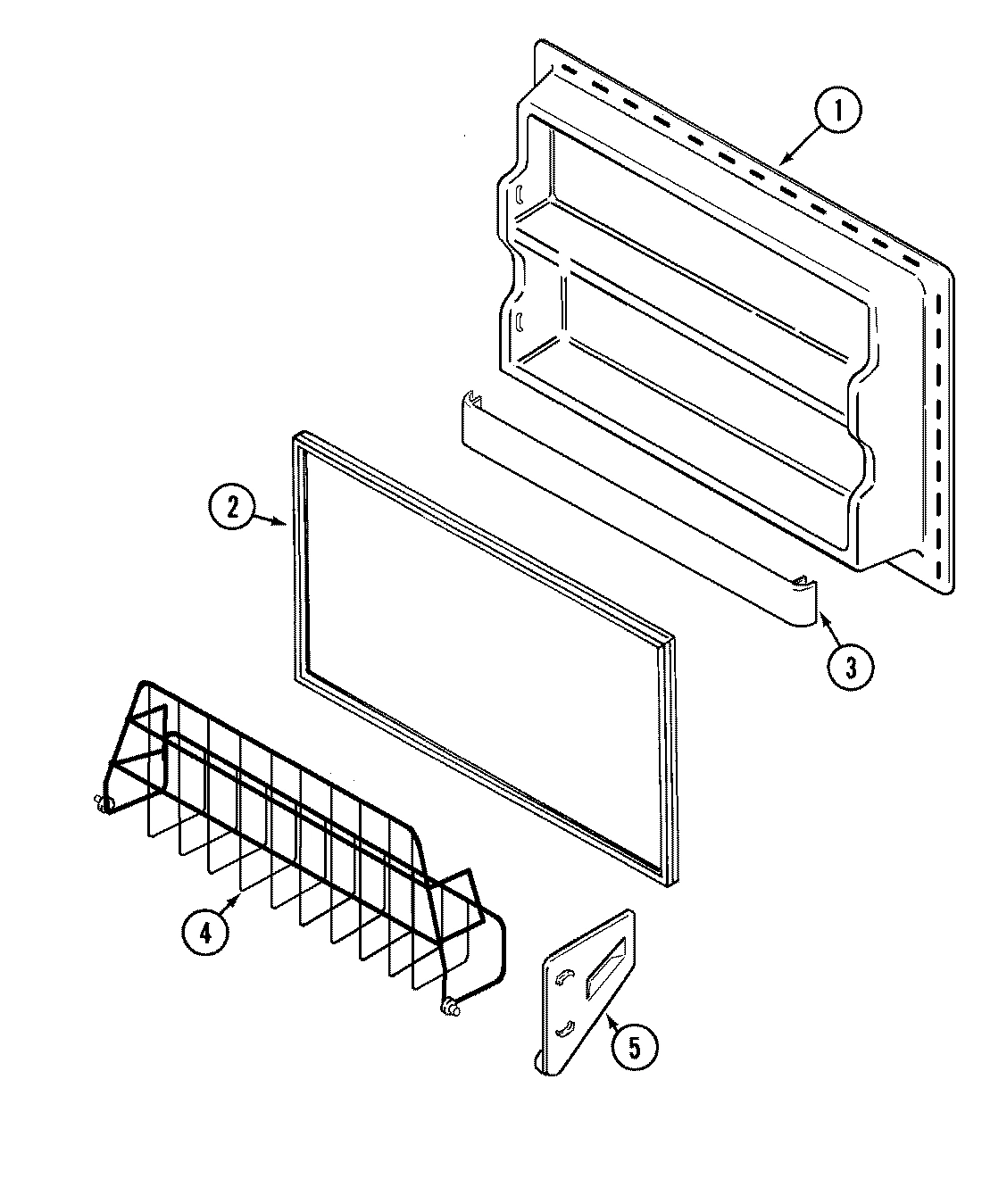

04 - FREEZER INNER DOOR

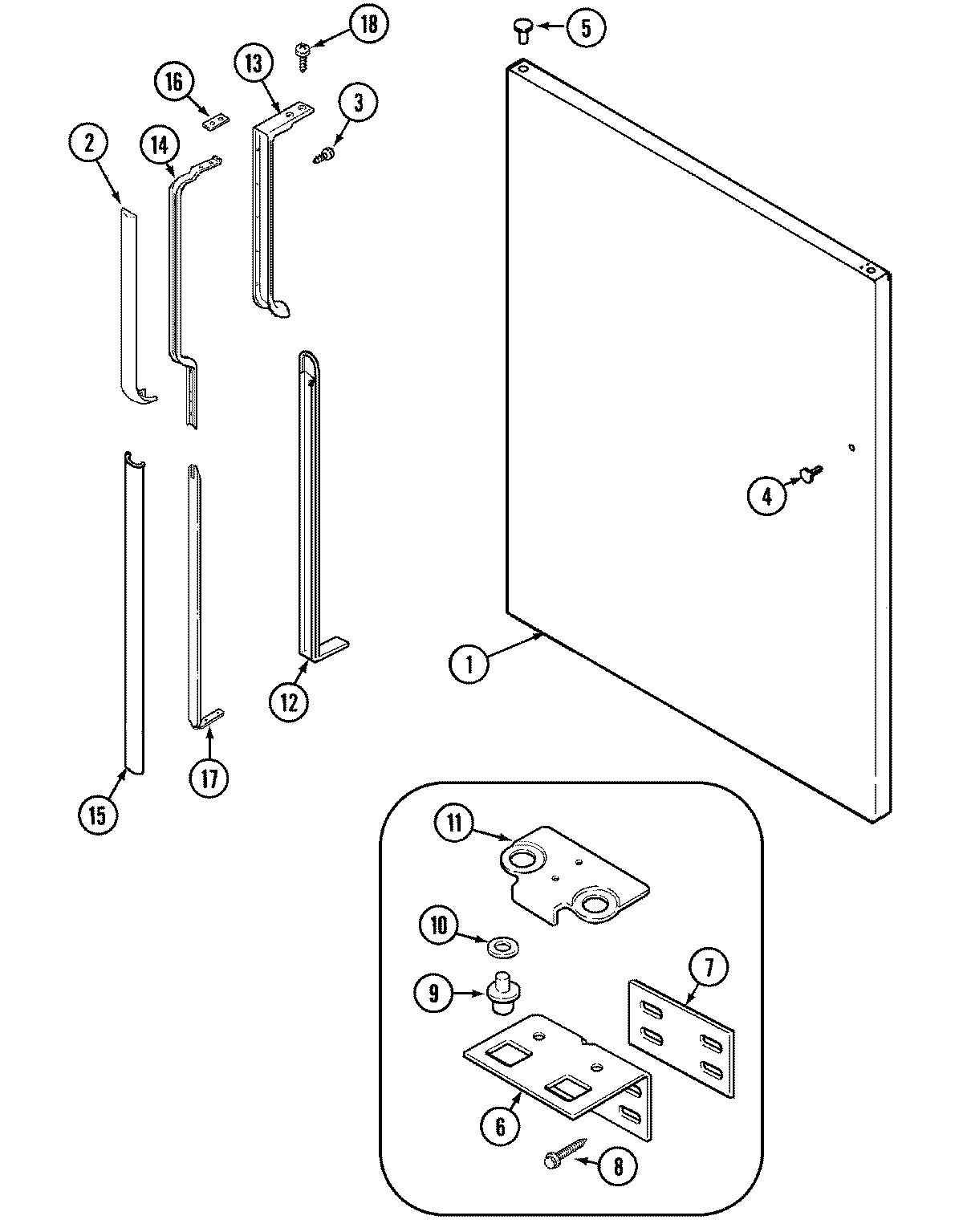

07 - FRESH FOOD OUTER DOOR

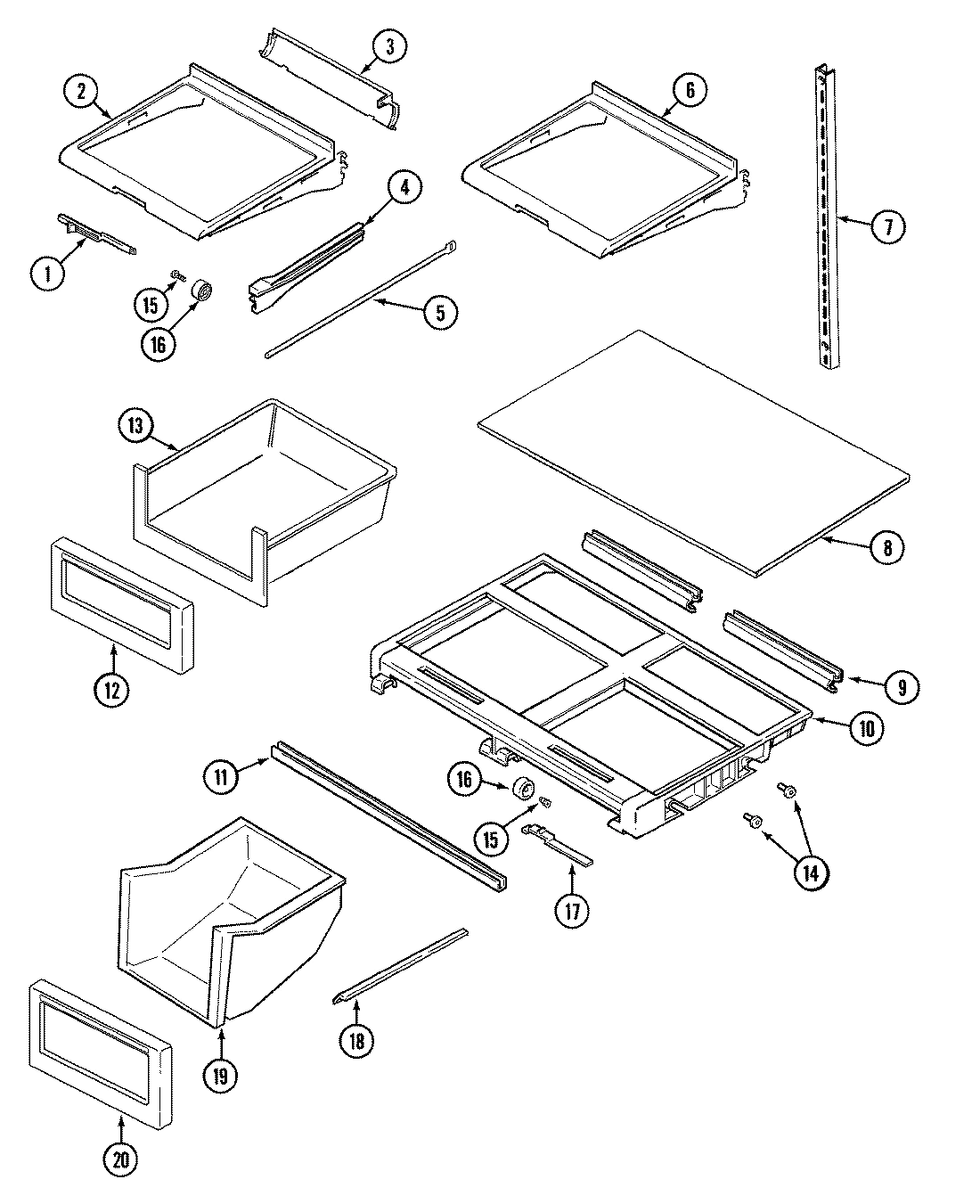

09 - SHELVES & ACCESSORIES

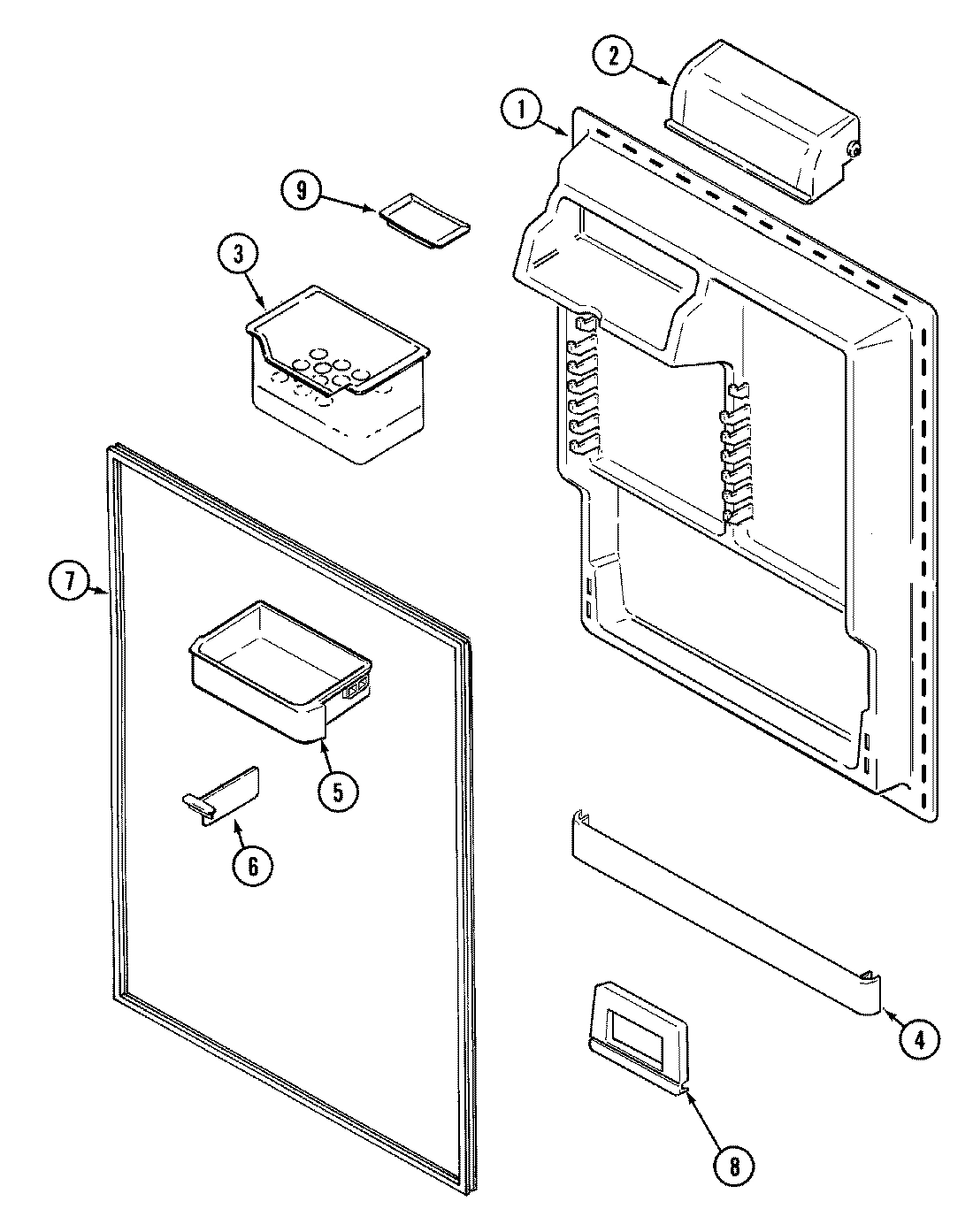

06 - FRESH FOOD INNER DOOR
08 - OPTIONAL ICE MAKER KIT-UKI1000AXX

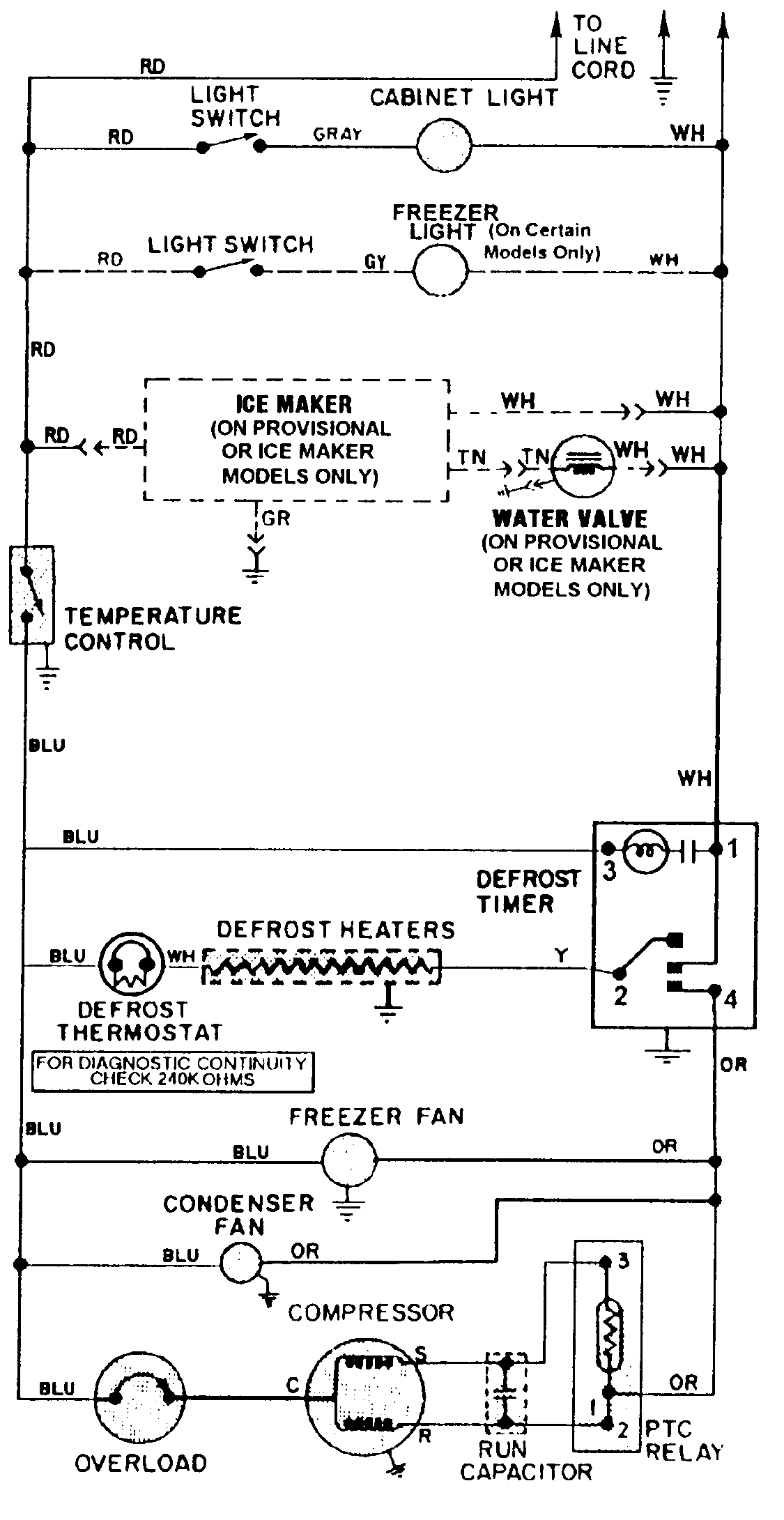

10 - WIRING INFORMATION

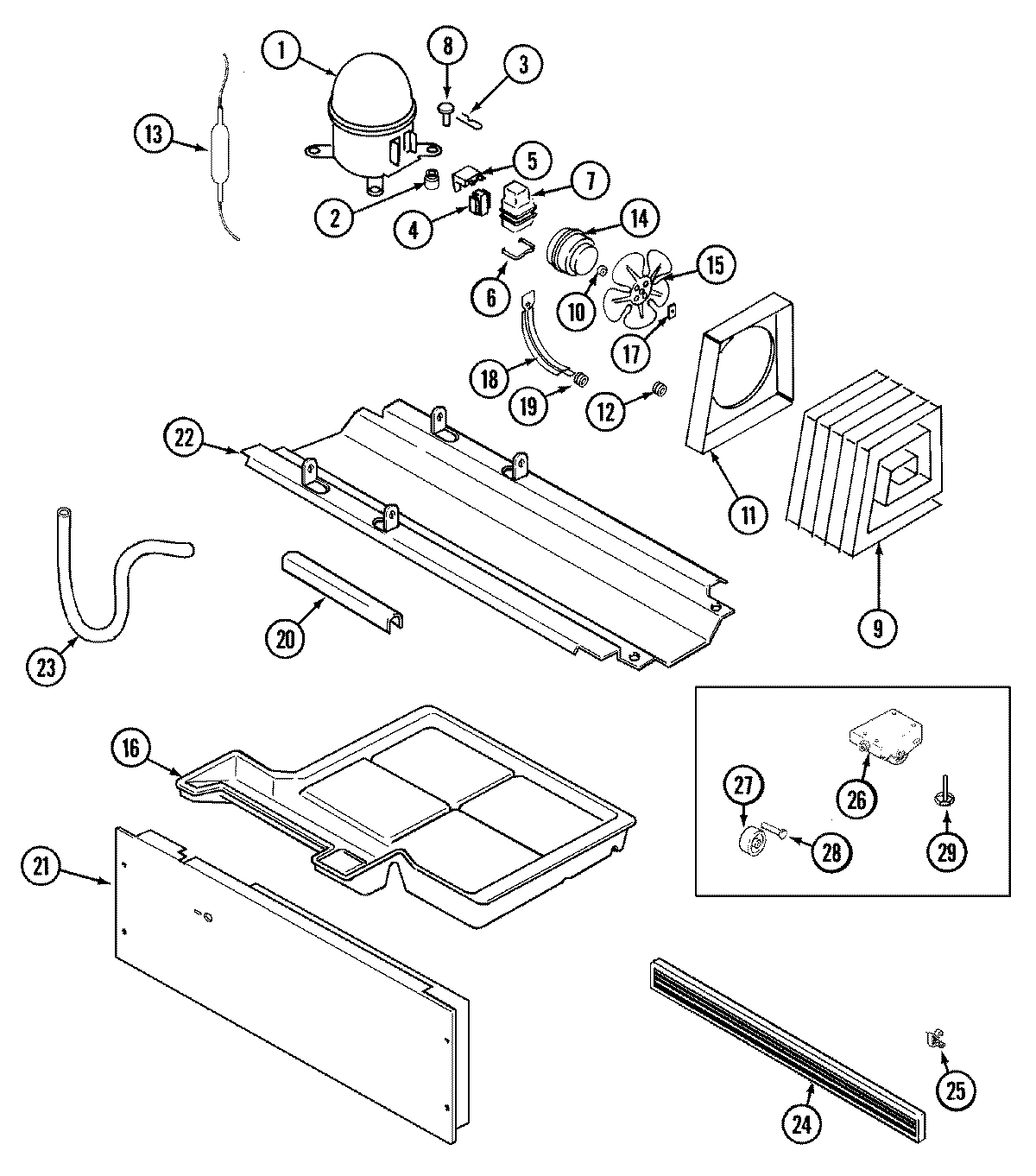

01 - COMPRESSOR

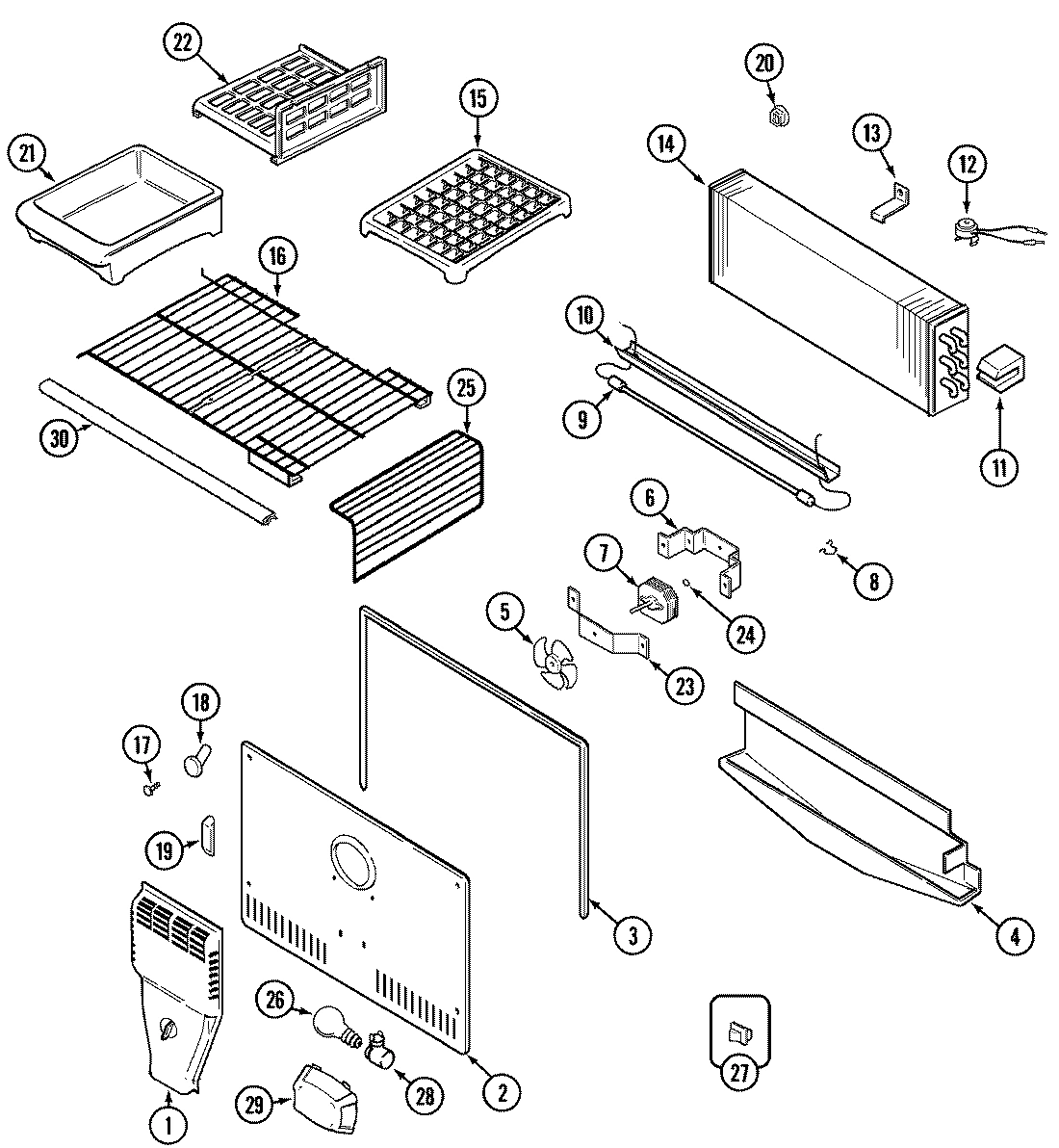

03 - FREEZER COMPARTMENT

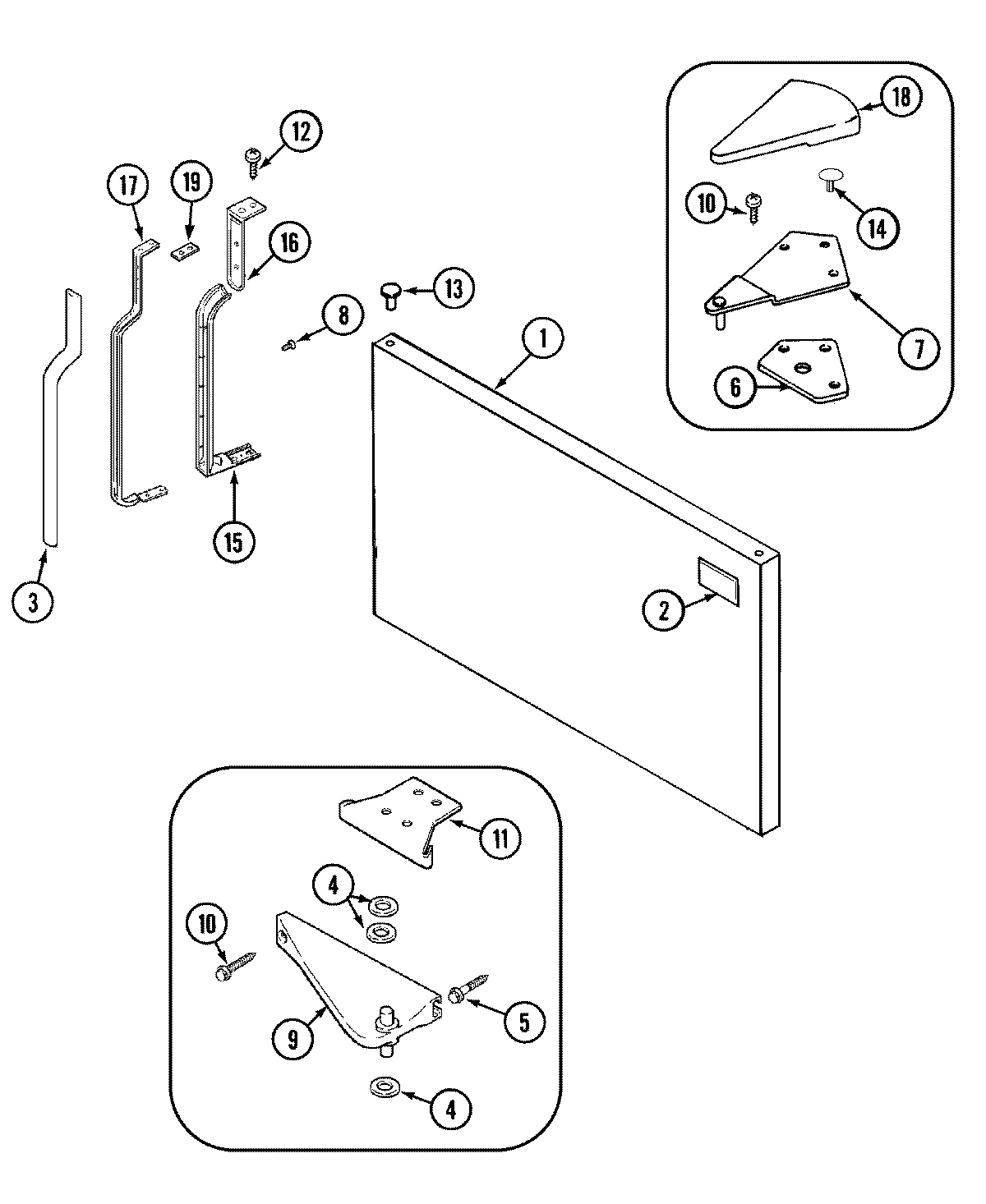

05 - FREEZER OUTER DOOR

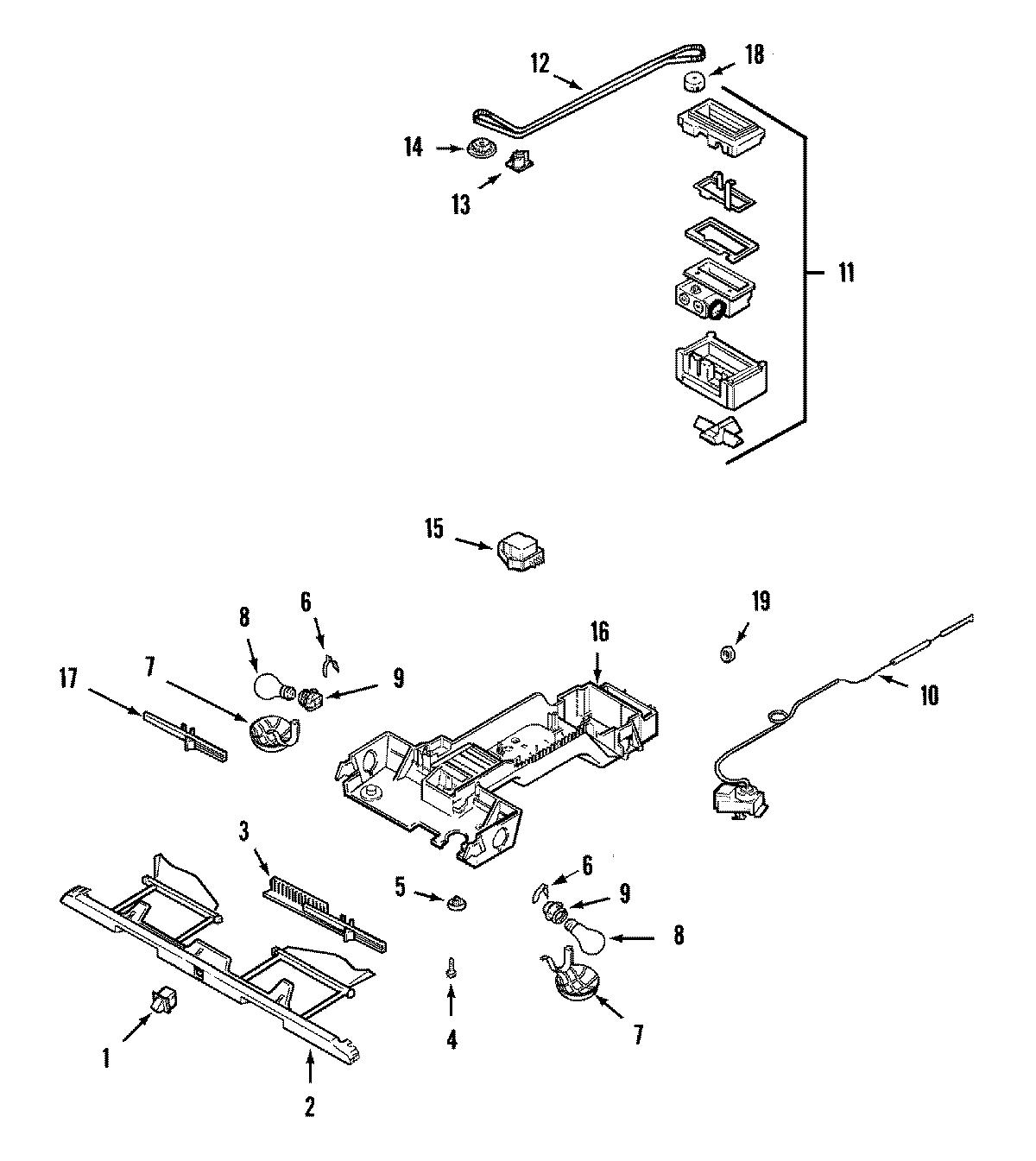

02 - CONTROLS
Common parts from model Whirlpool MTB2155BRA REFRIGERATOR
1
LINER, FRZ. DOOR WPL 61002601 Contact Us For Availability
1
SCREW WPL 652755 Contact Us For Availability
1
PANEL, F.F. DOOR (ALM) WPL 61002823 Contact Us For Availability
1
SLIDE, CONTROL WPL 61002302 Contact Us For Availability
1
SCREW WPL 61002584 Contact Us For Availability
1
LINER, F.F. DOOR WPL 61002592 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
COMPRESSOR (R134A) 115V. WPL 12001374 Contact Us For Availability
1
WIRE HARNESS, COMP(W/PWR.CORD) WPL 61002012 Contact Us For Availability
1
TUNNEL, AIR WPL 61002266 Contact Us For Availability
1
SWITCH, LIGHT WPL 669871 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 61002553 Contact Us For Availability
2
INSERT, HANDLE (ALM) WPL 61002147 Contact Us For Availability
2
SHELF, MEAT WPL 61002569 Contact Us For Availability
2
DOOR, DAIRY WPL 61002593 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
COVER, EVAPORATOR WPL 61002585 Contact Us For Availability
2
NAMEPLATE (ALM) WPL 61002165 Contact Us For Availability
2
PANEL, CONTROL WPL 61002568 Contact Us For Availability
3
FRONT, PICK-OFF WPL 61002603 Contact Us For Availability
3
BAFFLE, MEAT SHELF WPL 61002570 Contact Us For Availability
3
TRAY, EGG WPL 672152 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
3
SEAL, FOAM (SOUND DAMPENING) WPL 61002419 Contact Us For Availability
3
SEAL, EVAPORATOR COVER WPL 61002539 Contact Us For Availability
3
COVER, HANDLE (ALM) WPL 61002210 Contact Us For Availability
3
SLIDE, CONTROL (FRZ.) WPL 61002295 Contact Us For Availability
4
BASKET, TILT-OUT WPL 61002604 Contact Us For Availability
4
PLUG BUTTON, HANDLE TOP (ALM) WPL 676783 Contact Us For Availability
4
RAIL, MEAT PAN (LT) WPL 61002304 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
TRAY, DRIP WPL 61002541 Contact Us For Availability
4
SCREW, HOUSING MTG. WPL 61002115 Contact Us For Availability
5
STOP, BASKET (LT) WPL 61002262 Contact Us For Availability
5
STOP, BASKET (RT) WPL 61002263 Contact Us For Availability
5
LINKAGE, ACTUATOR WPL 61002571 Contact Us For Availability
5
SHELF, PICK-OFF WPL 61002595 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
SCREW WPL 951061 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability
5
SCREW WPL 61002025 Contact Us For Availability
5
GEAR, CONTROL (F.F.) WPL 61002288 Contact Us For Availability
6
HINGE, LOWER (ALM) WPL 61001919 Contact Us For Availability
6
SHELF, SPILLPROOF WPL 61002677 Contact Us For Availability
6
ORGANIZER, SHELF WPL 61002274 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
6
BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability
6
SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability
6
CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability
7
SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability
7
SCREW WPL 4000221 Contact Us For Availability
7
SCREW WPL 40003728 Contact Us For Availability
7
RAIL, CANT. SHELF WPL 61002253 Contact Us For Availability
7
RAIL, SHELF SUPPORT (LT/RT) WPL 61002254 Contact Us For Availability
7
PAN, ICE WPL 61001886 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
HINGE, UPPER WPL 61001971 Contact Us For Availability
7
GUARD, LIGHT WPL 61002286 Contact Us For Availability
8
SCREW WPL 6527544 Contact Us For Availability
8
RETAINER, BOTTLE WPL 61002273 Contact Us For Availability
8
GROMMET, WATER ENTRY WPL 61001888 Contact Us For Availability
8
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
9
SEAL, CRISPER SHELF (REAR) WPL 61002574 Contact Us For Availability
9
TRAY, BUTTER WPL 299362 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW, BRACKET WPL 951081 Contact Us For Availability
9
COIL, CONDENSER WPL 61002048 Contact Us For Availability
9
HINGE, CENTER (ALM) WPL 61001921 Contact Us For Availability
10
SHELF, CRISPER WPL 61002575 Contact Us For Availability
10
SCREW WPL 4000211 Contact Us For Availability
10
ICEMAKER WPL 951091 Contact Us For Availability
10
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
10
SHIELD, DEFROST HEATER WPL 61002543 Contact Us For Availability
10
SCREW WPL 6527581 Contact Us For Availability
11
SCREW WPL 61001876 Contact Us For Availability
11
STOP, DOOR WPL 61001969 Contact Us For Availability
11
SUPPORT, CRISPER PAN WPL 61002535 Contact Us For Availability
11
WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability
11
SHROUD, CONDENSER WPL 61001941 Contact Us For Availability
11
SUPPORT, EVAPORATOR (LT) WPL 61001953 Contact Us For Availability
11
SUPPORT, EVAPORATOR (RT) WPL 61001954 Contact Us For Availability
11
STOP, DOOR (ALM) WPL 61004486 Contact Us For Availability
11
DAMPER/INSULATION KIT WPL 61002092 Contact Us For Availability
12
SHIM, TRIM LOCK WPL 61002251 Contact Us For Availability
12
SCREW WPL 61001875 Contact Us For Availability
12
FRONT, MEAT PAN WPL 61002580 Contact Us For Availability
12
ARM, SENSOR WPL 681121 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability
12
BELT, DAMPER WPL 61002290 Contact Us For Availability
13
PLUG BUTTON, HINGE CUP (ALM) WPL 61001909 Contact Us For Availability
13
PAN, MEAT WPL 61002581 Contact Us For Availability
13
COVER, ICE MAKER WPL 61001239 Contact Us For Availability
13
DRIER WPL 139001 Contact Us For Availability
13
SCREW WPL 40001735 Contact Us For Availability
13
BRACKET, EVAPORATOR WPL 61001951 Contact Us For Availability
13
TENSIONER, BELT WPL 61002289 Contact Us For Availability
14
FRAME, HANDLE WPL 61002151 Contact Us For Availability
14
SCREW WPL 4000171 Contact Us For Availability
14
SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability
14
CLAMP, TUBING WPL 535168 Contact Us For Availability
14
CLIP, WATER LINE (ADHESIVE) WPL 61001889 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
EVAP/HEAT EXCH. ASSY. 21 & 24` WPL 12001398 Contact Us For Availability
14
PLUG BUTTON, HINGE (ALM) WPL 61001924 Contact Us For Availability
14
GEAR, DAMPER BELT (FRT) WPL 61002291 Contact Us For Availability
15
PLUG BUTTON (ALM) WPL 61001796 Contact Us For Availability
15
HANDLE (ALM) WPL 61002150 Contact Us For Availability
15
TRIM, HANDLE EXT. (ALM) WPL 61002323 Contact Us For Availability
15
SCREW, ROLLER WPL 61002308 Contact Us For Availability
15
SCREW WPL 4050071 Contact Us For Availability
15
TIMER, DEFROST WPL 682333 Contact Us For Availability
16
ROLLER WPL 61002307 Contact Us For Availability
16
CLAMP, SPRING WPL 603334 Contact Us For Availability
16
PAN, DRAIN WPL 61001955 Contact Us For Availability
16
FASTENER, DRAIN PAN WPL 61002958 Contact Us For Availability
16
SHELF, FRZ. WPL 61002628 Contact Us For Availability
16
BASE, EXTENSION WPL 61002325 Contact Us For Availability
16
SHIELD, HEAT (LT) WPL 61002296 Contact Us For Availability
16
SHIELD, HEAT (RT) WPL 61002297 Contact Us For Availability
16
HOUSING, CONTROL WPL 61002298 Contact Us For Availability
17
TUBE WPL 675796 No Longer Available
17
SUPPORT, SHIM WPL 61002324 Contact Us For Availability
17
SLIDE, CONTROL WPL 61002310 Contact Us For Availability
17
PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability
17
FRAME, HANDLE WPL 61002326 Contact Us For Availability
17
SLIDE, CONTROL (F.F.) WPL 61002294 Contact Us For Availability
18
SEAL, SIDE WPL 61002312 Contact Us For Availability
18
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
CAP, FILL TUBE WPL 61002026 Contact Us For Availability
18
COVER, UPPER HINGE (ALM) WPL 61002077 Contact Us For Availability
18
GEAR, DAMPER BELT (REAR) WPL 61002292 Contact Us For Availability
19
SEAL, DRAIN WPL 61001977 Contact Us For Availability
19
SHIM, HANDLE WPL 679341 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
CAP, I/M WIRE HARNESS WPL 61002027 Contact Us For Availability
20
FRONT, CRISPER PAN (RT) WPL 61002578 Contact Us For Availability
20
FRONT, CRISPER PAN (LT) WPL 61002579 Contact Us For Availability
20
THERMOSTAT WPL 950921 Contact Us For Availability
20
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
20
ISOLATOR, CONDENSER WPL 61001974 Contact Us For Availability
20
CAP, WATER ENTRY WPL 61002028 Contact Us For Availability
20
WIRE HARNESS, CONTROLS WPL 61002316 Contact Us For Availability
21
SLEEVE, BRASS WPL 694311 Contact Us For Availability
21
COVER, COMPRESSOR COMPARTMENT WPL 61002518 Contact Us For Availability
21
SCREW WPL 6527549 Contact Us For Availability
21
PAN, ICE WPL 61002267 Contact Us For Availability
22
PAN, COMPRESSOR MTG. WPL 61002519 Contact Us For Availability
22
SCREW WPL 4000191 Contact Us For Availability
22
SHELF, ICE TRAY WPL 61002268 Contact Us For Availability
22
SUPPORT, DIVIDER WPL 671491 Contact Us For Availability
23
TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability
23
RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability
24
KICKPLATE W/CLIPS (ALM) WPL 61002537 Contact Us For Availability
24
BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability
25
CLIP, KICKPLATE WPL 61001975 Contact Us For Availability
25
LEG, FRZ. SHELF WPL 61002270 Contact Us For Availability
26
SCREW WPL 4000161 Contact Us For Availability
26
WHEEL ASSY. (FRT) WPL 61002066 Contact Us For Availability
26
BULB, LIGHT WPL 319561 Contact Us For Availability
28
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
29
LEG, LEVELING WPL 61002014 Contact Us For Availability
29
SHIELD, LIGHT WPL 61002272 Contact Us For Availability
30
MANUAL, USE & CARE WPL 61002516 Contact Us For Availability
30
TRIM, FRZ. SHELF WPL 61002587 Contact Us For Availability
31
MANUAL, SERVICE-NO REFUND WPL 16008248 Contact Us For Availability
32
WIRE HARNESS, FRZ. WPL 61003004 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002139 Contact Us For Availability
× ![]()
