Model LG MT4210SLQ – Common Parts & Diagrams
Diagram 0

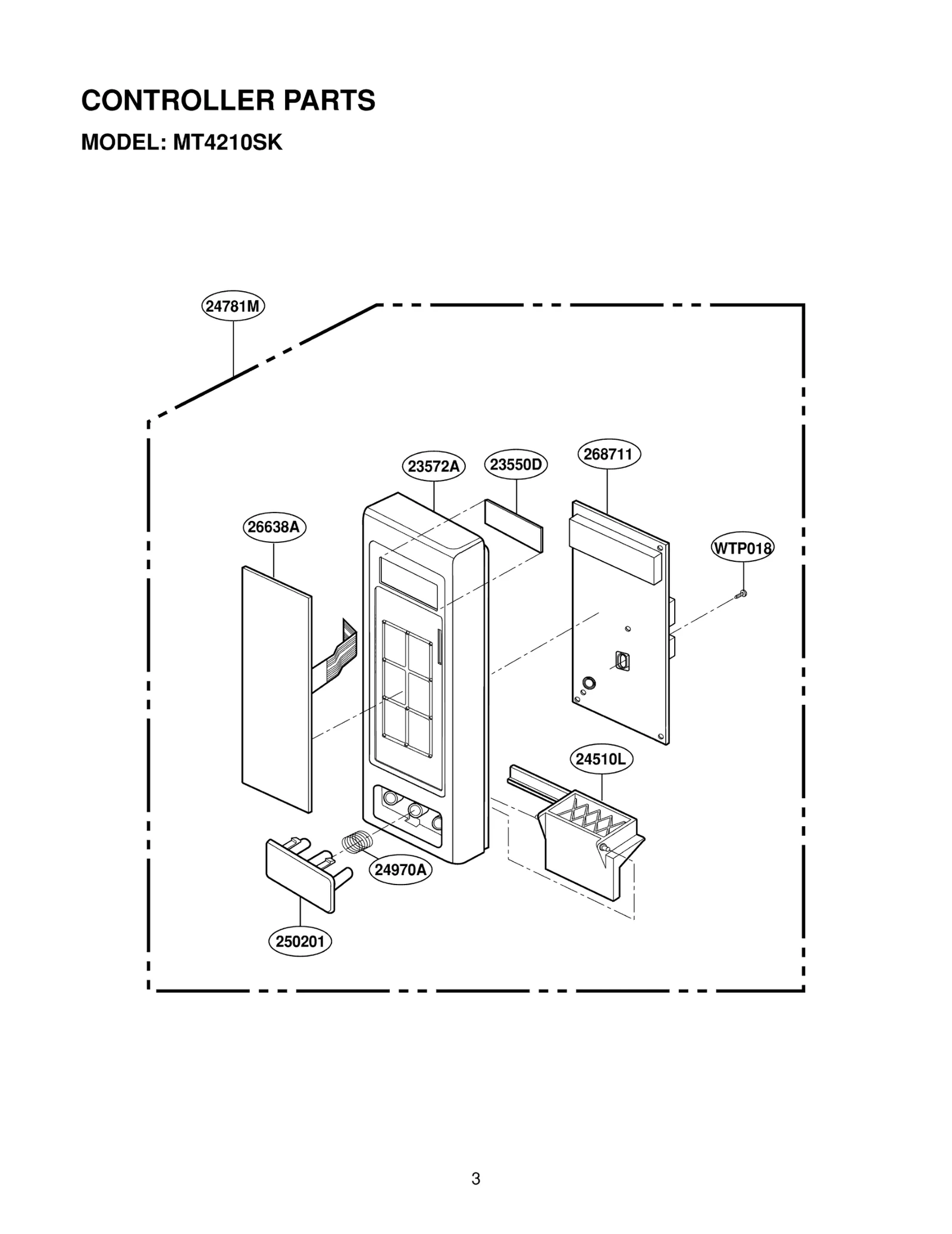

Diagram 1

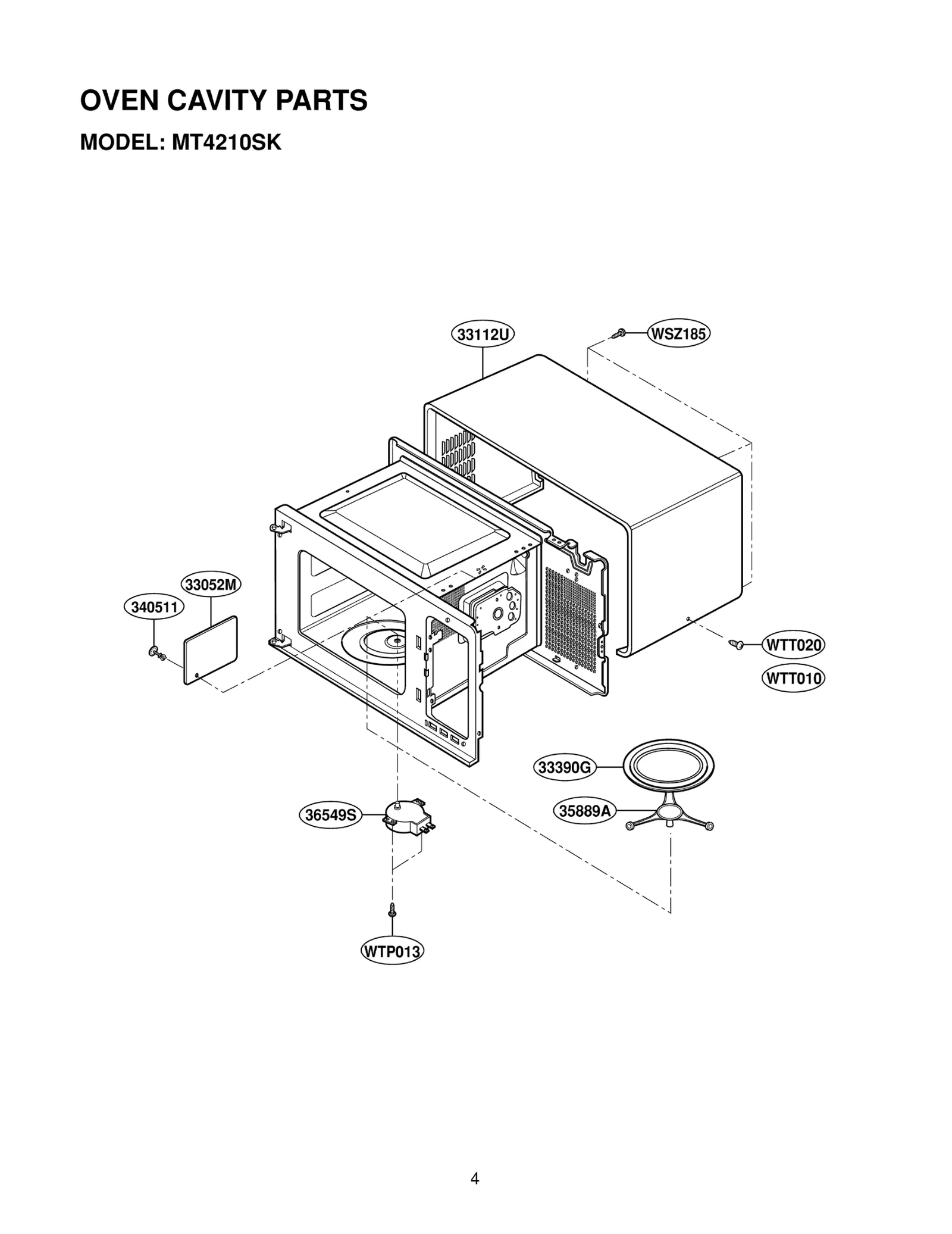

Diagram 2

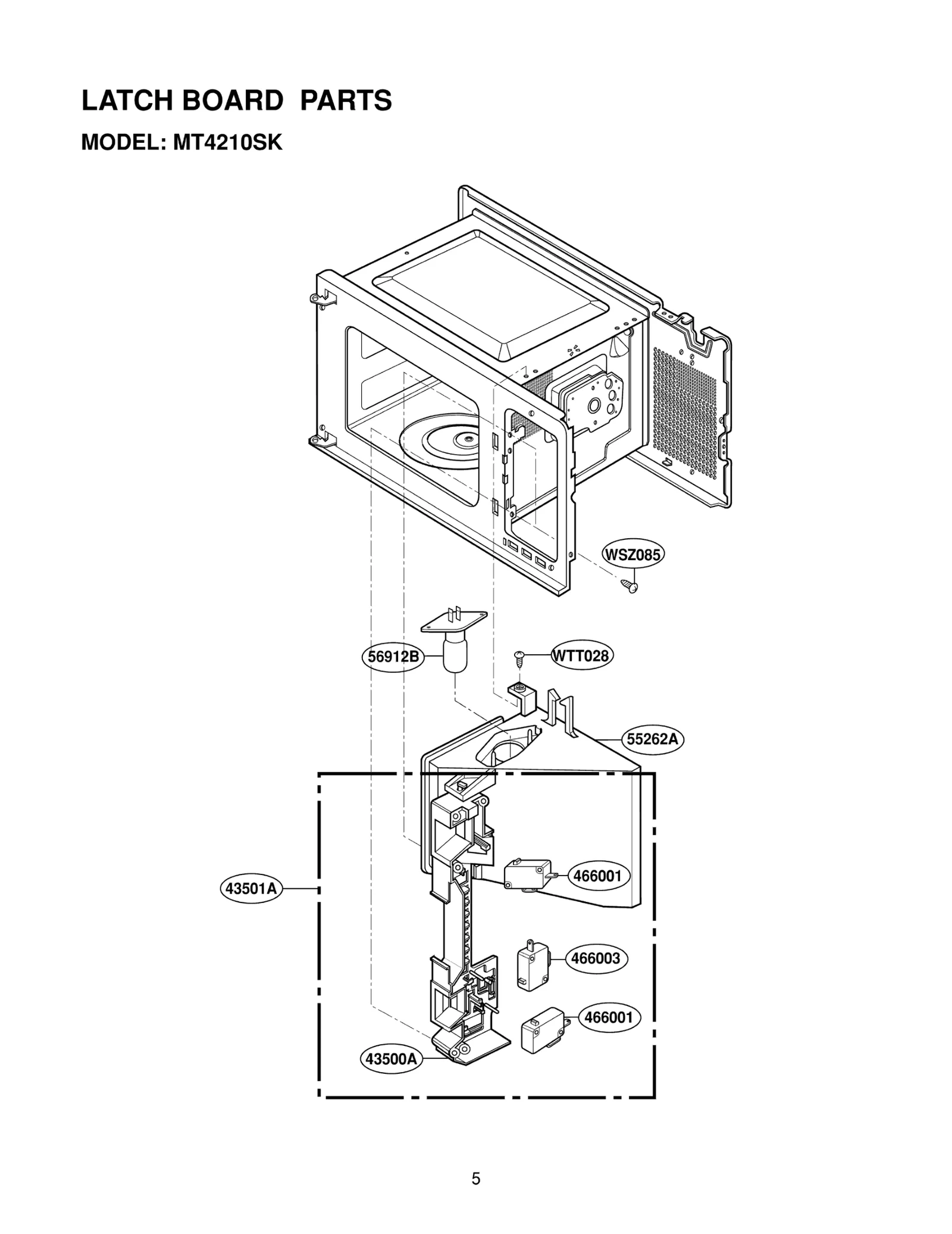

Diagram 3

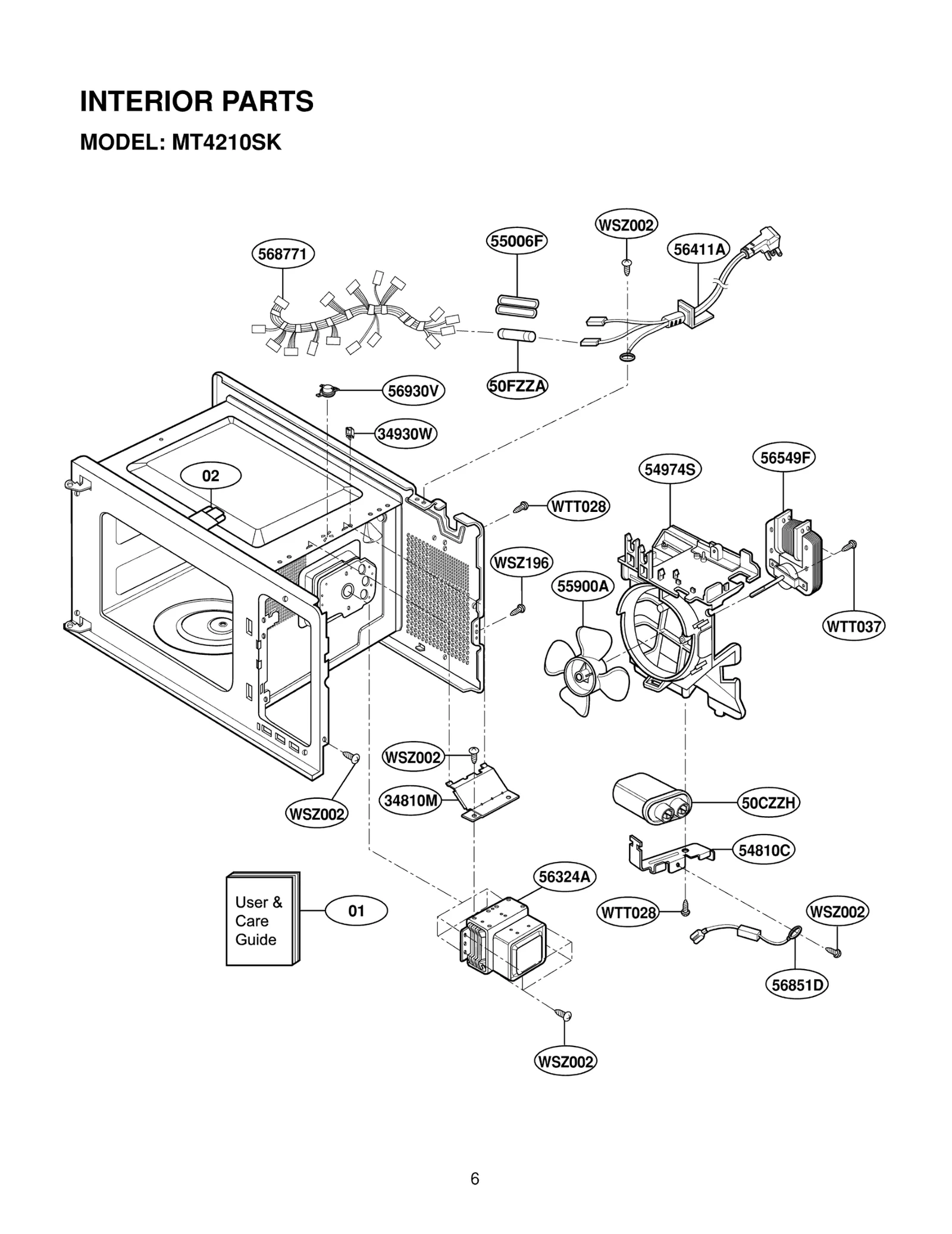

Diagram 4

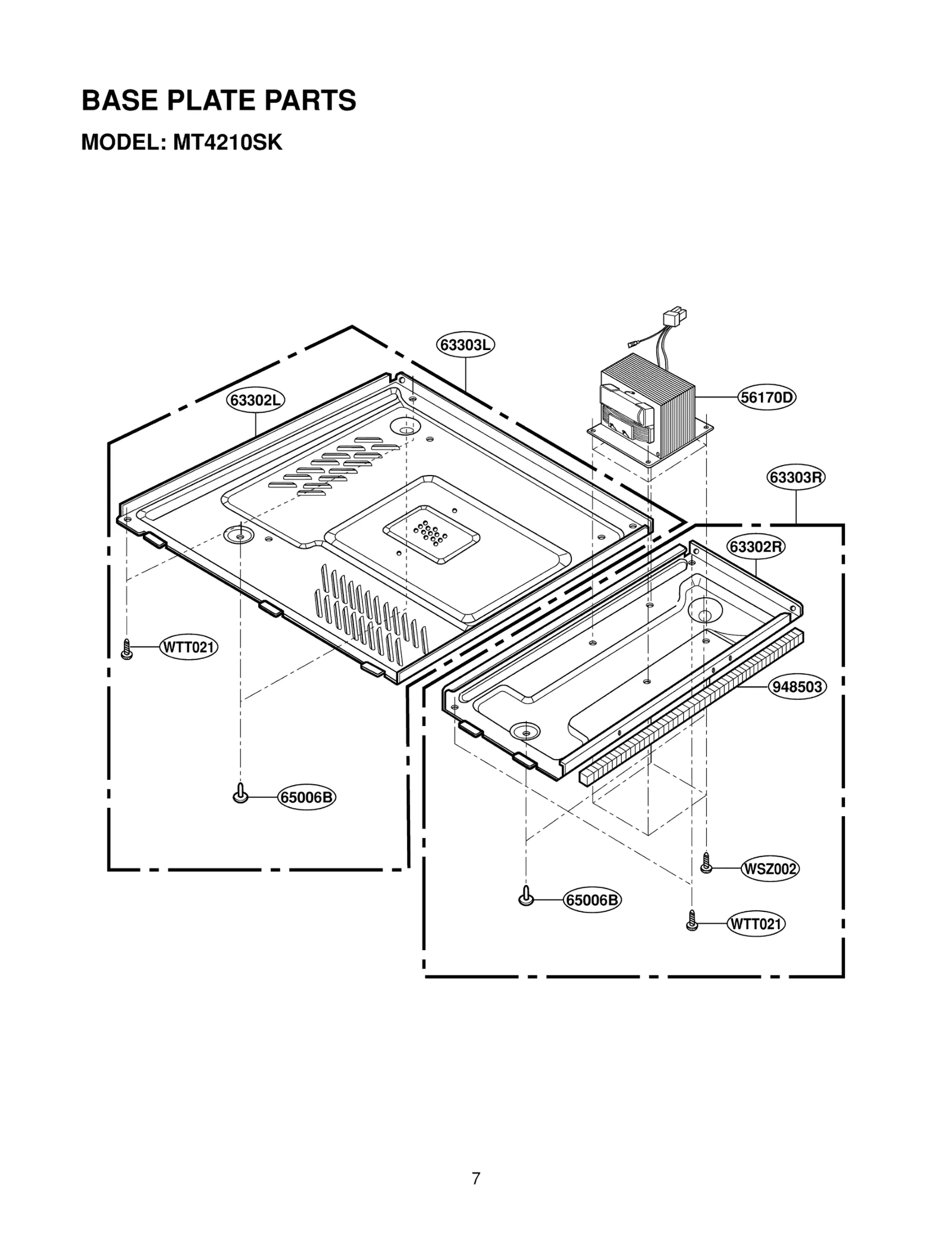

Diagram 5
Diagram 6
Common parts from model LG MT4210SLQ
*01
MANUAL,OWNERS LGE 3828W5A2461 Contact Us For Availability
*05
LABEL,COOKING GUIDE LGE 3850W1D015A Contact Us For Availability
*07
CARD,TECHNICAL LGE 3840W5T117A Contact Us For Availability
*10
BOX,[WHITE] LGE 3890W3W189B Contact Us For Availability
26638A
KEY MEMBRANE LGE 6638W1A087A Contact Us For Availability
33052M
CANOPY,MICA LGE 3052W3M011F Contact Us For Availability
33112U
OUT CASE,U-BENDING(BLUE WHITE LGE 3112W0U028H Contact Us For Availability
33390G
TRAY,[GLASS] LGE 3390W1G009C Contact Us For Availability
34810M
BRACKET,MWO LGE 4810W2G052A Contact Us For Availability
35012A
INSULATOR LGE 5012W3A020A Contact Us For Availability
35889A
ROTATING RING ASSY,M LGE 5889W2A011B Contact Us For Availability
36549S
MOTOR(CIRC),SYNCHRONOUS LGE 6549W1S015A Contact Us For Availability
43500A
BOARD,LATCH LGE 3500W1A008A Contact Us For Availability
43501A
Holder Assembly,Locker LGE 3501W1A003S Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54974S
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
55006F
FUSE CAP NATURAL MA-1554M MW LGE 5006WRA002A Contact Us For Availability
55262A
AIR DUCT LGE 5262W2A043B Contact Us For Availability
55900A
PROPELLER MA-1172M MS-155AM LGE 2B72125B Contact Us For Availability
56170D
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D023P Contact Us For Availability
56411E
POWER CORD ASSY LGE 383EW5A113A Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 6549W1F005B Contact Us For Availability
56930V
THERMOSTAT HORIZONTAL 90/75,PA LGE 6930WRT001C Contact Us For Availability
63302A
Plate,Base LGE 3302W0A014A Contact Us For Availability
63302R
LGE 3302W1A046B LGE 3302W1A046B Contact Us For Availability
63303L
BASE PLATE ASSY,MWO LGE 3303W0A010A Contact Us For Availability
63303R
BASE PLATE ASSY LGE 3303W1A040B Contact Us For Availability
268711
PWB(PCB) ASSEMBLY,SUB LGE 6871W1S082D Contact Us For Availability
568771
LEAD WIRE ASSY LGE 6877W1A187F Contact Us For Availability
948501
LGE 4850W4C001H LGE 4850W4C001H Contact Us For Availability
C1
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1020K518 Contact Us For Availability
C11
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4776H618 Contact Us For Availability
C12
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C13
CAPACITOR ELECTROLYTIC LGE 0CE1076D638 Contact Us For Availability
C15
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C16
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C20
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
CN1
CONNECTOR (CIRC),WAFER LGE 6630W5YA12D Contact Us For Availability
CN3
KEY CONNECTOR FCZ254-12D MH-13 LGE 6630W5YA19D Contact Us For Availability
CU1
CUSHION DIGITRON 5MM MS-91BRV LGE 4850W4C001B Contact Us For Availability
D12
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D85
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
DP1
DIGITRON, ALL LGE 6302W5A002A Contact Us For Availability
PT1
POWER TRANS 120/60 UL,18V/9 SE LGE 6010W2P037A Contact Us For Availability
Q20
TRANSISTOR,BIPOLARS LGE 0TRFC90012A Contact Us For Availability
Q30
TRANSISTOR,BIPOLARS LGE 0TRFC80002A Contact Us For Availability
Q32
TRANSISTOR,BIPOLARS LGE 0TRFC90002A Contact Us For Availability
Q50
TRANSISTOR,BIPOLARS LGE 0TRFC90021A Contact Us For Availability
R1
RESISTOR,FIXED METAL FILM LGE 0RN7502F408 Contact Us For Availability
R5
RESISTOR,FIXED METAL FILM LGE 0RN4702F408 Contact Us For Availability
R6
RESISTOR,FIXED METAL FILM LGE 0RN4702G408 Contact Us For Availability
R11
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R12
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R15
LGE 0RD0471G608 LGE 0RD0471G608 Contact Us For Availability
R16
LGE 0RD1003G608 LGE 0RD1003G608 Contact Us For Availability
R21
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R23
LGE 0RD2700G608 LGE 0RD2700G608 Contact Us For Availability
R25
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R26
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R27
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R31
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R32
LGE 0RD2001G608 LGE 0RD2001G608 Contact Us For Availability
R50
Resistor,Carbon Film LGE 0RD4701G608 Contact Us For Availability
R55
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R71
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R83
RESISTOR,FIXED METAL FILM LGE 0RN5602F408 Contact Us For Availability
R84
LGE 0RN2202G408 LGE 0RN2202G408 Contact Us For Availability
R85
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R92
Resistor,Metal Film LGE 0RN4701F408 Contact Us For Availability
RY1
RELAY LGE 6920WRD008A Contact Us For Availability
RY2
RELAY LGE 6920W5A009A Contact Us For Availability
RY3
RELAY OJ-SS-112LM MA-693M MA-6 LGE 6920W2D010A Contact Us For Availability
U01
IC,DRAWING LGE 0IZZW5A164D Contact Us For Availability
WSZ202
SCREW,DRAWING LGE 1SZZW2A002D Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
ZD2
DIODE,ZENERS LGE 0DZ750009QA Contact Us For Availability
× ![]()
