Model LG MT3105SHB – Common Parts & Diagrams
Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7

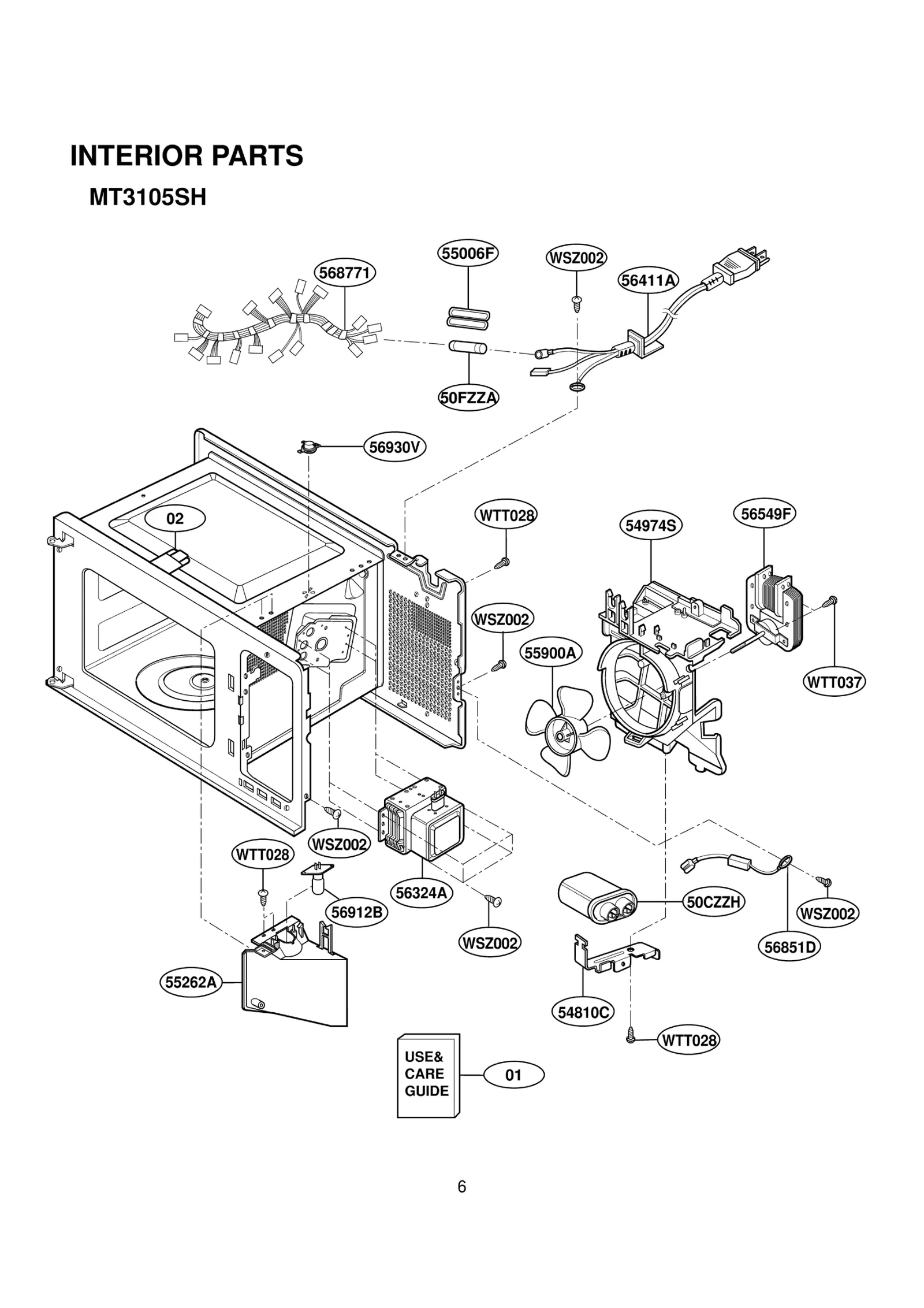

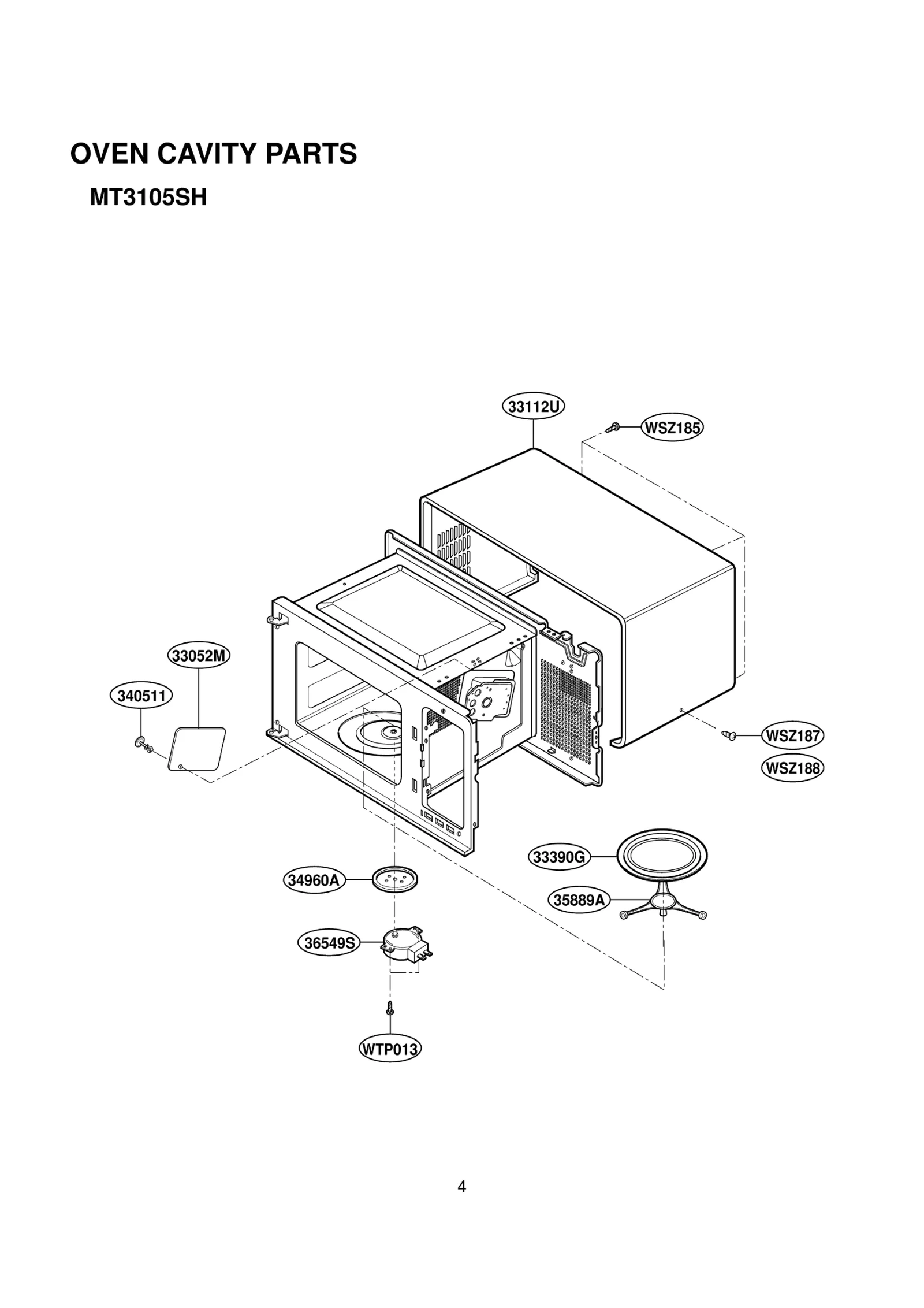

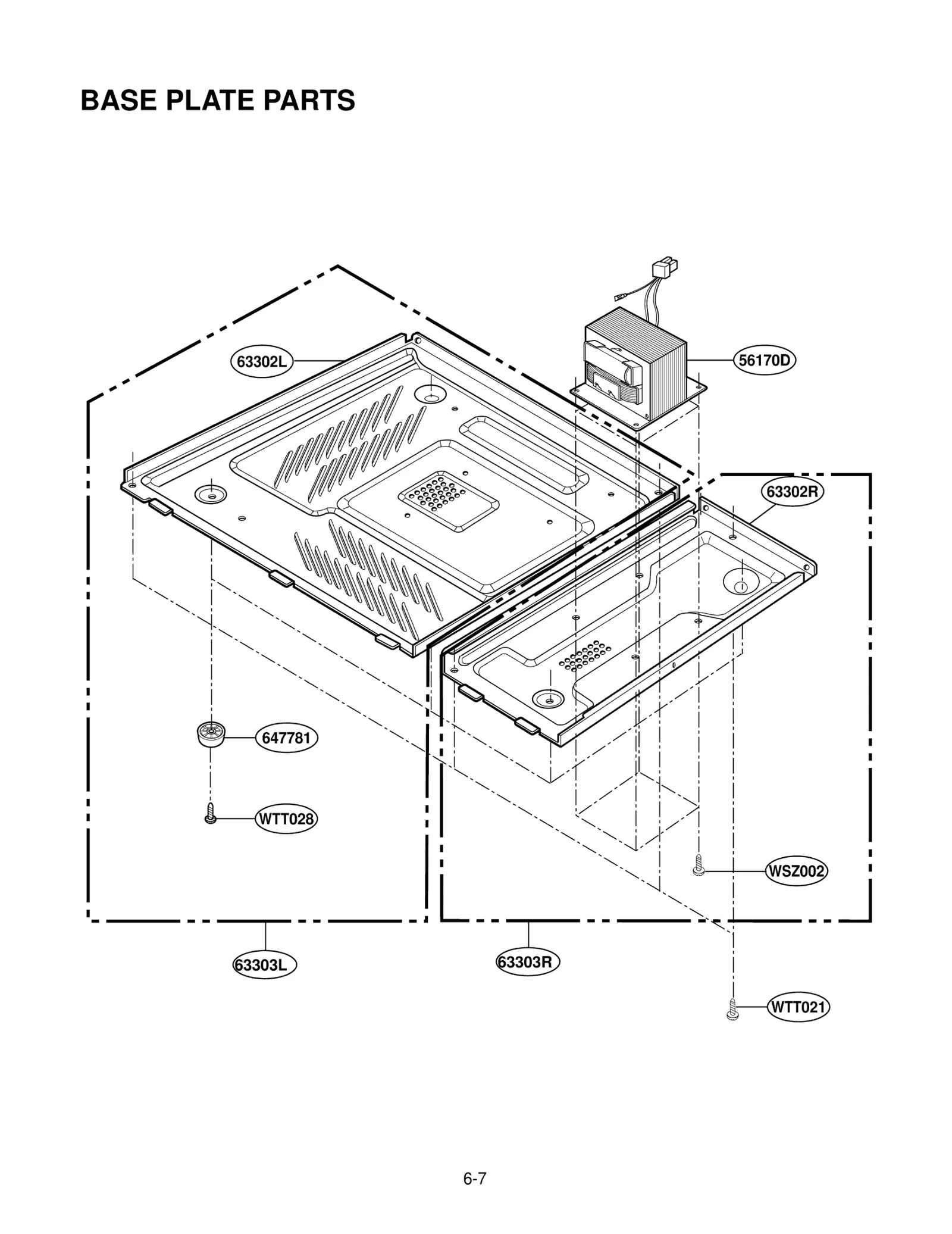

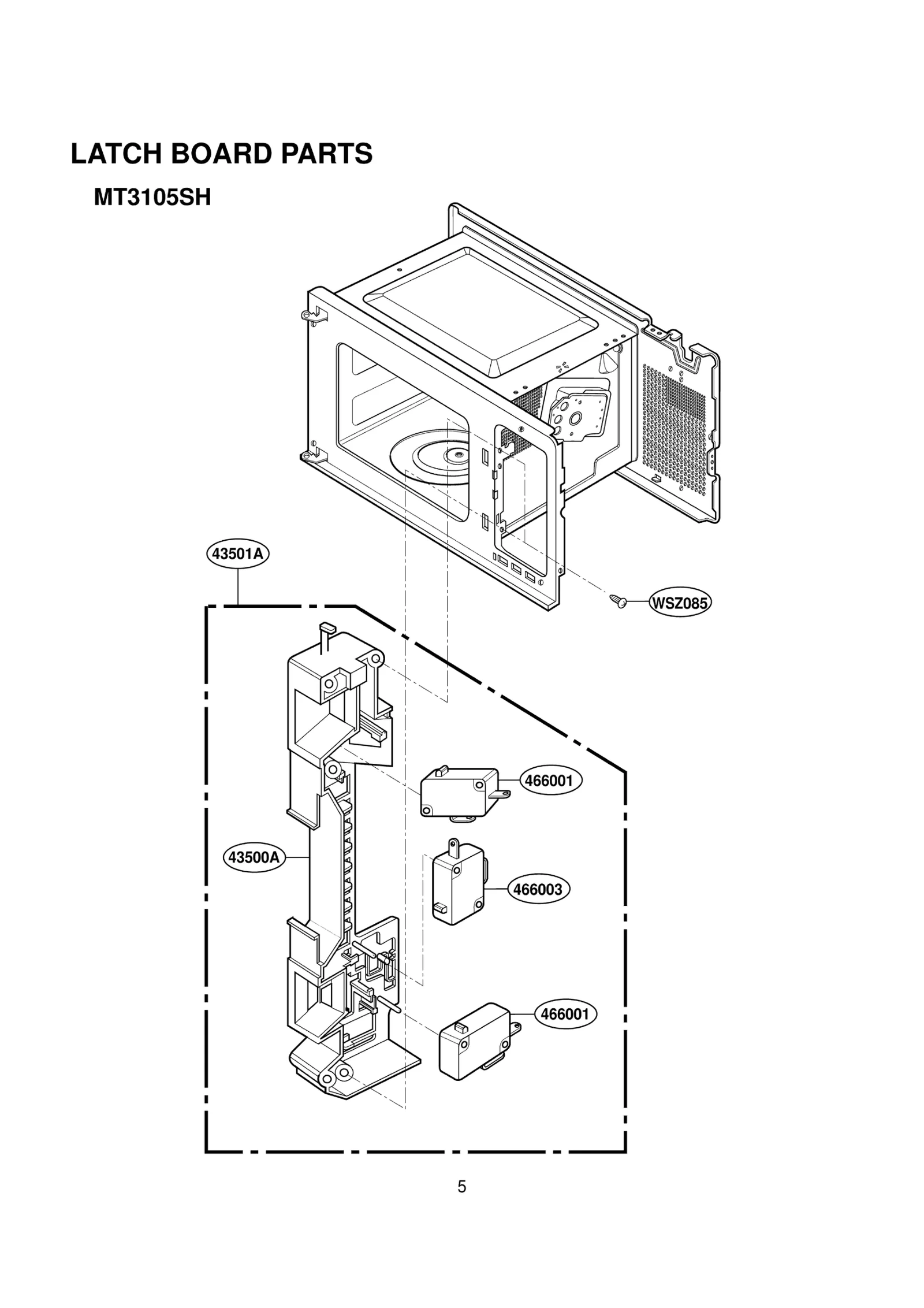

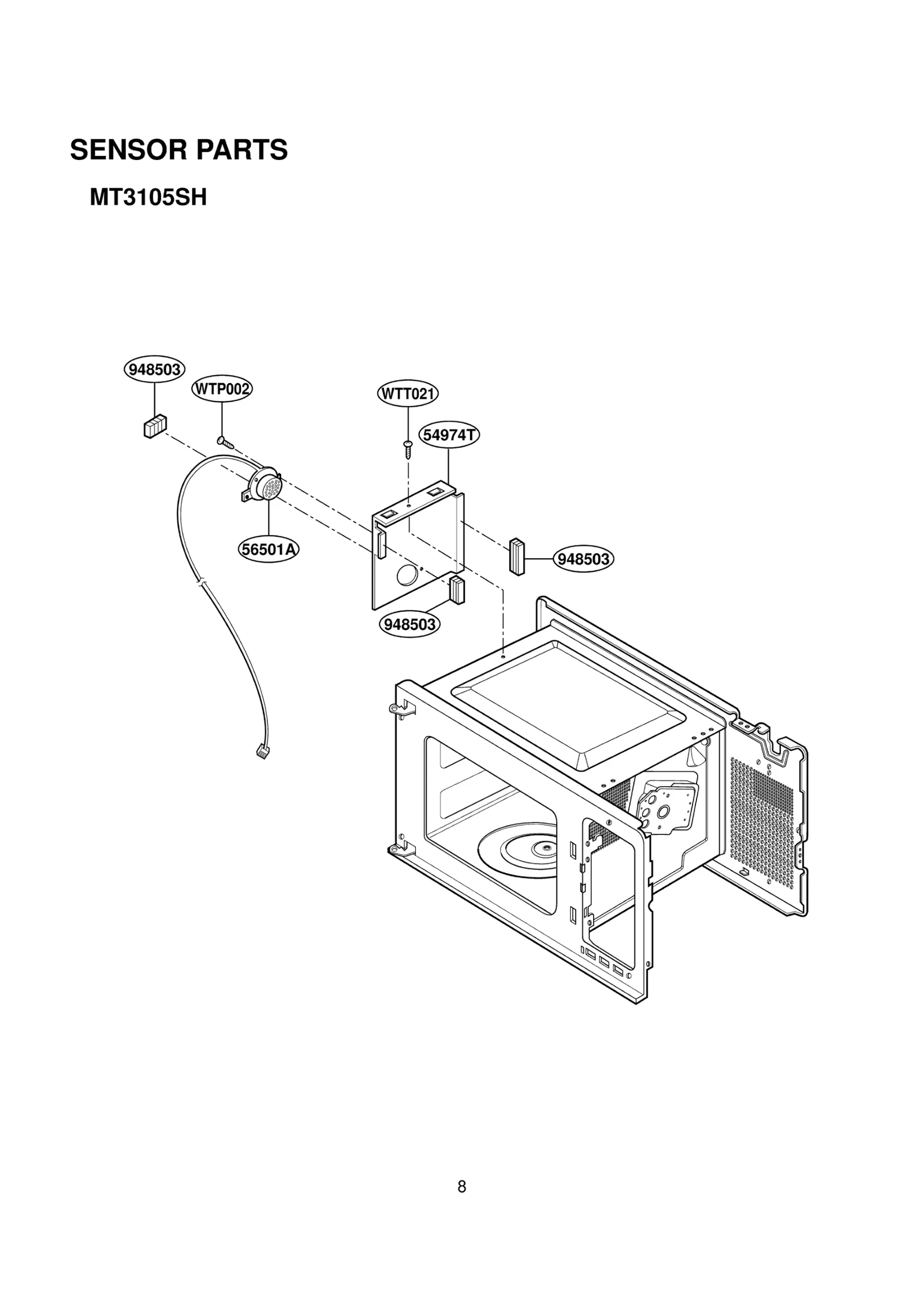

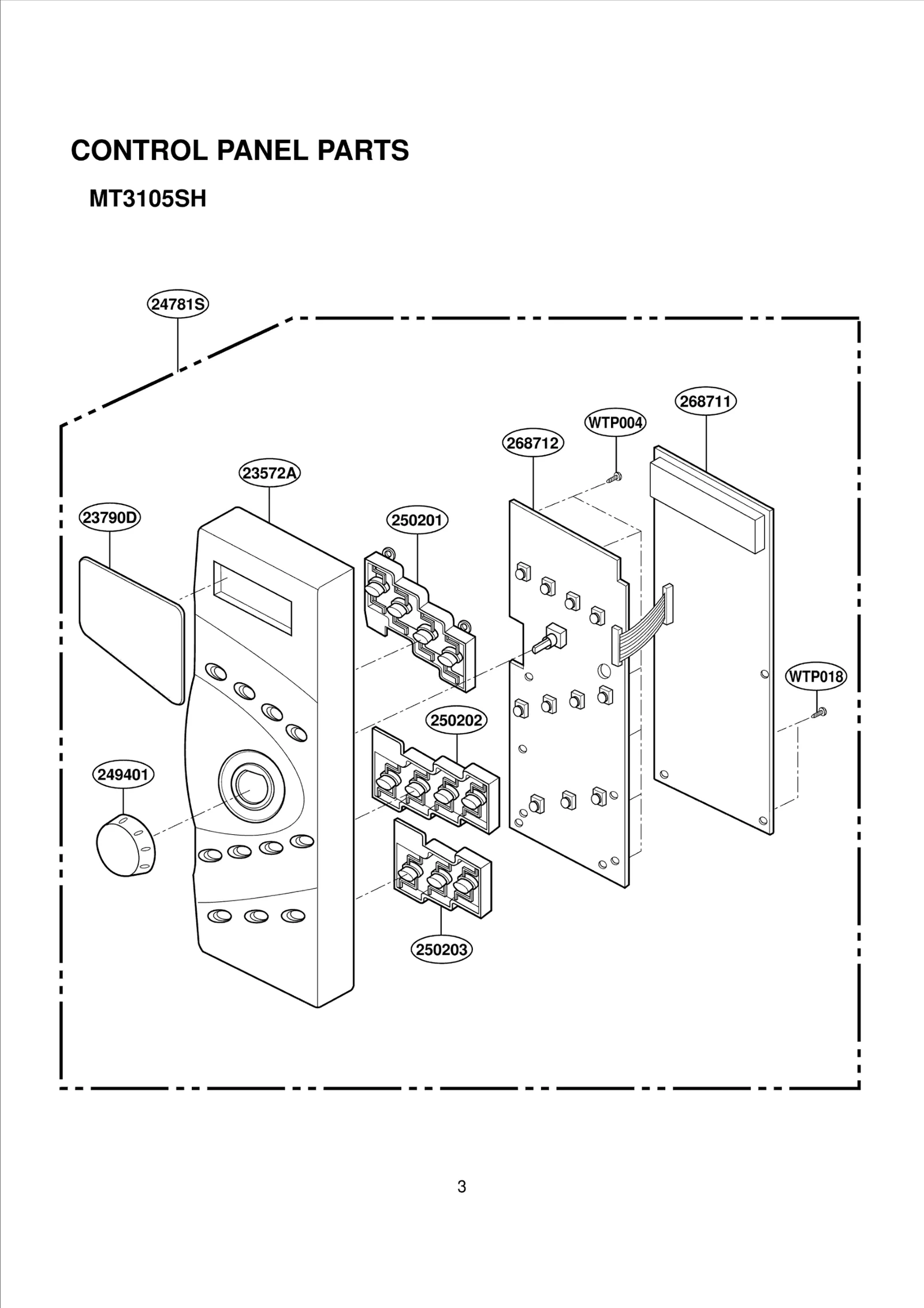

Common parts from model LG MT3105SHB
*01
LGE 3828W5A1143 LGE 3828W5A1143 Contact Us For Availability
*05
LABEL,[COOKING GUIDE] LGE 3850W3D018A Contact Us For Availability
*05
LABEL,[COOKING GUIDE] LGE 3850W3D019A Contact Us For Availability
*07
CARD,[TECHNICAL] LGE 3858W3T017F Contact Us For Availability
*10
BOX,[YELLOW] LGE 3890W3Y026A Contact Us For Availability
33052M
CANOPY,MICA LGE 3052W3M011C Contact Us For Availability
33112U
OUT CASE,U-BENDING LGE 3112W1U019E Contact Us For Availability
33390G
TRAY GLASS LGE 3390W1G003A Contact Us For Availability
34036W
SEAL,WATER LGE 4036W3W001A Contact Us For Availability
34960A
MOUNT ALL LGE 4960W3G026A Contact Us For Availability
35889A
ROTATING RING ASSY,M LGE 5889W2A011B Contact Us For Availability
36549S
MOTOR(CIRC),SYNCHRON LGE 6549W1S004C Contact Us For Availability
43500A
LATCH BOARD LGE 3500W1A005A Contact Us For Availability
43501A
BOARD ASSY,LATCH LGE 3501W1A016F Contact Us For Availability
44510A
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54974S
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
54974T
Guide,Sensor LGE 5208W1A001C Contact Us For Availability
55006F
FUSE CAP NATURAL MA-1554M MW LGE 5006WRA002A Contact Us For Availability
55262A
AIR DUCT LGE 5262W2A041C Contact Us For Availability
55900A
PROPELLER LGE 2B72125A Contact Us For Availability
56170D
Transformer,high voltage LGE 6170W1D012G Contact Us For Availability
56324A
MAGNETRON LGE 6324W1A001A Contact Us For Availability
56411A
POWER CORD ASSY LGE 6411W1A002M Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 6549W1F005B Contact Us For Availability
56930V
LGE 6930WRT002C LGE 6930WRT002C Contact Us For Availability
63302L
BASE PLATE ALL LGE 3302W1A036A Contact Us For Availability
63302R
BASE PLATE LGE 3302W1A035G Contact Us For Availability
63303L
BASE PLATE ASSY,ALL LGE 3303W1A028A Contact Us For Availability
63303R
BASE PLATE ASSY,MWO LGE 3303W2A004E Contact Us For Availability
268711
LGE 6871W2S084U LGE 6871W2S084U Contact Us For Availability
268712
PWB(PCB) ASSY,[KEY] LGE 6871W2S116A Contact Us For Availability
568771
LEAD WIRE ASSY LGE 6877W1A182A Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
948501
HINGE PLATE-U SCP 2.5T MV-1006 LGE 3B72244A Contact Us For Availability
948505
CUSHION LGE 4B73438A Contact Us For Availability
AR4
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C02
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C06
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C07
CAPACITOR ELECTROLYTIC 4.7M SM LGE 0CE4756K638 Contact Us For Availability
C11
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C13
CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability
C20
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
CN01
LGE 6631W3YA16E LGE 6631W3YA16E Contact Us For Availability
CN1
CONNECTOR (CIRC) WAF LGE 6630W5V021A Contact Us For Availability
CN1
CONNECTOR (CIRC),WAFER LGE 6630W5V025A Contact Us For Availability
CN3
LGE 6630W5YA35C LGE 6630W5YA35C Contact Us For Availability
CN4
CONNECTOR (CIRC) LGE 6630W5V013A Contact Us For Availability
CU4
CUSHION DIGITRON 5MM MS-91BRV LGE 4850W4C001B Contact Us For Availability
D37
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
DP1
DIGITRON, ALL LGE 6302W5A002A Contact Us For Availability
EN01
LGE 6024W5A0004 LGE 6024W5A0004 Contact Us For Availability
PT1
TRANSFORMER POWER 120V/60HZ,14 LGE 6010W2P043A Contact Us For Availability
Q01
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q30
TRANSISTOR LGE 0TR320209BA Contact Us For Availability
Q31
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
R01
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R13
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R31
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R33
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R61
Resistor,Chip LGE 0RH2701L622 Contact Us For Availability
R62
Resistor,Chip LGE 0RH2003L422 Contact Us For Availability
R63
LGE 0RH1001L422 LGE 0RH1001L422 Contact Us For Availability
R67
LGE 0RH5101L422 LGE 0RH5101L422 Contact Us For Availability
R68
LGE 0RH4901L422 LGE 0RH4901L422 Contact Us For Availability
R70
RESISTOR,FIXED CARBON FILM LGE 0RD6600H602 Contact Us For Availability
R71
LGE 0RK1605A608 LGE 0RK1605A608 Contact Us For Availability
R72
LGE 0RK8004A608 LGE 0RK8004A608 Contact Us For Availability
R73
LGE 0RD4004G608 LGE 0RD4004G608 Contact Us For Availability
R74
LGE 0RD2004G608 LGE 0RD2004G608 Contact Us For Availability
R76
Resistor,Carbon Film LGE 0RD5103F608 Contact Us For Availability
R77
LGE 0RD2703F608 LGE 0RD2703F608 Contact Us For Availability
R78
Resistor,Carbon Film LGE 0RD1503F608 Contact Us For Availability
R103(NON D
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R110(EMCR
Resistor,Carbon Film LGE 0RD4701G608 Contact Us For Availability
RY1
RELAY LGE 6920W5A008A Contact Us For Availability
RY2
RELAY OZF-S-112LM1P DC12V MV-1 LGE 6920W2YD04A Contact Us For Availability
SL1
PWB(PCB) ASSY,SUB LGE 6871W2S091A Contact Us For Availability
SW10
SWITCH,TACT LGE 6600W5R004A Contact Us For Availability
U01
LGE 0IZZW5A016A LGE 0IZZW5A016A Contact Us For Availability
U05
IC,SAMSUNG ELECTRONICS LGE 0ISS791500A Contact Us For Availability
ZD1
LGE 0DZ510009AA LGE 0DZ510009AA Contact Us For Availability
ZD2
LGE 0DZ750009BB LGE 0DZ750009BB Contact Us For Availability
× ![]()
