Model LG MT2145SJQ – Common Parts & Diagrams
Diagram 0

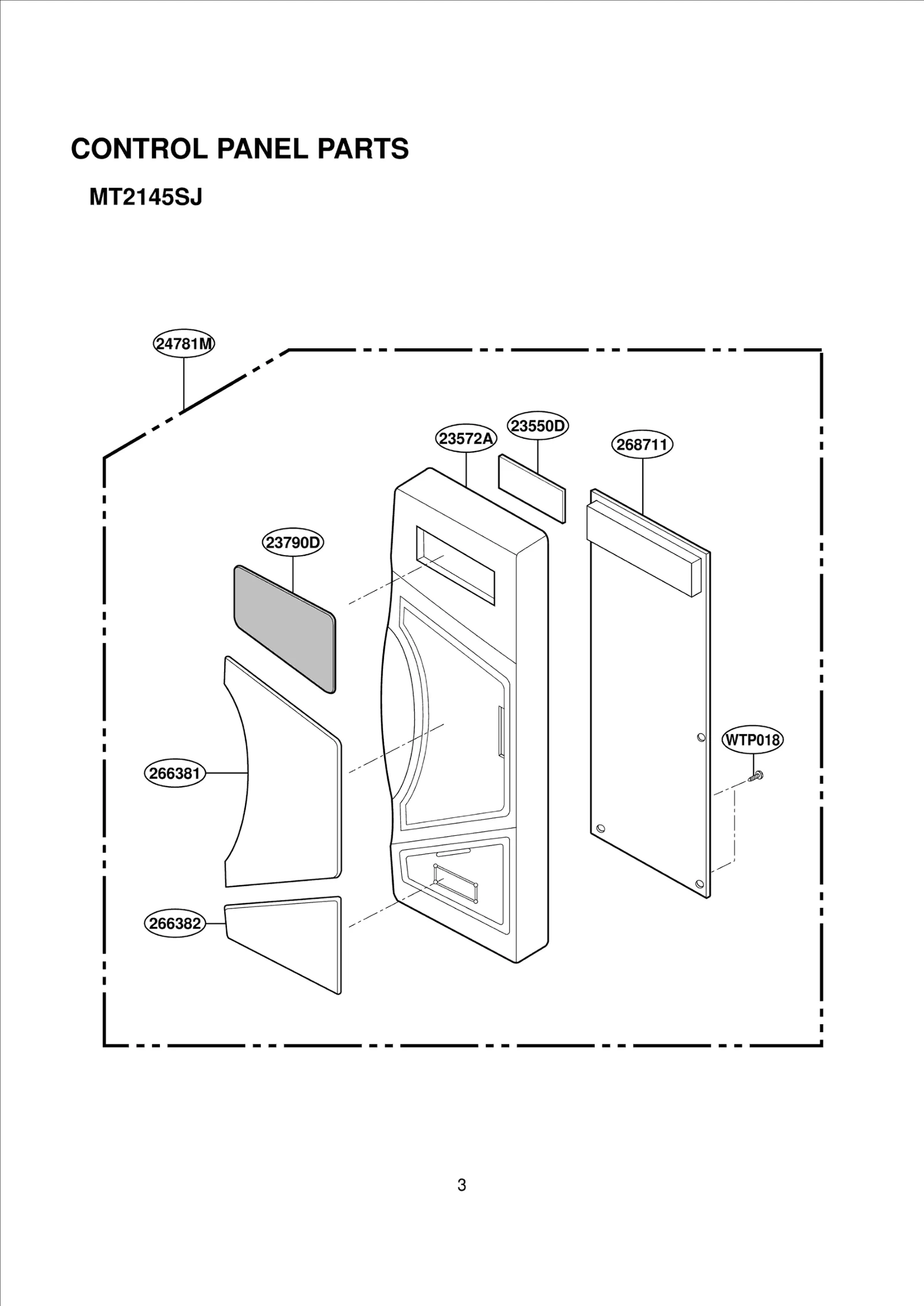

Diagram 1

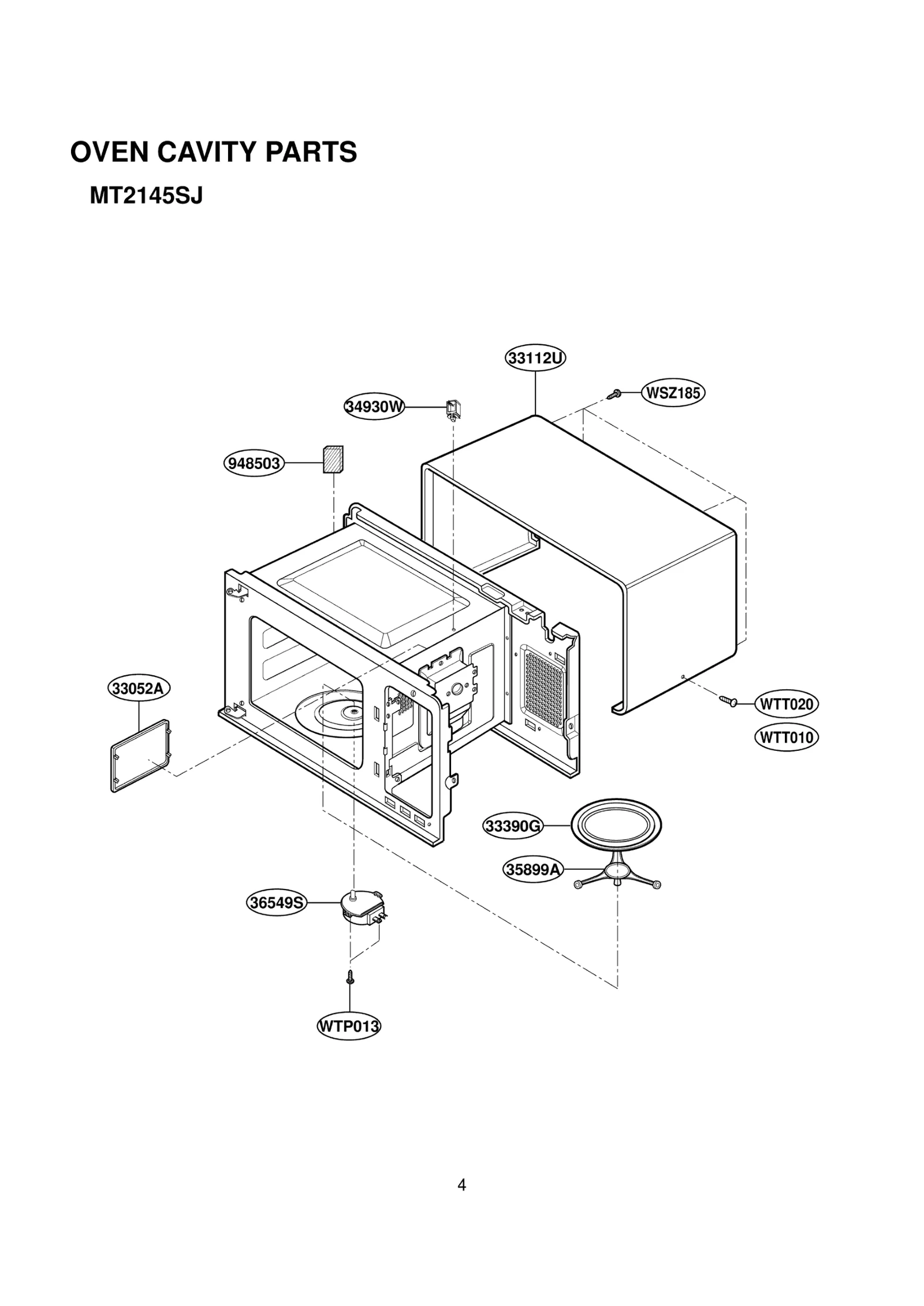

Diagram 2

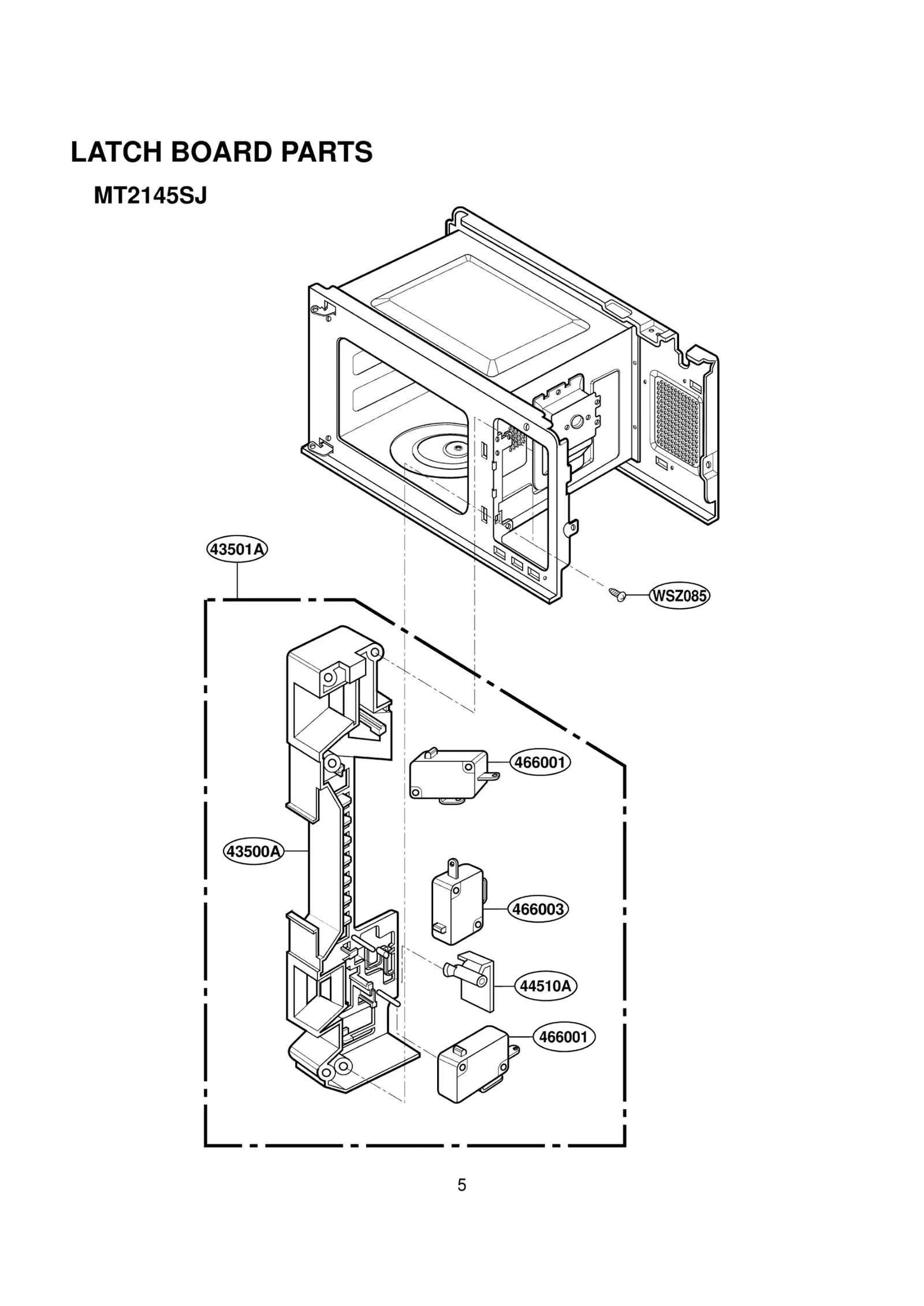

Diagram 3

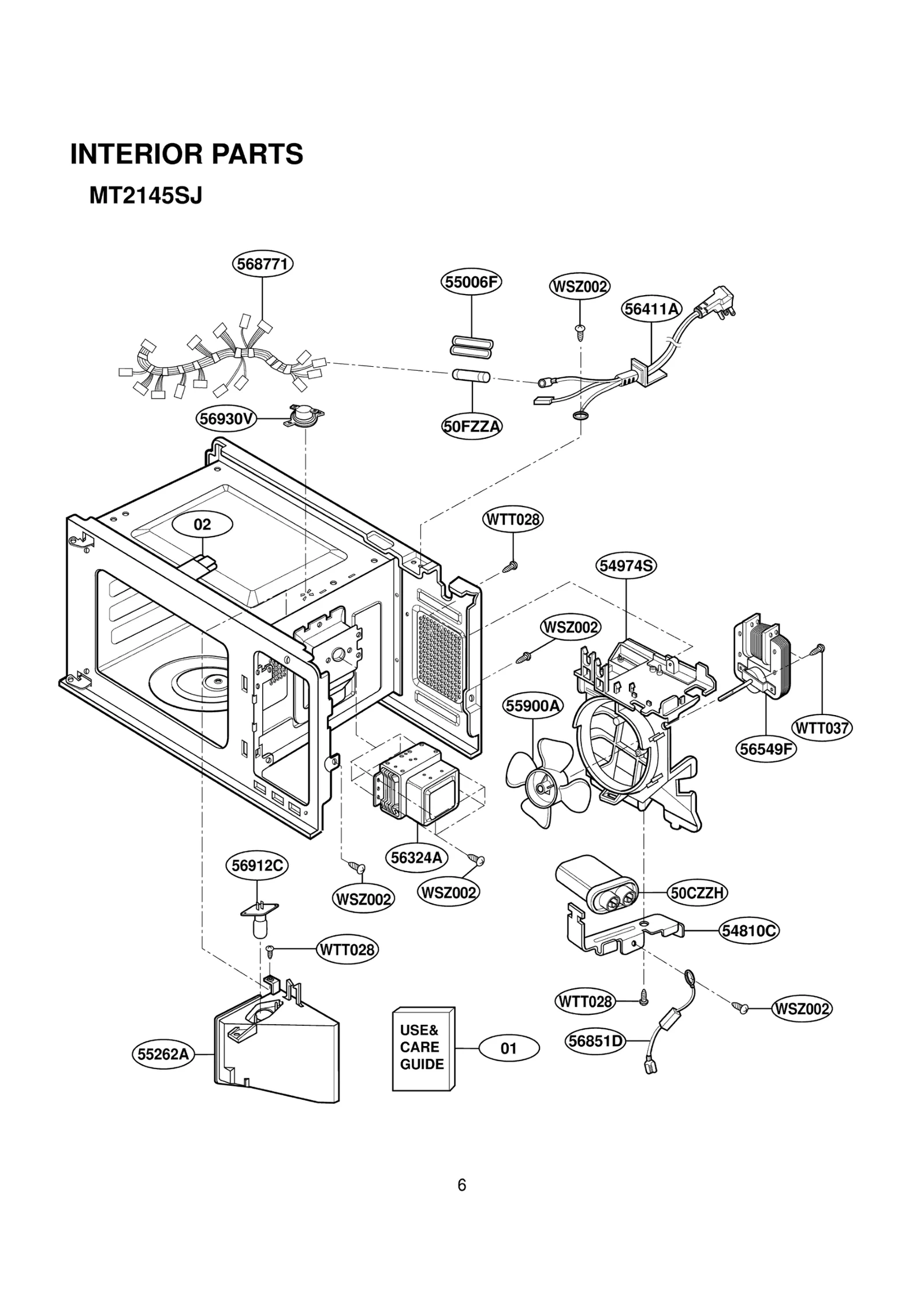

Diagram 4

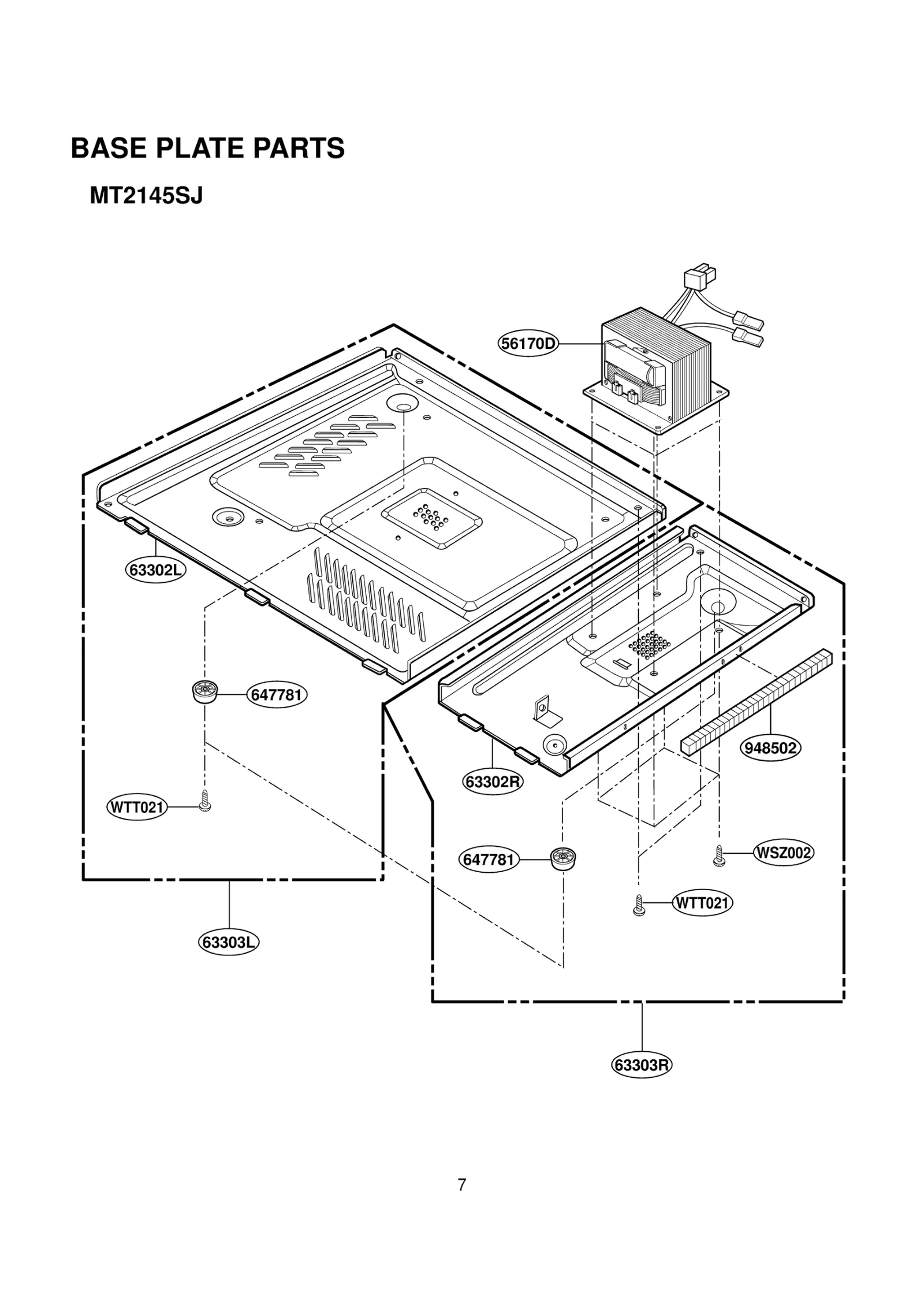

Diagram 5

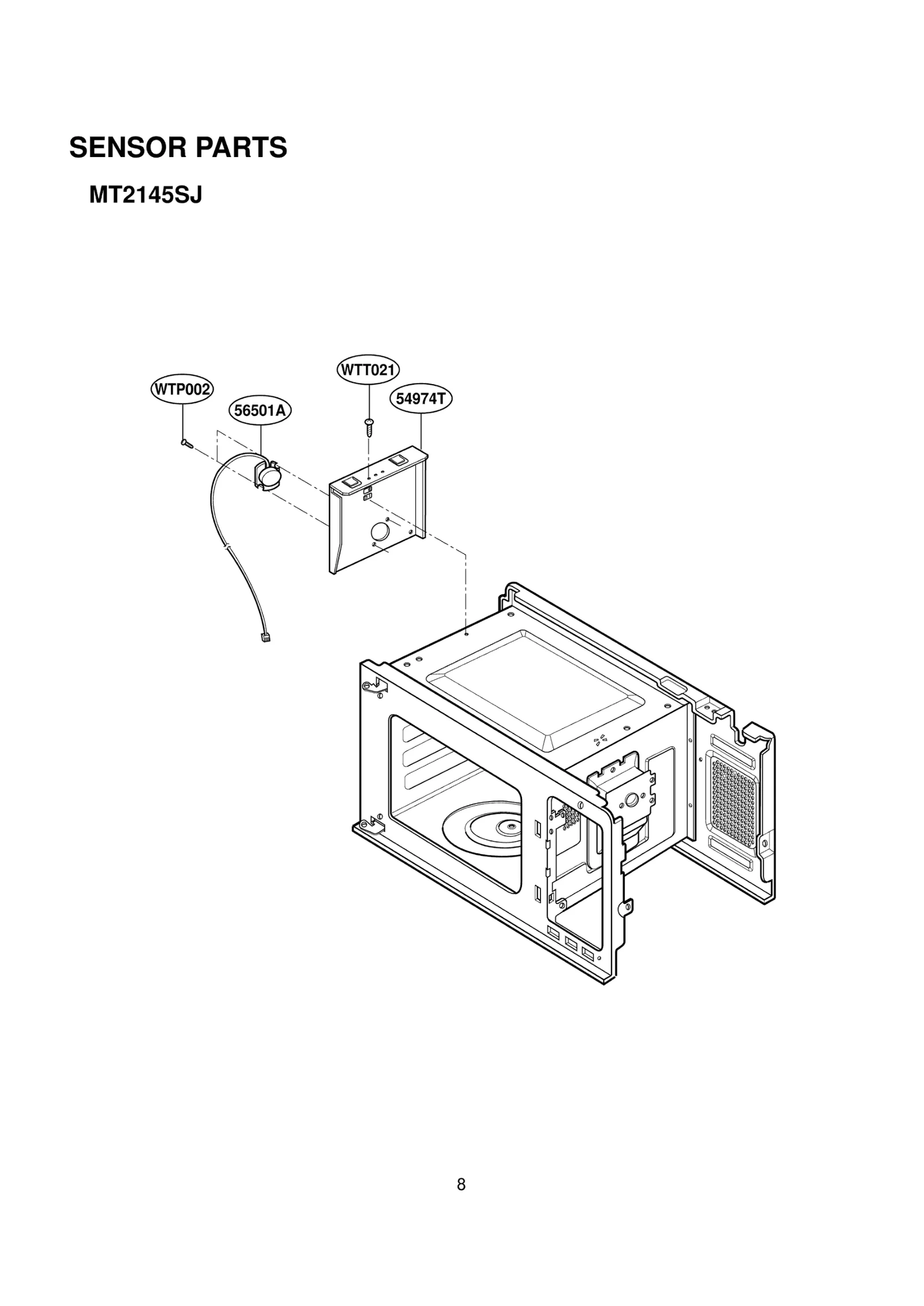

Diagram 6
Diagram 7
Common parts from model LG MT2145SJQ
*01
LGE 3828W5A1485 LGE 3828W5A1485 Contact Us For Availability
*05
LGE 3850W3D046B LGE 3850W3D046B Contact Us For Availability
*05
LABEL,[COOKING GUIDE] LGE 3850W3D046A Contact Us For Availability
*07
LGE 3840W5T083A LGE 3840W5T083A Contact Us For Availability
*10
BOX,[WHITE] LGE 3890W3W079A Contact Us For Availability
23790D
WINDOW,DIGITRON LGE 3790W2D020A Contact Us For Availability
24781M
CONTROLLER ASSY,[MICOM] LGE 4781W1M238A Contact Us For Availability
33112U
OUT CASE U-BENDING LGE 3112W0U006U Contact Us For Availability
33390G
TRAY GLASS LGE 3390W1G004A Contact Us For Availability
35889A
ROTATING RING ASSY,M LGE 5889W2A011B Contact Us For Availability
43500A
LATCH BOARD LGE 3500W1A005A Contact Us For Availability
43501A
BOARD ASSY,LATCH LGE 3501W1A016F Contact Us For Availability
44510A
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54974S
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
54974T
LGE 5208W1A004B LGE 5208W1A004B Contact Us For Availability
54980A
LGE 4980W3A039A LGE 4980W3A039A Contact Us For Availability
55006F
FUSE CAP NATURAL MA-1554M MW LGE 5006WRA002A Contact Us For Availability
55262A
AIR DUCT LGE 5262W2A043B Contact Us For Availability
55900A
PROPELLER LGE 2B72125A Contact Us For Availability
56170D
Transformer,high voltage LGE 6170W1D023B Contact Us For Availability
56411A
POWER CORD ASSY LGE 6411W1A018F Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 6549W1F001E Contact Us For Availability
56930V
THERMOSTAT,BIMETAL LGE 6930W1A001J Contact Us For Availability
63302L
BASE PLATE ALL LEFT,1.2CU.FT J LGE 3302W1A034A Contact Us For Availability
63302R
LGE 3302W1A033F LGE 3302W1A033F Contact Us For Availability
63303L
BASE PLATE ASSY,ALL LGE 3303W1A026A Contact Us For Availability
63303R
BASE PLATE ASSY,MWO LGE 3303W2A003G Contact Us For Availability
266381
LGE 6638W2A348B LGE 6638W2A348B Contact Us For Availability
266382
LGE 6638W2A355B LGE 6638W2A355B Contact Us For Availability
268711
PWB(PCB) ASSY,[MAIN] LGE 6871W2S194H Contact Us For Availability
568771
LEAD WIRE ASSY LGE 6877W1A187B Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
AR4
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C01
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C02
CAPACITOR ELECTROLYTIC LGE 0CE2276K618 Contact Us For Availability
C03
LGE 0CE1086H618 LGE 0CE1086H618 Contact Us For Availability
C07
CAPACITOR ELECTROLYTIC 4.7M SM LGE 0CE4756K638 Contact Us For Availability
C12
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C13
CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability
C20
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C81
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1020K518 Contact Us For Availability
CN1
CONNECTOR (CIRC) WAF LGE 6630W5V021A Contact Us For Availability
CN3
LGE 6630W5YA19C LGE 6630W5YA19C Contact Us For Availability
CN4
CONNECTOR (CIRC) LGE 6630W5V013A Contact Us For Availability
CN5
LGE 6630W5YA19F LGE 6630W5YA19F Contact Us For Availability
CU4
CUSHION DIGITRON 5MM MS-91BRV LGE 4850W4C001B Contact Us For Availability
D11
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D96
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
DP1
DIGITRON, ALL LGE 6302W5A002A Contact Us For Availability
PT1
TRANSFORMER POWER 120V/60HZ,14 LGE 6010W2P043A Contact Us For Availability
Q01
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q20
TRANSISTOR MA-885M SGESEA MA-1 LGE 0TR107009AD Contact Us For Availability
Q30
TRANSISTOR LGE 0TR320209BA Contact Us For Availability
Q31
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
R01
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R02
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R10
RESISTOR FIXED CARBON FILM /R LGE 0RD1000G608 Contact Us For Availability
R12
LGE 0RD0102G608 LGE 0RD0102G608 Contact Us For Availability
R13
LGE 0RD1003G608 LGE 0RD1003G608 Contact Us For Availability
R25
RESISTOR FIXED CARBON FILM LGE 0RD3901G608 Contact Us For Availability
R26
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R30
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R31
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R33
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R51
RESISTOR FIXED CARBON FILM 39 LGE 0RD3900F608 Contact Us For Availability
R62
LGE 0RN2003F408 LGE 0RN2003F408 Contact Us For Availability
R63
Resistor,Metal Film LGE 0RN1001F408 Contact Us For Availability
R64
RESISTOR FIXED CARBON FILM MV- LGE 0RD4702G608 Contact Us For Availability
R66
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R68
LGE 0RN1002F408 LGE 0RN1002F408 Contact Us For Availability
R74
RESISTOR FIXED CARBO LGE 0RD2004F608 Contact Us For Availability
R75
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R76
Resistor,Carbon Film LGE 0RD5103F608 Contact Us For Availability
R77
LGE 0RD2703F608 LGE 0RD2703F608 Contact Us For Availability
R78
LGE 0RD1503G608 LGE 0RD1503G608 Contact Us For Availability
R90
RESISTOR FIXED CARBON FILM 22 LGE 0RD2202G608 Contact Us For Availability
R96
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R103
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R200
Resistor,Carbon Film LGE 0RD3303F608 Contact Us For Availability
RY1
RELAY LGE 6920W5A008A Contact Us For Availability
RY2
RELAY OZF-S-112LM1P DC12V MV-1 LGE 6920W2YD04A Contact Us For Availability
U01
IC LGE 0IZZW5A082A Contact Us For Availability
U04
IC KIA4558P(8DIP LIN OP-AMP/BI LGE 0IKE455800A Contact Us For Availability
U05
IC,SAMSUNG ELECTRONICS LGE 0ISS791500A Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
ZD2
DIODE ZENER LGE 0DZ750009AC Contact Us For Availability
× ![]()
