Model Whirlpool MT1151SGQ0 – Common Parts & Diagrams
02 - CONTROL PANEL

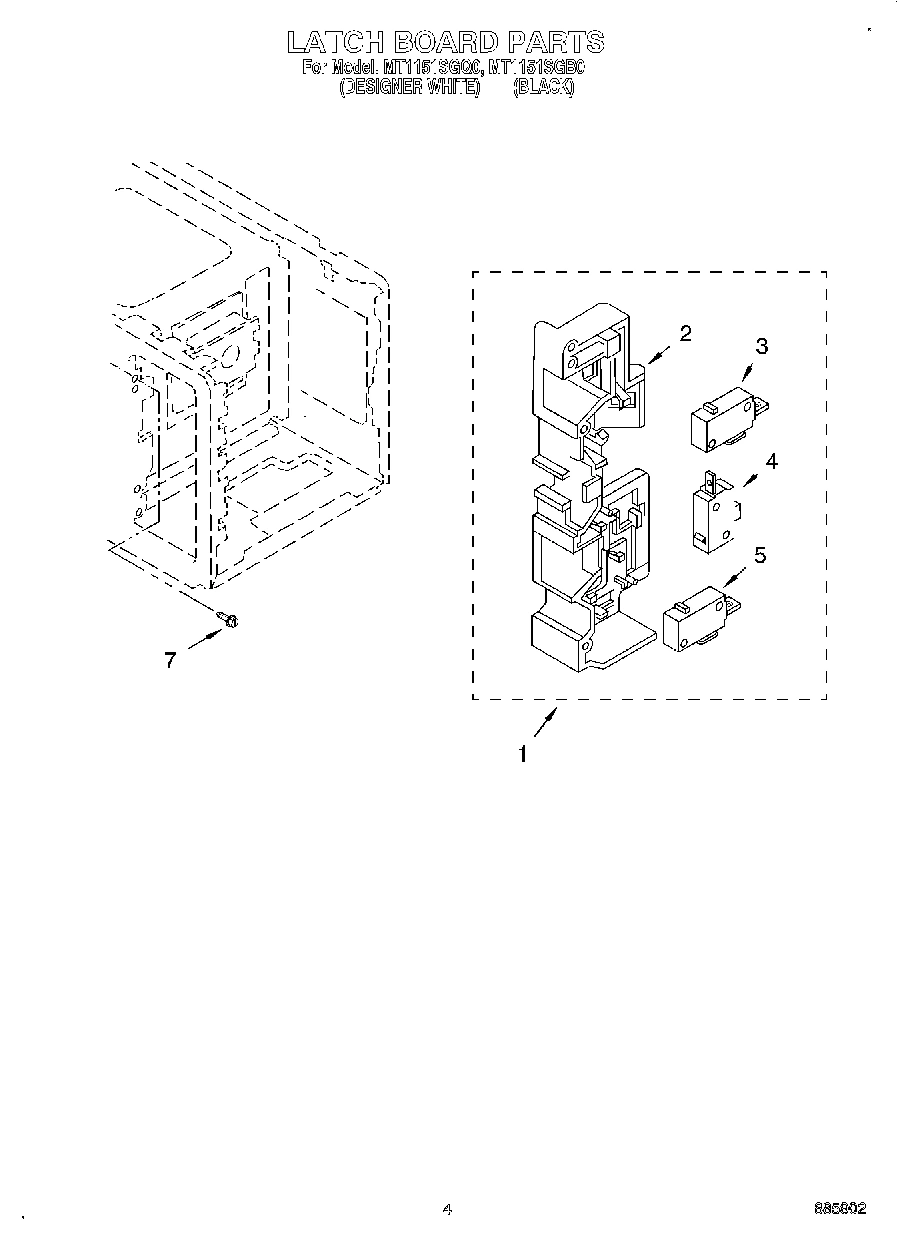

04 - LATCH BOARD

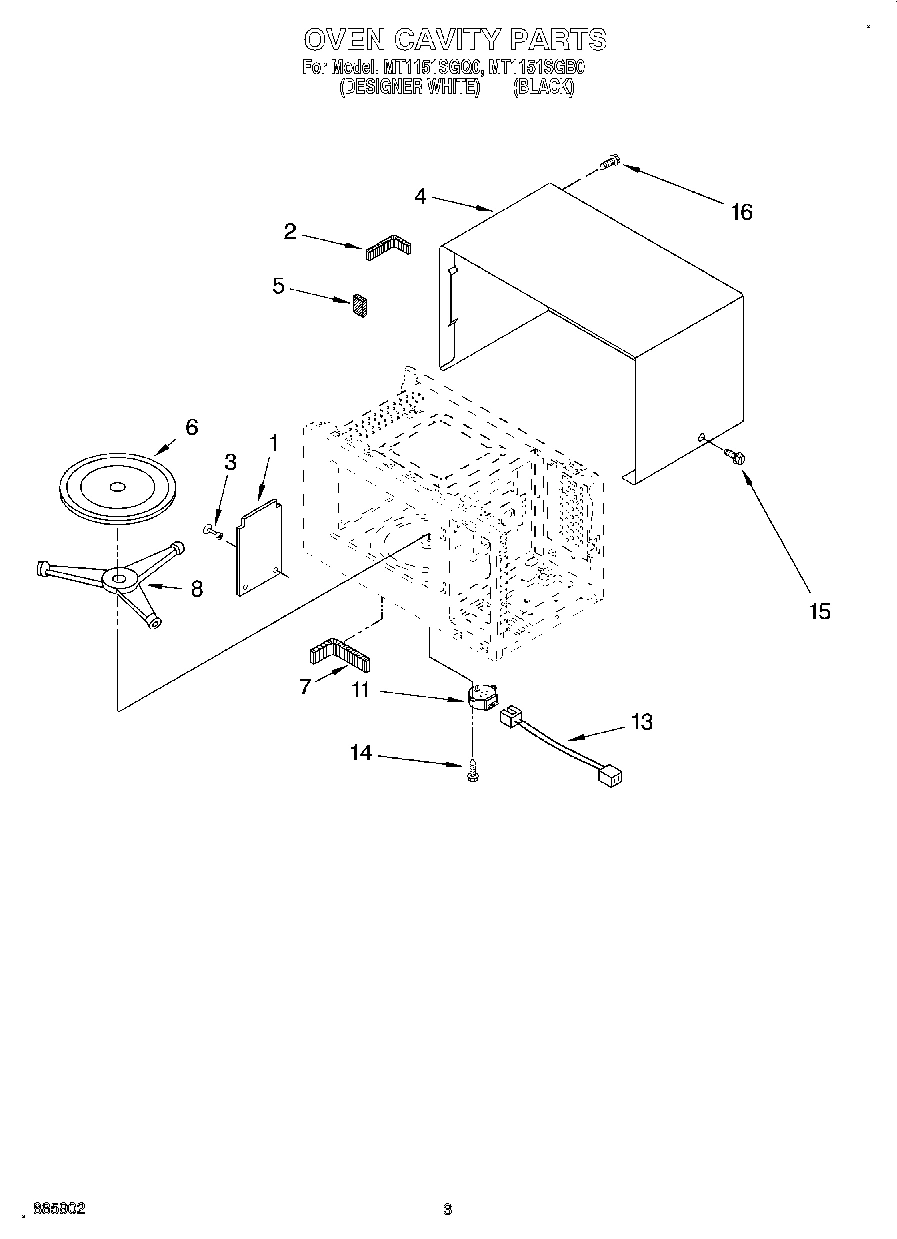

03 - OVEN CAVITY

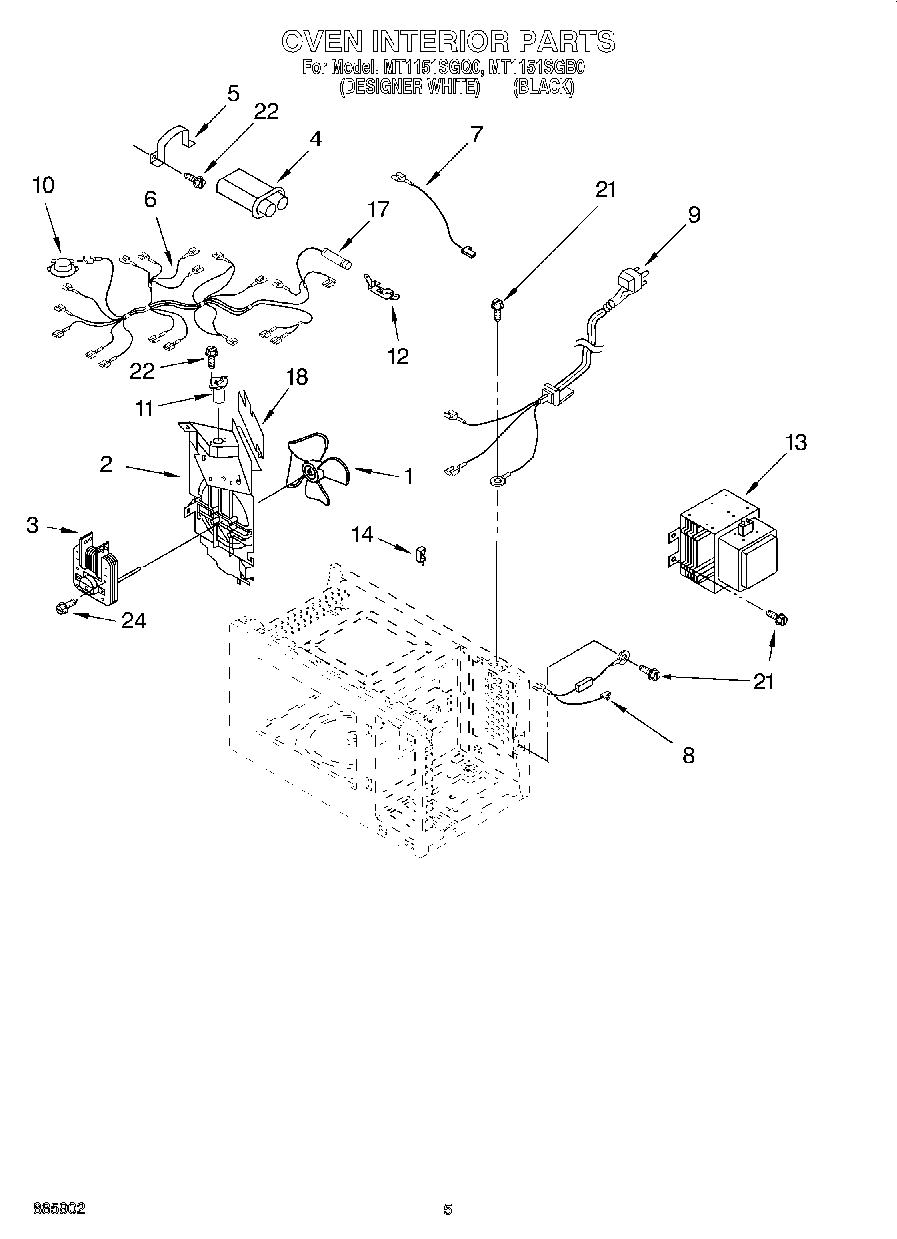

05 - OVEN INTERIOR, LITERATURE

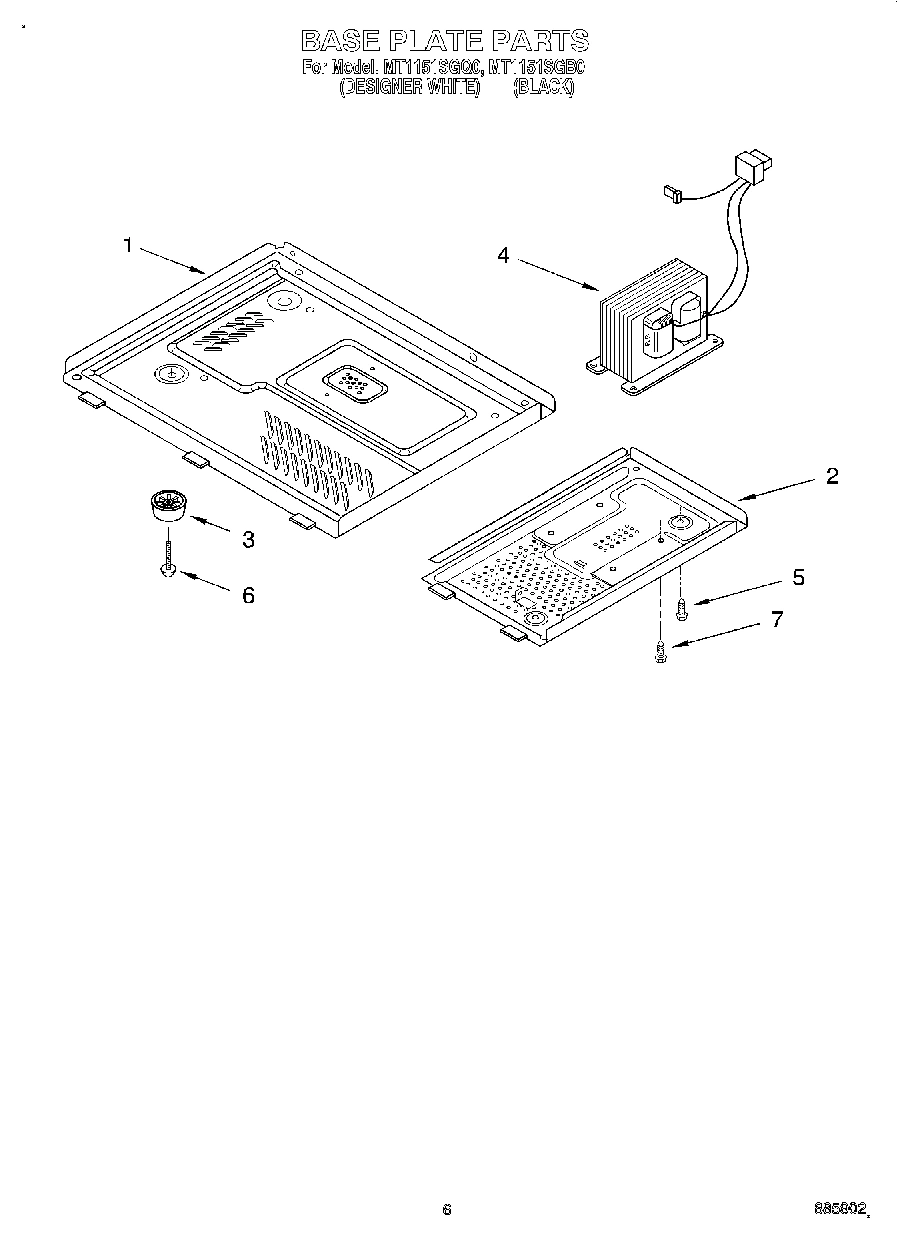

06 - BASE PLATE

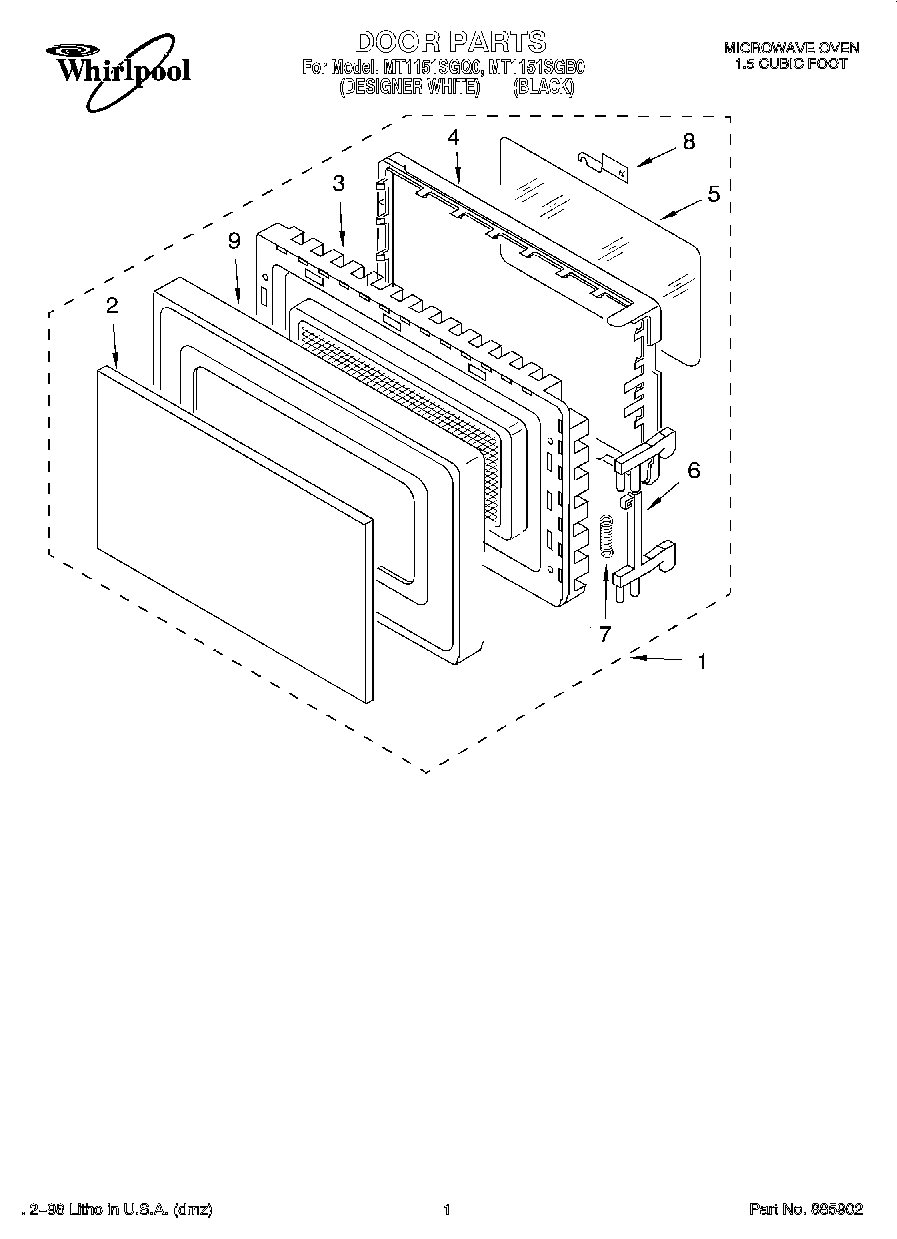

01 - DOOR
Common parts from model Whirlpool MT1151SGQ0
Use & Care Guide WPL LIT4359603 Contact Us For Availability
Cook Guide Label WPL LIT4359628 Contact Us For Availability
Tech Sheet WPL LIT4359672 Contact Us For Availability
1
Latch Board Assembly (Not Serviceable) WPL ARI118848A Contact Us For Availability
1
Canopy WPL 4359825 Contact Us For Availability
1
Propeller WPL 4358379 Contact Us For Availability
1
Base Plate (L) WPL 4359785 Contact Us For Availability
1
Door Assembly (White Model) WPL 4359809 Contact Us For Availability
1
Door Assembly (Black Model) WPL 4359810 Contact Us For Availability
2
Cushion WPL 4359783 Contact Us For Availability
2
Guide, Suction WPL 4359786 Contact Us For Availability
2
Base Plate (R) WPL 4359830 Contact Us For Availability
2
Front Screen (White Model) WPL 4359811 Contact Us For Availability
2
Front Screen (Black Model) WPL 4359812 Contact Us For Availability
3
Spring, Button WPL 4158178 Contact Us For Availability
3
Motor, Fan WPL 4359787 Contact Us For Availability
3
Leg WPL 4358487 Contact Us For Availability
3
Door Frame Assembly (White Model) WPL 4359813 Contact Us For Availability
3
Door Frame Assembly (Black Model) WPL 4359814 Contact Us For Availability
4
Key Membrane (White Model) WPL 4359821 Contact Us For Availability
4
Key Membrane (Black Model) WPL 4359822 Contact Us For Availability
4
Outer Case (White Model) WPL 4359828 Contact Us For Availability
4
Outer Case (Black Model) WPL 4359829 Contact Us For Availability
4
H.V. Capacitor WPL 4359221 Contact Us For Availability
4
Transformer WPL 4359796 Contact Us For Availability
4
Choke Cover WPL 4359815 Contact Us For Availability
5
Control Panel (White Model) WPL 4359823 Contact Us For Availability
5
Control Panel (Black Model (Also, order key m WPL 4359824 Contact Us For Availability
5
Cushion WPL 4359781 Contact Us For Availability
5
H.V.C Bracket WPL 4359797 Contact Us For Availability
5
Tape, Seal WPL 4359816 Contact Us For Availability
6
P.C.B Sub Assembly WPL 4359744 Contact Us For Availability
6
Leadwire Assembly WPL 4359790 Contact Us For Availability
6
Screw WPL 4358381 Contact Us For Availability
6
Latch WPL 4359765 Contact Us For Availability
7
Lever, Release WPL 4359718 Contact Us For Availability
7
Screw WPL 4358051 Contact Us For Availability
7
Cushion WPL 4359778 Contact Us For Availability
7
H.V. Cable Ass`y WPL 4359501 Contact Us For Availability
7
Spring, Latch WPL 4359707 Contact Us For Availability
8
Window WPL 4359720 Contact Us For Availability
8
Support, Turntable WPL 4359782 Contact Us For Availability
8
Cap WPL 4359710 Contact Us For Availability
9
Power Cord WPL 4359826 Contact Us For Availability
9
Panel, Door (White Model) WPL 4359817 Contact Us For Availability
9
Panel, Door (Black Model) WPL 4359818 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Thermostat WPL 4359164 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
11
Motor, Synchronous WPL 4359499 Contact Us For Availability
12
Holder, Fuse WPL 4359789 Contact Us For Availability
13
Lead wire assy. WPL 4359725 Contact Us For Availability
13
Magnetron WPL 4359119 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
18
Guide WPL 4359827 Contact Us For Availability
× ![]()
