Model LG MT1145SLB MWO-L – Common Parts & Diagrams
Diagram 0

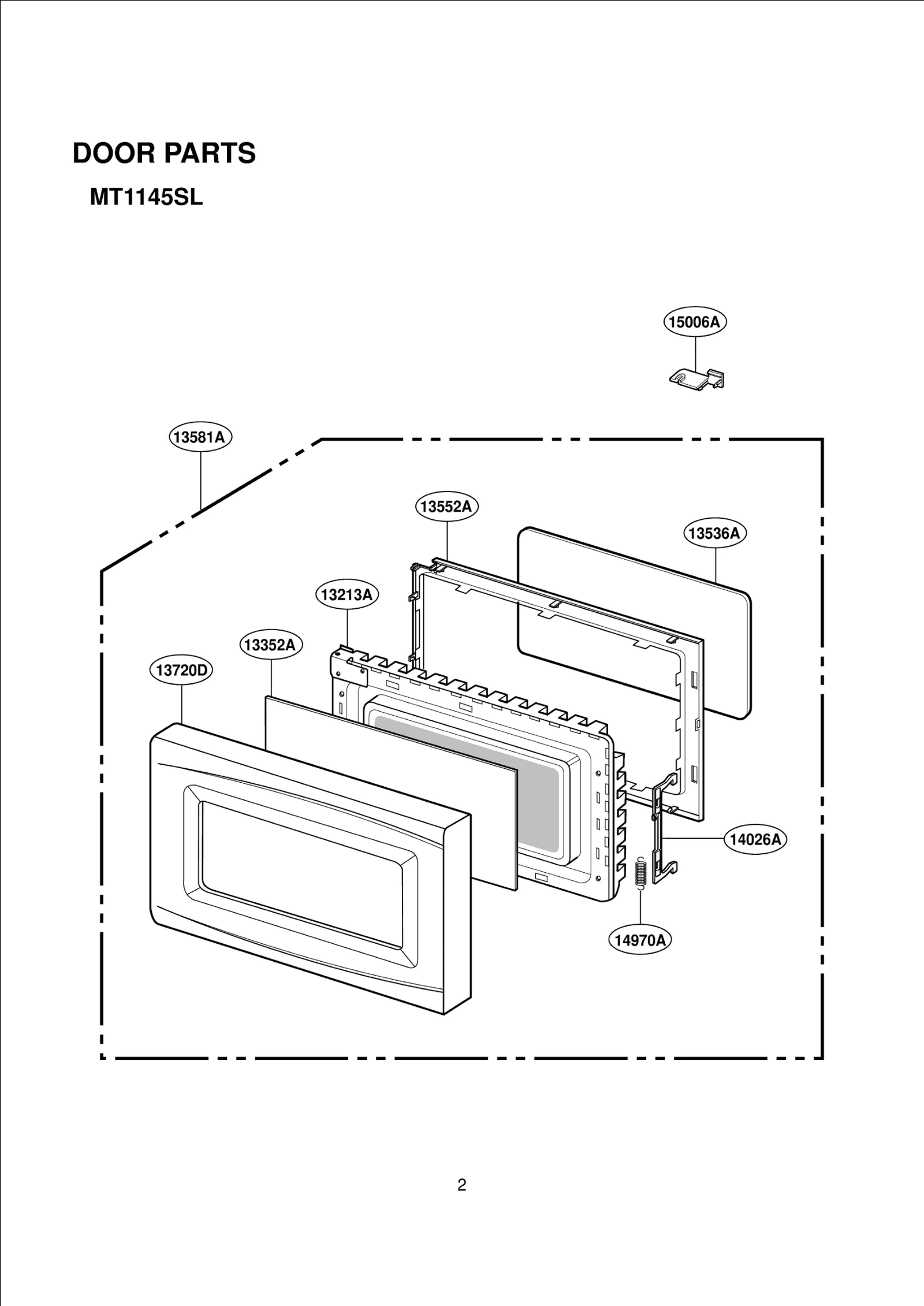

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7
Common parts from model LG MT1145SLB MWO-L
*01
MANUAL,OWNERS LGE 3828W5A2460 Contact Us For Availability
*05
LABEL,[COOKING GUIDE] LGE 3850W3D046A Contact Us For Availability
*07
CARD,TECHNICAL LGE 3840W5T103A Contact Us For Availability
*10
BOX,WHITE LGE 3890W3W281A Contact Us For Availability
23506A
KEY MEMBRANE LGE 3506W1A220B Contact Us For Availability
23550D
DIGITRON COVER MS-101 S 121 S LGE 3550W4A029B Contact Us For Availability
23572A
PANEL,CONTROL LGE 3720W0C029B Contact Us For Availability
24510L
LEVER RELEASE MS-72CM MC-122MC LGE 4510W3L002A Contact Us For Availability
24781M
CONTROLLER ASSEMBLY,MICOM LGE 4781W1M295B Contact Us For Availability
33112U
OUT CASE,[U-BENDING] LGE 3112W0U039B Contact Us For Availability
33390G
TRAY GLASS LGE 3390W1G004A Contact Us For Availability
35889A
ROTATING RING ASSY,M LGE 5889W2A011B Contact Us For Availability
43500A
BOARD,LATCH LGE 3500W1A008A Contact Us For Availability
43501A
Holder Assembly,Locker LGE 3501W1A003S Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54974S
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
54980A
LGE 4980W3A039A LGE 4980W3A039A Contact Us For Availability
55006F
FUSE CAP NATURAL MA-1554M MW LGE 5006WRA002A Contact Us For Availability
55262A
AIR DUCT LGE 5262W2A043B Contact Us For Availability
55900A
PROPELLER MA-1172M MS-155AM LGE 2B72125B Contact Us For Availability
56170D
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D023J Contact Us For Availability
56411A
POWER CORD ASSY LGE 6411W1A018F Contact Us For Availability
56501A
SENSOR ASSEMBLY LGE 6501W1A007B Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 6549W1F005B Contact Us For Availability
56930V
THERMOSTAT,BIMETAL LGE 6930W1A001J Contact Us For Availability
63302L
BASE PLATE ALL LEFT,1.2CU.FT J LGE 3302W1A034A Contact Us For Availability
63302R
LGE 3302W1A033F LGE 3302W1A033F Contact Us For Availability
63303L
BASE PLATE ASSY,ALL LGE 3303W1A026A Contact Us For Availability
63303R
BASE PLATE ASSY,MWO LGE 3303W2A003G Contact Us For Availability
250201
BUTTON LGE 5020W1A072B Contact Us For Availability
268711
PWB(PCB) ASSEMBLY,SUB LGE 6871W2S197E Contact Us For Availability
568771
LEAD WIRE ASSY LGE 6877W1A187B Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
948501
LGE 4B73438L LGE 4B73438L Contact Us For Availability
AR4
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C02
CAPACITOR ELECTROLYTIC LGE 0CE2276K618 Contact Us For Availability
C05
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C06
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C07
CAPACITOR ELECTROLYTIC 4.7M SM LGE 0CE4756K638 Contact Us For Availability
C12
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C13
CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability
C62
CAPACITOR CHIP[CERAMIC M/L HD LGE 0CH1223K566 Contact Us For Availability
C80
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1020K518 Contact Us For Availability
CO3
LGE 0CE1086H618 LGE 0CE1086H618 Contact Us For Availability
D02
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D37
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
D61
DIODE,SWITCHING LGE 0DS414809AB Contact Us For Availability
DP1
DIGITRON, ALL LGE 6302W5A002A Contact Us For Availability
PT1
TRANSFORMER POWER 120V/60HZ,14 LGE 6010W2P043A Contact Us For Availability
Q02
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q20
TRANSISTOR MA-885M SGESEA MA-1 LGE 0TR107009AD Contact Us For Availability
Q30
TRANSISTOR LGE 0TR320209BA Contact Us For Availability
Q31
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
R01
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R02
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R10
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R12
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R13
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R25
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
R26
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R31
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R32
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R33
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R34
LGE 0RD0102G608 LGE 0RD0102G608 Contact Us For Availability
R51
RESISTOR FIXED CARBON FILM 39 LGE 0RD3900F608 Contact Us For Availability
R55
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R61
Resistor,Chip LGE 0RH2701L622 Contact Us For Availability
R62
Resistor,Chip LGE 0RH2003L422 Contact Us For Availability
R63
LGE 0RH1001L422 LGE 0RH1001L422 Contact Us For Availability
R66
RESISTOR,METAL GLAZED(CHIP) LGE 0RJ1003E672 Contact Us For Availability
R67
LGE 0RH1072L422 LGE 0RH1072L422 Contact Us For Availability
R68
LGE 0RH1002L422 LGE 0RH1002L422 Contact Us For Availability
R69
RESISTOR,FIXED CARBON FILM LGE 0RD6600H602 Contact Us For Availability
R74
RESISTOR FIXED CARBO LGE 0RD2004F608 Contact Us For Availability
R76
Resistor,Carbon Film LGE 0RD5103F608 Contact Us For Availability
R77
LGE 0RD2703F608 LGE 0RD2703F608 Contact Us For Availability
R78
LGE 0RD1503G608 LGE 0RD1503G608 Contact Us For Availability
R93
RESISTOR FIXED CARBON FILM 22 LGE 0RD2202G608 Contact Us For Availability
R94
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R100
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R104
RESISTOR FIXED CARBON FILM MV- LGE 0RD4702G608 Contact Us For Availability
R200
Resistor,Carbon Film LGE 0RD3303F608 Contact Us For Availability
RY1
RELAY LGE 6920W5A008A Contact Us For Availability
RY2
RELAY OZF-S-112LM1P DC12V MV-1 LGE 6920W2YD04A Contact Us For Availability
U01
IC,DRAWING LGE 0IZZW5A082B Contact Us For Availability
U05
IC,SAMSUNG ELECTRONICS LGE 0ISS791500A Contact Us For Availability
WSZ119
SCREW,DRAWING LGE 1SZZW2A002D Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
ZD2
DIODE ZENER LGE 0DZ750009AC Contact Us For Availability
ZD3
LGE 0DZ390009AA LGE 0DZ390009AA Contact Us For Availability
× ![]()
