Model LG MT1100SHB-0 – Common Parts & Diagrams

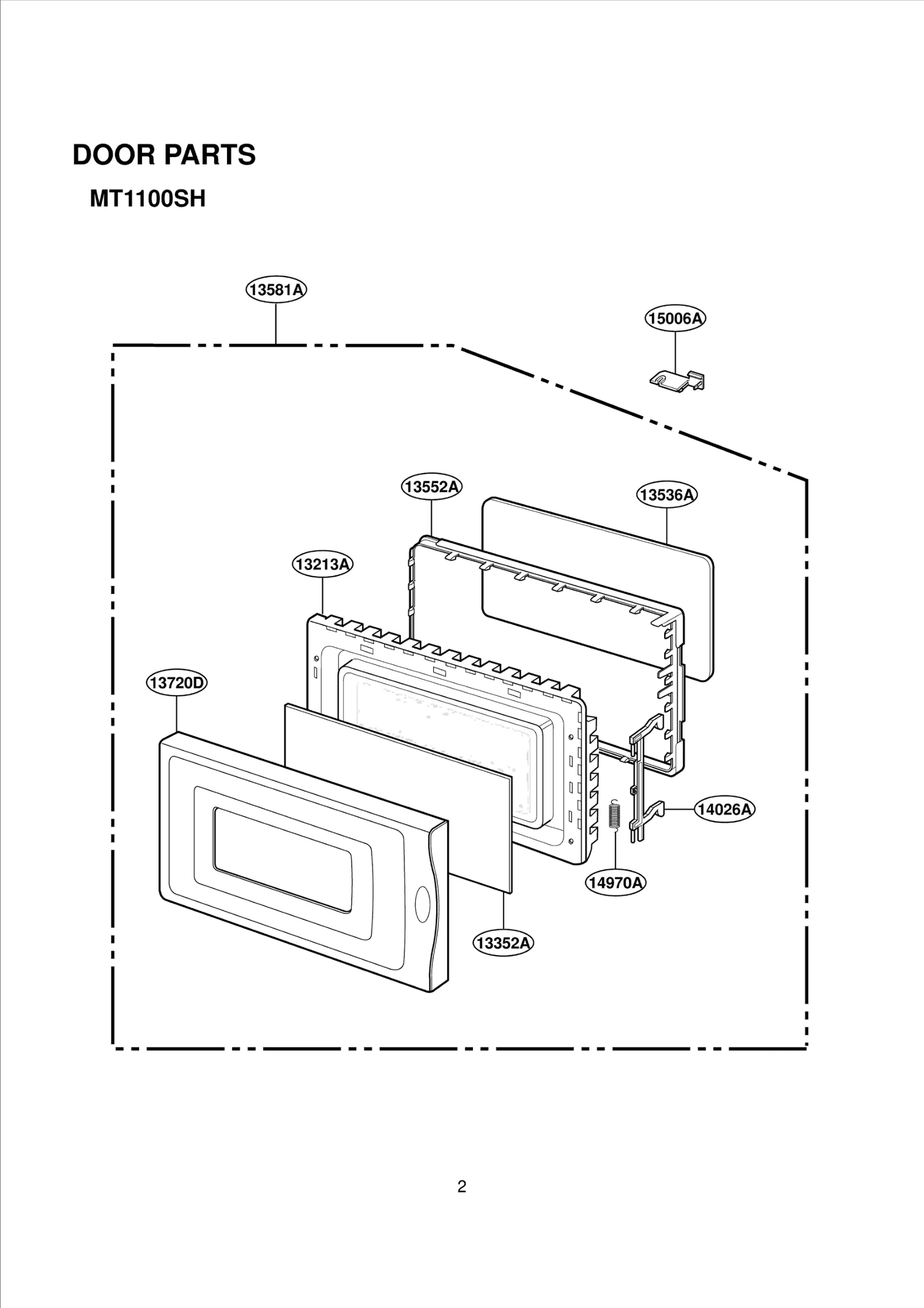

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Common parts from model LG MT1100SHB-0
*01
MANUAL,OWNERS(MWO) LGE 3828W5A1031 Contact Us For Availability
*05
LABEL ALL LGE 3850W3A325A Contact Us For Availability
*07
CARD,TECHNICAL LGE 3858W3T017C Contact Us For Availability
*10
BOX,[WHITE] LGE 3890W3W093A Contact Us For Availability
24781M
LGE 4781W1M173S LGE 4781W1M173S Contact Us For Availability
26638A
LGE 6638W2A223B LGE 6638W2A223B Contact Us For Availability
33052M
CANOPY MICA LGE 3052W3M008A Contact Us For Availability
33390G
TRAY GLASS LGE 3390W1G003A Contact Us For Availability
34036W
SEAL,WATER LGE 4036W3W001A Contact Us For Availability
34960A
MOUNT ALL LGE 4960W3G026A Contact Us For Availability
35889A
ROTATING RING ASSY A 0.9.1.0.1 LGE 5889W2A011A Contact Us For Availability
36549S
MOTOR(CIRC),SYNCHRON LGE 6549W1S004C Contact Us For Availability
43500A
BOARD LATCH MS-101 S 121 S 151 LGE 3500W1A004A Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54974S
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
55006F
FUSE CAP NATURAL MA-1554M MW LGE 5006WRA002A Contact Us For Availability
55262A
AIR DUCT LGE 5262W2A043B Contact Us For Availability
55900A
PROPELLER LGE 2B72125A Contact Us For Availability
56170D
Transformer,high voltage LGE 6170W1D023B Contact Us For Availability
56411A
Power Cord Assembly LGE 2B72325H Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 6549W1F005B Contact Us For Availability
56930V
LGE 6930WRT002C LGE 6930WRT002C Contact Us For Availability
63302L
BASE PLATE ALL LGE 3302W1A036A Contact Us For Availability
63302R
BASE PLATE LGE 3302W1A035G Contact Us For Availability
63303L
BASE PLATE ASSY,ALL LGE 3303W1A028A Contact Us For Availability
63303R
BASE PLATE ASSY,MWO LGE 3303W2A004E Contact Us For Availability
250201
LGE 5020W2A090C LGE 5020W2A090C Contact Us For Availability
268711
PWB(PCB) ASSY,[MAIN] LGE 5247W2S022G Contact Us For Availability
568771
LEAD WIRE ASSY LGE 6877W1A182A Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
948503
LGE 3B72245C LGE 3B72245C Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C03
LGE 0CK2230K935 LGE 0CK2230K935 Contact Us For Availability
C04
CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability
C05
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C09
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C11
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C12
CAPACITOR ELECTROLYTIC LGE 0CE1076K638 Contact Us For Availability
CN1
Connector,Wafer LGE 6630W5V009A Contact Us For Availability
CN3
KEY CONNECTOR FCZ254-12D MH-13 LGE 6630W5YA19D Contact Us For Availability
D13
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D15
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
DP1
DIGITRON 6-BT-199GN(NEW DEMO) LGE 6302W5YA02A Contact Us For Availability
PT1
POWER TRANS 120/60 UL,18V/9 SE LGE 6010W2P037A Contact Us For Availability
Q01
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
Q05
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
R01
LGE 0RD1501G608 LGE 0RD1501G608 Contact Us For Availability
R10
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R24
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R30
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R31
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R35
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R41
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R54
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R64
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R65
LGE 0RD2700G608 LGE 0RD2700G608 Contact Us For Availability
R70
LGE 0RD5600G608 LGE 0RD5600G608 Contact Us For Availability
RY1
RELAY OJ-SS-112LM MA-693M MA-6 LGE 6920W2D010A Contact Us For Availability
RY2
RELAY OZF-S-112LM1P DC12V MV-1 LGE 6920W2YD04A Contact Us For Availability
ZD1
DIODE ZENER 4.3V/0.5W,TAP(5MM) LGE 0DZ430009CC Contact Us For Availability
ZD2
DIODE ZENER MA-885M SGESEA LGE 0DZ560009AB Contact Us For Availability
× ![]()
