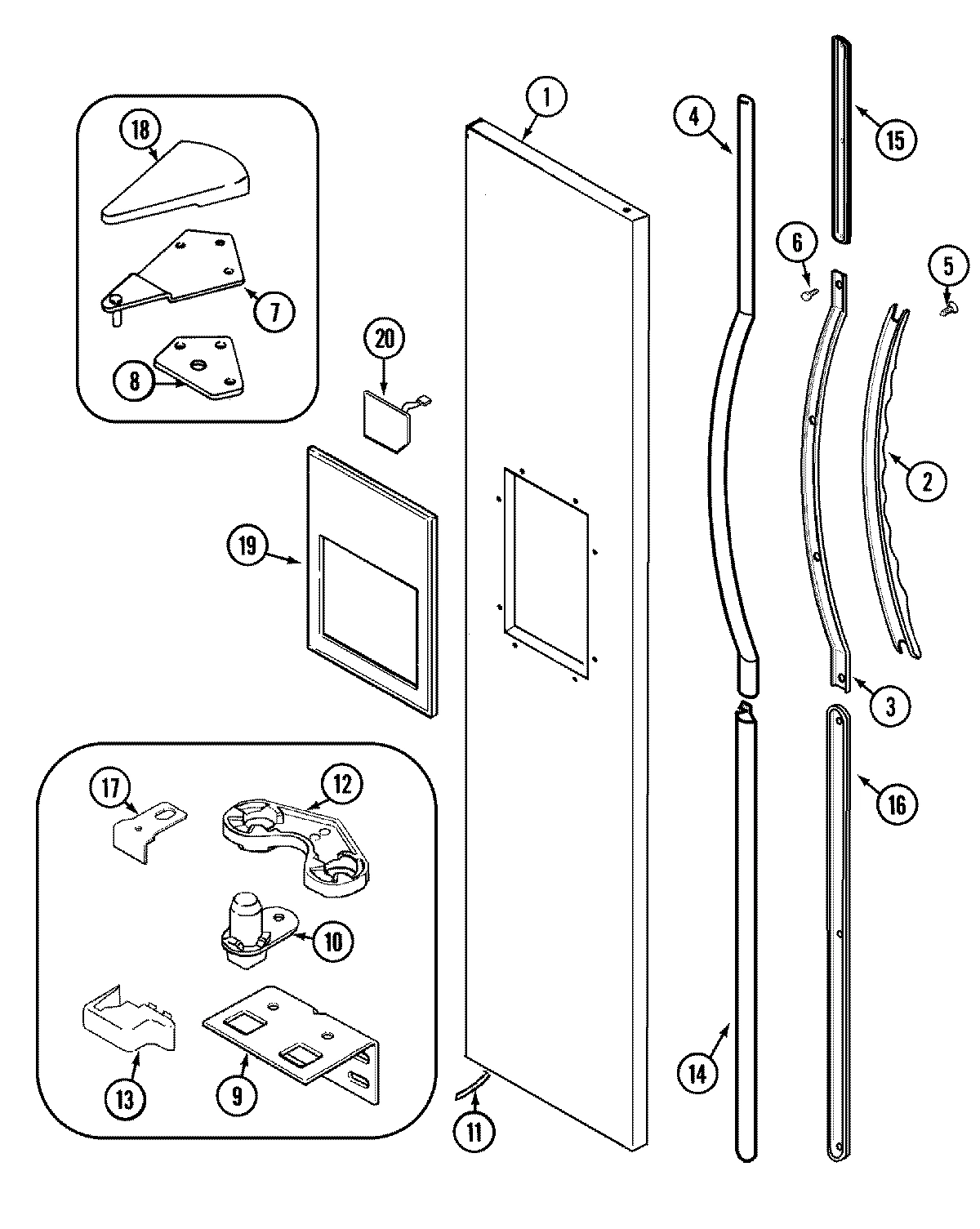

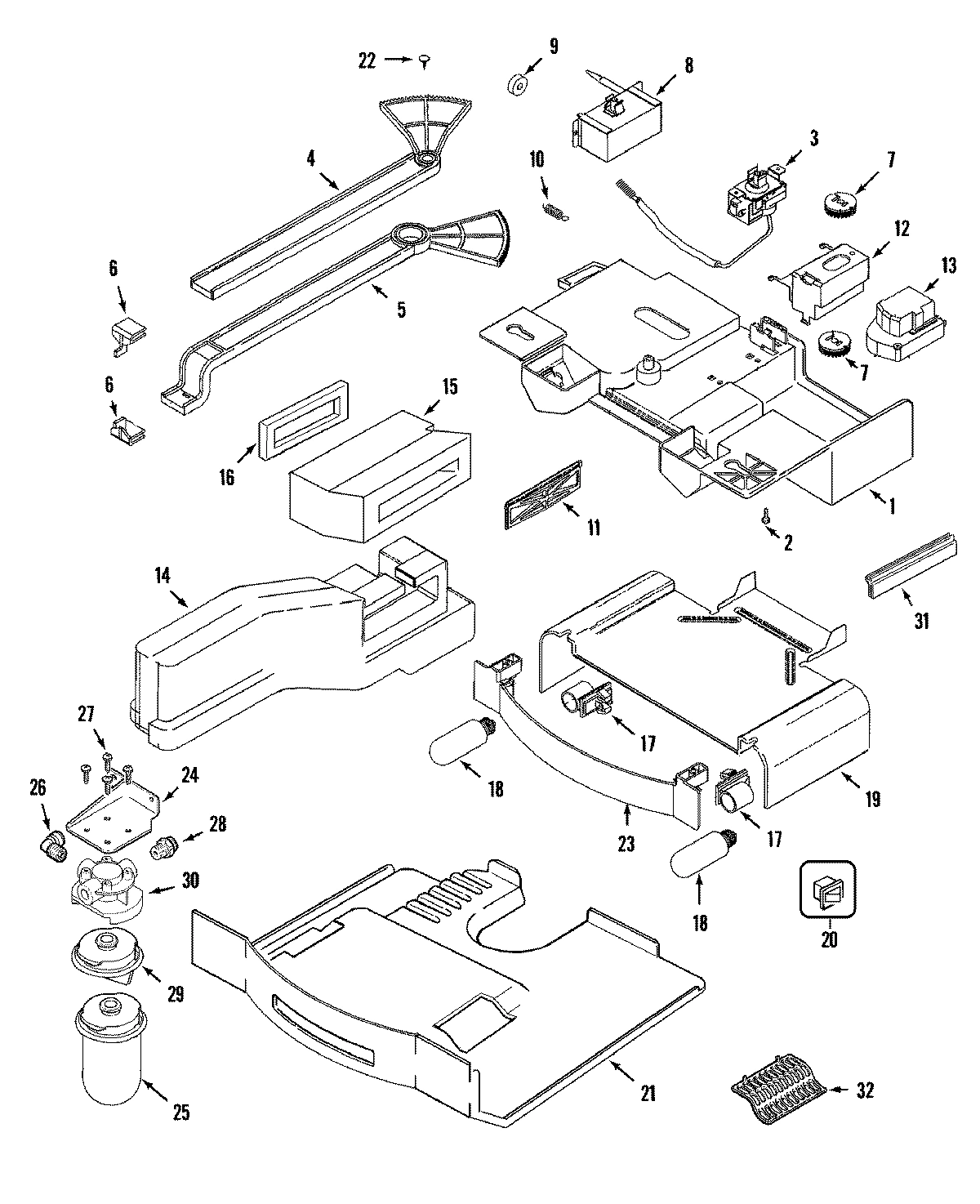

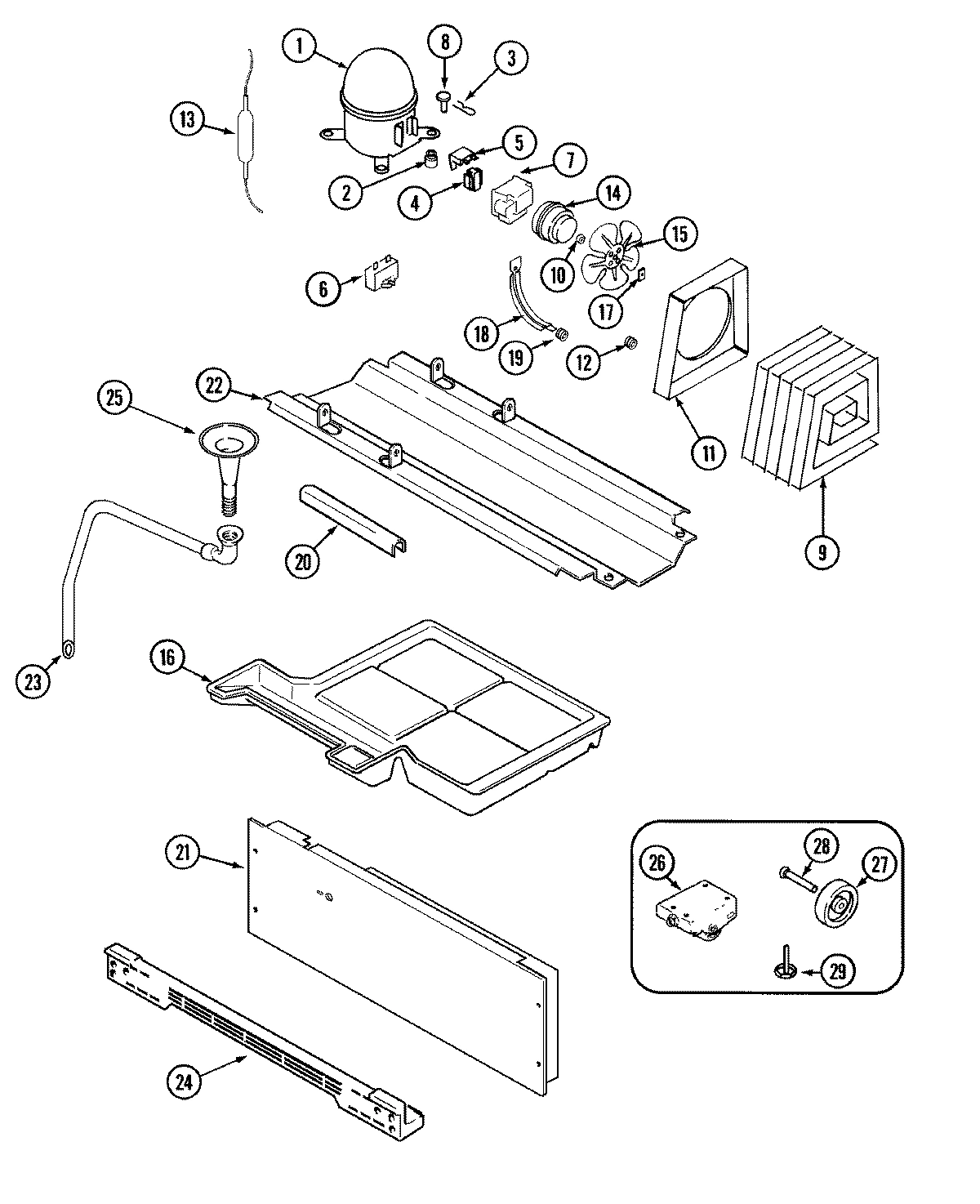

Model Whirlpool MSD2754FRW REFRIGERATOR – Common Parts &amp; Diagrams

1

WP61004888 Whirlpool Refrigerator Evaporator In Stock WPL WP61004888 $93.05

1

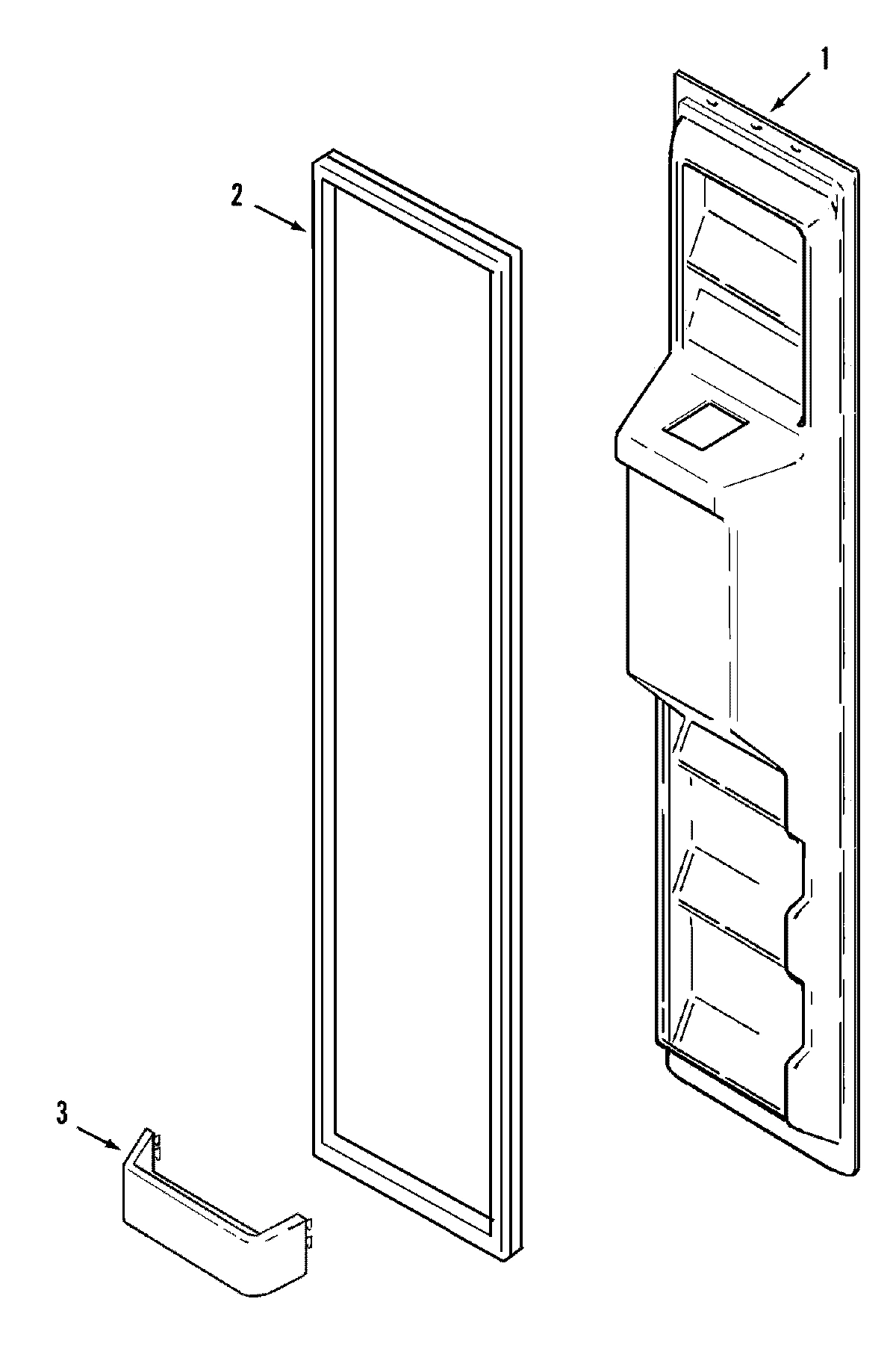

LINER, FRZ. DOOR WPL 61003854 Contact Us For Availability

1

SCREW WPL 652755 Contact Us For Availability

1

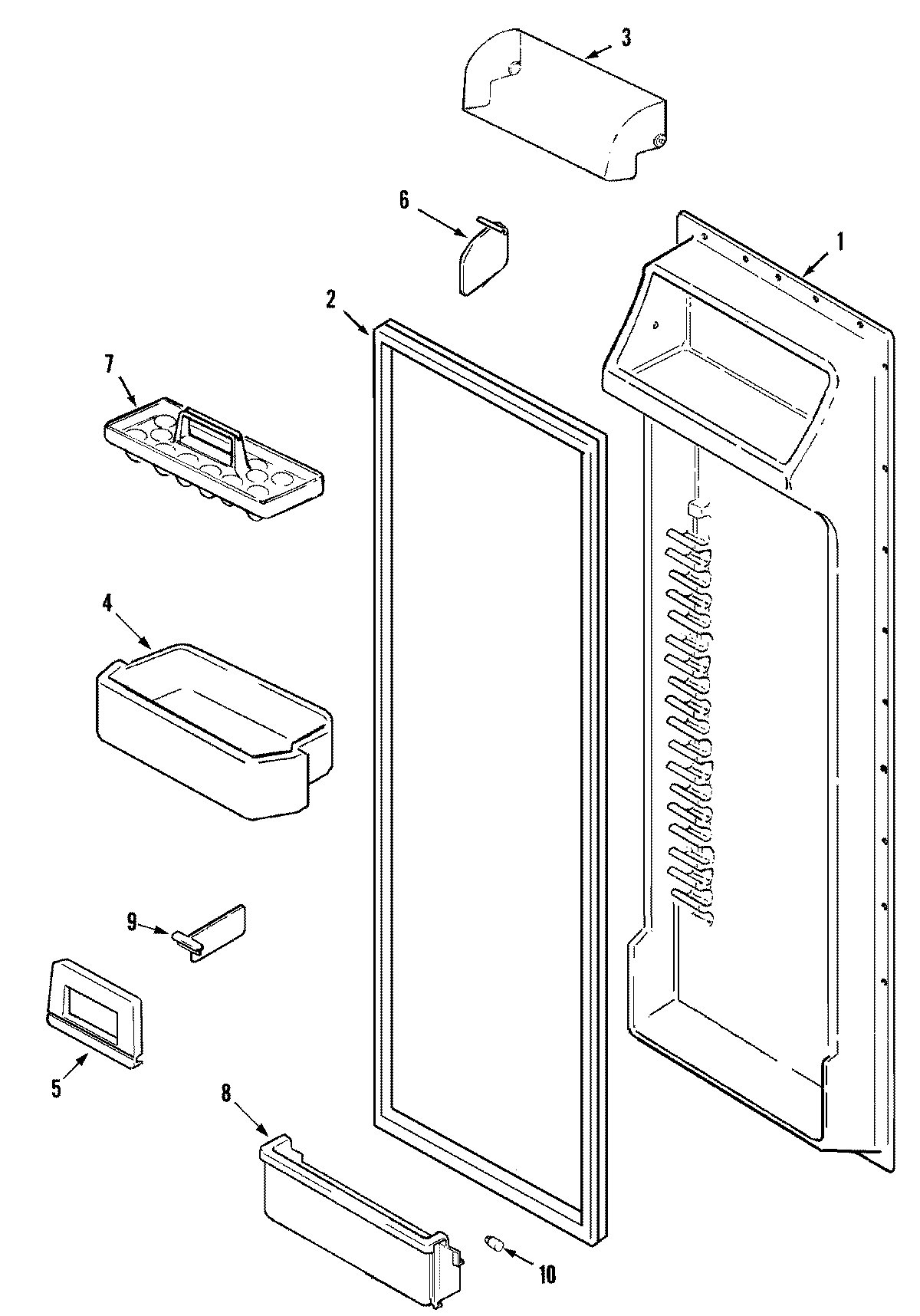

LINER, F.F. DOOR WPL 61003994 Contact Us For Availability

1

WIRE HARNESS, COMPRESSOR WPL 61002223 Contact Us For Availability

1

SCREW WPL 4000171 Contact Us For Availability

1

LABEL, DUAL ENERGY GUIDE WPL 61003514 Contact Us For Availability

1

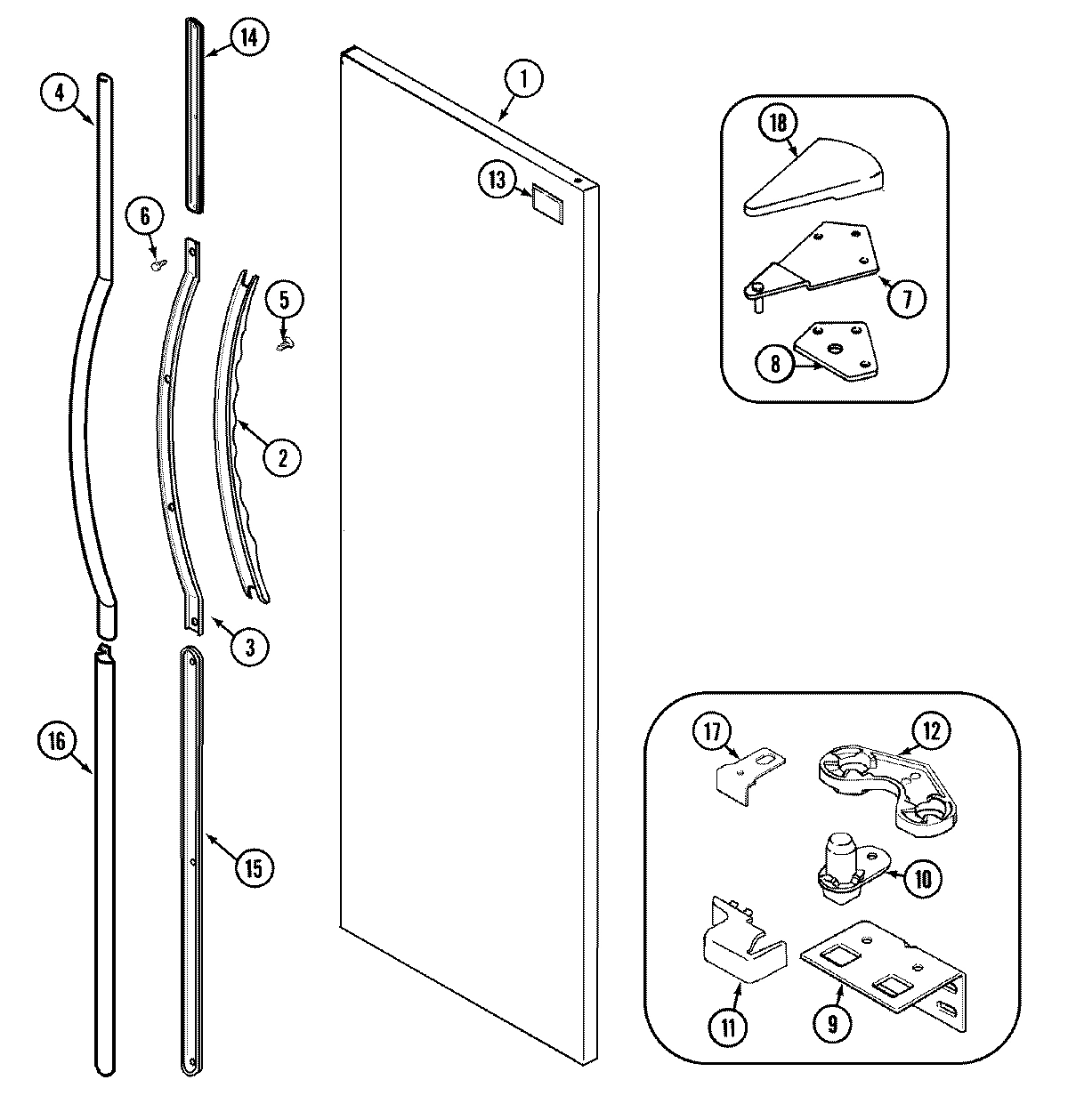

PANEL, F.F. DOOR (WHT) WPL 61004595 Contact Us For Availability

1

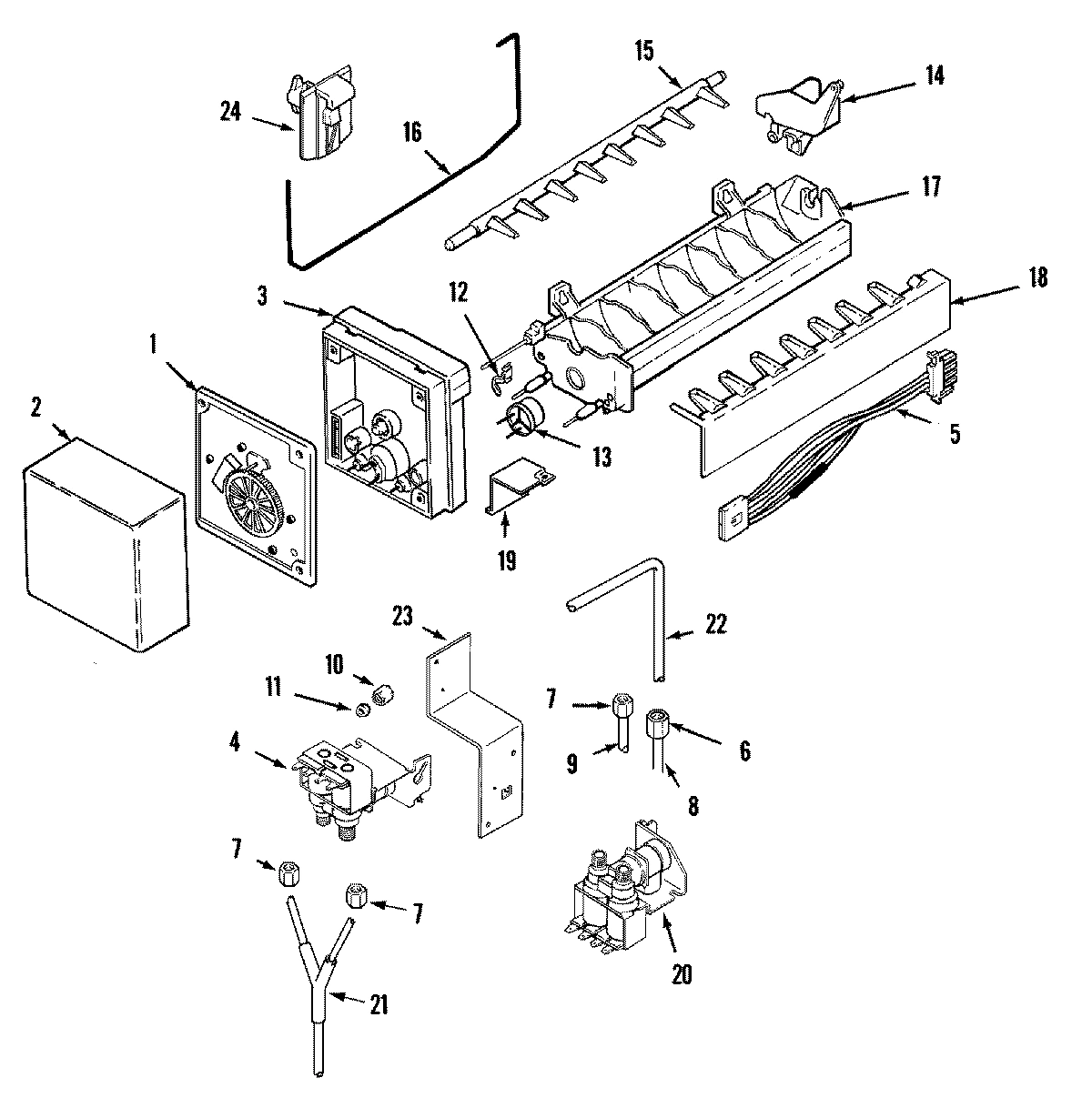

ICEMAKER WPL 951091 Contact Us For Availability

1

PANEL, FRZ. DOOR (WHT) WPL 61003851 Contact Us For Availability

1

PANEL, FRZ. DOOR (WHT) WPL 61005292 Contact Us For Availability

1

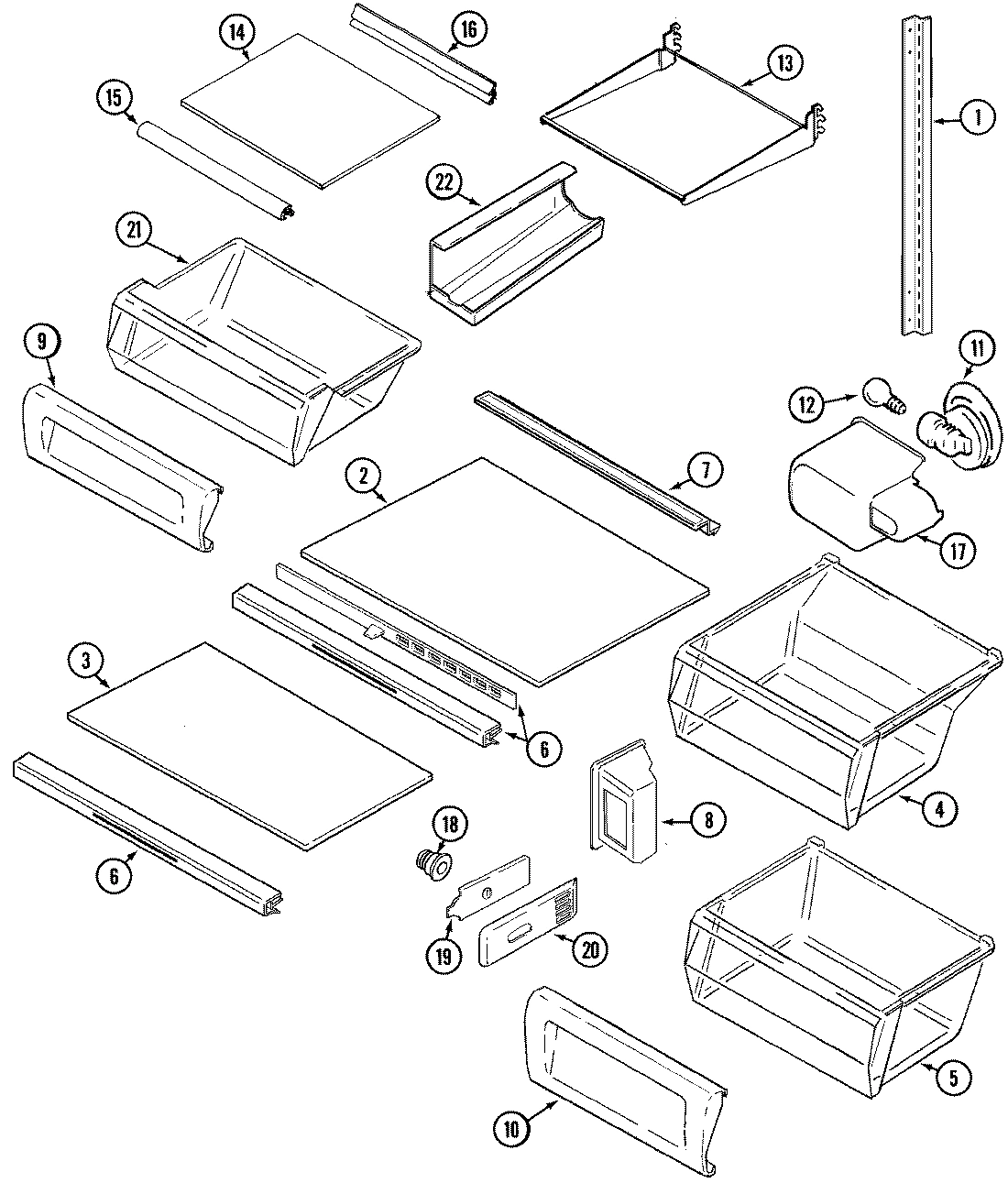

RAIL, SHELF SUPPORT WPL 61003240 Contact Us For Availability

1

FOIL, HEAT SHIELD WPL 61003228 Contact Us For Availability

1

HOUSING ASSY., AUTO DAMPER WPL 61004376 Contact Us For Availability

1

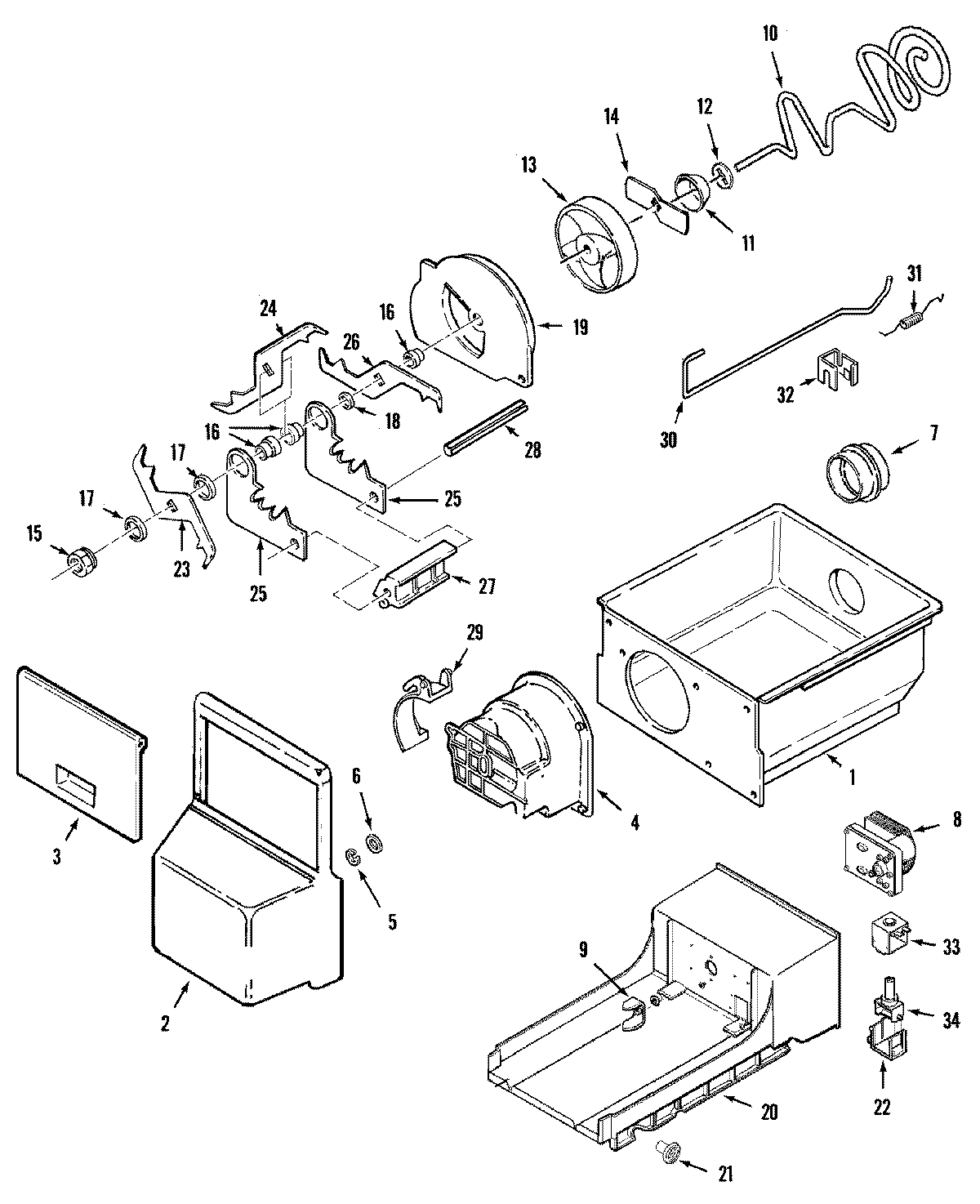

BIN, ICE WPL 61004802 Contact Us For Availability

2

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

2

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $4.43

2

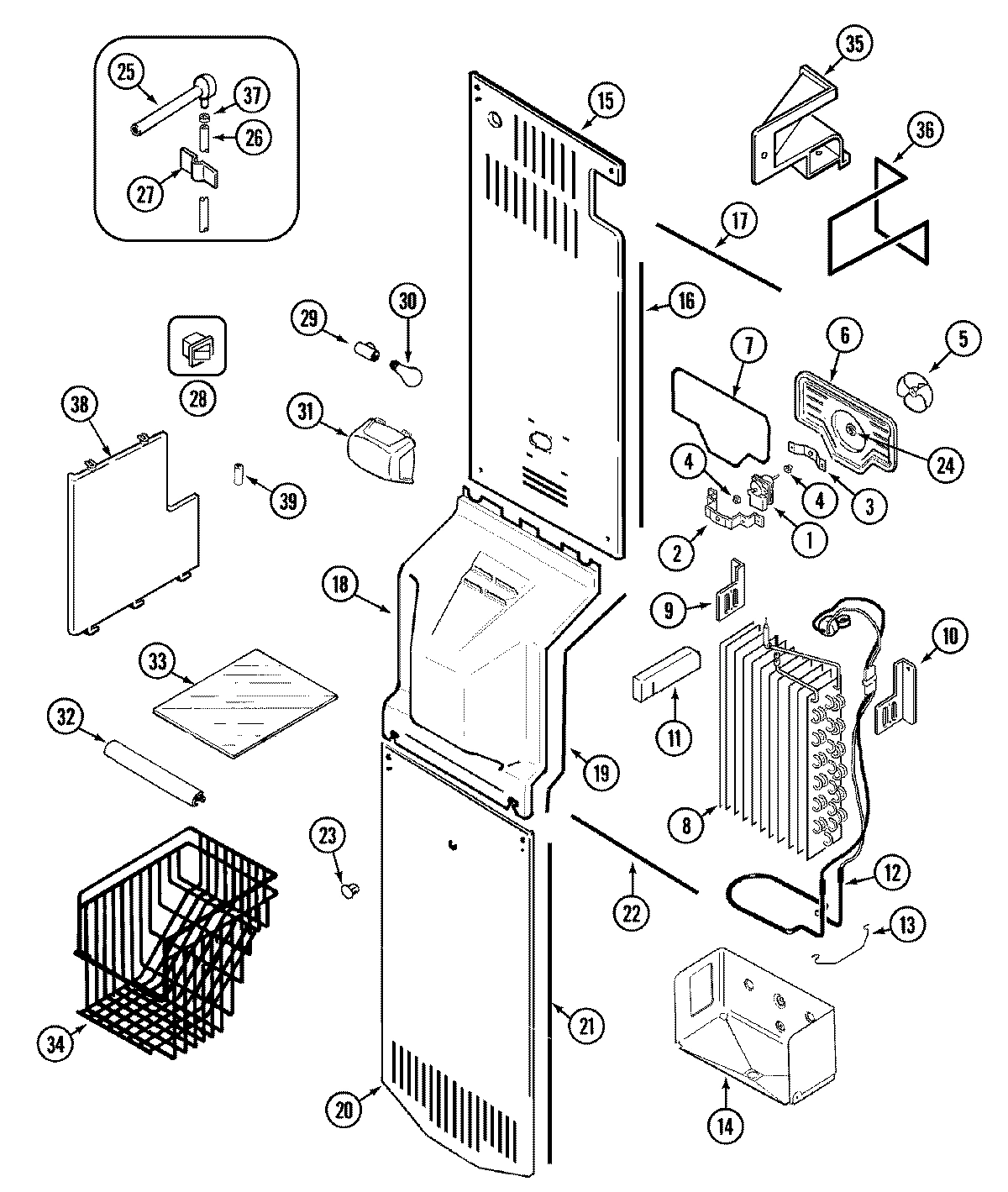

BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability

2

SEAL, FRZ. DOOR (WHT) WPL 61004035 Contact Us For Availability

2

SEAL, F.F. DOOR (WHT) WPL 61004031 Contact Us For Availability

2

GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability

2

HANDLE (WHT) WPL 61004329 Contact Us For Availability

2

COVER, ICE MAKER WPL 61004594 Contact Us For Availability

2

GLASS, CRISPER SHELF WPL 61004021 Contact Us For Availability

2

FRONT, ICE BIN WPL 61004803 Contact Us For Availability

3

WP61005651 Whirlpool Refrigerator Temperature In Stock WPL WP61005651 $192.49

3

RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability

3

FRONT, PICK-OFF WPL 61003987 Contact Us For Availability

3

DOOR, DAIRY WPL 61003995 Contact Us For Availability

3

CLIP, COMPRESSOR WPL 61003099 Contact Us For Availability

3

SCREW WPL 4000161 Contact Us For Availability

3

FRAME, HANDLE WPL 61004292 Contact Us For Availability

3

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

3

SCREW WPL 951061 Contact Us For Availability

3

GLASS, MEAT SHELF WPL 61003823 Contact Us For Availability

3

DOOR, ICE ACCESS WPL 61004300 Contact Us For Availability

4

12001892 Whirlpool Refrigerator Water Valve K Backorder WPL 12001892 $131.11

4

SCREW WPL 41501335 Contact Us For Availability

4

BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability

4

SHELF, PICK-OFF WPL 61003976 Contact Us For Availability

4

INSERT, HANDLE (WHT) WPL 61004330 Contact Us For Availability

4

PAN, CRISPER (UPR) WPL 61003824 Contact Us For Availability

4

ROD, DAMPER CONTROL WPL 61003287 Contact Us For Availability

4

HOUSING, CRUSHER WPL 61004804 Contact Us For Availability

4

SEAL WPL 61004869 Contact Us For Availability

5

WP61006295 Whirlpool Refrigerator Overload Backorder WPL WP61006295 $87.59

5

BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability

5

RETAINER, BOTTLE WPL 61002273 Contact Us For Availability

5

SCREW, HANDLE TO FRAME WPL 61003351 Contact Us For Availability

5

WIRE HARNESS, ICE MAKER WPL 61003912 Contact Us For Availability

5

WIRE HARNESS, ICE MAKER WPL 61005278 Contact Us For Availability

5

PAN, CRISPER (LWR) WPL 61003825 Contact Us For Availability

5

ROD, TEMP. CONTROL WPL 61003293 Contact Us For Availability

5

RING, SNAP WPL 697041 Contact Us For Availability

6

SHROUD, FAN WPL 61003898 Contact Us For Availability

6

ORGANIZER, DAIRY COMPT. WPL 61003747 Contact Us For Availability

6

CAPACITOR, RUN WPL 658894 Contact Us For Availability

6

NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability

6

TRIM, FRONT SHELF GLASS----NA WPL 61003879 Contact Us For Availability

6

TRIM, SHELF WPL 61004022 Contact Us For Availability

6

END CAP, CONTROL ROD WPL 61004591 Contact Us For Availability

6

WASHER, RETAINER WPL 697031 Contact Us For Availability

7

WP3-24838-048 Whirlpool Refrigerator Screw Backorder WPL WP3-24838-048 $4.82

7

WP61002138 Whirlpool Refrigerator Terminal Co Backorder WPL WP61002138 $6.66

7

TRAY, EGG WPL 600661 Contact Us For Availability

7

HINGE, UPPER WPL 61004570 Contact Us For Availability

7

NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability

7

SEAL,CRISPER SHELF----NA WPL 61003895 Contact Us For Availability

7

GEAR, CONTROL SLIDE WPL 61003305 Contact Us For Availability

8

12001773 Whirlpool Refrigerator Primary Auger Backorder WPL 12001773 $232.42

8

EVAP/HEAT EXCH,ASSY27,29,CDSXS WPL 12001641 Contact Us For Availability

8

BUCKET, TIP OUT WPL 61003996 Contact Us For Availability

8

PLUG, COMPRESSOR WPL 526562 Contact Us For Availability

8

SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability

8

SEE NOTE MUST ORDER TANK ASSY. PART NO. 6 WPL Y00000000 Contact Us For Availability

8

SCREW WPL 61003359 Contact Us For Availability

8

DAMPER, AUTO WPL 61003600 Contact Us For Availability

8

WIRE HARNESS, AUGER MOTOR WPL 61004805 Contact Us For Availability

8

WIRE HARNESS, AUGER MOTOR WPL 61005281 Contact Us For Availability

9

3400112 Whirlpool Refrigerator Screw Backorder WPL 3400112 $51.24

9

WP9705445 Whirlpool Refrigerator Roll Pin Backorder WPL WP9705445 $4.82

9

BRACKET, EVAPORATOR (LT) WPL 61003215 Contact Us For Availability

9

ORGANIZER, SHELF WPL 61002274 Contact Us For Availability

9

CONDENSER WPL 61003814 Contact Us For Availability

9

HINGE, LOWER (WHT) WPL 61001918 Contact Us For Availability

9

FRONT, DELI PAN WPL 61004025 Contact Us For Availability

9

WASHER, DAMPER ROD WPL 61003358 Contact Us For Availability

9

YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability

61002719 Whirlpool Refrigerator Stop Bucket Backorder WPL 61002719 $10.24

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

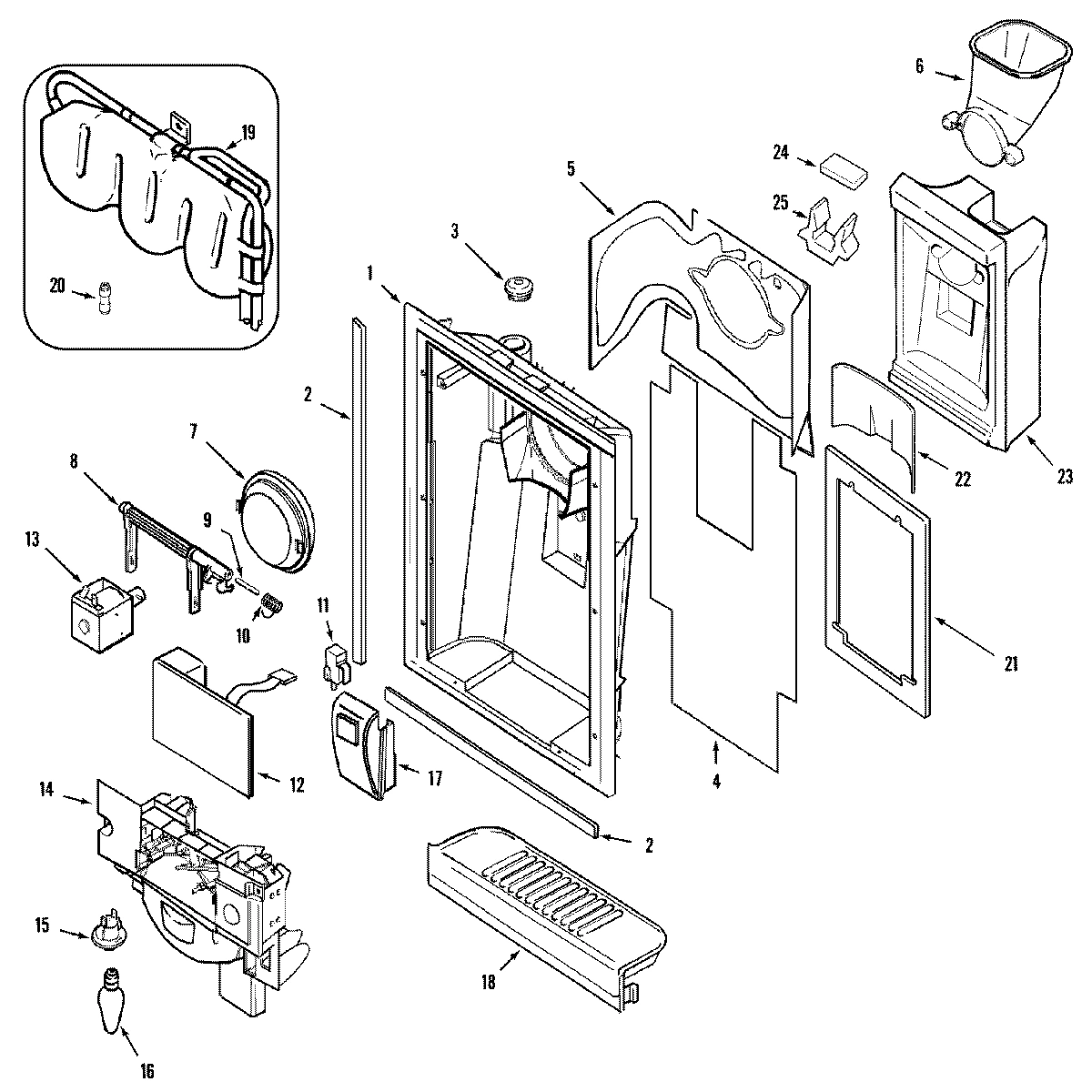

SPRING, FTN. RETURN WPL 61004388 Contact Us For Availability

BRACKET, EVAPORATOR (RT) WPL 61003216 Contact Us For Availability

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

PIN, LOWER HINGE WPL 61003174 Contact Us For Availability

FRONT, CRISPER PAN WPL 61004026 Contact Us For Availability

FRONT, MEAT PAN WPL 61004027 Contact Us For Availability

SPRING, DAMPER DOOR WPL 61003141 Contact Us For Availability

AUGER WPL 61003326 Contact Us For Availability

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $20.55

SWITCH, LIMIT WPL 61003124 Contact Us For Availability

BLOCK, AIR WPL 61003213 Contact Us For Availability

SHROUD, CONDENSER WPL 61001941 Contact Us For Availability

COVER, LOWER HINGE (WHT) WPL 61003220 Contact Us For Availability

SLEEVE, BRASS WPL 694311 Contact Us For Availability

TUBING, FOUNTAIN WPL 61004569 Contact Us For Availability

RECEPTACLE, BULB WPL 61003379 Contact Us For Availability

DOOR, DAMPER WPL 61003235 Contact Us For Availability

CONE, ICE DEFLECTOR WPL 696991 Contact Us For Availability

61003647 Whirlpool Refrigerator Freezer Door In Stock WPL 61003647 $10.02

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $10.86

WP61006197 Whirlpool Refrigerator Defrost Hea Backorder WPL WP61006197 $109.21

BARRIER WPL 61003426 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

SUPPORT, TEMP. CONTROL WPL 61003315 Contact Us For Availability

WASHER, CONE STOP WPL 696981 Contact Us For Availability

12001991 Whirlpool Ice Door Kit In Stock WPL 12001991 $134.08

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

WP67005457 Whirlpool Refrigerator Clip Backorder WPL WP67005457 $6.88

COVER, LOWER HINGE (WHT) WPL 61003219 Contact Us For Availability

DRIER WPL 139001 Contact Us For Availability

NAMEPLATE (WHT) WPL 61002164 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

FRAME, DELI SHELF WPL 61003870 Contact Us For Availability

FRAME, SHELF WPL 61003896 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

TIMER, DEFROST WPL 682332 Contact Us For Availability

IMPELLER WPL 700361 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $60.81

WP61003407 Whirlpool Refrigerator Dispenser C Backorder WPL WP61003407 $60.71

HOUSING, EVAPORATOR WPL 61003830 Contact Us For Availability

SCREW WPL 6527533 Contact Us For Availability

INSERT, EXT. TRIM (LWR-WHT) WPL 61003966 Contact Us For Availability

INLET, WATER WPL 951001 Contact Us For Availability

GLASS, SHELF WPL 61003897 Contact Us For Availability

GLASS, DELI SHELF WPL 61004023 Contact Us For Availability

INSULATION, DISCHARGE (LT) WPL 61003229 Contact Us For Availability

INSULATION, DISCHARGE (RT) WPL 61003230 Contact Us For Availability

PLATE, DRIVE WPL 697551 Contact Us For Availability

RECEPTACLE, BULB WPL 701191 Contact Us For Availability

COVER, COIL (UPR) WPL 61004028 Contact Us For Availability

BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability

TRIM, HANDLE EXT. (UPR) WPL 61004497 Contact Us For Availability

EJECTOR, ICE WPL 951011 Contact Us For Availability

TRIM, EXT. GLASS SHELF (FRONT) WPL 61003867 Contact Us For Availability

TUNNEL, CONTROL HOUSING WPL 61003818 Contact Us For Availability

SEAL, TUNNEL (DOUBLE-SIDED) WPL 61005075 Contact Us For Availability

NUT, AUGER WPL 697091 Contact Us For Availability

BULB, LIGHT WPL 631791 Contact Us For Availability

PAN, DRAIN WPL 61002649 Contact Us For Availability

TRIM, HANDLE EXT. (LWR) WPL 61004425 Contact Us For Availability

ARM, SENSOR WPL 61004136 Contact Us For Availability

TRIM, EXT. GLASS SHELF (REAR) WPL 61003866 Contact Us For Availability

SEAL, TUNNEL WPL 61003819 Contact Us For Availability

BEARING, SPACER WPL 696971 Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

PAD, ACTUATOR (LT. GRY) WPL 61004441 Contact Us For Availability

SEAL, UPPER COVER (TOP) WPL 61003834 Contact Us For Availability

STOP, DOOR WPL 61003273 Contact Us For Availability

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

SHIELD, LIGHT WPL 61003439 Contact Us For Availability

RECEPTACLE, BULB WPL 61003237 Contact Us For Availability

SPACER, CRUSHER BLADE WPL 696961 Contact Us For Availability

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $7.71

COVER, UPPER HINGE (WHT) WPL 61004642 Contact Us For Availability

GRILL (WHT) WPL 61003411 Contact Us For Availability

COVER, EVAPORATOR FAN WPL 61003835 Contact Us For Availability

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

COVER, UPPER HINGE (WHT) WPL 61004640 Contact Us For Availability

STRIPPER, ICE WPL 951021 Contact Us For Availability

TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability

BARRIER, FOIL (LT) WPL 61003354 Contact Us For Availability

BARRIER, FOIL (RT) WPL 61003355 Contact Us For Availability

SPACER, BLADE WPL 696962 Contact Us For Availability

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

GROMMET, BRACKET WPL 569331 Contact Us For Availability

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

SCREW, BRACKET WPL 951081 Contact Us For Availability

ESCUTCHEON (WHT) WPL 61004033 Contact Us For Availability

ESCUTCHEON (WHT) WPL 61005286 Contact Us For Availability

SLIDE, CONTROL (MEAT) WPL 61003249 Contact Us For Availability

SHIELD, HEAT WPL 61003238 Contact Us For Availability

PLATE, IMPELLER WPL 697011 Contact Us For Availability

61005625 Whirlpool Refrigerator Ice Enclosure Backorder WPL 61005625 $149.99

61005626 Whirlpool Water Inlet Valve In Stock WPL 61005626 $82.80

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $27.54

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $3.49

SCREW WPL 61004424 Contact Us For Availability

COVER, COIL (LWR) WPL 61003836 Contact Us For Availability

ISOLATOR, CONDENSER WPL 61004584 Contact Us For Availability

BOARD, FTN. SWITCH WPL 61003421 Contact Us For Availability

SCREW WPL 61003422 Contact Us For Availability

BOARD, FTN. SWITCH WPL 61005000 Contact Us For Availability

RETAINER, CONTROL SLIDE WPL 61003250 Contact Us For Availability

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $7.20

COVER, COMPRESSOR COMPARTMENT WPL 61004674 Contact Us For Availability

SCREW WPL 6527550 Contact Us For Availability

GROMMET ASSY., WATER LINE WPL 61004391 Contact Us For Availability

CLIP, WATER LINE (ADHESIVE) WPL 61005058 Contact Us For Availability

PAN, DELI WPL 61003871 Contact Us For Availability

SHIELD, LIGHT WPL 61003924 Contact Us For Availability

SCREW WPL 4000221 Contact Us For Availability

SUPPORT, ENCLOSURE WPL 61005080 Contact Us For Availability

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $4.82

INSULATION WPL 61003340 Contact Us For Availability

SEAL, LOWER COVER WPL 61003837 Contact Us For Availability

PAN, COMPRESSOR MTG. WPL 61003816 Contact Us For Availability

PAN, COMPRESSOR MTG. WPL 61005269 Contact Us For Availability

GROMMET ASSY., WATER LINE WPL 61004392 Contact Us For Availability

HOLDER, BEVERAGE WPL 61002657 Contact Us For Availability

RETAINER, CONTROL ROD WPL 61003316 Contact Us For Availability

SCREW WPL 40002612 Contact Us For Availability

GUIDE, YOKE WPL 697151 Contact Us For Availability

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

INSULATION, FTN. (STYROFOAM) WPL 61004724 Contact Us For Availability

PLUG BUTTON, EVAP. COVER WPL 61001952 Contact Us For Availability

SCREW WPL 4000311 Contact Us For Availability

CLAMP WPL 535169 Contact Us For Availability

HOSE, DRAIN WPL 61003133 Contact Us For Availability

BRACKET, WATER VALVE WPL 61003732 Contact Us For Availability

PANEL, CONTROL WPL 61004380 Contact Us For Availability

BLADE, CRUSHER WPL 697023 Contact Us For Availability

INSULATION WPL 61003343 Contact Us For Availability

SLINGER, DISC WPL 61003198 Contact Us For Availability

KICKPLATE (WHT) WPL 61004053 Contact Us For Availability

BRACKET, WATER FILTER WPL 61003698 Contact Us For Availability

BLADE, CRUSHER WPL 697022 Contact Us For Availability

INSULATION WPL 61003308 Contact Us For Availability

GROMMET, FILL TUBE WPL 61003253 Contact Us For Availability

CLIP, FILL TUBE WPL 678771 Contact Us For Availability

TUBE, DRAIN WPL 61004751 Contact Us For Availability

FILTER, WATER WPL UKF7001AXX Contact Us For Availability

BLADE, CRUSHER WPL 697061 Contact Us For Availability

675791 Whirlpool Dishwasher ARM Assembly Backorder WPL 675791 $80.75

WIRE HARNESS, FTN. SWITCHES WPL 61003458 Contact Us For Availability

WIRE HARNESS, FTN. WPL 61004775 Contact Us For Availability

WIRE HARNESS, FTN. WPL 61005275 Contact Us For Availability

WHEEL ASSY. (FRT) WPL 61002066 Contact Us For Availability

WHEEL ASSY. (FRT) WPL 61005232 Contact Us For Availability

FITTING ASSY., WATER FILTER WPL 61003705 Contact Us For Availability

BLADE, CRUSHER WPL 697021 Contact Us For Availability

WP61003826 Whirlpool Wheel Backorder WPL WP61003826 $4.82

CLIP, WATER LINE (ADHESIVE) WPL 61004913 Contact Us For Availability

SCREW WPL 61003796 Contact Us For Availability

LOCK, FIXED BLADE WPL 697081 Contact Us For Availability

28

FITTING, WATER FILTER WPL 61003790 Contact Us For Availability

28

PIN, BLADE LOCK WPL 697051 Contact Us For Availability

RECEPTACLE, BULB WPL 689743 Contact Us For Availability

LEG, LEVELING WPL 61002014 Contact Us For Availability

PLUG, FILTER BYPASS WPL 61003791 Contact Us For Availability

DOOR, ICE CRUSHER WPL 697181 Contact Us For Availability

BULB, LIGHT WPL 319561 Contact Us For Availability

MANUAL, USE & CARE WPL 16009545 Contact Us For Availability

HEAD, WATER FILTER WPL 61003789 Contact Us For Availability

ROD, CRUSHER CONTROL WPL 61004807 Contact Us For Availability

SHIELD, LIGHT WPL 61002272 Contact Us For Availability

MANUAL, SERVICE SXS APD WPL 16009103 Contact Us For Availability

TRIM, CONTROL HOUSING WPL 61003891 Contact Us For Availability

SPRING, CONTROL ROD WPL 61004808 Contact Us For Availability

32

TRIM, SHELF (FRT) WPL 61003838 Contact Us For Availability

32

GRILL, LIGHT WPL 61004590 Contact Us For Availability

32

BRACKET, CONTROL ROD WPL 61004809 Contact Us For Availability

2006253 Whirlpool Refrigerator Screw Backorder WPL 2006253 $8.89

SHELF, FRZ. (SHALLOW) WPL 61004029 Contact Us For Availability

SHELF, FRZ. (DEEP) WPL 61004030 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 61004697 Contact Us For Availability

WIRE HARNESS, FRZ./F.F. WPL 61004702 Contact Us For Availability

SOLENOID WPL 61003118 Contact Us For Availability

34

BASKET, FRZ. WPL 61003841 Contact Us For Availability

34

YOKE ASSY. WPL 61003539 Contact Us For Availability

35

DIVERTER, AIR WPL 61003205 Contact Us For Availability

36

SEAL, AIR DIVERTER WPL 61003206 Contact Us For Availability

38

DIVIDER, DISPENSER ENCLOSURE WPL 61003900 Contact Us For Availability

39

SPACER, DIVIDER WPL 688231 Contact Us For Availability

40

WIRE HARNESS, FAN & HEATER WPL 61003204 Contact Us For Availability

40

WIRE HARNESS, FRZ. WPL 61003731 Contact Us For Availability

NI

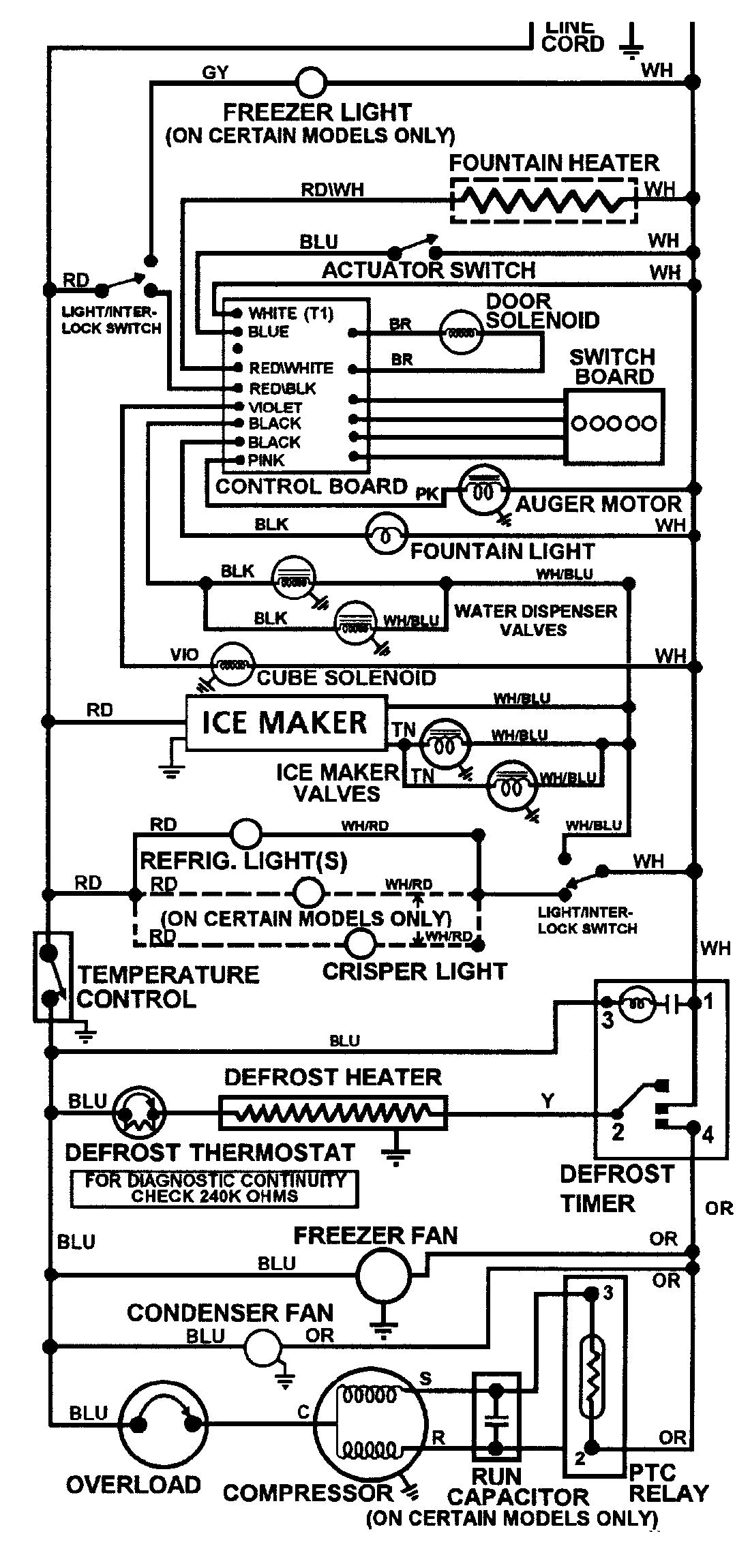

WIRING INFORMATION WPL 15002440 Contact Us For Availability
