Model Maytag MSD2658KES02 REFRIGERATOR – Common Parts & Diagrams

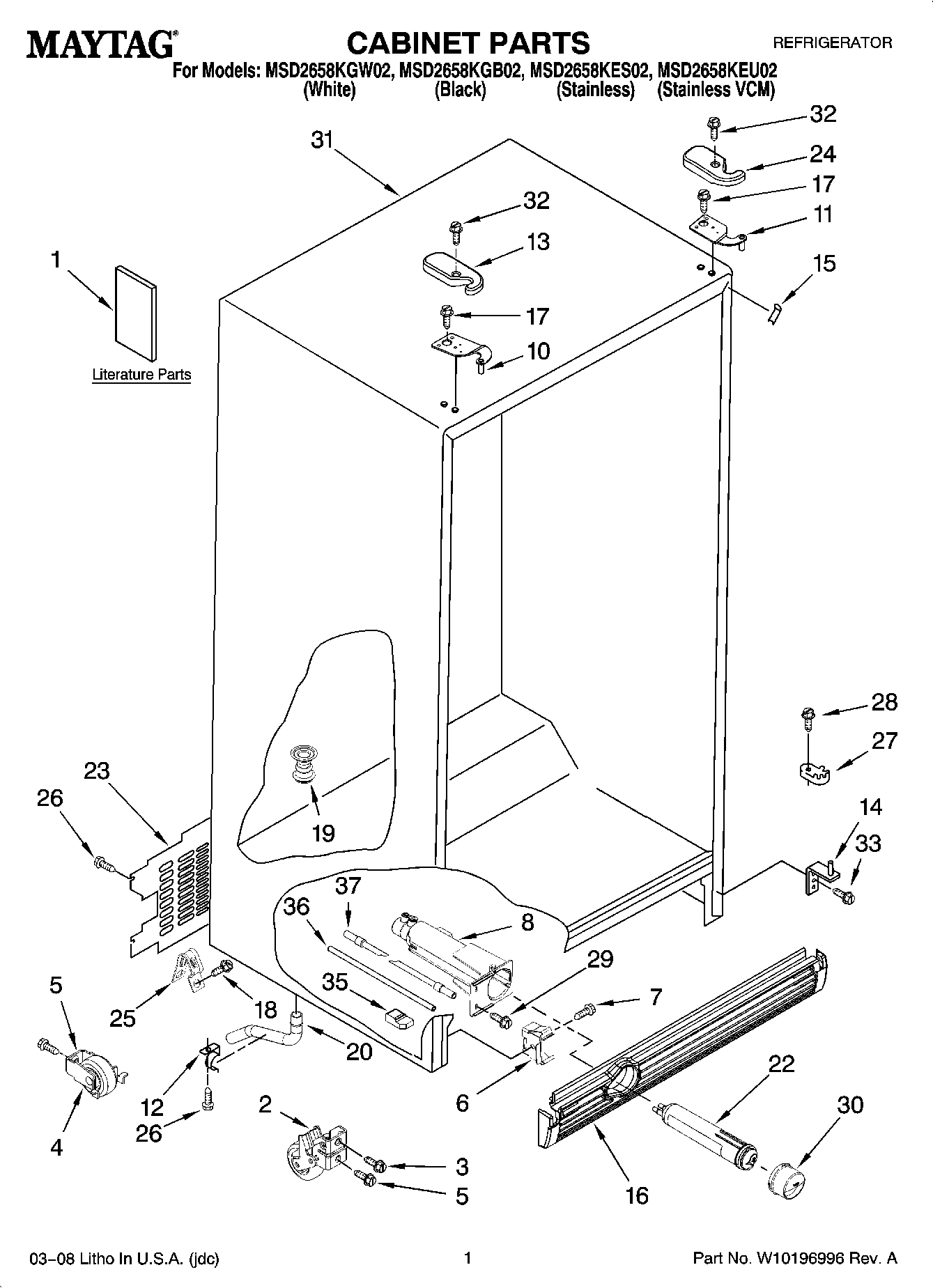

01 - CABINET PARTS

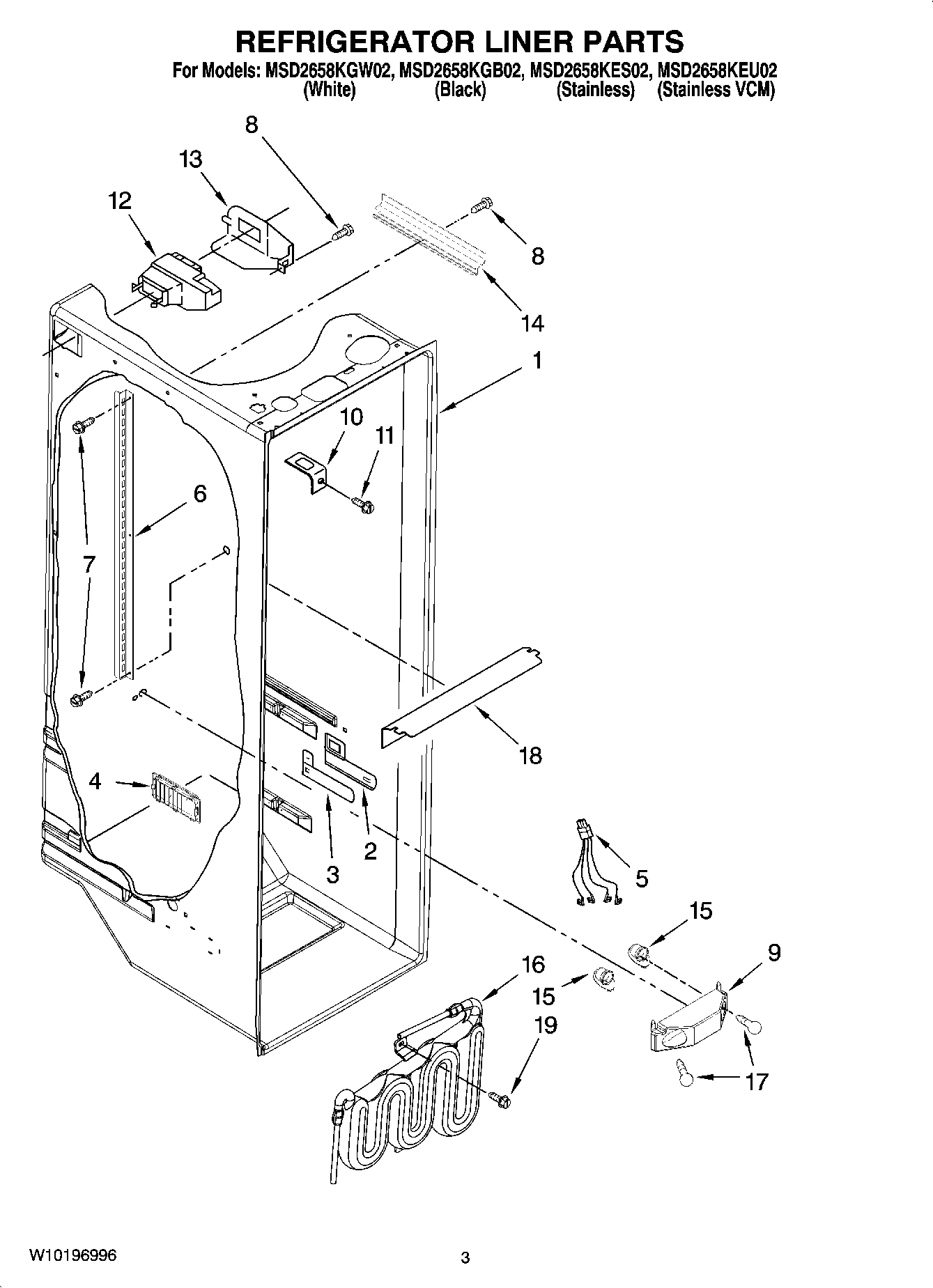

02 - REFRIGERATOR LINER PARTS

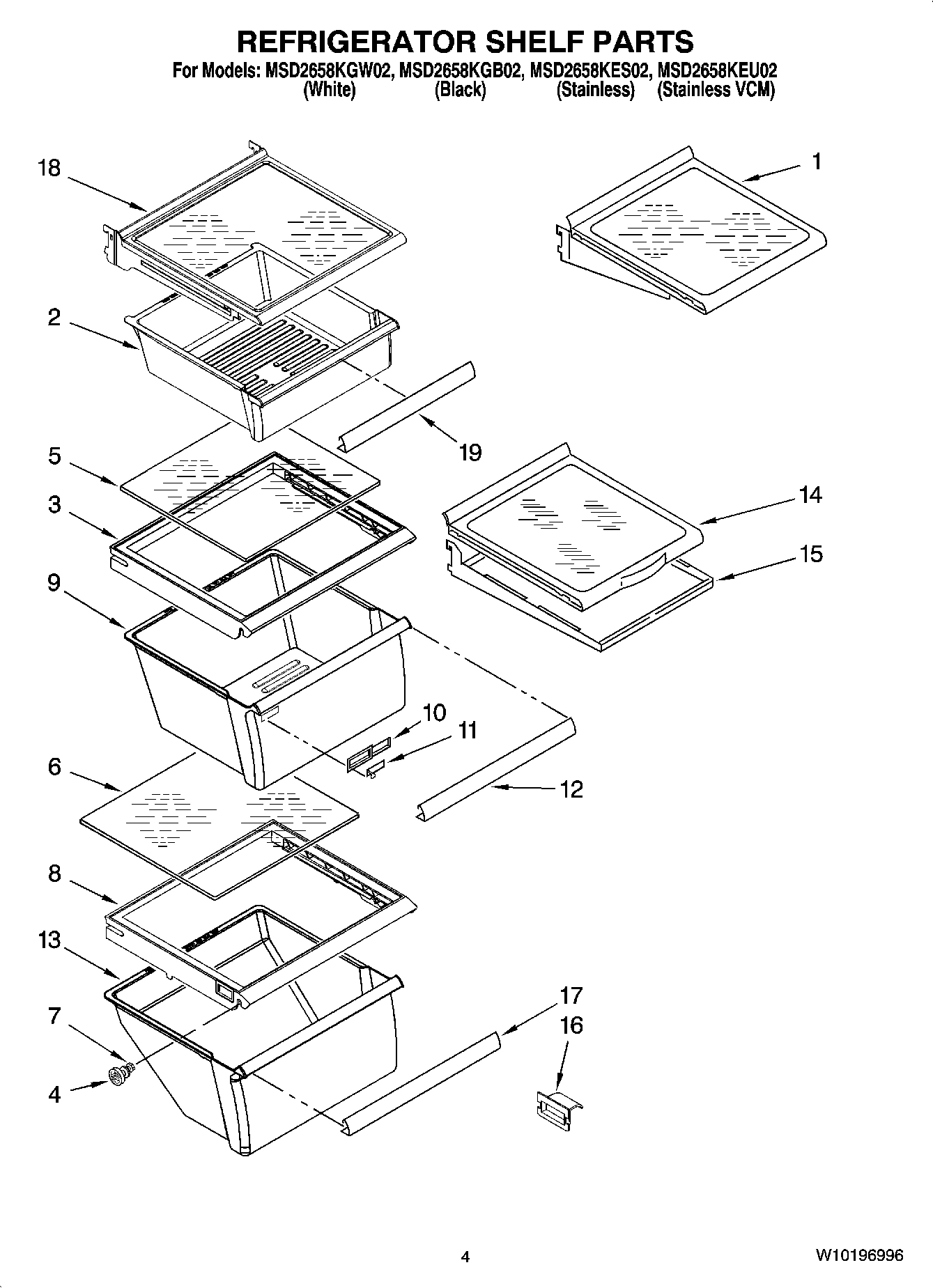

03 - REFRIGERATOR SHELF PARTS

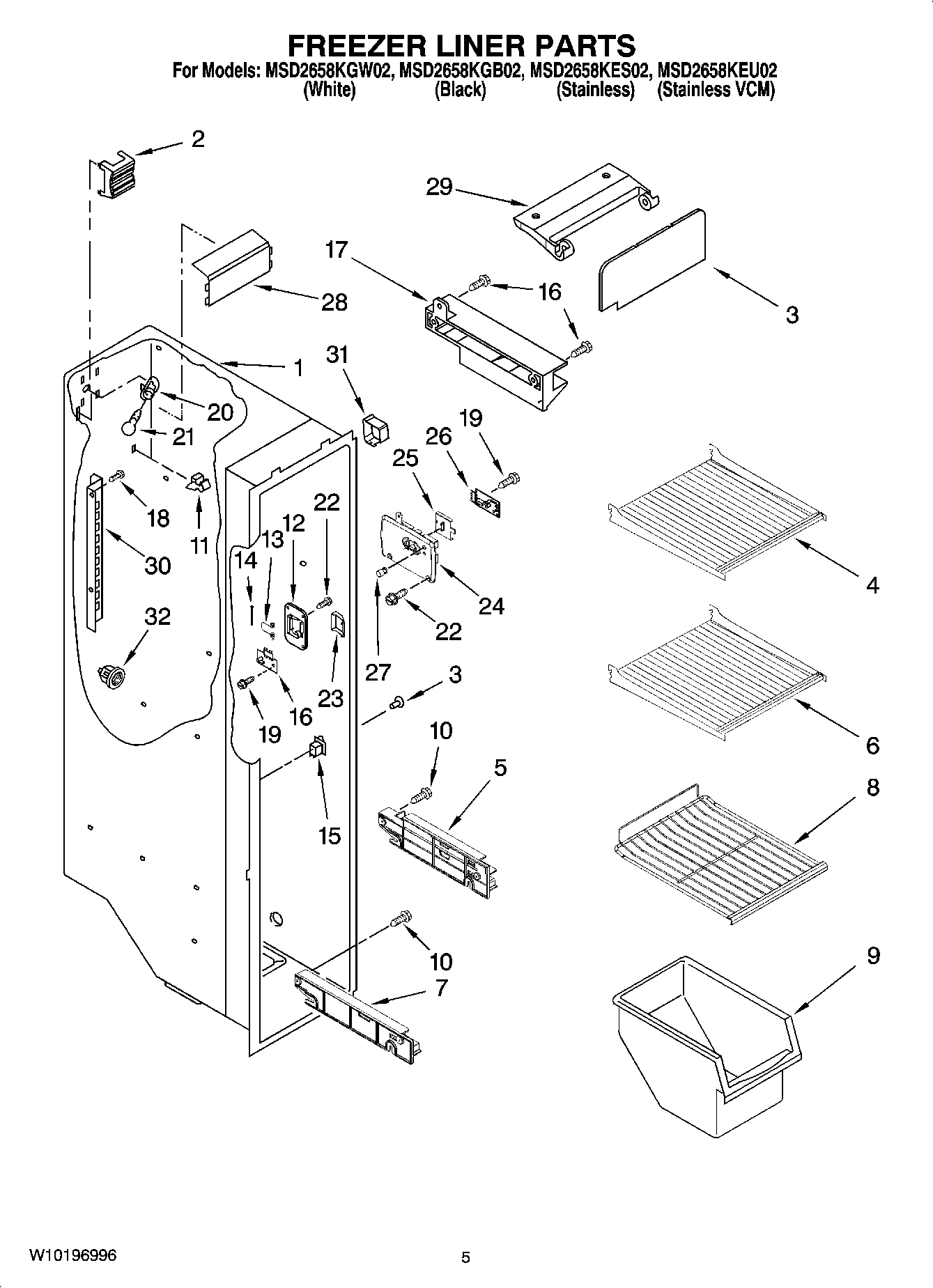

04 - FREEZER LINER PARTS

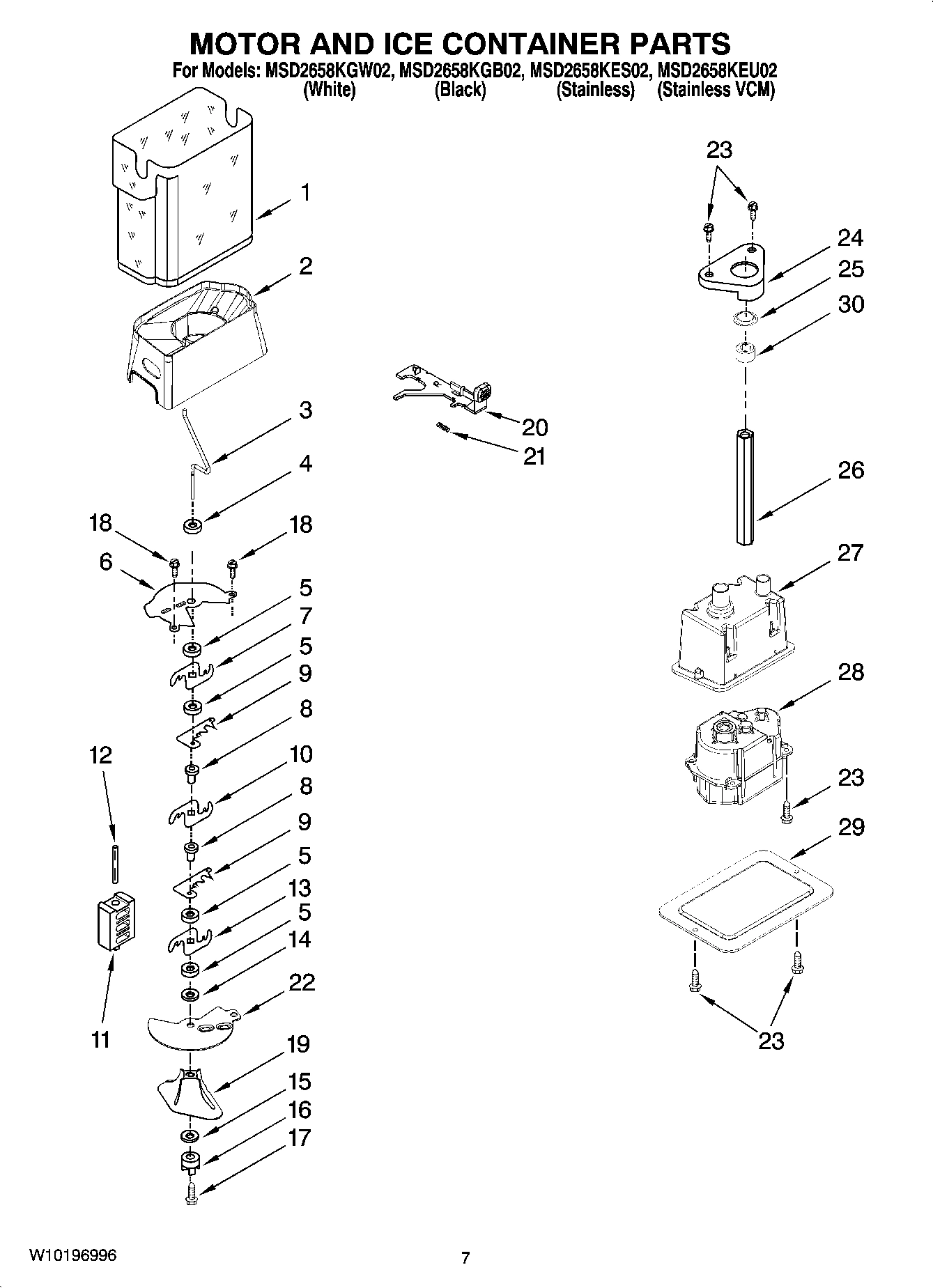

05 - MOTOR AND ICE CONTAINER PARTS

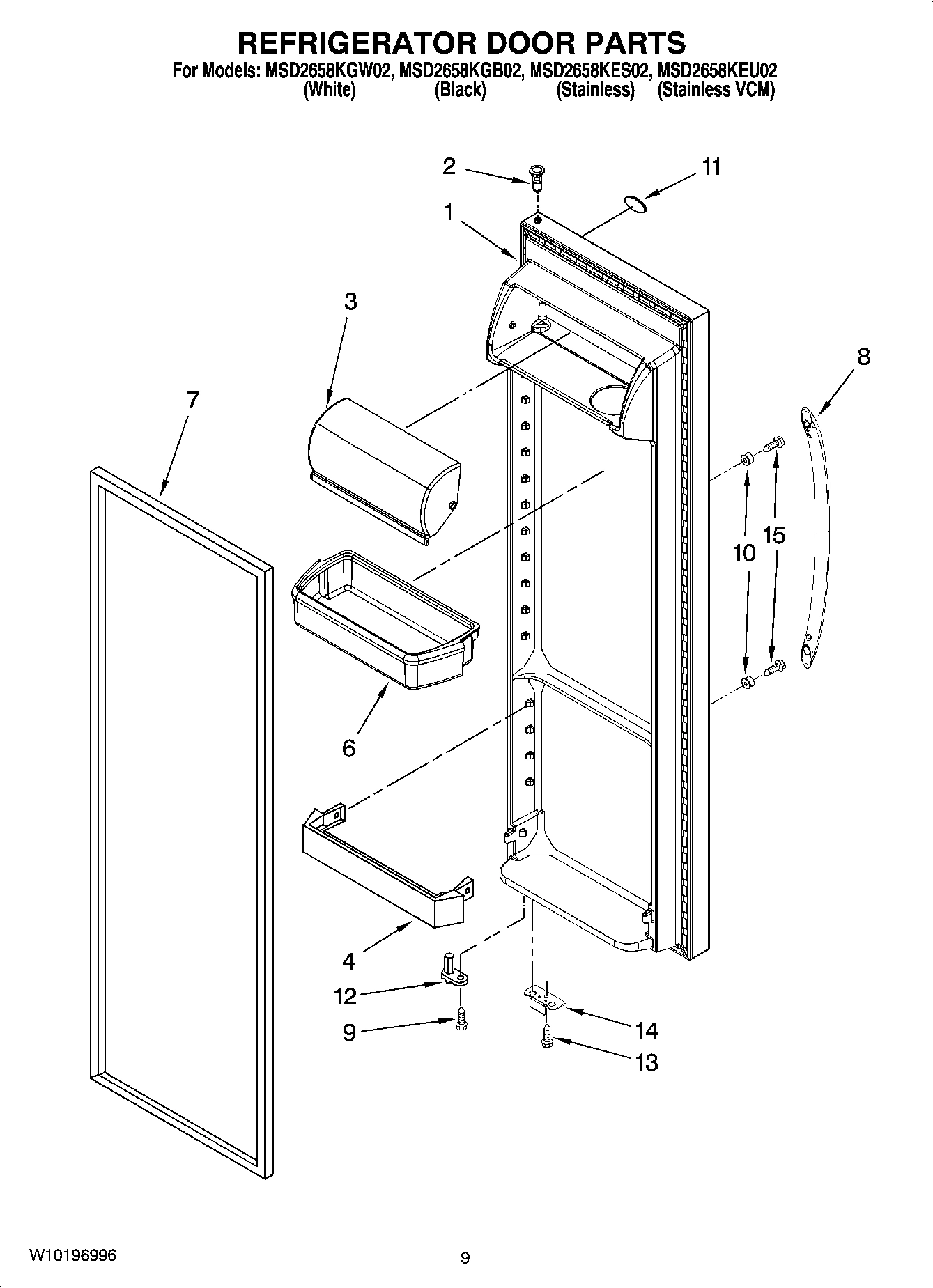

06 - REFRIGERATOR DOOR PARTS

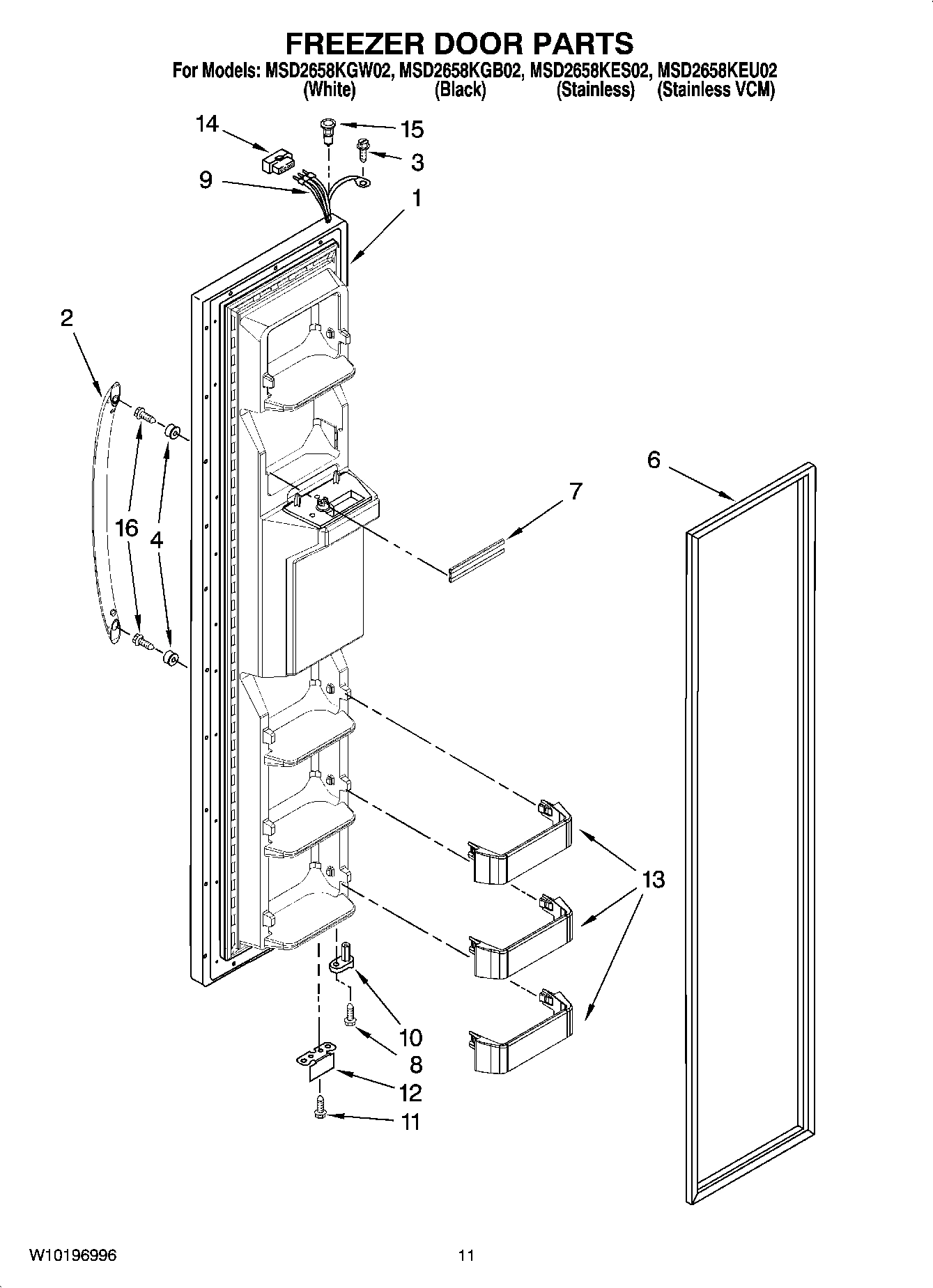

07 - FREEZER DOOR PARTS

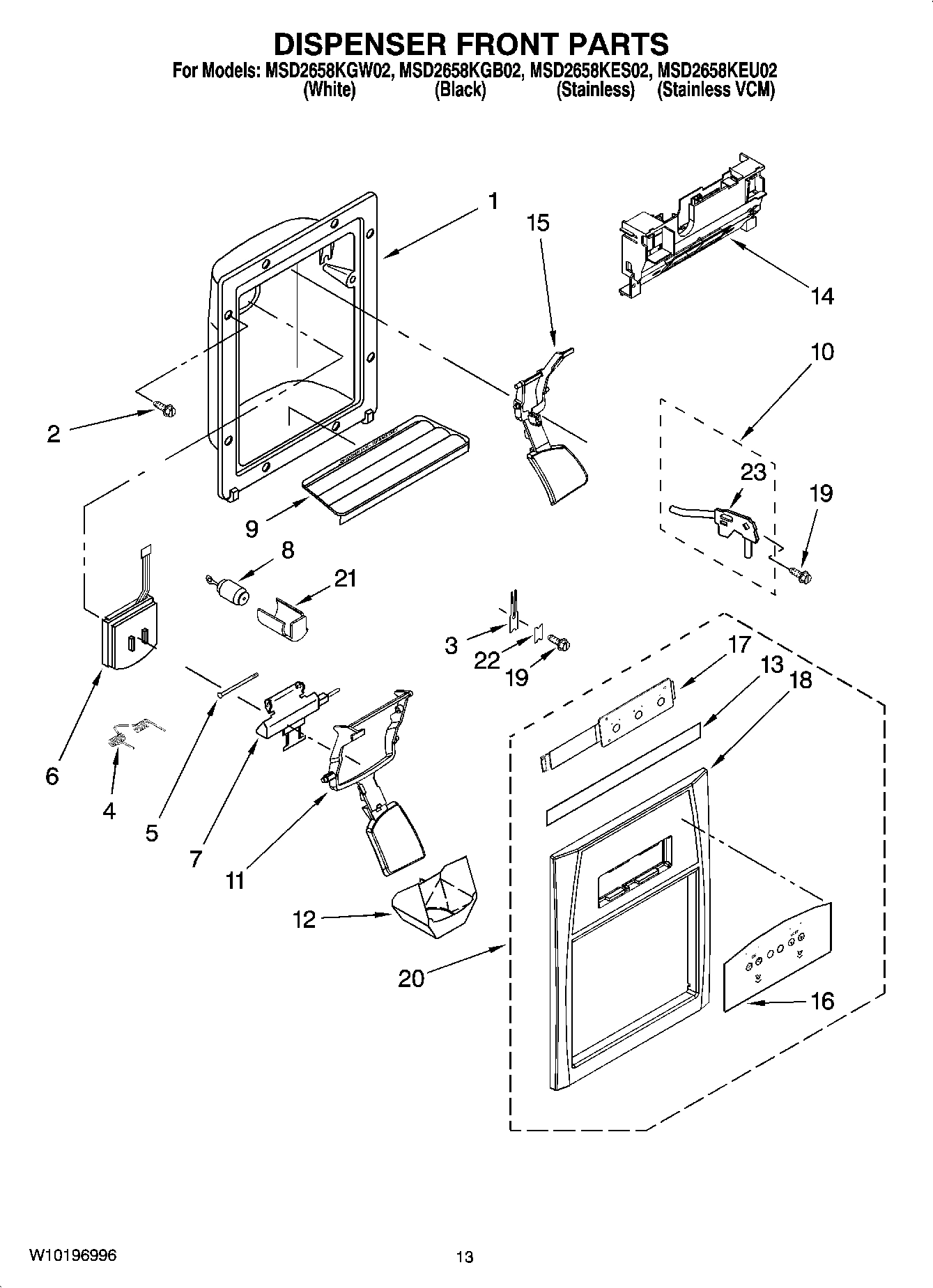

08 - DISPENSER FRONT PARTS

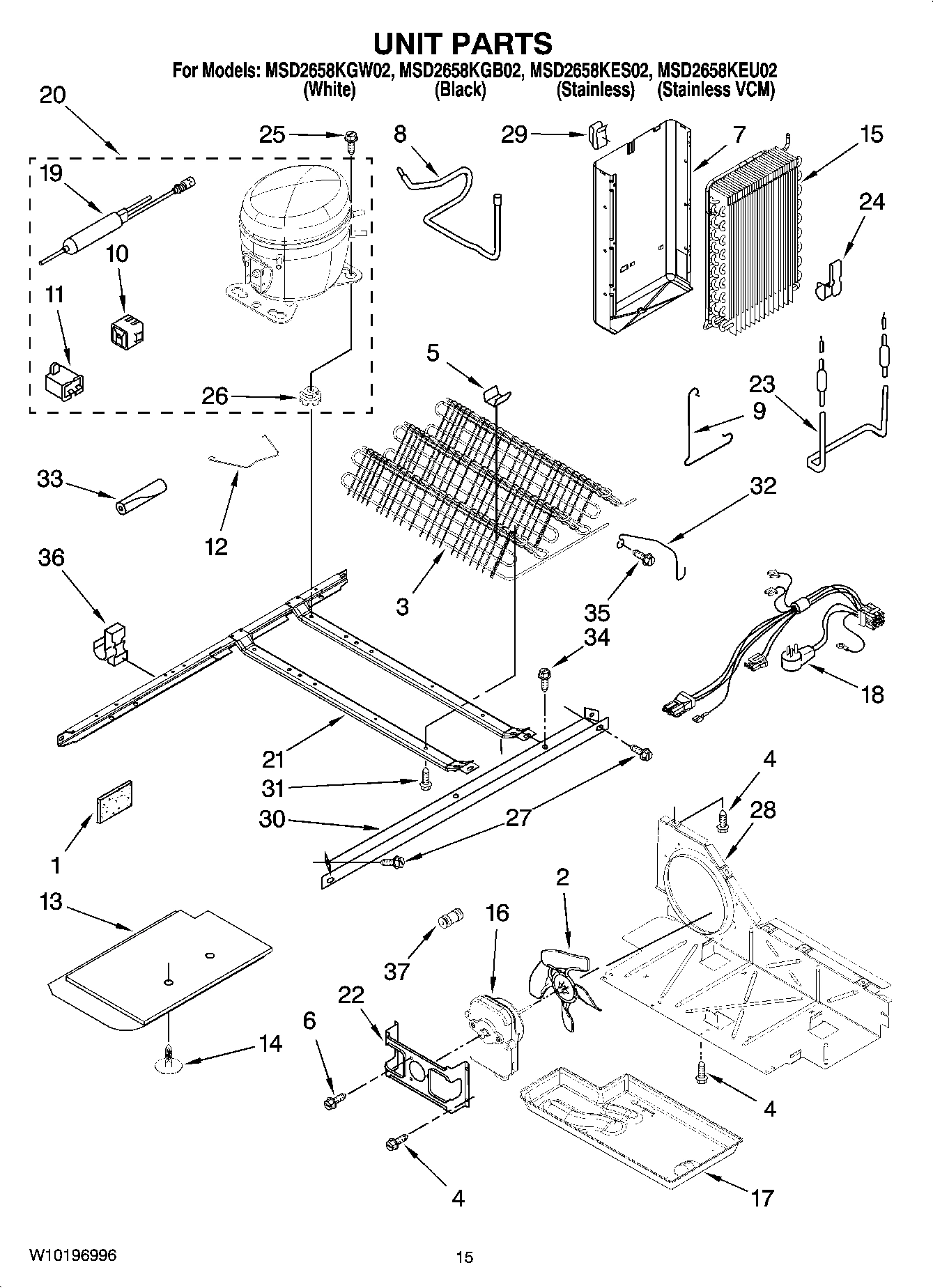

09 - UNIT PARTS

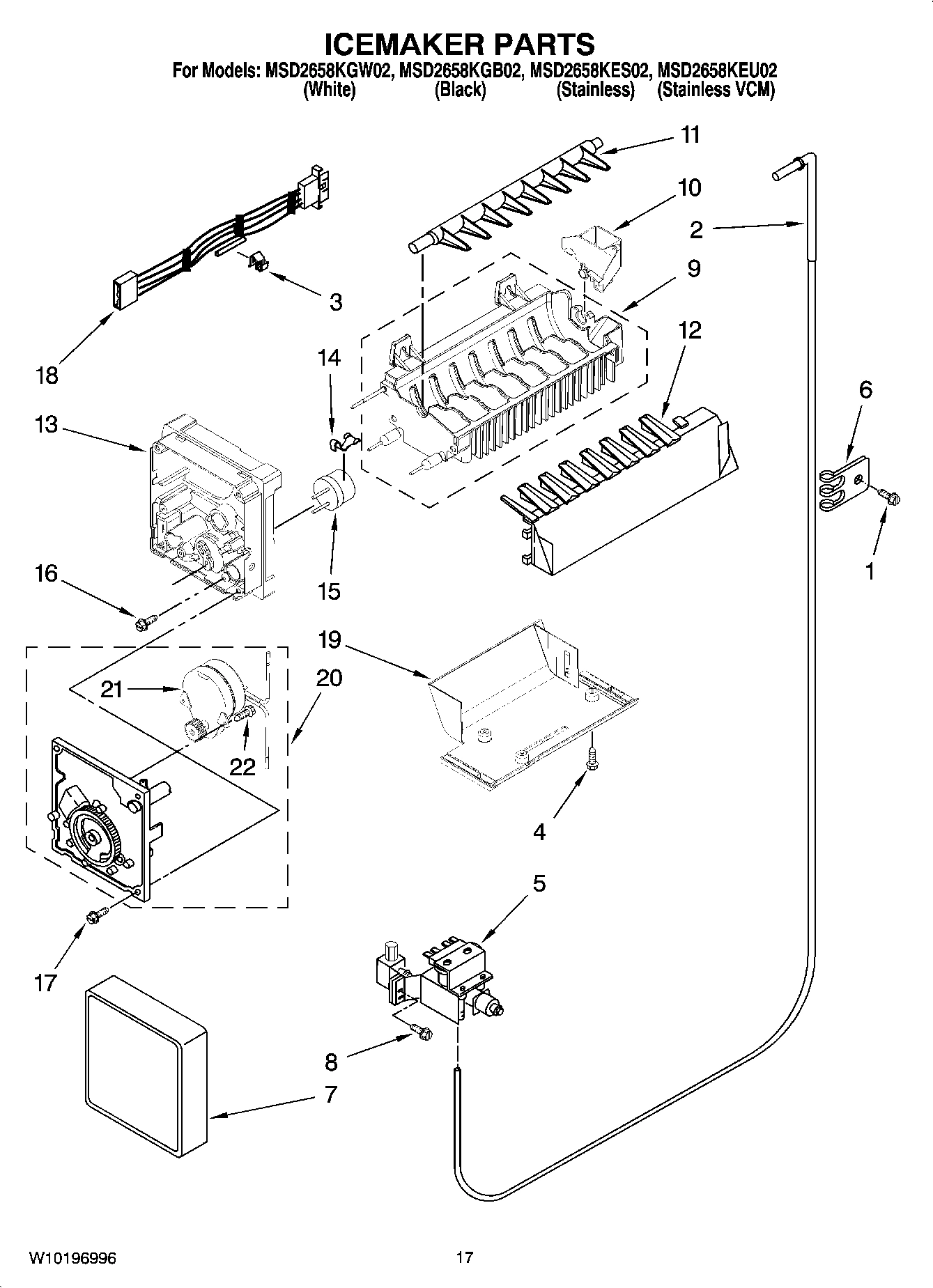

10 - ICEMAKER PARTS

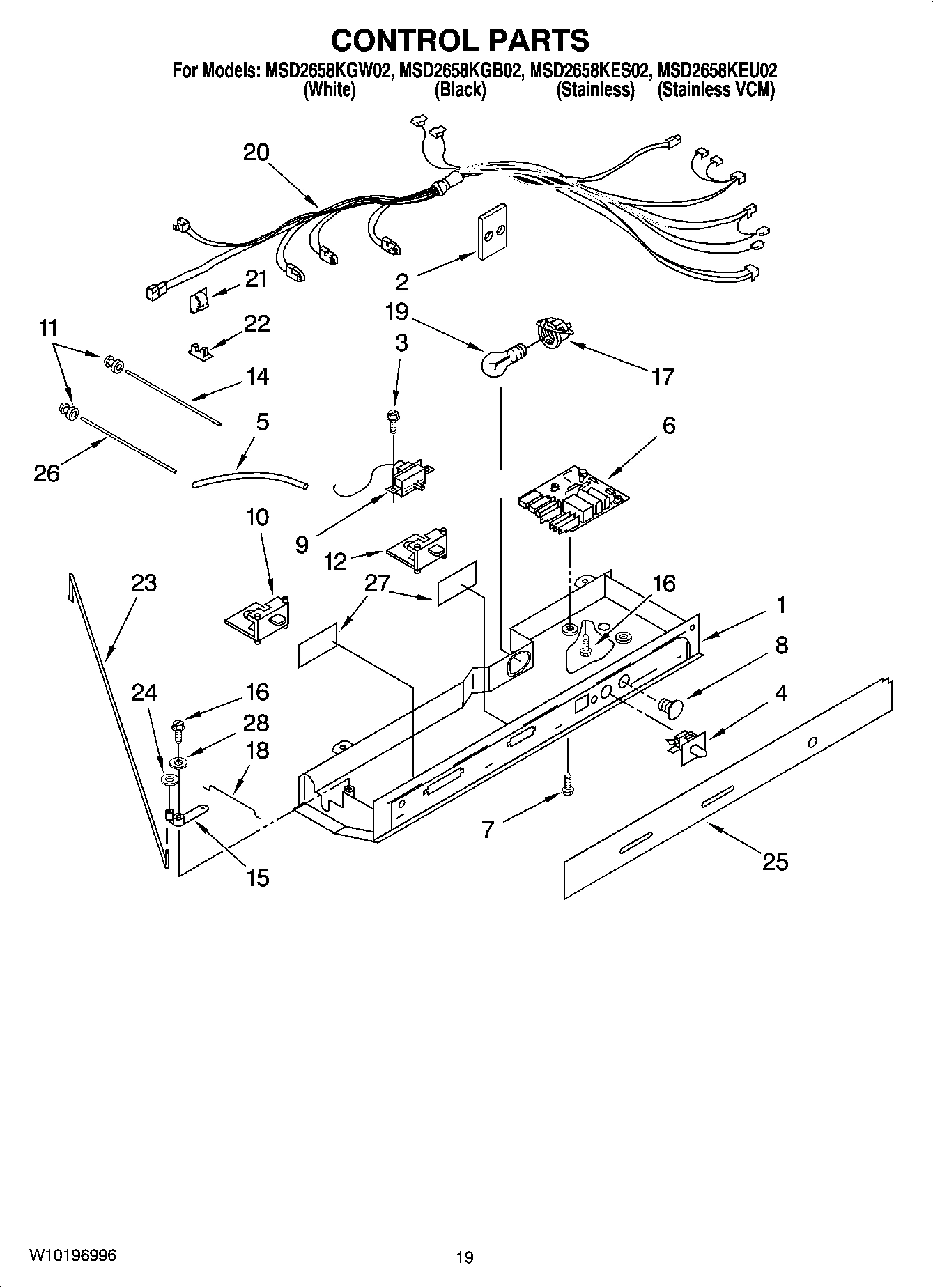

11 - CONTROL PARTS

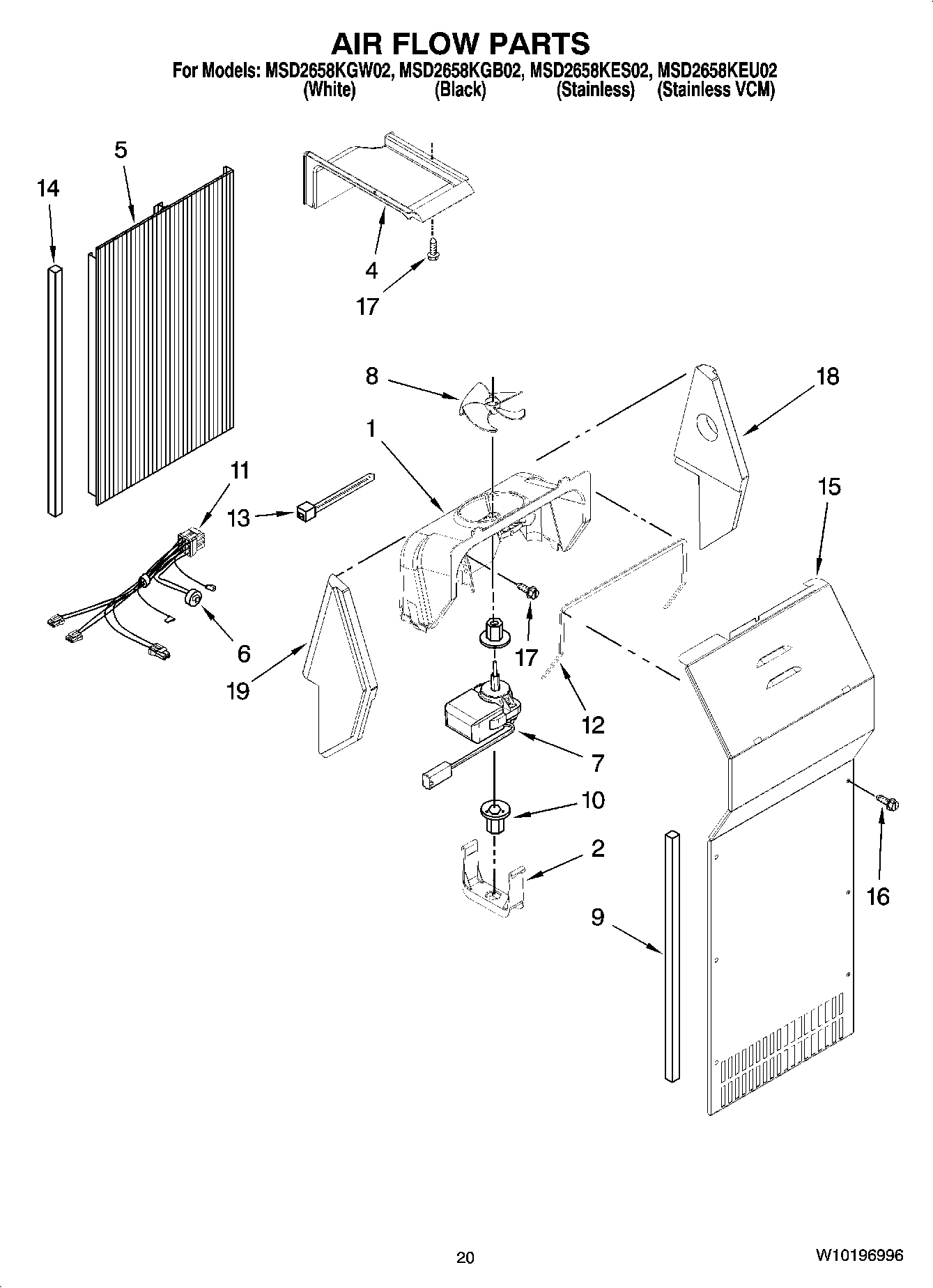

12 - AIR FLOW PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MSD2658KES02 REFRIGERATOR
MAY 876764 MAY 876764 Contact Us For Availability
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
MAY 1117510 MAY 1117510 Contact Us For Availability
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
MAY 479502 MAY 479502 Contact Us For Availability
MAY 503695 MAY 503695 Contact Us For Availability
MAY 505587 MAY 505587 Contact Us For Availability
MAY 542638 MAY 542638 Contact Us For Availability
MAY 542639 MAY 542639 Contact Us For Availability
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
PAINT, BULK (1 qt.) (Black) MAY 799340 Contact Us For Availability
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
MAY 80051 MAY 80051 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12OZ. GRAPHITE) MAY 8171357 Contact Us For Availability
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
MAY 833938 MAY 833938 Contact Us For Availability
MAY W10134625 MAY W10134625 Contact Us For Availability
1
MAY 2220407 MAY 2220407 Contact Us For Availability
1
Instruction Sheet, Door Removal MAY 2261037 Contact Us For Availability
1
MAY 2326267 MAY 2326267 Contact Us For Availability
1
Service & Wiring Sheet MAY W10142180 Contact Us For Availability
1
MAY W10182437 MAY W10182437 Contact Us For Availability
1
MAY 489084 MAY 489084 Contact Us For Availability
1
Shelf Assembly, Spillguard MAY W10141748 Contact Us For Availability
1
Ice Bin MAY W10170127 Contact Us For Availability
1
Refrigerator Door (Includes Item 7) (Black) MAY 2326326B Contact Us For Availability
1
Refrigerator Door (Includes Item 7) (Stainles MAY 2326326LG Contact Us For Availability
1
Refrigerator Door (Includes Item 7) (Stainles MAY 2326326S Contact Us For Availability
1
Refrigerator Door (Includes Item 7) (White) MAY 2326326W Contact Us For Availability
1
MAY 2327938B MAY 2327938B Contact Us For Availability
1
MAY 2327938LB MAY 2327938LB Contact Us For Availability
1
MAY 2327938SB MAY 2327938SB Contact Us For Availability
1
MAY 2327938W MAY 2327938W Contact Us For Availability
1
INSULATION, SOUND MAY 2169104 Contact Us For Availability
1
MAY 2181738 MAY 2181738 Contact Us For Availability
1
Fan Scroll MAY 2182120 Contact Us For Availability
2
MAY 2174748 MAY 2174748 Contact Us For Availability
2
MAY W10175967 MAY W10175967 Contact Us For Availability
2
MAY 2188655 MAY 2188655 Contact Us For Availability
2
MAY 2198589 MAY 2198589 Contact Us For Availability
2
Crusher Bin MAY 2198573 Contact Us For Availability
2
MAY 2308091 MAY 2308091 Contact Us For Availability
2
Handle (Black) MAY 13004701B Contact Us For Availability
2
MAY 13004701W MAY 13004701W Contact Us For Availability
2
Handle (Stainless) MAY W10136871 Contact Us For Availability
2
MAY 2225834 MAY 2225834 Contact Us For Availability
2
MAY 2303216 MAY 2303216 Contact Us For Availability
2
MAY 2172931 MAY 2172931 Contact Us For Availability
2
MAY 2155590 MAY 2155590 Contact Us For Availability
3
MAY 3400517 MAY 3400517 Contact Us For Availability
3
MAY 2182757 MAY 2182757 Contact Us For Availability
3
Cover, Crisper MAY 2209698 Contact Us For Availability
3
MAY 2255720 MAY 2255720 Contact Us For Availability
3
MAY 2317240 MAY 2317240 Contact Us For Availability
3
Door, Compartment MAY 2256101 Contact Us For Availability
3
MAY 488500 MAY 488500 Contact Us For Availability
3
MAY 3196537 MAY 3196537 Contact Us For Availability
3
MAY 2194719 MAY 2194719 Contact Us For Availability
3
MAY W10121484 MAY W10121484 Contact Us For Availability
3
CLIP,FUSE MAY 628379 Contact Us For Availability
4
Rear Roller (2) MAY 2196236 Contact Us For Availability
4
MAY 489464 MAY 489464 Contact Us For Availability
4
MAY 2257741 MAY 2257741 Contact Us For Availability
4
MAY 2196485 MAY 2196485 Contact Us For Availability
4
Shelf, Wire MAY 2205837K Contact Us For Availability
4
MAY 2258220 MAY 2258220 Contact Us For Availability
4
MAY 2156022 MAY 2156022 Contact Us For Availability
4
MAY 2326259 MAY 2326259 Contact Us For Availability
4
MAY 2304772 MAY 2304772 Contact Us For Availability
4
MAY 2149705 MAY 2149705 Contact Us For Availability
4
MAY 2313359 MAY 2313359 Contact Us For Availability
5
Wire Harness, Dual Crisper MAY 2311637 Contact Us For Availability
5
MAY W10141752 MAY W10141752 Contact Us For Availability
5
MAY 2301291 MAY 2301291 Contact Us For Availability
5
MAY 2301292 MAY 2301292 Contact Us For Availability
5
Spacer, Flat (4) MAY 1119007 Contact Us For Availability
5
MAY 2196195 MAY 2196195 Contact Us For Availability
5
MAY 2216914 MAY 2216914 Contact Us For Availability
5
MAY 2315534 MAY 2315534 Contact Us For Availability
5
Tube Barrier MAY 2196001 Contact Us For Availability
5
MAY 2198580 MAY 2198580 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
Shelf Ladder MAY 2319866 Contact Us For Availability
6
GLASS COVER MAY 2179259 Contact Us For Availability
6
Shelf, Slide Out Lower (2) MAY 2211746K Contact Us For Availability
6
MAY 2317248 MAY 2317248 Contact Us For Availability
6
MAY 2304235K MAY 2304235K Contact Us For Availability
6
Door Gasket, Magnetic (Mist Beige) MAY 2221303 Contact Us For Availability
6
Door Gasket, Magnetic (Black) MAY 2221314 Contact Us For Availability
6
MAY 2180353 MAY 2180353 Contact Us For Availability
6
MAY 489099 MAY 489099 Contact Us For Availability
6
Clip, Tube MAY 2208136 Contact Us For Availability
6
MAY 2303824 MAY 2303824 Contact Us For Availability
6
MAY 2321799 MAY 2321799 Contact Us For Availability
7
MAY 3400894 MAY 3400894 Contact Us For Availability
7
MAY 2301289 MAY 2301289 Contact Us For Availability
7
MAY 2301290 MAY 2301290 Contact Us For Availability
7
MAY 2257024 MAY 2257024 Contact Us For Availability
7
Door Gasket, Magnetic (Mist Beige) MAY 2221302 Contact Us For Availability
7
Door Gasket, Magnetic (Black) MAY 2221313 Contact Us For Availability
7
MAY 2219982 MAY 2219982 Contact Us For Availability
7
MAY 2304355 MAY 2304355 Contact Us For Availability
7
MAY 2217194 MAY 2217194 Contact Us For Availability
7
MAY 2174358 MAY 2174358 Contact Us For Availability
7
MAY 489398 MAY 489398 Contact Us For Availability
7
MAY 2315549 MAY 2315549 Contact Us For Availability
8
MAY 2186443 MAY 2186443 Contact Us For Availability
8
MAY 2311726 MAY 2311726 Contact Us For Availability
8
Shelf MAY 2211742K Contact Us For Availability
8
Spacer, Step MAY 1119005 Contact Us For Availability
8
MAY 3400012 MAY 3400012 Contact Us For Availability
8
MAY 2205686 MAY 2205686 Contact Us For Availability
8
MAY 2205765 MAY 2205765 Contact Us For Availability
8
MAY 488649 MAY 488649 Contact Us For Availability
8
MAY 940014 MAY 940014 Contact Us For Availability
8
Fan Blade MAY 2169142 Contact Us For Availability
9
MAY 2256035 MAY 2256035 Contact Us For Availability
9
MAY 2188652 MAY 2188652 Contact Us For Availability
9
MAY 2182971 MAY 2182971 Contact Us For Availability
9
MAY 2257020 MAY 2257020 Contact Us For Availability
9
MAY 2187725 MAY 2187725 Contact Us For Availability
9
Grille, Overflow (Black) MAY 2206670B Contact Us For Availability
9
Grille, Overflow (White) MAY 2206670W Contact Us For Availability
9
MAY 2161324 MAY 2161324 Contact Us For Availability
9
MAY W10122527 MAY W10122527 Contact Us For Availability
9
Thermostat MAY 2315562 Contact Us For Availability
9
MAY 2304241 MAY 2304241 Contact Us For Availability
10
HINGE TOP, FC MAY 2203770 Contact Us For Availability
10
Screw (8) MAY W10004810 Contact Us For Availability
10
MAY 2256085 MAY 2256085 Contact Us For Availability
10
MAY 2179343 MAY 2179343 Contact Us For Availability
10
MAY 2257023 MAY 2257023 Contact Us For Availability
10
MAY 2182179 MAY 2182179 Contact Us For Availability
10
MAY 2304317 MAY 2304317 Contact Us For Availability
10
Start-Device, Combination (Start Relay and Ov MAY 2304885 Contact Us For Availability
10
Cup-Water Fill MAY 2304969 Contact Us For Availability
10
MAY 2181741 MAY 2181741 Contact Us For Availability
10
Fan Grommet (2) MAY 2176759 Contact Us For Availability
11
HINGE TOP RC MAY 2203771 Contact Us For Availability
11
Screw MAY 489290 Contact Us For Availability
11
MAY 2179342 MAY 2179342 Contact Us For Availability
11
Clip, Air Duct (2) MAY 842534 Contact Us For Availability
11
MAY 2317239 MAY 2317239 Contact Us For Availability
11
MAY 13035001 MAY 13035001 Contact Us For Availability
11
MAY 489420 MAY 489420 Contact Us For Availability
11
Lever, Ice Dispenser (Black) MAY 2203562B Contact Us For Availability
11
Lever, Ice Dispenser (White) MAY 2203562W Contact Us For Availability
11
MAY 2264017 MAY 2264017 Contact Us For Availability
11
MAY 627843 MAY 627843 Contact Us For Availability
11
Grommet MAY 2172906 Contact Us For Availability
11
Harness, Fan Evaporator (Includes 6) MAY W10129815 Contact Us For Availability
12
Clip, Drain Hose MAY 1108439 Contact Us For Availability
12
MAY W10151374 MAY W10151374 Contact Us For Availability
12
MAY 2326317 MAY 2326317 Contact Us For Availability
12
MAY 2198587 MAY 2198587 Contact Us For Availability
12
MAY 489229 MAY 489229 Contact Us For Availability
12
DOOR CLOSER UPPER CAM MAY 2182178 Contact Us For Availability
12
MAY 2206629 MAY 2206629 Contact Us For Availability
12
MAY 2206629B MAY 2206629B Contact Us For Availability
12
MAY 2180224 MAY 2180224 Contact Us For Availability
12
MAY 2223314 MAY 2223314 Contact Us For Availability
12
Ice Striper MAY 2198598 Contact Us For Availability
12
MAY 2161466 MAY 2161466 Contact Us For Availability
12
Gasket, Fan Scroll MAY 2155789 Contact Us For Availability
13
Hinge Cover, FC (Apollo Gray) MAY 2203407AP Contact Us For Availability
13
HINGE COVER FC (BLACK) MAY 2203407B Contact Us For Availability
13
HINGE COVER FC (WHITE) MAY 2203407W Contact Us For Availability
13
Air Diffuser Cover MAY 2152019 Contact Us For Availability
13
MAY 2188654 MAY 2188654 Contact Us For Availability
13
MAY 2198635 MAY 2198635 Contact Us For Availability
13
MAY 2257022 MAY 2257022 Contact Us For Availability
13
Trivet (3) MAY 2171157K Contact Us For Availability
13
MAY 2305571 MAY 2305571 Contact Us For Availability
13
Unit Cover, Bottom MAY 2304899 Contact Us For Availability
13
Support MAY 2194712 Contact Us For Availability
13
Wire Tie MAY 2172840 Contact Us For Availability
14
MAY W10138965 MAY W10138965 Contact Us For Availability
14
Cover, Conduit MAY 2150331 Contact Us For Availability
14
Shelf S/G MAY W10141749 Contact Us For Availability
14
MAY 2198634 MAY 2198634 Contact Us For Availability
14
MAY 489235 MAY 489235 Contact Us For Availability
14
Connector MAY 2154473 Contact Us For Availability
14
MAY W10133702 MAY W10133702 Contact Us For Availability
14
MAY 489396 MAY 489396 Contact Us For Availability
14
MAY 2315522 MAY 2315522 Contact Us For Availability
14
MAY 2179920 MAY 2179920 Contact Us For Availability
14
MAY 2203876 MAY 2203876 Contact Us For Availability
15
MAY 2304846 MAY 2304846 Contact Us For Availability
15
MAY 2304848 MAY 2304848 Contact Us For Availability
15
Frame Assy MAY 2195975 Contact Us For Availability
15
Switch, Rocker Arm MAY 1115373 Contact Us For Availability
15
MAY 2198661 MAY 2198661 Contact Us For Availability
15
MAY 2182181 MAY 2182181 Contact Us For Availability
15
Lever, Water Dispenser (Black) MAY 2203561B Contact Us For Availability
15
Lever, Water Dispenser (White) MAY 2203561W Contact Us For Availability
15
Evaporator MAY 2188823 Contact Us For Availability
15
Thermostat (Also Order 542369 Cement Alumilas MAY 627985 Contact Us For Availability
15
Pivot Arm MAY 2161306 Contact Us For Availability
15
Cover, Evaporator (Includes 9) MAY 2206314 Contact Us For Availability
16
Grille (Black) MAY 2198468B Contact Us For Availability
16
Grille (White) MAY 2198468W Contact Us For Availability
16
MAY 2307107 MAY 2307107 Contact Us For Availability
16
MAY 2179350 MAY 2179350 Contact Us For Availability
16
MAY 2220398 MAY 2220398 Contact Us For Availability
16
MAY 2188918 MAY 2188918 Contact Us For Availability
16
Screw MAY 488208 Contact Us For Availability
16
Motor, Fan MAY W10124096 Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
16
MAY 627068 MAY 627068 Contact Us For Availability
16
Screw (6) MAY 8281159 Contact Us For Availability
17
MAY 489478 MAY 489478 Contact Us For Availability
17
MAY 489497 MAY 489497 Contact Us For Availability
17
Light Socket MAY 2162085 Contact Us For Availability
17
MAY 2326285 MAY 2326285 Contact Us For Availability
17
Slide, Ice Maker MAY 2212321 Contact Us For Availability
17
MAY 8281164 MAY 8281164 Contact Us For Availability
17
MAY 1105523 MAY 1105523 Contact Us For Availability
17
MAY 489276 MAY 489276 Contact Us For Availability
18
MAY 2209769 MAY 2209769 Contact Us For Availability
18
Shelf, Snack Bin MAY W10141750 Contact Us For Availability
18
MAY 3400065 MAY 3400065 Contact Us For Availability
18
Harness, Unit MAY 2187510 Contact Us For Availability
18
MAY 2187467 MAY 2187467 Contact Us For Availability
18
CONNECTING ROD, SHORT MAY 2161307 Contact Us For Availability
18
MAY 2203595 MAY 2203595 Contact Us For Availability
19
MAY 2304888 MAY 2304888 Contact Us For Availability
19
MAY 2255743 MAY 2255743 Contact Us For Availability
19
Screw MAY 488280 Contact Us For Availability
19
MAY 2179243 MAY 2179243 Contact Us For Availability
19
Screw MAY 489214 Contact Us For Availability
19
MAY 2317243 MAY 2317243 Contact Us For Availability
19
MAY 489000 MAY 489000 Contact Us For Availability
19
MAY 2317845 MAY 2317845 Contact Us For Availability
19
MAY W10177049 MAY W10177049 Contact Us For Availability
19
Bracket, Ice Maker Mounting MAY 2303583 Contact Us For Availability
19
MAY 2203596 MAY 2203596 Contact Us For Availability
20
Extension Tube MAY 1108438 Contact Us For Availability
20
MAY 2317277 MAY 2317277 Contact Us For Availability
20
Front Cover Assembly (Includes Items 16, 17 & MAY 2326294B Contact Us For Availability
20
Front Cover Assembly (Includes Items 16, 17 & MAY 2326294W Contact Us For Availability
20
Compressor (Includes Items 10, 11, 19, & 26) MAY W10120461 Contact Us For Availability
20
MAY 626691 MAY 626691 Contact Us For Availability
20
MAY 2187868 MAY 2187868 Contact Us For Availability
21
MAY 2198608 MAY 2198608 Contact Us For Availability
21
Sleeve, Delay Mechanism MAY 2252127 Contact Us For Availability
21
Frame, Unit Mounting MAY 2304904 Contact Us For Availability
21
MAY 1115374 MAY 1115374 Contact Us For Availability
22
MAY 8212652 MAY 8212652 Contact Us For Availability
22
MAY 8281185 MAY 8281185 Contact Us For Availability
22
Divider Chamber MAY 2317250 Contact Us For Availability
22
MAY 2195051 MAY 2195051 Contact Us For Availability
22
Bracket, Fan Motor MAY 2181929 Contact Us For Availability
22
Screw MAY 489136 Contact Us For Availability
22
Clip-Wiring MAY 1115375 Contact Us For Availability
23
MAY 2188735 MAY 2188735 Contact Us For Availability
23
MAY 2198633 MAY 2198633 Contact Us For Availability
23
Screw MAY 8281163 Contact Us For Availability
23
MAY 2304673 MAY 2304673 Contact Us For Availability
23
MAY 2323198 MAY 2323198 Contact Us For Availability
23
Connecting Rod MAY 2161308 Contact Us For Availability
24
HINGE COVER RC (BLACK) MAY 2203408B Contact Us For Availability
24
HINGE COVER RC (WHITE) MAY 2203408W Contact Us For Availability
24
MAY W10173569 MAY W10173569 Contact Us For Availability
24
MAY 2188919 MAY 2188919 Contact Us For Availability
24
MAY 2304287 MAY 2304287 Contact Us For Availability
24
MAY 489391 MAY 489391 Contact Us For Availability
25
CLAMP, SERVICE CORD MAY 549193 Contact Us For Availability
25
MAY 2315398 MAY 2315398 Contact Us For Availability
25
MAY 2198628 MAY 2198628 Contact Us For Availability
25
MAY 489373 MAY 489373 Contact Us For Availability
25
MAY W10124123 MAY W10124123 Contact Us For Availability
26
MAY 2255114 MAY 2255114 Contact Us For Availability
26
MAY 2188916 MAY 2188916 Contact Us For Availability
26
MAY 1100826 MAY 1100826 Contact Us For Availability
26
MAY 4387558 MAY 4387558 Contact Us For Availability
26
LIGHT BAR FC MAY 2179921 Contact Us For Availability
27
MAY 2155311 MAY 2155311 Contact Us For Availability
27
MAY 2198643 MAY 2198643 Contact Us For Availability
27
MAY 2256154 MAY 2256154 Contact Us For Availability
27
MAY 489340 MAY 489340 Contact Us For Availability
27
MAY 2175513 MAY 2175513 Contact Us For Availability
28
MAY 489483 MAY 489483 Contact Us For Availability
28
MAY 2212340 MAY 2212340 Contact Us For Availability
28
Dispenser, Motor MAY 2315545 Contact Us For Availability
28
MAY 2196202 MAY 2196202 Contact Us For Availability
28
Spring Washer MAY 489203 Contact Us For Availability
29
MAY 489500 MAY 489500 Contact Us For Availability
29
Bracket, Ice Maker Cover MAY 2198641 Contact Us For Availability
29
MAY 2212305 MAY 2212305 Contact Us For Availability
29
Clip, Heat MAY 2155547 Contact Us For Availability
30
Cap, Water Filter (Black) MAY 2186494B Contact Us For Availability
30
Cap, Water Filter (White) MAY 2186494W Contact Us For Availability
30
MAY 2198609 MAY 2198609 Contact Us For Availability
30
MAY 2198610 MAY 2198610 Contact Us For Availability
30
SLEEVE, COUPLING MAY 2315559 Contact Us For Availability
30
MAY 2305374 MAY 2305374 Contact Us For Availability
31
MAY 2303234 MAY 2303234 Contact Us For Availability
31
MAY 8281232 MAY 8281232 Contact Us For Availability
32
MAY 8281227 MAY 8281227 Contact Us For Availability
32
Socket, Light (Straight) MAY 2155597 Contact Us For Availability
32
MAY 2186495 MAY 2186495 Contact Us For Availability
33
Screw (4) MAY 3400113 Contact Us For Availability
33
MAY 2161302 MAY 2161302 Contact Us For Availability
34
MAY 489427 MAY 489427 Contact Us For Availability
35
MAY 2186489 MAY 2186489 Contact Us For Availability
36
MAY 2255153 MAY 2255153 Contact Us For Availability
36
MAY 2208280 MAY 2208280 Contact Us For Availability
37
MAY 2319867 MAY 2319867 Contact Us For Availability
37
MAY 2320322 MAY 2320322 Contact Us For Availability
100
MAY W10170129 MAY W10170129 Contact Us For Availability
100
Complete Icemaker Assembly MAY W10122502 Contact Us For Availability
× ![]()
