Model Whirlpool MSD2654GRW REFRIGERATOR – Common Parts &amp; Diagrams

1

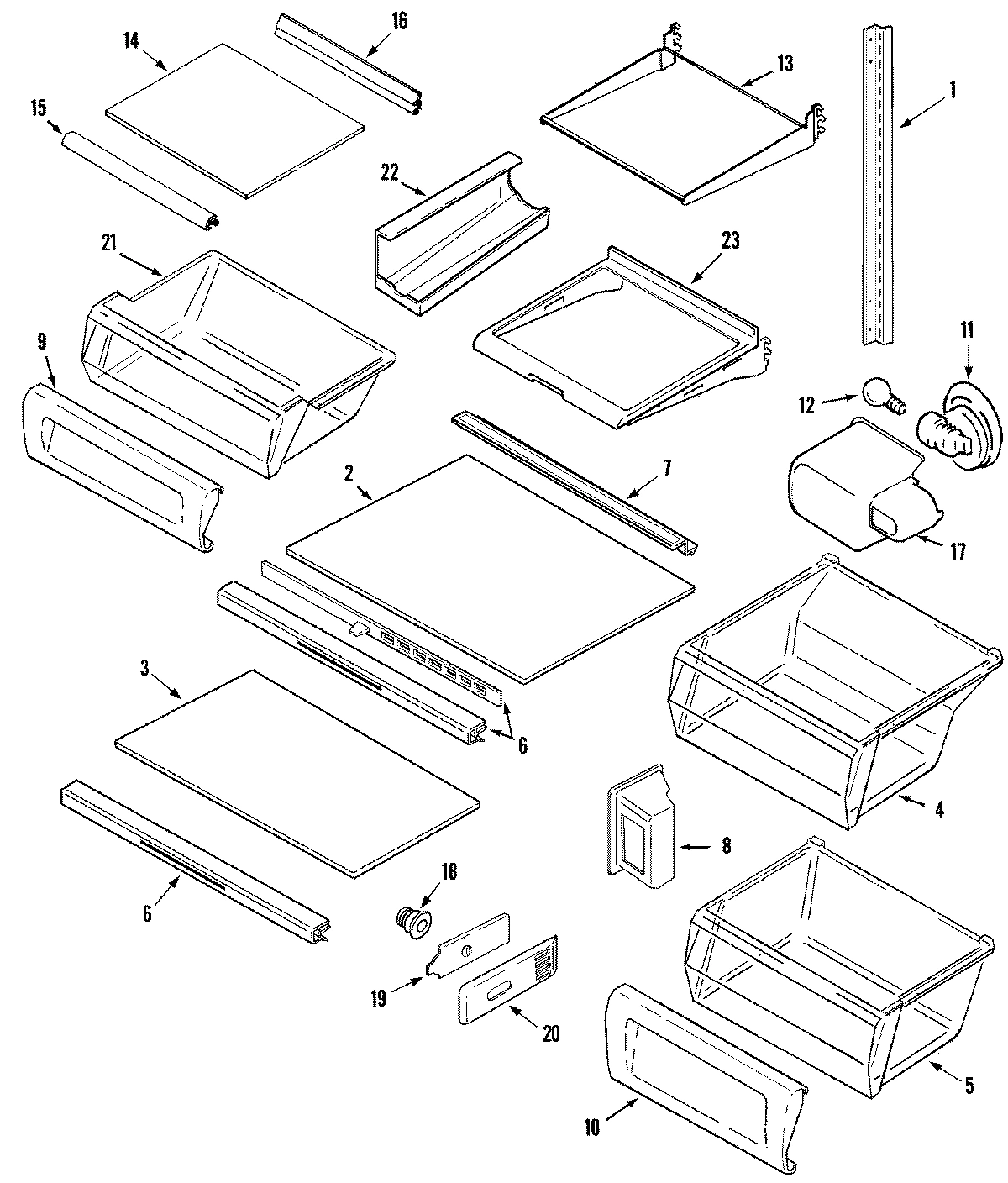

RAIL, SHELF SUPPORT WPL 61003240 Contact Us For Availability

1

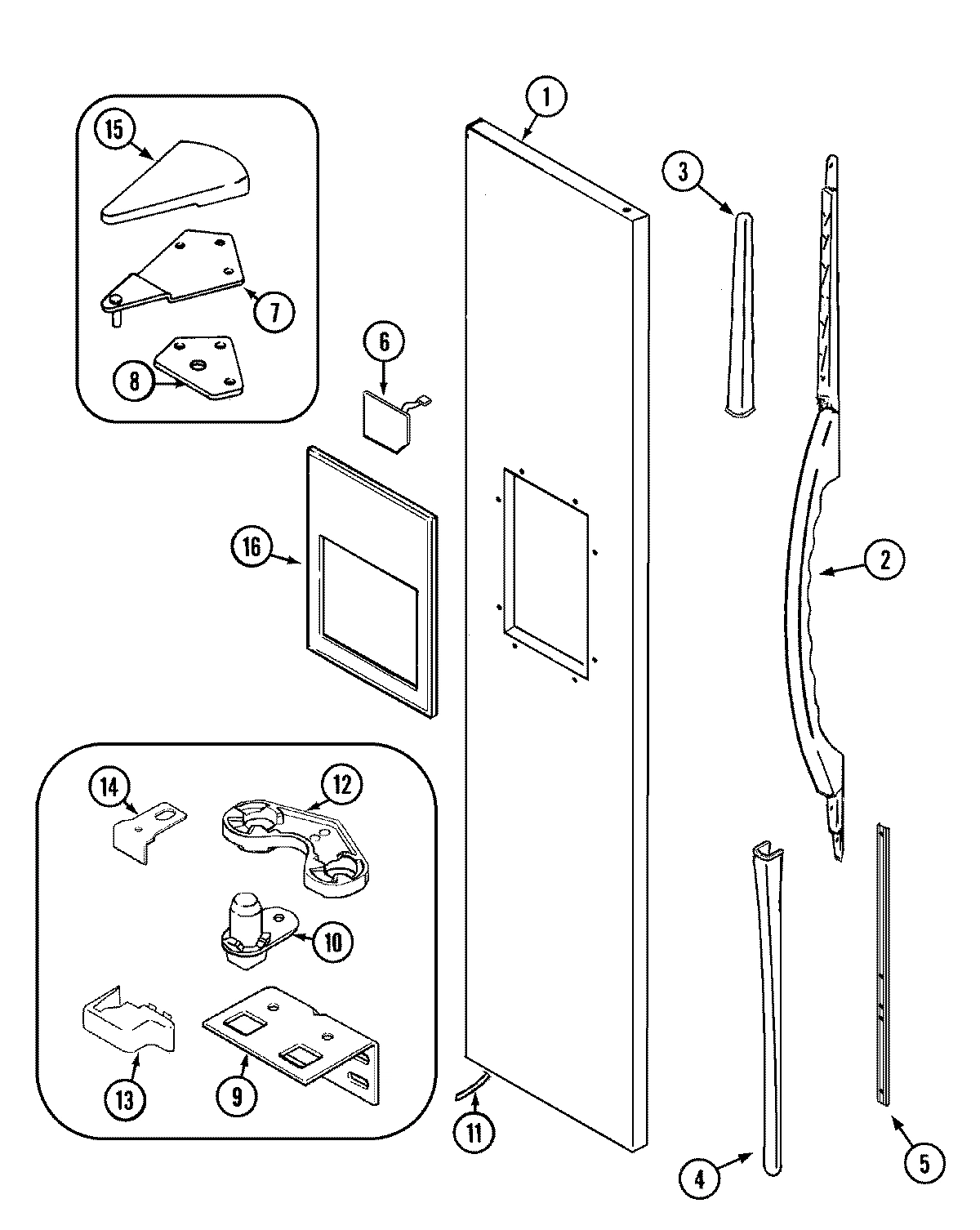

PANEL, FRZ. DOOR (WHT) WPL 61005290 Contact Us For Availability

1

PANEL, FRZ. DOOR (WHT) WPL 61005304 Contact Us For Availability

1

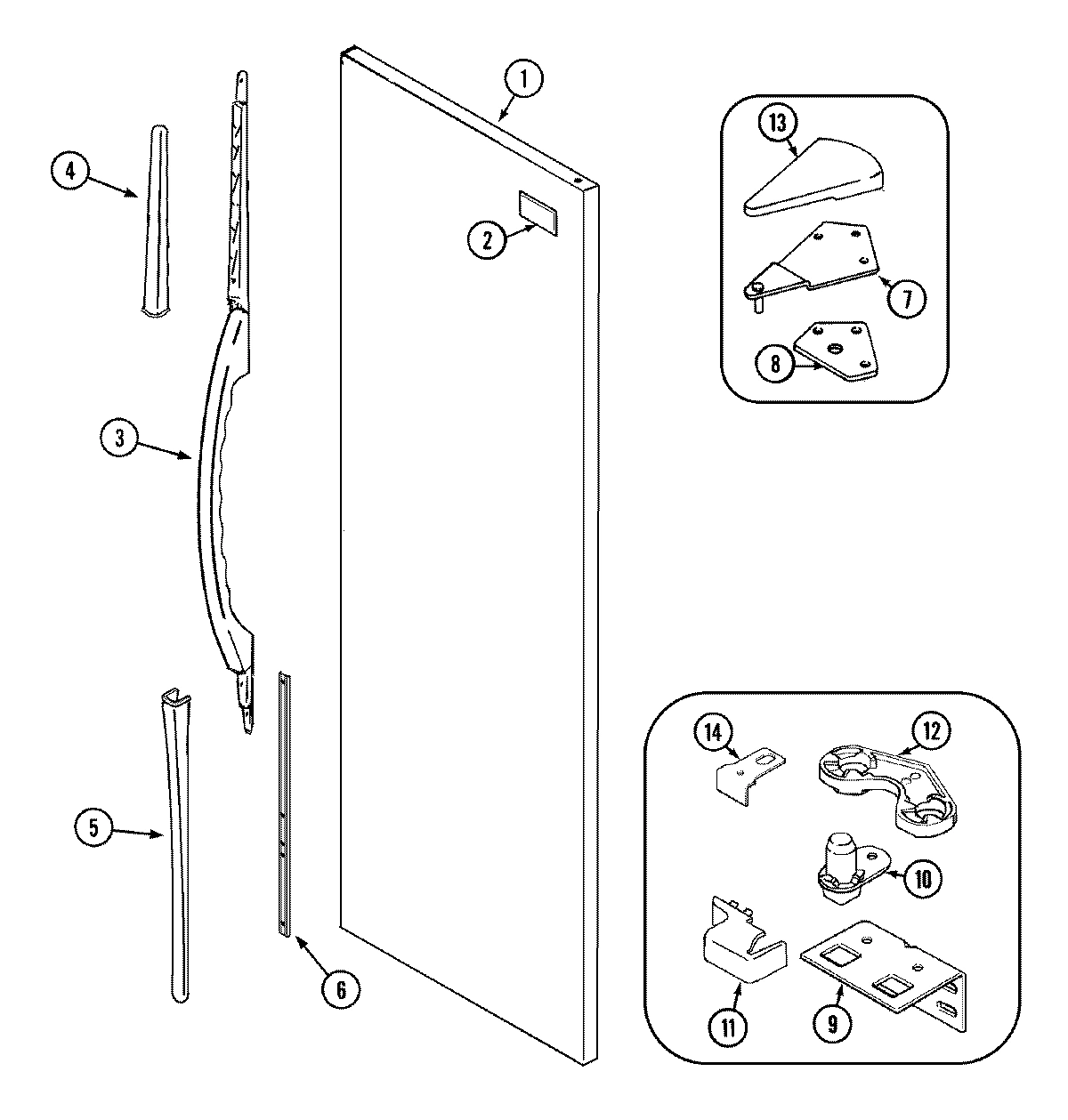

PANEL, F.F. DOOR (WHT) WPL 61004586 Contact Us For Availability

1

LABEL, DUAL ENERGY GUIDE WPL 61005696 Contact Us For Availability

1

PANEL, F.F. DOOR (WHT) WPL 61005698 Contact Us For Availability

1

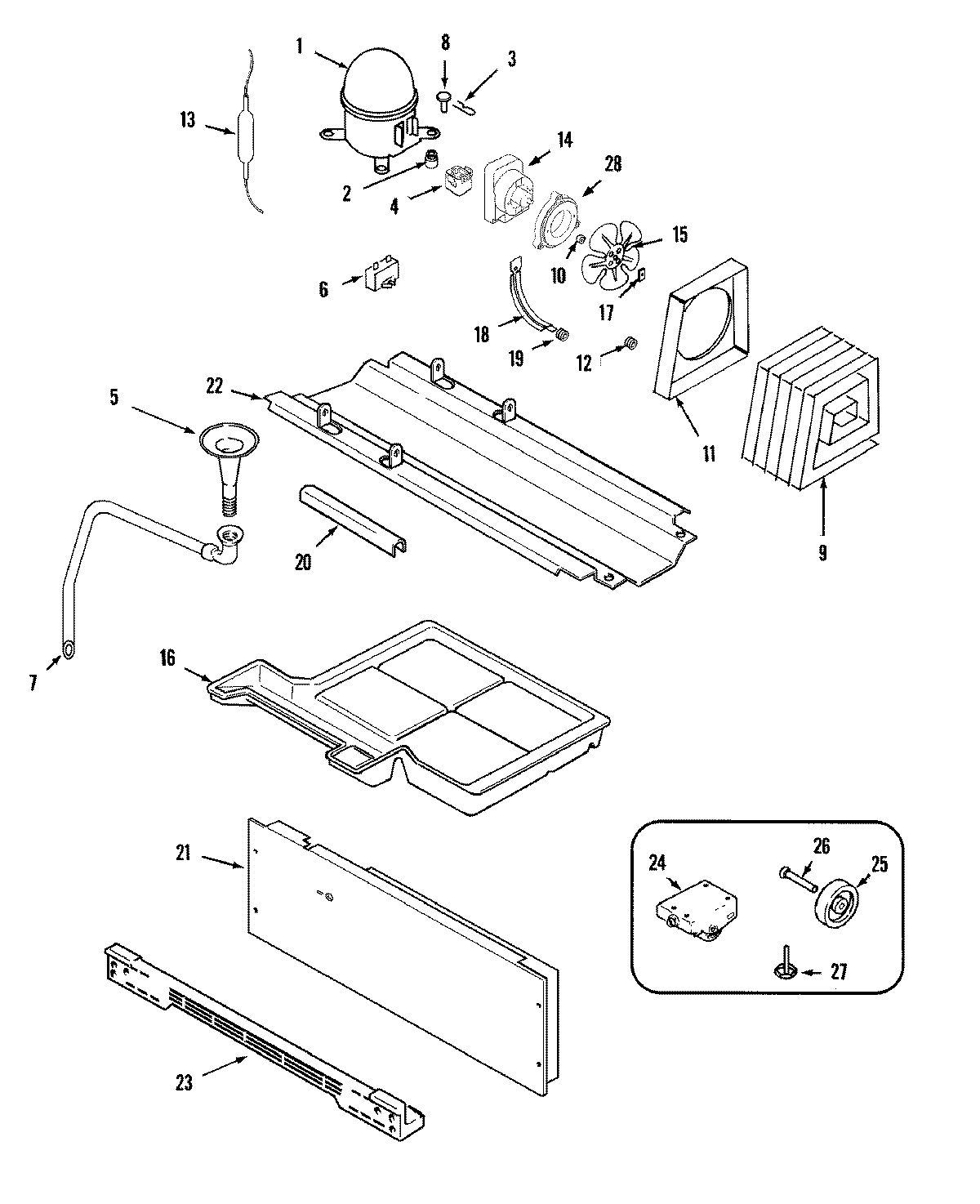

WIRE HARNESS, COMPRESSOR WPL 61005322 Contact Us For Availability

1

SCREW WPL 61003307 Contact Us For Availability

1

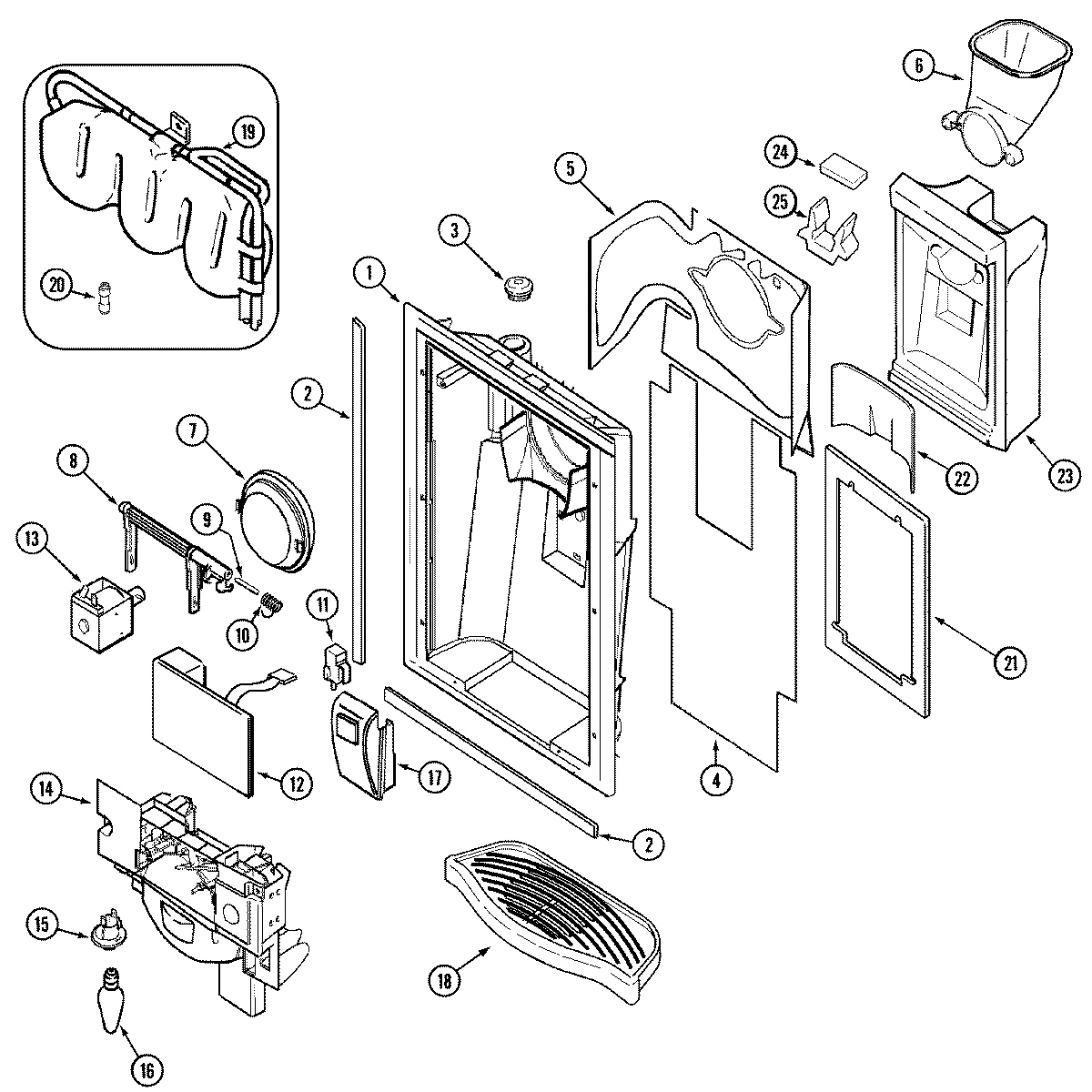

HOUSING, FOUNTAIN (WHT) WPL 61004675 Contact Us For Availability

1

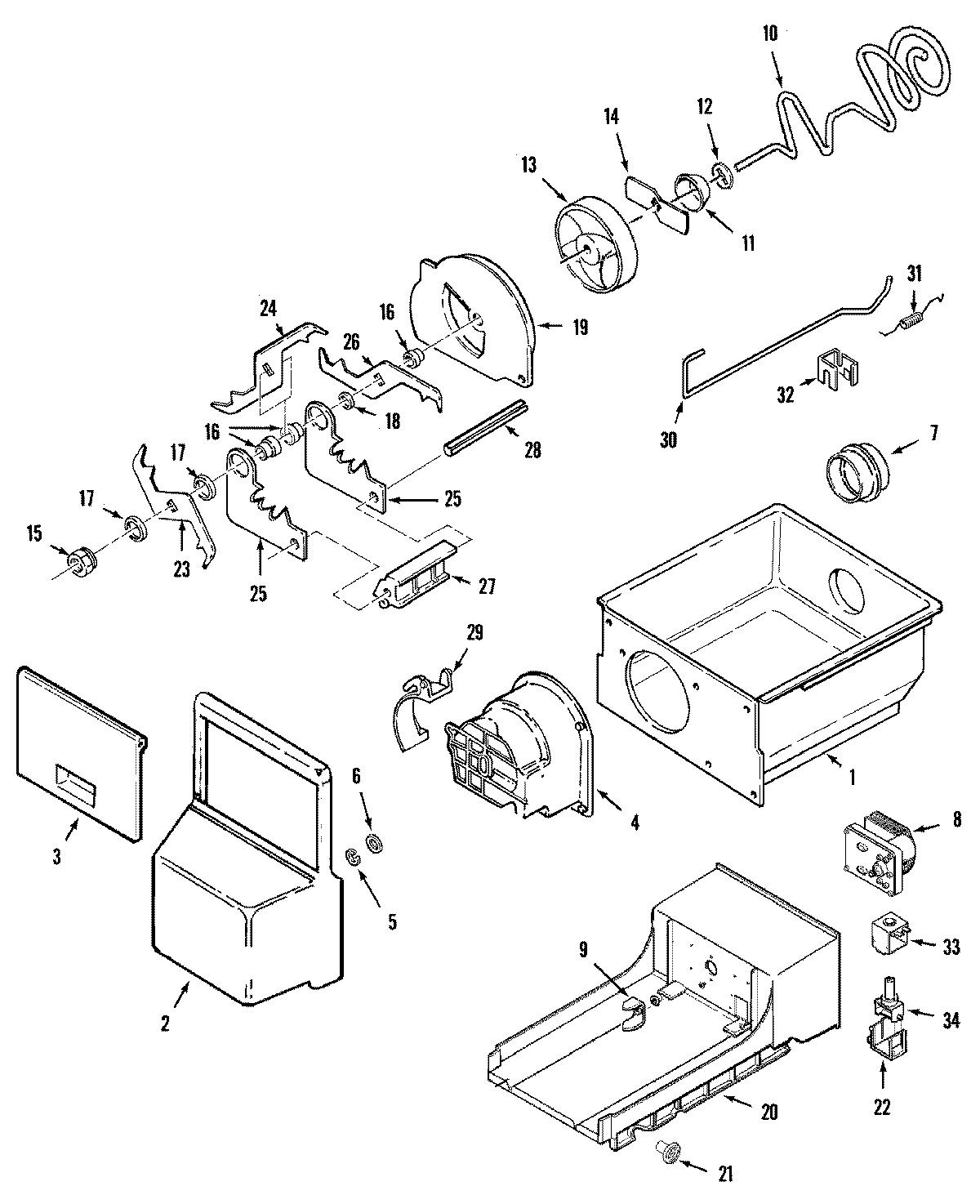

BIN, ICE WPL 61004802 Contact Us For Availability

1

INSERT, DOOR DYKE (SIDES) WPL 61003762 Contact Us For Availability

1

INSERT, DOOR DYKE (TOP/BTM) WPL 61003763 Contact Us For Availability

1

SCREW WPL 61005388 Contact Us For Availability

1

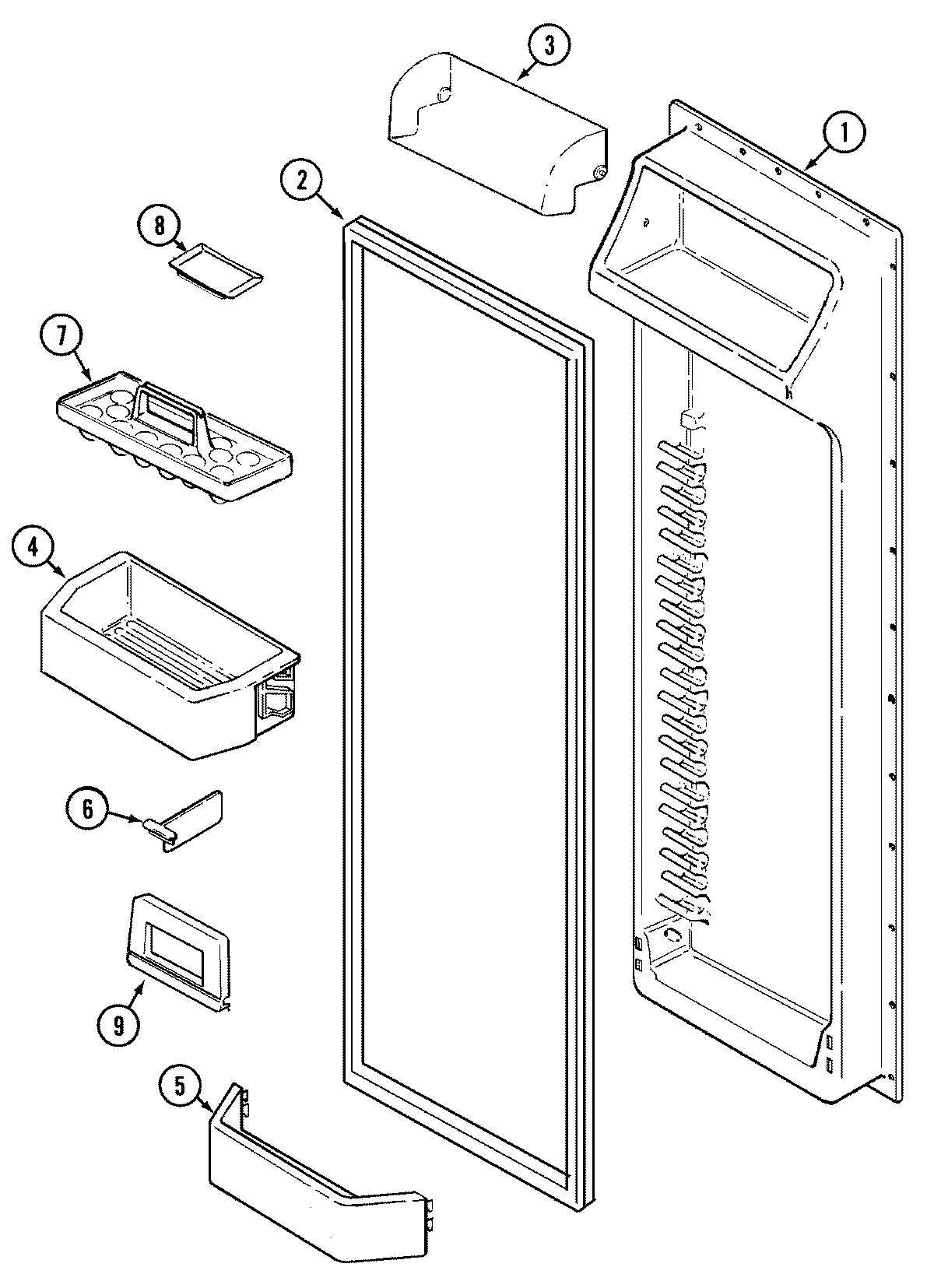

LINER, F.F. DOOR WPL 61005416 Contact Us For Availability

1

FOIL, HEAT SHIELD WPL 61003228 Contact Us For Availability

1

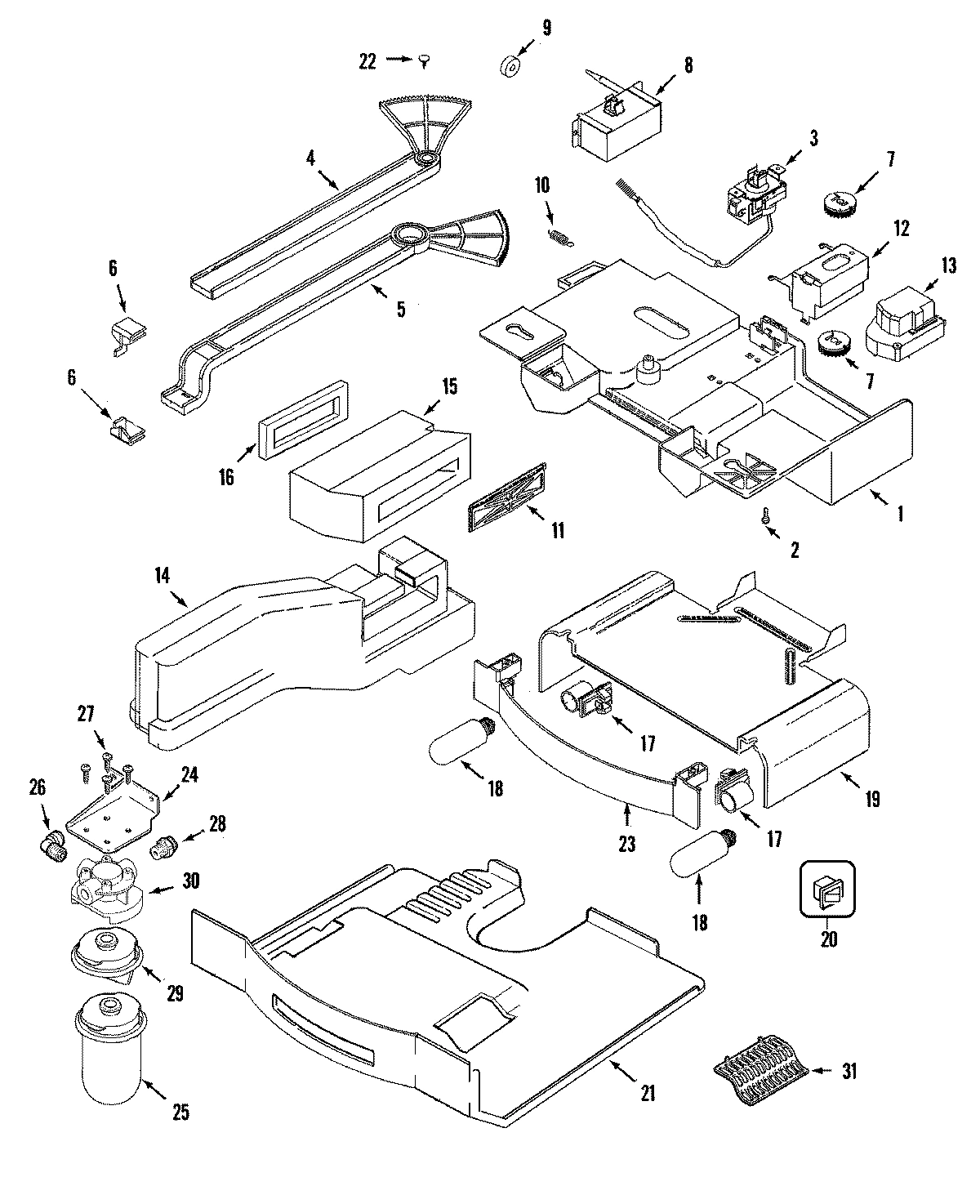

HOUSING ASSY., AUTO DAMPER WPL 61004375 Contact Us For Availability

1

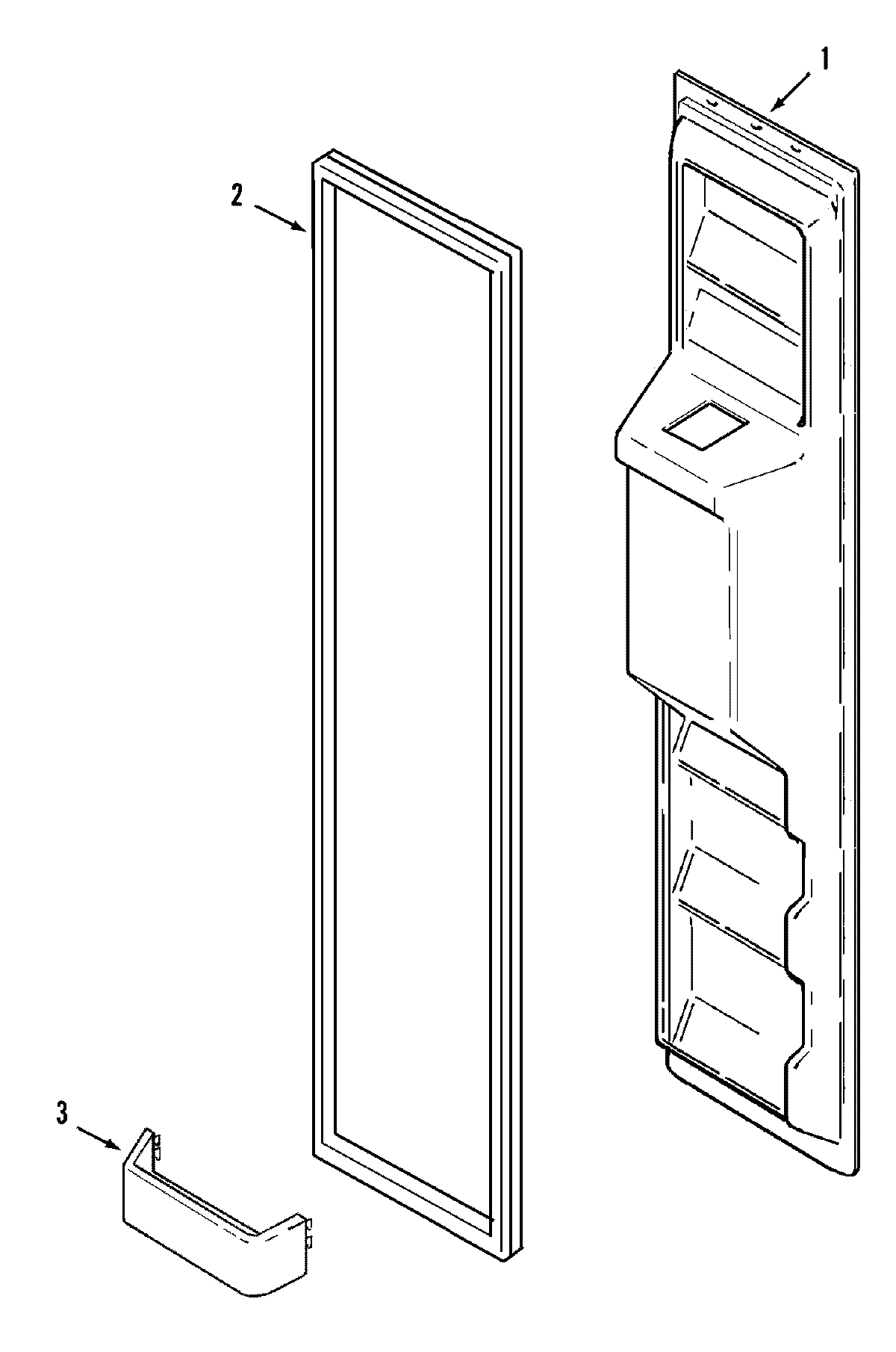

LINER, FRZ. DOOR WPL 61003476 Contact Us For Availability

1

INSERT, DOOR DYKE (TOP/BTM) WPL 61003777 Contact Us For Availability

1

INSERT, LINER SUPPORT (SIDE) WPL 61005091 Contact Us For Availability

2

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

2

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $4.43

2

GLASS, CRISPER SHELF WPL 61003337 Contact Us For Availability

2

NAMEPLATE (WHT) WPL 61002164 Contact Us For Availability

2

TAPE (1FT.) WPL 61003286 Contact Us For Availability

2

FRONT, ICE BIN WPL 61004803 Contact Us For Availability

2

SEAL, F.F. DOOR (WHT) WPL 61003755 Contact Us For Availability

2

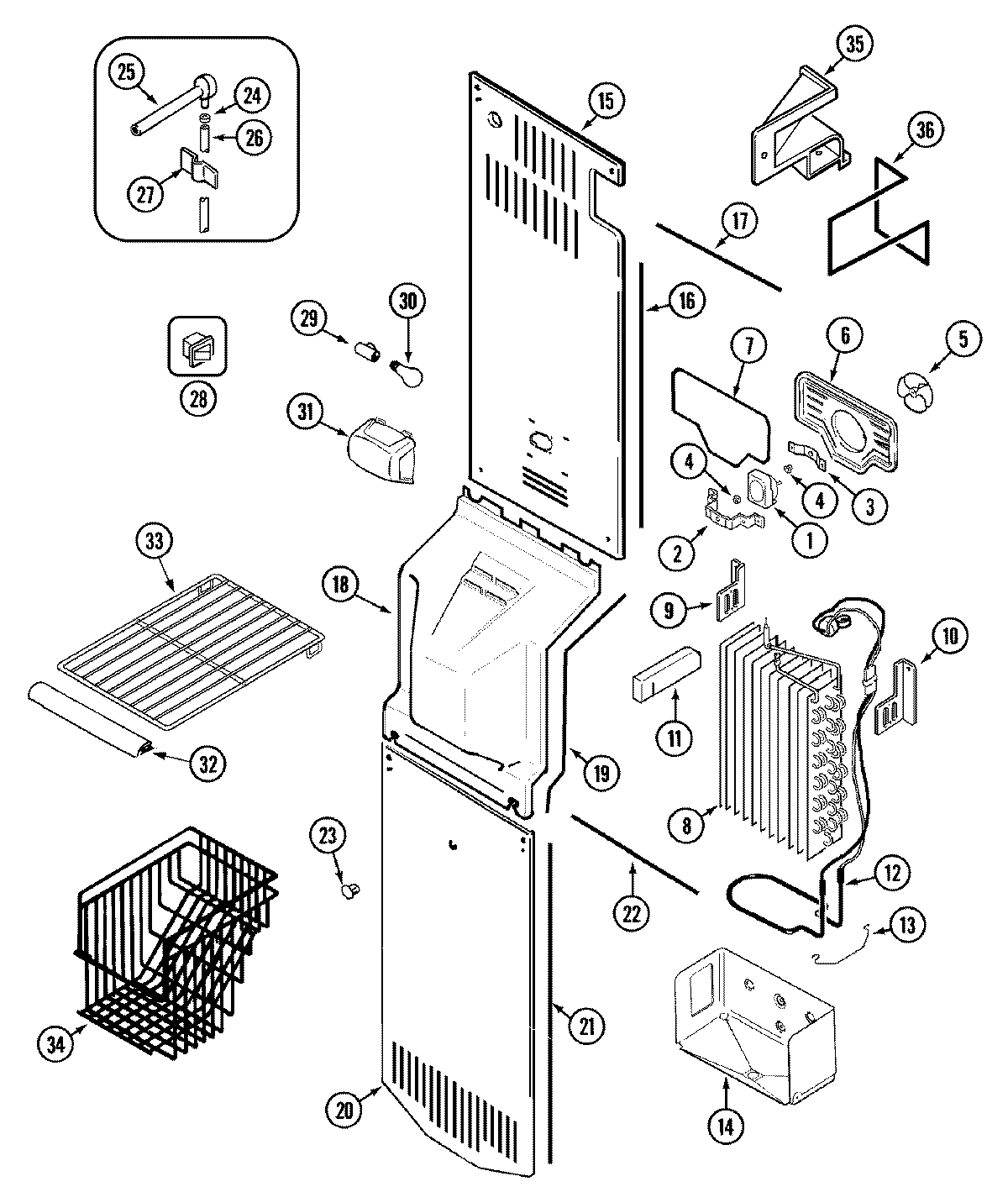

BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability

2

SEAL, FRZ. DOOR (WHT) WPL 61003773 Contact Us For Availability

3

GLASS, MEAT SHELF WPL 61003157 Contact Us For Availability

3

HANDLE, DOOR (WHT) WPL 61005442 Contact Us For Availability

3

SCREW WPL 61005482 Contact Us For Availability

3

CLIP, COMPRESSOR WPL 61003099 Contact Us For Availability

3

SCREW WPL 4000161 Contact Us For Availability

3

GROMMET, WATER TUBE WPL 61003300 Contact Us For Availability

3

DOOR, ICE ACCESS WPL 61004300 Contact Us For Availability

3

DOOR, DAIRY WPL 61003473 Contact Us For Availability

3

CONTROL ASSY., TEMPERATURE WPL 61005493 Contact Us For Availability

3

RETAINER, EVAPORATOR FAN WPL 61005340 Contact Us For Availability

3

FRONT, PICK-OFF WPL 61005500 Contact Us For Availability

4

12002784 Whirlpool Refrigerator Compressor St Backorder WPL 12002784 $129.62

4

BUSHING, EVAPORATOR FAN WPL 61005341 Contact Us For Availability

4

PAN, CRISPER WPL 61003338 Contact Us For Availability

4

EXTENSION, HANDLE (UPR-WHT) WPL 61005445 Contact Us For Availability

4

SCREW WPL 41501335 Contact Us For Availability

4

FOIL, FTN. BACK WPL 61003304 Contact Us For Availability

4

HOUSING, CRUSHER WPL 61004804 Contact Us For Availability

4

SEAL WPL 61004869 Contact Us For Availability

4

SHELF, PICK-OFF WPL 61005536 Contact Us For Availability

4

ROD, DAMPER CONTROL WPL 61003287 Contact Us For Availability

5

PAN, MEAT WPL 61003356 Contact Us For Availability

5

EXTENSION, HANDLE (LWR-WHT) WPL 61005494 Contact Us For Availability

5

TUBE, DRAIN WPL 61004751 Contact Us For Availability

5

HEATER, FOUNTAIN WPL 61005001 Contact Us For Availability

5

RING, SNAP WPL 697041 Contact Us For Availability

5

FRONT, PICK-OFF WPL 61005551 Contact Us For Availability

5

ROD, TEMP. CONTROL WPL 61003293 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability

6

WP61005277 Whirlpool Refrigerator Electronic Backorder WPL WP61005277 $107.25

6

TRIM WPL 61003162 Contact Us For Availability

6

TRIM, CRISPER SHELF (W/SLIDE) WPL 61003357 Contact Us For Availability

6

SCREW WPL 61005394 Contact Us For Availability

6

CLEAT, HANDLE EXTENSION WPL 61005496 Contact Us For Availability

6

SCREW WPL 61003422 Contact Us For Availability

6

CAPACITOR, RUN WPL 658894 Contact Us For Availability

6

CHUTE, ICE WPL 61004801 Contact Us For Availability

6

WASHER, RETAINER WPL 697031 Contact Us For Availability

6

ORGANIZER, SHELF WPL 61002274 Contact Us For Availability

6

END CAP, CONTROL ROD WPL 61004591 Contact Us For Availability

6

SHROUD, FAN WPL 61003380 Contact Us For Availability

7

12001991 Whirlpool Ice Door Kit In Stock WPL 12001991 $134.08

7

WP3-24838-048 Whirlpool Refrigerator Screw Backorder WPL WP3-24838-048 $4.82

7

SEAL, CRISPER SHELF (REAR) WPL 61003161 Contact Us For Availability

7

HINGE, UPPER WPL 61004896 Contact Us For Availability

7

CLAMP WPL 535169 Contact Us For Availability

7

HOSE, DRAIN WPL 61003133 Contact Us For Availability

7

TRAY, EGG WPL 600661 Contact Us For Availability

7

GEAR, CONTROL SLIDE WPL 61003305 Contact Us For Availability

8

12001773 Whirlpool Refrigerator Primary Auger Backorder WPL 12001773 $232.42

8

SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability

8

PLUG, COMPRESSOR WPL 526562 Contact Us For Availability

8

WIRE HARNESS, AUGER MOTOR WPL 61005281 Contact Us For Availability

8

TRAY, BUTTER WPL 299362 Contact Us For Availability

8

SCREW WPL 61003359 Contact Us For Availability

8

DAMPER, AUTO WPL 61005081 Contact Us For Availability

8

EVAP/HEAT EXCH ASSY23/24/25SXS WPL 12001640 Contact Us For Availability

9

3400112 Whirlpool Refrigerator Screw Backorder WPL 3400112 $51.24

9

WP9705445 Whirlpool Refrigerator Roll Pin Backorder WPL WP9705445 $4.82

9

FRONT, DELI PAN WPL 61003376 Contact Us For Availability

9

HINGE, LOWER (WHT) WPL 61001918 Contact Us For Availability

9

CONDENSER WPL 61005453 Contact Us For Availability

9

YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability

9

RETAINER, BOTTLE WPL 61002273 Contact Us For Availability

9

WASHER, DAMPER ROD WPL 61003358 Contact Us For Availability

9

BRACKET, EVAPORATOR (LT) WPL 61003215 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

SPRING, FTN. RETURN WPL 61004388 Contact Us For Availability

FRONT, CRISPER PAN WPL 61003377 Contact Us For Availability

FRONT, MEAT PAN WPL 61003378 Contact Us For Availability

PIN, LOWER HINGE WPL 61003174 Contact Us For Availability

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

AUGER WPL 61003326 Contact Us For Availability

SPRING, DAMPER DOOR WPL 61003141 Contact Us For Availability

BRACKET, EVAPORATOR (RT) WPL 61003216 Contact Us For Availability

SLEEVE, BRASS WPL 694311 Contact Us For Availability

SCREW WPL 40001735 Contact Us For Availability

RECEPTACLE, BULB WPL 61003379 Contact Us For Availability

TUBING, FOUNTAIN WPL 61004557 Contact Us For Availability

COVER, LOWER HINGE (WHT) WPL 61003220 Contact Us For Availability

SHROUD, CONDENSER WPL 61001941 Contact Us For Availability

SCREW WPL 41504135 Contact Us For Availability

SWITCH, LIMIT WPL 61005520 Contact Us For Availability

CONE, ICE DEFLECTOR WPL 696991 Contact Us For Availability

DOOR, DAMPER WPL 61003235 Contact Us For Availability

BLOCK, AIR WPL 61003213 Contact Us For Availability

61003647 Whirlpool Refrigerator Freezer Door In Stock WPL 61003647 $10.02

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $10.86

WP61006116 Whirlpool Refrigerator Heater In Stock WPL WP61006116 $62.69

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability

BARRIER WPL 61005372 Contact Us For Availability

WASHER, CONE STOP WPL 696981 Contact Us For Availability

SUPPORT, TEMP. CONTROL WPL 61003315 Contact Us For Availability

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

WP67005457 Whirlpool Refrigerator Clip Backorder WPL WP67005457 $6.88

COVER, LOWER HINGE (WHT) WPL 61003219 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

FRAME, SHELF WPL 61003373 Contact Us For Availability

COVER, UPPER HINGE (WHT) WPL 61004640 Contact Us For Availability

DRIER WPL 139001 Contact Us For Availability

SEE NOTE (SOLENOID NOT AVAILABLE MUST ORDER WPL Y00000000 Contact Us For Availability

IMPELLER WPL 700361 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

TIMER, DEFROST WPL 682332 Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

WP61003407 Whirlpool Refrigerator Dispenser C Backorder WPL WP61003407 $60.71

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

INLET, WATER WPL 951001 Contact Us For Availability

GLASS, SHELF WPL 61003374 Contact Us For Availability

STOP, DOOR WPL 61003471 Contact Us For Availability

MOTOR, CONDENSER FAN WPL 61005323 Contact Us For Availability

PLATE, DRIVE WPL 697551 Contact Us For Availability

INSULATION, DISCHARGE (LT) WPL 61003229 Contact Us For Availability

INSULATION, DISCHARGE (RT) WPL 61003230 Contact Us For Availability

HOUSING, EVAPORATOR WPL 61003382 Contact Us For Availability

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

COVER, UPPER HINGE (WHT) WPL 61004642 Contact Us For Availability

EJECTOR, ICE WPL 951011 Contact Us For Availability

TRIM, SHELF WPL 61003245 Contact Us For Availability

BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability

RECEPTACLE, BULB WPL 701191 Contact Us For Availability

NUT, AUGER WPL 697091 Contact Us For Availability

TUNNEL, CONTROL HOUSING WPL 61003231 Contact Us For Availability

SEAL, TUNNEL (DOUBLE-SIDED) WPL 61005075 Contact Us For Availability

COVER, COIL (UPR) WPL 61003383 Contact Us For Availability

ARM, SENSOR WPL 61004136 Contact Us For Availability

TRIM, SHELF WPL 61003244 Contact Us For Availability

ESCUTCHEON (WHT) WPL 61005498 Contact Us For Availability

PAN, DRAIN WPL 61002649 Contact Us For Availability

BULB, LIGHT WPL 631791 Contact Us For Availability

BEARING, SPACER WPL 696971 Contact Us For Availability

SEAL, TUNNEL WPL 61003819 Contact Us For Availability

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

SHIELD, LIGHT WPL 61003439 Contact Us For Availability

PAD, ACTUATOR (LT. GRY) WPL 61004441 Contact Us For Availability

SPACER, CRUSHER BLADE WPL 696961 Contact Us For Availability

RECEPTACLE, BULB WPL 61003237 Contact Us For Availability

SEAL, UPPER COVER (TOP) WPL 61003386 Contact Us For Availability

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $7.71

STRIPPER, ICE WPL 951021 Contact Us For Availability

TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

GRILL (WHT) WPL 61005458 Contact Us For Availability

SPACER, BLADE WPL 696962 Contact Us For Availability

BARRIER, FOIL (LT) WPL 61003354 Contact Us For Availability

BARRIER, FOIL (RT) WPL 61003355 Contact Us For Availability

COVER, EVAPORATOR FAN WPL 61003387 Contact Us For Availability

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

SCREW, BRACKET WPL 951081 Contact Us For Availability

SLIDE, CONTROL (MEAT) WPL 61003249 Contact Us For Availability

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

PLATE, IMPELLER WPL 697011 Contact Us For Availability

SHIELD, HEAT WPL 61003238 Contact Us For Availability

61005614 Whirlpool Refrigerator Ice Enclosure Backorder WPL 61005614 $141.40

61005626 Whirlpool Water Inlet Valve In Stock WPL 61005626 $82.80

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $27.54

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $20.55

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $3.49

RETAINER, CONTROL SLIDE WPL 61003250 Contact Us For Availability

ISOLATOR, CONDENSER WPL 61004584 Contact Us For Availability

SCREW WPL 61004424 Contact Us For Availability

COVER, COIL (LWR) WPL 61003388 Contact Us For Availability

GROMMET ASSY., WATER LINE WPL 61003810 Contact Us For Availability

CLIP, WATER LINE (ADHESIVE) WPL 61005058 Contact Us For Availability

PAN, DELI WPL 61003375 Contact Us For Availability

COVER, COMPRESSOR COMPARTMENT WPL 61004661 Contact Us For Availability

SCREW WPL 6527550 Contact Us For Availability

SCREW WPL 4000221 Contact Us For Availability

SUPPORT, ENCLOSURE WPL 61005080 Contact Us For Availability

SHIELD, LIGHT WPL 61004506 Contact Us For Availability

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $4.82

GROMMET ASSY., WATER LINE WPL 61004511 Contact Us For Availability

GROMMET ASSY., WATER LINE WPL 61005641 Contact Us For Availability

HOLDER, BEVERAGE WPL 61002657 Contact Us For Availability

PAN, COMPRESSOR MTG. WPL 61005268 Contact Us For Availability

INSULATION WPL 61003340 Contact Us For Availability

SCREW WPL 40002612 Contact Us For Availability

GUIDE, YOKE WPL 697151 Contact Us For Availability

RETAINER, CONTROL ROD WPL 61003316 Contact Us For Availability

SEAL, LOWER COVER WPL 61003389 Contact Us For Availability

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

BRACKET, WATER VALVE WPL 61003732 Contact Us For Availability

SHELF, SPILL PROOF WPL 61003239 Contact Us For Availability

KICKPLATE (WHT) WPL 61004063 Contact Us For Availability

INSULATION, FTN. (STYROFOAM) WPL 61004800 Contact Us For Availability

BLADE, CRUSHER WPL 697023 Contact Us For Availability

SCREW WPL 4000311 Contact Us For Availability

PANEL, CONTROL WPL 61004380 Contact Us For Availability

PLUG BUTTON, EVAP. COVER WPL 61001952 Contact Us For Availability

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $7.20

WHEEL ASSY. (FRT) WPL 61005232 Contact Us For Availability

INSULATION WPL 61003343 Contact Us For Availability

BLADE, CRUSHER WPL 697022 Contact Us For Availability

BRACKET, WATER FILTER WPL 61003698 Contact Us For Availability

WP61003826 Whirlpool Wheel Backorder WPL WP61003826 $4.82

WP61005627 Whirlpool Refrigerator Inlet Valve In Stock WPL WP61005627 $183.30

INSULATION WPL 61003308 Contact Us For Availability

BLADE, CRUSHER WPL 697061 Contact Us For Availability

FILTER, WATER WPL UKF7002AXX Contact Us For Availability

GROMMET, FILL TUBE WPL 61005233 Contact Us For Availability

675791 Whirlpool Dishwasher ARM Assembly Backorder WPL 675791 $80.75

GROMMET ASSY., WATER LINE WPL 61005640 Contact Us For Availability

WIRE HARNESS, FTN. WPL 61005275 Contact Us For Availability

BLADE, CRUSHER WPL 697021 Contact Us For Availability

FITTING ASSY., WATER FILTER WPL 61003705 Contact Us For Availability

LEG, LEVELING WPL 61002014 Contact Us For Availability

LOCK, FIXED BLADE WPL 697081 Contact Us For Availability

SCREW WPL 61003796 Contact Us For Availability

CLIP, WATER LINE (ADHESIVE) WPL 61004913 Contact Us For Availability

ADAPTER, FAN MOTOR WPL 61005325 Contact Us For Availability

SCREW WPL 61005326 Contact Us For Availability

PIN, BLADE LOCK WPL 697051 Contact Us For Availability

FITTING, WATER FILTER WPL 61003790 Contact Us For Availability

YODER LOOP HTR(115V)27,29,23CD WPL 12001548 Contact Us For Availability

DOOR, ICE CRUSHER WPL 697181 Contact Us For Availability

PLUG, FILTER BYPASS WPL 61003791 Contact Us For Availability

RECEPTACLE, BULB WPL 689743 Contact Us For Availability

MANUAL, USE & CARE (TRILNGUL) WPL 61005298 Contact Us For Availability

ROD, CRUSHER CONTROL WPL 61004807 Contact Us For Availability

HEAD, WATER FILTER WPL 61003789 Contact Us For Availability

BULB, LIGHT WPL 319561 Contact Us For Availability

MANUAL, SERVICE SXS APD WPL 16009103 Contact Us For Availability

SPRING, CONTROL ROD WPL 61004808 Contact Us For Availability

GRILL, LIGHT WPL 61004590 Contact Us For Availability

SHIELD, LIGHT WPL 61002272 Contact Us For Availability

BRACKET, CONTROL ROD WPL 61004809 Contact Us For Availability

WIRE HARNESS, FRZ./F.F. WPL 61004662 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 61004697 Contact Us For Availability

TRIM, SHELF (FRT.) WPL 61003730 Contact Us For Availability

2006253 Whirlpool Refrigerator Screw Backorder WPL 2006253 $8.89

SOLENOID WPL 61005253 Contact Us For Availability

SHELF, FRZ. (WIRE) WPL 61003735 Contact Us For Availability

SHELF, FRZ. WPL 61005207 Contact Us For Availability

34

YOKE ASSY. WPL 61003539 Contact Us For Availability

34

BASKET, FRZ. WPL 61003393 Contact Us For Availability

35

SCREW WPL 4000171 Contact Us For Availability

35

DIVERTER, AIR WPL 61003205 Contact Us For Availability

36

SEAL, AIR DIVERTER WPL 61003206 Contact Us For Availability

37

WIRE HARNESS, FRZ. WPL 61003731 Contact Us For Availability

37

WIRE HARNESS, FAN & HEATER WPL 61005512 Contact Us For Availability

NI

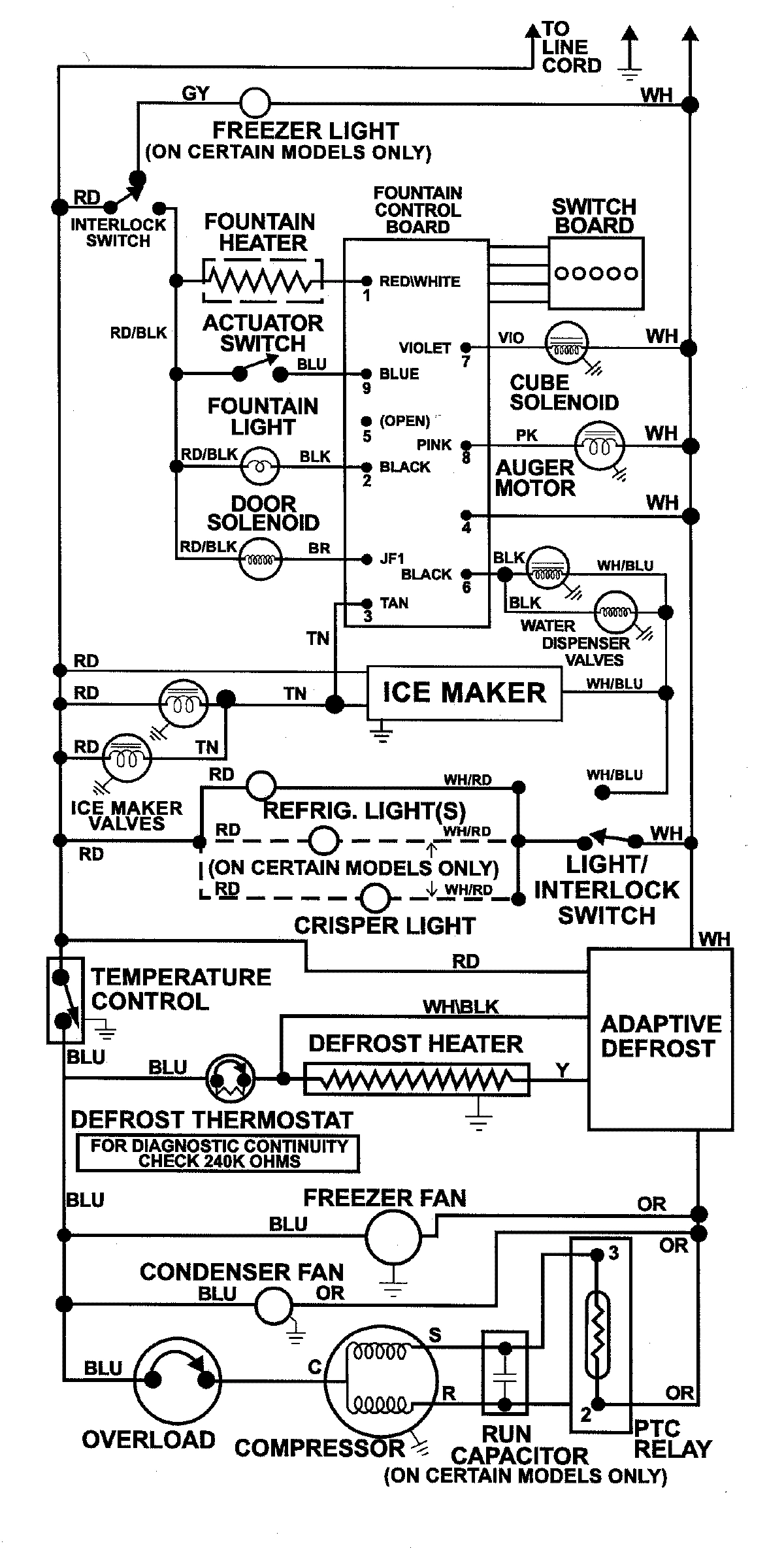

WIRING INFORMATION WPL 15002760 Contact Us For Availability
