Model Whirlpool MSD2556AEA REFRIGERATOR – Common Parts &amp; Diagrams

1

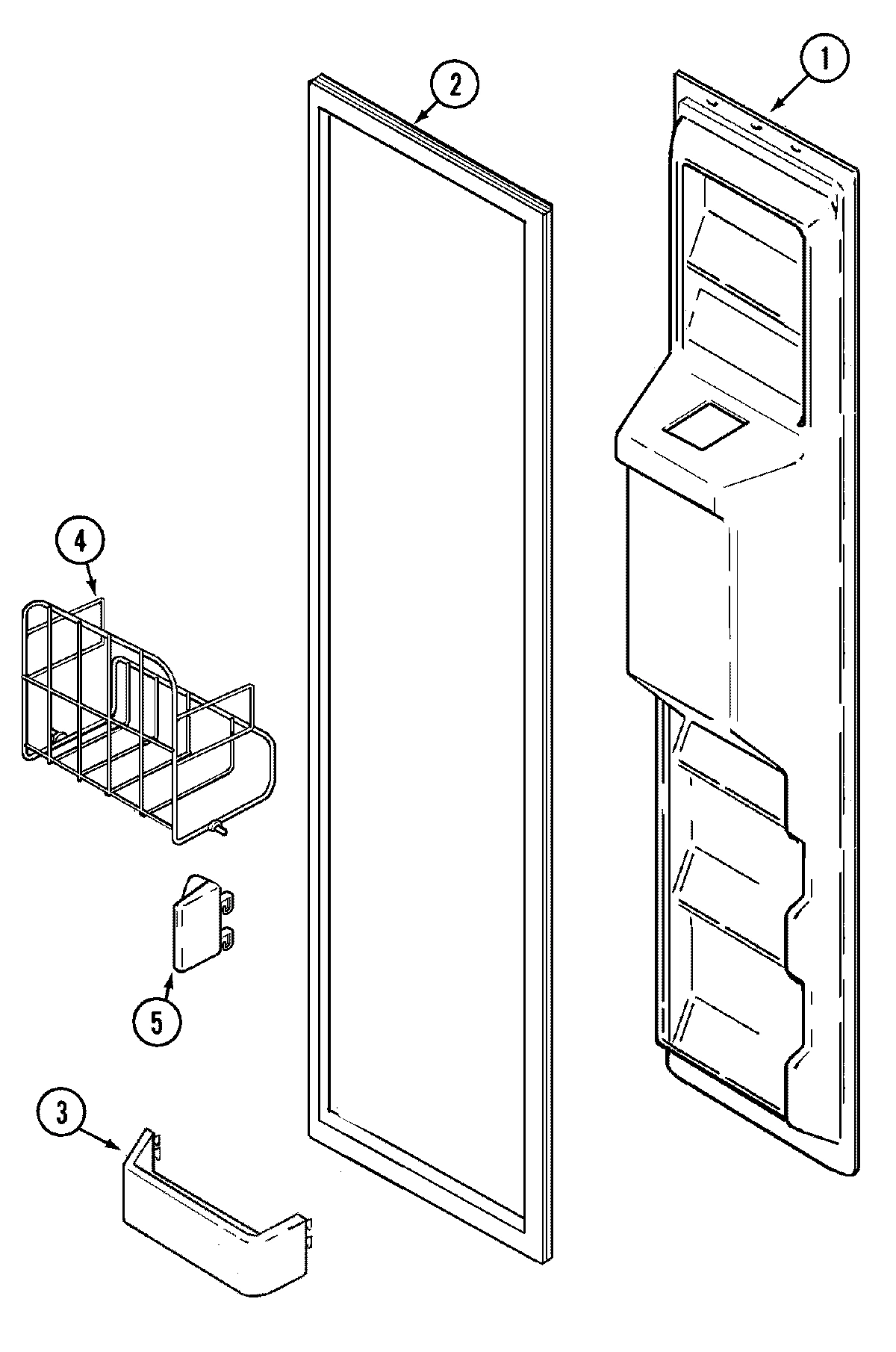

LINER, FRZ. DOOR WPL 61003476 Contact Us For Availability

1

INSERT, DOOR DYKE (TOP/BTM) WPL 61003777 Contact Us For Availability

1

INSERT, DOOR DYKE (SIDES) WPL 61003778 Contact Us For Availability

1

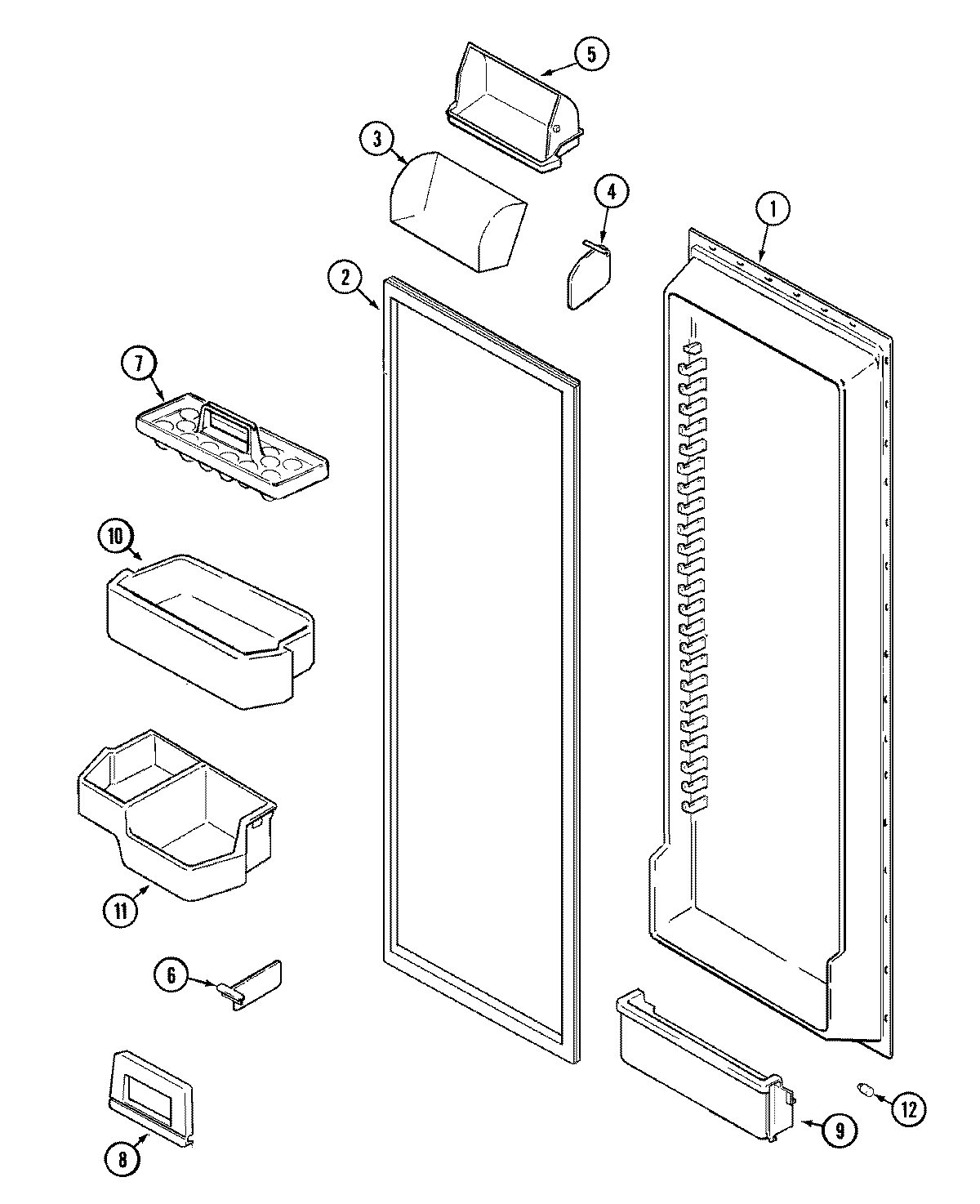

LINER, F.F. DOOR WPL 61003752 Contact Us For Availability

1

INSERT, DOOR DYKE (SIDES) WPL 61003762 Contact Us For Availability

1

INSERT, DOOR DYKE (TOP/BTM) WPL 61003882 Contact Us For Availability

1

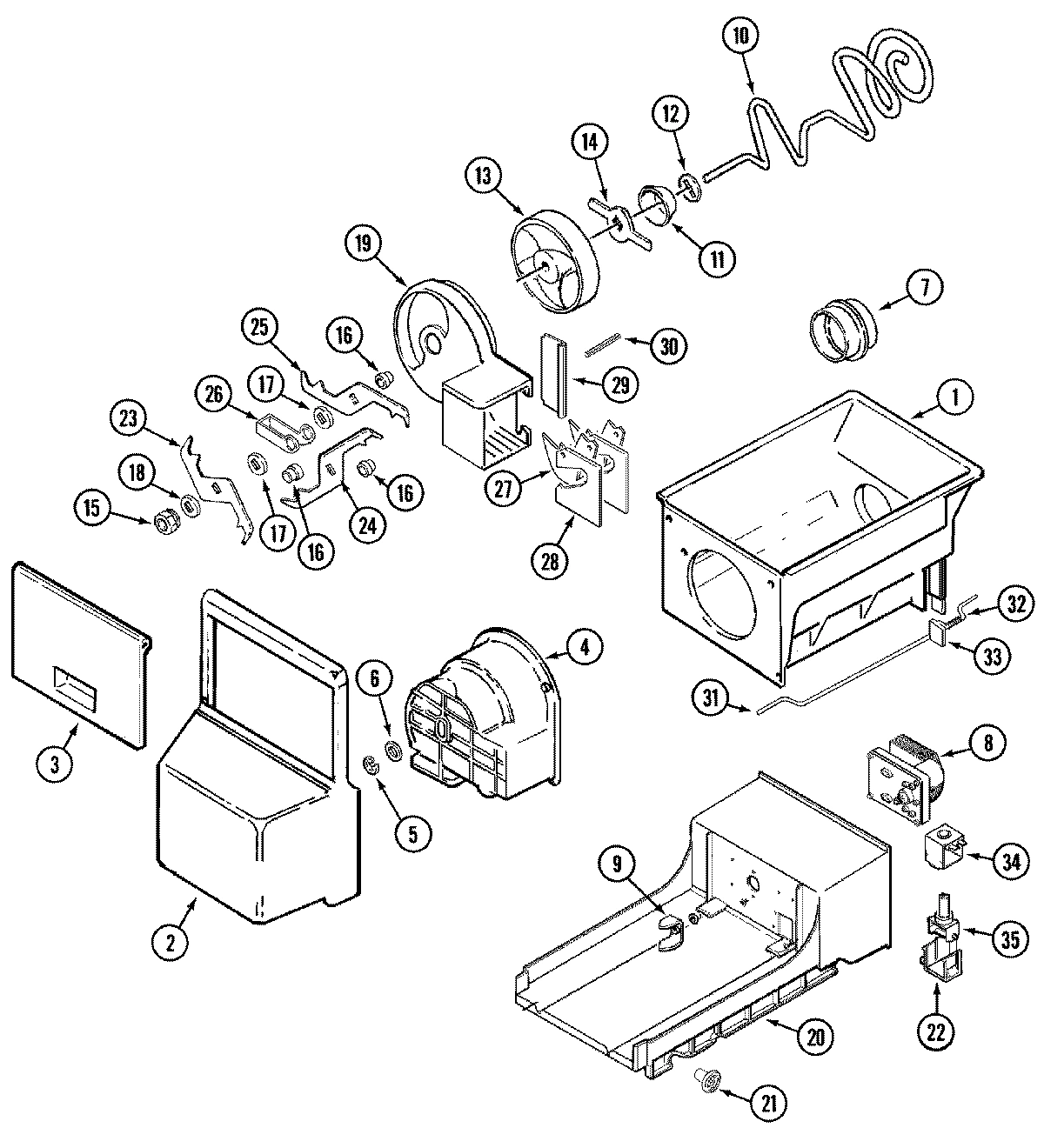

BIN, ICE WPL 61003319 Contact Us For Availability

1

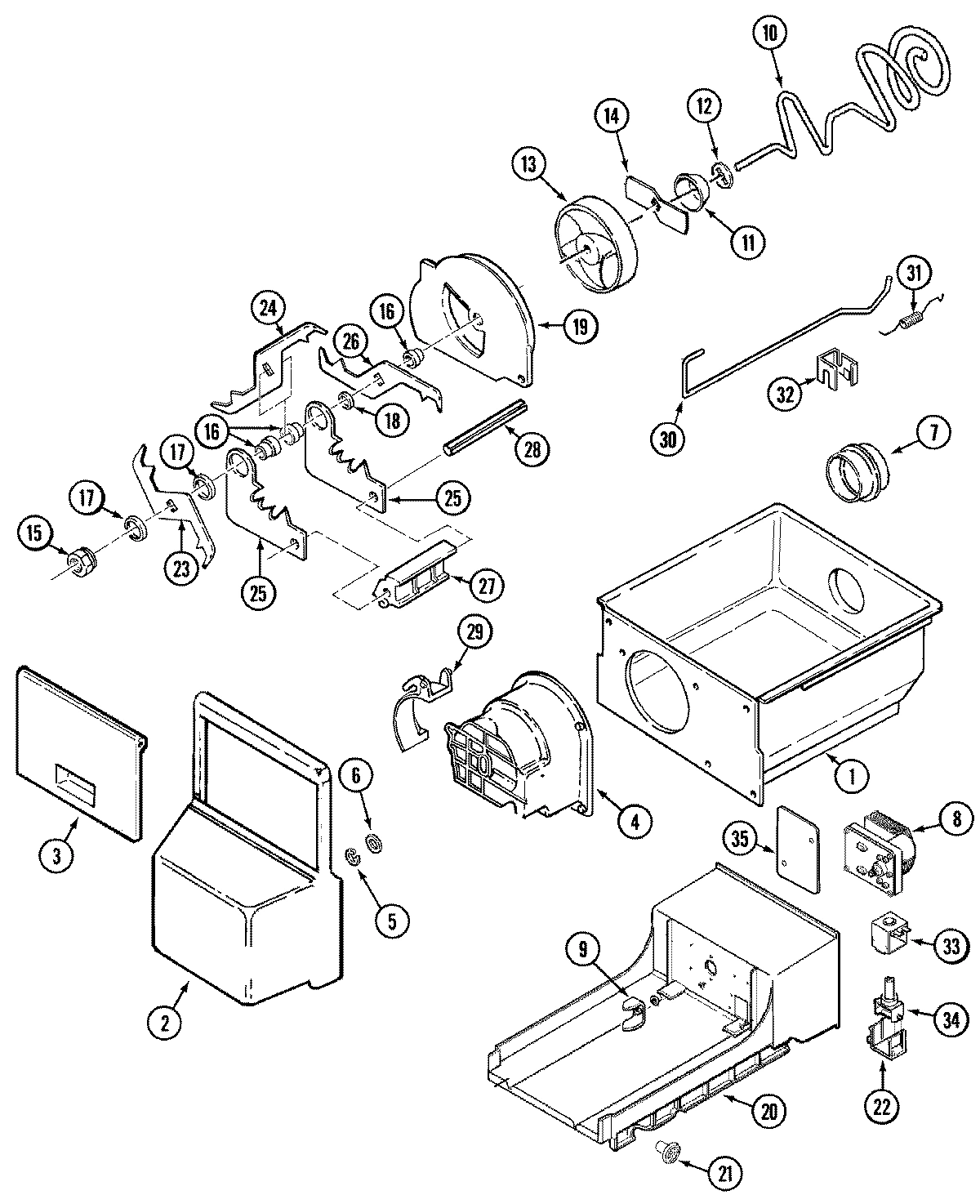

BIN, ICE WPL 61004802 Contact Us For Availability

1

SCREW WPL 4000221 Contact Us For Availability

1

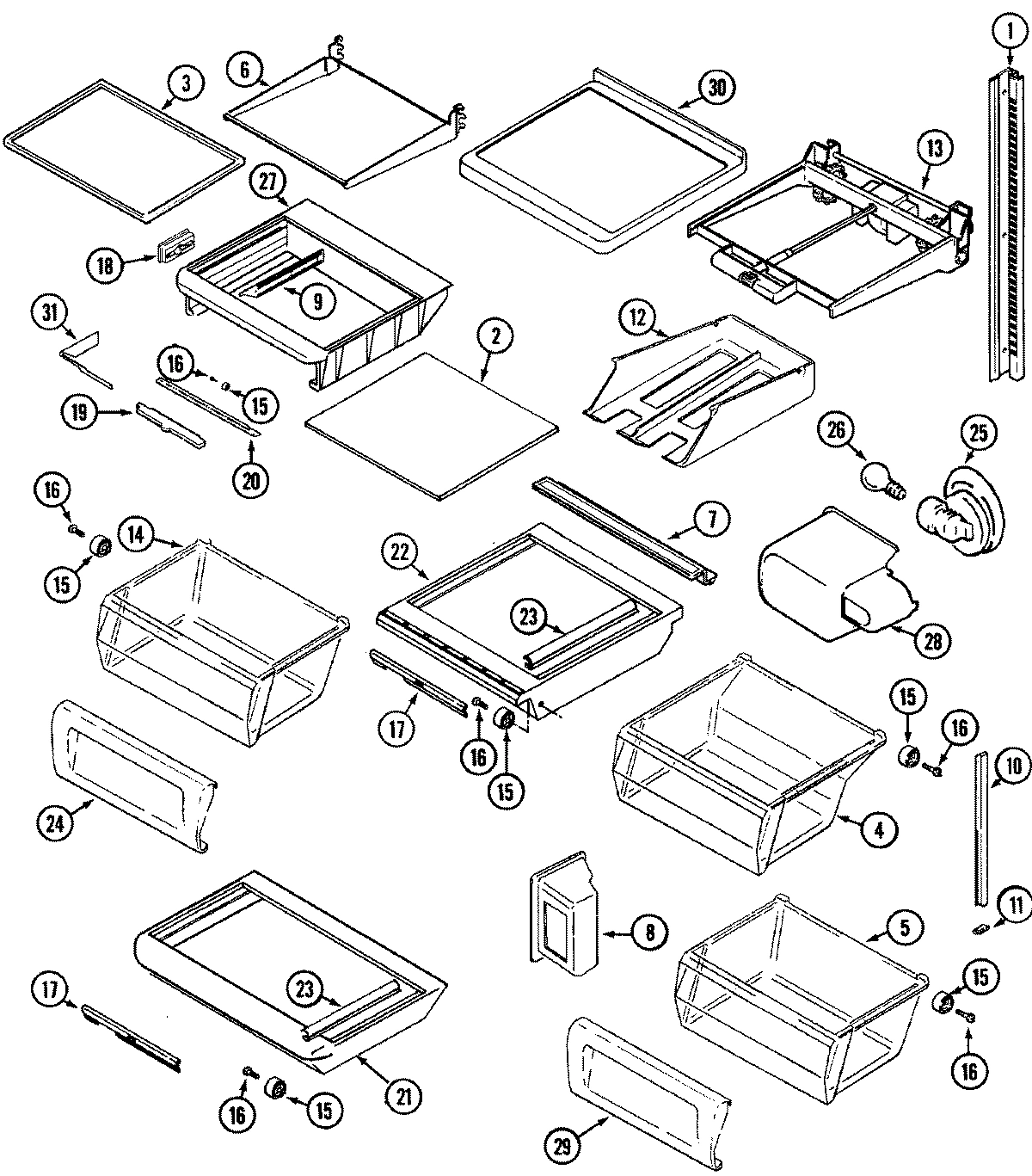

RAIL, SHELF SUPPORT WPL 61003708 Contact Us For Availability

1

FOIL, HEAT SHIELD WPL 61003861 Contact Us For Availability

1

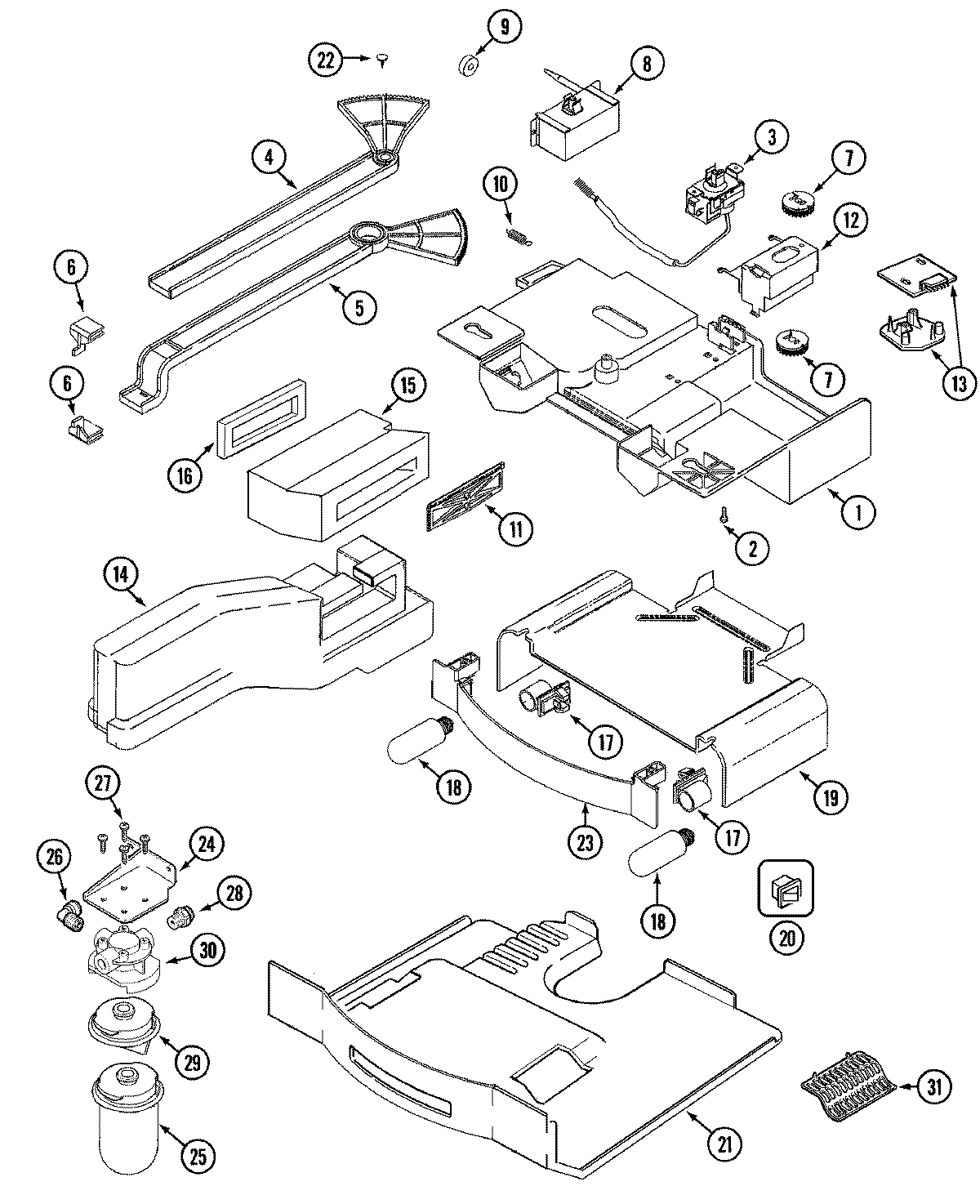

HOUSING ASSY., AUTO DAMPER WPL 61004375 Contact Us For Availability

1

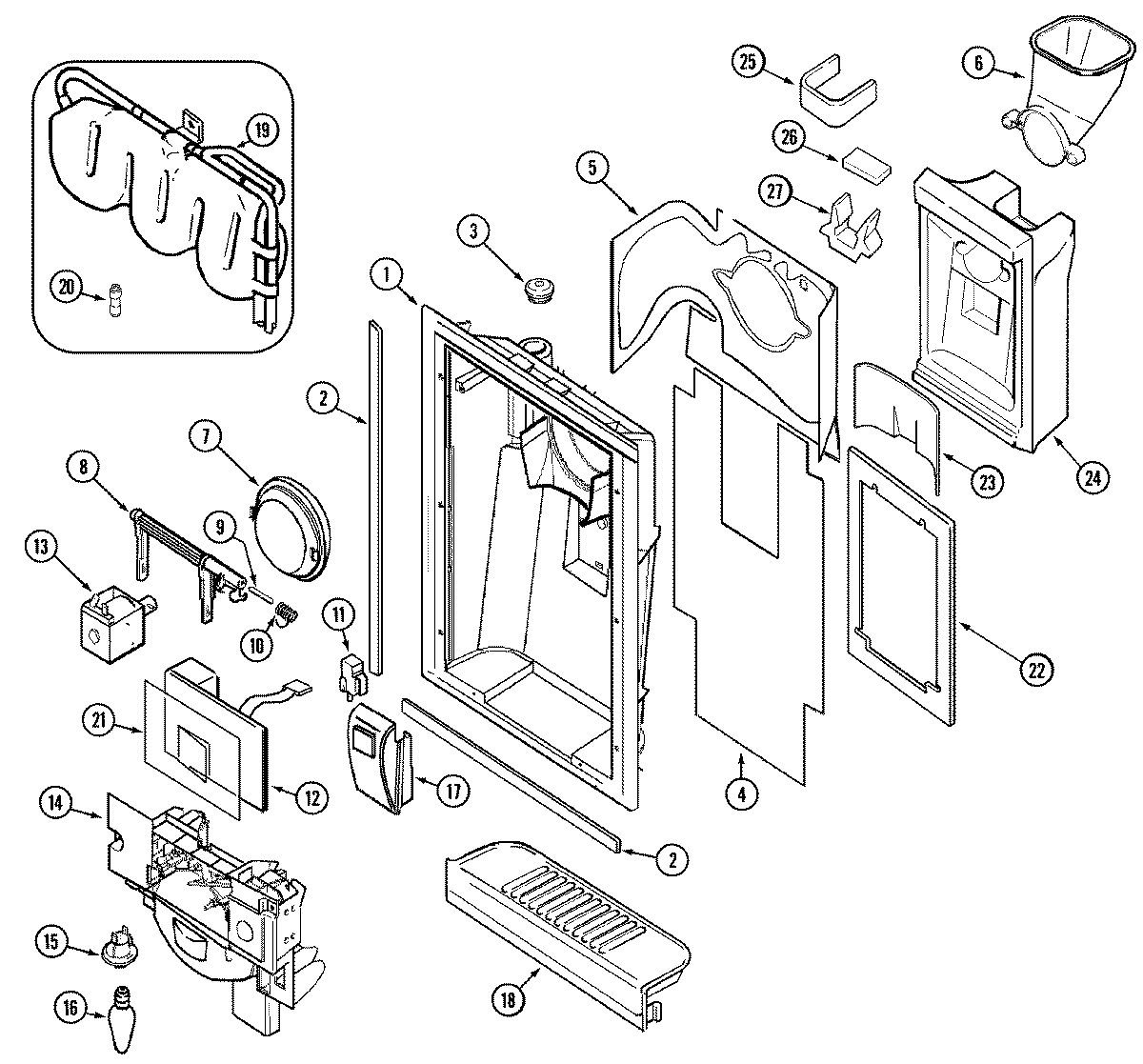

KIT, FOUNTAIN HSG (ALM-25/29`) WPL 12001752 Contact Us For Availability

1

SCREW WPL 61003307 Contact Us For Availability

1

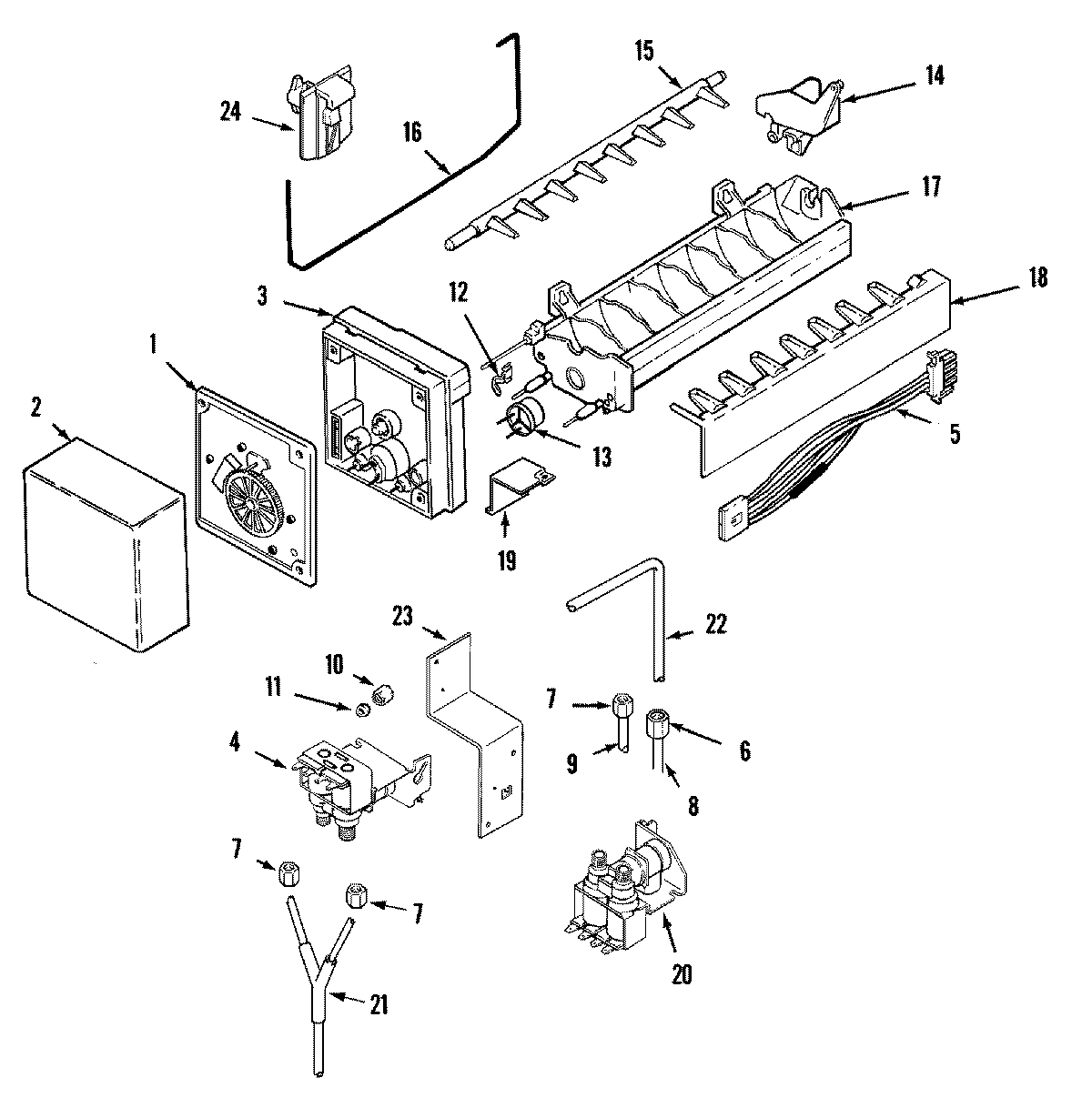

ICEMAKER WPL 951091 Contact Us For Availability

1

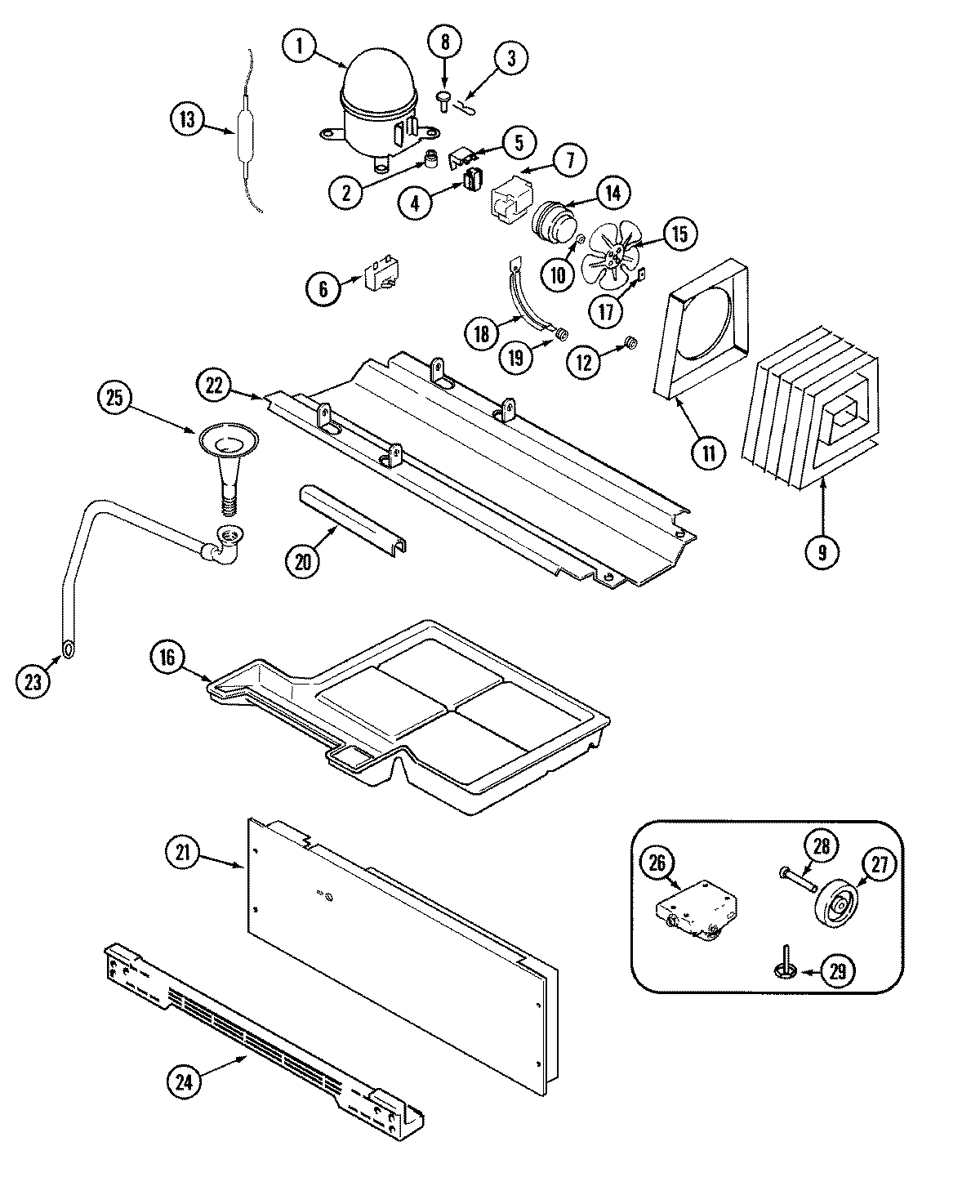

WIRE HARNESS, COMPRESSOR WPL 61002223 Contact Us For Availability

1

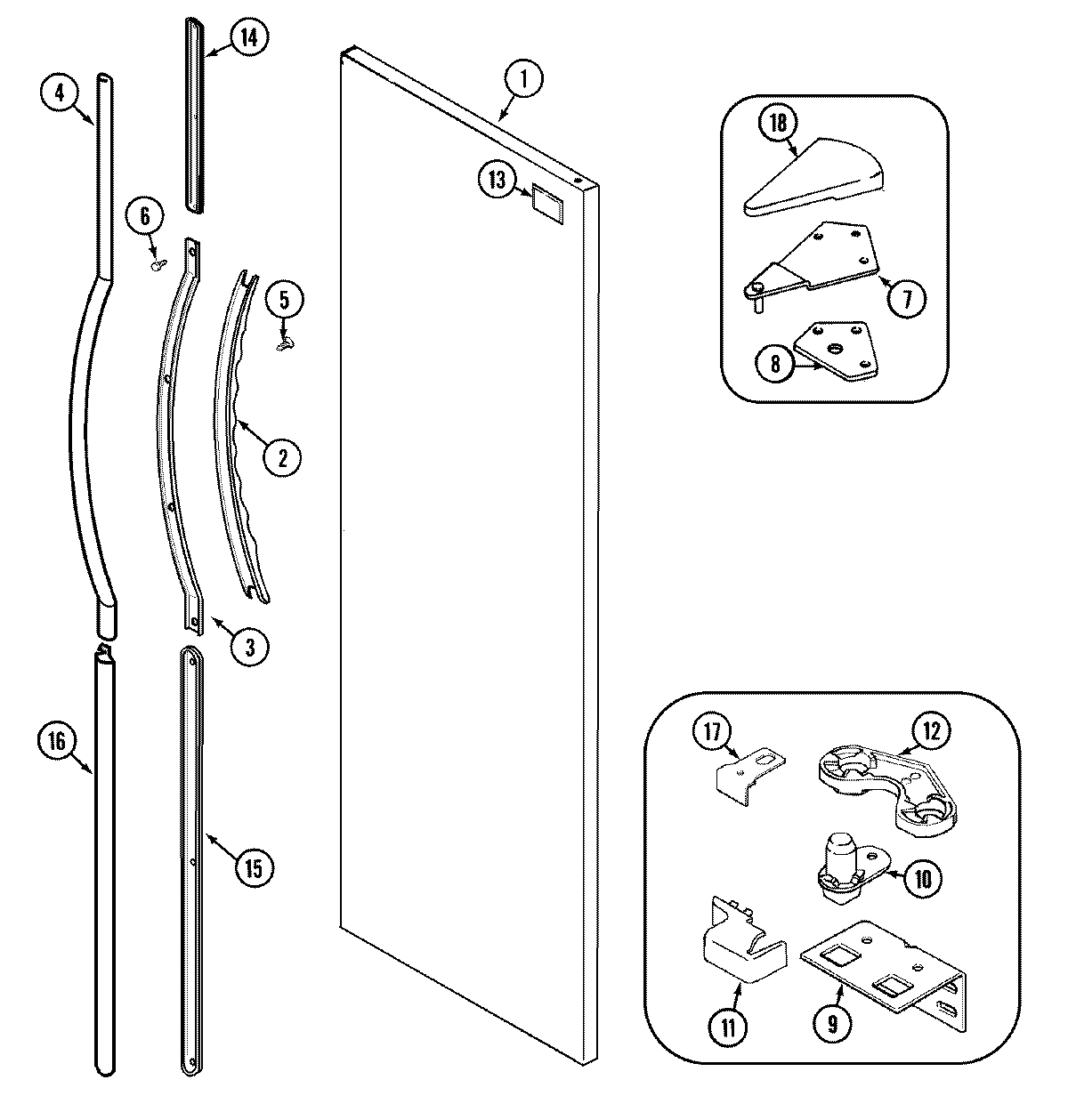

PANEL, F.F. DOOR (ALM) WPL 61003470 Contact Us For Availability

1

LABEL, DUAL ENERGY GUIDE WPL 61003514 Contact Us For Availability

1

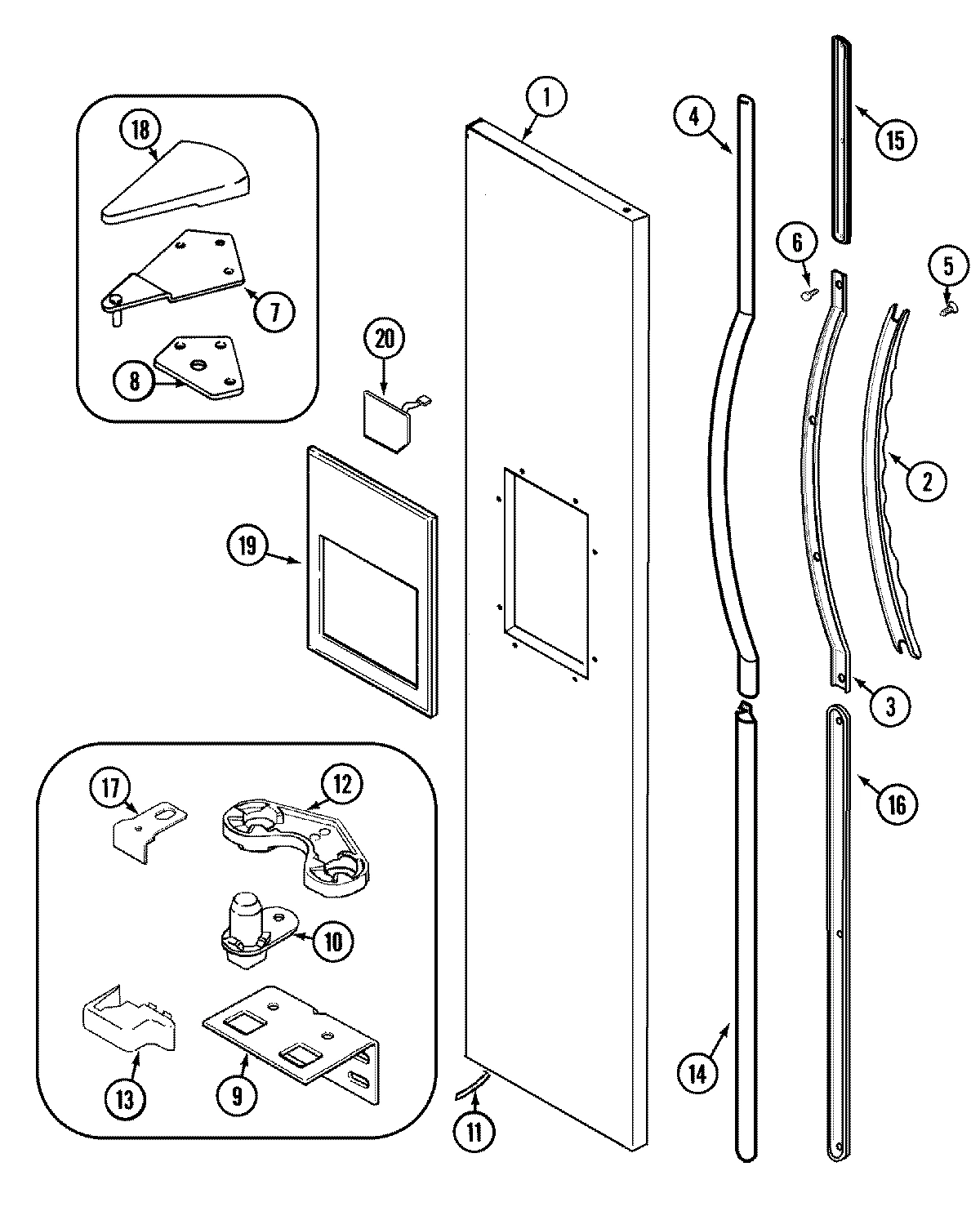

PANEL, FRZ. DOOR (ALM) WPL 61003549 Contact Us For Availability

2

SEAL, FRZ. DOOR (WHT) WPL 61003773 Contact Us For Availability

2

SEAL, F.F. DOOR (WHT) WPL 61003755 Contact Us For Availability

2

FRONT, ICE BIN WPL 61003440 Contact Us For Availability

2

FRONT, ICE BIN WPL 61004803 Contact Us For Availability

2

GLASS, CRISPER SHELF (UPR)-NA WPL 61003662 Contact Us For Availability

2

GLASS, CRISPER SHELF (LWR) WPL 61003664 Contact Us For Availability

2

SCREW WPL 4000191 Contact Us For Availability

2

SUPPORT, DIVIDER WPL 671491 Contact Us For Availability

2

TAPE (1FT.) WPL 61003286 Contact Us For Availability

2

COVER, ICE MAKER WPL 61001239 Contact Us For Availability

2

GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability

2

HANDLE, DOOR (ALM) WPL 61003349 Contact Us For Availability

3

WP61005516 Whirlpool Refrigerator Temperature Backorder WPL WP61005516 $170.07

3

FRONT, PICK-OFF WPL 61003405 Contact Us For Availability

3

DOOR, DAIRY WPL 61004037 Contact Us For Availability

3

DOOR, ICE ACCESS WPL 61003441 Contact Us For Availability

3

DOOR, ICE ACCESS WPL 61004300 Contact Us For Availability

3

GLASS, MEAT SHELF (SPILLPROOF) WPL 61003734 Contact Us For Availability

3

GROMMET, WATER TUBE WPL 61003300 Contact Us For Availability

3

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

3

SCREW WPL 951061 Contact Us For Availability

3

CLIP, COMPRESSOR WPL 61003099 Contact Us For Availability

3

FRAME, HANDLE WPL 61003350 Contact Us For Availability

4

12001892 Whirlpool Refrigerator Water Valve K Backorder WPL 12001892 $131.11

4

BASKET, TILTDOWN WPL 61003776 Contact Us For Availability

4

ORGANIZER, DAIRY WPL 61003757 Contact Us For Availability

4

HOUSING, CRUSHER WPL 61003322 Contact Us For Availability

4

HOUSING, CRUSHER WPL 61004804 Contact Us For Availability

4

SEAL WPL 61004869 Contact Us For Availability

4

PAN, CRISPER (UPR) WPL 61003667 Contact Us For Availability

4

ROD, DAMPER CONTROL WPL 61003287 Contact Us For Availability

4

FOIL, FTN. BACK WPL 61003304 Contact Us For Availability

4

INSERT, HANDLE (ALM) WPL 61003353 Contact Us For Availability

5

WP61006295 Whirlpool Refrigerator Overload Backorder WPL WP61006295 $87.59

5

STOP, BASKET (LT) WPL 61003753 Contact Us For Availability

5

STOP, BASKET (RT) WPL 61003754 Contact Us For Availability

5

SHELF, P.O. (DAIRY) WPL 61003759 Contact Us For Availability

5

RING, SNAP WPL 697041 Contact Us For Availability

5

PAN, CRISPER (LWR) WPL 61003668 Contact Us For Availability

5

ROD, TEMP. CONTROL WPL 61003293 Contact Us For Availability

5

HEATER, FOUNTAIN WPL 61003125 Contact Us For Availability

5

WIRE HARNESS, ICE MAKER WPL 61003318 Contact Us For Availability

5

SCREW, HANDLE TO FRAME WPL 61003351 Contact Us For Availability

6

ORGANIZER, SHELF WPL 61002274 Contact Us For Availability

6

WASHER, RETAINER WPL 697031 Contact Us For Availability

6

FRAME, SLIDE OUT SHELF WPL 61003736 Contact Us For Availability

6

FRAME, SLIDE OUT SHELF WPL 61004290 Contact Us For Availability

6

END CAP, CONTROL ROD WPL 61003283 Contact Us For Availability

6

CHUTE, ICE WPL 61003478 Contact Us For Availability

6

SCREW WPL 4000171 Contact Us For Availability

6

NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability

6

CAPACITOR, RUN WPL 61002137 Contact Us For Availability

7

WP61002138 Whirlpool Refrigerator Terminal Co Backorder WPL WP61002138 $6.66

7

TRAY, EGG WPL 600661 Contact Us For Availability

7

SEAL, CRISPER SHELF (REAR) WPL 61003671 Contact Us For Availability

7

SEAL, CRISPER PAN (FRT) WPL 61003716 Contact Us For Availability

7

GEAR, CONTROL SLIDE WPL 61003305 Contact Us For Availability

7

DOOR ASSY., ICE WPL 61003507 Contact Us For Availability

7

NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability

7

HINGE, UPPER WPL 61001971 Contact Us For Availability

7

SCREW, UPPER HINGE WPL 6527586 Contact Us For Availability

8

12001773 Whirlpool Refrigerator Primary Auger Backorder WPL 12001773 $232.42

8

RETAINER, BOTTLE WPL 61002273 Contact Us For Availability

8

WIRE HARNESS, AUGER MOTOR WPL 61003442 Contact Us For Availability

8

WIRE HARNESS, AUGER MOTOR WPL 61004805 Contact Us For Availability

8

DAMPER, AUTO WPL 61003234 Contact Us For Availability

8

SCREW WPL 61003359 Contact Us For Availability

8

STRIKE, ICE DOOR WPL 61003311 Contact Us For Availability

8

SEE NOTE MUST ORDER TANK ASSY. PART NO. 6 WPL Y00000000 Contact Us For Availability

8

PLUG, COMPRESSOR WPL 526562 Contact Us For Availability

8

SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability

9

3400112 Whirlpool Refrigerator Screw Backorder WPL 3400112 $51.24

9

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $3.49

9

WP9705445 Whirlpool Refrigerator Roll Pin Backorder WPL WP9705445 $4.82

9

BRACKET, EVAPORATOR (LT) WPL 61003215 Contact Us For Availability

9

BUCKET, TIP OUT WPL 61003881 Contact Us For Availability

9

YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability

9

COVER, MEAT CONTROL TAPE WPL 61003723 Contact Us For Availability

9

WASHER, DAMPER ROD WPL 61003358 Contact Us For Availability

9

CONDENSER WPL 61003130 Contact Us For Availability

9

HINGE, LOWER (ALM) WPL 61001919 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

BRACKET, EVAPORATOR (RT) WPL 61003216 Contact Us For Availability

SHELF, PICK-OFF WPL 61003474 Contact Us For Availability

AUGER WPL 61003326 Contact Us For Availability

STRIP, FILLER (SIDES) WPL 61003888 Contact Us For Availability

SPRING, DAMPER DOOR WPL 61003141 Contact Us For Availability

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

PIN, LOWER HINGE WPL 61003174 Contact Us For Availability

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $20.55

BLOCK, AIR WPL 61003213 Contact Us For Availability

SHELF, PICK-OFF WPL 61003883 Contact Us For Availability

CONE, ICE DEFLECTOR WPL 696991 Contact Us For Availability

BASE, FILLER STRIP (RT) WPL 61004109 Contact Us For Availability

BASE, FILLER STRIP (LT) WPL 61004110 Contact Us For Availability

DOOR, DAMPER WPL 61003235 Contact Us For Availability

SWITCH, LIMIT WPL 61003124 Contact Us For Availability

SLEEVE, BRASS WPL 694311 Contact Us For Availability

SHROUD, CONDENSER WPL 61001941 Contact Us For Availability

COVER, LOWER HINGE (ALM) WPL 61003222 Contact Us For Availability

TUBING, FOUNTAIN WPL 61003509 Contact Us For Availability

61002719 Whirlpool Refrigerator Stop Bucket Backorder WPL 61002719 $10.24

61003647 Whirlpool Refrigerator Freezer Door In Stock WPL 61003647 $10.02

WP61006198 Whirlpool Refrigerator Heater Backorder WPL WP61006198 $108.16

WASHER, CONE STOP WPL 696981 Contact Us For Availability

RACK, CAN WPL 61002406 Contact Us For Availability

SUPPORT, TEMP. CONTROL WPL 61003315 Contact Us For Availability

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability

12001991 Whirlpool Ice Door Kit In Stock WPL 12001991 $134.08

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

WP67005457 Whirlpool Refrigerator Clip Backorder WPL WP67005457 $6.88

IMPELLER WPL 61003327 Contact Us For Availability

IMPELLER WPL 700361 Contact Us For Availability

FRAME ASSY., ELEVATOR SHELF WPL 61003729 Contact Us For Availability

GLIDE, SHELF WPL 61004480 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

DEFROST ASSY., ADAPTIVE WPL 61003990 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

DRIER WPL 139001 Contact Us For Availability

NAMEPLATE (ALM) WPL 61003874 Contact Us For Availability

COVER, LOWER HINGE (ALM) WPL 61003221 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $60.81

HOUSING, EVAPORATOR WPL 61003382 Contact Us For Availability

PLATE, DRIVE WPL 61003328 Contact Us For Availability

PLATE, DRIVE WPL 697551 Contact Us For Availability

PAN, MEAT WPL 61003718 Contact Us For Availability

INSULATION, DISCHARGE (LT) WPL 61003229 Contact Us For Availability

INSULATION, DISCHARGE (RT) WPL 61003230 Contact Us For Availability

BRACKET, FOUNTAIN (ALM) WPL 61003408 Contact Us For Availability

INLET, WATER WPL 951001 Contact Us For Availability

SCREW WPL 6527533 Contact Us For Availability

INSERT, EXT. TRIM (LWR-ALM) WPL 61003398 Contact Us For Availability

SCREW WPL 40002728 Contact Us For Availability

COVER, COIL (UPR) WPL 61003383 Contact Us For Availability

NUT, AUGER WPL 697091 Contact Us For Availability

ROLLER WPL 674232 Contact Us For Availability

SEAL, TUNNEL TO HOUSING WPL 61003147 Contact Us For Availability

TUNNEL, CONTROL HOUSING WPL 61003231 Contact Us For Availability

RECEPTACLE, BULB WPL 701191 Contact Us For Availability

EJECTOR, ICE WPL 951011 Contact Us For Availability

BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability

TRIM, HANDLE EXT. (UPR) WPL 61003361 Contact Us For Availability

BEARING, SPACER WPL 696971 Contact Us For Availability

SCREW WPL 652756 Contact Us For Availability

SEAL, TUNNEL WPL 61003819 Contact Us For Availability

BULB, LIGHT WPL 631791 Contact Us For Availability

ARM, SENSOR WPL 701421 Contact Us For Availability

PAN, DRAIN WPL 61002649 Contact Us For Availability

TRIM, HANDLE EXT. (LWR) WPL 61003396 Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

SEAL, UPPER COVER (TOP) WPL 61003386 Contact Us For Availability

SPACER, CRUSHER BLADE WPL 696961 Contact Us For Availability

SLIDE, CONTROL WPL 61003781 Contact Us For Availability

RECEPTACLE, BULB WPL 61003237 Contact Us For Availability

PAD, ACTUATOR (ALM) WPL 61003410 Contact Us For Availability

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

STOP, DOOR WPL 61003471 Contact Us For Availability

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $7.71

COVER, EVAPORATOR FAN WPL 61003387 Contact Us For Availability

SPACER, BLADE WPL 696962 Contact Us For Availability

DUCT, AIR (MEAT) WPL 61003785 Contact Us For Availability

BARRIER, FOIL (LT) WPL 61003354 Contact Us For Availability

BARRIER, FOIL (RT) WPL 61003355 Contact Us For Availability

GRILL (ALM) WPL 61003412 Contact Us For Availability

STRIPPER, ICE WPL 951021 Contact Us For Availability

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

COVER, UPPER HINGE (ALM) WPL 61004665 Contact Us For Availability

COVER, UPPER HINGE (ALM) WPL 61004666 Contact Us For Availability

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

SCREW WPL 41501335 Contact Us For Availability

MANDIPLATE WPL 61003334 Contact Us For Availability

PLATE, IMPELLER WPL 697011 Contact Us For Availability

SLIDE, CONTROL (MEAT) WPL 61003674 Contact Us For Availability

SHIELD, HEAT WPL 61003238 Contact Us For Availability

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

SCREW, BRACKET WPL 951081 Contact Us For Availability

GROMMET, BRACKET WPL 569331 Contact Us For Availability

ESCUTCHEON (ALM) WPL 61003886 Contact Us For Availability

2006253 Whirlpool Refrigerator Screw Backorder WPL 2006253 $8.89

61005614 Whirlpool Refrigerator Ice Enclosure Backorder WPL 61005614 $141.40

61005626 Whirlpool Water Inlet Valve In Stock WPL 61005626 $82.80

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

COVER, COIL (LWR) WPL 61003388 Contact Us For Availability

ENCLOSURE, ICE - SEE NOTES WPL 61003443 Contact Us For Availability

COVER, MEAT PAN SLIDE WPL 61003784 Contact Us For Availability

ISOLATOR, CONDENSER WPL 61001974 Contact Us For Availability

BOARD, FTN. SWITCH WPL 61003421 Contact Us For Availability

SCREW WPL 61003422 Contact Us For Availability

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $7.20

WP67006908 Whirlpool Refrigerator Screw Backorder WPL WP67006908 $5.02

BARRIER WPL 61003426 Contact Us For Availability

SCREW WPL 652755 Contact Us For Availability

SUPPORT, ENCLOSURE WPL 61003333 Contact Us For Availability

SHELF, CRISPER (LWR) WPL 61003712 Contact Us For Availability

SHIELD, LIGHT WPL 61003728 Contact Us For Availability

CLIP, WATER FILTER WPL 61003800 Contact Us For Availability

GROMMET ASSY., WATER LINE WPL 61003809 Contact Us For Availability

COVER, COMPRESSOR COMPARTMENT WPL 61003860 Contact Us For Availability

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $4.82

SEAL, LOWER COVER WPL 61003389 Contact Us For Availability

SCREW WPL 40002612 Contact Us For Availability

GUIDE, YOKE WPL 697151 Contact Us For Availability

SHELF, CRISPER (UPR) WPL 61003713 Contact Us For Availability

RETAINER, CONTROL ROD WPL 61003316 Contact Us For Availability

GROMMET ASSY., WATER LINE WPL 61003812 Contact Us For Availability

PAN, COMPRESSOR MTG. WPL 61003371 Contact Us For Availability

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

PLUG BUTTON, EVAP. COVER WPL 61001952 Contact Us For Availability

BLADE, CRUSHER WPL 697023 Contact Us For Availability

SEAL, CRISPER SIDE (UPR) WPL 61003714 Contact Us For Availability

SEAL, CRISPER SIDE (LWR) WPL 61003715 Contact Us For Availability

SCREW WPL 4000311 Contact Us For Availability

PANEL, CONTROL WPL 61003372 Contact Us For Availability

INSULATION WPL 61003340 Contact Us For Availability

BRACKET, WATER VALVE WPL 61003732 Contact Us For Availability

CLAMP WPL 535169 Contact Us For Availability

HOSE, DRAIN WPL 61003133 Contact Us For Availability

SLINGER, DISC WPL 61003198 Contact Us For Availability

BLADE, CRUSHER WPL 697022 Contact Us For Availability

FRONT ASSY., MEAT PAN WPL 61003771 Contact Us For Availability

BRACKET, WATER FILTER WPL 61003698 Contact Us For Availability

INSULATION, FTN. (STYROFOAM) WPL 61003477 Contact Us For Availability

KICKPLATE (ALM) WPL 61004065 Contact Us For Availability

GROMMET, FILL TUBE WPL 61003253 Contact Us For Availability

CLIP, FILL TUBE WPL 678771 Contact Us For Availability

BLADE, CRUSHER WPL 61003451 Contact Us For Availability

BLADE, CRUSHER WPL 697061 Contact Us For Availability

RECEPTACLE, BULB WPL 61003379 Contact Us For Availability

FILTER, WATER WPL UKF7001AXX Contact Us For Availability

INSULATION WPL 61003342 Contact Us For Availability

TUBE, DRAIN WPL 61004751 Contact Us For Availability

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $10.86

FUNNEL-KIT WPL 675792 Contact Us For Availability

DIVERTER, ICE WPL 61003445 Contact Us For Availability

BLADE, CRUSHER WPL 697021 Contact Us For Availability

SCREW WPL 4000161 Contact Us For Availability

FITTING ASSY., WATER FILTER WPL 61003705 Contact Us For Availability

INSULATION WPL 61003343 Contact Us For Availability

WHEEL ASSY. (FRT) WPL 61002066 Contact Us For Availability

WP61003826 Whirlpool Wheel Backorder WPL WP61003826 $4.82

CLIP, WATER LINE (ADHESIVE) WPL 61003562 Contact Us For Availability

BLADE, ACTUATED WPL 61003448 Contact Us For Availability

LOCK, FIXED BLADE WPL 697081 Contact Us For Availability

FRAME, MEAT SHELF WPL 61003770 Contact Us For Availability

SCREW WPL 61003796 Contact Us For Availability

INSULATION WPL 61003308 Contact Us For Availability

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $27.54

SUPPORT, CONTROL ROD WPL 61003446 Contact Us For Availability

PIN, BLADE LOCK WPL 697051 Contact Us For Availability

SHIELD, LIGHT WPL 61003439 Contact Us For Availability

FITTING, WATER FILTER WPL 61003790 Contact Us For Availability

WIRE HARNESS, FTN. WPL 61003457 Contact Us For Availability

WIRE HARNESS, FTN. SWITCHES WPL 61003458 Contact Us For Availability

RECEPTACLE, BULB WPL 689743 Contact Us For Availability

SHIELD, SNOW WPL 61003444 Contact Us For Availability

DOOR, ICE CRUSHER WPL 697181 Contact Us For Availability

FRONT ASSY., CRISPER WPL 61003780 Contact Us For Availability

PLUG, FILTER BYPASS WPL 61003791 Contact Us For Availability

LEG, LEVELING WPL 61002014 Contact Us For Availability

BULB, LIGHT WPL 319561 Contact Us For Availability

PIN, MANDIBLE WPL 61003449 Contact Us For Availability

ROD, CRUSHER CONTROL WPL 61004807 Contact Us For Availability

SHELF, SLIDE OUT (SPILLPROOF) WPL 61003801 Contact Us For Availability

SHELF, ELEVATOR WPL 61003862 Contact Us For Availability

HEAD, WATER FILTER WPL 61003789 Contact Us For Availability

MANUAL, USE & CARE WPL 61004269 Contact Us For Availability

SHIELD, LIGHT WPL 61002272 Contact Us For Availability

ROD, CRUSHER CONTROL WPL 61003450 Contact Us For Availability

SPRING, CONTROL ROD WPL 61004808 Contact Us For Availability

TAPE, MEAT CONTROL WPL 61003722 Contact Us For Availability

GRILL, LIGHT WPL 61004590 Contact Us For Availability

MANUAL, SERVICE SXS APD WPL 16009103 Contact Us For Availability

TRIM, SHELF (FRT.) WPL 61003730 Contact Us For Availability

SPRING, CONTROL ROD WPL 61003447 Contact Us For Availability

BRACKET, CONTROL ROD WPL 61004809 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 61003696 Contact Us For Availability

WIRE HARNESS, FRZ./RF SLIDE WPL 61004142 Contact Us For Availability

33

SHELF, FRZ. (WIRE) WPL 61003735 Contact Us For Availability

33

BRACKET, CONTROL ROD WPL 697161 Contact Us For Availability

33

SOLENOID WPL 61003118 Contact Us For Availability

34

BASKET, PIZZA WPL 61003483 Contact Us For Availability

34

YOKE ASSY. WPL 61003539 Contact Us For Availability

35

DIVERTER, AIR WPL 61003205 Contact Us For Availability

35

SHIELD, WIRE WPL 61004850 Contact Us For Availability

36

SEAL, AIR DIVERTER WPL 61003206 Contact Us For Availability

38

BASKET, FRZ. WPL 61003393 Contact Us For Availability

39

BASKET, FRZ. (HALF) WPL 61003733 Contact Us For Availability

40

WIRE HARNESS, FRZ. WPL 61003731 Contact Us For Availability

40

WIRE HARNESS, FAN & HEATER WPL 61003955 Contact Us For Availability

NI

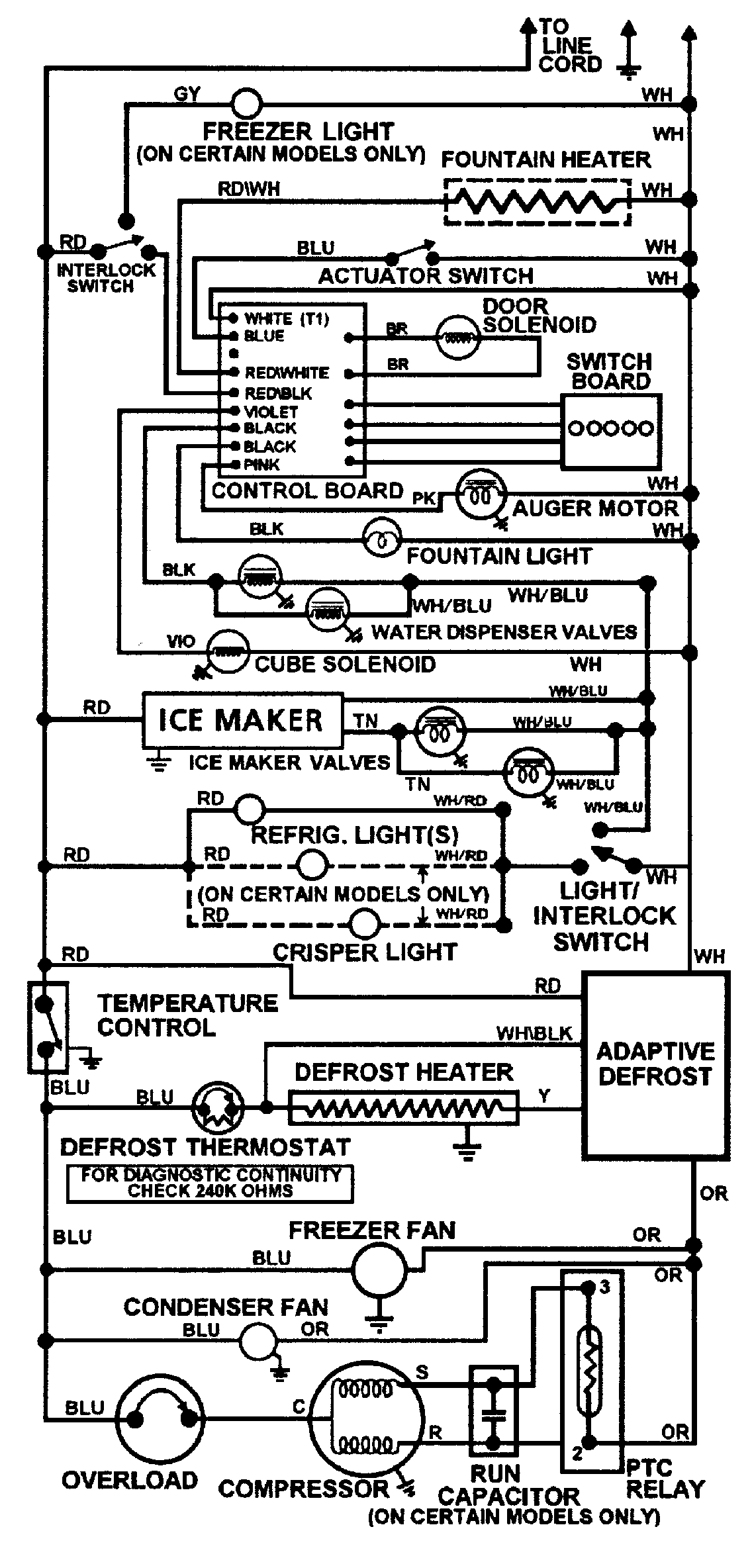

WIRING INFORMATION WPL 15002437 Contact Us For Availability
