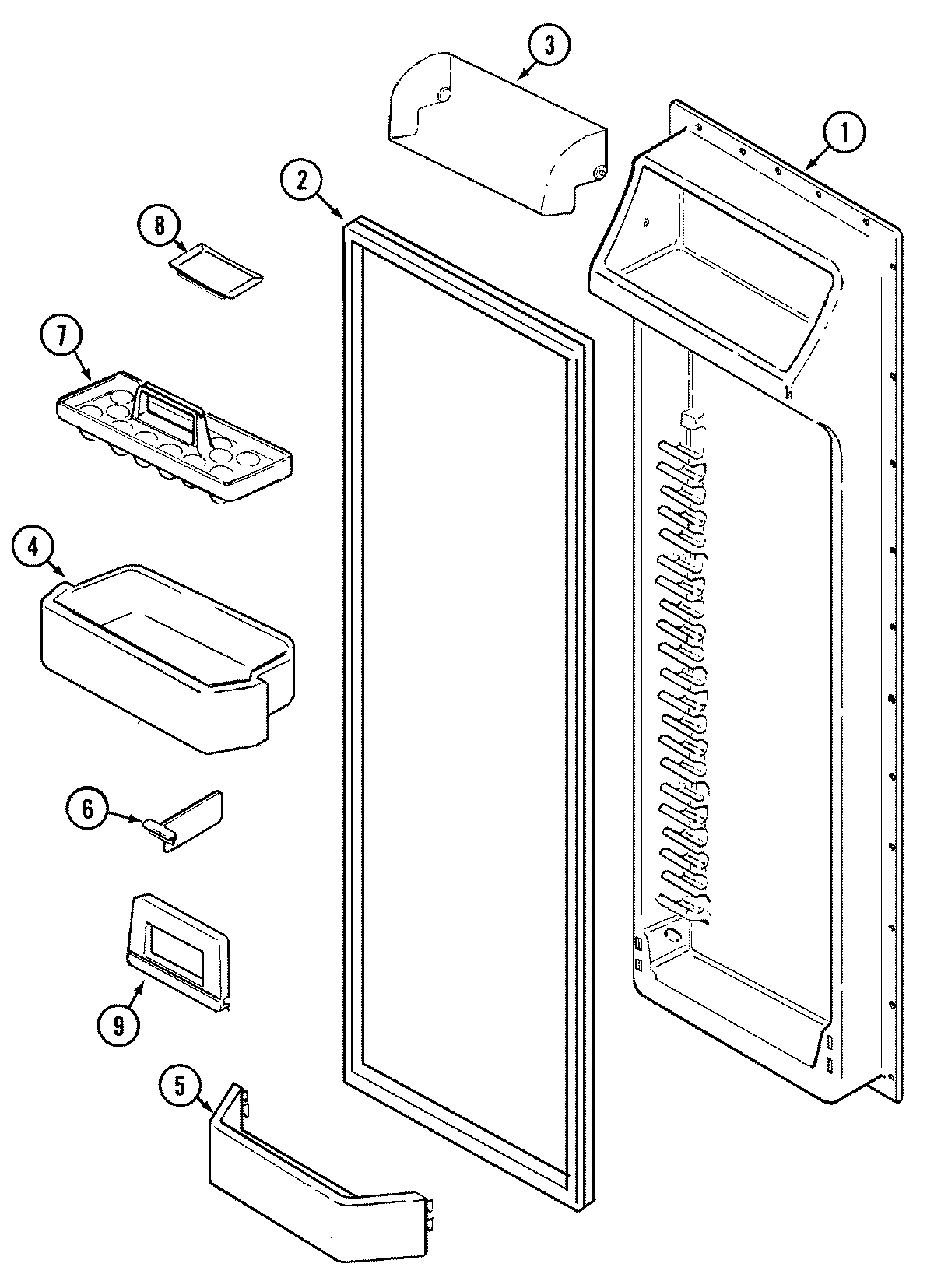

Model Whirlpool MSD2458GEQ REFRIGERATOR – Common Parts &amp; Diagrams

1

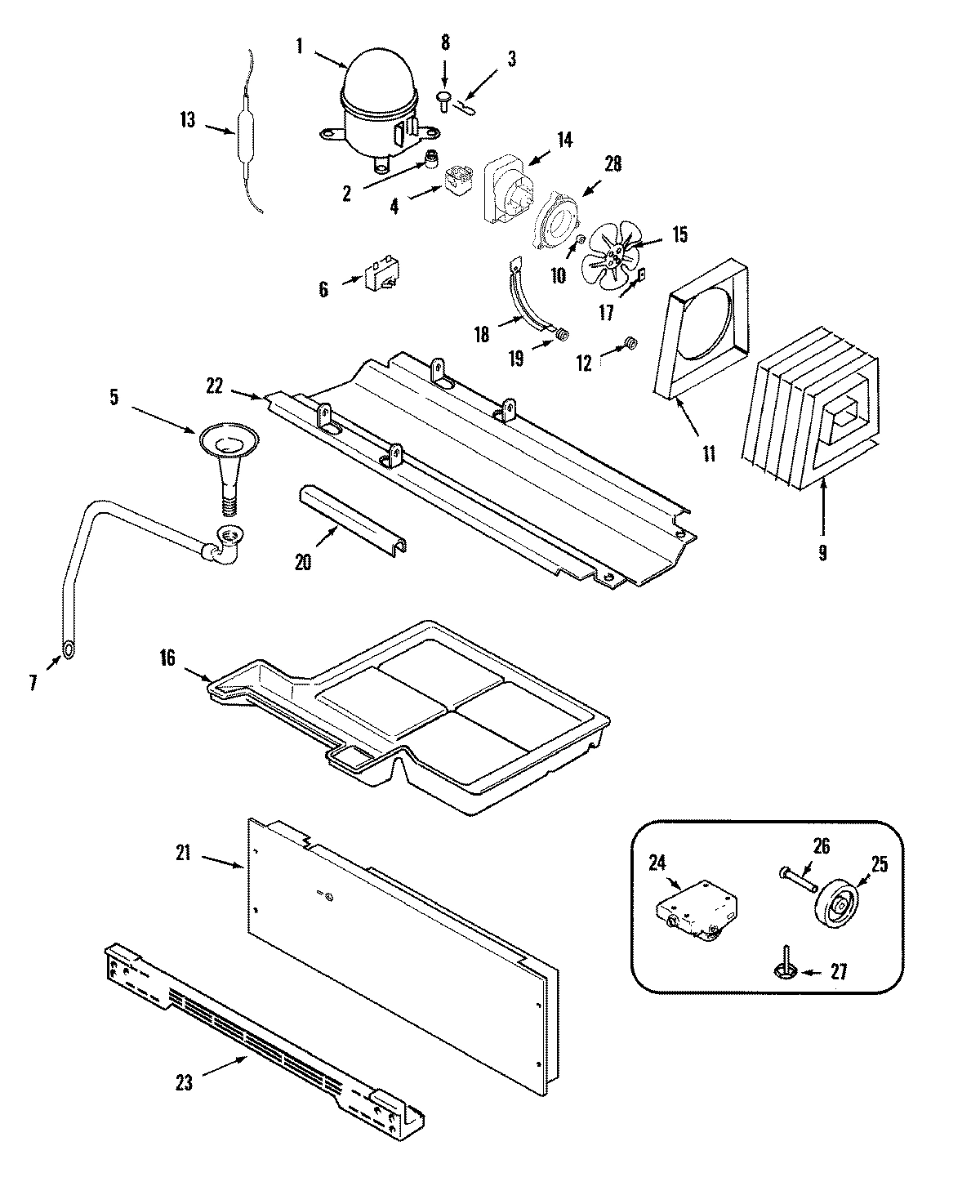

W10309995 Whirlpool Refrigerator Compressor In Stock WPL W10309995 $405.89

1

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

1

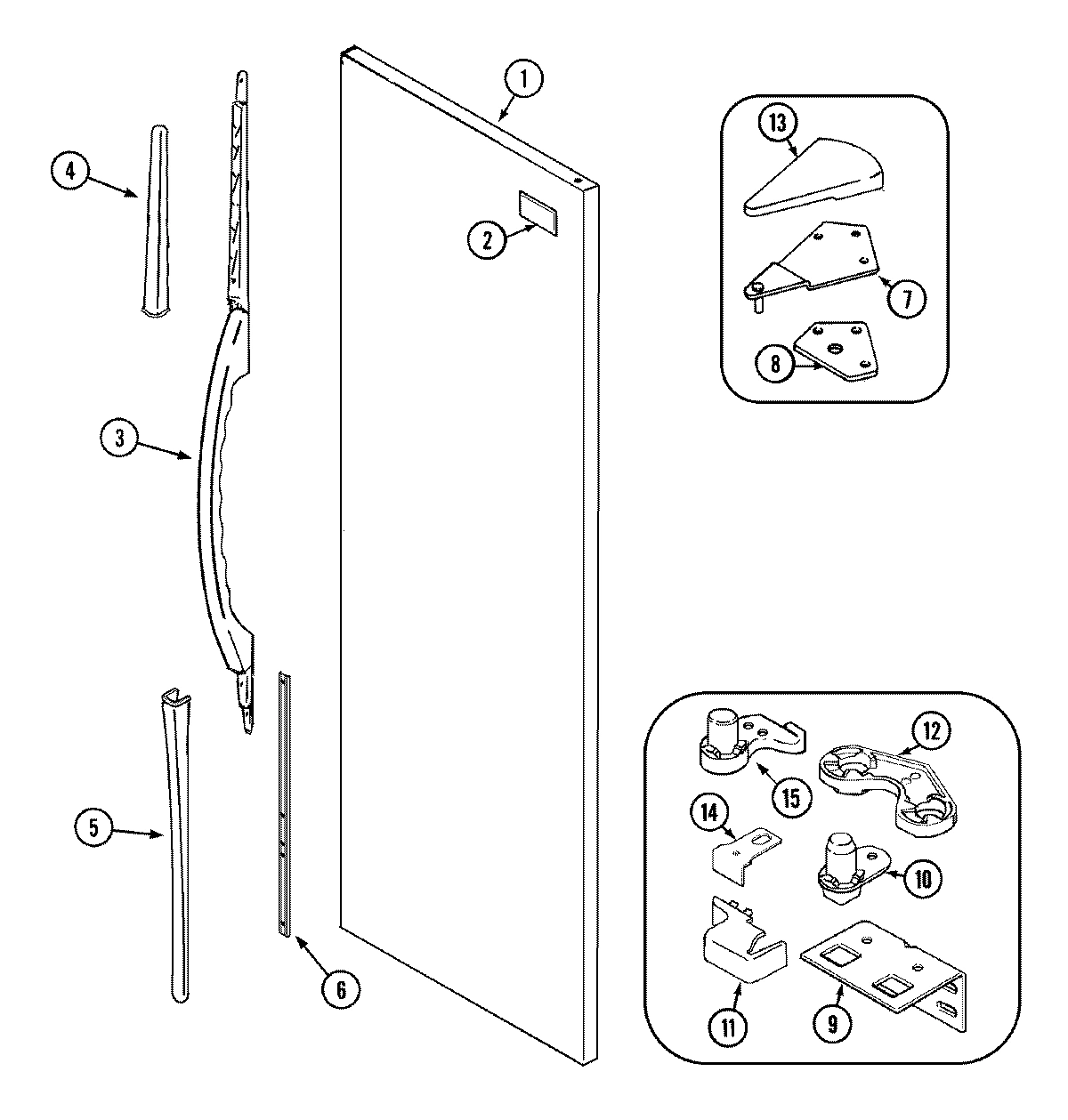

PANEL, F.F. DOOR (BSQ) WPL 61005108 Contact Us For Availability

1

LABEL, DUAL ENERGY GUIDE WPL 61005691 Contact Us For Availability

1

PANEL, F.F. DOOR (BSQ) WPL 61005823 Contact Us For Availability

1

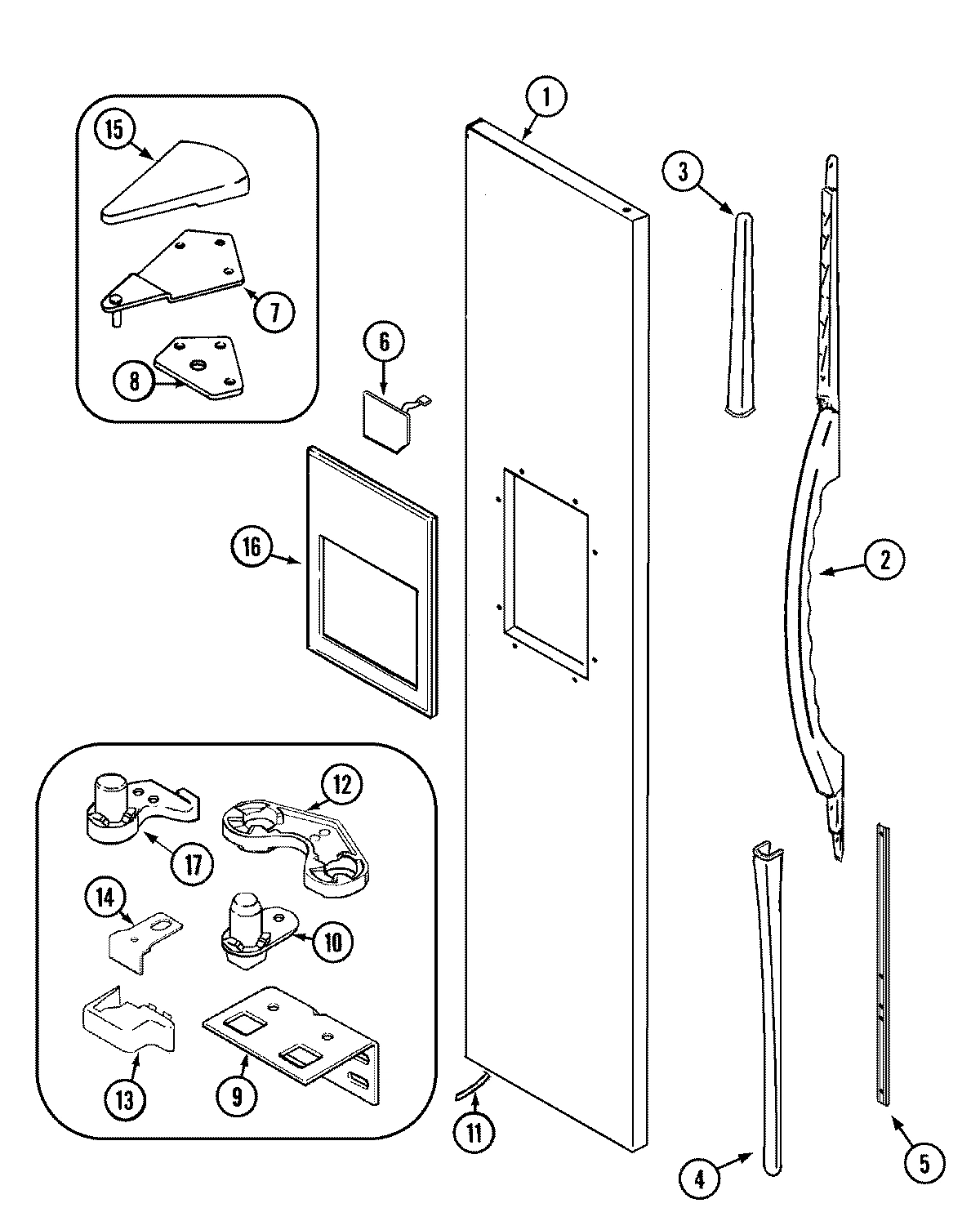

PANEL, FRZ. DOOR (BSQ) WPL 61005301 Contact Us For Availability

1

PANEL, FRZ. DOOR (BSQ) WPL 61005761 Contact Us For Availability

1

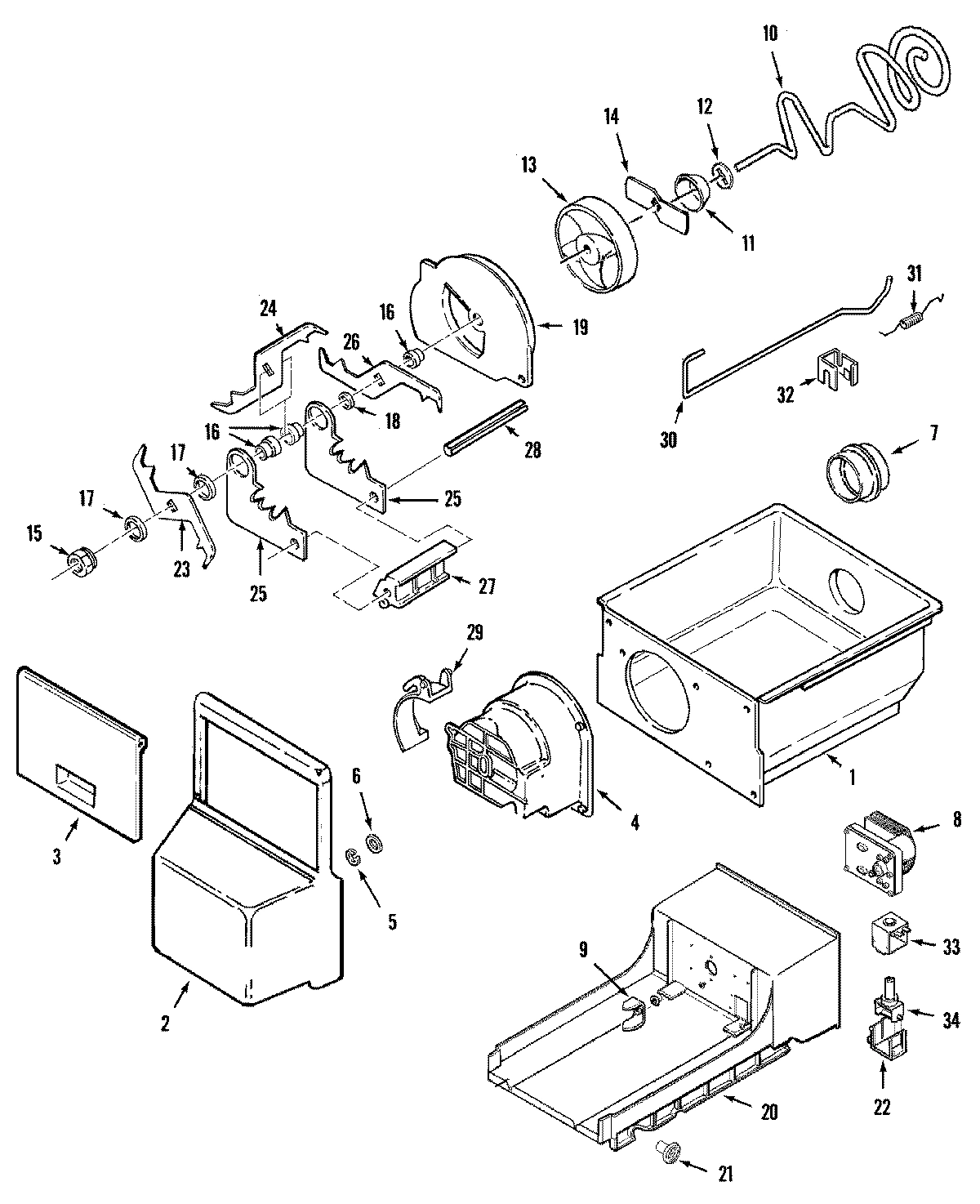

BIN, ICE WPL 61004802 Contact Us For Availability

1

WIRE HARNESS, COMPRESSOR WPL 61005322 Contact Us For Availability

1

SCREW WPL 61003307 Contact Us For Availability

1

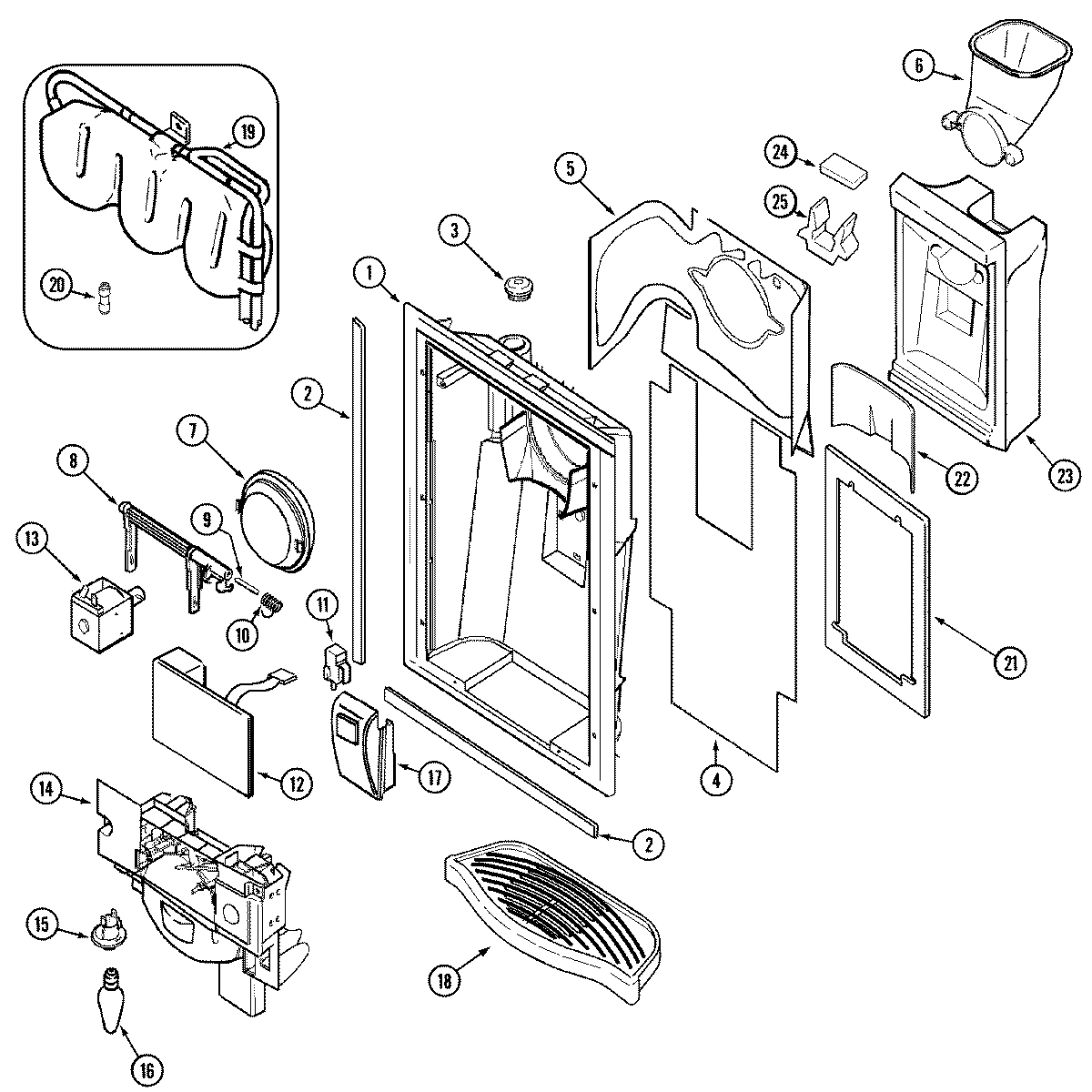

HOUSING, FOUNTAIN (BSQ) WPL 61004772 Contact Us For Availability

1

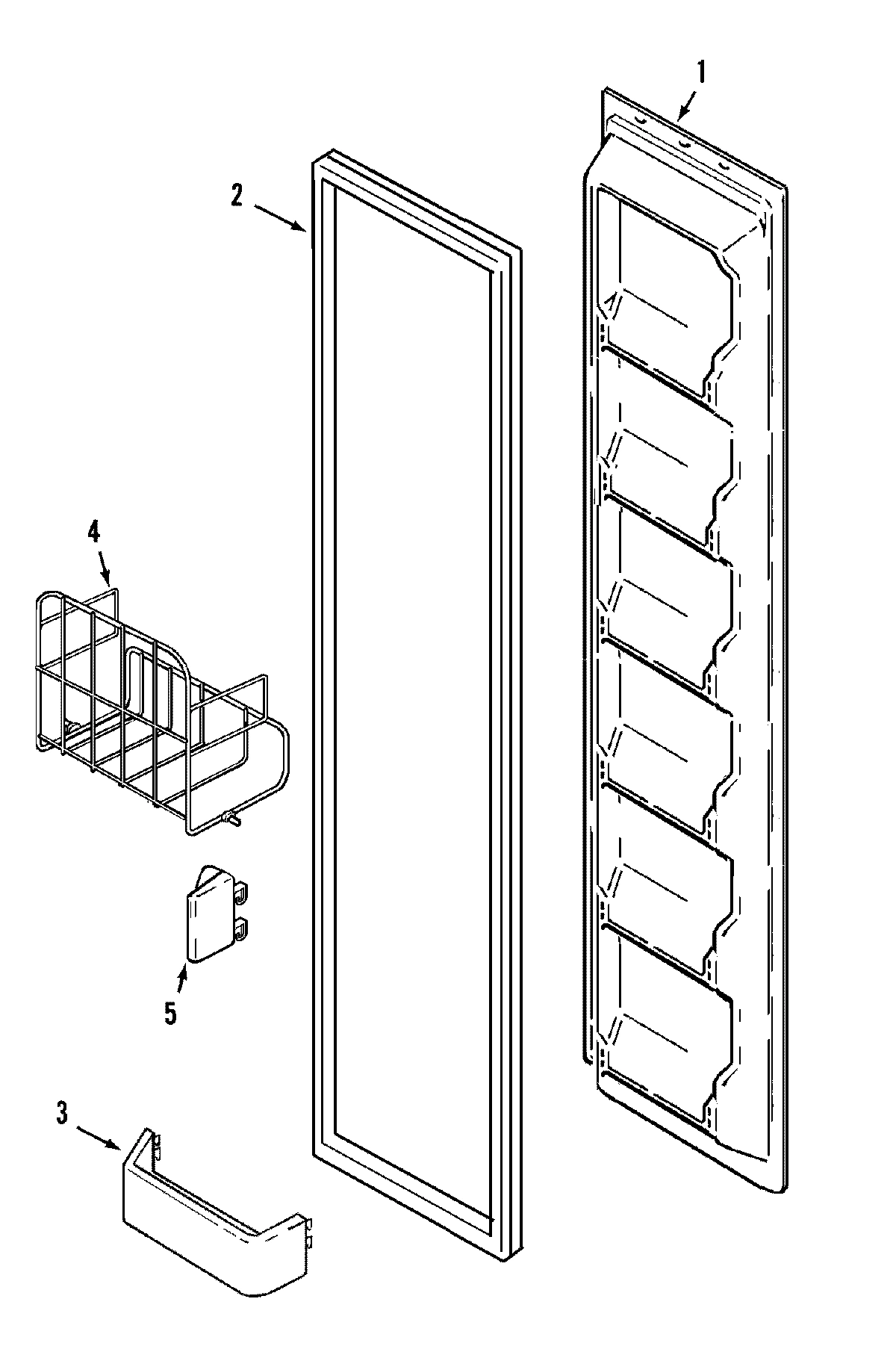

LINER, FRZ. DOOR WPL 61003403 Contact Us For Availability

1

INSERT, LINER SUPPORT(TOP/BTM) WPL 61004049 Contact Us For Availability

1

INSERT, LINER SUPPORT (SIDES) WPL 61005121 Contact Us For Availability

1

SCREW WPL 61005388 Contact Us For Availability

1

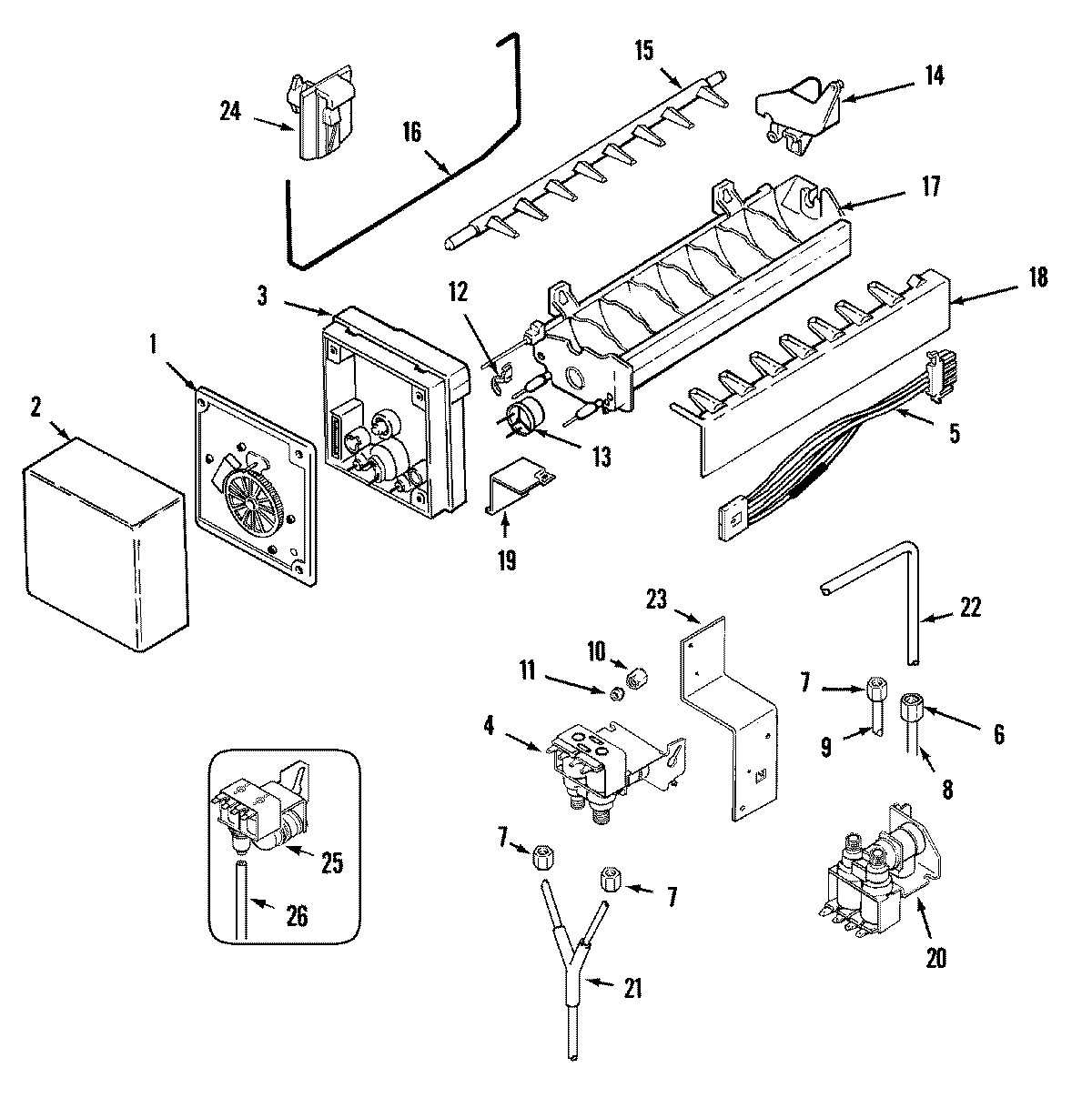

ICEMAKER WPL 951091 Contact Us For Availability

1

SCREW WPL 61004424 Contact Us For Availability

1

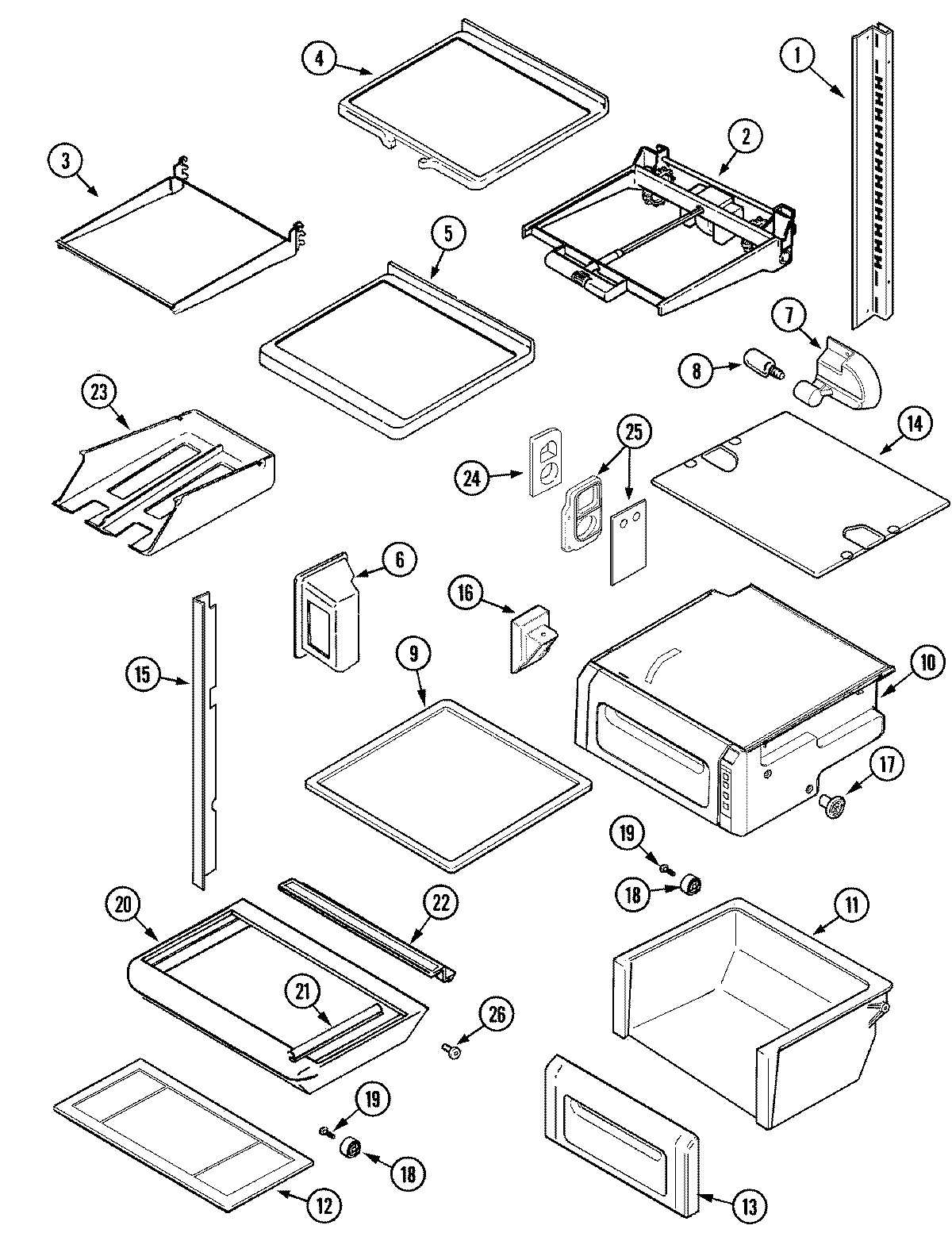

RAIL, SHELF SUPPORT WPL 61005471 Contact Us For Availability

1

FOIL, HEAT SHIELD WPL 61003228 Contact Us For Availability

1

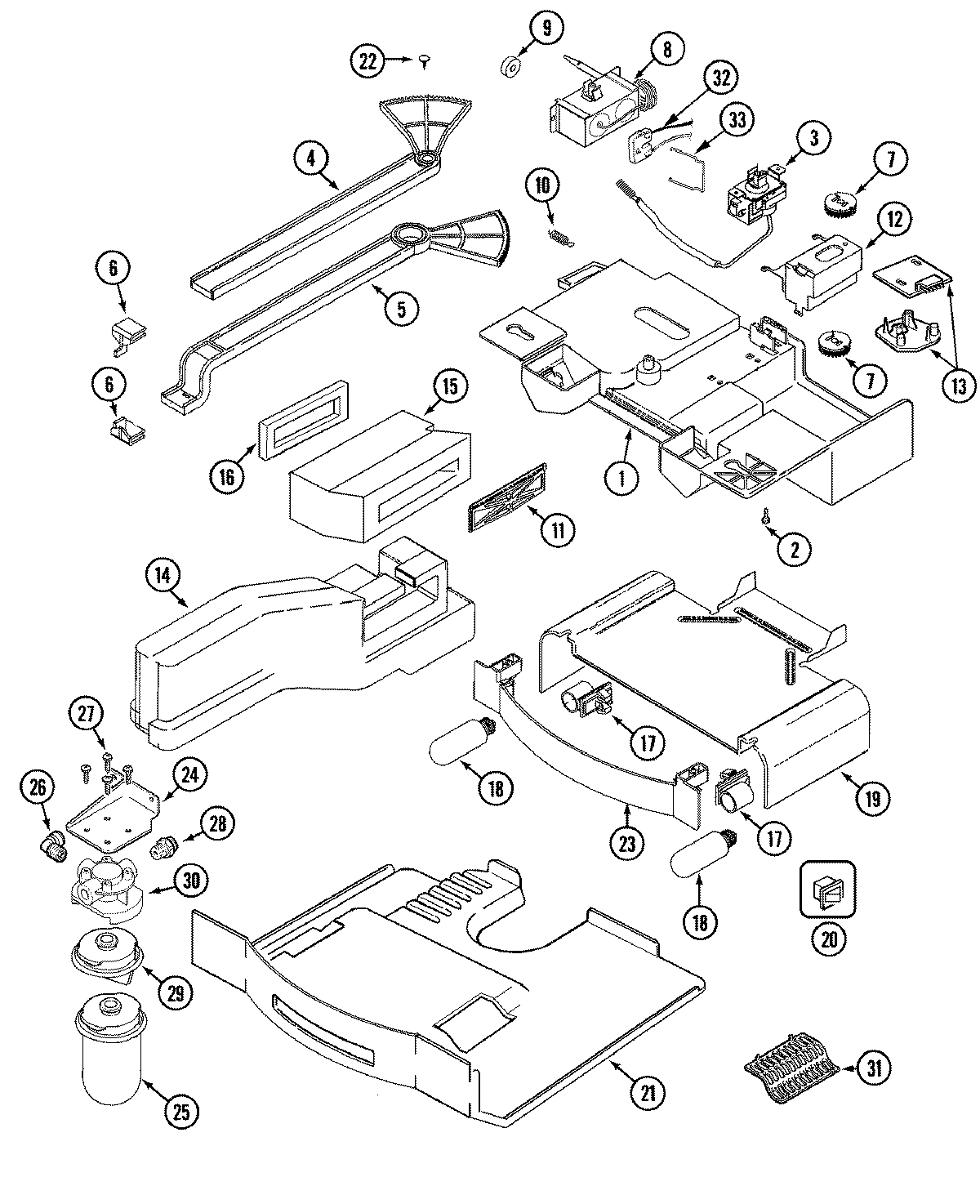

HOUSING ASSY., AUTO DAMPER WPL 61004967 Contact Us For Availability

1

HOUSING ASSY., AUTO DAMPER WPL 61005991 Contact Us For Availability

2

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

2

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $6.02

2

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $4.43

2

NAMEPLATE (BSQ) WPL 61005079 Contact Us For Availability

2

HANDLE, DOOR (BSQ) WPL 61005443 Contact Us For Availability

2

SCREW WPL 61005482 Contact Us For Availability

2

FRONT, ICE BIN WPL 61004803 Contact Us For Availability

2

TAPE (1FT.) WPL 61003286 Contact Us For Availability

2

SEAL, FRZ. DOOR (WHT) WPL 61003773 Contact Us For Availability

2

COVER, ICE MAKER WPL 61005374 Contact Us For Availability

2

BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability

2

GLIDE, SHELF WPL 61004480 Contact Us For Availability

2

FRAME ASSY., ELEVATOR SHELF WPL 61005511 Contact Us For Availability

3

WP61005516 Whirlpool Refrigerator Temperature Backorder WPL WP61005516 $170.07

3

EXTENSION, HANDLE (UPR-BSQ) WPL 61005446 Contact Us For Availability

3

DOOR, ICE ACCESS WPL 61004300 Contact Us For Availability

3

CLIP, COMPRESSOR WPL 61003099 Contact Us For Availability

3

SCREW WPL 4000161 Contact Us For Availability

3

GROMMET, WATER TUBE WPL 61003300 Contact Us For Availability

3

FRONT, PICK-OFF WPL 61005500 Contact Us For Availability

3

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

3

SCREW WPL 951061 Contact Us For Availability

3

RETAINER, EVAPORATOR FAN WPL 61005340 Contact Us For Availability

3

FRAME, SLIDE OUT SHELF WPL 61003736 Contact Us For Availability

3

FRAME, SLIDE OUT SHELF WPL 61004290 Contact Us For Availability

4

12001892 Whirlpool Refrigerator Water Valve K Backorder WPL 12001892 $131.11

4

12002784 Whirlpool Refrigerator Compressor St Backorder WPL 12002784 $129.62

4

12002794 Whirlpool Refrigerator Overload Rela Backorder WPL 12002794 $144.97

4

BUSHING, EVAPORATOR FAN WPL 61005341 Contact Us For Availability

4

EXTENSION, HANDLE (LWR-BSQ) WPL 61005495 Contact Us For Availability

4

HOUSING, CRUSHER WPL 61004804 Contact Us For Availability

4

SEAL WPL 61004869 Contact Us For Availability

4

CLIP, RELAY/OVERLOAD ASSY.-NA WPL 61005620 Contact Us For Availability

4

CLIP, RELAY/OVERLOAD ASSY. WPL 61006187 Contact Us For Availability

4

FOIL, FTN. BACK WPL 61003304 Contact Us For Availability

4

BASKET, TILTDOWN WPL 61003748 Contact Us For Availability

4

SHELF, ELEVATOR WPL 61003862 Contact Us For Availability

4

ROD, DAMPER CONTROL WPL 61003287 Contact Us For Availability

5

SCREW WPL 61005394 Contact Us For Availability

5

CLEAT, HANDLE EXTENSION WPL 61005496 Contact Us For Availability

5

RING, SNAP WPL 697041 Contact Us For Availability

5

TUBE, DRAIN WPL 61004751 Contact Us For Availability

5

HEATER, FOUNTAIN WPL 61005001 Contact Us For Availability

5

STOP, BASKET (LT) WPL 61003753 Contact Us For Availability

5

STOP, BASKET (RT) WPL 61003754 Contact Us For Availability

5

WIRE HARNESS, ICE MAKER WPL 61005276 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability

5

SHELF, SLIDE OUT (SPILLPROOF) WPL 61003801 Contact Us For Availability

5

ROD, TEMP. CONTROL WPL 61003293 Contact Us For Availability

6

WP61005277 Whirlpool Refrigerator Electronic Backorder WPL WP61005277 $107.25

6

SCREW WPL 61003422 Contact Us For Availability

6

WASHER, RETAINER WPL 697031 Contact Us For Availability

6

CAPACITOR, RUN WPL 658894 Contact Us For Availability

6

CHUTE, ICE WPL 61004677 Contact Us For Availability

6

NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability

6

SHROUD, FAN WPL 61003380 Contact Us For Availability

6

END CAP, CONTROL ROD WPL 61004591 Contact Us For Availability

7

12001991 Whirlpool Ice Door Kit In Stock WPL 12001991 $134.08

7

WP3-24838-048 Whirlpool Refrigerator Screw Backorder WPL WP3-24838-048 $4.82

7

HINGE, UPPER WPL 61004896 Contact Us For Availability

7

CLAMP WPL 535169 Contact Us For Availability

7

HOSE, DRAIN WPL 61003133 Contact Us For Availability

7

NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability

7

RECEPTACLE, BULB WPL 61004974 Contact Us For Availability

7

GEAR, CONTROL SLIDE WPL 61003305 Contact Us For Availability

8

12001773 Whirlpool Refrigerator Primary Auger Backorder WPL 12001773 $232.42

8

TRAY, BUTTER WPL 299362 Contact Us For Availability

8

SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability

8

WIRE HARNESS, AUGER MOTOR WPL 61005281 Contact Us For Availability

8

PLUG, COMPRESSOR WPL 526562 Contact Us For Availability

8

EVAP/HEAT EXCH ASSY23/24/25SXS WPL 12001640 Contact Us For Availability

8

SCREW WPL 61003359 Contact Us For Availability

8

DAMPER, AUTO WPL 61004968 Contact Us For Availability

9

3400112 Whirlpool Refrigerator Screw Backorder WPL 3400112 $51.24

9

WP9705445 Whirlpool Refrigerator Roll Pin Backorder WPL WP9705445 $4.82

9

RETAINER, BOTTLE WPL 61002273 Contact Us For Availability

9

HINGE, LOWER (BSQ) WPL 61004764 Contact Us For Availability

9

YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability

9

CONDENSER WPL 61005453 Contact Us For Availability

9

BRACKET, EVAPORATOR (LT) WPL 61003215 Contact Us For Availability

9

SHELF, SPILLPROOF WPL 61005468 Contact Us For Availability

9

WASHER, DAMPER ROD WPL 61003358 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

SPRING, FTN. RETURN WPL 61004388 Contact Us For Availability

PIN, LOWER HINGE WPL 61003174 Contact Us For Availability

AUGER WPL 61003326 Contact Us For Availability

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

BRACKET, EVAPORATOR (RT) WPL 61003216 Contact Us For Availability

CRISPER ASSY. (UPR-4 BUTTON) WPL 12001843 Contact Us For Availability

CRISPER ASSY. (MID-3 BUTTON) WPL 12001844 Contact Us For Availability

SPRING, DAMPER DOOR WPL 61003141 Contact Us For Availability

COVER, LOWER HINGE (BSQ) WPL 61004765 Contact Us For Availability

TUBING, FOUNTAIN WPL 61004557 Contact Us For Availability

CONE, ICE DEFLECTOR WPL 696991 Contact Us For Availability

SHROUD, CONDENSER WPL 61001941 Contact Us For Availability

SCREW WPL 41504135 Contact Us For Availability

SWITCH, LIMIT WPL 61005520 Contact Us For Availability

SLEEVE, BRASS WPL 694311 Contact Us For Availability

BLOCK, AIR WPL 61003213 Contact Us For Availability

PAN, CRISPER (LWR) WPL 61003668 Contact Us For Availability

PAN ASSY., CRISPER (LWR) WPL 61005714 Contact Us For Availability

DOOR, DAMPER WPL 61003235 Contact Us For Availability

61003647 Whirlpool Refrigerator Freezer Door In Stock WPL 61003647 $10.02

WP61006198 Whirlpool Refrigerator Heater Backorder WPL WP61006198 $108.16

WASHER, CONE STOP WPL 696981 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability

BARRIER WPL 61005372 Contact Us For Availability

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

COVER, CRISPER SHELF (LWR) WPL 61005083 Contact Us For Availability

SUPPORT, TEMP. CONTROL WPL 61003315 Contact Us For Availability

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

WP67005457 Whirlpool Refrigerator Clip Backorder WPL WP67005457 $6.88

DEFROST ASSY., ADAPTIVE WPL 61005988 Contact Us For Availability

COVER, UPPER HINGE (BSQ) WPL 61004766 Contact Us For Availability

COVER, LOWER HINGE (BSQ) WPL 61004769 Contact Us For Availability

IMPELLER WPL 700361 Contact Us For Availability

DRIER WPL 139001 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

SEAL, CRISPER PAN (FRT) WPL 61003716 Contact Us For Availability

FRONT ASSY., CRISPER PAN (LWR) WPL 61005470 Contact Us For Availability

DEFROST KIT,ENHANCED ADAPTIVE WPL 12002104 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

DEFROST ASSY., ADAPTIVE WPL 61003990 Contact Us For Availability

SCREW WPL 61005951 Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

STOP, DOOR WPL 61003273 Contact Us For Availability

SCREW WPL 41501335 Contact Us For Availability

PLATE, DRIVE WPL 697551 Contact Us For Availability

MOTOR, CONDENSER FAN WPL 61005323 Contact Us For Availability

BRACKET, FOUNTAIN (BSQ) WPL 61004773 Contact Us For Availability

INLET, WATER WPL 951001 Contact Us For Availability

HOUSING, EVAPORATOR WPL 61003382 Contact Us For Availability

INSULATION, PAD WPL 61005426 Contact Us For Availability

INSULATION, DISCHARGE (LT) WPL 61003229 Contact Us For Availability

INSULATION, DISCHARGE (RT) WPL 61003230 Contact Us For Availability

INSULATION, DISCHARGE (RT) WPL 61005972 Contact Us For Availability

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

COVER, UPPER HINGE (BSQ) WPL 61004771 Contact Us For Availability

NUT, AUGER WPL 697091 Contact Us For Availability

BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability

RECEPTACLE, BULB WPL 701191 Contact Us For Availability

EJECTOR, ICE WPL 951011 Contact Us For Availability

COVER, COIL (UPR) WPL 61003383 Contact Us For Availability

TRIM, CRISPER ASSY. WPL 61004980 Contact Us For Availability

TUNNEL, CONTROL HOUSING WPL 61003231 Contact Us For Availability

SEAL, TUNNEL (DOUBLE-SIDED) WPL 61005075 Contact Us For Availability

TUNNEL, CONTROL HOUSING WPL 61005994 Contact Us For Availability

ESCUTCHEON (BSQ) WPL 61005456 Contact Us For Availability

BEARING, SPACER WPL 696971 Contact Us For Availability

PAN, DRAIN WPL 61002649 Contact Us For Availability

BULB, LIGHT WPL 631791 Contact Us For Availability

ARM, SENSOR WPL 61004136 Contact Us For Availability

SUPPORT, CRISPER WPL 61005440 Contact Us For Availability

SCREW WPL 61005441 Contact Us For Availability

SEAL, TUNNEL WPL 61003819 Contact Us For Availability

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

SPACER, CRUSHER BLADE WPL 696961 Contact Us For Availability

SCREW WPL 4000221 Contact Us For Availability

SUPPORT, ENCLOSURE WPL 61005080 Contact Us For Availability

PAD, ACTUATOR (LT. GRY) WPL 61004441 Contact Us For Availability

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

SEAL, UPPER COVER (TOP) WPL 61003386 Contact Us For Availability

RECEPTACLE, BULB WPL 61003237 Contact Us For Availability

RECEPTACLE, BULB WPL 61005973 Contact Us For Availability

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $7.71

SPACER, BLADE WPL 696962 Contact Us For Availability

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

GRILL (BSQ) WPL 61005459 Contact Us For Availability

STRIPPER, ICE WPL 951021 Contact Us For Availability

COVER, EVAPORATOR FAN WPL 61003387 Contact Us For Availability

ROLLER WPL 61002307 Contact Us For Availability

ROLLER WPL 674232 Contact Us For Availability

BARRIER, FOIL (LT) WPL 61003354 Contact Us For Availability

BARRIER, FOIL (RT) WPL 61003355 Contact Us For Availability

FOIL (RT) WPL 61005974 Contact Us For Availability

FOIL (LT) WPL 61005975 Contact Us For Availability

WP61002308 Whirlpool Refrigerator Screw Backorder WPL WP61002308 $5.02

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

PLATE, IMPELLER WPL 697011 Contact Us For Availability

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

SCREW, BRACKET WPL 951081 Contact Us For Availability

SCREW WPL 652756 Contact Us For Availability

SHIELD, HEAT WPL 61003238 Contact Us For Availability

SHIELD, HEAT WPL 61005976 Contact Us For Availability

61005614 Whirlpool Refrigerator Ice Enclosure Backorder WPL 61005614 $141.40

61005626 Whirlpool Water Inlet Valve In Stock WPL 61005626 $82.80

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $27.54

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $20.55

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $3.49

SWITCH, LIGHT WPL 61006166 Contact Us For Availability

ISOLATOR, CONDENSER WPL 61004584 Contact Us For Availability

COVER, COIL (LWR) WPL 61003388 Contact Us For Availability

SHELF, CRISPER (LWR) WPL 61003712 Contact Us For Availability

FRAME, CRISPER SHELF (LWR) WPL 61006154 Contact Us For Availability

COVER, COMPRESSOR COMPARTMENT WPL 61004661 Contact Us For Availability

SCREW WPL 6527550 Contact Us For Availability

GROMMET ASSY., WATER LINE WPL 61003810 Contact Us For Availability

CLIP, WATER LINE (ADHESIVE) WPL 61005058 Contact Us For Availability

SEAL, CRISPER SIDE (LWR) WPL 61003715 Contact Us For Availability

SHIELD, LIGHT WPL 61004506 Contact Us For Availability

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $4.82

SCREW WPL 40002612 Contact Us For Availability

GUIDE, YOKE WPL 697151 Contact Us For Availability

PAN, COMPRESSOR MTG. WPL 61005268 Contact Us For Availability

INSULATION WPL 61003340 Contact Us For Availability

GROMMET ASSY., WATER LINE WPL 61004511 Contact Us For Availability

GROMMET ASSY., WATER LINE WPL 61005641 Contact Us For Availability

SEAL, LOWER COVER WPL 61003389 Contact Us For Availability

SEAL, CRISPER SHELF (REAR) WPL 61005084 Contact Us For Availability

RETAINER, CONTROL ROD WPL 61003316 Contact Us For Availability

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

BLADE, CRUSHER WPL 697023 Contact Us For Availability

KICKPLATE (BSQ) WPL 61004919 Contact Us For Availability

INSULATION, FTN. (STYROFOAM) WPL 61004700 Contact Us For Availability

BRACKET, WATER VALVE WPL 61003732 Contact Us For Availability

PLUG BUTTON, EVAP. COVER WPL 61001952 Contact Us For Availability

RACK, CAN WPL 61002406 Contact Us For Availability

SCREW WPL 4000311 Contact Us For Availability

PANEL, CONTROL WPL 61004380 Contact Us For Availability

BLADE, CRUSHER WPL 697022 Contact Us For Availability

WHEEL ASSY. (FRT) WPL 61005232 Contact Us For Availability

INSULATION WPL 61003343 Contact Us For Availability

BASKET, FRZ. (HALF) WPL 61003733 Contact Us For Availability

SPACER, AIR RETURN WPL 61005249 Contact Us For Availability

BRACKET, WATER FILTER WPL 61003698 Contact Us For Availability

WP61003826 Whirlpool Wheel Backorder WPL WP61003826 $4.82

WP61005627 Whirlpool Refrigerator Inlet Valve In Stock WPL WP61005627 $183.30

BLADE, CRUSHER WPL 697061 Contact Us For Availability

INSULATION WPL 61003308 Contact Us For Availability

GROMMET, FILL TUBE WPL 61005233 Contact Us For Availability

GROMMET, FILL TUBE WPL 61005743 Contact Us For Availability

DAMPER ASSY., EXHAUST WPL 12001848 Contact Us For Availability

FILTER, WATER WPL UKF7002AXX Contact Us For Availability

675791 Whirlpool Dishwasher ARM Assembly Backorder WPL 675791 $80.75

WP61005337 Whirlpool Refrigerator Support Backorder WPL WP61005337 $6.47

BLADE, CRUSHER WPL 697021 Contact Us For Availability

SCREW WPL 4000171 Contact Us For Availability

WIRE HARNESS, FTN. WPL 61005275 Contact Us For Availability

GROMMET ASSY., WATER LINE WPL 61005640 Contact Us For Availability

SCREW WPL 61005338 Contact Us For Availability

SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability

FITTING ASSY., WATER FILTER WPL 61003705 Contact Us For Availability

LOCK, FIXED BLADE WPL 697081 Contact Us For Availability

LEG, LEVELING WPL 61002014 Contact Us For Availability

CLIP, WATER LINE (ADHESIVE) WPL 61004913 Contact Us For Availability

SCREW WPL 61003796 Contact Us For Availability

PIN, BLADE LOCK WPL 697051 Contact Us For Availability

ADAPTER, FAN MOTOR WPL 61005325 Contact Us For Availability

SCREW WPL 61005326 Contact Us For Availability

SWITCH, LIGHT WPL 61006167 Contact Us For Availability

FITTING, WATER FILTER WPL 61003790 Contact Us For Availability

DOOR, ICE CRUSHER WPL 697181 Contact Us For Availability

YODER LOOP HTR (115V)21,23,25 WPL 12001547 Contact Us For Availability

RECEPTACLE, BULB WPL 689743 Contact Us For Availability

PLUG, FILTER BYPASS WPL 61003791 Contact Us For Availability

ROD, CRUSHER CONTROL WPL 61004807 Contact Us For Availability

MANUAL, USE & CARE (TRILNGUL) WPL 61005298 Contact Us For Availability

BULB, LIGHT WPL 319561 Contact Us For Availability

HEAD, WATER FILTER WPL 61003789 Contact Us For Availability

SPRING, CONTROL ROD WPL 61004808 Contact Us For Availability

SVC MAN,SXS WPL 16010154 Contact Us For Availability

SHIELD, LIGHT WPL 61002272 Contact Us For Availability

GRILL, LIGHT WPL 61004590 Contact Us For Availability

BRACKET, CONTROL ROD WPL 61004809 Contact Us For Availability

VIDEO, USE & CARE(CLIMATEZONE) WPL 61005437 Contact Us For Availability

TRIM, SHELF (FRT.) WPL 61003730 Contact Us For Availability

HEATER WPL 61004972 Contact Us For Availability

2006253 Whirlpool Refrigerator Screw Backorder WPL 2006253 $8.89

SOLENOID WPL 61005253 Contact Us For Availability

SHELF, FRZ. (WIRE) WPL 61003735 Contact Us For Availability

CLIP, HEATER WPL 61004973 Contact Us For Availability

YOKE ASSY. WPL 61003539 Contact Us For Availability

BASKET, PIZZA WPL 61003483 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 61004971 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 61006211 Contact Us For Availability

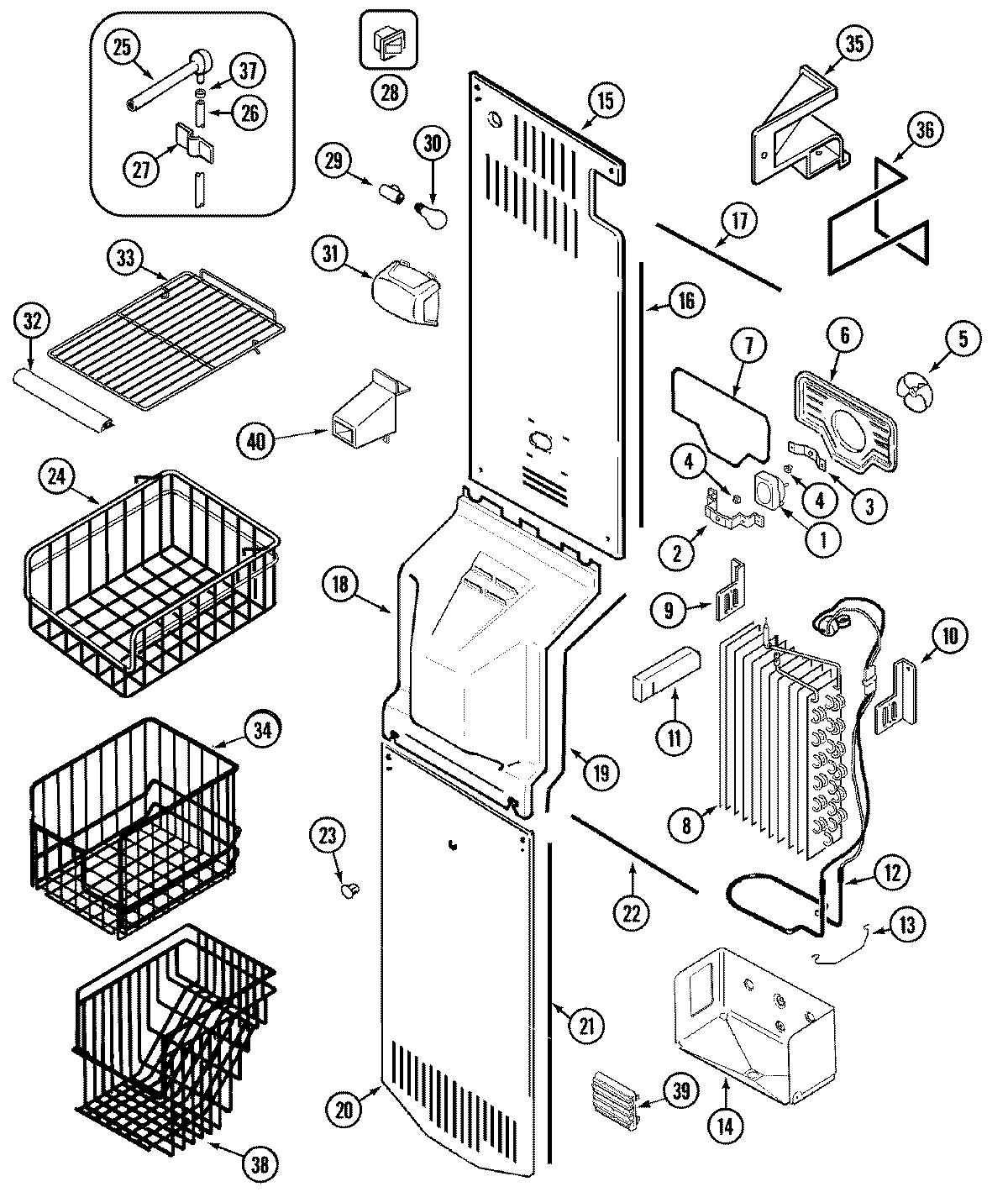

35

SEE NOTE ( WPL Y00000000 Contact Us For Availability

35

DIVERTER, AIR WPL 61003205 Contact Us For Availability

35

WIRE HARNESS, FRZ./RF SLIDE WPL 61004142 Contact Us For Availability

36

SEAL, AIR DIVERTER WPL 61003206 Contact Us For Availability

37

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $7.20

38

BASKET, FRZ. WPL 61003393 Contact Us For Availability

39

COVER, AIR INLET WPL 61004989 Contact Us For Availability

40

KIT, ICE MAKER AIR TUNNEL WPL 12001952 Contact Us For Availability

41

WIRE HARNESS, FRZ. WPL 61003731 Contact Us For Availability

41

WIRE HARNESS, FAN & HEATER WPL 61005351 Contact Us For Availability

NI

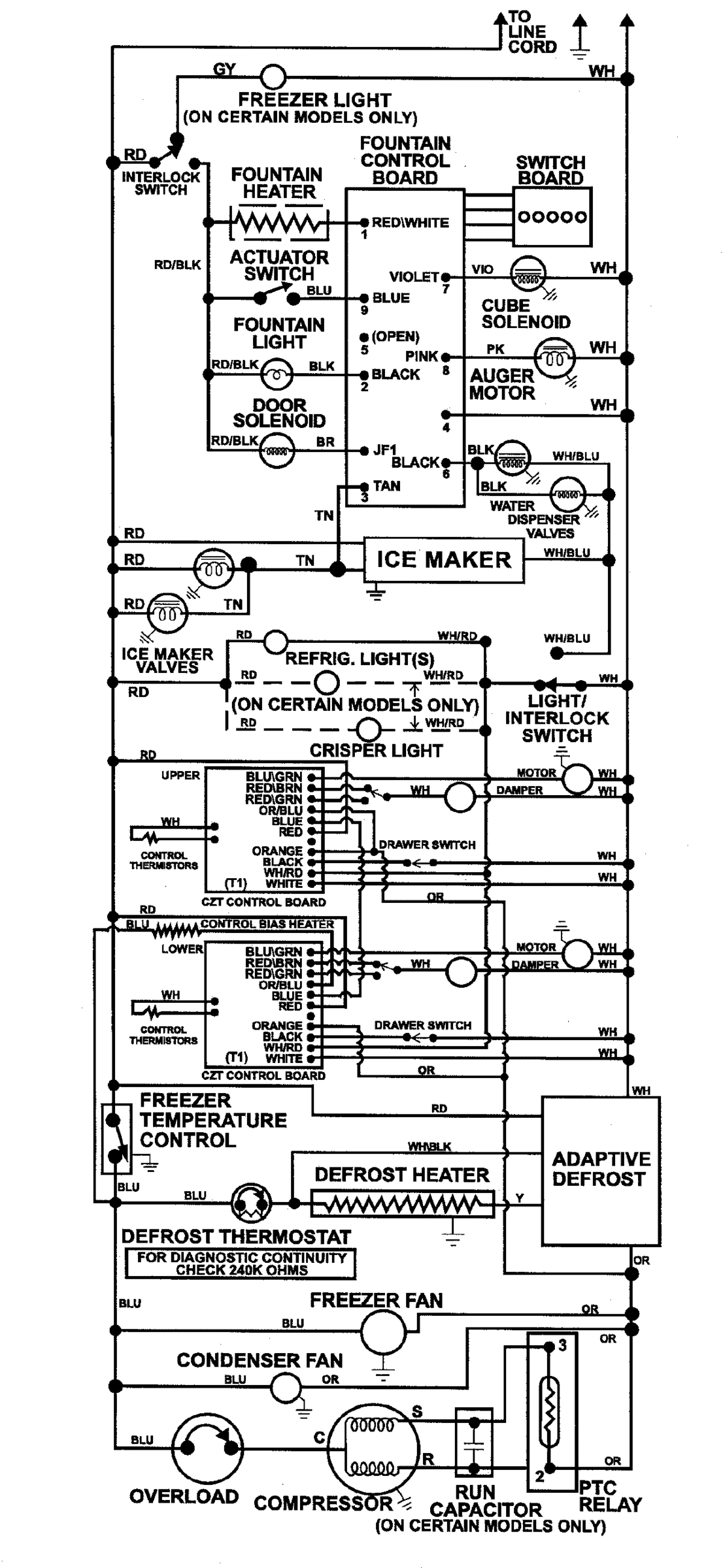

WIRING INFORMATION WPL 15002759 Contact Us For Availability
