Model Maytag MSB26C6MDH02 REFRIGERATOR, SIDE-BY-SIDE – Common Parts & Diagrams
01 - COVER SHEET

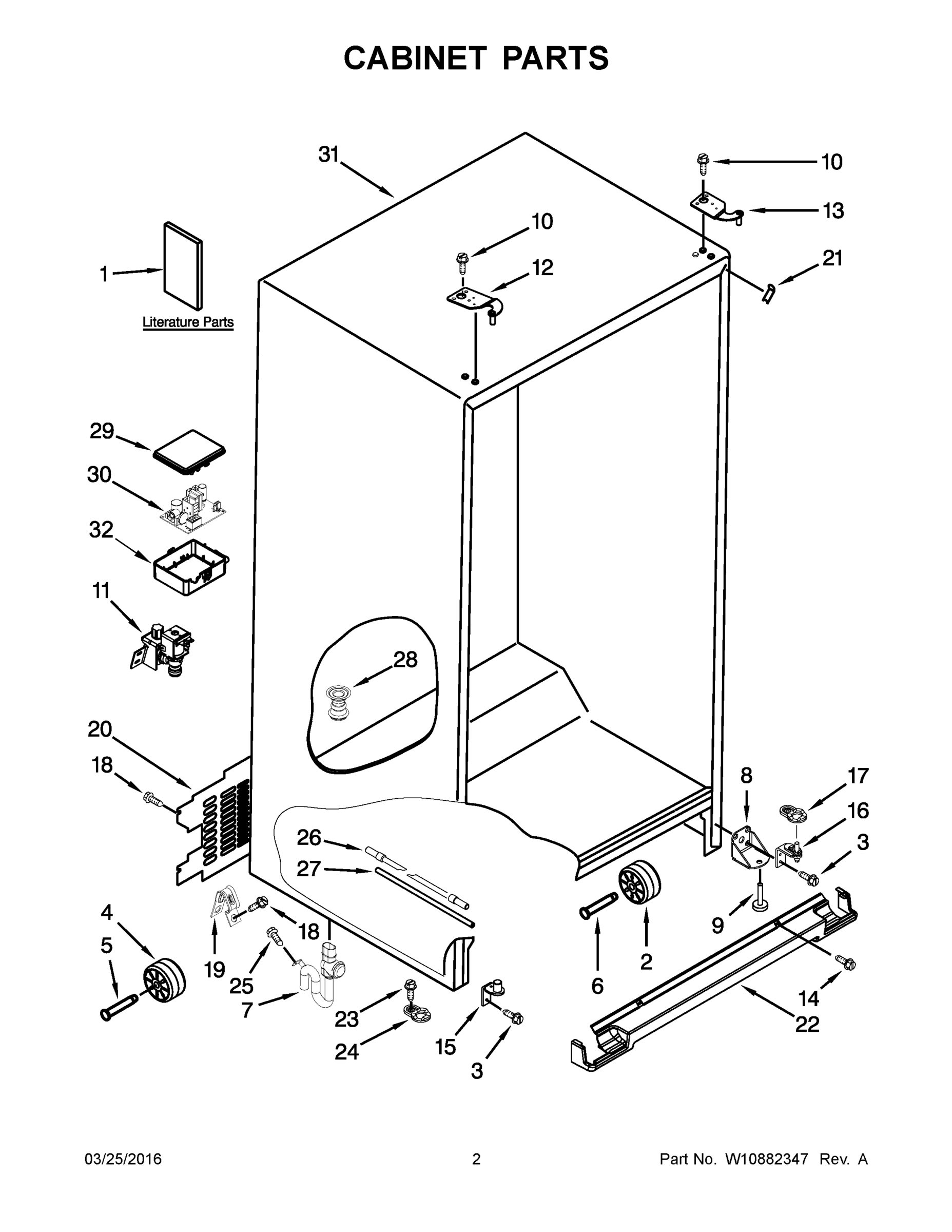

02 - CABINET PARTS

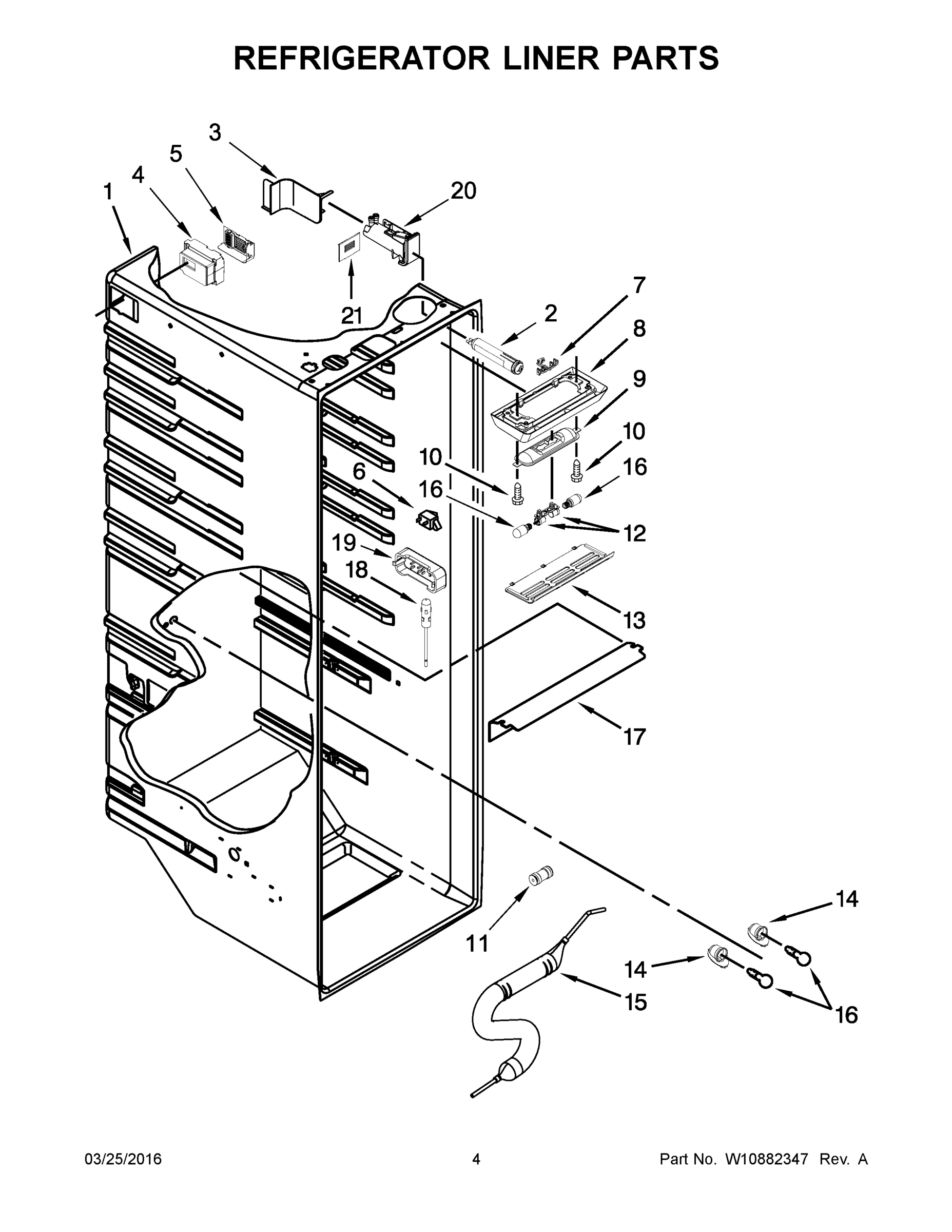

03 - REFRIGERATOR LINER PARTS

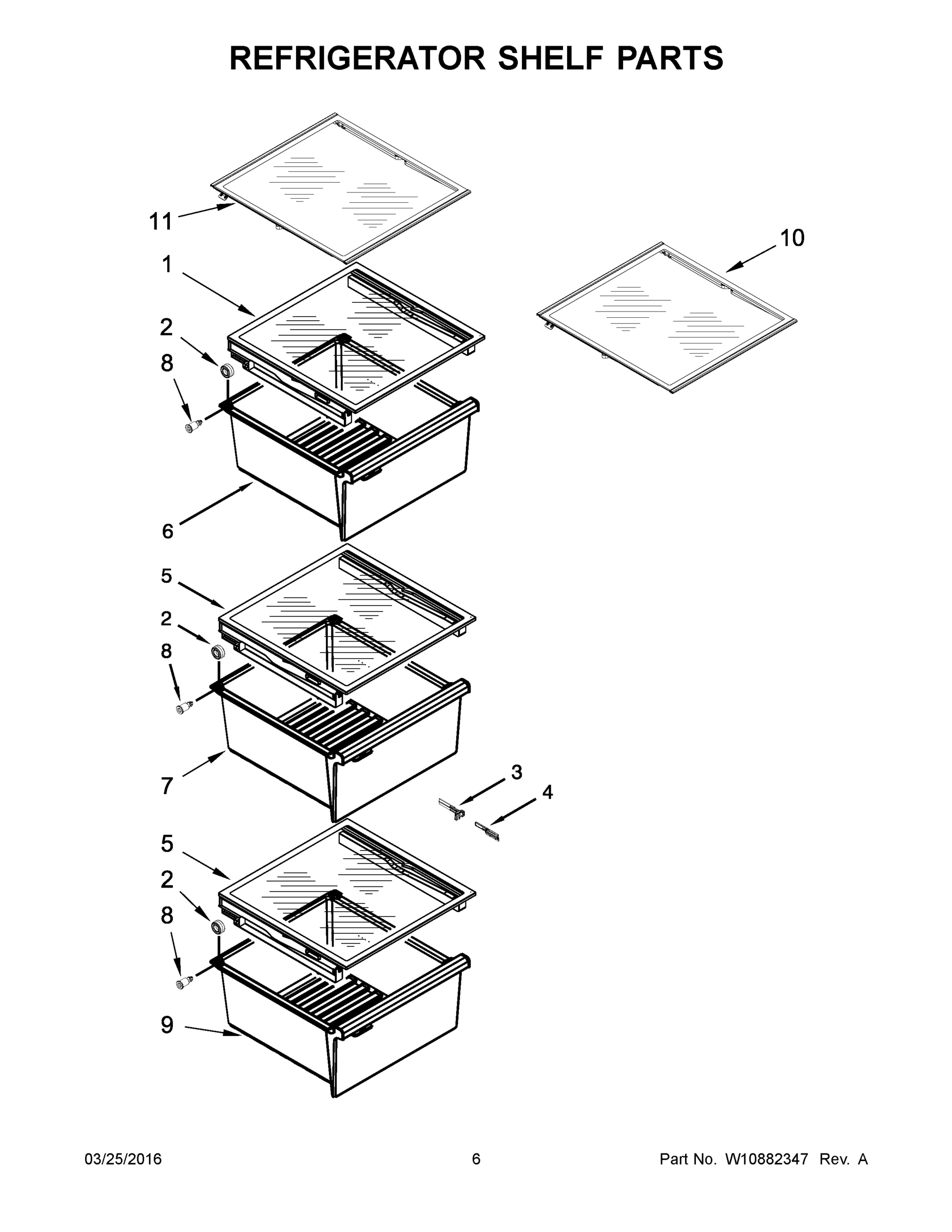

04 - REFRIGERATOR SHELF PARTS

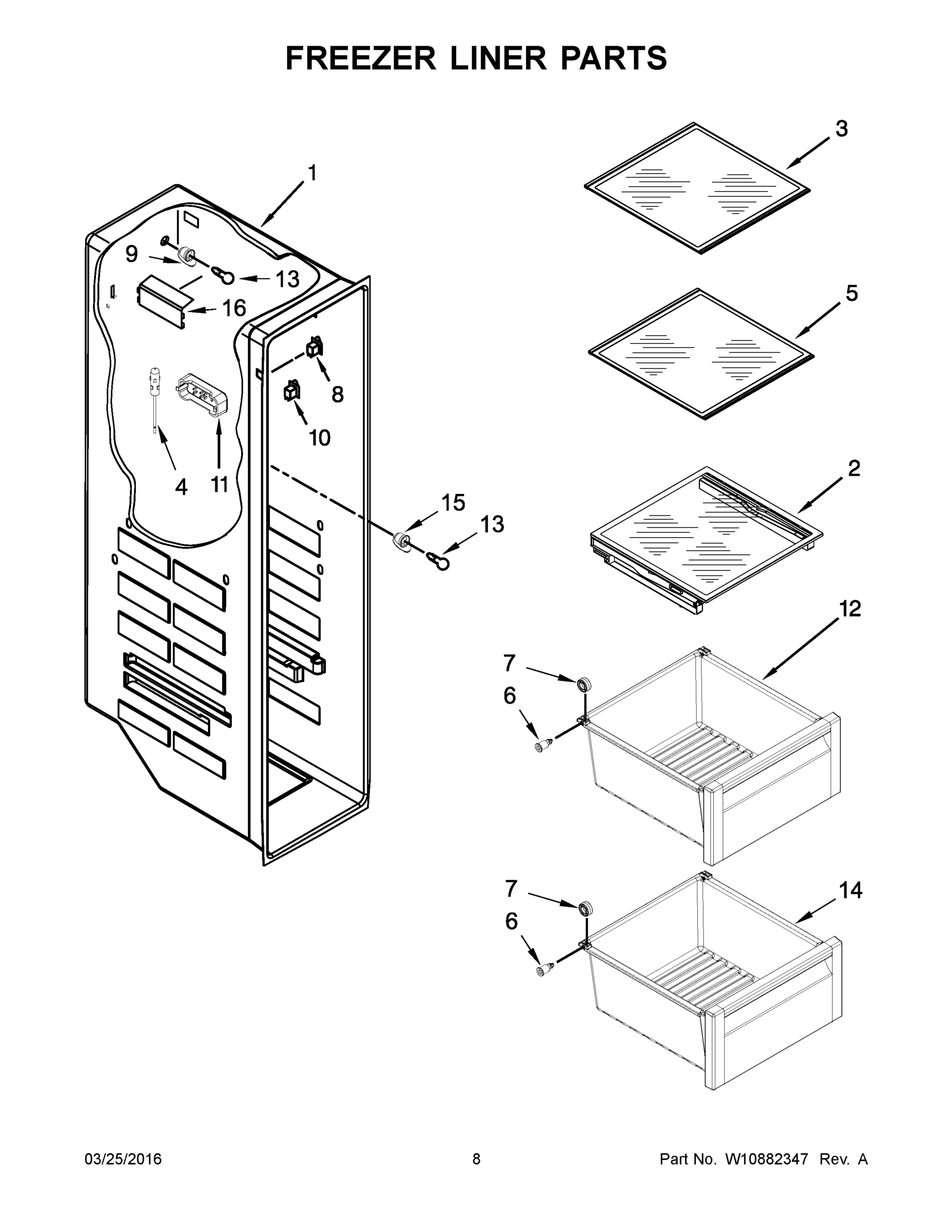

05 - FREEZER LINER PARTS

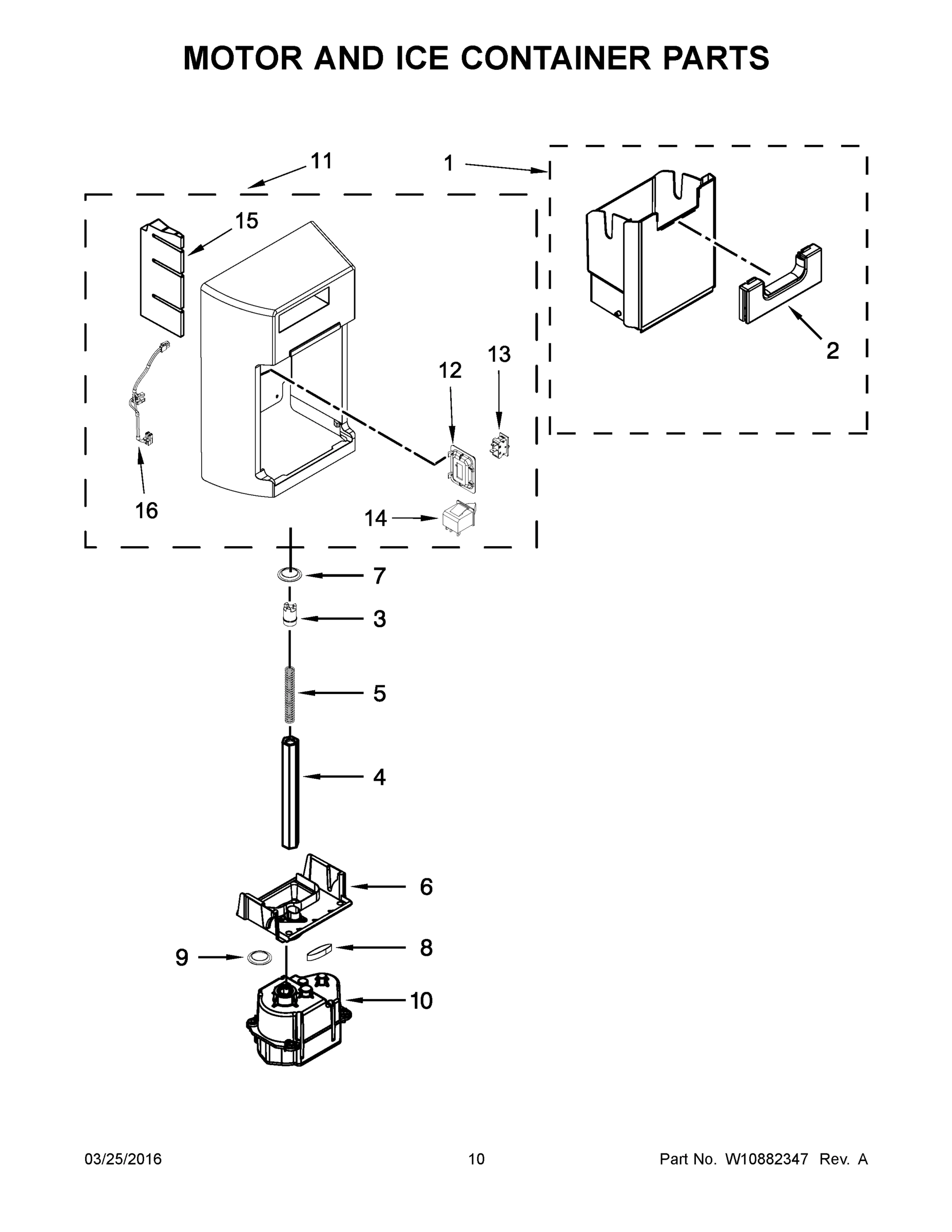

06 - MOTOR AND ICE CONTAINER PARTS

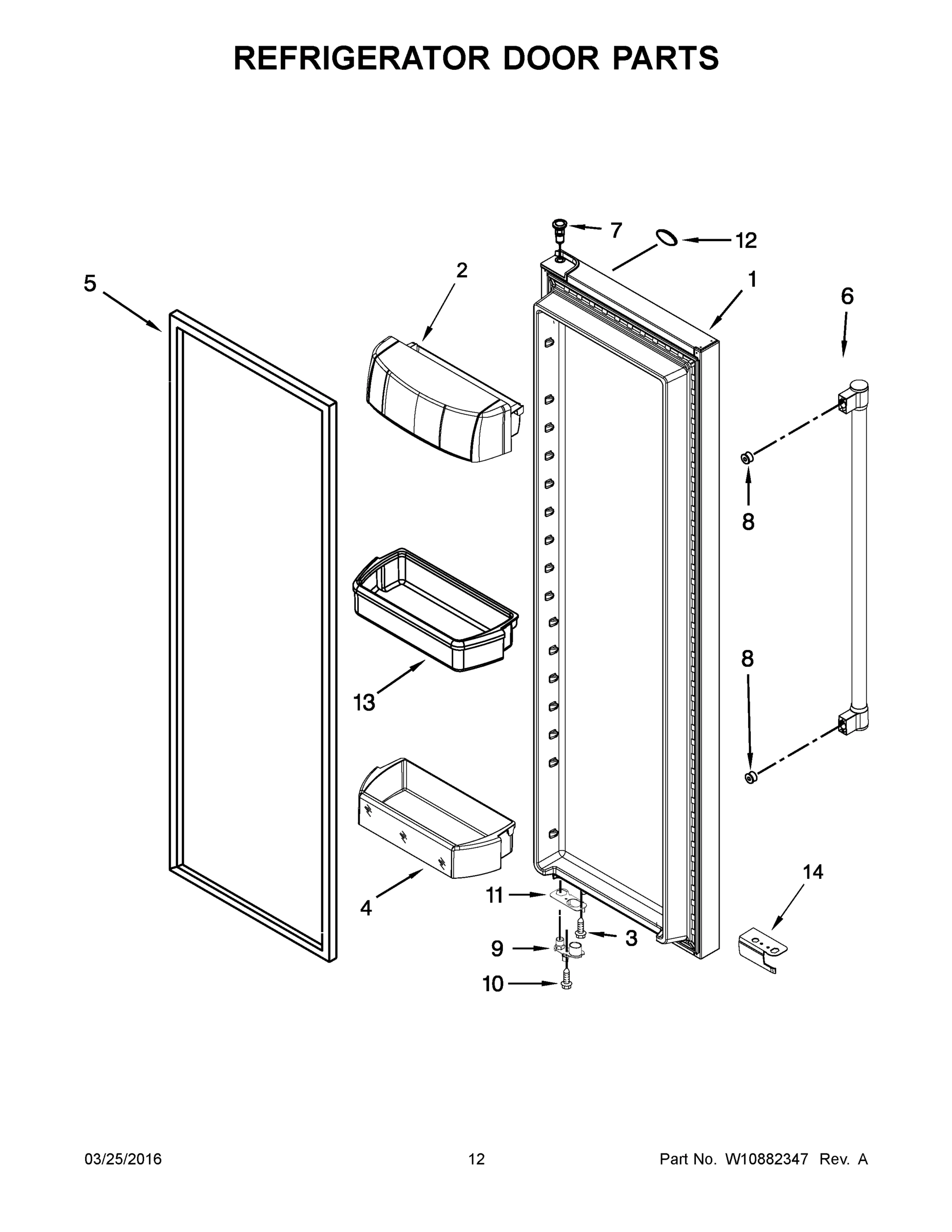

07 - REFRIGERATOR DOOR PARTS

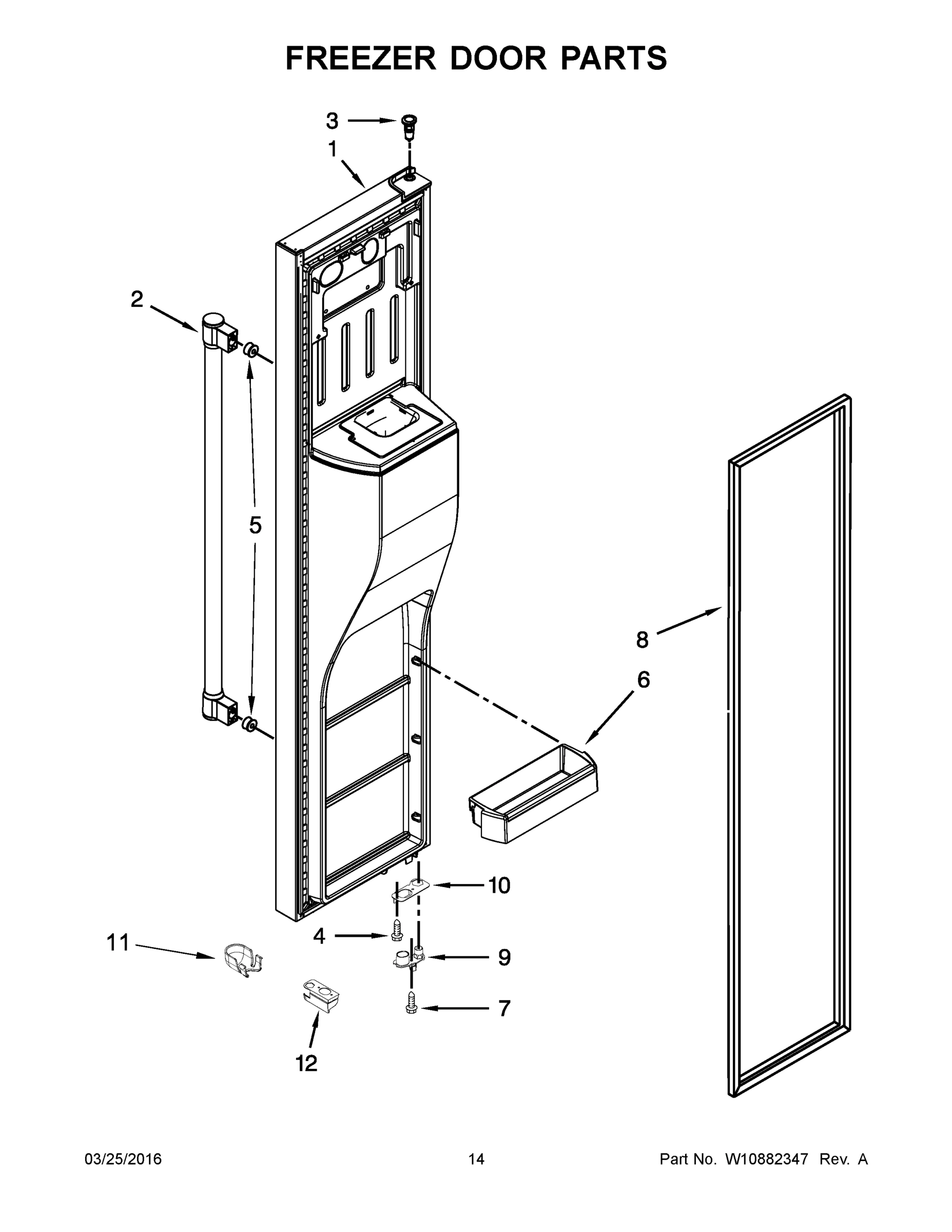

08 - FREEZER DOOR PARTS

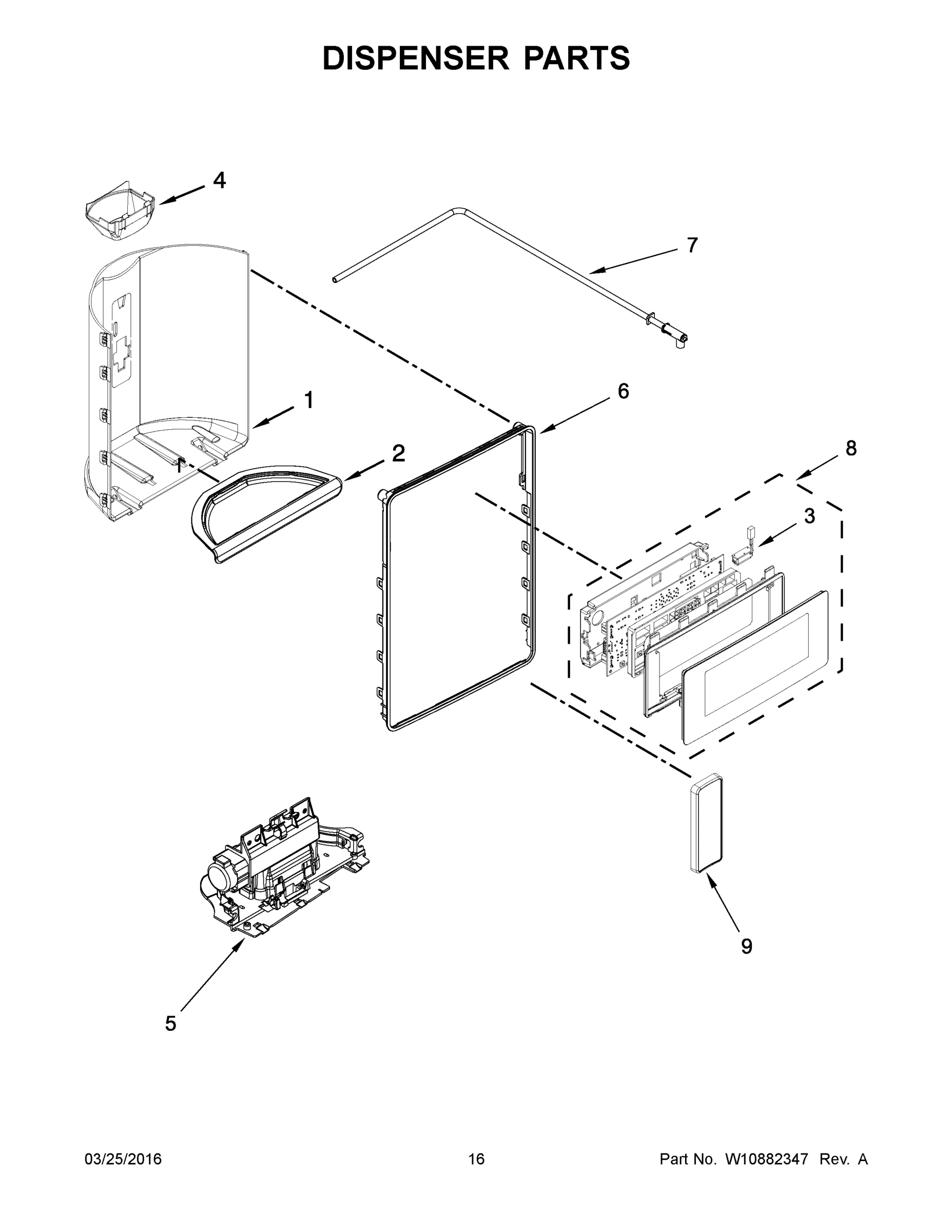

09 - DISPENSER PARTS

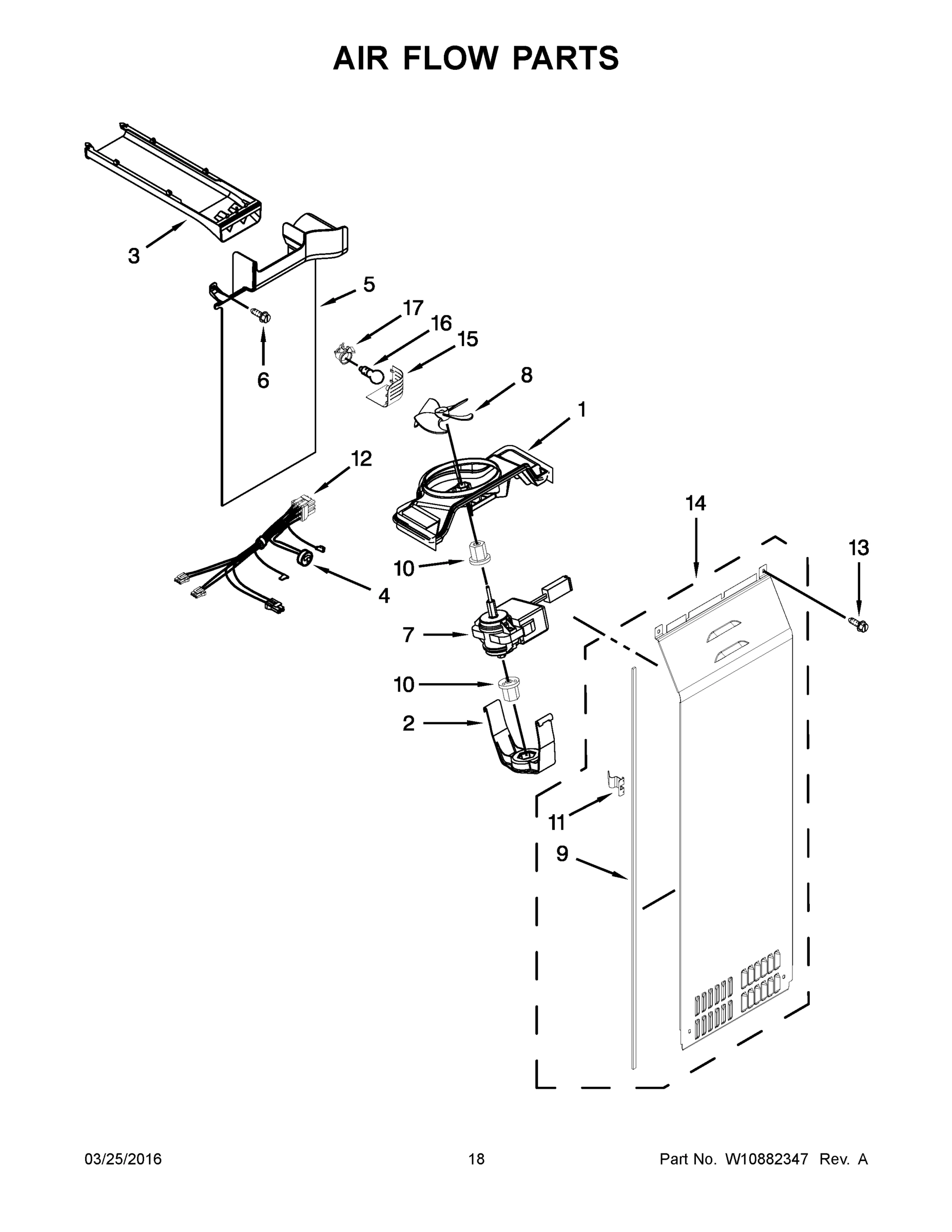

10 - AIR FLOW PARTS

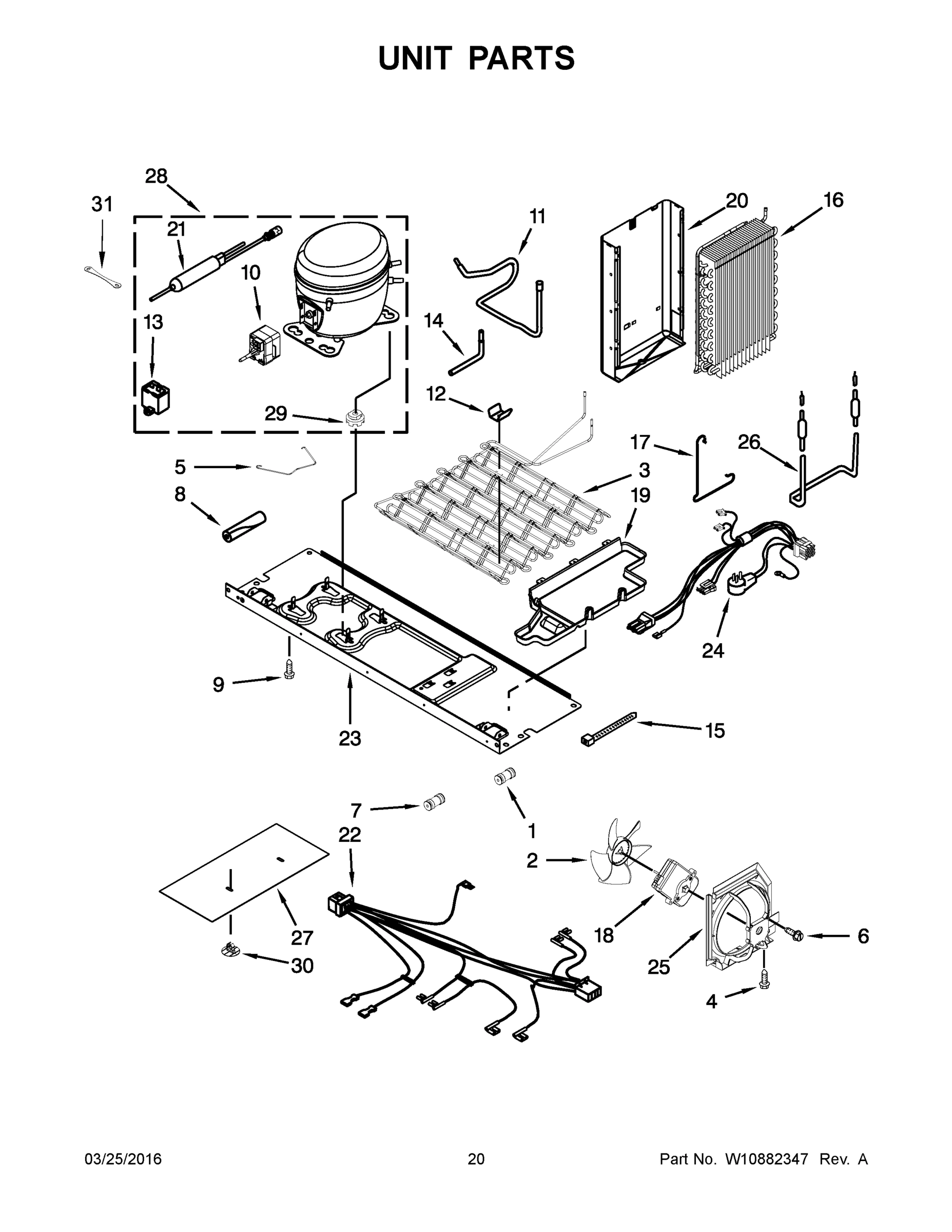

11 - UNIT PARTS

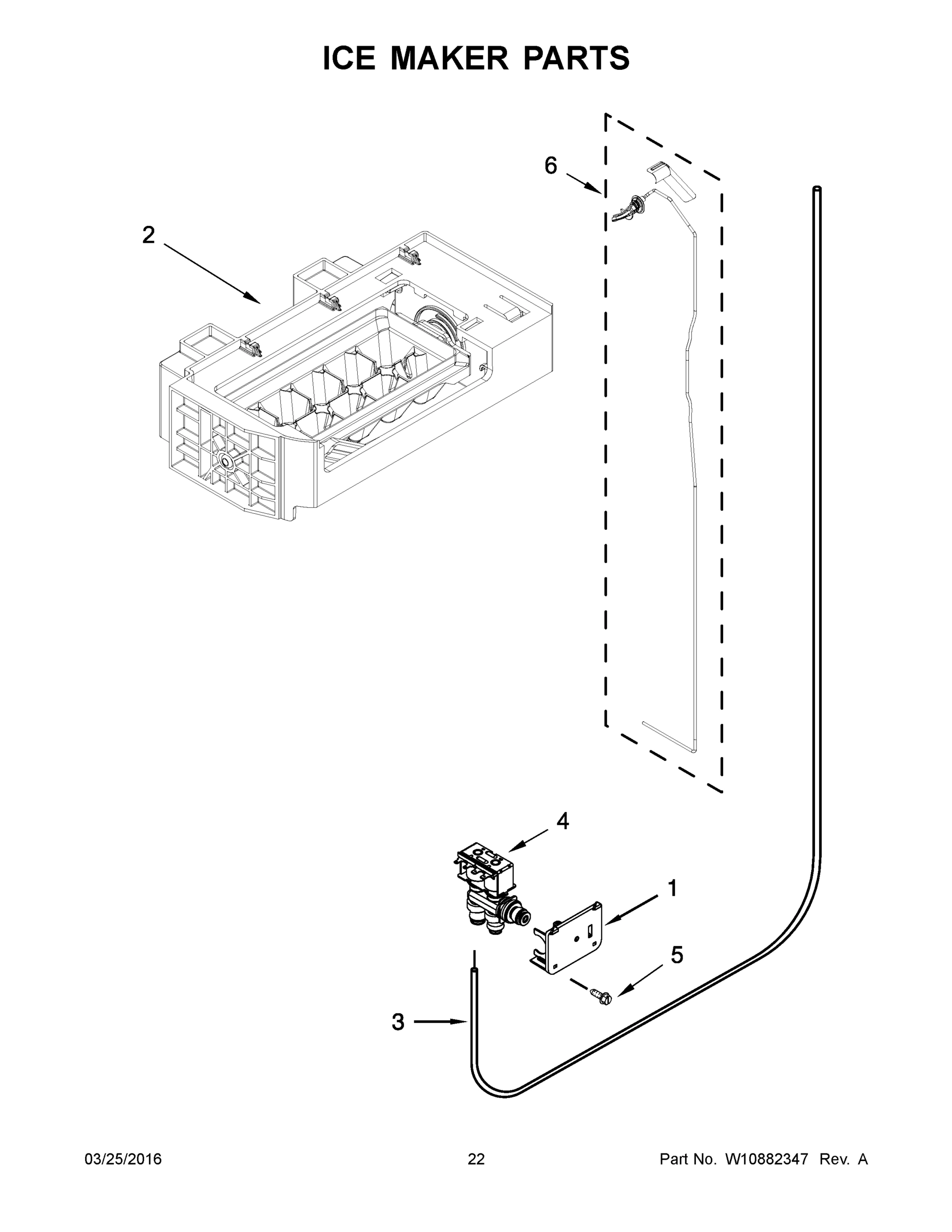

12 - ICE MAKER PARTS
13 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MSB26C6MDH02 REFRIGERATOR, SIDE-BY-SIDE
1
MAY W10784741 MAY W10784741 Contact Us For Availability
1
MAY W10463649 MAY W10463649 Contact Us For Availability
1
MAY W10781441 MAY W10781441 Contact Us For Availability
1
MAY W10373134 MAY W10373134 Contact Us For Availability
1
MAY W10784779 MAY W10784779 Contact Us For Availability
1
HOUSING, DISPENSER (WHITE) MAY W10520867 Contact Us For Availability
1
SCROLL, FAN MAY W10251462 Contact Us For Availability
1
CONNECTOR, UNION MAY W10271541 Contact Us For Availability
1
BRACKET, WATER VALVE MAY W10237915 Contact Us For Availability
1A
MAY W10670787 MAY W10670787 Contact Us For Availability
1A
MAY W10373135 MAY W10373135 Contact Us For Availability
1A
MAY W10784778 MAY W10784778 Contact Us For Availability
1A
HOUSING, DISPENSER (BLACK) MAY W10520868 Contact Us For Availability
1B
MAY W10639147 MAY W10639147 Contact Us For Availability
1B
MAY W10638103 MAY W10638103 Contact Us For Availability
1B
MAY W10784780 MAY W10784780 Contact Us For Availability
1B
HOUSING, DISPENSER (GREY) MAY W10520869 Contact Us For Availability
2
ROLLER MAY 2150304 Contact Us For Availability
2
FILTER, WATER MAY W10569758 Contact Us For Availability
2
MAY W10463654 MAY W10463654 Contact Us For Availability
2
ASSEMBLY, LATCH MAY W10258552 Contact Us For Availability
2
DOOR, COMPARTMENT ASSEMBLY MAY W10324760 Contact Us For Availability
2
HANDLE (STAINLESS) MAY W10643725 Contact Us For Availability
2
GRATE, DRIP TRAY (WHITE) MAY W10322872 Contact Us For Availability
2
MAY W10260421 MAY W10260421 Contact Us For Availability
2
BLADE, FAN MAY 2225834 Contact Us For Availability
2
MAY W10798411 MAY W10798411 Contact Us For Availability
2A
GRATE, DRIP TRAY (BLACK) MAY W10322873 Contact Us For Availability
2B
GRATE, DRIP TRAY (GREY) MAY W10410105 Contact Us For Availability
3
MAY W10297485 MAY W10297485 Contact Us For Availability
3
MAY W10300482 MAY W10300482 Contact Us For Availability
3
MAY W10257334 MAY W10257334 Contact Us For Availability
3
MAY W10463643 MAY W10463643 Contact Us For Availability
3
COUPLING, BOTTOM MAY 2220458 Contact Us For Availability
3
THIMBLE, TOP MAY 2200086 Contact Us For Availability
3
ASSEMBLY, LED MAY W10470750 Contact Us For Availability
3
MAY W10550199 MAY W10550199 Contact Us For Availability
3
MAY W10276899 MAY W10276899 Contact Us For Availability
3
TUBE, WATER MAY W10238092 Contact Us For Availability
4
ROLLER MAY 12477102 Contact Us For Availability
4
MAY W10750143 MAY W10750143 Contact Us For Availability
4
MAY W10257332 MAY W10257332 Contact Us For Availability
4
MAY W10280386 MAY W10280386 Contact Us For Availability
4
SHAFT, DRIVE MAY W10258544 Contact Us For Availability
4
MAY W10672344 MAY W10672344 Contact Us For Availability
4
MAY W10296804 MAY W10296804 Contact Us For Availability
4
MAY W10435760 MAY W10435760 Contact Us For Availability
4
MAY W10260437 MAY W10260437 Contact Us For Availability
4
MAY W10142255 MAY W10142255 Contact Us For Availability
4
MAY W10341320 MAY W10341320 Contact Us For Availability
5
MAY 12477202 MAY 12477202 Contact Us For Availability
5
MAY W10457601 MAY W10457601 Contact Us For Availability
5
MAY W10463651 MAY W10463651 Contact Us For Availability
5
MAY W10463645 MAY W10463645 Contact Us For Availability
5
MAY W10754509 MAY W10754509 Contact Us For Availability
5
DOOR GASKET, MAGNETIC (BEIGE) MAY W10247884 Contact Us For Availability
5
MAY W10460893 MAY W10460893 Contact Us For Availability
5
MAY W10577864 MAY W10577864 Contact Us For Availability
5
DUCT, FREEZER AIR MAY W10260378 Contact Us For Availability
5
MAY W10204187 MAY W10204187 Contact Us For Availability
5
MAY W10141625 MAY W10141625 Contact Us For Availability
5A
MAY W10249912 MAY W10249912 Contact Us For Availability
5B
DOOR GASKET, MAGNETIC (GREY) MAY W10249916 Contact Us For Availability
6
MAY 981125 MAY 981125 Contact Us For Availability
6
FILL TUBE ASSEMBLY (NOT SERVICED) MAY N/P Contact Us For Availability
6
MAY W10656773 MAY W10656773 Contact Us For Availability
6
MAY W10643315 MAY W10643315 Contact Us For Availability
6
MAY W10257246 MAY W10257246 Contact Us For Availability
6
ASSEMBLY, MOUNTING PLATE MAY W10293212 Contact Us For Availability
6
MAY W10646629 MAY W10646629 Contact Us For Availability
6
TRIM RING (WHITE) MAY W10587907 Contact Us For Availability
6
MAY W10001260 MAY W10001260 Contact Us For Availability
6
MAY W10171469 MAY W10171469 Contact Us For Availability
6A
TRIM RING (BLACK) MAY W10587908 Contact Us For Availability
6B
TRIM RING (GREY) MAY W10587909 Contact Us For Availability
7
TUBE, DRAIN MAY W10379525 Contact Us For Availability
7
MAY W10253300 MAY W10253300 Contact Us For Availability
7
MAY W10278139 MAY W10278139 Contact Us For Availability
7
MAY W10643317 MAY W10643317 Contact Us For Availability
7
MAY 2198628 MAY 2198628 Contact Us For Availability
7
MAY W10296816 MAY W10296816 Contact Us For Availability
7
TUBE, WATER (WITH SPIGOT) MAY W10294737 Contact Us For Availability
7
MOTOR, FAN MAY 2315549 Contact Us For Availability
7
CONNECTOR, WATER MAY W10277958 Contact Us For Availability
8
MAY W10257186 MAY W10257186 Contact Us For Availability
8
MAY W10280178 MAY W10280178 Contact Us For Availability
8
MAY W10656771 MAY W10656771 Contact Us For Availability
8
MAY W10291905 MAY W10291905 Contact Us For Availability
8
GASKET, DOOR (BEIGE) MAY W10247885 Contact Us For Availability
8
MAY W10814042 MAY W10814042 Contact Us For Availability
8
MAY 2169142 MAY 2169142 Contact Us For Availability
8
MAY W10303521 MAY W10303521 Contact Us For Availability
8A
GASKET, DOOR (BLACK) MAY W10249913 Contact Us For Availability
8A
MAY W10823634 MAY W10823634 Contact Us For Availability
8B
GASKET, DOOR (GREY) MAY W10249917 Contact Us For Availability
9
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
9
MAY 2223680 MAY 2223680 Contact Us For Availability
9
MAY W10643316 MAY W10643316 Contact Us For Availability
9
MAY 2212370 MAY 2212370 Contact Us For Availability
9
MAY W10248011 MAY W10248011 Contact Us For Availability
9
CLOSER, UPPER CAM DOOR (WHITE) MAY W10248015 Contact Us For Availability
9
PAD, ICE & WATER (SILVER) MAY W10348739 Contact Us For Availability
9
MAY W10240370 MAY W10240370 Contact Us For Availability
9
MAY W10142287 MAY W10142287 Contact Us For Availability
9A
MAY W10257201 MAY W10257201 Contact Us For Availability
9A
CLOSER, UPPER CAM DOOR (BLACK) MAY W10257204 Contact Us For Availability
9A
MAY W10410098 MAY W10410098 Contact Us For Availability
9B
DOOR CLOSER, UPPER CAM (GREY) MAY W10257203 Contact Us For Availability
9B
CLOSER, UPPER CAM DOOR (GREY) MAY W10257206 Contact Us For Availability
9B
MAY W10429205 MAY W10429205 Contact Us For Availability
10
SCREW (WHITE) MAY W10308750 Contact Us For Availability
10
MAY W10141632 MAY W10141632 Contact Us For Availability
10
MAY W10463279 MAY W10463279 Contact Us For Availability
10
MAY W10225313 MAY W10225313 Contact Us For Availability
10
BRACKET, DOOR STOP MAY W10247907 Contact Us For Availability
10
GROMMET, MOTOR MAY 2176759 Contact Us For Availability
10
DEVICE, COMBINATION START (START RELAY AND OV MAY W10197428 Contact Us For Availability
10A
SCREW (BLACK) MAY W10308751 Contact Us For Availability
11
MAY W10498992 MAY W10498992 Contact Us For Availability
11
CONNECTOR, WATER TUBE MAY W10271543 Contact Us For Availability
11
MAY W10425252 MAY W10425252 Contact Us For Availability
11
MAY W10463259 MAY W10463259 Contact Us For Availability
11
MAY W10837661 MAY W10837661 Contact Us For Availability
11
MAY W10367462 MAY W10367462 Contact Us For Availability
11
MAY W10323148 MAY W10323148 Contact Us For Availability
11
MAY W10369602 MAY W10369602 Contact Us For Availability
11
TUBE, SUCTION MAY W10219381 Contact Us For Availability
12
HINGE, TOP (FREEZER) (WHITE) MAY W10673330 Contact Us For Availability
12
MAY W10440814 MAY W10440814 Contact Us For Availability
12
MAY W10643347 MAY W10643347 Contact Us For Availability
12
MAY W10691248 MAY W10691248 Contact Us For Availability
12
BADGE (GREY) MAY W10612926 Contact Us For Availability
12
MAY W10632059 MAY W10632059 Contact Us For Availability
12
ASSEMBLY, EVAPORATOR FAN WIRE (INCLUDES BI-ME MAY W10242409 Contact Us For Availability
12
CLIP, CONDENSER MAY W10248621 Contact Us For Availability
12A
HINGE, TOP (FREEZER) (BLACK) MAY W10673329 Contact Us For Availability
12A
MAY W10632060 MAY W10632060 Contact Us For Availability
12B
MAY W10673327 MAY W10673327 Contact Us For Availability
12B
MAY W10632062 MAY W10632062 Contact Us For Availability
13
HINGE, TOP (REFRIGERATOR) (WHITE) MAY W10611068 Contact Us For Availability
13
MAY W10280420 MAY W10280420 Contact Us For Availability
13
MAY W10666871 MAY W10666871 Contact Us For Availability
13
MAY W10672337 MAY W10672337 Contact Us For Availability
13
SCREW MAY W10142292 Contact Us For Availability
13
MAY W10350564 MAY W10350564 Contact Us For Availability
13A
HINGE, TOP (REFRIGERATOR) (BLACK) MAY W10611067 Contact Us For Availability
13B
MAY W10611065 MAY W10611065 Contact Us For Availability
14
MAY W10142283 MAY W10142283 Contact Us For Availability
14
MAY W10656772 MAY W10656772 Contact Us For Availability
14
MAY W10643348 MAY W10643348 Contact Us For Availability
14
MAY W10248013 MAY W10248013 Contact Us For Availability
14
COVER, EVAPORATOR MAY W10388268 Contact Us For Availability
14
TUBE, PROCESS MAY 2325479 Contact Us For Availability
14A
MAY W10308487 MAY W10308487 Contact Us For Availability
14A
MAY W10257216 MAY W10257216 Contact Us For Availability
14B
SCREW (GREY) MAY W10308489 Contact Us For Availability
14B
COVER, DOOR STOP (GREY) MAY W10257218 Contact Us For Availability
15
HINGE, BOTTOM (FREEZER) (WHITE) MAY W10249940 Contact Us For Availability
15
MAY W10366790 MAY W10366790 Contact Us For Availability
15
SOCKET, LIGHT MAY 2155597 Contact Us For Availability
15
MAY W10749467 MAY W10749467 Contact Us For Availability
15
MAY W10260382 MAY W10260382 Contact Us For Availability
15
TIE, WIRE MAY 2205813 Contact Us For Availability
15A
HINGE, BOTTOM (FREEZER) (BLACK) MAY W10249941 Contact Us For Availability
15B
HINGE, BOTTOM (FREEZER) (GREY) MAY W10249943 Contact Us For Availability
16
HINGE, BOTTOM (REFRIGERATOR) (WHITE) MAY W10666898 Contact Us For Availability
16
MAY W10574850 MAY W10574850 Contact Us For Availability
16
MAY W10820003 MAY W10820003 Contact Us For Availability
16
LENS MAY W10269101 Contact Us For Availability
16
MAY W10646076 MAY W10646076 Contact Us For Availability
16
MAY 2188822 MAY 2188822 Contact Us For Availability
16A
HINGE, BOTTOM (REFRIGERATOR) (BLACK) MAY W10666897 Contact Us For Availability
16B
MAY W10666895 MAY W10666895 Contact Us For Availability
17
MAY W10738913 MAY W10738913 Contact Us For Availability
17
SOCKET, LIGHT MAY 2162085 Contact Us For Availability
17
MAY W10269099 MAY W10269099 Contact Us For Availability
17
MAY 2161324 MAY 2161324 Contact Us For Availability
17A
MAY W10738914 MAY W10738914 Contact Us For Availability
17B
MAY W10738911 MAY W10738911 Contact Us For Availability
18
MAY W10141645 MAY W10141645 Contact Us For Availability
18
MAY W10280385 MAY W10280385 Contact Us For Availability
18
MAY W10527155 MAY W10527155 Contact Us For Availability
19
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
19
MAY W10703218 MAY W10703218 Contact Us For Availability
20
MAY W10333887 MAY W10333887 Contact Us For Availability
20
MAY W10394053 MAY W10394053 Contact Us For Availability
20
SHIELD, HEAT MAY W10274575 Contact Us For Availability
21
MAY 12587703W MAY 12587703W Contact Us For Availability
21
MAY W10457603 MAY W10457603 Contact Us For Availability
21
MAY W10771114 MAY W10771114 Contact Us For Availability
21A
MAY 12587703B MAY 12587703B Contact Us For Availability
21B
FILLER, WRAPPER (GREY) MAY 12587703AP Contact Us For Availability
22
MAY W10713160 MAY W10713160 Contact Us For Availability
22
MAY W10670174 MAY W10670174 Contact Us For Availability
22A
MAY W10713158 MAY W10713158 Contact Us For Availability
22B
MAY W10713153 MAY W10713153 Contact Us For Availability
23
MAY W10142234 MAY W10142234 Contact Us For Availability
23
BASEPAN MAY W10277704 Contact Us For Availability
24
MAY W10770896 MAY W10770896 Contact Us For Availability
24
CORD, POWER MAY W10242407 Contact Us For Availability
24A
MAY W10770895 MAY W10770895 Contact Us For Availability
24B
MAY W10770893 MAY W10770893 Contact Us For Availability
25
MAY W10001250 MAY W10001250 Contact Us For Availability
25
BAFFLE, AIR MAY W10251467 Contact Us For Availability
26
MAY W10279882 MAY W10279882 Contact Us For Availability
26
MAY W10495967 MAY W10495967 Contact Us For Availability
27
MAY W10279884 MAY W10279884 Contact Us For Availability
27
MAY W10278140 MAY W10278140 Contact Us For Availability
28
FITTING, DRAIN MAY W10370680 Contact Us For Availability
28
COMPRESSOR MAY W10200250 Contact Us For Availability
29
LID, HV BOX MAY 12957702 Contact Us For Availability
29
GROMMET MAY 10835903 Contact Us For Availability
30
MAY W10759661 MAY W10759661 Contact Us For Availability
30
MAY W10815861 MAY W10815861 Contact Us For Availability
31
MAY W10236396 MAY W10236396 Contact Us For Availability
32
MAY W10247993 MAY W10247993 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
MAY 4318168 MAY 4318168 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MAY 8003RP MAY 8003RP Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. GRAPHITE) MAY 80051 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.GRAPHITE) MAY 8171357 Contact Us For Availability
NI
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, HANDLE INSTALLATION KIT MAY W10300794 Contact Us For Availability
× ![]()
Login and Registration Form
