Model Whirlpool MSB2354GRQ REFRIGERATOR – Common Parts &amp; Diagrams

1

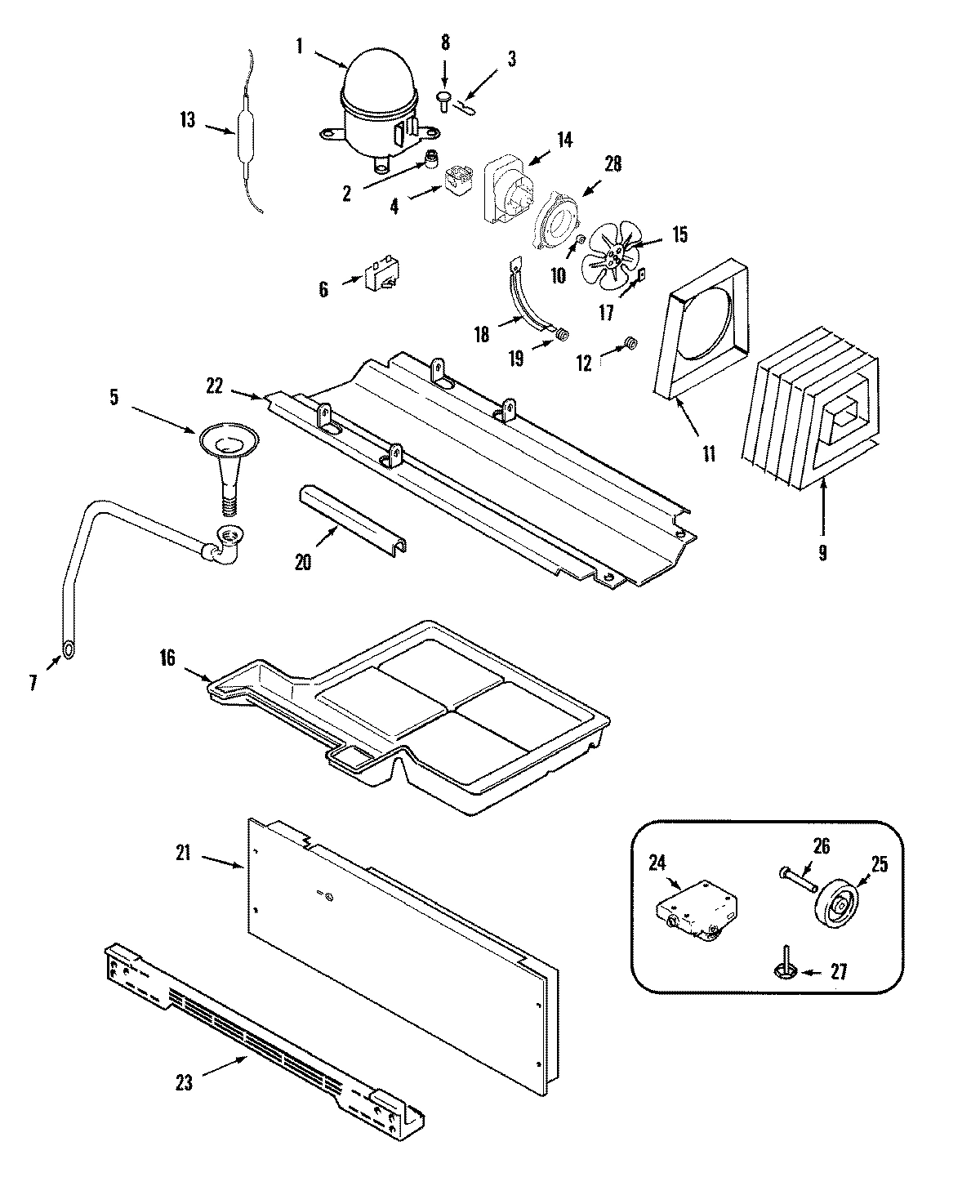

W10309995 Whirlpool Refrigerator Compressor In Stock WPL W10309995 $405.89

1

WP61004888 Whirlpool Refrigerator Evaporator In Stock WPL WP61004888 $93.05

1

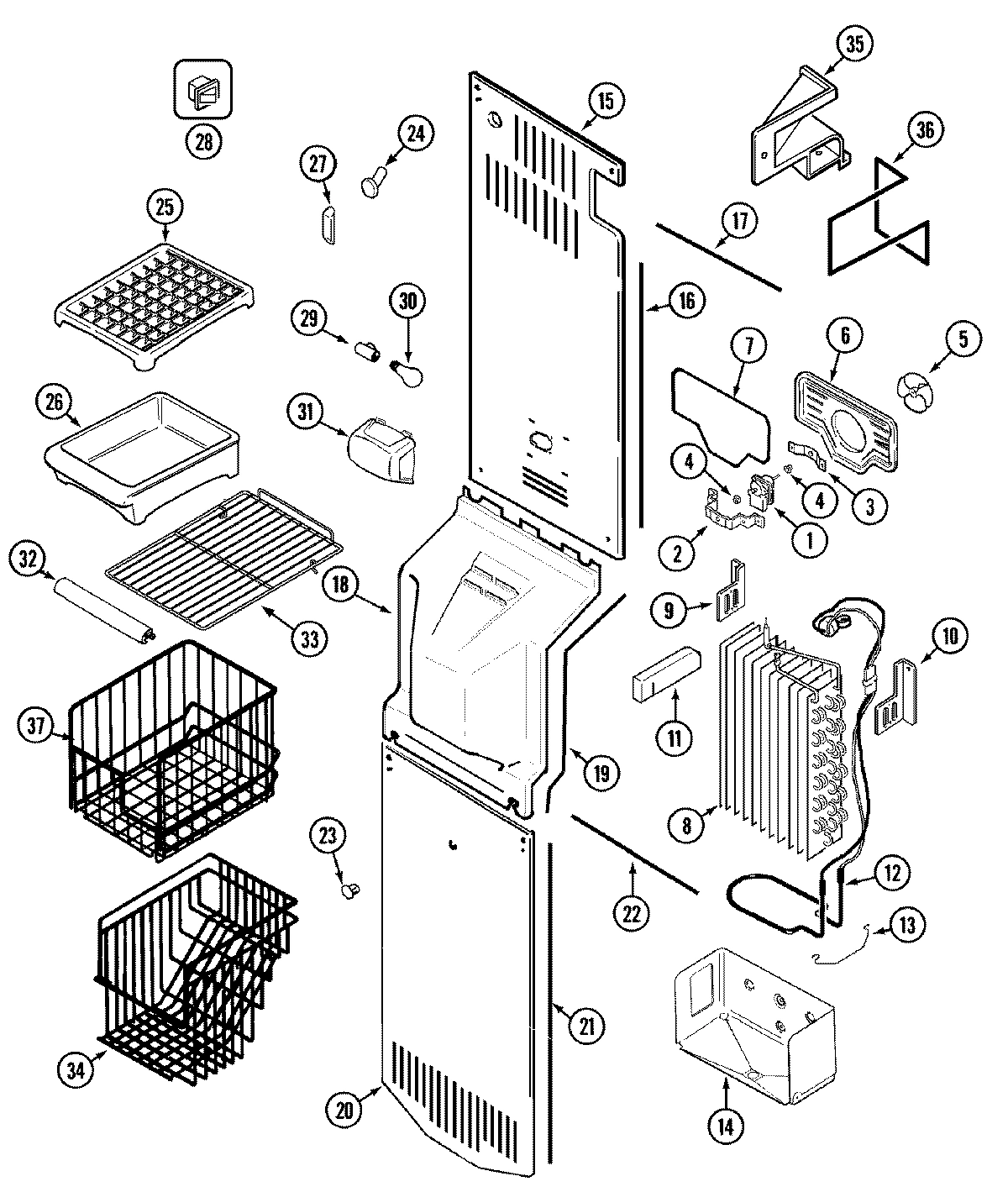

SCREW WPL 61005388 Contact Us For Availability

1

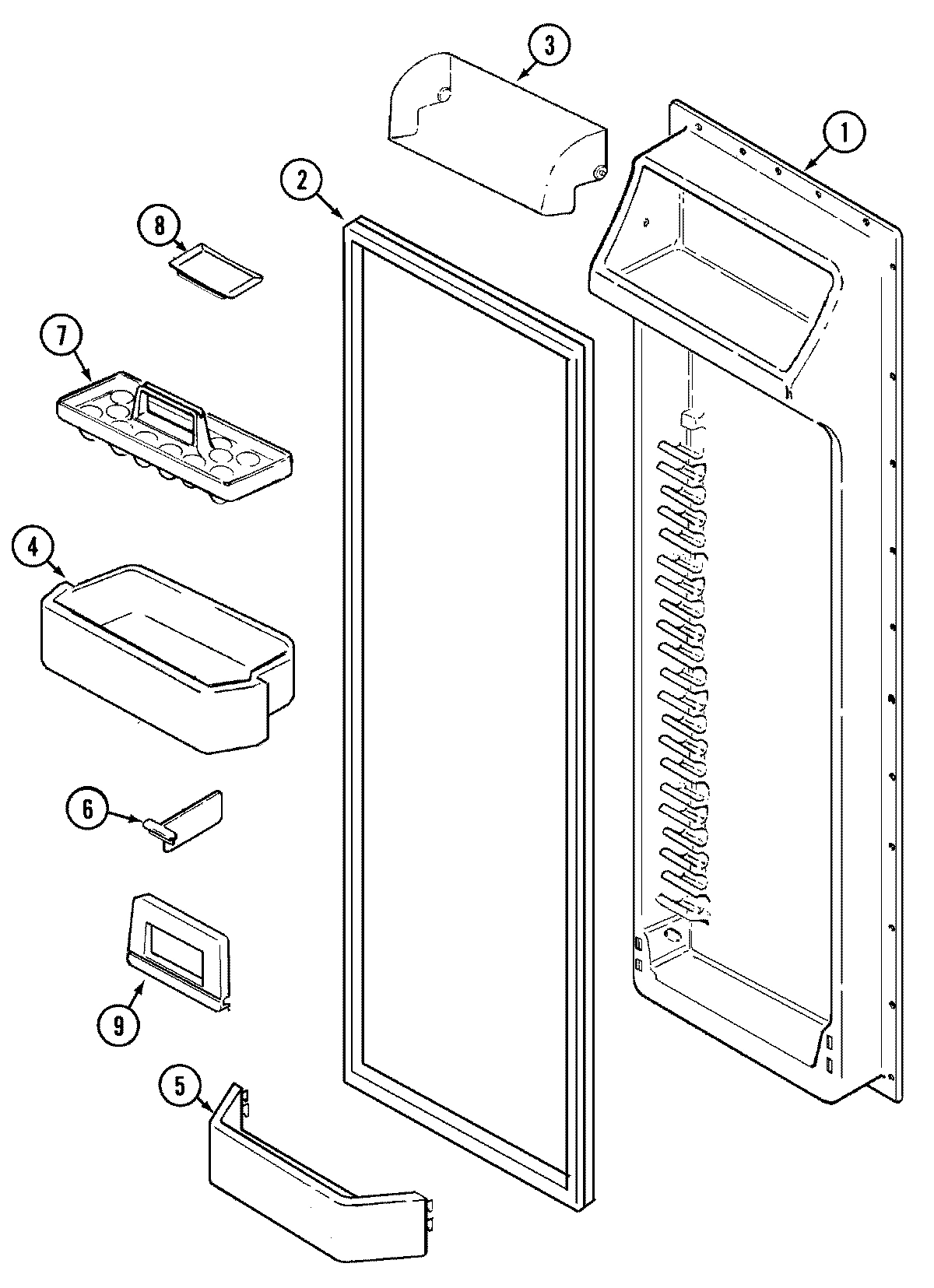

LINER, F.F. DOOR WPL 61005411 Contact Us For Availability

1

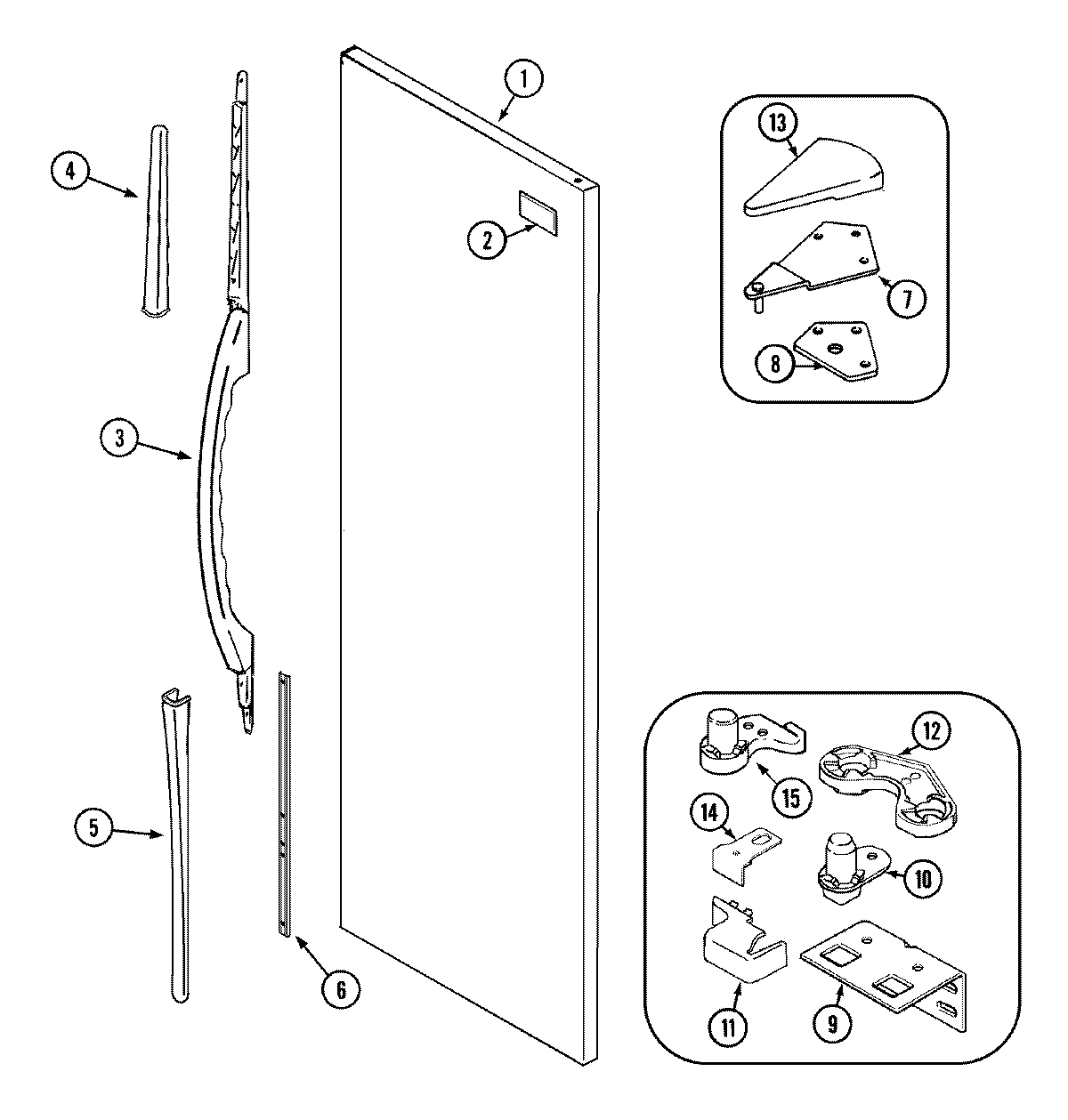

PANEL, F.F. DOOR (BSQ) WPL 61005023 Contact Us For Availability

1

LABEL, DUAL ENERGY GUIDE WPL 61005647 Contact Us For Availability

1

PANEL, F.F. DOOR (BSQ) WPL 61005792 Contact Us For Availability

1

FOIL, HEAT SHIELD WPL 61003228 Contact Us For Availability

1

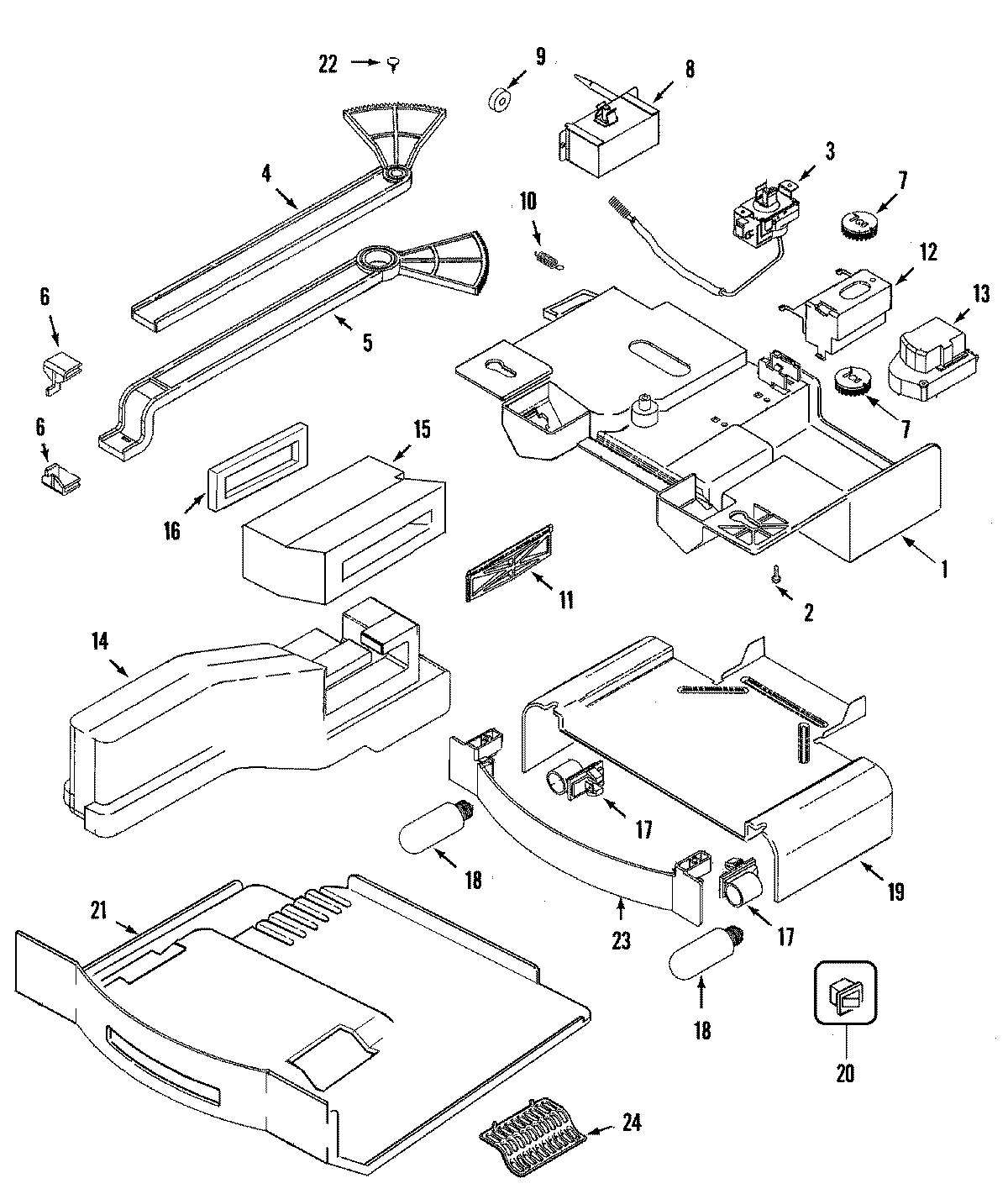

HOUSING ASSY., AUTO DAMPER WPL 61005021 Contact Us For Availability

1

HOUSING ASSY., AUTO DAMPER WPL 61005971 Contact Us For Availability

1

HOUSING ASSY., AUTO DAMPER WPL 61005989 Contact Us For Availability

1

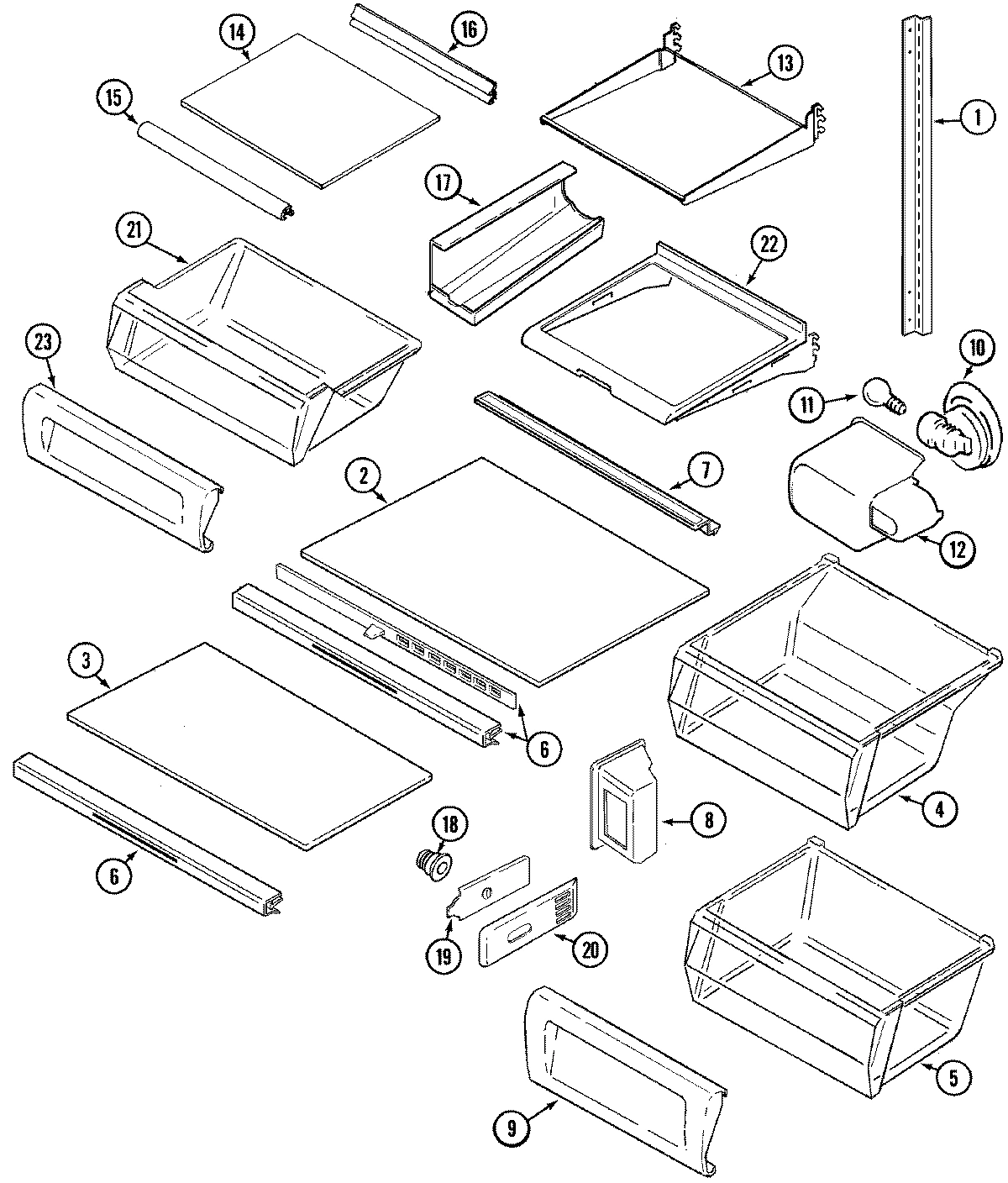

RAIL, SHELF SUPPORT WPL 61003240 Contact Us For Availability

1

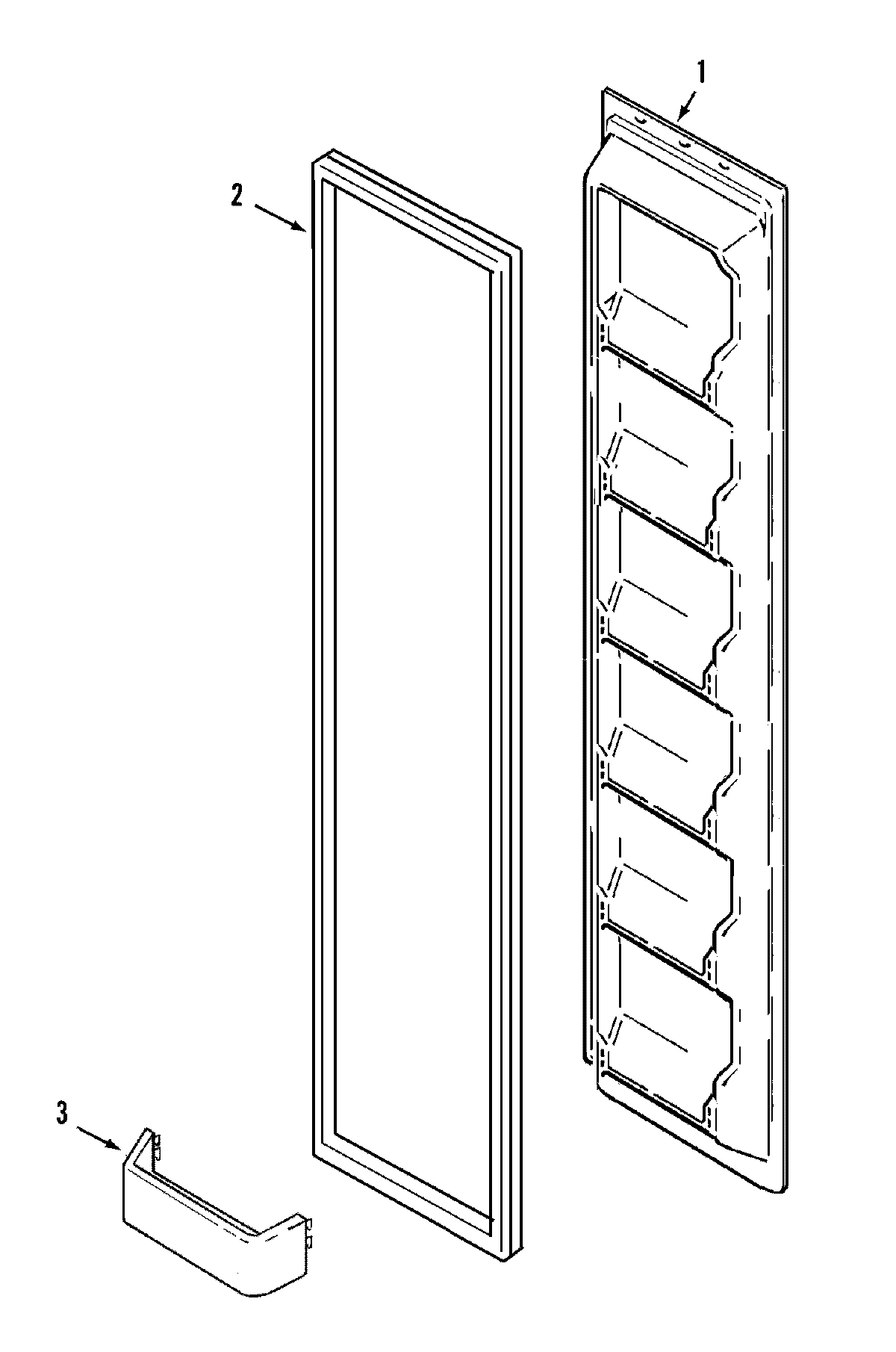

LINER, FRZ. DOOR WPL 61003493 Contact Us For Availability

1

INSERT, LINER SUPPORT(TOP/BTM) WPL 61004049 Contact Us For Availability

1

INSERT, LINER SUPPORT (SIDES) WPL 61005538 Contact Us For Availability

1

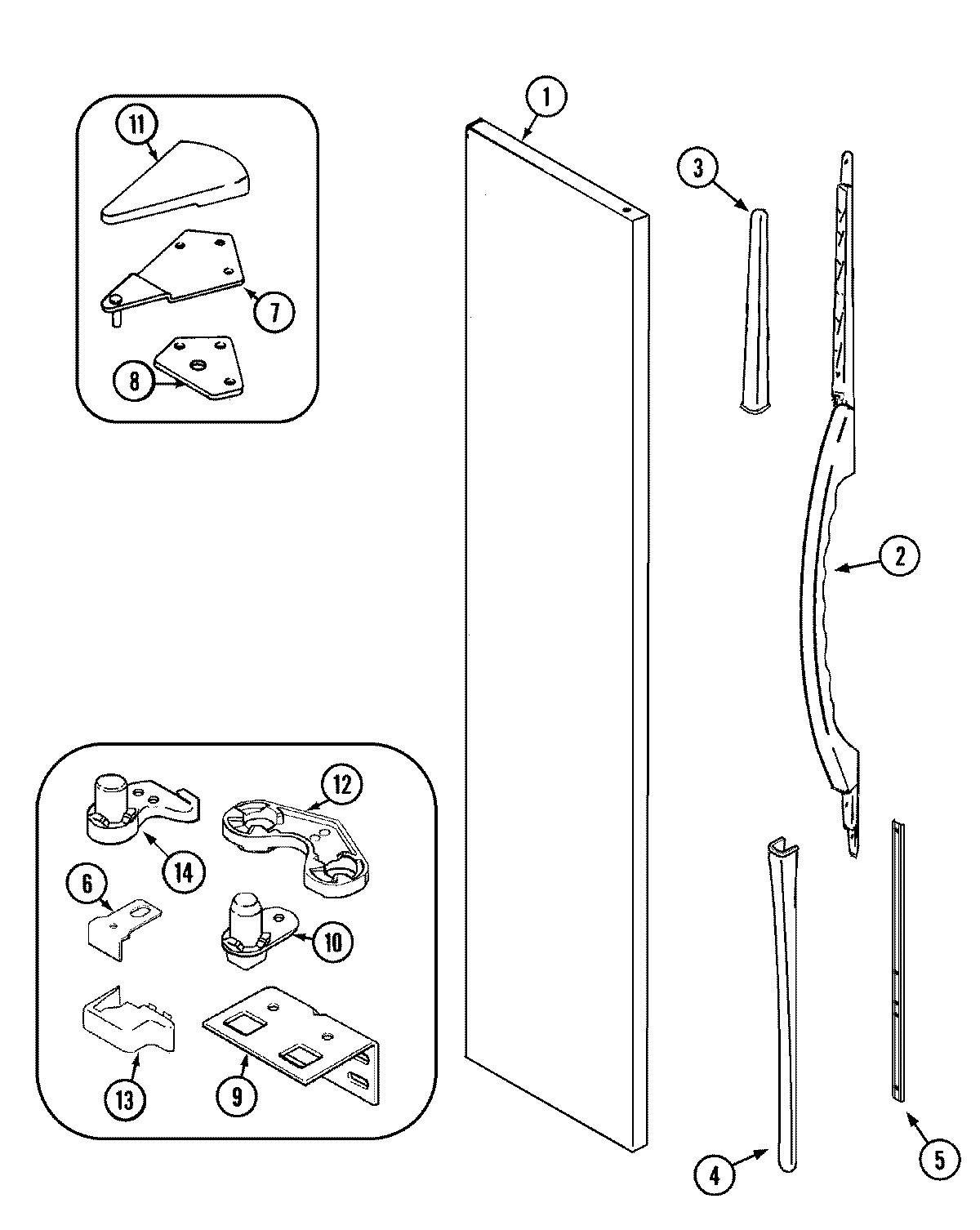

PANEL, FRZ. DOOR (BSQ) WPL 61005037 Contact Us For Availability

1

PANEL, FRZ. DOOR (BSQ) WPL 61005858 Contact Us For Availability

1

WIRE HARNESS, COMPRESSOR WPL 61005322 Contact Us For Availability

1

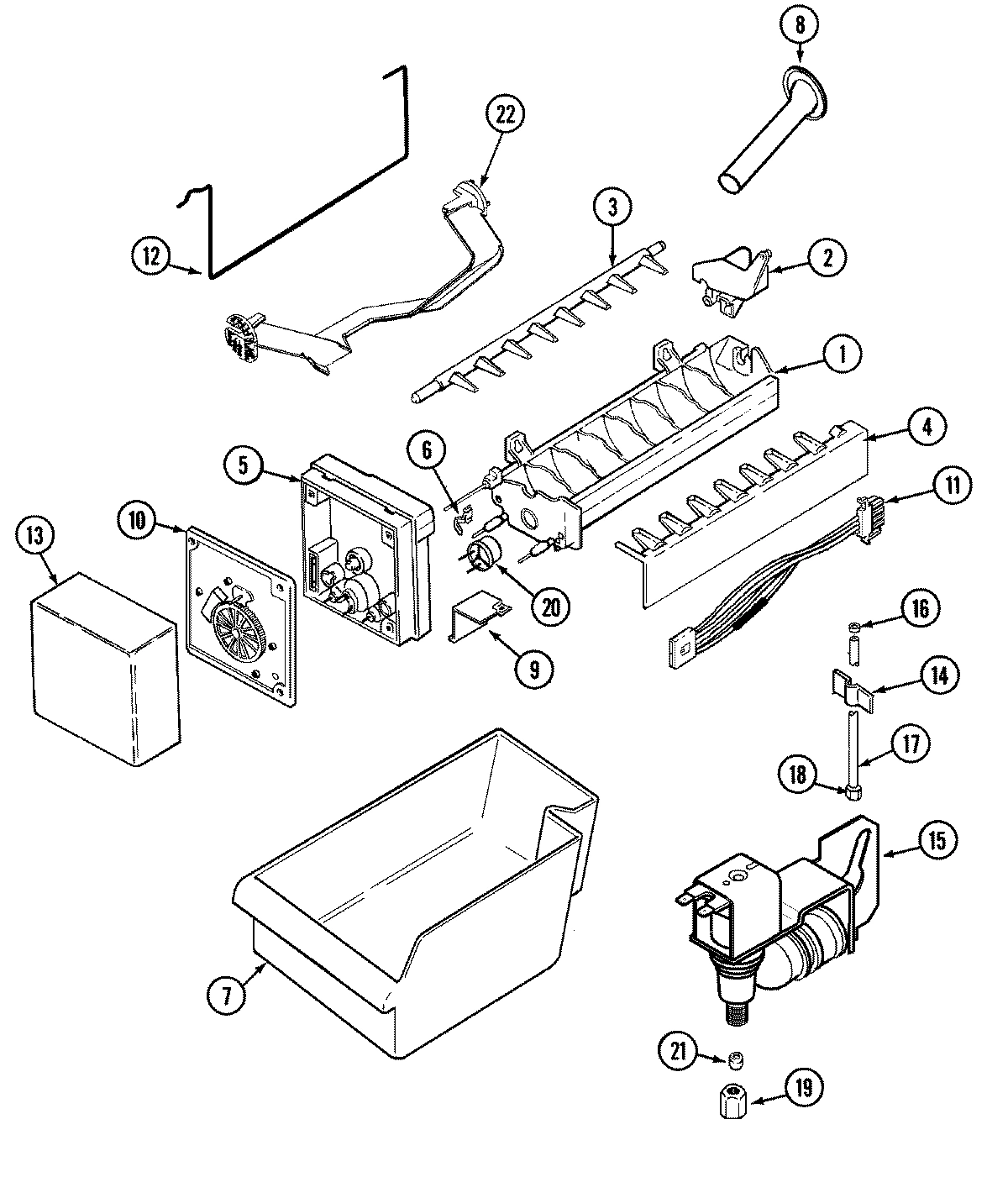

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

1

GREASE, SILICONE WPL 950991 Contact Us For Availability

2

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

2

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $6.02

2

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $4.43

2

SEAL, F.F. DOOR (WHT) WPL 61003755 Contact Us For Availability

2

NAMEPLATE (BSQ) WPL 61005024 Contact Us For Availability

2

HANDLE, DOOR (BSQ) WPL 61005443 Contact Us For Availability

2

SCREW WPL 61005482 Contact Us For Availability

2

GLASS, CRISPER SHELF WPL 61003337 Contact Us For Availability

2

SEAL, FRZ. DOOR (WHT) WPL 61003773 Contact Us For Availability

2

BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability

2

INLET, WATER WPL 951001 Contact Us For Availability

3

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $3.49

3

WP61005516 Whirlpool Refrigerator Temperature Backorder WPL WP61005516 $170.07

3

DOOR, DAIRY WPL 61003365 Contact Us For Availability

3

EXTENSION, HANDLE (UPR-BSQ) WPL 61005446 Contact Us For Availability

3

CONTROL ASSY., TEMPERATURE WPL 61005493 Contact Us For Availability

3

GLASS, MEAT SHELF WPL 61003157 Contact Us For Availability

3

FRONT, PICK-OFF WPL 61005500 Contact Us For Availability

3

RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability

3

CLIP, COMPRESSOR WPL 61003099 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

4

12002784 Whirlpool Refrigerator Compressor St Backorder WPL 12002784 $129.62

4

12002794 Whirlpool Refrigerator Overload Rela Backorder WPL 12002794 $144.97

4

SHELF, PICK-OFF WPL 61005360 Contact Us For Availability

4

EXTENSION, HANDLE (LWR-BSQ) WPL 61005495 Contact Us For Availability

4

ROD, DAMPER CONTROL WPL 61003287 Contact Us For Availability

4

PAN, CRISPER WPL 61003338 Contact Us For Availability

4

PAN, CRISPER WPL 61006110 Contact Us For Availability

4

BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability

4

RELAY/OVERLOAD ASSY. WPL 61004918 Contact Us For Availability

4

CLIP, RELAY/OVERLOAD ASSY.-NA WPL 61005620 Contact Us For Availability

4

CLIP, RELAY/OVERLOAD ASSY. WPL 61006187 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

5

FRONT, PICK-OFF WPL 61005497 Contact Us For Availability

5

SCREW WPL 61005394 Contact Us For Availability

5

CLEAT, HANDLE EXTENSION WPL 61005496 Contact Us For Availability

5

ROD, TEMP. CONTROL WPL 61003293 Contact Us For Availability

5

PAN, MEAT WPL 61003356 Contact Us For Availability

5

PAN, MEAT WPL 61006111 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability

5

TUBE, DRAIN WPL 61004751 Contact Us For Availability

5

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

5

SCREW WPL 951061 Contact Us For Availability

6

ORGANIZER, SHELF WPL 61002274 Contact Us For Availability

6

STOP, DOOR WPL 61003273 Contact Us For Availability

6

END CAP, CONTROL ROD WPL 61004591 Contact Us For Availability

6

TRIM WPL 61003162 Contact Us For Availability

6

TRIM, CRISPER SHELF (W/SLIDE) WPL 61003357 Contact Us For Availability

6

SHROUD, FAN WPL 61003380 Contact Us For Availability

6

CAPACITOR, RUN WPL 658894 Contact Us For Availability

6

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

7

WP3-24838-048 Whirlpool Refrigerator Screw Backorder WPL WP3-24838-048 $4.82

7

TRAY, EGG WPL 600661 Contact Us For Availability

7

HINGE, UPPER WPL 61004896 Contact Us For Availability

7

GEAR, CONTROL SLIDE WPL 61003305 Contact Us For Availability

7

SEAL, CRISPER SHELF (REAR) WPL 61003161 Contact Us For Availability

7

CLAMP WPL 535169 Contact Us For Availability

7

HOSE, DRAIN WPL 61003133 Contact Us For Availability

7

PAN, ICE WPL 61001886 Contact Us For Availability

8

TRAY, BUTTER WPL 299362 Contact Us For Availability

8

SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability

8

SCREW WPL 61003359 Contact Us For Availability

8

DAMPER, AUTO WPL 61005022 Contact Us For Availability

8

DAMPER, AUTO WPL 61005044 Contact Us For Availability

8

EVAP/HEAT EXCH ASSY23/24/25SXS WPL 12001640 Contact Us For Availability

8

PLUG, COMPRESSOR WPL 526562 Contact Us For Availability

8

GROMMET, WATER ENTRY WPL 61003571 Contact Us For Availability

9

3400112 Whirlpool Refrigerator Screw Backorder WPL 3400112 $51.24

9

RETAINER, BOTTLE WPL 61002273 Contact Us For Availability

9

HINGE, LOWER (BSQ) WPL 61004764 Contact Us For Availability

9

WASHER, DAMPER ROD WPL 61003358 Contact Us For Availability

9

FRONT, CRISPER PAN WPL 61003377 Contact Us For Availability

9

FRONT, MEAT PAN WPL 61003378 Contact Us For Availability

9

BRACKET, EVAPORATOR (LT) WPL 61003215 Contact Us For Availability

9

CONDENSER WPL 61005453 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

PIN, LOWER HINGE WPL 61003174 Contact Us For Availability

SPRING, DAMPER DOOR WPL 61003141 Contact Us For Availability

SCREW WPL 40001735 Contact Us For Availability

RECEPTACLE, BULB WPL 61003379 Contact Us For Availability

BRACKET, EVAPORATOR (RT) WPL 61003216 Contact Us For Availability

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

SCREW WPL 4000211 Contact Us For Availability

ICEMAKER WPL 951091 Contact Us For Availability

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $10.86

COVER, LOWER HINGE (BSQ) WPL 61004765 Contact Us For Availability

COVER, UPPER HINGE (BSQ) WPL 61004786 Contact Us For Availability

DOOR, DAMPER WPL 61003235 Contact Us For Availability

BLOCK, AIR WPL 61003213 Contact Us For Availability

SHROUD, CONDENSER WPL 61001941 Contact Us For Availability

WIRE HARNESS, ICE MAKER WPL 61003572 Contact Us For Availability

WIRE HARNESS, ICE MAKER WPL 61003575 Contact Us For Availability

61003647 Whirlpool Refrigerator Freezer Door In Stock WPL 61003647 $10.02

WP61006116 Whirlpool Refrigerator Heater In Stock WPL WP61006116 $62.69

SUPPORT, TEMP. CONTROL WPL 61003315 Contact Us For Availability

SHIELD, LIGHT WPL 61003438 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability

ARM, SENSOR WPL 61005173 Contact Us For Availability

CLIP, SENSOR ARM WPL 61005175 Contact Us For Availability

WP67005457 Whirlpool Refrigerator Clip Backorder WPL WP67005457 $6.88

SCREW WPL 4050071 Contact Us For Availability

SCREW WPL 61005951 Contact Us For Availability

TIMER, DEFROST WPL 682332 Contact Us For Availability

FRAME, SHELF WPL 61003373 Contact Us For Availability

COVER, LOWER HINGE (BSQ) WPL 61004769 Contact Us For Availability

DRIER WPL 139001 Contact Us For Availability

COVER, ICE MAKER WPL 61004594 Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

SCREW WPL 4000161 Contact Us For Availability

INSULATION, DISCHARGE (LT) WPL 61003229 Contact Us For Availability

INSULATION, DISCHARGE (RT) WPL 61003230 Contact Us For Availability

INSULATION, DISCHARGE (RT) WPL 61005972 Contact Us For Availability

GLASS, SHELF WPL 61003374 Contact Us For Availability

CLOSER, DOOR (W/CUP) WPL 61005726 Contact Us For Availability

HOUSING, EVAPORATOR WPL 61003382 Contact Us For Availability

MOTOR, CONDENSER FAN WPL 61005323 Contact Us For Availability

CLAMP, TUBING WPL 535168 Contact Us For Availability

CLIP, WATER LINE (ADHESIVE) WPL 61004913 Contact Us For Availability

WP61005273 Whirlpool Refrigerator Inlet Valve In Stock WPL WP61005273 $95.51

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

CLOSER, DOOR (W/CUP) WPL 61005724 Contact Us For Availability

TUNNEL, CONTROL HOUSING WPL 61003231 Contact Us For Availability

SEAL, TUNNEL (DOUBLE-SIDED) WPL 61005075 Contact Us For Availability

TUNNEL, CONTROL HOUSING WPL 61005994 Contact Us For Availability

TRIM, SHELF WPL 61003245 Contact Us For Availability

COVER, COIL (UPR) WPL 61003482 Contact Us For Availability

BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability

SEAL, TUNNEL WPL 61003819 Contact Us For Availability

TRIM, SHELF WPL 61003244 Contact Us For Availability

PAN, DRAIN WPL 61002649 Contact Us For Availability

CLAMP, SPRING WPL 603334 Contact Us For Availability

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

RECEPTACLE, BULB WPL 61003237 Contact Us For Availability

RECEPTACLE, BULB WPL 61005973 Contact Us For Availability

HOLDER, BEVERAGE WPL 61002657 Contact Us For Availability

SEAL, UPPER COVER (TOP) WPL 61003386 Contact Us For Availability

TUBING WPL 6757926 Contact Us For Availability

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $7.71

BARRIER, FOIL (LT) WPL 61003354 Contact Us For Availability

BARRIER, FOIL (RT) WPL 61003355 Contact Us For Availability

FOIL (RT) WPL 61005974 Contact Us For Availability

FOIL (LT) WPL 61005975 Contact Us For Availability

TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability

COVER, EVAPORATOR FAN WPL 61003387 Contact Us For Availability

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

SHIELD, HEAT WPL 61003238 Contact Us For Availability

SHIELD, HEAT WPL 61005976 Contact Us For Availability

SLIDE, CONTROL (MEAT) WPL 61003249 Contact Us For Availability

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

SCREW WPL 61004424 Contact Us For Availability

RETAINER, CONTROL SLIDE WPL 61003250 Contact Us For Availability

COVER, COIL (LWR) WPL 61003388 Contact Us For Availability

ISOLATOR, CONDENSER WPL 61004584 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

SHIELD, LIGHT WPL 61004379 Contact Us For Availability

PAN, DELI WPL 61003375 Contact Us For Availability

PAN, DELI WPL 61006112 Contact Us For Availability

COVER, COMPRESSOR COMPARTMENT WPL 61005061 Contact Us For Availability

SCREW WPL 6527550 Contact Us For Availability

SLEEVE, BRASS WPL 694311 Contact Us For Availability

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $4.82

RETAINER, CONTROL ROD WPL 61003316 Contact Us For Availability

SHELF, SPILL PROOF WPL 61003239 Contact Us For Availability

SEAL, LOWER COVER WPL 61003389 Contact Us For Availability

PAN, COMPRESSOR MTG. WPL 61005268 Contact Us For Availability

ADJUSTER, ICE LEVEL WPL 61005174 Contact Us For Availability

SCREW WPL 4000311 Contact Us For Availability

PANEL, CONTROL WPL 61004380 Contact Us For Availability

FRONT, DELI PAN WPL 61003376 Contact Us For Availability

PLUG BUTTON, EVAP. COVER WPL 61001952 Contact Us For Availability

KICKPLATE (BSQ) WPL 61004919 Contact Us For Availability

GRILL, LIGHT WPL 61004590 Contact Us For Availability

SCREW WPL 4000171 Contact Us For Availability

CAP, FILL TUBE WPL 61002026 Contact Us For Availability

WHEEL ASSY. (FRT) WPL 61005232 Contact Us For Availability

WP61002140 Whirlpool Ice Cube Tray Backorder WPL WP61002140 $11.04

WP61003826 Whirlpool Wheel Backorder WPL WP61003826 $4.82

WIRE HARNESS, CONTROLS WPL 61004289 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 61006189 Contact Us For Availability

26

WIRE HARNESS, FRZ./F.F. WPL 61003233 Contact Us For Availability

26

SEE NOTE (FRZ/FF WIRE HARNESS IS NOT REPLACE WPL Y00000000 Contact Us For Availability

26

PAN, ICE WPL 61002177 Contact Us For Availability

27

CAP, I/M WIRE HARNESS WPL 61002027 Contact Us For Availability

27

LEG, LEVELING WPL 61002014 Contact Us For Availability

SWITCH, LIGHT WPL 61006157 Contact Us For Availability

SWITCH, LIGHT WPL 669871 Contact Us For Availability

ADAPTER, FAN MOTOR WPL 61005325 Contact Us For Availability

SCREW WPL 61005326 Contact Us For Availability

29

RECEPTACLE, BULB WPL 61005748 Contact Us For Availability

29

RECEPTACLE, BULB WPL 689743 Contact Us For Availability

29

YODER LOOP HTR (115V)21,23,25 WPL 12001547 Contact Us For Availability

30

BULB, LIGHT WPL 319561 Contact Us For Availability

30

MANUAL, USE & CARE (TRILNGUL) WPL 61005298 Contact Us For Availability

31

SHIELD, LIGHT WPL 61002272 Contact Us For Availability

31

MANUAL, SERVICE SXS APD WPL 16009103 Contact Us For Availability

32

TRIM, SHELF (FRT.) WPL 61003730 Contact Us For Availability

33

SHELF, FRZ. (WIRE) WPL 61003735 Contact Us For Availability

33

SHELF, FRZ. WPL 61005207 Contact Us For Availability

34

BASKET, FRZ. WPL 61003393 Contact Us For Availability

35

DIVERTER, AIR WPL 61003205 Contact Us For Availability

36

SEAL, AIR DIVERTER WPL 61003206 Contact Us For Availability

37

BASKET, PIZZA WPL 61003483 Contact Us For Availability

38

WIRE HARNESS, FRZ. WPL 61003197 Contact Us For Availability

38

WIRE HARNESS, FAN & HEATER WPL 61003204 Contact Us For Availability

NI

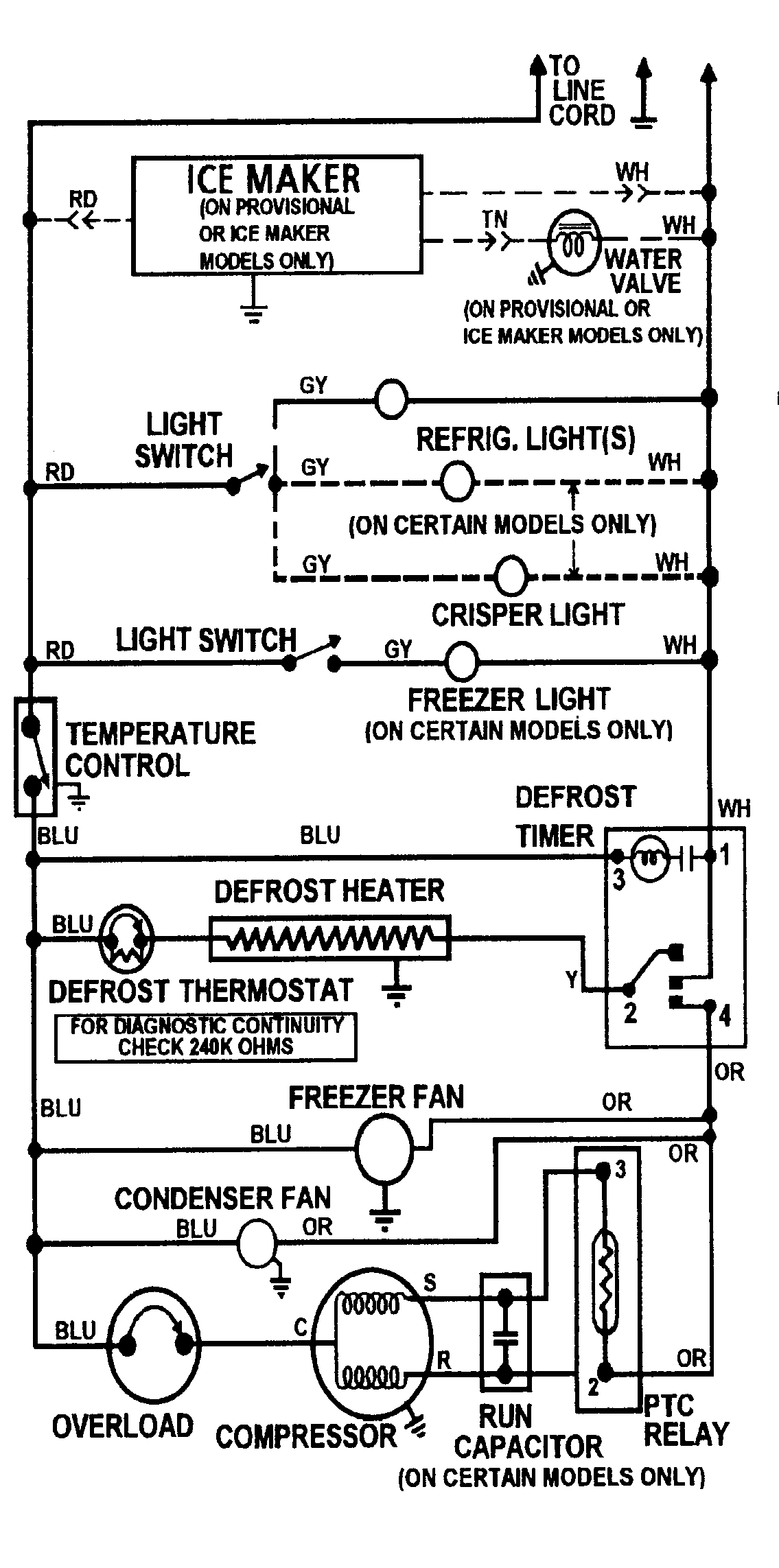

WIRING INFORMATION WPL 15002401 Contact Us For Availability
