Model LG MS-60BM – Common Parts & Diagrams
Diagram 0

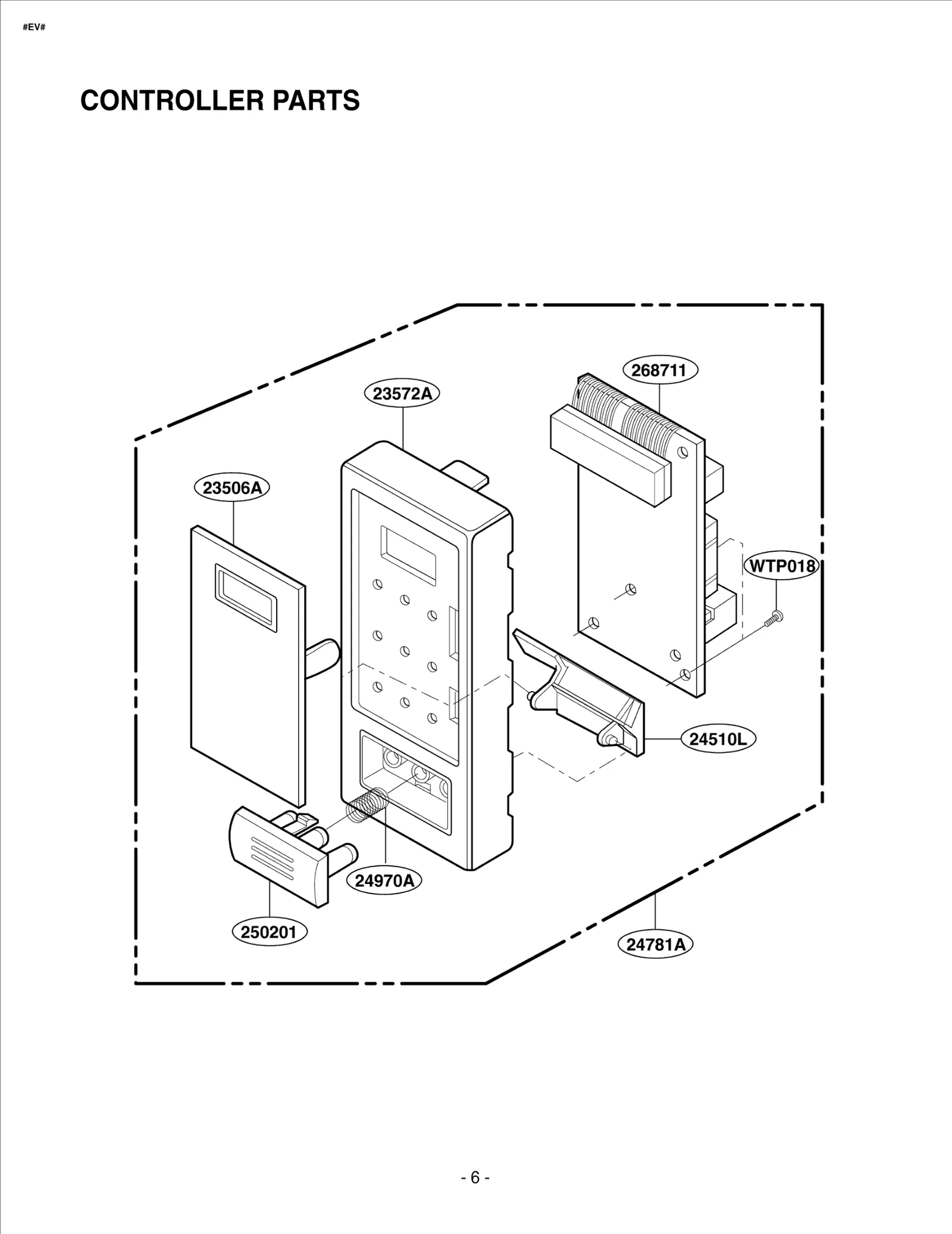

Diagram 1

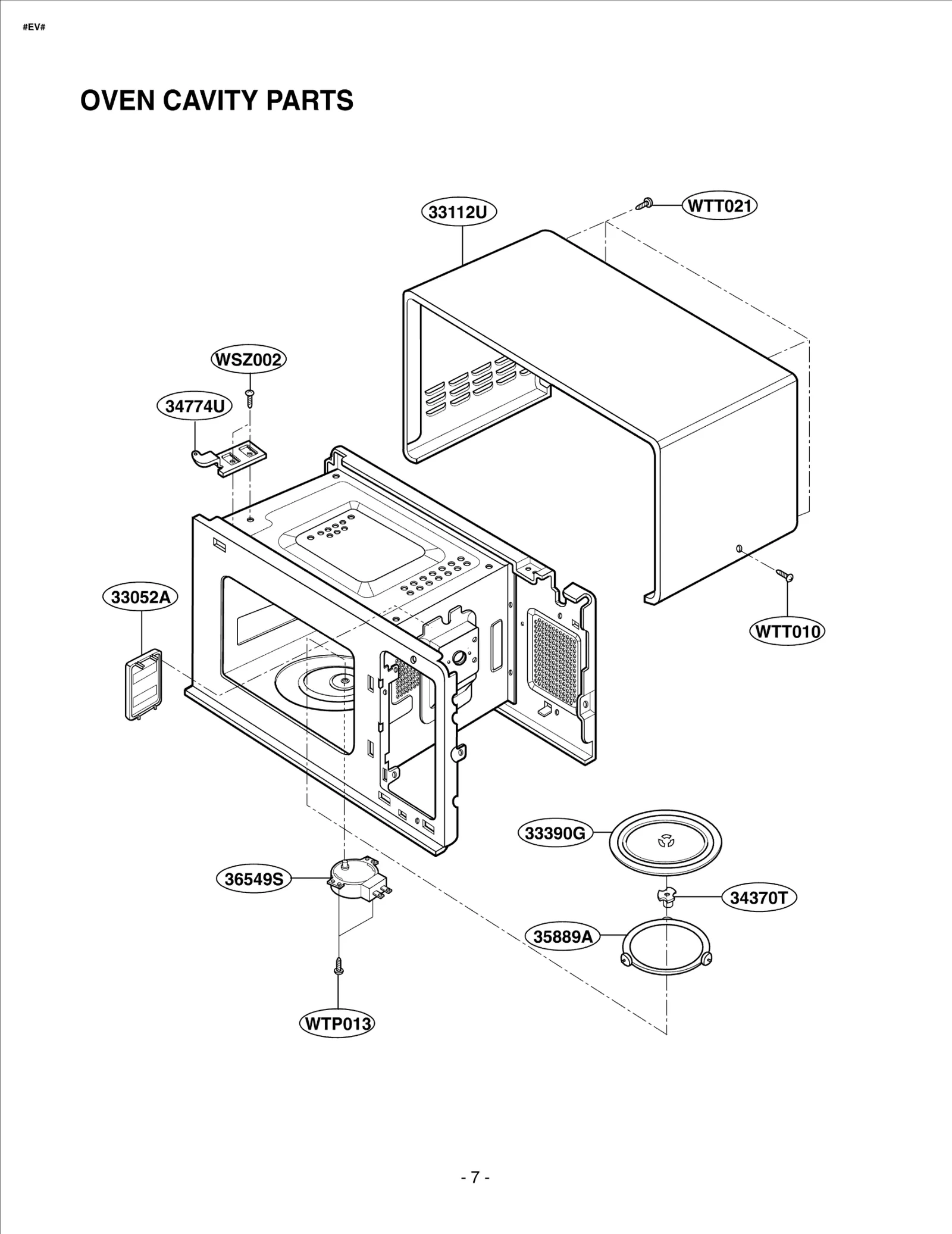

Diagram 2

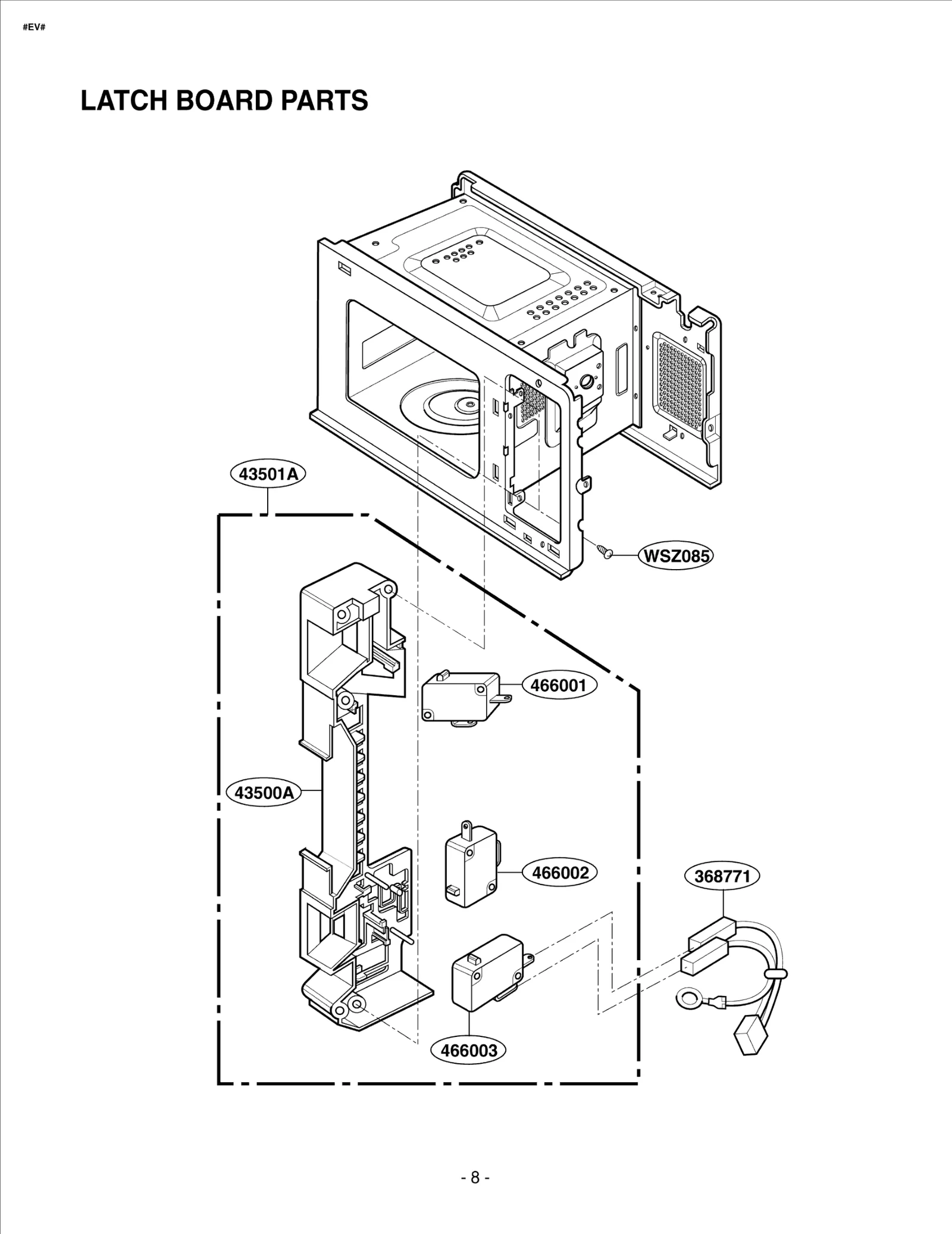

Diagram 3

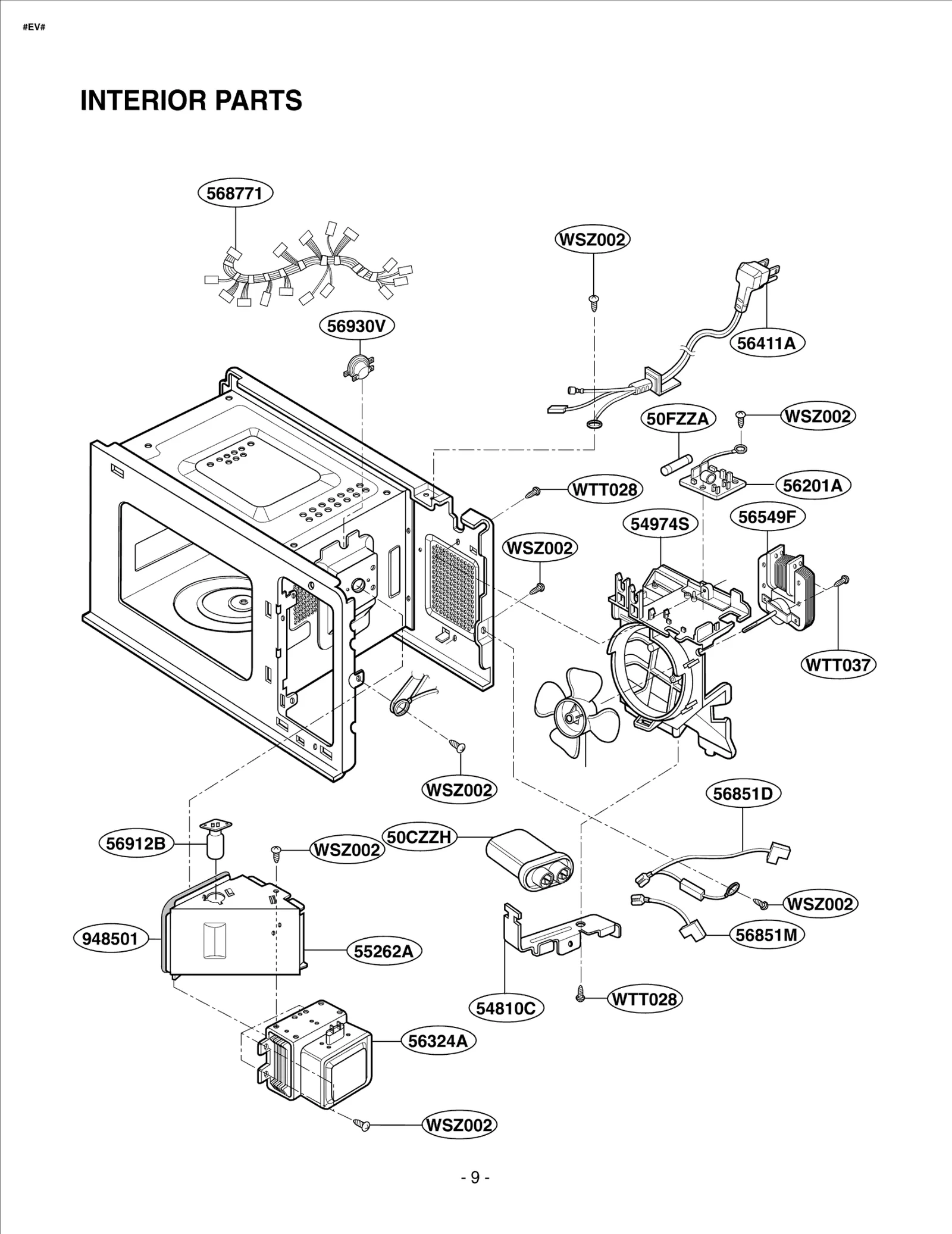

Diagram 4

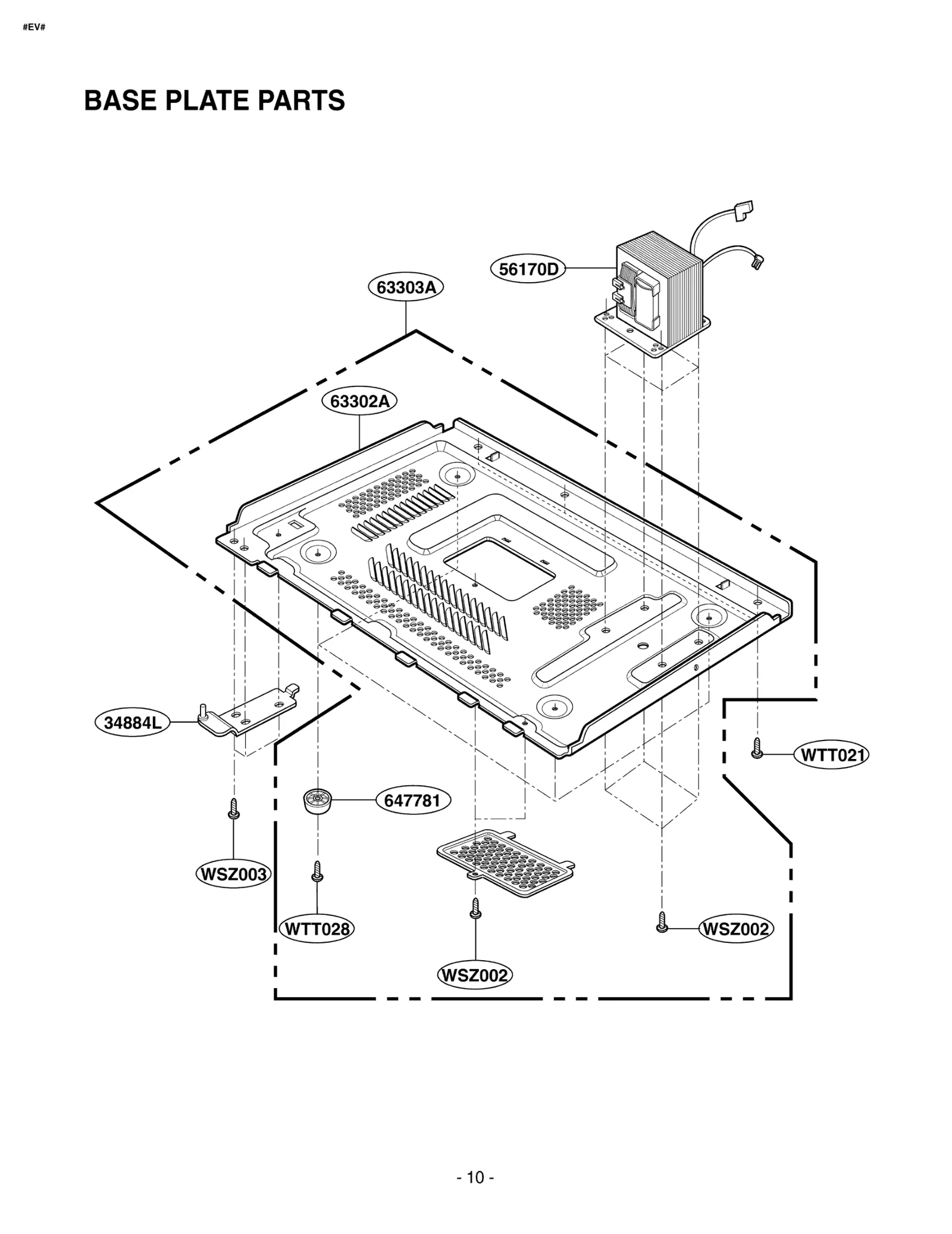

Diagram 5
Diagram 6
Common parts from model LG MS-60BM
*01
LGE 3828W5A0119 LGE 3828W5A0119 Contact Us For Availability
*02
LGE 3828W5S0128 LGE 3828W5S0128 Contact Us For Availability
*10
BOX,[YELLOW] LGE 3890W2Y044A Contact Us For Availability
50CZZH
CAPACITOR,DRAWING[HIGH VOLTAGE LGE 0CZZW1H002A Contact Us For Availability
50FZZA
FUSE LGE 3B70856G Contact Us For Availability
14026A
LATCH DOOR MA-880M/-680M/-681M LGE 4026WRA001A Contact Us For Availability
24781M
LGE 4781W1M049G LGE 4781W1M049G Contact Us For Availability
33112U
LGE 3112W1A001B LGE 3112W1A001B Contact Us For Availability
33390G
GLASS TRAY LGE 2B71852A Contact Us For Availability
34370T
TURN TABLE SHAFT MS-1715 TEFLO LGE 4370WRT001C Contact Us For Availability
34774L
HINGE PLATE ASSY-L MS-1715 S J LGE 4775W3P004B Contact Us For Availability
34774U
LGE 4774W3P005A LGE 4774W3P005A Contact Us For Availability
36549S
MOTOR SYNCHRONOUS 120V/60HZ LGE 2B72754E Contact Us For Availability
43500A
BOARD LATCH MA-880M/680M/681M LGE 3500WRA001A Contact Us For Availability
43501A
BOARD ASSY LATCH MA-680 S/880 LGE 3501WRA001C Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54974S
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
55262A
LGE 5262W2A017A LGE 5262W2A017A Contact Us For Availability
55900A
PROPELLER LGE 2B72125A Contact Us For Availability
56201A
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
56324A
MAGNETRON LGE 2B71732B Contact Us For Availability
56411A
POWER CORD ASSY LGE 6411W2A002A Contact Us For Availability
56549F
MOTOR FAN 120V/60HZ LGE 2B73670B Contact Us For Availability
56851D
H.V. DIODE-CABLE ASM STD.PART1 LGE 3B73348D Contact Us For Availability
56851H
LGE 3B73347A LGE 3B73347A Contact Us For Availability
56930V
Thermostat LGE 6930WRT001G Contact Us For Availability
63302A
LGE 3302W1A006A LGE 3302W1A006A Contact Us For Availability
63303A
LGE 3303W1A007A LGE 3303W1A007A Contact Us For Availability
250201
BUTTON RELEASE MA-680 S MA-880 LGE 5020WRG002B Contact Us For Availability
268711
LGE 5247W2YJ70A LGE 5247W2YJ70A Contact Us For Availability
368771
LEADWIRE ASSY-SEC. MA-880 S/11 LGE 6877W3T080A Contact Us For Availability
466002
MICRO SWITCH(MONITOR) VP-532A LGE 3B73361D Contact Us For Availability
466003
MICRO SWITCH SZM-V01-FA-33 11 LGE 3B73362A Contact Us For Availability
568771
LGE 6877W1T187A LGE 6877W1T187A Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
948501
CUSHION 5X8X215, MV-1006P BKE LGE 3B72244J Contact Us For Availability
C03
LGE 0CK2230K935 LGE 0CK2230K935 Contact Us For Availability
C04
LGE 0CE2271H610 LGE 0CE2271H610 Contact Us For Availability
C05
LGE 0CE1051K638 LGE 0CE1051K638 Contact Us For Availability
C06
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C07
CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability
C09
CAPACITOR ELECTROLYTIC LGE 0CE1076K638 Contact Us For Availability
C24
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK2210K518 Contact Us For Availability
CN1
CONNECTOR YW396-05AV(2.4 VOID) LGE CQ52212C Contact Us For Availability
CN2
CONNECTOR YW396-03, #3 VOID 8 LGE CQ52212A Contact Us For Availability
CN3
LGE 6630W5YA19C LGE 6630W5YA19C Contact Us For Availability
D01
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D11
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
D25
DIODE SWIT, 1N4148, MA-654MQ LGE 0DD414809AA Contact Us For Availability
DP1
<NLA> LGE 3Q34034A Contact Us For Availability
PT1
POWER TRANS 120/60 UL,18V/9 SE LGE 6010W2P037A Contact Us For Availability
Q02
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q04
TRANSISTOR MA-885M SGESEA MA-1 LGE 0TR107009AD Contact Us For Availability
Q06
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
R12
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R13
RESISTOR FIXED CARBON FILM 22 LGE 0RD2202G608 Contact Us For Availability
R14
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R15
Resistor,Carbon Film LGE 0RD1201F608 Contact Us For Availability
R18
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R21
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R24
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
R31
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R35
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R53
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R57
RESISTOR FIXED CARBON FILM MV- LGE 0RD4702G608 Contact Us For Availability
RY1
RELAY MA-885M SGESEA LOC. RY LGE 6920WRD004A Contact Us For Availability
RY3
RELAY MA-885M SGESEA MA-1190M LGE 6920WRD005B Contact Us For Availability
U01
LSI(GOLDSTAR)GMS41004P1-C013 LGE 6000W5YB12A Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
ZD2
DIODE ZENER MA-885M SGESEA LGE 0DZ560009AB Contact Us For Availability
× ![]()
