Model LG MS-135SE – Common Parts & Diagrams
Diagram 0

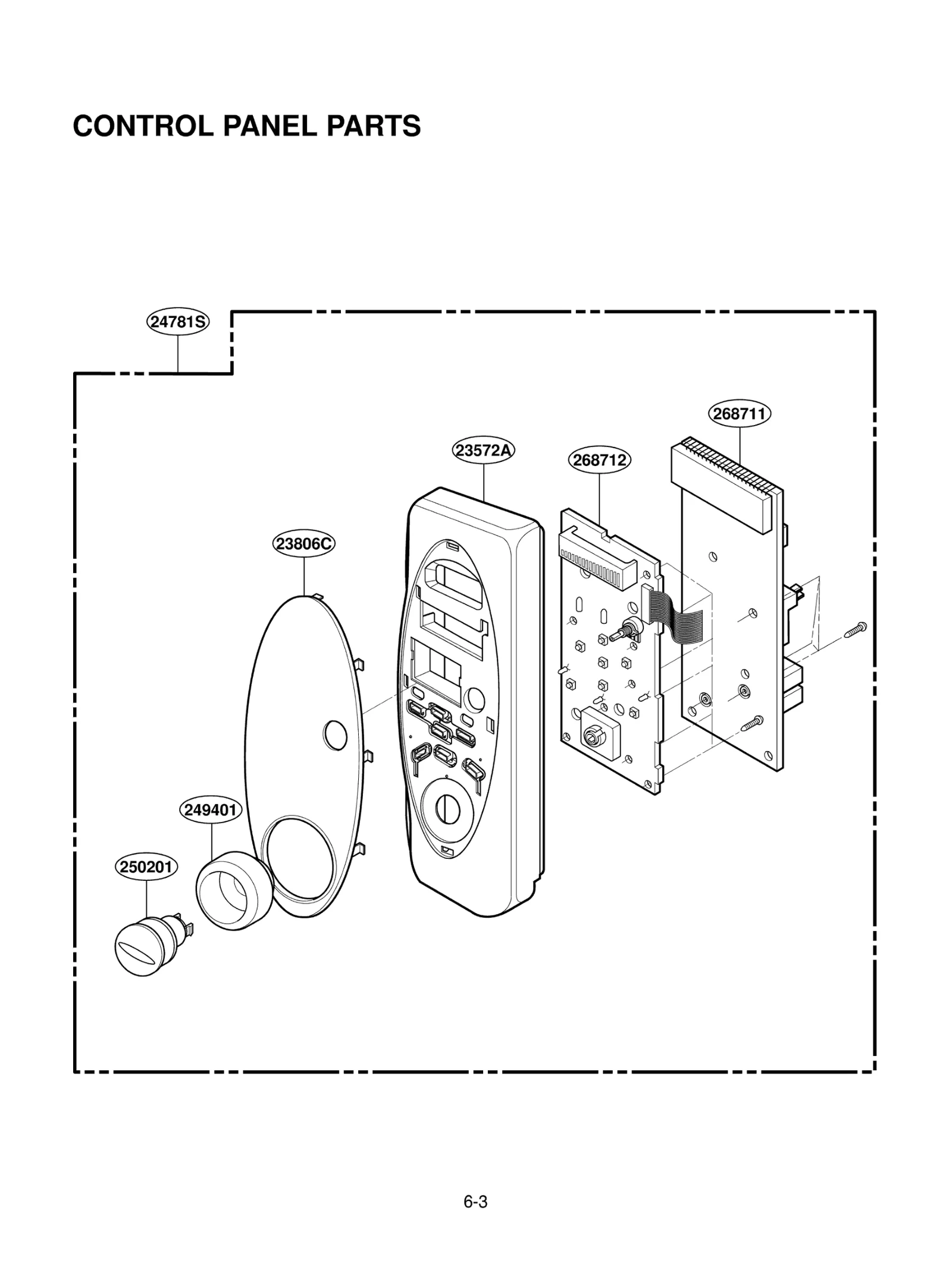

Diagram 1

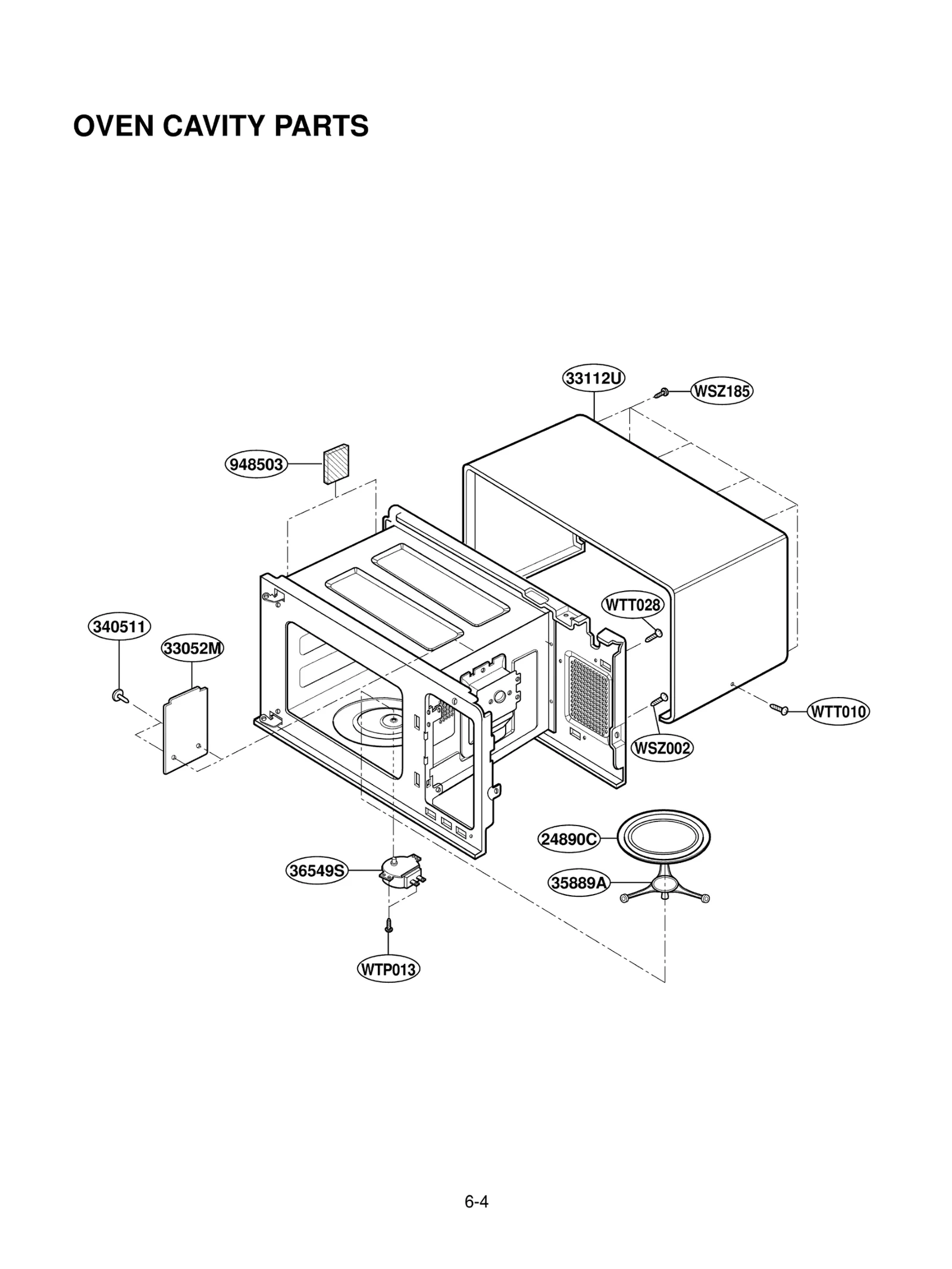

Diagram 2

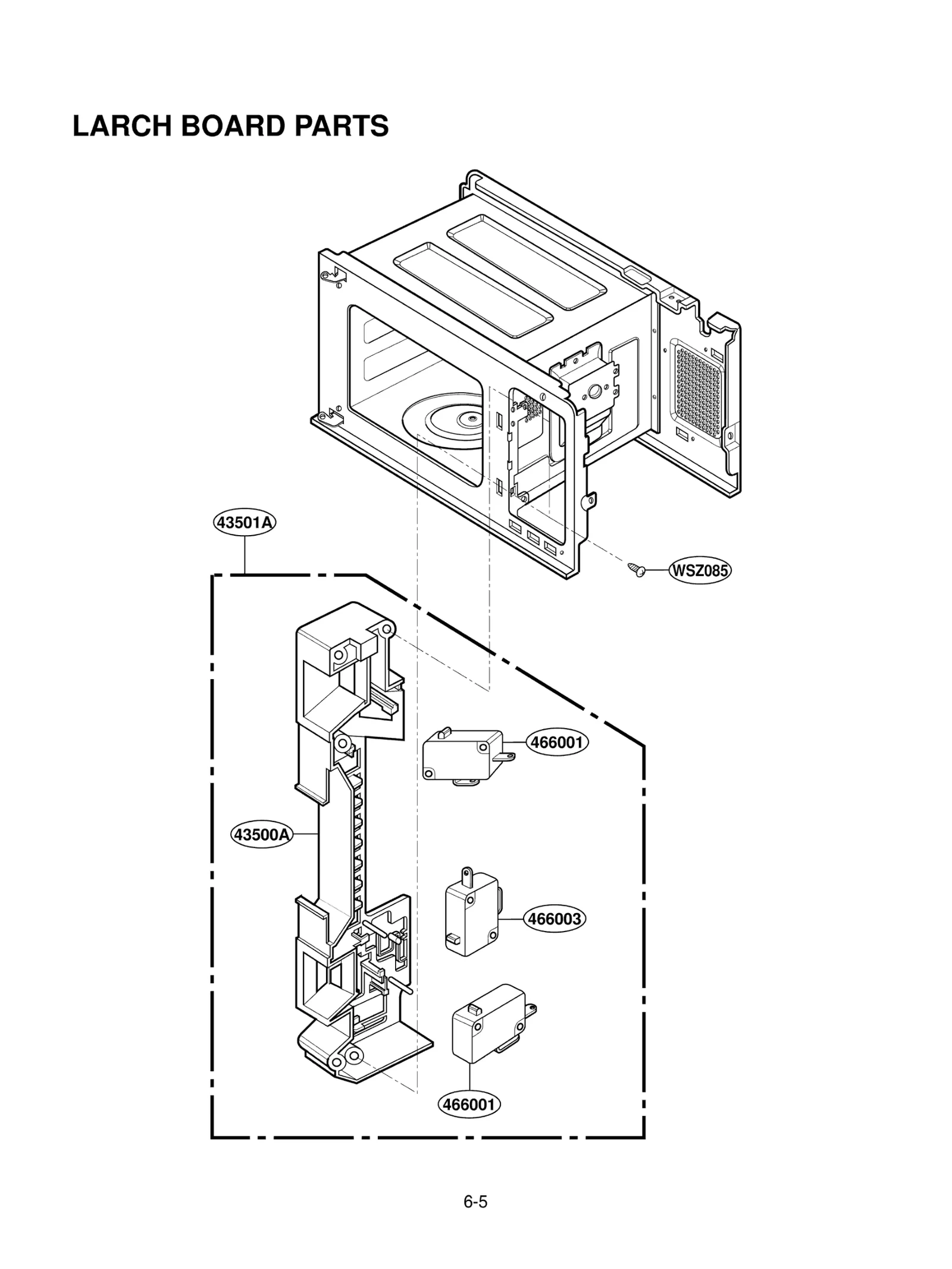

Diagram 3

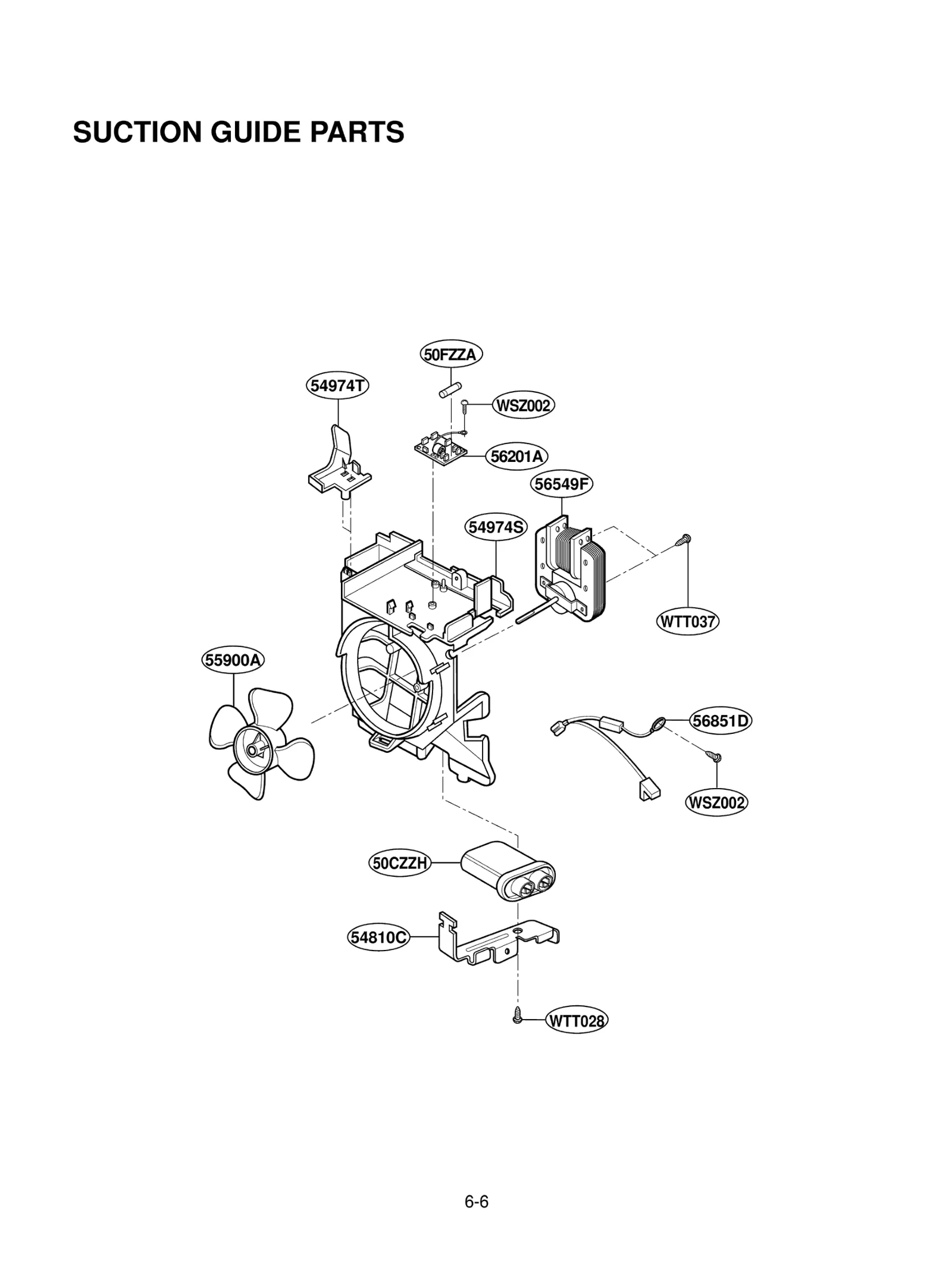

Diagram 4

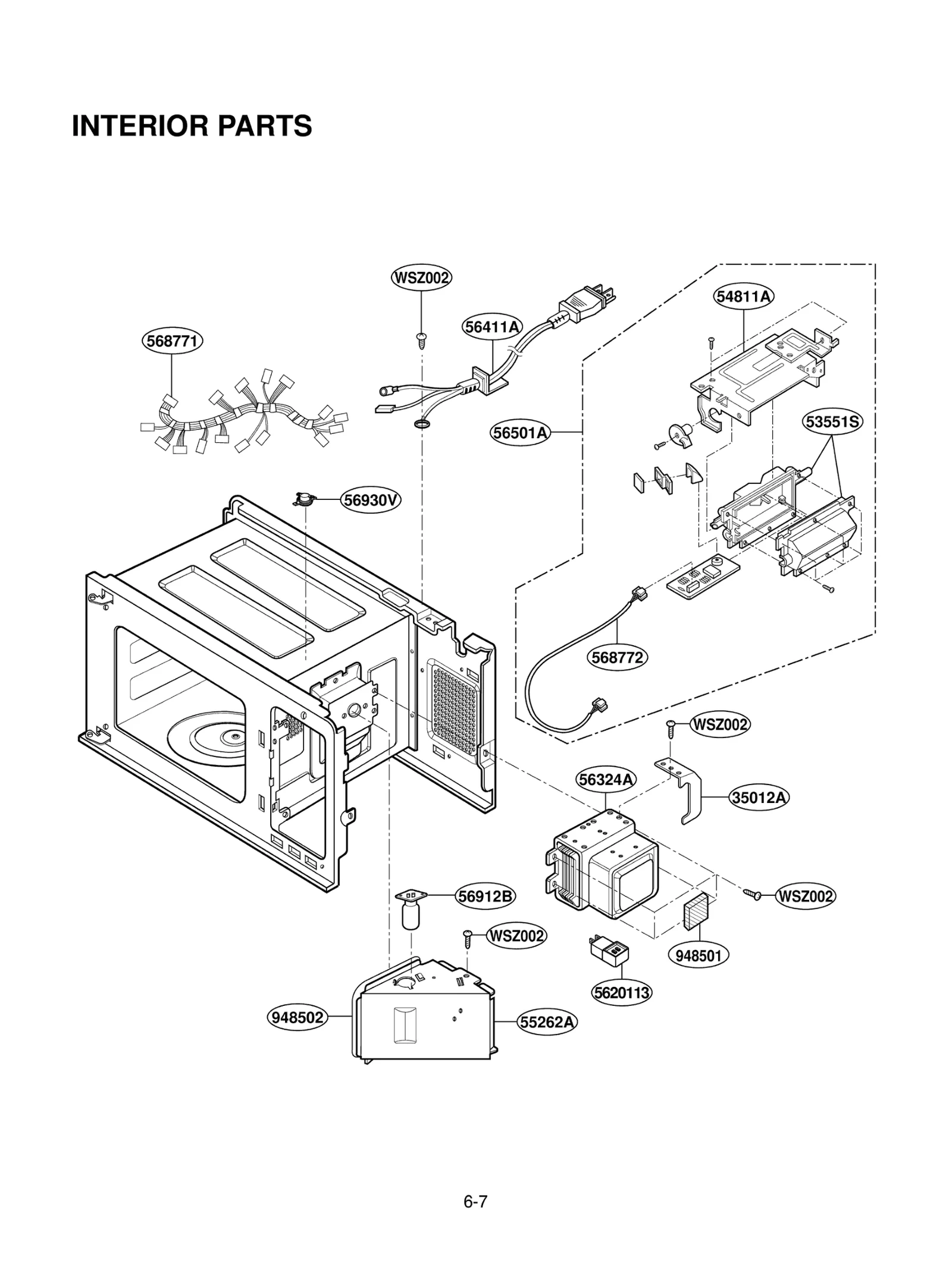

Diagram 5

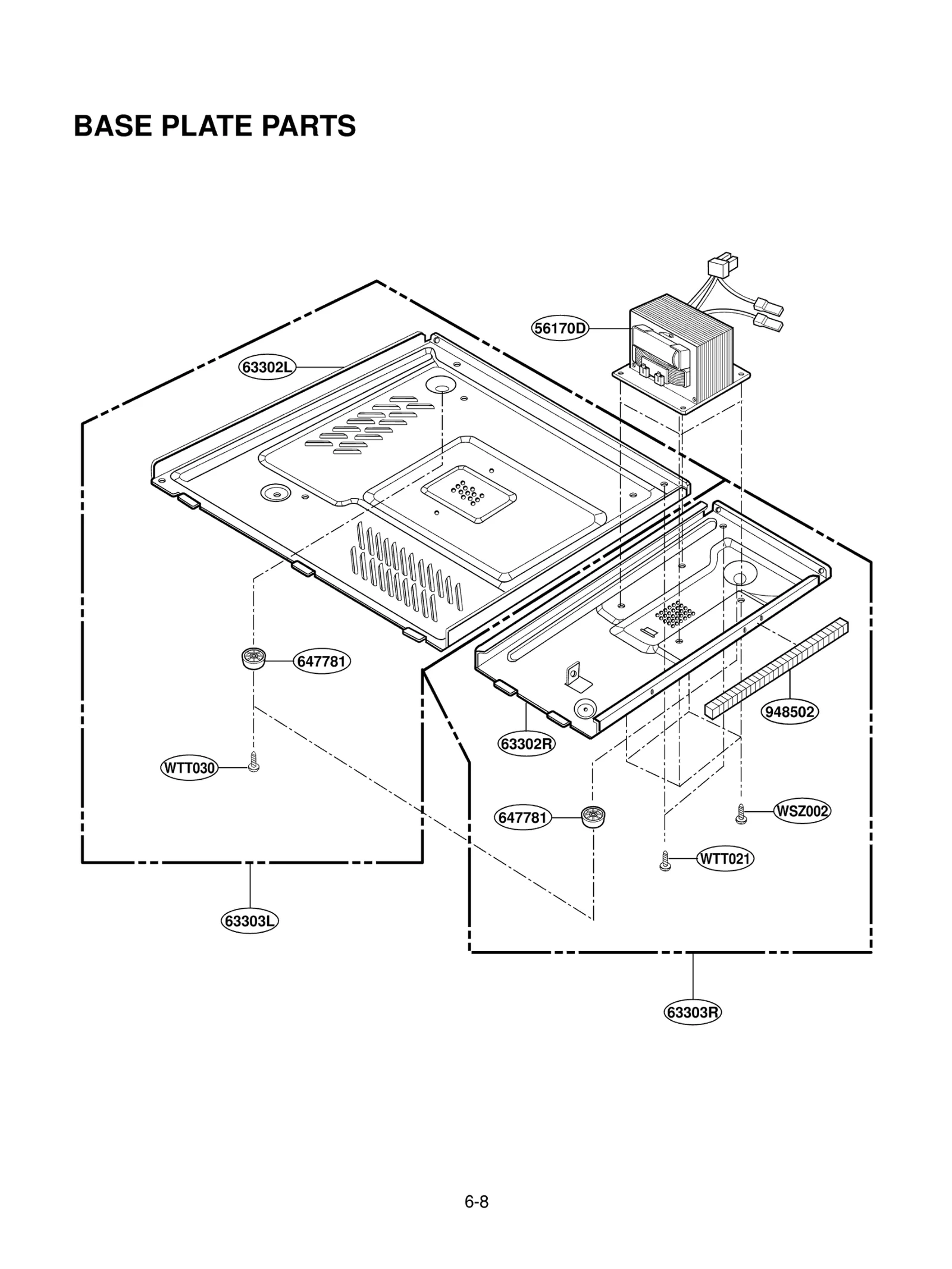

Diagram 6
Diagram 7
Common parts from model LG MS-135SE
*01
OM: MS-135SE ENG + FRENCH LGE 3828W5A1577 Contact Us For Availability
*02
SM: MS-135SE LGECI LGE 3828W5S1526 Contact Us For Availability
*10
BOX,[YELLOW] LGE 3890W3Y105A Contact Us For Availability
13650D
LGE 3650W1A024J LGE 3650W1A024J Contact Us For Availability
14890C
LGE 4890W1D039U LGE 4890W1D039U Contact Us For Availability
24781S
LGE 4781W1S051P LGE 4781W1S051P Contact Us For Availability
24781S
LGE 4781W1S051N LGE 4781W1S051N Contact Us For Availability
33052M
CANOPY MICA LGE 3052W3M008B Contact Us For Availability
33112U
OUT CASE,[U-BENDING] LGE 3112W0U039C Contact Us For Availability
33390G
TRAY GLASS LGE 3390W1G004A Contact Us For Availability
33700A
DEFROST NET MA-6515E GSUK,44MM LGE 1B71435C Contact Us For Availability
35889A
ROTATING RING ASSY,M LGE 5889W2A011B Contact Us For Availability
36549S
MOTOR(CIRC),SYNCHRONOUS LGE 6549W1S011C Contact Us For Availability
43500A
LATCH BOARD LGE 3500W1A005A Contact Us For Availability
44510A
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
53551S
LGE 3551W3A013G LGE 3551W3A013G Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54811A
LGE 4811W3A015B LGE 4811W3A015B Contact Us For Availability
54930S
LGE 4930W3B032A LGE 4930W3B032A Contact Us For Availability
54974S
LGE 4974W1S049A LGE 4974W1S049A Contact Us For Availability
54974T
LGE 4974W3T002A LGE 4974W3T002A Contact Us For Availability
54975S
LGE 4975W1S051T LGE 4975W1S051T Contact Us For Availability
56170D
TRANSFORMER,HIGH VOL LGE 6170W1D012C Contact Us For Availability
56201A
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
56201B
CHOKE FILTER ASSY MS-100/120/1 LGE 6201W2A019A Contact Us For Availability
56411A
LGE 6411W2A002R LGE 6411W2A002R Contact Us For Availability
56501A
LGE 6501W1A002G LGE 6501W1A002G Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 6549W1F005B Contact Us For Availability
63302L
LGE 3302W1A034D LGE 3302W1A034D Contact Us For Availability
63302R
LGE 3302W1A033E LGE 3302W1A033E Contact Us For Availability
63303L
BASE PLATE ASSY LGE 3303W1A026L Contact Us For Availability
63303R
BASE PLATE ASSY LGE 3303W2A003P Contact Us For Availability
249401
LGE 4940W3G037P LGE 4940W3G037P Contact Us For Availability
250201
LGE 5020WRG010B LGE 5020WRG010B Contact Us For Availability
250201
LGE 5020W3A085A LGE 5020W3A085A Contact Us For Availability
268711
LGE 6871W2S065A LGE 6871W2S065A Contact Us For Availability
268712
LGE 6871W2J076A LGE 6871W2J076A Contact Us For Availability
268713
LGE 6871W2S032C LGE 6871W2S032C Contact Us For Availability
568771
LGE 6877W1A126B LGE 6877W1A126B Contact Us For Availability
568772
LGE 6877W3A016D LGE 6877W3A016D Contact Us For Availability
BL01
LGE 0DLZZW5A02C LGE 0DLZZW5A02C Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C02
LGE 0CE6871H610 LGE 0CE6871H610 Contact Us For Availability
C03
LGE 0CE4771H610 LGE 0CE4771H610 Contact Us For Availability
C04
LGE 0CE4751K638 LGE 0CE4751K638 Contact Us For Availability
C08
LGE 0CE4761K638 LGE 0CE4761K638 Contact Us For Availability
C3
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK2210K518 Contact Us For Availability
C4
LGE 0CK1030H518 LGE 0CK1030H518 Contact Us For Availability
C7
LGE 0CK1040K518 LGE 0CK1040K518 Contact Us For Availability
C80
CAPACITOR CERAMIC (HIGH DIELE LGE 0CK2230H518 Contact Us For Availability
CN3
LGE 6630W5V016A LGE 6630W5V016A Contact Us For Availability
CU1
CUSHION DIGITRON 9MM MA-695M J LGE 4850W4C001D Contact Us For Availability
D04
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D26
DIODE SWIT, 1N4148, MA-654MQ LGE 0DD414809AA Contact Us For Availability
DP1
DIGITRON, ALL LGE 6302W5A002A Contact Us For Availability
EN01
LGE 6024WRYA06B LGE 6024WRYA06B Contact Us For Availability
IC1
LGE 0ILT109780A LGE 0ILT109780A Contact Us For Availability
J01
LGE CQ99004A LGE CQ99004A Contact Us For Availability
J108
LGE 43607015 LGE 43607015 Contact Us For Availability
PT1
POWER TRANS 120/60 UL,12V/277M LGE 6010W2P008A Contact Us For Availability
Q02
TRANSISTOR (A1015 OR A1266)MA- LGE 0TR101509AB Contact Us For Availability
Q32
LGE 0TR181509AB LGE 0TR181509AB Contact Us For Availability
Q70
TRANSISTOR MA-885M SGESEA MA-1 LGE 0TR107009AD Contact Us For Availability
R01
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R03
LGE 0RD7500G608 LGE 0RD7500G608 Contact Us For Availability
R05
RESISTOR FIXED CARBON FILM 39 LGE 0RD3900F608 Contact Us For Availability
R07
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R09
LGE 0RD1003G608 LGE 0RD1003G608 Contact Us For Availability
R1
LGE 0RN5800F408 LGE 0RN5800F408 Contact Us For Availability
R2
LGE 0RN6800F408 LGE 0RN6800F408 Contact Us For Availability
R3
LGE 0RN4200F408 LGE 0RN4200F408 Contact Us For Availability
R4
Resistor,Metal Film LGE 0RN2001F408 Contact Us For Availability
R6
LGE 0RN4703F408 LGE 0RN4703F408 Contact Us For Availability
R25
Resistor,Carbon Film LGE 0RD4701G608 Contact Us For Availability
R32
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R33
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R51
Resistor,Carbon Film LGE 0RD0472F608 Contact Us For Availability
R51
Resistor,Metal Film LGE 0RN3001F408 Contact Us For Availability
R52
Resistor,Metal Film LGE 0RN1801F408 Contact Us For Availability
R53
Resistor,Metal Film LGE 0RN1501F408 Contact Us For Availability
R54
LGE 0RN1301F408 LGE 0RN1301F408 Contact Us For Availability
R55
LGE 0RN5100F408 LGE 0RN5100F408 Contact Us For Availability
R55
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R56
LGE 0RN4700F408 LGE 0RN4700F408 Contact Us For Availability
R62
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R71
Resistor,Carbon Film LGE 0RD5600F608 Contact Us For Availability
R85
RESISTOR FIXED CARBON FILM MV- LGE 0RD4702G608 Contact Us For Availability
R104
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R107
LGE 0RD5601G608 LGE 0RD5601G608 Contact Us For Availability
RY1
RELAY LGE 6920W2D010B Contact Us For Availability
RY2
Relay,Contact LGE 6920W2D014A Contact Us For Availability
SW114
SWITCH,TACT LGE 3Q60020A Contact Us For Availability
TP1
LGE 6500W3C002A LGE 6500W3C002A Contact Us For Availability
U01
LGE 0IHI643713E LGE 0IHI643713E Contact Us For Availability
U02
LGE 0IKE655060A LGE 0IKE655060A Contact Us For Availability
U03
LGE 0ITO200400A LGE 0ITO200400A Contact Us For Availability
ZD1
LGE 0DZ510009AA LGE 0DZ510009AA Contact Us For Availability
ZD2
DIODE ZENER LGE 0DZ750009AC Contact Us For Availability
× ![]()
