Model LG MS-117SE – Common Parts & Diagrams
Diagram 0

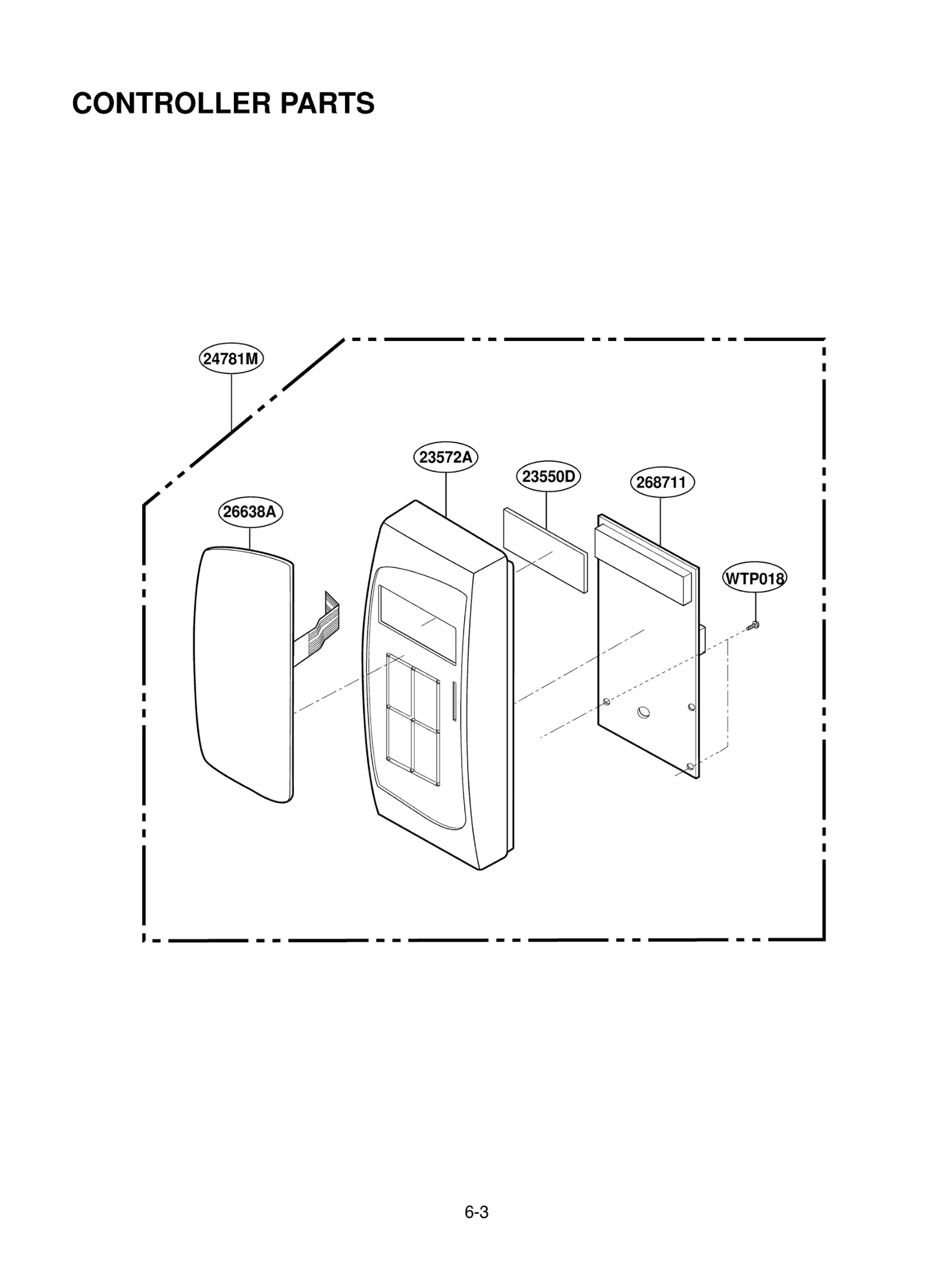

Diagram 1

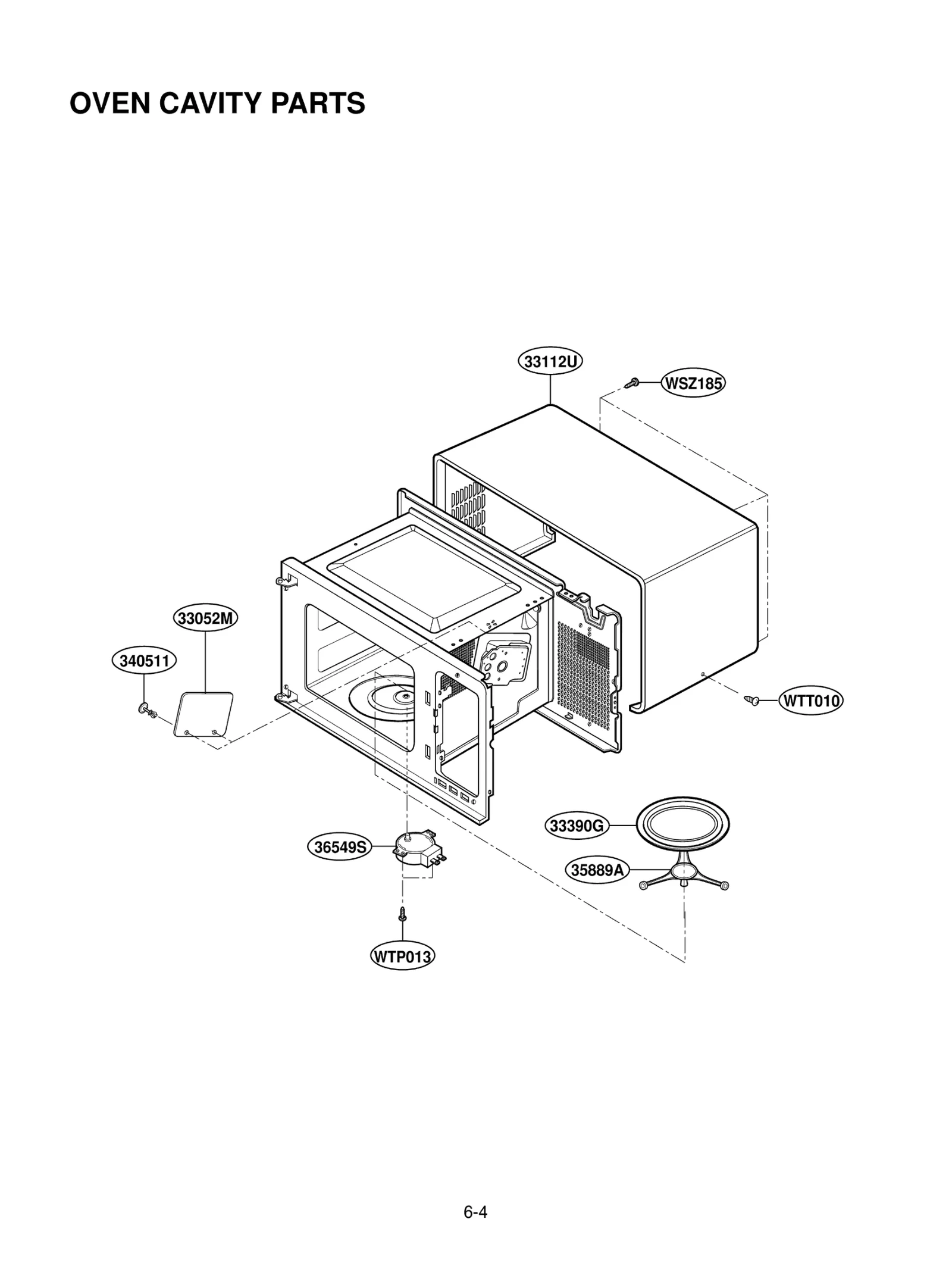

Diagram 2

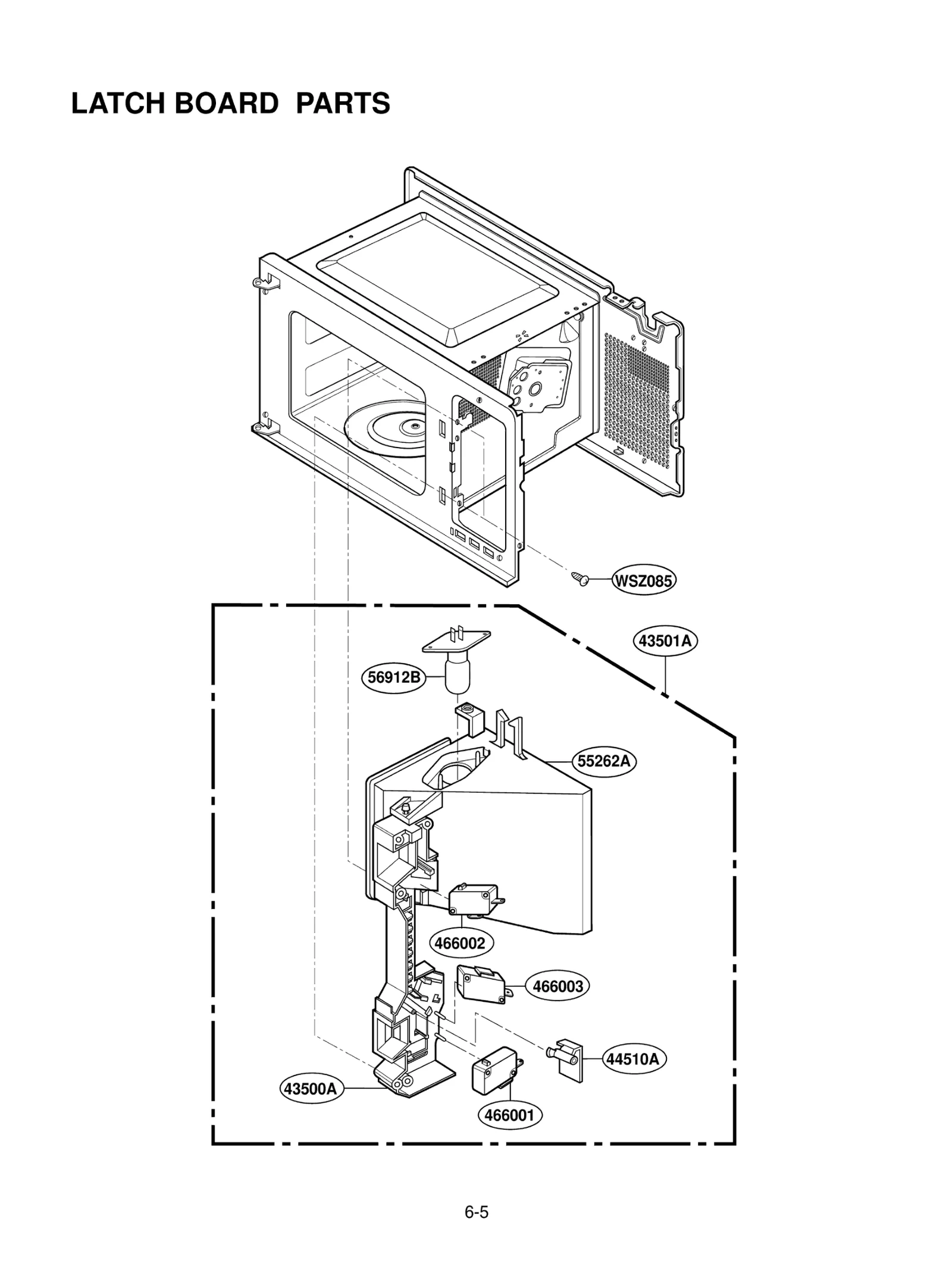

Diagram 3

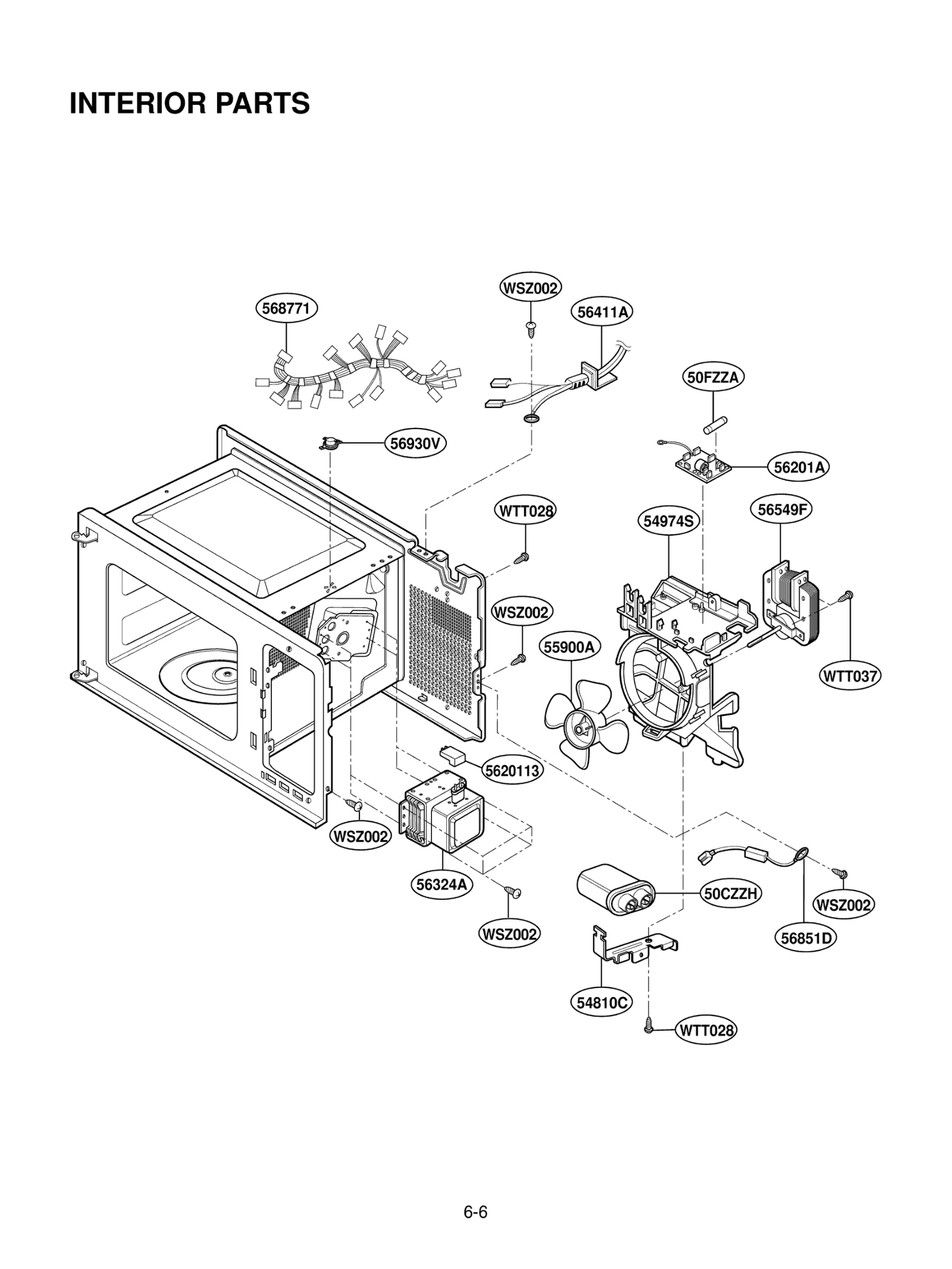

Diagram 4

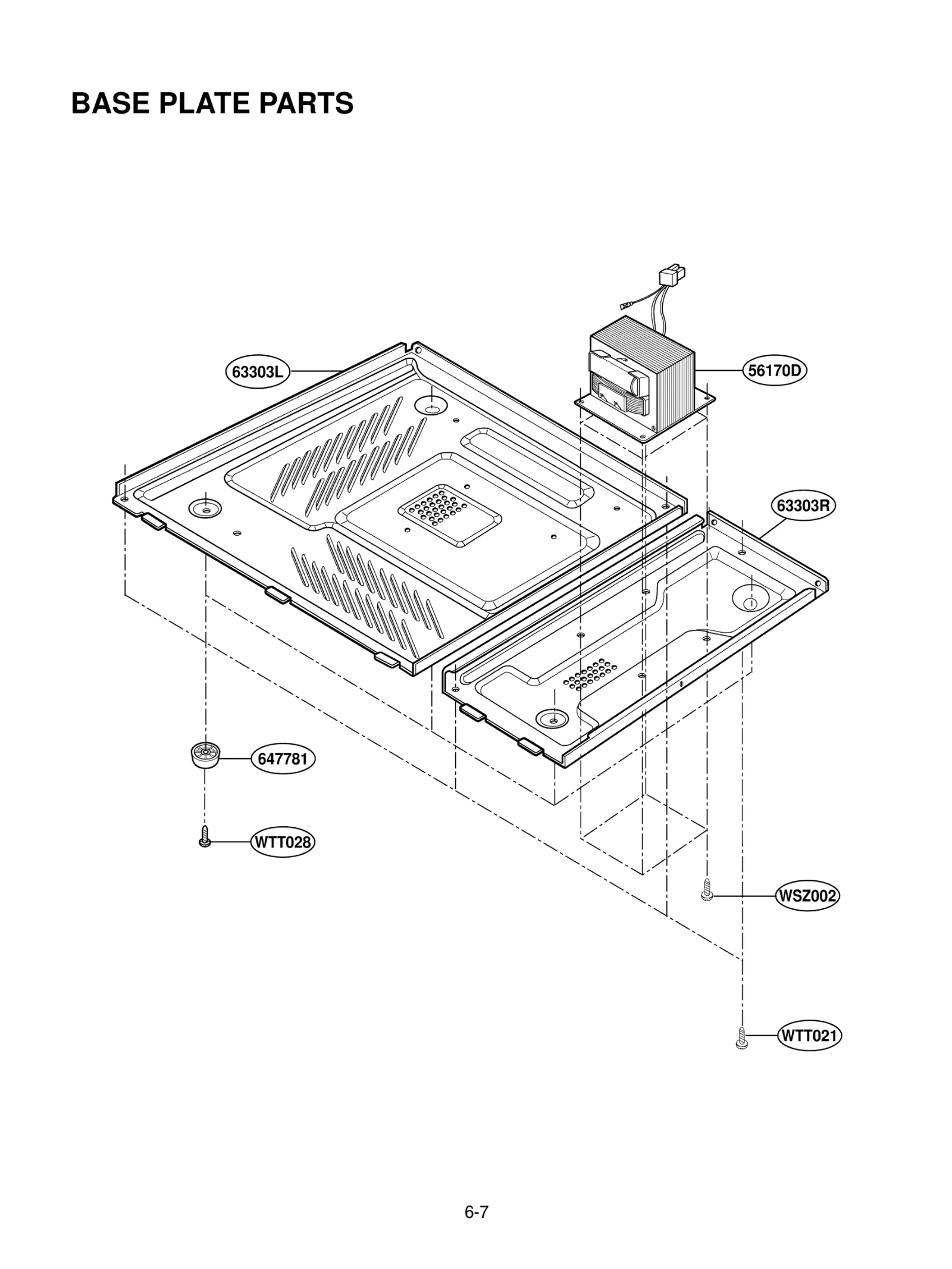

Diagram 5

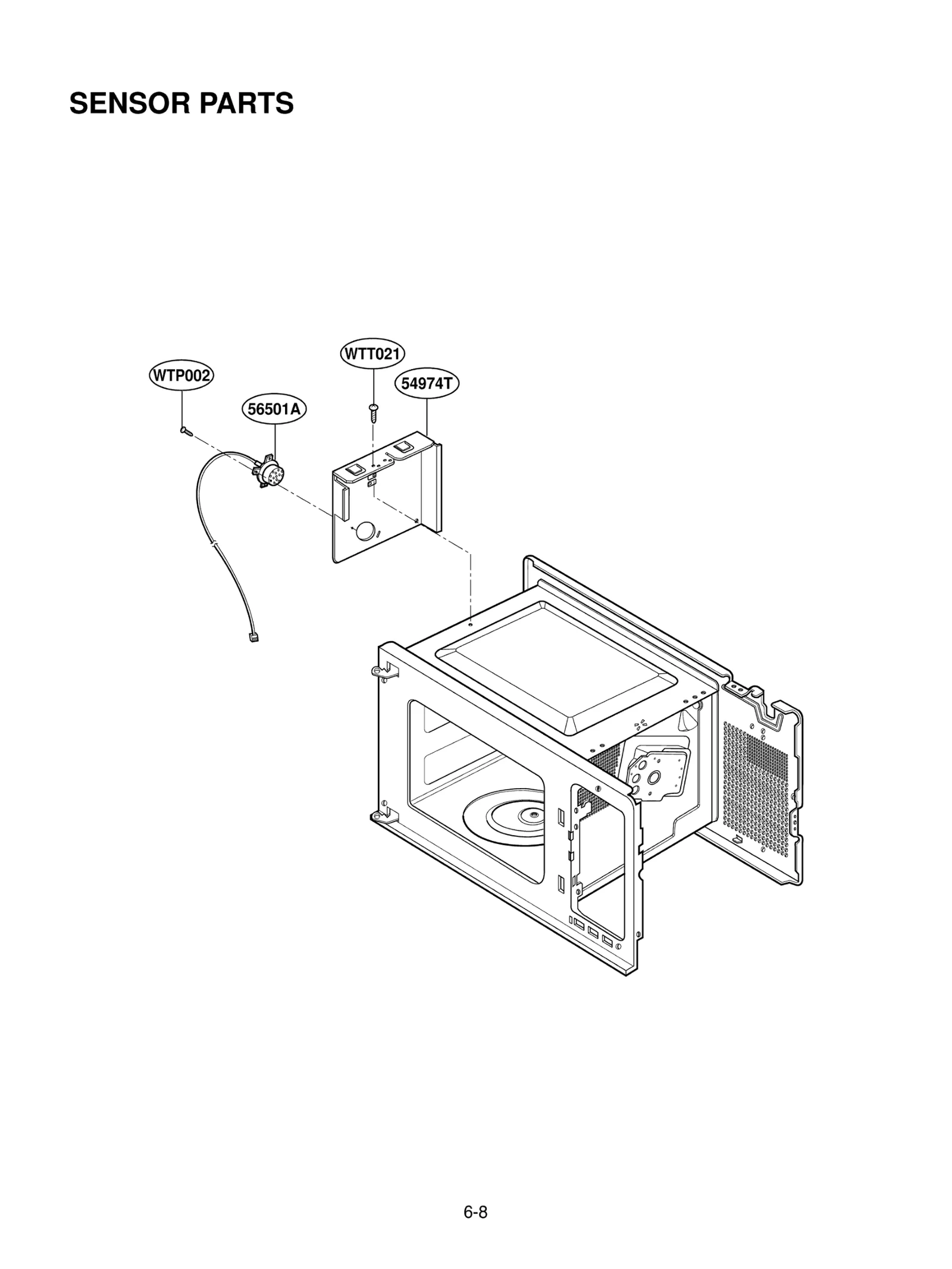

Diagram 6
Diagram 7
Common parts from model LG MS-117SE
*01
LGE 3828W5A1475 LGE 3828W5A1475 Contact Us For Availability
*02
LGE 3828W5S1461 LGE 3828W5S1461 Contact Us For Availability
*10
BOX,[YELLOW] LGE 3890W3Y090C Contact Us For Availability
33052M
CANOPY,MICA LGE 3052W3M011C Contact Us For Availability
33112U
OUT CASE,[U-BENDING] LGE 3112W1U019N Contact Us For Availability
33390G
TRAY GLASS LGE 3390W1G003A Contact Us For Availability
34960A
MOUNT ALL LGE 4960W3G026A Contact Us For Availability
35889A
ROTATING RING ASSY A 0.9.1.0.1 LGE 5889W2A011A Contact Us For Availability
36549S
MOTOR(CIRC),SYNCHRONOUS LGE 6549W1S011C Contact Us For Availability
43500A
LATCH BOARD LGE 3500W1A005A Contact Us For Availability
43501A
BOARD ASSY,LATCH LGE 3501W1A016F Contact Us For Availability
44510A
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54974S
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
54974T
LGE 5208W1A004B LGE 5208W1A004B Contact Us For Availability
55262A
AIR DUCT LGE 5262W2A041C Contact Us For Availability
56170D
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D012H Contact Us For Availability
56201A
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
56201B
CHOKE FILTER ASSY MS-100/120/1 LGE 6201W2A019A Contact Us For Availability
56411A
POWER CORD ASSY LGE 6411W1A019G Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 6549W1F005B Contact Us For Availability
56930V
THERMOSTAT,BIMETAL LGE 6930W1A001J Contact Us For Availability
63302L
BASE PLATE ALL LGE 3302W1A036A Contact Us For Availability
63302R
BASE PLATE LGE 3302W1A035G Contact Us For Availability
63303L
BASE PLATE ASSY,ALL LGE 3303W1A028A Contact Us For Availability
63303R
BASE PLATE ASSY,MWO LGE 3303W2A004E Contact Us For Availability
568771
LGE 6877W1A181A LGE 6877W1A181A Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
AR4
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C02
CAPACITOR ELECTROLYT 220UF SME LGE 0CE2272H638 Contact Us For Availability
C06
LGE 0CK1040K518 LGE 0CK1040K518 Contact Us For Availability
C07
LGE 0CE4751K638 LGE 0CE4751K638 Contact Us For Availability
C12
LGE 0CE4761K638 LGE 0CE4761K638 Contact Us For Availability
C13
LGE 0CE1061K638 LGE 0CE1061K638 Contact Us For Availability
C25
CAPACITOR CERAMIC (HIGH DIELE LGE 0CK2230H518 Contact Us For Availability
C80
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK2210K518 Contact Us For Availability
CN1
CONNECTOR (CIRC) WAF LGE 6630W5V021A Contact Us For Availability
CN1
CONNECTOR (CIRC),WAFER LGE 6630W5V025A Contact Us For Availability
CN3
KEY CONNECTOR FCZ254-12D MH-13 LGE 6630W5YA19D Contact Us For Availability
CN4
CONNECTOR (CIRC) LGE 6630W5V013A Contact Us For Availability
D03
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D37
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
D61
DIODE,SWITCHING LGE 0DS414809AB Contact Us For Availability
D96
DIODE SWIT, 1N4148, MA-654MQ LGE 0DD414809AA Contact Us For Availability
DP1
DIGITRON, ALL LGE 6302W5A002A Contact Us For Availability
PT1
TRANSFORMER POWER 120V/60HZ,14 LGE 6010W2P043A Contact Us For Availability
Q02
TRANSISTOR (A1015 OR A1266)MA- LGE 0TR101509AB Contact Us For Availability
Q30
TRANSISTOR LGE 0TR320209BA Contact Us For Availability
Q31
LGE 0TR181509AB LGE 0TR181509AB Contact Us For Availability
R01
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R11
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R13
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R25
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R26
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R30
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R31
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R33
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R51
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R55
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R61
Resistor,Chip LGE 0RH2701L622 Contact Us For Availability
R62
Resistor,Chip LGE 0RH2003L422 Contact Us For Availability
R63
LGE 0RH1001L422 LGE 0RH1001L422 Contact Us For Availability
R66
LGE 0RH1003L622 LGE 0RH1003L622 Contact Us For Availability
R67
LGE 0RH1072L422 LGE 0RH1072L422 Contact Us For Availability
R68
LGE 0RH1002L422 LGE 0RH1002L422 Contact Us For Availability
R74
LGE 0RD1503G608 LGE 0RD1503G608 Contact Us For Availability
R75
RESISTOR FIXED CARBO LGE 0RD2004F608 Contact Us For Availability
R77
Resistor,Carbon Film LGE 0RD5103F608 Contact Us For Availability
R78
LGE 0RD2703F608 LGE 0RD2703F608 Contact Us For Availability
R82
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R93
RESISTOR FIXED CARBON FILM 22 LGE 0RD2202G608 Contact Us For Availability
R102
LGE 0RD3302G608 LGE 0RD3302G608 Contact Us For Availability
R103
Resistor,Carbon Film LGE 0RD1202F608 Contact Us For Availability
RY1
RELAY LGE 6920W5A008A Contact Us For Availability
RY2
RELAY OZF-S-112LM1P DC12V MV-1 LGE 6920W2YD04A Contact Us For Availability
U01
LGE 0IZZW5A069A LGE 0IZZW5A069A Contact Us For Availability
U05
IC,SAMSUNG ELECTRONICS LGE 0ISS791500A Contact Us For Availability
WSZ161
SPECIAL SCREW MV-1000M,1000T LGE 4B75675A Contact Us For Availability
ZD1
LGE 0DZ510009AA LGE 0DZ510009AA Contact Us For Availability
ZD2
LGE 0DZ750009BB LGE 0DZ750009BB Contact Us For Availability
× ![]()
