Model LG MS-109SC – Common Parts & Diagrams

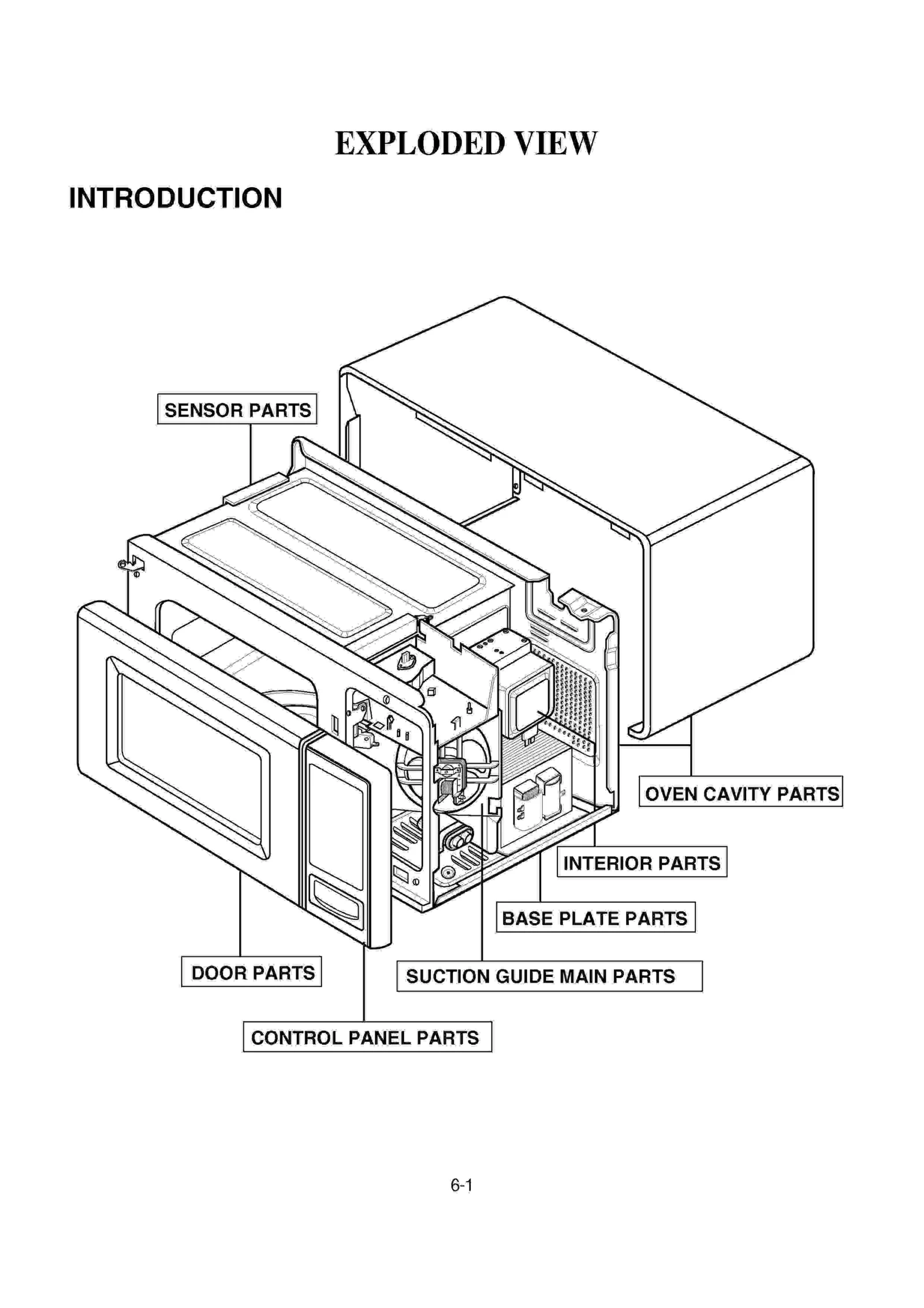

Diagram 0

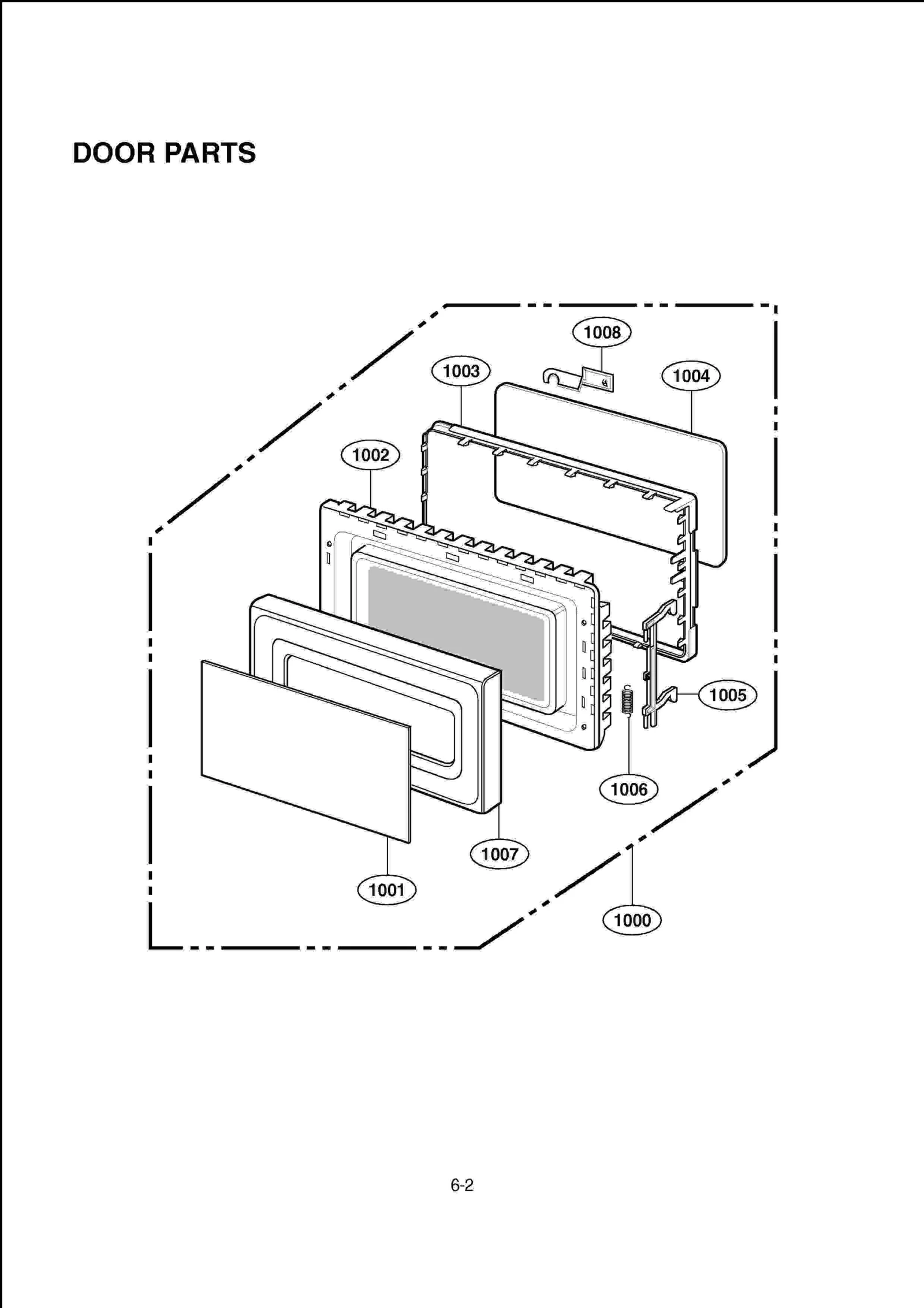

Diagram 1

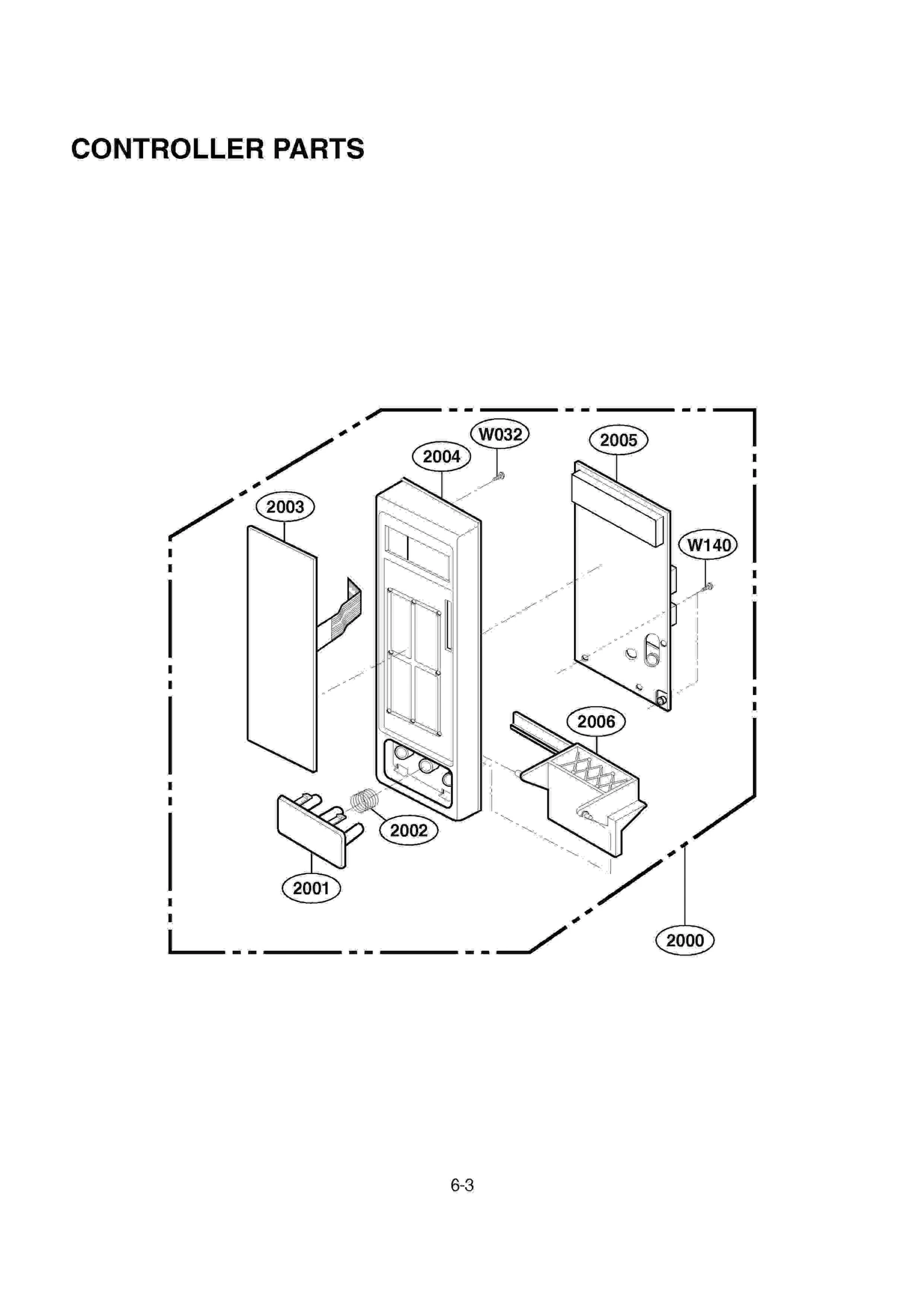

Diagram 2

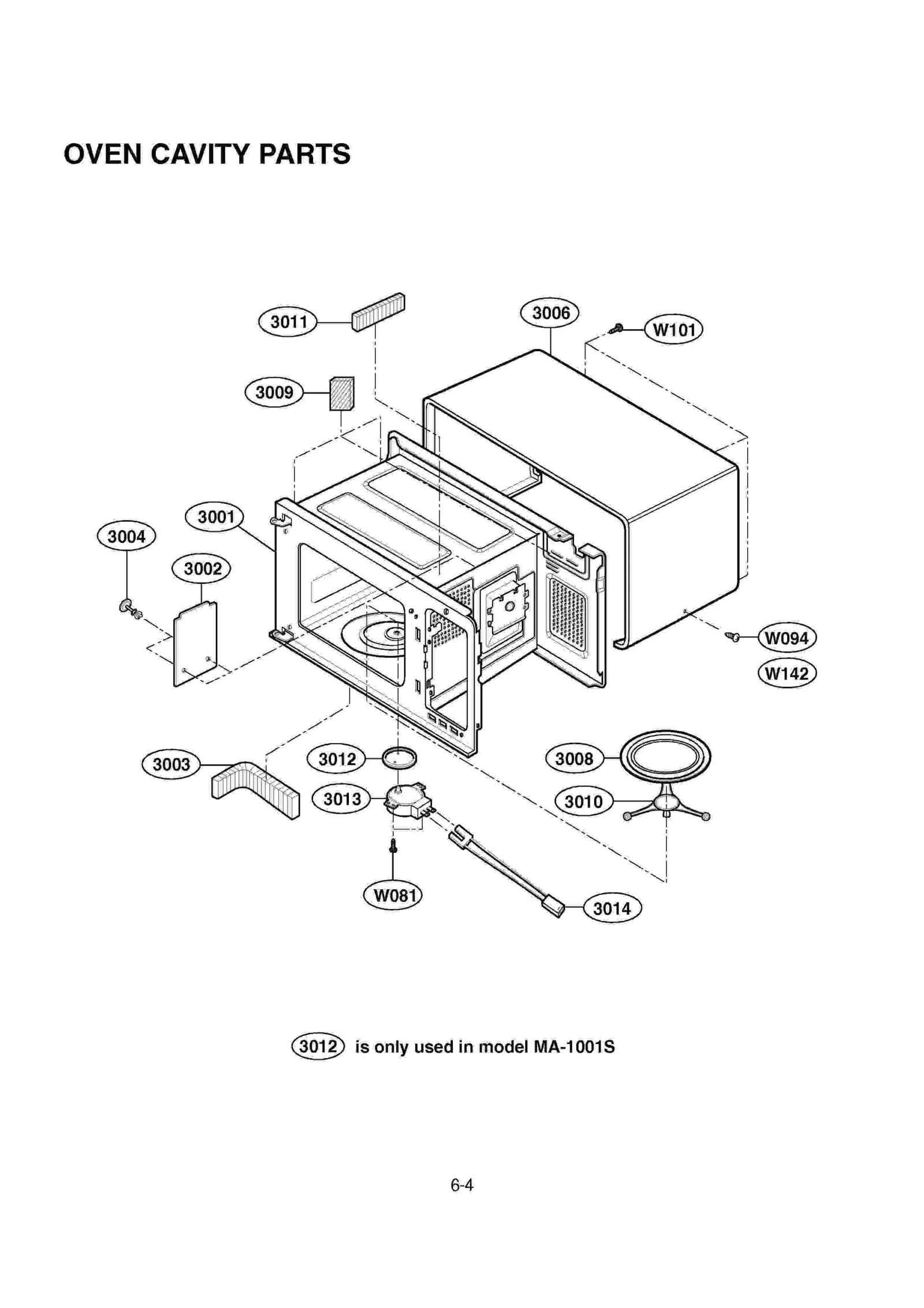

Diagram 3

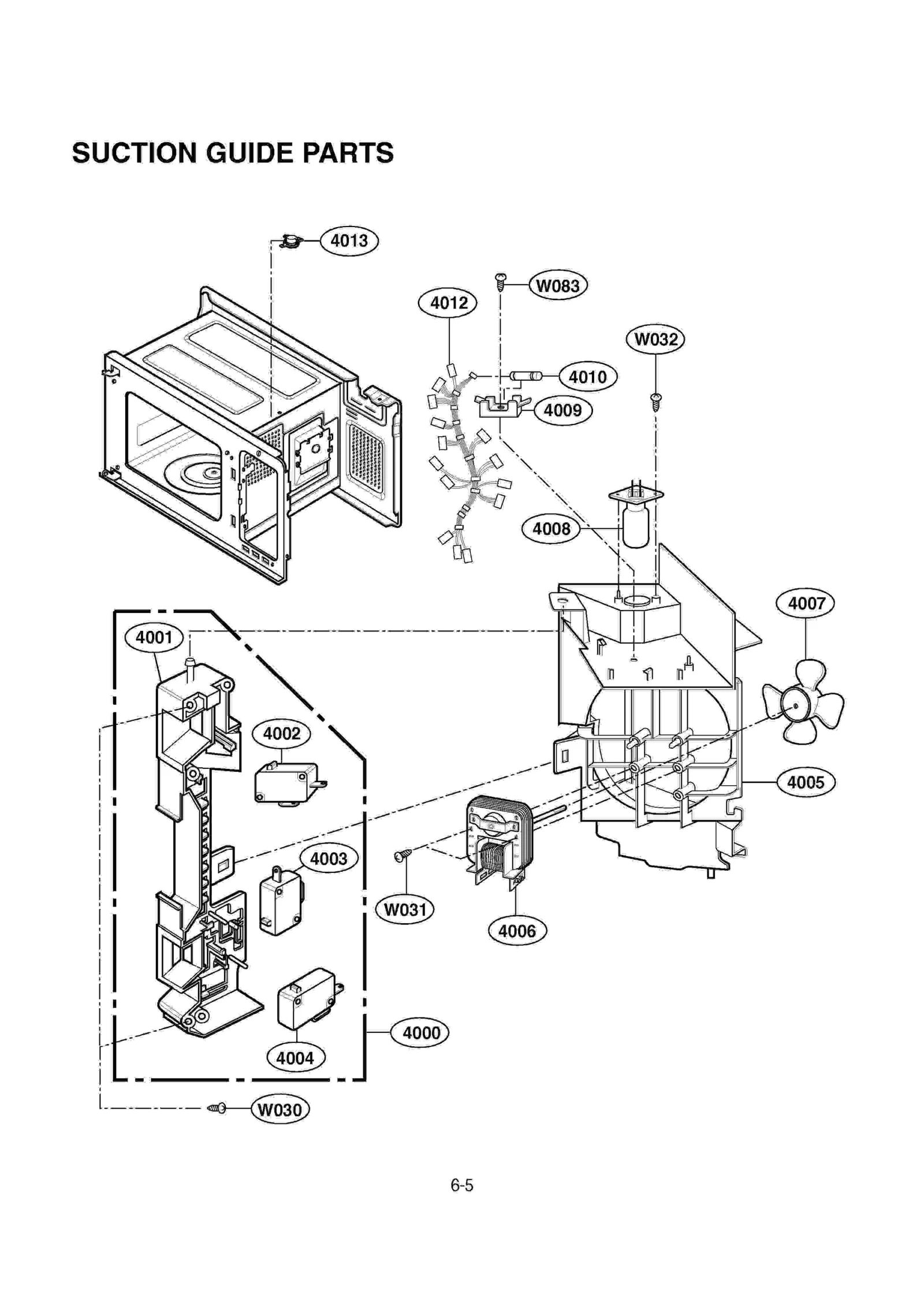

Diagram 4

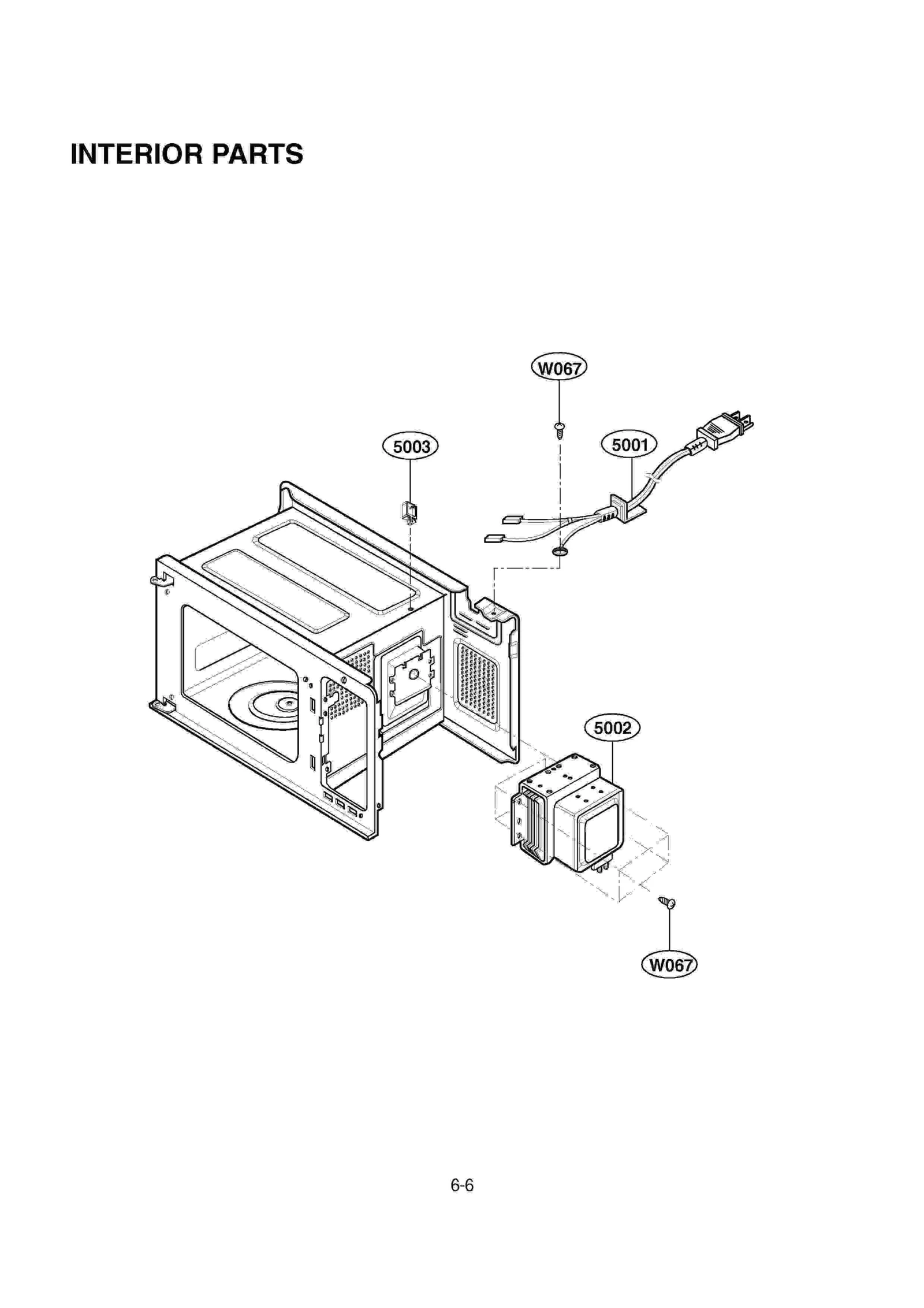

Diagram 5

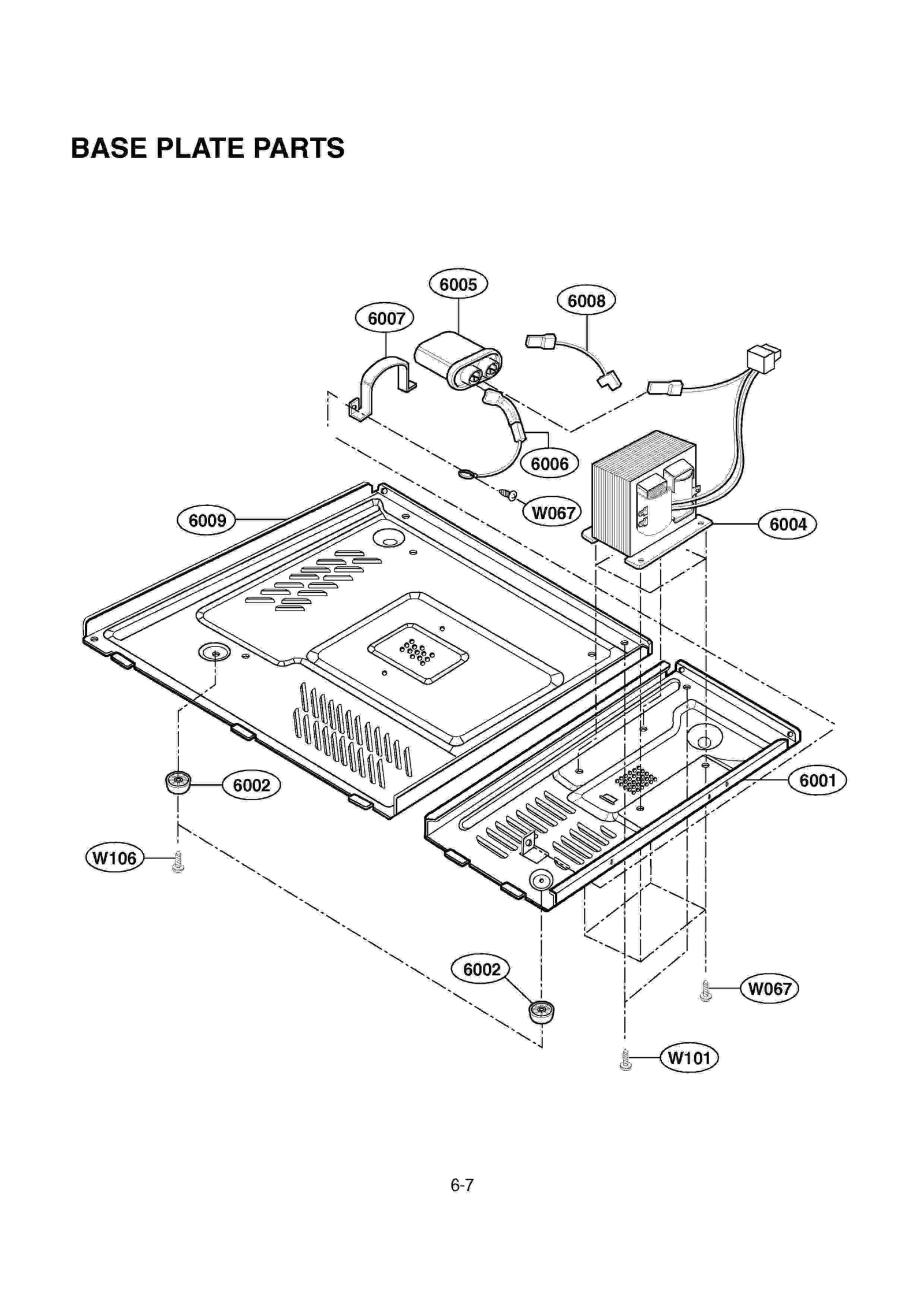

Diagram 6

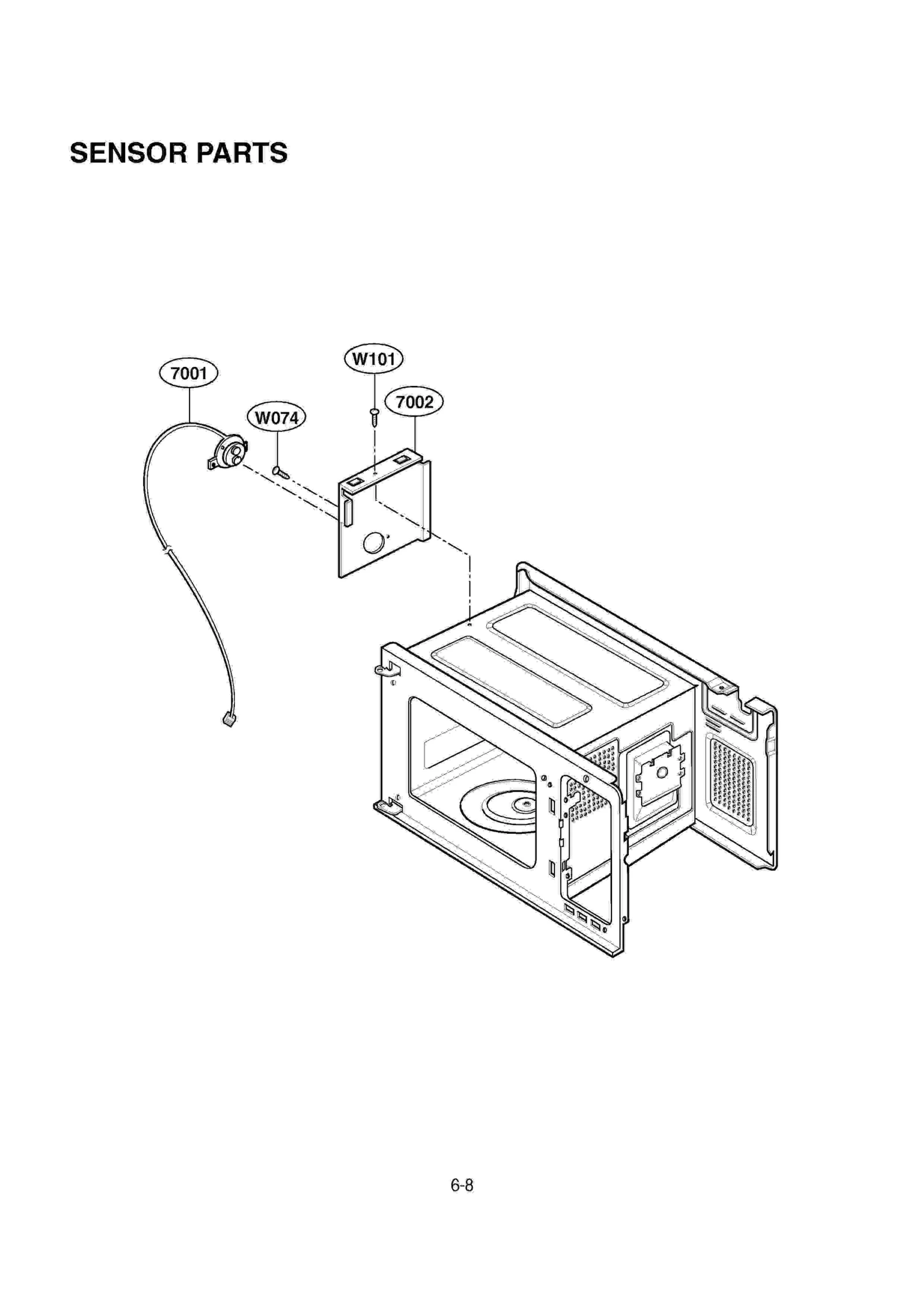

Diagram 7
Common parts from model LG MS-109SC
*01
MANUAL OWNERS(MWO) LGE 3828W5A0636 Contact Us For Availability
*02
LGE 3828W5S0583 LGE 3828W5S0583 Contact Us For Availability
*10
BOX,[YELLOW] LGE 3890W2Y126A Contact Us For Availability
13213A
DOOR FRAME ASSY LGE 3213W1A028H Contact Us For Availability
13352A
LGE 3352W1A081C LGE 3352W1A081C Contact Us For Availability
13536A
SEAL TAPE ALL LGE 3536WRA001L Contact Us For Availability
13552A
CHOKE COVER ALL LGE 3552W1A026A Contact Us For Availability
13581A
LGE 3581W1A123U LGE 3581W1A123U Contact Us For Availability
13720D
LGE 3720W0D088E LGE 3720W0D088E Contact Us For Availability
14026A
LATCH (ALL) - SEARS LGE 4026W2A012A Contact Us For Availability
15006A
CAP LGE 5006W3A017A Contact Us For Availability
23550D
DIGITRON COVER MS-101 S 121 S LGE 3550W4A029B Contact Us For Availability
23572A
LGE 3572W1A130F LGE 3572W1A130F Contact Us For Availability
24510L
LEVER RELEASE MS-72CM MC-122MC LGE 4510W3L002A Contact Us For Availability
24781M
LGE 4781W1M145G LGE 4781W1M145G Contact Us For Availability
26638A
LGE 6638W2A116B LGE 6638W2A116B Contact Us For Availability
33052M
CANOPY MICA LGE 3052W3M008A Contact Us For Availability
33112U
OUTER CASE LGE 3112W1U015M Contact Us For Availability
33390G
GLASS TRAY LGE 3390W1G003E Contact Us For Availability
34036W
SEAL,WATER LGE 4036W3W001A Contact Us For Availability
34960A
MOUNT ALL LGE 4960W3G026A Contact Us For Availability
35889A
ROTATING RING ASSY A 0.9.1.0.1 LGE 5889W2A011A Contact Us For Availability
36549S
MOTOR SYNCHRONOUS 120V,60HZ LGE 2B72754K Contact Us For Availability
43500A
BOARD LATCH MS-101 S 121 S 151 LGE 3500W1A004A Contact Us For Availability
54810C
BRACKET HVC MS-72CM,HORIZON LGE 4810W3C001A Contact Us For Availability
54974S
LGE 4974W0S010A LGE 4974W0S010A Contact Us For Availability
54974T
DUCT INTER FLOW LGE 5208W1A001A Contact Us For Availability
56170D
TRANSFORMER HIGH VOL LGE 6170W1D007A Contact Us For Availability
56201A
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
56201B
CHOKE FILTER ASSY MS-100/120/1 LGE 6201W2A019A Contact Us For Availability
56324A
MAGNETRON LGE 6324W1A001A Contact Us For Availability
56411A
POWER CORD ASSY A-2 LGE 6411W2A002H Contact Us For Availability
56501A
SENSOR ASSY ALL HUMIDITY SENSO LGE 6501W2A017A Contact Us For Availability
56549F
MOTOR(CIRC) FAN 120V/60HZ,10.5 LGE 6549W2F017B Contact Us For Availability
63302L
BASE PLATE ALL LGE 3302W1A036A Contact Us For Availability
63302R
LGE 3302W1A035A LGE 3302W1A035A Contact Us For Availability
63303L
BASE PLATE ASSY,ALL LGE 3303W1A028A Contact Us For Availability
63303R
BASE PLATE ASSY,ALL LGE 3303W2A004A Contact Us For Availability
268711
PCB SUB ASSY LGE 6871W2S020B Contact Us For Availability
368771
LEAD WIRE ASSY TT MS-71CM(T/T LGE 6877WRT007D Contact Us For Availability
568771
LGE 6877W1T264B LGE 6877W1T264B Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
948503
HINGE PLATE-U SCP 2.5T MV-1006 LGE 3B72244A Contact Us For Availability
AR4
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C01
LGE 0CK2230K935 LGE 0CK2230K935 Contact Us For Availability
C02
LGE 0CE1071K638 LGE 0CE1071K638 Contact Us For Availability
C03
CAPACITOR ELECTROLYT 220UF SME LGE 0CE2272H638 Contact Us For Availability
C07
LGE 0CE4751K638 LGE 0CE4751K638 Contact Us For Availability
C10
CAPACITOR CERAMIC (HIGH DIELE LGE 0CK2230H518 Contact Us For Availability
C40
LGE 0CK1040K518 LGE 0CK1040K518 Contact Us For Availability
C41
LGE 0CE4761K638 LGE 0CE4761K638 Contact Us For Availability
C43
LGE 0CE1061K638 LGE 0CE1061K638 Contact Us For Availability
D21
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
D41
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
DP1
DIGITRON, ALL LGE 6302W5A002A Contact Us For Availability
PT1
TRANSFORMER POWER 120V/60HZ,14 LGE 6010W2P043A Contact Us For Availability
Q01
TRANSISTOR (A1015 OR A1266)MA- LGE 0TR101509AB Contact Us For Availability
Q20
LGE 0TR181509AB LGE 0TR181509AB Contact Us For Availability
R01
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R05
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R20
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R30
LGE 0RN2003F408 LGE 0RN2003F408 Contact Us For Availability
R31
Resistor,Metal Film LGE 0RN1001F408 Contact Us For Availability
R33
LGE 0RN1002F408 LGE 0RN1002F408 Contact Us For Availability
R37
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R40
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R41
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R43
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R51
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R52
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R53
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R55
Resistor,Carbon Film LGE 0RD1503F608 Contact Us For Availability
R56
RESISTOR FIXED CARBO LGE 0RD2004F608 Contact Us For Availability
R58
Resistor,Carbon Film LGE 0RD5103F608 Contact Us For Availability
R59
LGE 0RD2703F608 LGE 0RD2703F608 Contact Us For Availability
R71
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
RY1
RELAY LGE 6920W2D010B Contact Us For Availability
RY2
Relay,Contact LGE 6920W2D014A Contact Us For Availability
U01
LGE 0IHI404339X LGE 0IHI404339X Contact Us For Availability
U04
IC KIA4558P(8DIP LIN OP-AMP/BI LGE 0IKE455800A Contact Us For Availability
U05
IC,SAMSUNG ELECTRONICS LGE 0ISS791500A Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
ZD2
DIODE ZENER LGE 0DZ750009AC Contact Us For Availability
× ![]()
