Model Maytag MRT318FZDM01 REFRIGERATOR, TOP FREEZER – Common Parts & Diagrams

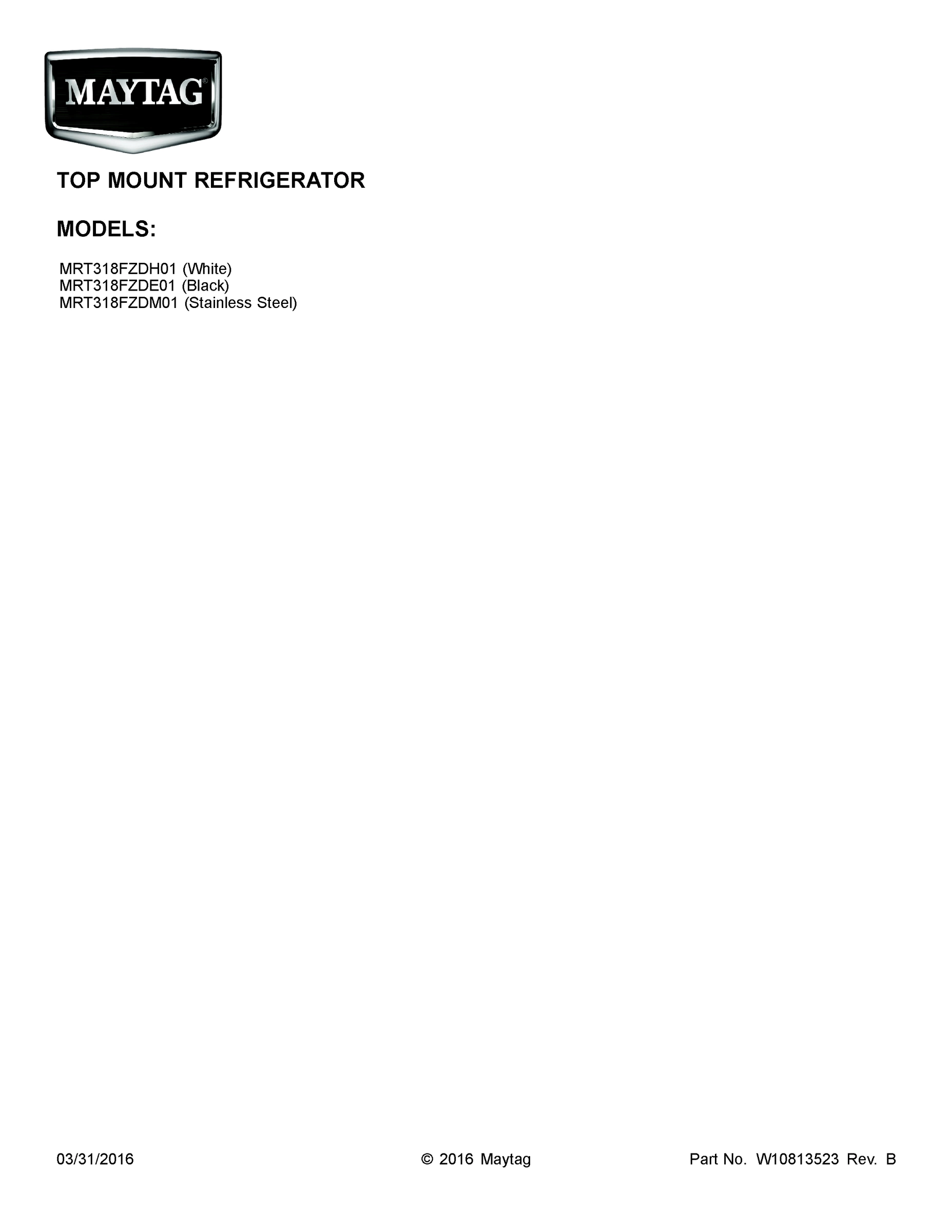

01 - COVER SHEET

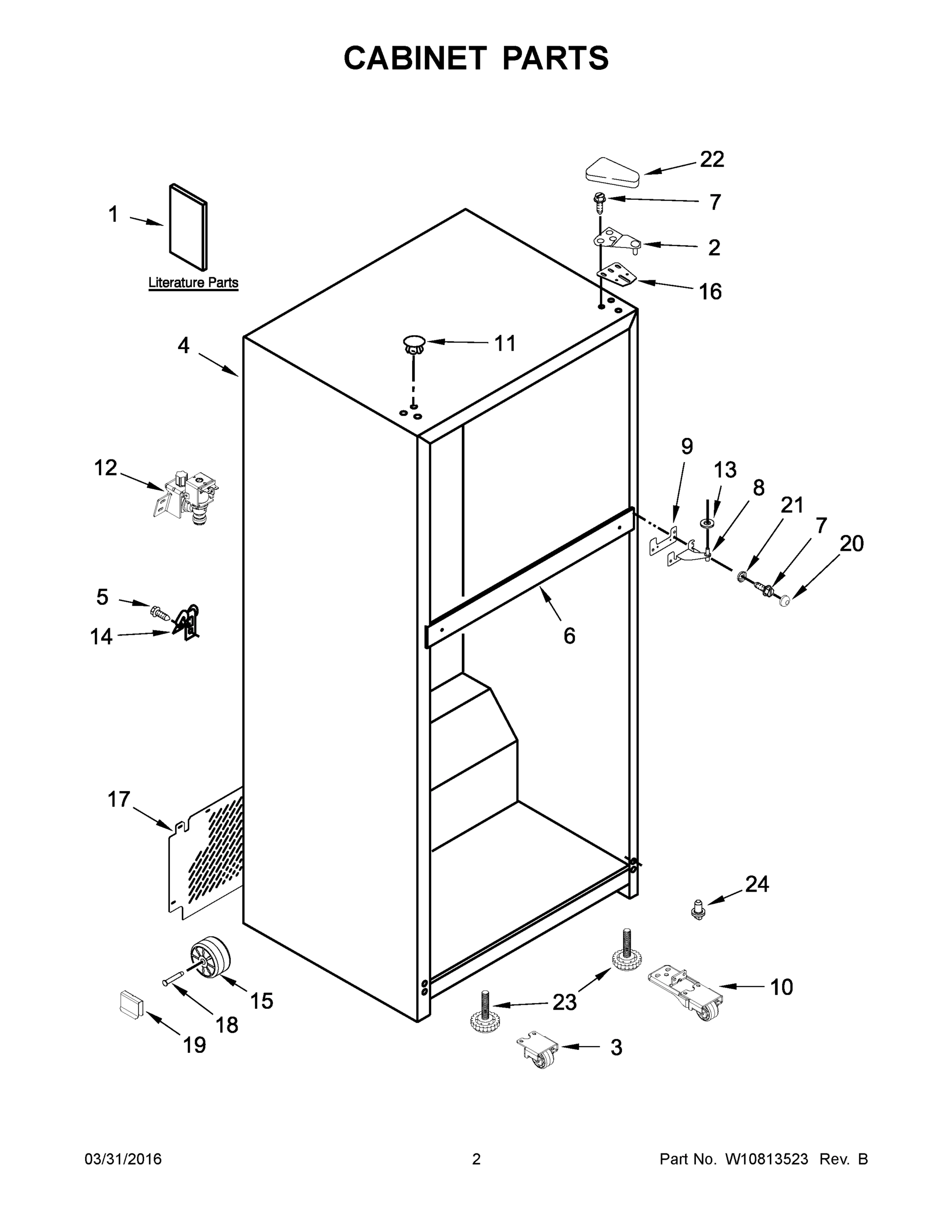

02 - CABINET PARTS

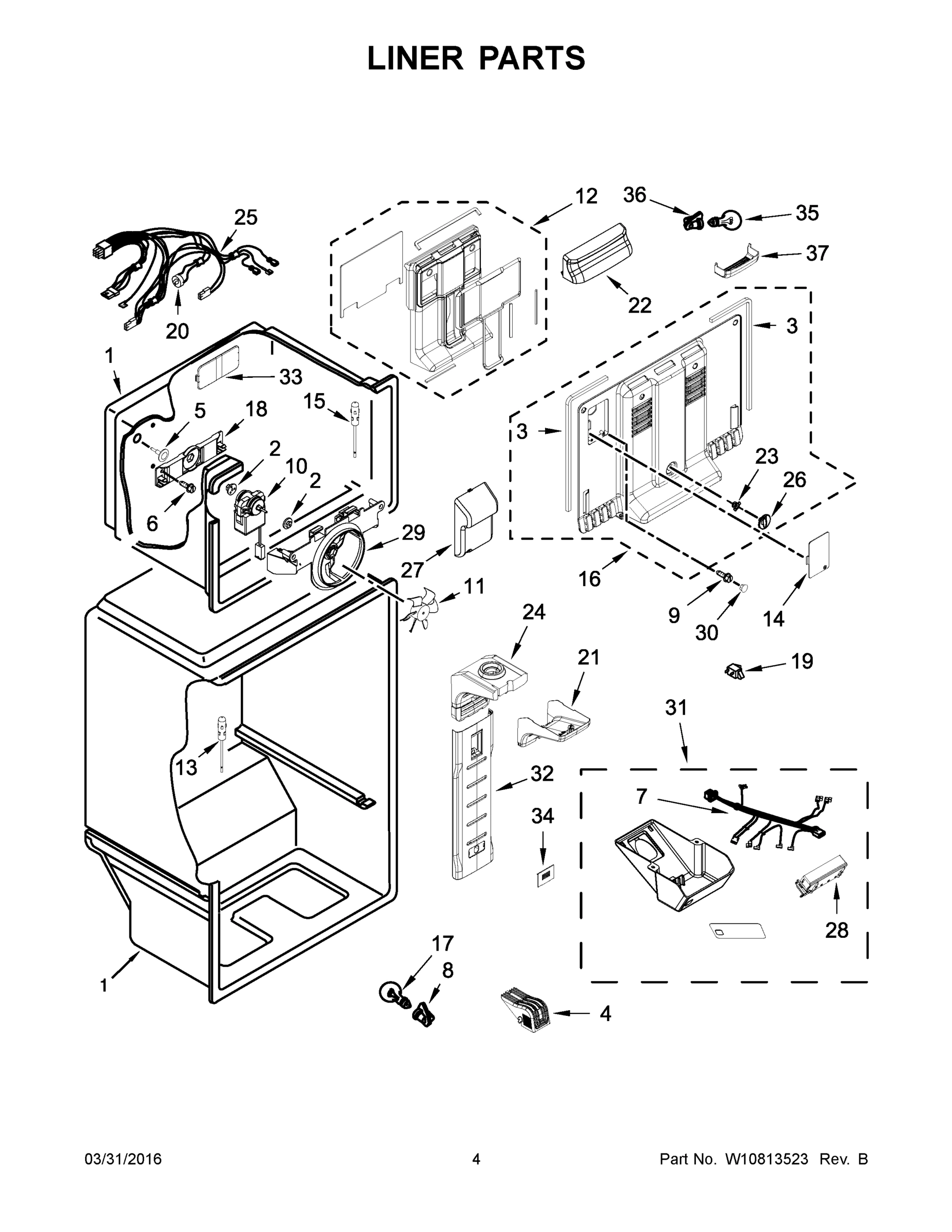

03 - LINER PARTS

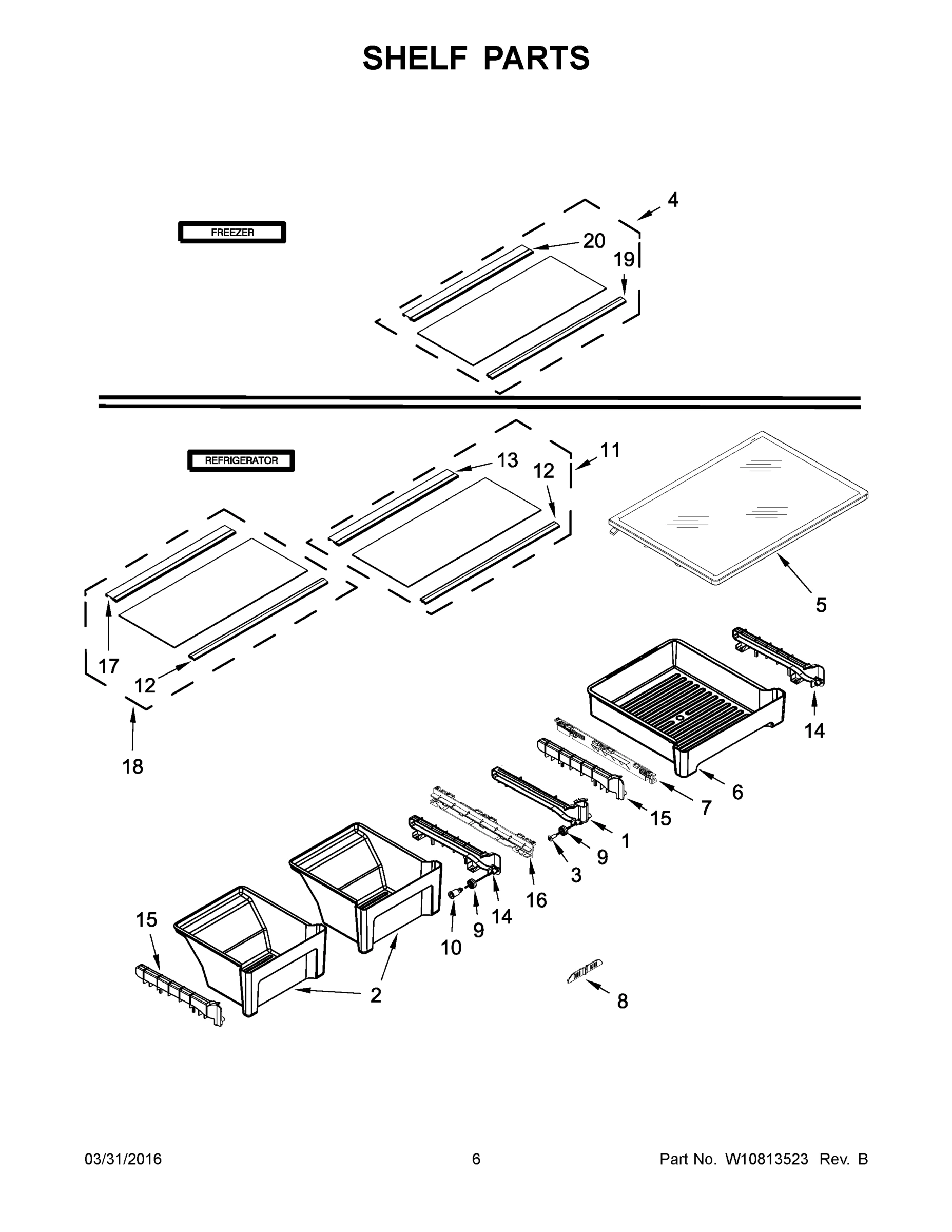

04 - SHELF PARTS

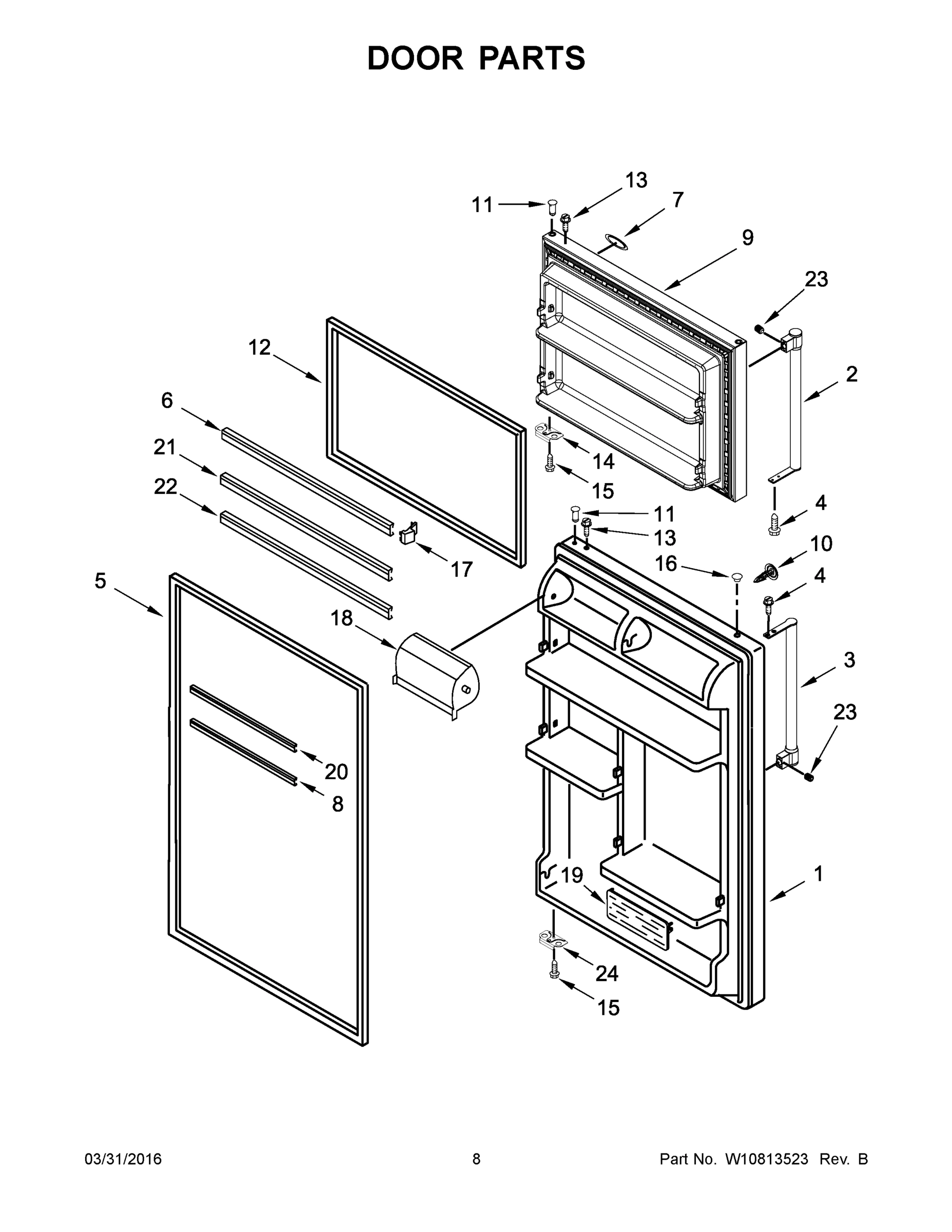

05 - DOOR PARTS

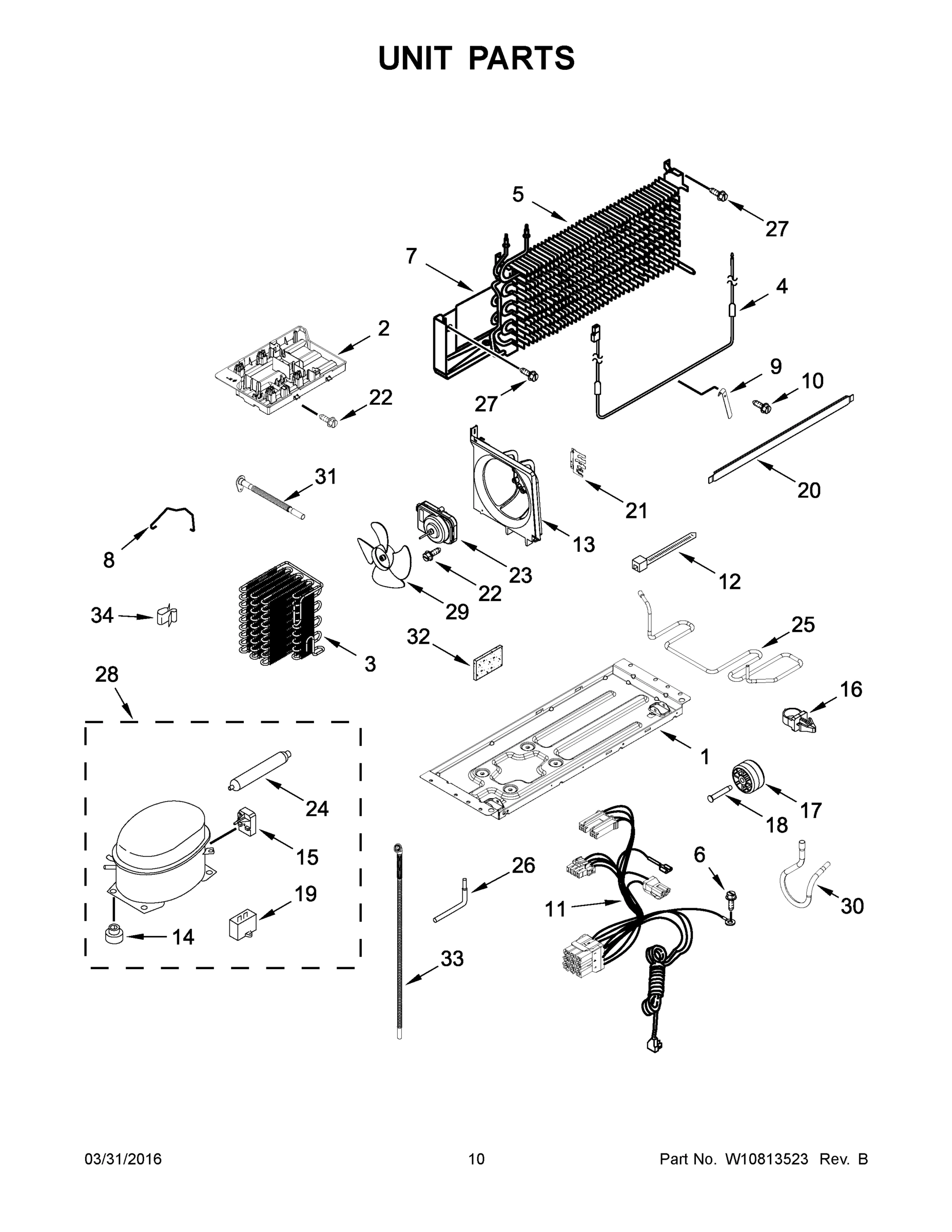

06 - UNIT PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag MRT318FZDM01 REFRIGERATOR, TOP FREEZER
1
MAY W10770168 MAY W10770168 Contact Us For Availability
1
MAY W10694127 MAY W10694127 Contact Us For Availability
1
MAY W10636410 MAY W10636410 Contact Us For Availability
1
MAY W10638694 MAY W10638694 Contact Us For Availability
1A
MAY W10680118 MAY W10680118 Contact Us For Availability
1A
MAY W10668874 MAY W10668874 Contact Us For Availability
1B
MAY W10680117 MAY W10680117 Contact Us For Availability
1B
MAY W10638684 MAY W10638684 Contact Us For Availability
2
ASSEMBLY, TOP HINGE MAY 2261963 Contact Us For Availability
2
MAY 2197380 MAY 2197380 Contact Us For Availability
2
MAY W10668872 MAY W10668872 Contact Us For Availability
2
MAY W10691424 MAY W10691424 Contact Us For Availability
2
MAY W10633582 MAY W10633582 Contact Us For Availability
3
MAY W10842654 MAY W10842654 Contact Us For Availability
3
MAY W10709194 MAY W10709194 Contact Us For Availability
3
SCREW (STAINLESS) MAY 3400065 Contact Us For Availability
3
MAY W10691396 MAY W10691396 Contact Us For Availability
3
MAY W10633575 MAY W10633575 Contact Us For Availability
4
MAY W10628684 MAY W10628684 Contact Us For Availability
4
MAY W10821670 MAY W10821670 Contact Us For Availability
4
MAY 489357 MAY 489357 Contact Us For Availability
4
MAY W10316428 MAY W10316428 Contact Us For Availability
5
HOLE PLUG (WHITE) MAY 941839 Contact Us For Availability
5
MAY W10704017 MAY W10704017 Contact Us For Availability
5
MAY W10638676 MAY W10638676 Contact Us For Availability
5
MAY W10570565 MAY W10570565 Contact Us For Availability
5A
MAY W10678768 MAY W10678768 Contact Us For Availability
5B
MAY W10638687 MAY W10638687 Contact Us For Availability
6
SCREW MAY 488208 Contact Us For Availability
6
MAY W10308848 MAY W10308848 Contact Us For Availability
6
MAY W10667855 MAY W10667855 Contact Us For Availability
6
MAY 488500 MAY 488500 Contact Us For Availability
7
MAY 489497 MAY 489497 Contact Us For Availability
7
MAY W10637672 MAY W10637672 Contact Us For Availability
7
RAIL, TRACK (LEFT HAND) MAY W10468555 Contact Us For Availability
7
MAY W10612925 MAY W10612925 Contact Us For Availability
7
MAY W10314195 MAY W10314195 Contact Us For Availability
8
MAY 2254618 MAY 2254618 Contact Us For Availability
8
SOCKET, LIGHT MAY 2162085 Contact Us For Availability
8
MAY W10356844 MAY W10356844 Contact Us For Availability
8
MAY W10667848 MAY W10667848 Contact Us For Availability
8
MAY W10174384 MAY W10174384 Contact Us For Availability
9
MAY 2183852 MAY 2183852 Contact Us For Availability
9
MAY 8281232 MAY 8281232 Contact Us For Availability
9
MAY W10628713 MAY W10628713 Contact Us For Availability
9
MAY W10636409 MAY W10636409 Contact Us For Availability
9
MAY 2258429 MAY 2258429 Contact Us For Availability
9A
MAY W10668875 MAY W10668875 Contact Us For Availability
9B
MAY W10638683 MAY W10638683 Contact Us For Availability
10
MAY W10843861 MAY W10843861 Contact Us For Availability
10
MOTOR, EVAPORATOR FAN MAY 2315539 Contact Us For Availability
10
MAY W10628712 MAY W10628712 Contact Us For Availability
10
MAY W10663736 MAY W10663736 Contact Us For Availability
10
MAY 489478 MAY 489478 Contact Us For Availability
10A
MAY W10663737 MAY W10663737 Contact Us For Availability
10B
MAY W10663739 MAY W10663739 Contact Us For Availability
11
MAY W10520304 MAY W10520304 Contact Us For Availability
11
BLADE, FAN MAY 2200509 Contact Us For Availability
11
MAY W10809782 MAY W10809782 Contact Us For Availability
11
MAY 2262054 MAY 2262054 Contact Us For Availability
11
MAY W10637655 MAY W10637655 Contact Us For Availability
11A
HOLE PLUG (BLACK) MAY W10520305 Contact Us For Availability
11B
MAY W10520307 MAY W10520307 Contact Us For Availability
12
MAY W10498995 MAY W10498995 Contact Us For Availability
12
MAY W10676682 MAY W10676682 Contact Us For Availability
12
MAY W10809770 MAY W10809770 Contact Us For Availability
12
MAY W10638675 MAY W10638675 Contact Us For Availability
12
TIE, WIRE MAY 2263990 Contact Us For Availability
12A
MAY W10667843 MAY W10667843 Contact Us For Availability
12B
MAY W10638686 MAY W10638686 Contact Us For Availability
13
WASHER, PLASTIC MAY 489341 Contact Us For Availability
13
MAY W10556397 MAY W10556397 Contact Us For Availability
13
MAY W10628686 MAY W10628686 Contact Us For Availability
13
MAY 8281206 MAY 8281206 Contact Us For Availability
13
MAY W10633579 MAY W10633579 Contact Us For Availability
14
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
14
MAY W10677275 MAY W10677275 Contact Us For Availability
14
MAY W10694126 MAY W10694126 Contact Us For Availability
14
MAY 2189202 MAY 2189202 Contact Us For Availability
14
GROMMET MAY 2183042 Contact Us For Availability
15
MAY W10383615 MAY W10383615 Contact Us For Availability
15
MAY W10694125 MAY W10694125 Contact Us For Availability
15
MAY 488921 MAY 488921 Contact Us For Availability
15
DEVICE, START MAY W10448874 Contact Us For Availability
16
SHIM, TOP HINGE (WHITE) MAY 2221885 Contact Us For Availability
16
MAY W10668482 MAY W10668482 Contact Us For Availability
16
RAIL, TRACK (RIGHT HAND) MAY W10468556 Contact Us For Availability
16
HOLE PLUG (WHITE) MAY 2212648 Contact Us For Availability
16
CLIP, HARNESS MAY 2219077 Contact Us For Availability
16A
HOLE PLUG (BLACK) MAY 2212651 Contact Us For Availability
16B
HOLE PLUG (GREY) MAY 2254517 Contact Us For Availability
17
MAY W10475495 MAY W10475495 Contact Us For Availability
17
MAY W10633591 MAY W10633591 Contact Us For Availability
17
MAY W10820003 MAY W10820003 Contact Us For Availability
17
MAY W10730133 MAY W10730133 Contact Us For Availability
17
ENDCAP, TRIM MAY 2156003 Contact Us For Availability
18
AXLE, ROLLER MAY 981126 Contact Us For Availability
18
BRACKET, EVAPORATOR FAN REAR MAY 2254454 Contact Us For Availability
18
MAY W10809781 MAY W10809781 Contact Us For Availability
18
DOOR, COMPARTMENT MAY 2218113 Contact Us For Availability
18
AXLE, RIVET MAY 2179826 Contact Us For Availability
19
CLIP, ROLLER MAY 2174706 Contact Us For Availability
19
SWITCH, ROCKER ARM MAY 1118894 Contact Us For Availability
19
MAY W10809771 MAY W10809771 Contact Us For Availability
19
MAY 2188234 MAY 2188234 Contact Us For Availability
19
MAY W10590083 MAY W10590083 Contact Us For Availability
20
MAY W10674771 MAY W10674771 Contact Us For Availability
20
MAY W10628690 MAY W10628690 Contact Us For Availability
20
MAY W10667850 MAY W10667850 Contact Us For Availability
20
MAY W10300902 MAY W10300902 Contact Us For Availability
20A
MAY W10679135 MAY W10679135 Contact Us For Availability
20B
MAY W10679139 MAY W10679139 Contact Us For Availability
21
MAY W10674773 MAY W10674773 Contact Us For Availability
21
MAY W10637058 MAY W10637058 Contact Us For Availability
21
MAY W10667851 MAY W10667851 Contact Us For Availability
21
MAY W10314197 MAY W10314197 Contact Us For Availability
22
COVER, HINGE (WHITE) MAY 2213360 Contact Us For Availability
22
HOUSING, FREEZER LIGHTING MAY W10313917 Contact Us For Availability
22
MAY W10667853 MAY W10667853 Contact Us For Availability
22
MAY W10622701 MAY W10622701 Contact Us For Availability
22A
MAY 2213363 MAY 2213363 Contact Us For Availability
22B
COVER, HINGE (GREY) MAY 2254510 Contact Us For Availability
23
MAY W10671258 MAY W10671258 Contact Us For Availability
23
MAY W10570951 MAY W10570951 Contact Us For Availability
23
SET SCREW (SILVER) MAY W10010140 Contact Us For Availability
23
MAY W10527155 MAY W10527155 Contact Us For Availability
24
MAY W10638688 MAY W10638688 Contact Us For Availability
24
MAY W10677734 MAY W10677734 Contact Us For Availability
24
MAY W10638692 MAY W10638692 Contact Us For Availability
24
MAY W10669573 MAY W10669573 Contact Us For Availability
25
MAY W10646206 MAY W10646206 Contact Us For Availability
25
MAY W10633584 MAY W10633584 Contact Us For Availability
26
MAY W10570952 MAY W10570952 Contact Us For Availability
26
MAY 2212848 MAY 2212848 Contact Us For Availability
27
MAY 489442 MAY 489442 Contact Us For Availability
27
MAY W10339203 MAY W10339203 Contact Us For Availability
28
MAY W10674683 MAY W10674683 Contact Us For Availability
28
COMPRESSOR MAY W10445422 Contact Us For Availability
29
MAY W10321162 MAY W10321162 Contact Us For Availability
29
MAY W10139483 MAY W10139483 Contact Us For Availability
30
MAY W10487421 MAY W10487421 Contact Us For Availability
30
MAY W10633577 MAY W10633577 Contact Us For Availability
31
MAY W10674685 MAY W10674685 Contact Us For Availability
31
MAY W10646247 MAY W10646247 Contact Us For Availability
32
MAY W10705785 MAY W10705785 Contact Us For Availability
32
MAY 2215468 MAY 2215468 Contact Us For Availability
33
MAY W10336009 MAY W10336009 Contact Us For Availability
33
MAY W10633573 MAY W10633573 Contact Us For Availability
34
MAY W10330850 MAY W10330850 Contact Us For Availability
34
MAY 2326941 MAY 2326941 Contact Us For Availability
35
MAY W10574850 MAY W10574850 Contact Us For Availability
36
MAY W10440814 MAY W10440814 Contact Us For Availability
37
MAY W10313918 MAY W10313918 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
CORK, SEALER MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
BAG MAY 606755 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") MAY 876029 Contact Us For Availability
NI
INSULATION KIT (14 PIECES, 3" X 24" X 48") MAY 876305 Contact Us For Availability
NI
INSULATION (2 PIECES, 3" X 24" X 48") MAY 876370 Contact Us For Availability
NI
INSULATION, FIBERGLASS (63 1/2" X 35 1/2" X 2 MAY 978941 Contact Us For Availability
NI
MAY W10668817 MAY W10668817 Contact Us For Availability
NI
MAY W10669081 MAY W10669081 Contact Us For Availability
NI
MAY W10669082 MAY W10669082 Contact Us For Availability
NI
ICE MAKER FIELD INSTALLABLE, ICE MAKER ASSEMB MAY W10715709 Contact Us For Availability
× ![]()
Login and Registration Form
