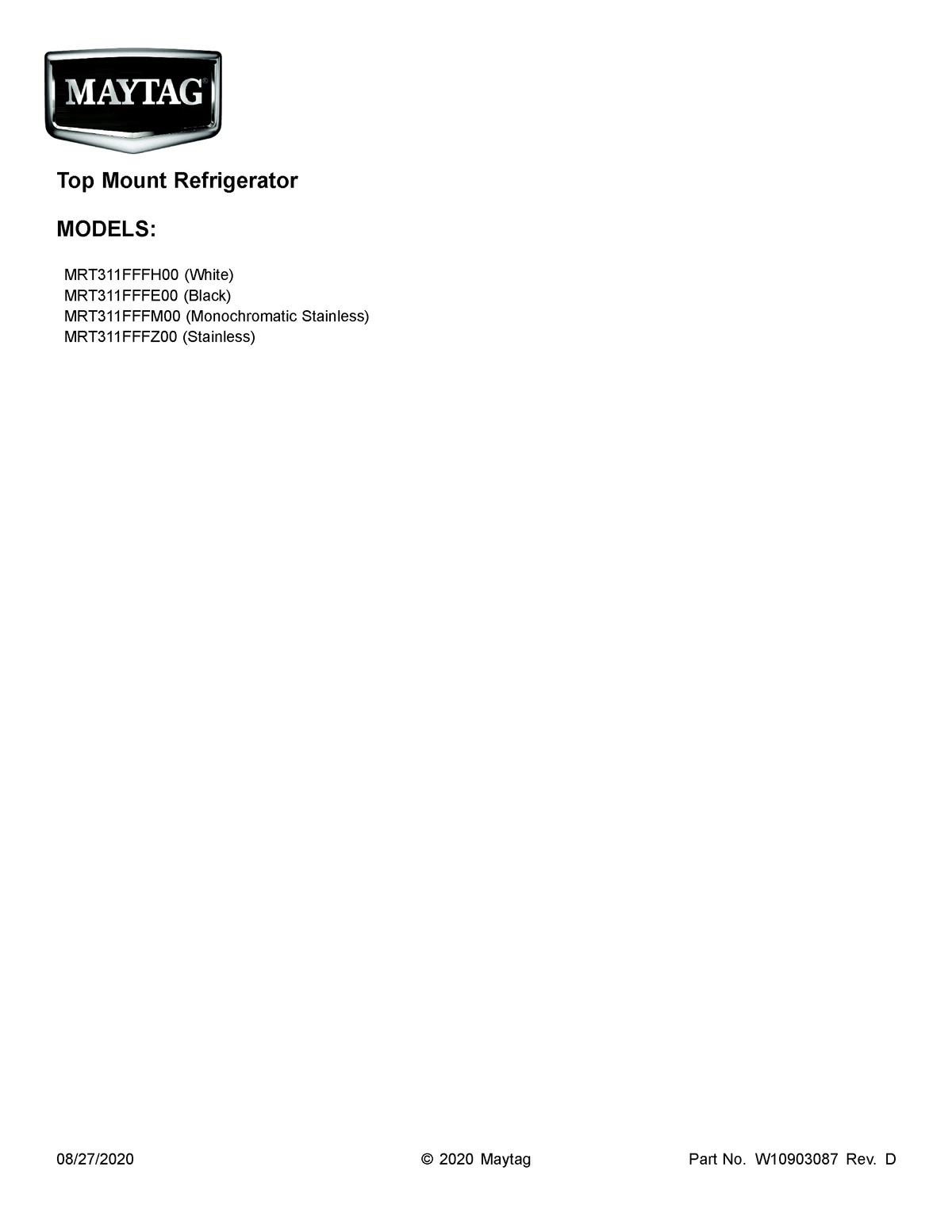

01 - COVER SHEET

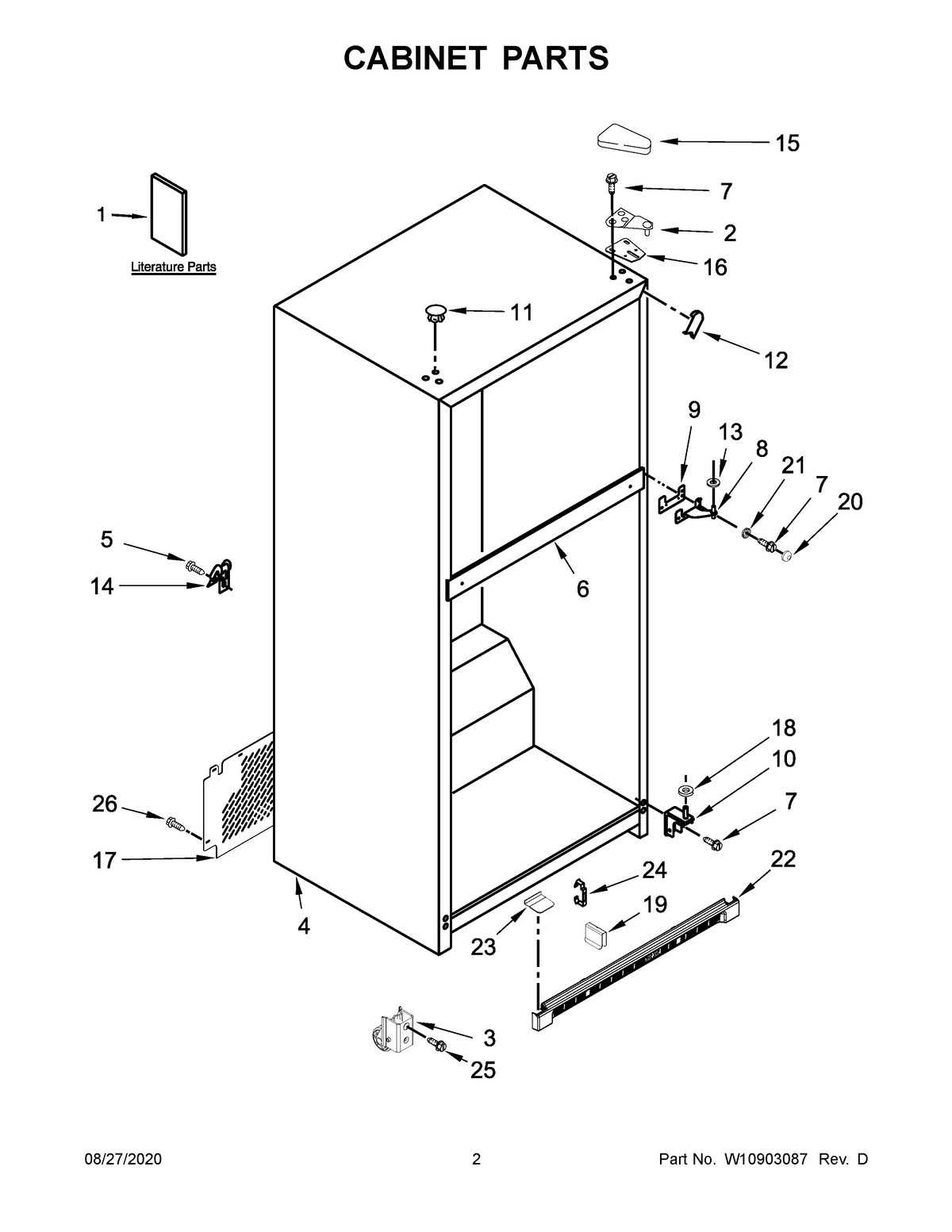

02 - CABINET PARTS

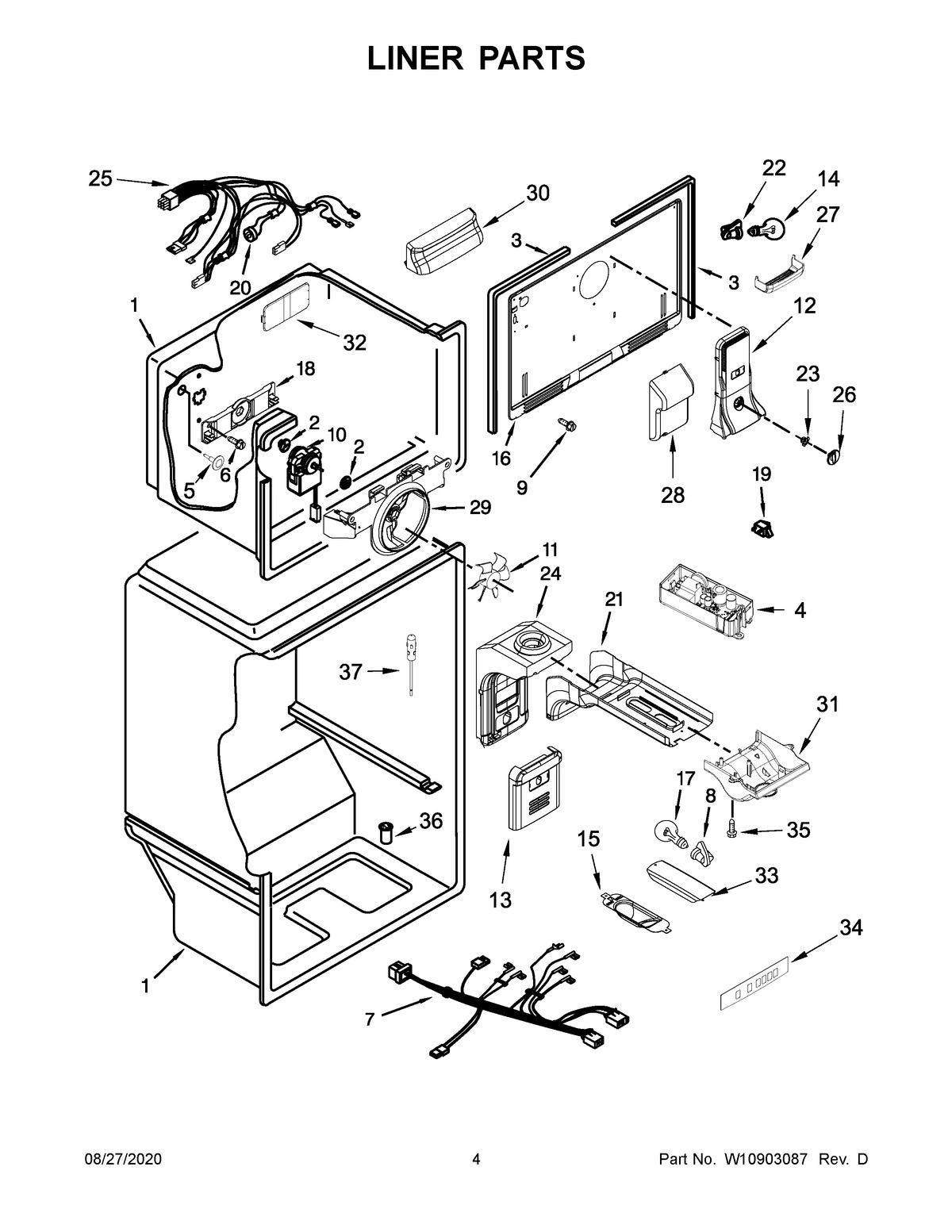

03 - LINER PARTS

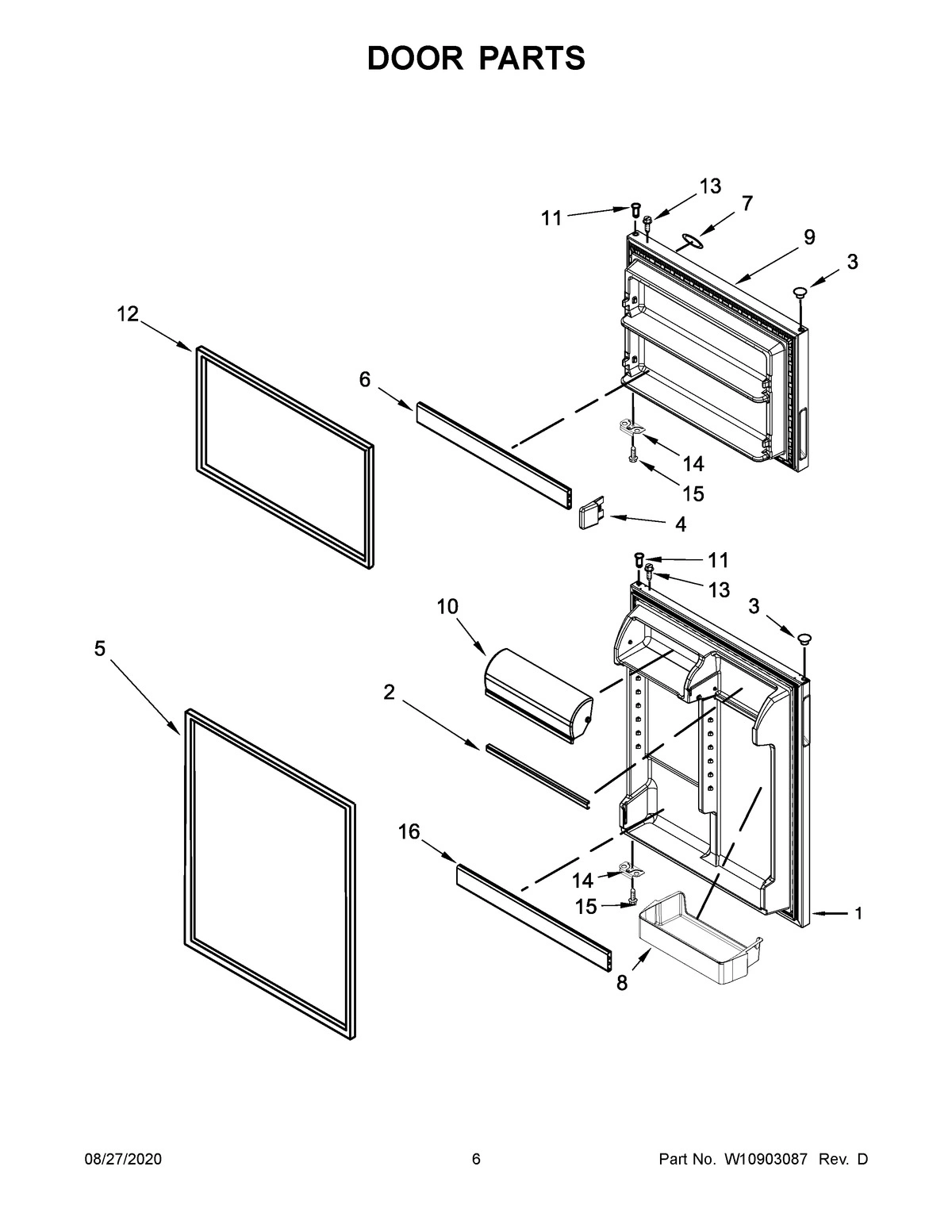

04 - DOOR PARTS

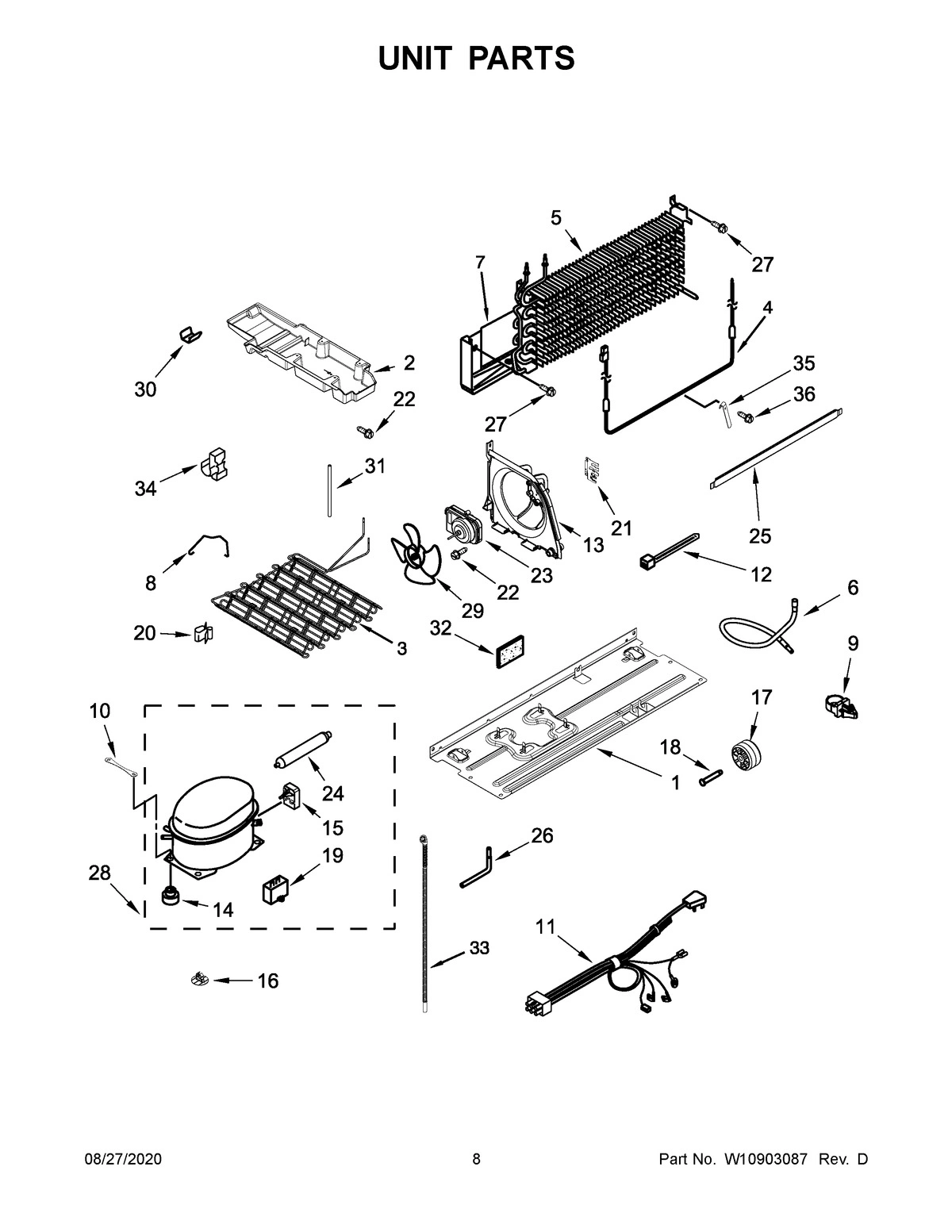

05 - UNIT PARTS

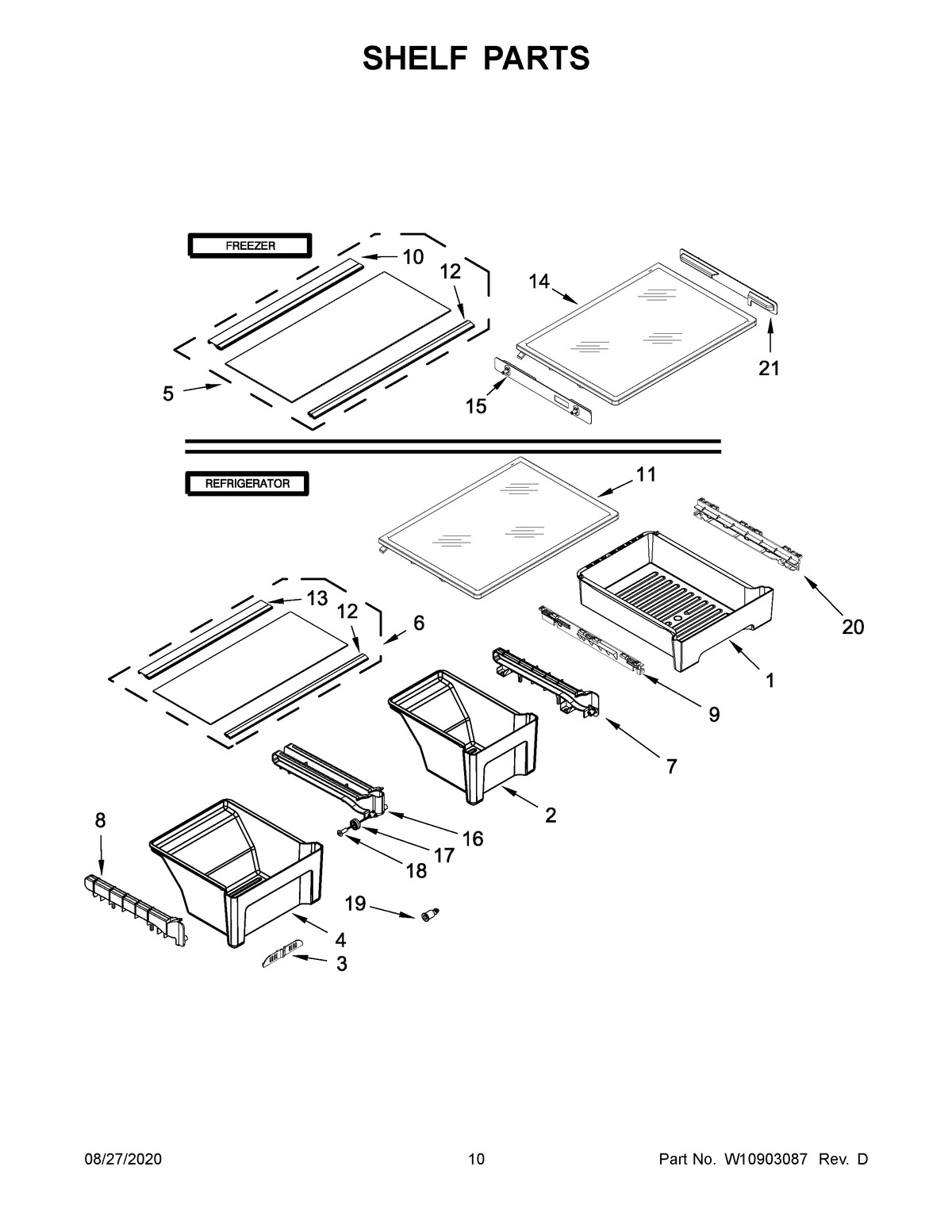

06 - SHELF PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag MRT311FFFZ00 REFRIGERATOR, TOP MOUNT
1
TECH SHEET MAY W10737602 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES DOOR GASKET) (WHI MAY W10668765 Contact Us For Availability
1
BASEPLATE MAY W10300118 Contact Us For Availability
1
PAN, MEAT MAY W10308849 Contact Us For Availability
1A
USE & CARE GUIDE MAY W10856273 Contact Us For Availability
1A
REFRIGERATOR DOOR (INCLUDES DOOR GASKET) (BLA MAY W10668767 Contact Us For Availability
1B
MAY W11095261 MAY W11095261 Contact Us For Availability
1B
REFRIGERATOR DOOR (INCLUDES DOOR GASKET) (MON MAY W10642552 Contact Us For Availability
1C
REFRIGERATOR DOOR (INCLUDES DOOR GASKET) (STA MAY W10856269 Contact Us For Availability
2
ASSEMBLY, TOP HINGE MAY 2261963 Contact Us For Availability
2
GROMMET MAY 2197380 Contact Us For Availability
2
TRIM, DOOR MAY W10720455 Contact Us For Availability
2
TRAY, DRAIN MAY W10802027 Contact Us For Availability
2
PAN, CRISPER MAY W10662133 Contact Us For Availability
3
ASSEMBLY, ROLLER MAY W10725960 Contact Us For Availability
3
GASKET, EVAPORATOR COVER MAY 2254360 Contact Us For Availability
3
PLUG, HINGE SLEEVE (WHITE) MAY 2212648 Contact Us For Availability
3
CONDENSER MAY W10609393 Contact Us For Availability
3
CONTROL, HUMIDITY MAY W10356844 Contact Us For Availability
3A
PLUG, HINGE SLEEVE (BLACK) MAY 2212651 Contact Us For Availability
3B
PLUG, HINGE SLEEVE (GREY) MAY 2254517 Contact Us For Availability
4
CONTROL, ADAPTIVE DEFROST MAY W11176898 Contact Us For Availability
4
ENDCAP, TRIM MAY 2156003 Contact Us For Availability
4
HEATER, DEFROST MAY W10316428 Contact Us For Availability
4
PAN, CRISPER 16" MAY W10663427 Contact Us For Availability
5
HOLE PLUG (WHITE) MAY 941839 Contact Us For Availability
5
GASKET, DOOR (WHITE) MAY W10692652 Contact Us For Availability
5
ASSEMBLY, EVAPORATOR MAY W10570565 Contact Us For Availability
5
ASSEMBLY, SHELF CRISPER MAY W10809778 Contact Us For Availability
5A
GASKET, DOOR (BLACK) MAY 2202882 Contact Us For Availability
5B
GASKET, DOOR (GREY) MAY W10171475 Contact Us For Availability
6
SCREW MAY 488208 Contact Us For Availability
6
TRIM, DOOR MAY W10720452 Contact Us For Availability
6
TUBE, SUCTION MAY W10510988 Contact Us For Availability
6
ASSEMBLY, SHELF RC MAY W10809777 Contact Us For Availability
7
SCREW MAY 489497 Contact Us For Availability
7
ASSEMBLY, CONTROL BOX WIRE MAY W11203362 Contact Us For Availability
7
BADGE MAY W10612925 Contact Us For Availability
7
SHIELD, HEAT MAY W10314195 Contact Us For Availability
7
TRACK RAIL, RIGHT HAND MAY W10694151 Contact Us For Availability
8
HINGE, CENTER MAY 2254618 Contact Us For Availability
8
SOCKET, LIGHT MAY 2162085 Contact Us For Availability
8
BIN, DOOR MAY W10582649 Contact Us For Availability
8
STRAP, BALE MAY W10174384 Contact Us For Availability
8
TRACK RAIL, LEFT HAND MAY W10694149 Contact Us For Availability
9
SHIM, HINGE CENTER MAY 2183852 Contact Us For Availability
9
SCREW (WHITE) MAY W10142283 Contact Us For Availability
9
FREEZER DOOR (INCLUDES DOOR GASKET) (WHITE) MAY W10668769 Contact Us For Availability
9
CLIP, HARNESS MAY 2219077 Contact Us For Availability
9
RAIL, TRACK (LEFT HAND) MAY W10468555 Contact Us For Availability
9A
FREEZER DOOR (INCLUDES DOOR GASKET) (BLACK) MAY W10668770 Contact Us For Availability
9B
FREEZER DOOR (INCLUDES DOOR GASKET) (MONOCHRO MAY W10642758 Contact Us For Availability
9C
FREEZER DOOR (INCLUDES DOOR GASKET) (STAINLES MAY W10856271 Contact Us For Availability
10
HINGE, BOTTOM MAY 2254473 Contact Us For Availability
10
MOTOR, EVAPORATOR FAN MAY 2315539 Contact Us For Availability
10
DOOR, COMPARTMENT MAY W10385897 Contact Us For Availability
10
STRAP, COMPRESSOR MAY W10236396 Contact Us For Availability
10
TRIM, SHELF REAR MAY W10691459 Contact Us For Availability
11
PLUG, HOLE (WHITE) MAY W10520304 Contact Us For Availability
11
BLADE, FAN MAY 2200509 Contact Us For Availability
11
THIMBLE MAY 2314293 Contact Us For Availability
11
MAY W11238439 MAY W11238439 Contact Us For Availability
11
ASSEMBLY, SHELF MAY W10579374 Contact Us For Availability
11A
PLUG, HOLE (BLACK) MAY W10520305 Contact Us For Availability
11B
PLUG, HOLE (GREY) MAY W10520307 Contact Us For Availability
12
FILLER, WRAPPER (WHITE) MAY W11219639 Contact Us For Availability
12
AIR TOWER, FC MAY W10707377 Contact Us For Availability
12
GASKET, DOOR (WHITE) MAY W10692653 Contact Us For Availability
12
TIE, WIRE MAY 2263990 Contact Us For Availability
12
TRIM, SHELF FRONT MAY W10809768 Contact Us For Availability
12A
FILLER, WRAPPER (BLACK) MAY W11219641 Contact Us For Availability
12A
GASKET, DOOR (BLACK) MAY 2214969 Contact Us For Availability
12B
FILLER, WRAPPER (GREY) MAY W11219642 Contact Us For Availability
12B
GASKET, DOOR (GREY) MAY W10171479 Contact Us For Availability
13
WASHER, PLASTIC MAY 489341 Contact Us For Availability
13
CUP, AIR DIFFUSER MAY W10609502 Contact Us For Availability
13
SCREW MAY 8281206 Contact Us For Availability
13
BRACKET, CONDENSER FAN MAY 2315541 Contact Us For Availability
13
TRIM, SHELF REAR MAY W10730166 Contact Us For Availability
14
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
14
LAMP, LED MAY W11160686 Contact Us For Availability
14
BRACKET, DOOR STOP MAY 2189202 Contact Us For Availability
14
GROMMET, COMPRESSOR MAY 10835903SP Contact Us For Availability
14
SHELF, FREEZER GLASS MAY W10601431 Contact Us For Availability
15
COVER, HINGE (WHITE) MAY 2213360 Contact Us For Availability
15
SHIELD, LIGHT MAY W10300161 Contact Us For Availability
15
SCREW MAY 489276 Contact Us For Availability
15
DEVICE, START MAY W10448874 Contact Us For Availability
15
SUPPORT, FREEZER SHELF (LEFT SIDE) MAY W10345367 Contact Us For Availability
15A
COVER, HINGE (BLACK) MAY 2213363 Contact Us For Availability
15B
COVER, HINGE (GREY) MAY 2254510 Contact Us For Availability
16
HINGE SHIM (WHITE) MAY 2221885 Contact Us For Availability
16
COVER, EVAPORATOR MAY W10617507 Contact Us For Availability
16
MAY W11230195 MAY W11230195 Contact Us For Availability
16
CLIP, BOTTOM COVER MAY W10815861 Contact Us For Availability
16
RAIL, CENTER TRACK MAY W10694150 Contact Us For Availability
17
COVER, UNIT MAY W10609390 Contact Us For Availability
17
LAMP, LED MAY W11125625 Contact Us For Availability
17
ROLLER MAY W10475495 Contact Us For Availability
17
ROLLER, PAN MAY W10628713 Contact Us For Availability
18
WASHER, PLASTIC MAY 487576 Contact Us For Availability
18
BRACKET, EVAPORATOR FAN REAR MAY 2254454 Contact Us For Availability
18
AXLE, RIVET MAY 2179826 Contact Us For Availability
18
SCREW (STAINLESS) MAY 3400065 Contact Us For Availability
19
CLIP, ROLLER MAY 2174706 Contact Us For Availability
19
SWITCH, ROCKER ARM MAY W11428639 Contact Us For Availability
19
CAPACITOR MAY W10590083 Contact Us For Availability
19
AXLE, ROLLER MAY W10628712 Contact Us For Availability
20
CAP, DOME (WHITE) MAY W10674771 Contact Us For Availability
20
CLIP, WIRE MAY 939054 Contact Us For Availability
20
RAIL, TRACK (RIGHT HAND) MAY W10468556 Contact Us For Availability
20A
CAP, DOME (BLACK) MAY W10679135 Contact Us For Availability
20B
CAP, DOME (GREY) MAY W10679139 Contact Us For Availability
21
CAP, WASHER DOME MAY W10674773 Contact Us For Availability
21
COVER, AIR DIFFUSER MAY W10305175 Contact Us For Availability
21
BRACKET, EVAPORATOR MAY W10314197 Contact Us For Availability
21
SUPPORT, FREEZER SHELF (RIGHT SIDE) MAY W10345368 Contact Us For Availability
22
GRILLE (WHITE) MAY W10592141 Contact Us For Availability
22
SOCKET, LIGHT MAY W10440814 Contact Us For Availability
22
SCREW MAY W10622701 Contact Us For Availability
22A
GRILLE (BLACK) MAY W10592142 Contact Us For Availability
22B
GRILLE (GREY) MAY W10592144 Contact Us For Availability
23
COVER, TOE GRILLE (WHITE) MAY W10600071 Contact Us For Availability
23
BAFFLE, AIR MANUAL MAY W10662269 Contact Us For Availability
23
MOTOR, CONDENSER FAN MAY W10909387 Contact Us For Availability
23A
COVER, TOE GRILLE (BLACK) MAY W10468609 Contact Us For Availability
23B
COVER, TOE GRILLE (GREY) MAY W10468611 Contact Us For Availability
24
CLIP, GRILLE MAY 2254385 Contact Us For Availability
24
ASSEMBLY, MULTIFLOW MAY W10883330 Contact Us For Availability
24
DRIER MAY W10669573 Contact Us For Availability
25
SCREW MAY W10142287 Contact Us For Availability
25
ASSEMBLY, FREEZER WIRE MAY W10487766 Contact Us For Availability
25
COVER, HEATER MAY W10300902 Contact Us For Availability
26
SCREW MAY 2262176 Contact Us For Availability
26
KNOB, AIR CONTROL MAY W10570952 Contact Us For Availability
26
TUBE, PROCESS MAY VS20001 Contact Us For Availability
27
SCREW MAY 489442 Contact Us For Availability
27
LENS, LIGHT MAY W10313918 Contact Us For Availability
28
COVER, WATER TUBE MAY W10339203 Contact Us For Availability
28
COMPRESSOR MAY W10445423 Contact Us For Availability
29
BRACKET, FAN MOTOR MAY W10321162 Contact Us For Availability
29
BLADE, FAN MAY W10817071 Contact Us For Availability
30
HOUSING, FREEZER LIGHTING MAY W10313917 Contact Us For Availability
30
CLIP, CONDENSER MAY W10248621 Contact Us For Availability
31
BOX, CONTROL MAY W10841668 Contact Us For Availability
31
VALVE, DRAIN MAY W10519112 Contact Us For Availability
32
CUP, SCREW MAY W10336009 Contact Us For Availability
32
INSULATION, SOUND MAY 2215468 Contact Us For Availability
33
COVER, LIGHT MAY W10348614 Contact Us For Availability
33
TUBE, DRAIN MAY W10475011 Contact Us For Availability
34
OVERLAY MAY W10871749 Contact Us For Availability
34
CLIP, WIRE MAY 2326941 Contact Us For Availability
35
SCREW MAY 489174 Contact Us For Availability
35
HEAT PROBE MAY 2258429 Contact Us For Availability
36
VALVE, RELEASE MAY 2210509 Contact Us For Availability
36
SCREW MAY 489478 Contact Us For Availability
37
THERMISTOR MAY W10384183 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4") MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8") MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
CORK, SEALER MAY 503695 Contact Us For Availability
NI
SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
CEMENT, ALUMILASTIC (1 1/4 OZ.) MAY 542639 Contact Us For Availability
NI
BAG MAY 606755 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") MAY 876029 Contact Us For Availability
NI
INSULATION KIT (14 PIECES, 3" X 24" X 48") MAY 876305 Contact Us For Availability
NI
INSULATION (2 PIECES, 3" X 24" X 48") MAY 876370 Contact Us For Availability
NI
INSULATION, FIBERGLASS (63 1/2" X 35 1/2" X 2 MAY 978941 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. APOLLO GREY) MAY W10134625 Contact Us For Availability
NI
DOOR REVERSAL KIT, WHITE MODEL MAY W10668817 Contact Us For Availability
NI
DOOR REVERSAL KIT, BLACK MODEL MAY W10669081 Contact Us For Availability
NI
DOOR REVERSAL KIT, STAINLESS MODEL MAY W10669082 Contact Us For Availability
NI
ICE MAKER ASSEMBLY (ECKMF95) MAY W10715708 Contact Us For Availability
× ![]()
Login and Registration Form
