Model Whirlpool MRT11- REFRIGERATOR – Common Parts & Diagrams

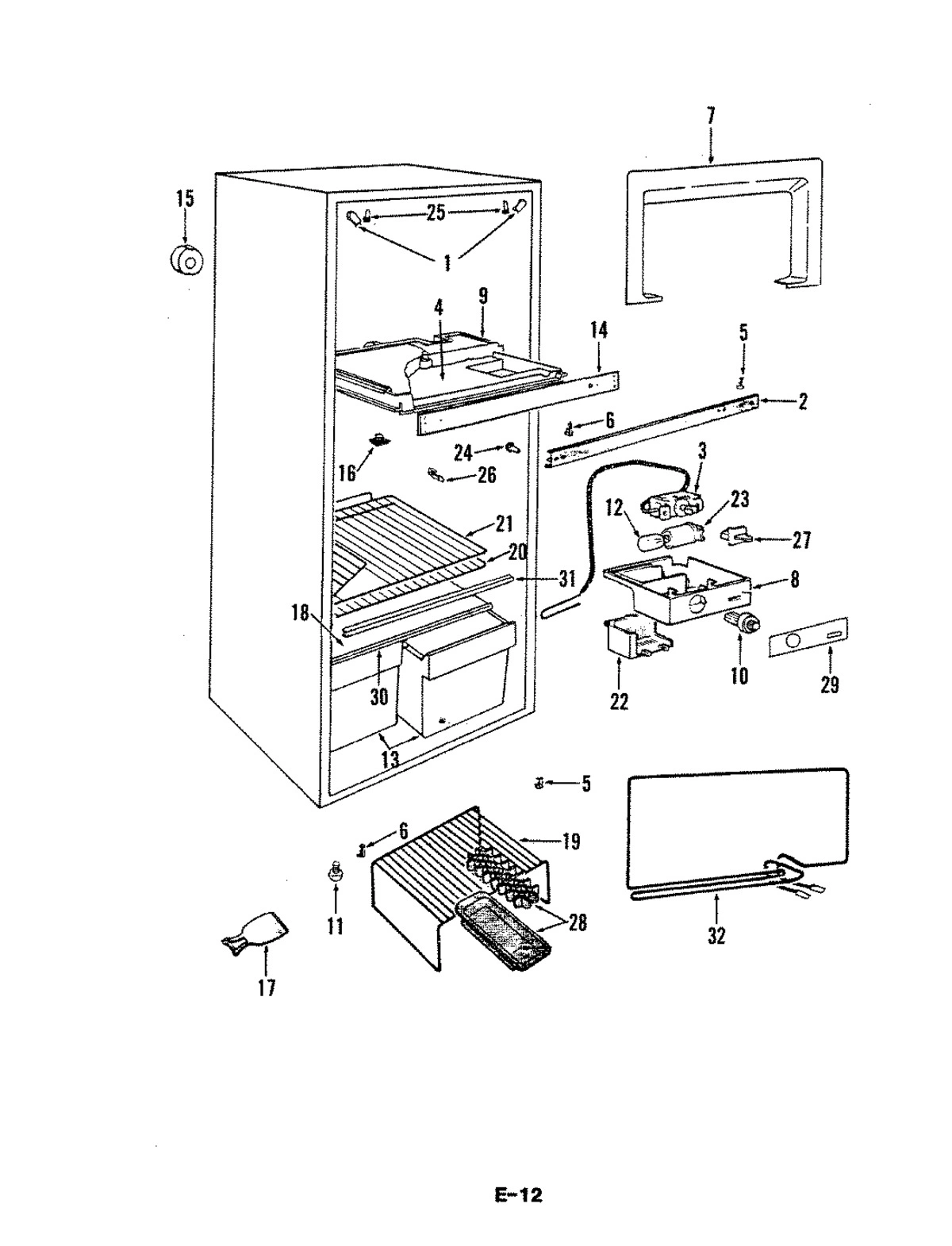

01 - FRESH FOOD & FREEZER COMPARTMENT

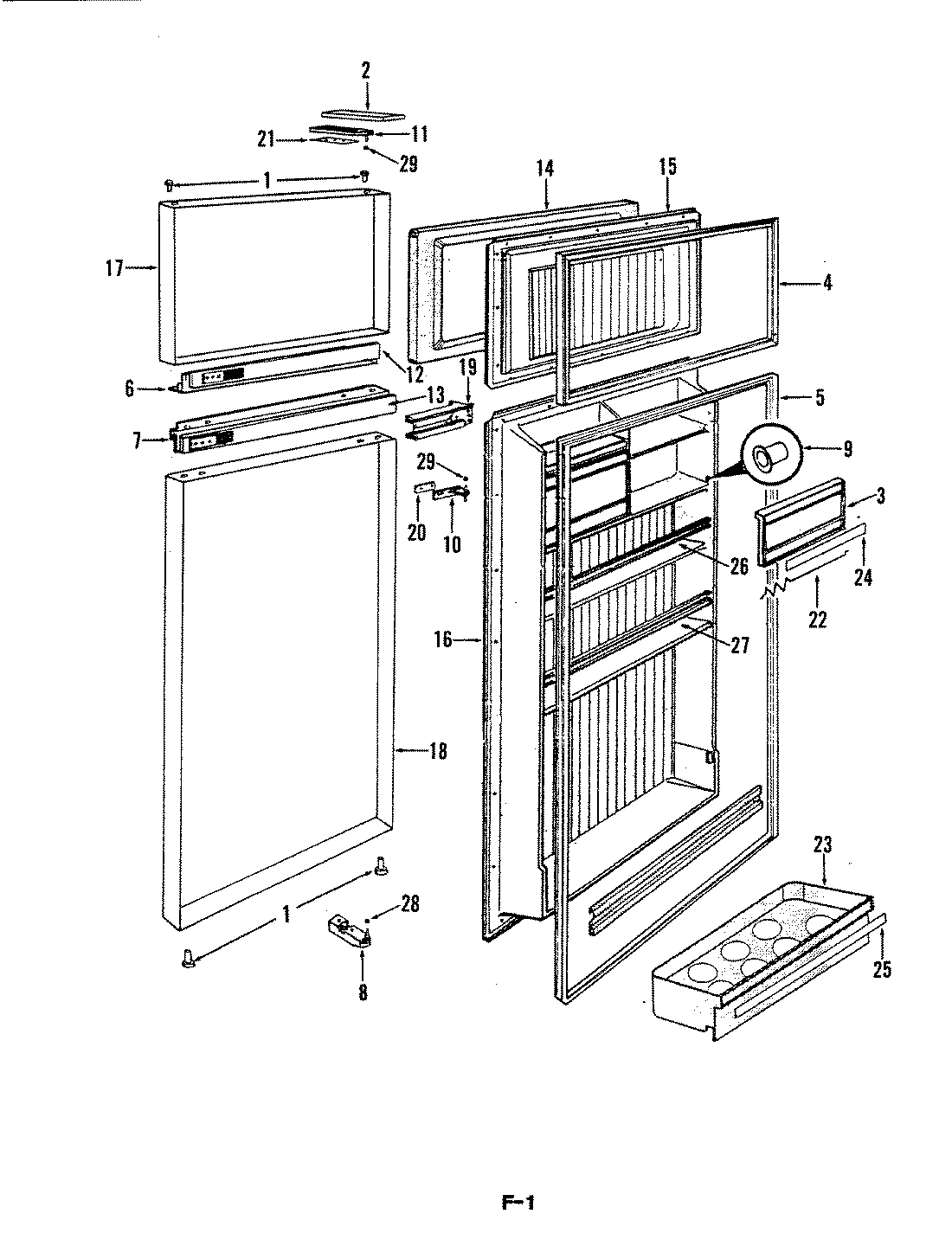

02 - FRESH FOOD & FREEZER DOOR
01 - FRESH FOOD & FREEZER COMPARTMENT

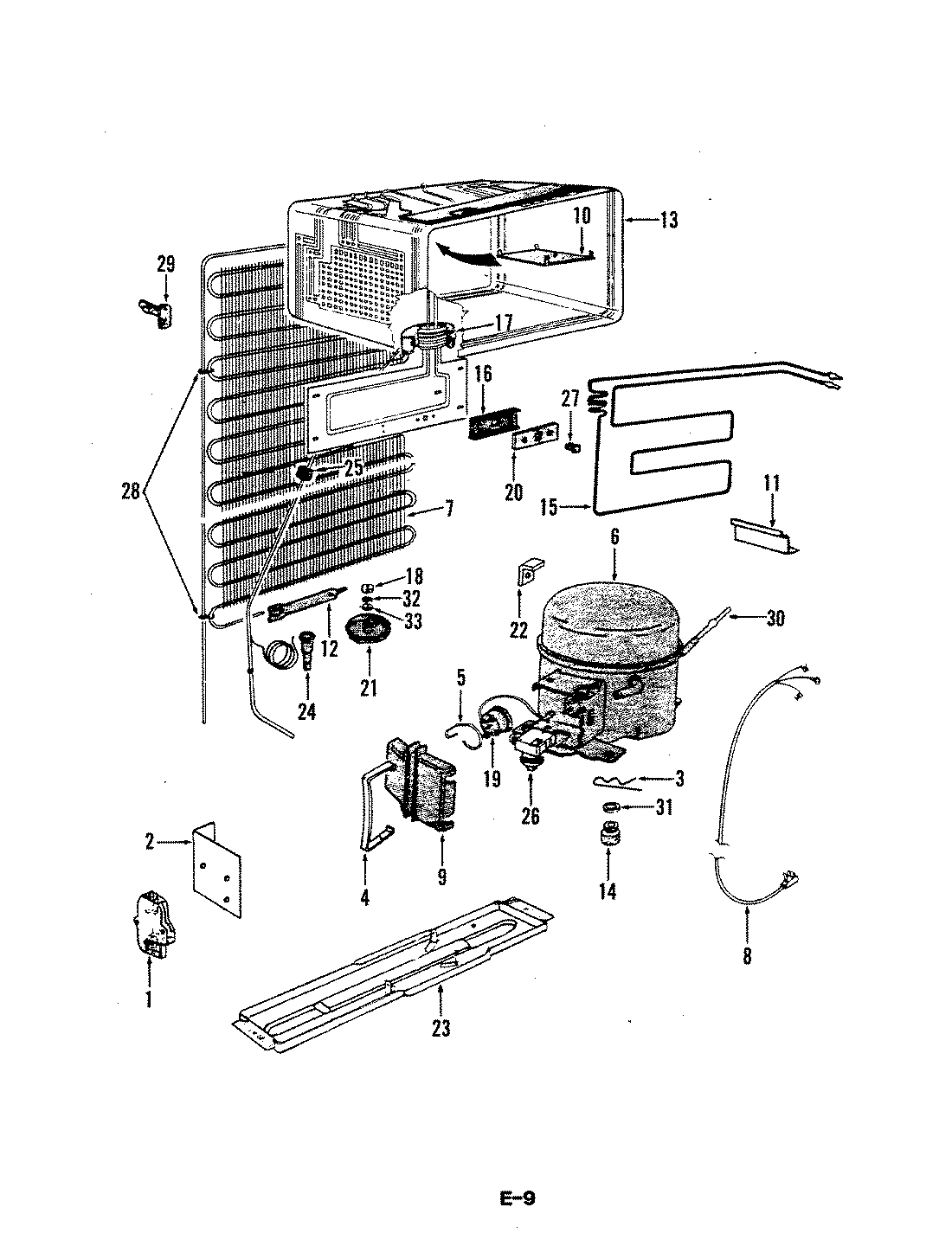

03 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool MRT11- REFRIGERATOR
1
COVER WPL 122904920 Contact Us For Availability
1
UPR CORNR COVER WPL 122905023 Contact Us For Availability
1
PLATE WPL 121101057 Contact Us For Availability
1
BUSHING WPL 122903913 Contact Us For Availability
1
DOOR CAP WPL 122904981 Contact Us For Availability
1
DOOR CAP WPL 122904982 Contact Us For Availability
1
DOOR CAP WPL 658151 Contact Us For Availability
1
CLIP WPL 658961 Contact Us For Availability
1
JUNCTION BLOCK WPL 129602850 Contact Us For Availability
2
MULLION DIVIDER CHANNEL WPL 121101050 Contact Us For Availability
2
UPR HINGE COVER WPL 122904948 Contact Us For Availability
2
UPR HINGE COVER WPL 122905002 Contact Us For Availability
2
SUPPORT WPL 121900979 Contact Us For Availability
2
BUSHING WPL 127900013 Contact Us For Availability
3
CONTROL, TEMPERATURE WPL 126100332 Contact Us For Availability
3
DOOR, BUTTER WPL 658241 Contact Us For Availability
3
CLIP, COMPRESSOR MTG. WPL 123800132 Contact Us For Availability
4
DIVIDER WPL 122406040 Contact Us For Availability
4
UPR DOOR GASKET WPL 124100740 Contact Us For Availability
4
CLIP WPL 127900210 Contact Us For Availability
5
MULLION BAR WPL 121101105 Contact Us For Availability
5
LWR DOOR GASKET WPL 124100742 Contact Us For Availability
5
CLIP WPL 127900212 Contact Us For Availability
6
END CAP, MULLION DIVIDER WPL 122904925 Contact Us For Availability
6
UPR DOOR HANDLE WPL 658141 Contact Us For Availability
6
COMPRESSOR WPL 127100704 Contact Us For Availability
7
LAMP GUARD WPL 122904942 Contact Us For Availability
7
HOLDER WPL 126300197 Contact Us For Availability
7
FREEZER FRAME WPL 658251 Contact Us For Availability
7
DOOR HANDLE WPL 658142 Contact Us For Availability
7
CONDENSER WPL 127300410 Contact Us For Availability
7
TUBING WPL 127500435 Contact Us For Availability
8
INSULATION WPL 125900492 Contact Us For Availability
8
CONTROL HOUSING WPL 658311 Contact Us For Availability
8
LOWER HINGE WPL 122904852 Contact Us For Availability
8
CORD, POWER WPL 129623002 Contact Us For Availability
9
DVDR INSULATION WPL 125900755 Contact Us For Availability
9
BUSHING, BUTTER DOOR WPL 123800120 Contact Us For Availability
9
COVER WPL 127900211 Contact Us For Availability
10
KNOB WPL 122904890 Contact Us For Availability
10
CENTER HINGE WPL 121600148 Contact Us For Availability
10
COVER WPL 659161 Contact Us For Availability
11
LEVELER WPL 122905044 Contact Us For Availability
11
UPPER HINGE WPL 121600199 Contact Us For Availability
11
COVER WPL 122903509 Contact Us For Availability
12
NUT WPL 122904434 Contact Us For Availability
12
LAMP WPL 126300110 Contact Us For Availability
12
SUPPORT BLOCK WPL 659021 Contact Us For Availability
13
PAN, CRISPER WPL 658271 Contact Us For Availability
13
NAMEPLATE WPL 6589310 Contact Us For Availability
13
EVAPORATOR ASM WPL 129904779 Contact Us For Availability
14
MULLION PLATE WPL 121901083 Contact Us For Availability
14
INSULATION WPL 125900776 Contact Us For Availability
14
GROMMET, COMPRESS.MTG.(NECCHI) WPL 124400314 Contact Us For Availability
15
PLUG WPL 125900754 Contact Us For Availability
15
LINER, DOOR WPL 658221 Contact Us For Availability
15
HEATER, DEFROST WPL 129625039 Contact Us For Availability
16
DIVIDER PLUG WPL 122904699 Contact Us For Availability
16
LINER, DOOR WPL 658231 Contact Us For Availability
16
HOLDER CLAMP CAPILLARY TUBE WPL 121900070 Contact Us For Availability
17
DEFROST KNIFE WPL 122900715 Contact Us For Availability
17
SCREW WPL 912339253 Contact Us For Availability
17
SCREW WPL 991350529 Contact Us For Availability
17
SCREW WPL 991350531 Contact Us For Availability
17
OUTER PANEL WPL 121502984 Contact Us For Availability
17
OUTER PANEL WPL 121503014 Contact Us For Availability
17
INSULATOR, HUMIPLATE ASSY. WPL 121901064 Contact Us For Availability
18
CRISPER COVER WPL 124900478 Contact Us For Availability
18
OUTER PANEL WPL 121502985 Contact Us For Availability
18
OUTER PANEL WPL 121503015 Contact Us For Availability
18
NUT WPL 920143233 Contact Us For Availability
19
FRZR SHELF WPL 123301160 Contact Us For Availability
19
PLATE WPL 122904922 Contact Us For Availability
19
SCREW WPL 40001512 Contact Us For Availability
19
PLUG WPL 659662 Contact Us For Availability
19
PLUG WPL 659663 Contact Us For Availability
19
SCREW WPL 918336239 Contact Us For Availability
19
OVERLOAD WPL 126201496 Contact Us For Availability
20
SHELF WPL 123301143 Contact Us For Availability
20
BTM HINGE PAD WPL 122904889 Contact Us For Availability
20
CAP PAD WPL 121900462 Contact Us For Availability
21
SHELF WPL 123301144 Contact Us For Availability
21
HINGE PAD WPL 122904728 Contact Us For Availability
21
HINGE PAD WPL 122905032 Contact Us For Availability
21
DEFROST PAN WPL 121901069 Contact Us For Availability
22
SOCKET COVER WPL 126300185 Contact Us For Availability
22
SPRING WPL 123800195 Contact Us For Availability
22
GROUND PLATE WPL 121900942 Contact Us For Availability
23
SOCKET BODY WPL 126300122 Contact Us For Availability
23
TRAY, EGG WPL 658261 Contact Us For Availability
23
CABINET BASE WPL 121400194 Contact Us For Availability
23
GROUND PLATE WPL 121901073 Contact Us For Availability
24
SPACER WPL 122904732 Contact Us For Availability
24
TRIM WPL 658361 Contact Us For Availability
24
DRAIN FILTER WPL 122904827 Contact Us For Availability
25
SPACER WPL 122904105 Contact Us For Availability
25
SPRING WPL 940110126 Contact Us For Availability
25
TRIM WPL 658341 Contact Us For Availability
25
INSERT WPL 125900727 Contact Us For Availability
26
SHELF STOP WPL 658301 Contact Us For Availability
26
DOOR GUARD WPL 658331 Contact Us For Availability
26
RELAY, START WPL 659712 Contact Us For Availability
27
DRIP TRAY WPL 122905058 Contact Us For Availability
27
LIGHT SWITCH WPL 126900188 Contact Us For Availability
27
SCREW WPL 991341239 Contact Us For Availability
27
TRIM WPL 658381 Contact Us For Availability
27
RIVET CLAMP WPL 122904812 Contact Us For Availability
27
SCREW WPL 912331232 Contact Us For Availability
27
SCREW WPL 912331323 Contact Us For Availability
27
SCREW WPL 917131132 Contact Us For Availability
27
SCREW WPL 991131184 Contact Us For Availability
28
WASHER WPL 122900184 Contact Us For Availability
28
SPACER WPL 122904714 Contact Us For Availability
29
LABEL TRIM WPL 658371 Contact Us For Availability
29
WASHER WPL 122904825 Contact Us For Availability
29
SUPPORT WPL 122904786 Contact Us For Availability
30
TRIM WPL 658281 Contact Us For Availability
30
DRAIN TUBE WPL 122904896 Contact Us For Availability
30
CHARGING TUBE WPL 127500015 Contact Us For Availability
30
TUBE WPL 127500434 Contact Us For Availability
31
TRIM WPL 658291 Contact Us For Availability
31
WASHER WPL 993279715 Contact Us For Availability
31
WASHER,COMPRESSOR MTG. WPL 121900930 Contact Us For Availability
32
HEATER, MULLION WPL 129625037 Contact Us For Availability
32
WASHER WPL 993041134 Contact Us For Availability
33
HARNESS, WIRE WPL 102960024 Contact Us For Availability
33
WASHER WPL 993210561 Contact Us For Availability
× ![]()
