Model LG MR140 – Common Parts & Diagrams
Diagram 0

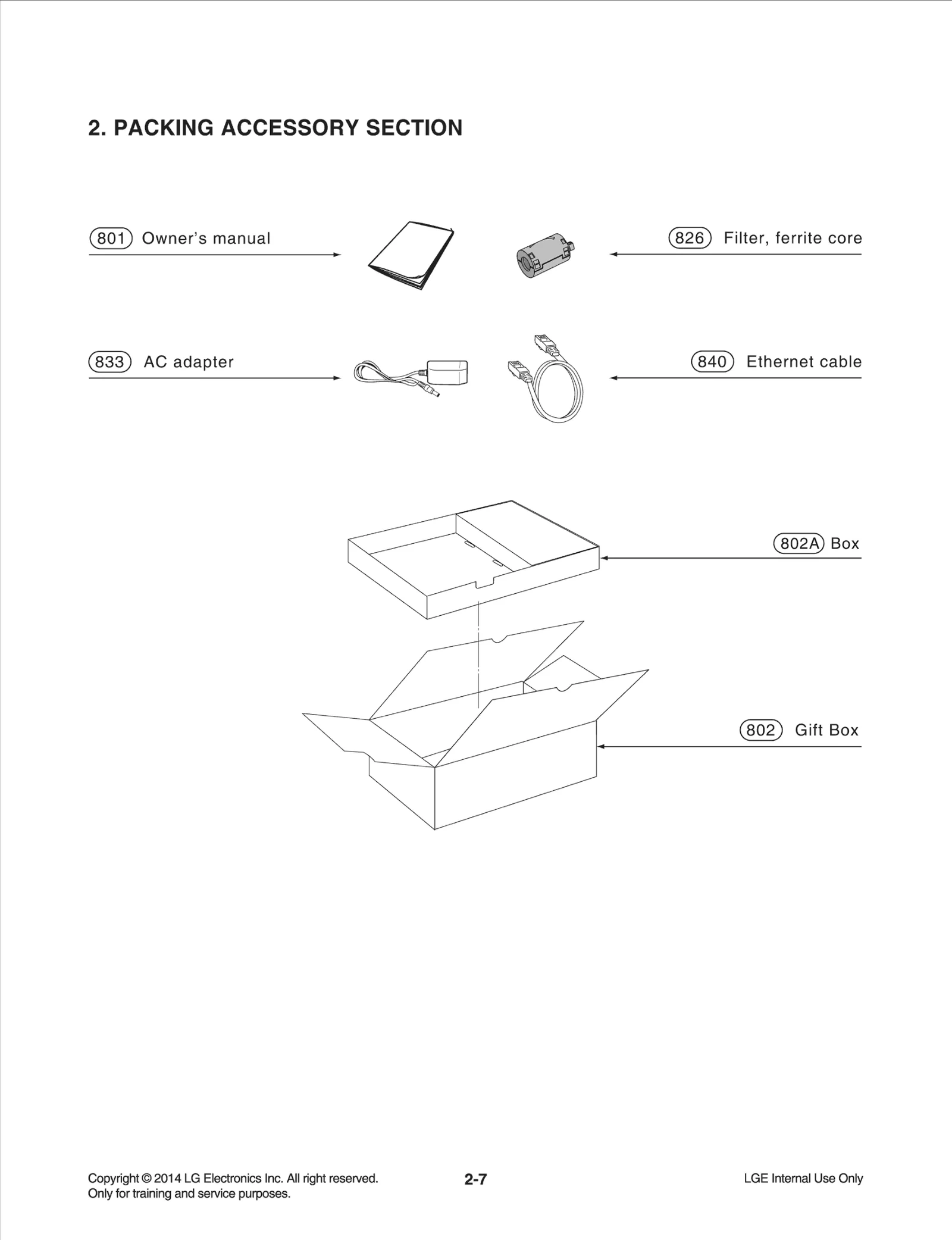

Diagram 1
Diagram 2
Common parts from model LG MR140
250
Cover Assembly LGE ACQ87071405 Contact Us For Availability
260
Cover LGE MCK67127002 Contact Us For Availability
261
Damper LGE 4850R-0037Z Contact Us For Availability
262
Bracket LGE MAZ63464901 Contact Us For Availability
271
Holder Assembly LGE AEJ73619403 Contact Us For Availability
272
Holder LGE MEG63878601 Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
801
Manual Assembly,Owners LGE AFN76692808 Contact Us For Availability
802
Box,Master LGE MAY66245008 Contact Us For Availability
802A
Packing LGE MFZ63331493 Contact Us For Availability
833
Adapters LGE EAY62851502 Contact Us For Availability
840
Cable,Assembly LGE EAD00926132 Contact Us For Availability
A44
Cover Assembly LGE ACQ85896507 Contact Us For Availability
A46
LFS Total PCB Assembly LGE EBT63083405 Contact Us For Availability
A51
Module,Wifi Module LGE EAT61813901 Contact Us For Availability
C164
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C169
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C174
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C186
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C527
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C587
Capacitor,Ceramic,Chip LGE EAE30936401 Contact Us For Availability
C590
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C636
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C639
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C642
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C644
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C656
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C665
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
CABLE1
Harness,Single LGE EAD61073421 Contact Us For Availability
CN102
Connector,Wafer LGE 6602T12005J Contact Us For Availability
CN502
Connector,Wafer LGE 6630R3S006A Contact Us For Availability
IC150
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
IC152
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
IC501
IC,Video Processors LGE EAN62228905 Contact Us For Availability
IC502
IC,Voltage Detector LGE EAN61386701 Contact Us For Availability
IC602
IC,DDR3 SDRAM LGE EAN61859502 Contact Us For Availability
IC603A
S/W,System Program LGE SAA36940501 Contact Us For Availability
IC604
IC,Protocol Controller LGE EAN62908001 Contact Us For Availability
JK101
Jack,DC Power LGE EAG63550501 Contact Us For Availability
JK501
Jack,Modular LGE EAG32089105 Contact Us For Availability
L152
Inductor,Wire Wound,Chip LGE EAP61747401 Contact Us For Availability
LD103
LED,Chip LGE EAV62672001 Contact Us For Availability
Q102
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
R156
Resistor,Chip LGE 0RJ5602C678 Contact Us For Availability
R157
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R160
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R162
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R163
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R166
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R167
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R168
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R169
Resistor,Chip LGE 0RZZ000066A Contact Us For Availability
R170
Resistor,Chip LGE 0RJ3902C478 Contact Us For Availability
R171
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R180
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R181
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R186
Resistor,Chip LGE 0RH0152C622 Contact Us For Availability
R190
Resistor,Chip LGE 0RH0752C422 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R513
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R520
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R529
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R532
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R550
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R554
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R556
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R602
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R605
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R616
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R617
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R618
Resistor,Chip LGE ERHZ0000207 Contact Us For Availability
R634
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R639
Resistor,Chip LGE 0RJ2001C478 Contact Us For Availability
R642
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R651
Resistor,Chip LGE 0RJ0000C672 Contact Us For Availability
SW101
Switch,Tact LGE EBF61874701 Contact Us For Availability
T602
Transformer,Switching LGE EBJ62170101 Contact Us For Availability
X501
Crystal LGE EAW61645503 Contact Us For Availability
X503
Crystal LGE EAW61903501 Contact Us For Availability
× ![]()
