Model Whirlpool MODW1V MICROWAVE – Common Parts & Diagrams

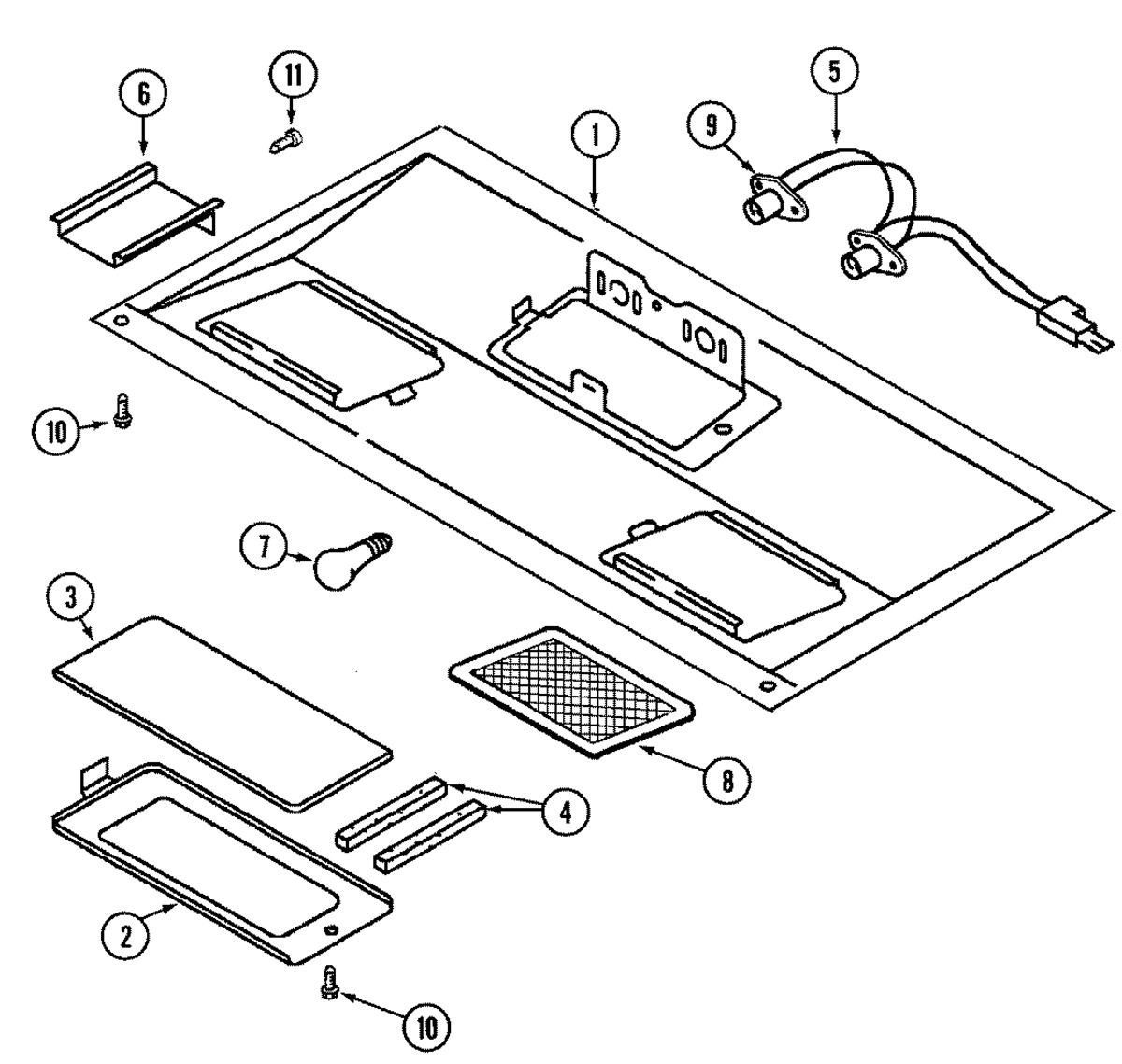

01 - BASE
02 - CABINET/INSTALLATION
05 - INTERNAL CONTROLS
03 - CONTROL BOARD
04 - DOOR
06 - MOTOR
Common parts from model Whirlpool MODW1V MICROWAVE
1
PLATE, BASE (WHT) WPL 57001158 Contact Us For Availability
1
WRAPPER, CABINET (WHT) WPL 57001161 Contact Us For Availability
1
MAGNETRON WPL 57001043 Contact Us For Availability
1
TRIM, CONTROL PANEL (WHT) WPL 57001003 Contact Us For Availability
1
DOOR ASSY. (WHT) WPL 57001011 Contact Us For Availability
1
MOTOR, FAN WPL 57001063 Contact Us For Availability
2
BRACKET, LENS (GRY) WPL 57001098 Contact Us For Availability
2
BRACKET, CABINET MTG. WPL 57001163 Contact Us For Availability
2
THERMOSTAT, MAGNETRON WPL 57001044 Contact Us For Availability
2
BRACKET, CONTROL BOARD WPL 57001004 Contact Us For Availability
2
PANEL, DOOR (WHT) WPL 57001168 Contact Us For Availability
2
GUIDE, AIR WPL 57001064 Contact Us For Availability
3
LENS, BULB (COOKTOP) WPL 57001099 Contact Us For Availability
3
GRILLE, VENT (WHT) WPL 57001034 Contact Us For Availability
3
TRANSFORMER, HIGH VOLTAGE WPL 57001045 Contact Us For Availability
3
SWITCH, MEMBRANE (WHT) WPL 57001006 Contact Us For Availability
3
BLADE, FAN WPL 57001065 Contact Us For Availability
4
CUSHION, LENS WPL 57001100 Contact Us For Availability
4
BRACKET, WRAPPER (FRONT) WPL 57001035 Contact Us For Availability
4
CAPACITOR WPL 57001046 Contact Us For Availability
4
BOARD, CONTROL WPL 57001167 Contact Us For Availability
4
LATCH, DOOR WPL 57001015 Contact Us For Availability
4
HOLDER, FUSE WPL 57001066 Contact Us For Availability
5
WIRE ASSY., LEAD WPL 57001101 Contact Us For Availability
5
CORD, POWER WPL 57001036 Contact Us For Availability
5
THERMOSTAT, CAVITY WPL 57001047 Contact Us For Availability
5
SPRING, LATCH WPL 57001016 Contact Us For Availability
6
COVER, WIRE WPL 57001102 Contact Us For Availability
6
COVER, POWER CORD WPL 57001037 Contact Us For Availability
6
MOTOR, STIRRER WPL 57001048 Contact Us For Availability
6
HINGE, DOOR WPL 57001017 Contact Us For Availability
6
NUT, FAN BLADE WPL 57001068 Contact Us For Availability
7
PLUG, CAVITY WPL 57001038 Contact Us For Availability
7
BRACKET, CAPACITOR WPL 57001049 Contact Us For Availability
7
MANUAL, USE & CARE WPL 57001156 Contact Us For Availability
7
COOKBOOK WPL 57001157 Contact Us For Availability
7
FRAME, DOOR (WHT) WPL 57001019 Contact Us For Availability
7
DUCT, AIR WPL 57001165 Contact Us For Availability
8
BRACKET, GRILLE WPL 57001039 Contact Us For Availability
8
WIRE, HIGH VOLTAGE WPL 57001050 Contact Us For Availability
8
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
8
BAFFLE, DOOR (WHT) WPL 57001021 Contact Us For Availability
8
MOTOR, VENTILATION WPL 57001070 Contact Us For Availability
9
RECEPTICLE, BULB WPL 57001160 Contact Us For Availability
9
SCREW, VENT GRILLE WPL 57001164 Contact Us For Availability
9
DIODE WPL 57001051 Contact Us For Availability
9
GLASS, DOOR (OUTER-WHT) WPL 57001023 Contact Us For Availability
9
COVER, BULB WPL 57001071 Contact Us For Availability
10
SCREW, BRACKET & PLATE WPL 57001170 Contact Us For Availability
10
WIRE, LEAD WPL 57001052 Contact Us For Availability
10
HANDLE, DOOR (WHT) WPL 57001025 Contact Us For Availability
10
RECEPTACLE, BULB WPL 57001072 Contact Us For Availability
11
WIRE, LEAD WPL 57001053 Contact Us For Availability
11
CHOKE, DOOR (WHT) WPL 57001027 Contact Us For Availability
12
FRAME, DAMPER WPL 57001107 Contact Us For Availability
12
PLATE, SUPPORT WPL 57001054 Contact Us For Availability
12
SCREW WPL 57001028 Contact Us For Availability
12
CONDENSER, MOTOR WPL 57001074 Contact Us For Availability
13
DAMPER, EXHAUST WPL 57001108 Contact Us For Availability
13
DISK, STIRRER FAN WPL 57001055 Contact Us For Availability
13
SCREW WPL 57001029 Contact Us For Availability
13
GUIDE, AIR WPL 57001075 Contact Us For Availability
14
BOLT, TOGGLE WPL 57001109 Contact Us For Availability
14
HOLDER, DISK WPL 57001056 Contact Us For Availability
14
BRACKET, SWITCH WPL 57001088 Contact Us For Availability
14
THERMOSTAT, SWITCH WPL 57001076 Contact Us For Availability
15
WING, TOGGLE WPL 57001110 Contact Us For Availability
15
TRAY, CERAMIC WPL 57001058 Contact Us For Availability
15
SWITCH, INTERLOCK (SECONDARY) WPL 57001089 Contact Us For Availability
15
COVER, CONNECTOR WPL 57001077 Contact Us For Availability
16
SCREW WPL 57001041 Contact Us For Availability
16
SCREW, PLATE WPL 57001111 Contact Us For Availability
16
SWITCH, INTERLOCK (PRIMARY) WPL 57001090 Contact Us For Availability
16
FILTER, CHARCOAL WPL 57001078 Contact Us For Availability
17
SCREW, CABINET MOUNTING WPL 57001112 Contact Us For Availability
17
SCREW, PLATE WPL 57001009 Contact Us For Availability
17
SWITCH, INTERLOCK (MONITOR) WPL 57001091 Contact Us For Availability
18
SCREW WPL 57001042 Contact Us For Availability
18
WASHER, SCREW WPL 57001113 Contact Us For Availability
18
SWITCH, OVEN LIGHT WPL 57001092 Contact Us For Availability
19
PLATE, CABINET MOUNTING WPL 57001114 Contact Us For Availability
19
SCREW WPL 57001060 Contact Us For Availability
19
SCREW WPL 57001061 Contact Us For Availability
19
LEVER, MONITOR SWITCH WPL 57001093 Contact Us For Availability
20
CLAMP, POWER CORD WPL 57001115 Contact Us For Availability
20
SCREW, ADAPTER WPL 57001062 Contact Us For Availability
20
SCREW, BRACKET WPL 57001094 Contact Us For Availability
20
SCREW WPL 57001080 Contact Us For Availability
21
BUSHING, POWER CORD WPL 57001116 Contact Us For Availability
21
CAP, HOLE WPL 57001057 Contact Us For Availability
21
SCREW WPL 57001008 Contact Us For Availability
22
HARNESS, WIRE (MAIN) WPL 57001166 Contact Us For Availability
22
SCREW WPL 57001082 Contact Us For Availability
24
SCREW, CLAMP WPL 57001119 Contact Us For Availability
25
SEALER, SILASTIC (3 OZ.) WPL 701129 Contact Us For Availability
26
HARDWARE, INSTALLATION WPL 57001083 Contact Us For Availability
27
KIT, FILLER (WHT) WPL 57001140 Contact Us For Availability
29
KIT, SMOKE DEFLECTOR WPL 57001085 Contact Us For Availability
× ![]()
