Model Accelerated Cooking Products MOC24CF-P2000319M Amana Menumaster MOC24CF – Common Parts &amp; Diagrams

1

UP MAG SHROUD WELD-E CT ACP 20018002Q Contact Us For Availability

1

WIRE, JUMPER ACP 13017716 Contact Us For Availability

2

20017801 Amana HV Harness Backorder ACP 20017801 $121.80

2

59002112 Amana Power Cord Backorder ACP 59002112 $34.02

2

SCREW-TC/PAN ACP 13041802 Contact Us For Availability

2

BOARD, MAIN CONTROL- CF ACP 59134225 Contact Us For Availability

3

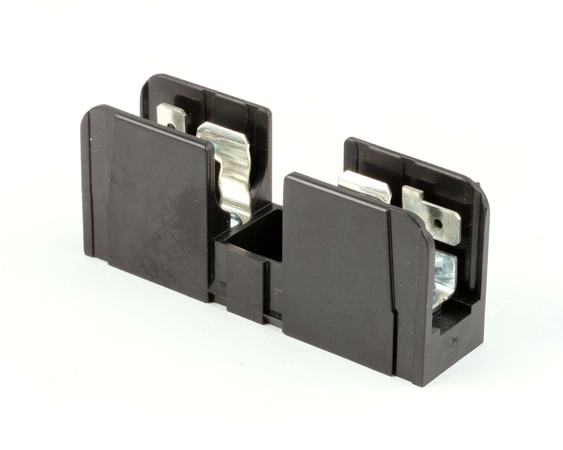

10091101 Amana Fuse Holder Backorder ACP 10091101 $7.53

3

20031701 Amana Fuse 2.5A Backorder ACP 20031701 $6.10

3

59184614 Amana Antenna Shield Backorder ACP 59184614 $48.33

3

HARNESS, MAIN ACP 20216601 Contact Us For Availability

4

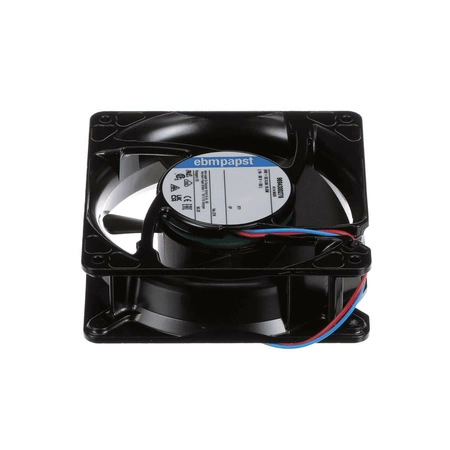

14149088 Amana Fan Motor Kit In Stock ACP 14149088 $909.15

4

14179117 Amana Ceramic Tray Supports Kit Backorder ACP 14179117 $99.96

4

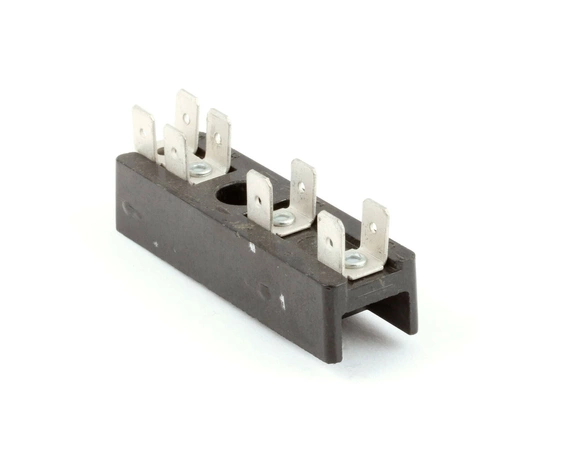

B5677203 Amana Terminal Block Backorder ACP B5677203 $4.94

4

STRAP-OVEN ACP 21009501 Contact Us For Availability

5

20013701 Amana Fan Guard Backorder ACP 20013701 $10.47

5

59004098 Amana Tray Support Backorder ACP 59004098 $22.41

5

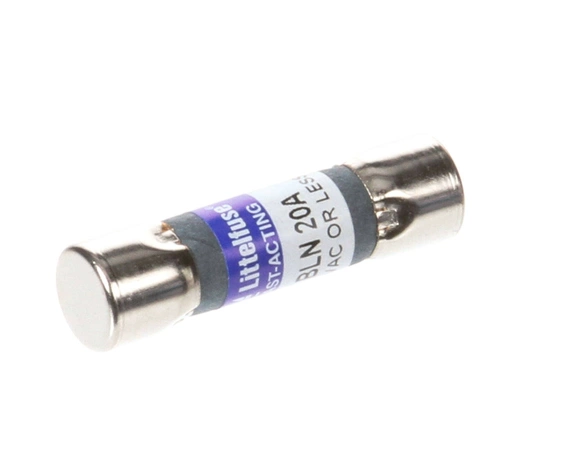

M0805203 Amana Fuse 20A Backorder ACP M0805203 $4.82

5

SEALER, RTV- ALUMINUM ACP 20021804 Contact Us For Availability

6

59184622 Amana Hole Plugs - 6 Pack Backorder ACP 59184622 $13.86

6

BRKT-40 PIN HEADER ACP 20023501 Contact Us For Availability

6

HARNESS, DATAKEY ACP 13013902 Contact Us For Availability

7

SUPPORT-PCB ACP M0590609 Contact Us For Availability

8

14090026 Amana Left Hand Hinge Kit Backorder ACP 14090026 $371.28

8

14090031 Amana Switches and Fuse Kit Backorder ACP 14090031 $202.44

8

OUTER PANEL- RH ACP 59004103 Contact Us For Availability

9

20020601 Amana Hinge Spring Backorder ACP 20020601 $5.49

9

STRIP, ANTI INTRUSION ACP 20013601 Contact Us For Availability

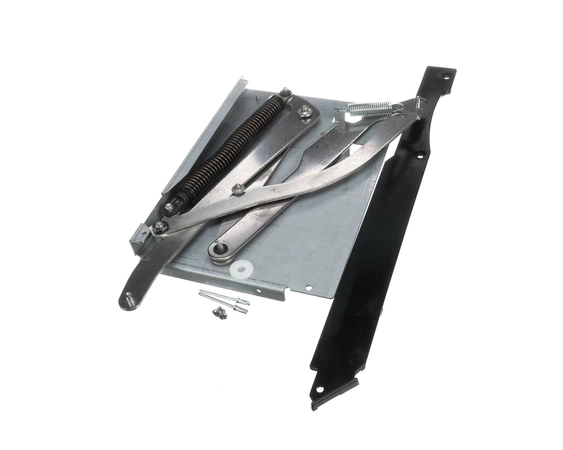

14090027 Amana Kit, Hinge - Right Hand Backorder ACP 14090027 $371.28

14189146 Amana OC Antenna and Motor In Stock ACP 14189146 $86.52

SCREW-TC/FLAT ACP 13047404 Contact Us For Availability

LWR OC BACK WELD-E CT ACP 20023608 Contact Us For Availability

SCREW-SM/PAN ACP 12990608 Contact Us For Availability

11

59004092 Amana Motor and Gas Cavity Kit Backorder ACP 59004092 $108.63

11

PANEL-MENU ACP 10432501 Contact Us For Availability

11

REAR MC BRKT-E CT ACP 21001503 Contact Us For Availability

12

PLUG-USB PORT ACP 20070101 Contact Us For Availability

12

GRILLE-EXH FAN ACP 20009701 Contact Us For Availability

13

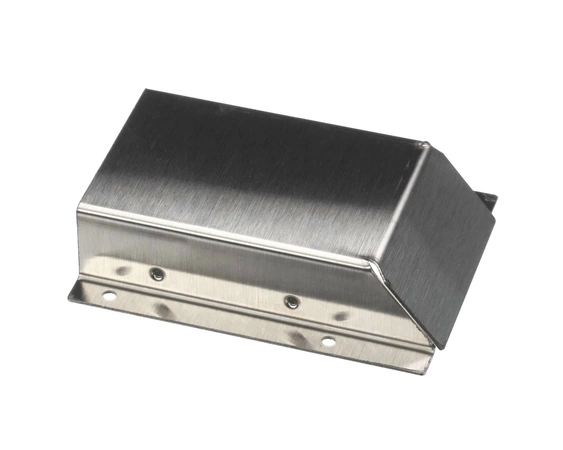

21020202 Amana Hood Fan Cavity Backorder ACP 21020202 $25.32

13

59194708 Amana Gasket MAG Backorder ACP 59194708 $7.46

13

SCREW ACP 13041603 Contact Us For Availability

14

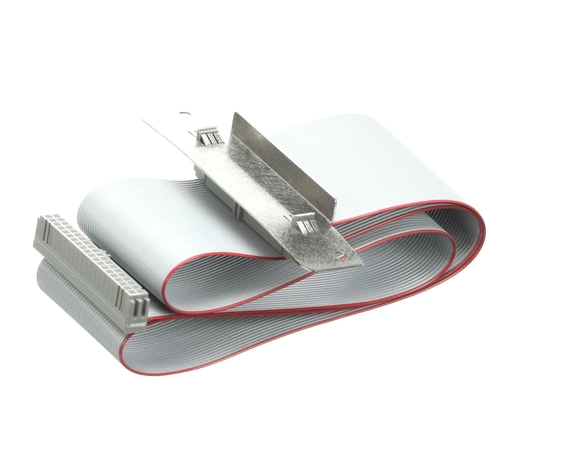

14090028 Amana Kit, Harness - PC Board to Tou Backorder ACP 14090028 $88.20

14

59004115 Amana Cavity Thermal Cutout Assembly Backorder ACP 59004115 $16.55

14

NUT-#4 HEX ACP 20018902 Contact Us For Availability

15

20173001 Amana Rotary Igniter Backorder ACP 20173001 $14.83

15

GASKET, PER FT ACP 59002162 Contact Us For Availability

15

STUD-#6 SC X .31 ACP 20021601 Contact Us For Availability

16

59004013 Amana Magnetron In Stock ACP 59004013 $161.29

16

BOARD, USB ACP 59134224 Contact Us For Availability

16

NUT-#8 HEX ACP 20018901 Contact Us For Availability

17

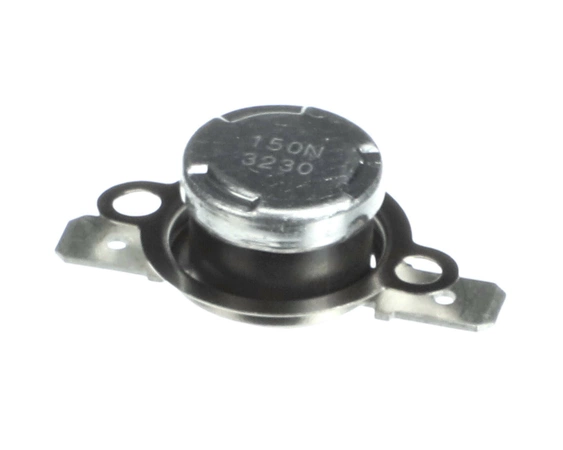

20241404 Amana Thermal Cutout Switch Backorder ACP 20241404 $8.15

17

R0000413 Amana Base Pan Gasket 90 Inch In Stock ACP R0000413 $41.34

17

SUPPORT-PCB ACP 20075601 Contact Us For Availability

18

21021202 Amana Control Escutcheon Backorder ACP 21021202 $31.90

18

SCREW-SM/FLAT ACP 20021703 Contact Us For Availability

18

THERMAL CUTOUT - LATCH TCO ACP B5684135 Contact Us For Availability

19

GASKET-CAV FAN Backorder ACP 20095601 $16.06

19

59224799 Amana Touch Panel Assembly - On Cue Backorder ACP 59224799 $144.48

19

SCREW-TC/SOCKET TORX ACP 20095801 Contact Us For Availability

20

59004085 Amana Display Board Backorder ACP 59004085 $177.24

20

59174540 Amana Capacitor Kit - 0.85 & Diode In Stock ACP 59174540 $44.60

20

GROMMET-RUBBER ACP 20095701 Contact Us For Availability

12991605 Amana Screw TC/HEX ROHS Backorder ACP 12991605 $4.82

14179138 Amana Kit - Studs and Hardware Backorder ACP 14179138 $23.17

CLIP, RETAINER ACP 20023301 Contact Us For Availability

BRKT- CAPACITOR ACP 13069001 Contact Us For Availability

22

59004089 Amana High Voltage Transformer In Stock ACP 59004089 $253.68

23

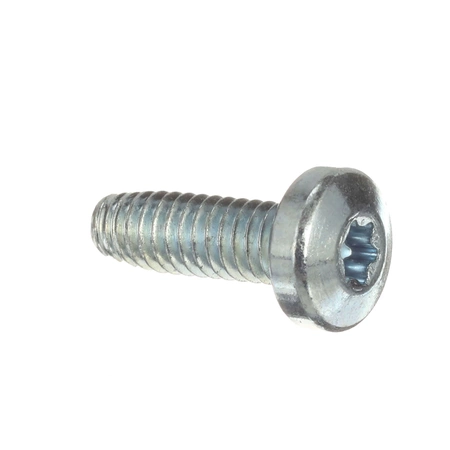

13074001 Amana RoHS TORX Pan Head Screw Backorder ACP 13074001 $5.31

23

20057401 Amana Diode In Stock ACP 20057401 $8.32

24

59174520 Amana TRIAC (40A) & Snubber Kit In Stock ACP 59174520 $54.35

25

12990522 Amana Screw SM/HEX RoHS Backorder ACP 12990522 $4.82

26

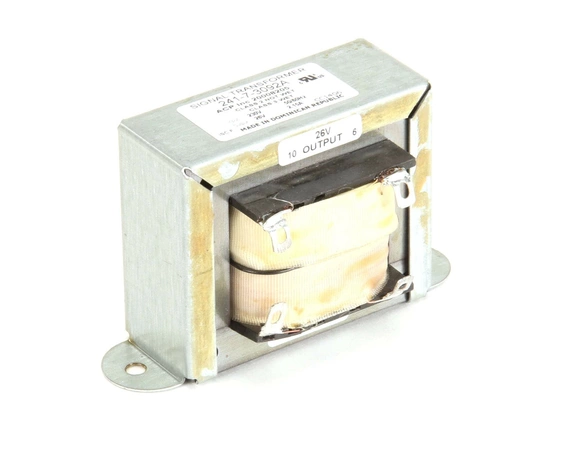

59004119 Amana Control Transformer Backorder ACP 59004119 $77.53

27

13045501 Amana Nut #6 KEPS Backorder ACP 13045501 $4.82
