Model Maytag MO1650WA MICROWAVE – Common Parts & Diagrams

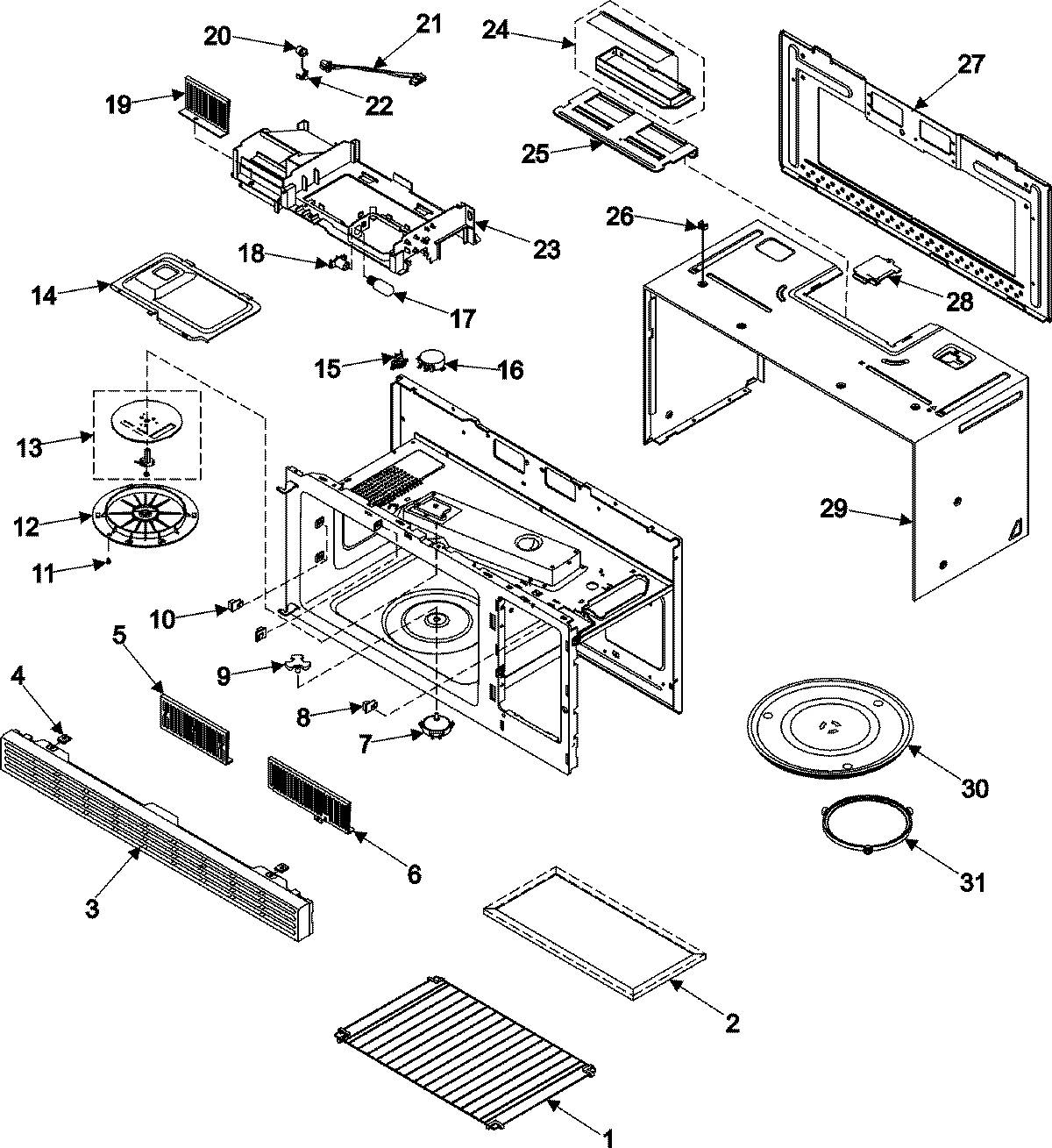

01 - BODY/CAVITY/ELEMENTS

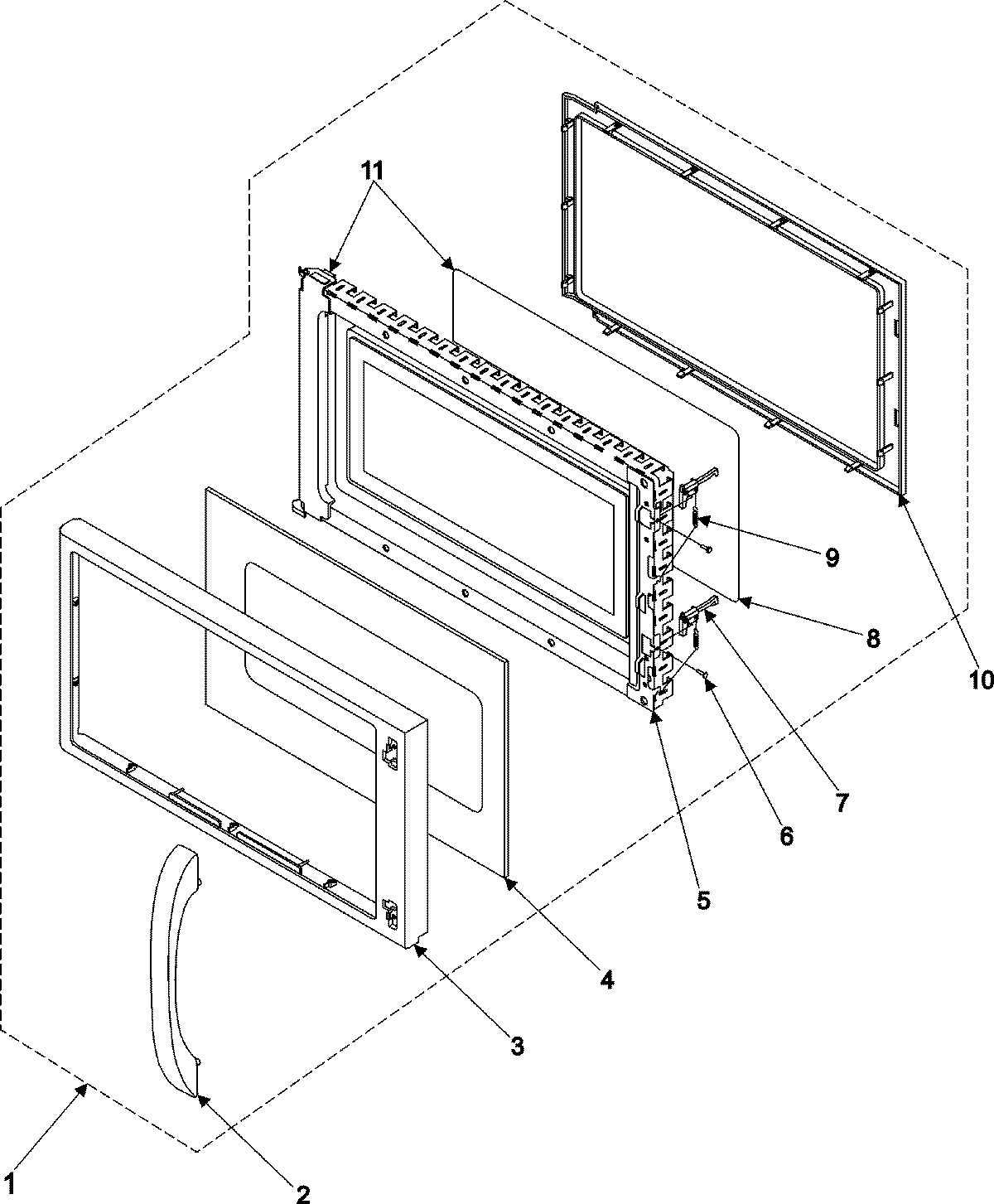

02 - DOOR ASSEMBLY

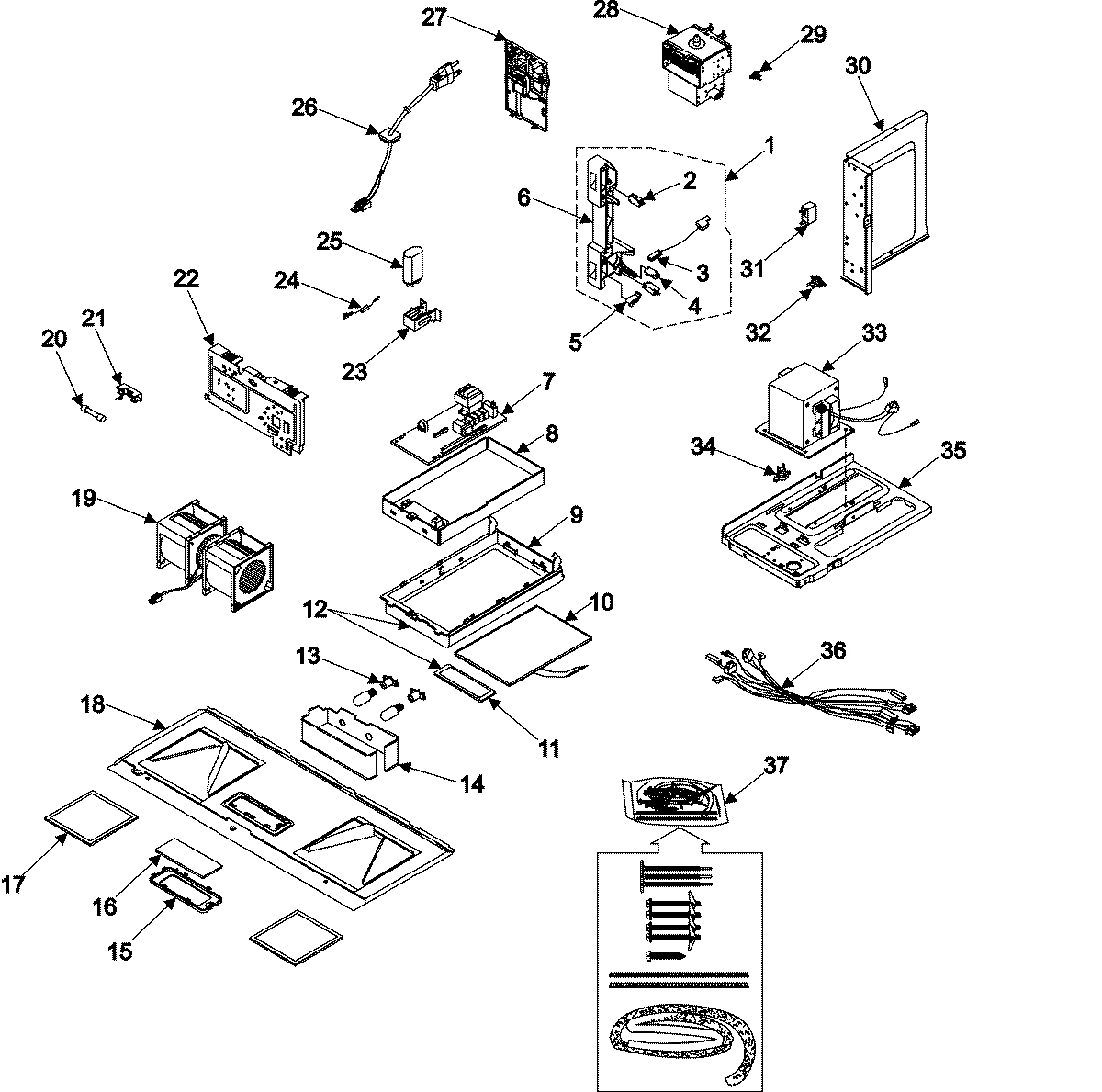

03 - INTERNAL CONTROLS/LATCH ASY/BASE
Common parts from model Maytag MO1650WA MICROWAVE
1
MAY DE94-00595B MAY DE94-00595B Contact Us For Availability
1
MAY DE96-00154A MAY DE96-00154A Contact Us For Availability
2
MAY 3405-001033 MAY 3405-001033 Contact Us For Availability
2
MAY DE97-00250B MAY DE97-00250B Contact Us For Availability
3
MAY DE64-00328B MAY DE64-00328B Contact Us For Availability
3
MAY DE39-40674A MAY DE39-40674A Contact Us For Availability
4
MAY DE64-00444A MAY DE64-00444A Contact Us For Availability
5
MAY DE94-00586B MAY DE94-00586B Contact Us For Availability
6
MAY DE60-60008A MAY DE60-60008A Contact Us For Availability
6
MAY DE61-00249A MAY DE61-00249A Contact Us For Availability
7
MOTOR, DRIVE MAY DE31-10172A Contact Us For Availability
7
MAY DE64-00157A MAY DE64-00157A Contact Us For Availability
7
MAY RA-7SMT-05 MAY RA-7SMT-05 Contact Us For Availability
8
MAY DE01-00091A MAY DE01-00091A Contact Us For Availability
8
MAY DE97-00255A MAY DE97-00255A Contact Us For Availability
9
MAY DE61-00151A MAY DE61-00151A Contact Us For Availability
9
MAY DE64-00331B MAY DE64-00331B Contact Us For Availability
10
MAY DE64-00337A MAY DE64-00337A Contact Us For Availability
10
MAY DE34-00038N MAY DE34-00038N Contact Us For Availability
11
MAY DE66-20095B MAY DE66-20095B Contact Us For Availability
11
MAY DE94-00603A MAY DE94-00603A Contact Us For Availability
11
MAY DE64-00416A MAY DE64-00416A Contact Us For Availability
12
COVER-STIRRER MAY DE71-60121A Contact Us For Availability
12
MAY DE94-00587B MAY DE94-00587B Contact Us For Availability
12
MAY DE94-00587C MAY DE94-00587C Contact Us For Availability
13
MAY DE97-00178B MAY DE97-00178B Contact Us For Availability
14
MAY DE61-50469A MAY DE61-50469A Contact Us For Availability
14
MAY DE61-50464A MAY DE61-50464A Contact Us For Availability
15
MAY DE71-60385C MAY DE71-60385C Contact Us For Availability
16
MAY DE67-40152A MAY DE67-40152A Contact Us For Availability
17
LAMP-INCANDESCENT MAY 4713-001013 Contact Us For Availability
18
HOLDER-LAMP MAY DE47-00006A Contact Us For Availability
18
MAY DE97-00248B MAY DE97-00248B Contact Us For Availability
19
MAY DE61-50542A MAY DE61-50542A Contact Us For Availability
19
MAY DE31-10178E MAY DE31-10178E Contact Us For Availability
21
WIRE HARNESS-S MAY DE39-40678A Contact Us For Availability
21
MAY 3602-001025 MAY 3602-001025 Contact Us For Availability
22
MAY DE61-90111A MAY DE61-90111A Contact Us For Availability
22
MAY DE61-50540A MAY DE61-50540A Contact Us For Availability
23
MAY DE72-50098A MAY DE72-50098A Contact Us For Availability
23
MAY DE61-50120A MAY DE61-50120A Contact Us For Availability
24
MAY DE92-90242A MAY DE92-90242A Contact Us For Availability
24
MAY DE91-70063A MAY DE91-70063A Contact Us For Availability
25
MAY DE61-50545A MAY DE61-50545A Contact Us For Availability
26
MAY DE39-10102A MAY DE39-10102A Contact Us For Availability
27
MAY DE61-50279A MAY DE61-50279A Contact Us For Availability
27
MAY DE92-90552C MAY DE92-90552C Contact Us For Availability
28
MAY DE61-50507A MAY DE61-50507A Contact Us For Availability
28
MAY YOM75P10ESS MAY YOM75P10ESS Contact Us For Availability
29
MAY DE70-10017H MAY DE70-10017H Contact Us For Availability
30
MAY DE74-20016A MAY DE74-20016A Contact Us For Availability
30
MAY DE72-50084A MAY DE72-50084A Contact Us For Availability
31
MAY DE59-50002A MAY DE59-50002A Contact Us For Availability
31
ASSY-GUIDE ROLLER MAY DE92-90495A Contact Us For Availability
32
MAY DE47-20020A MAY DE47-20020A Contact Us For Availability
35
MAY DE80-10121B MAY DE80-10121B Contact Us For Availability
36
MAY DE39-00024A MAY DE39-00024A Contact Us For Availability
37
MAY DE92-90505D MAY DE92-90505D Contact Us For Availability
× ![]()
