Model Maytag MMW9730FZ04 WALL OVEN, ELECTRIC, MICRO COMBO, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET

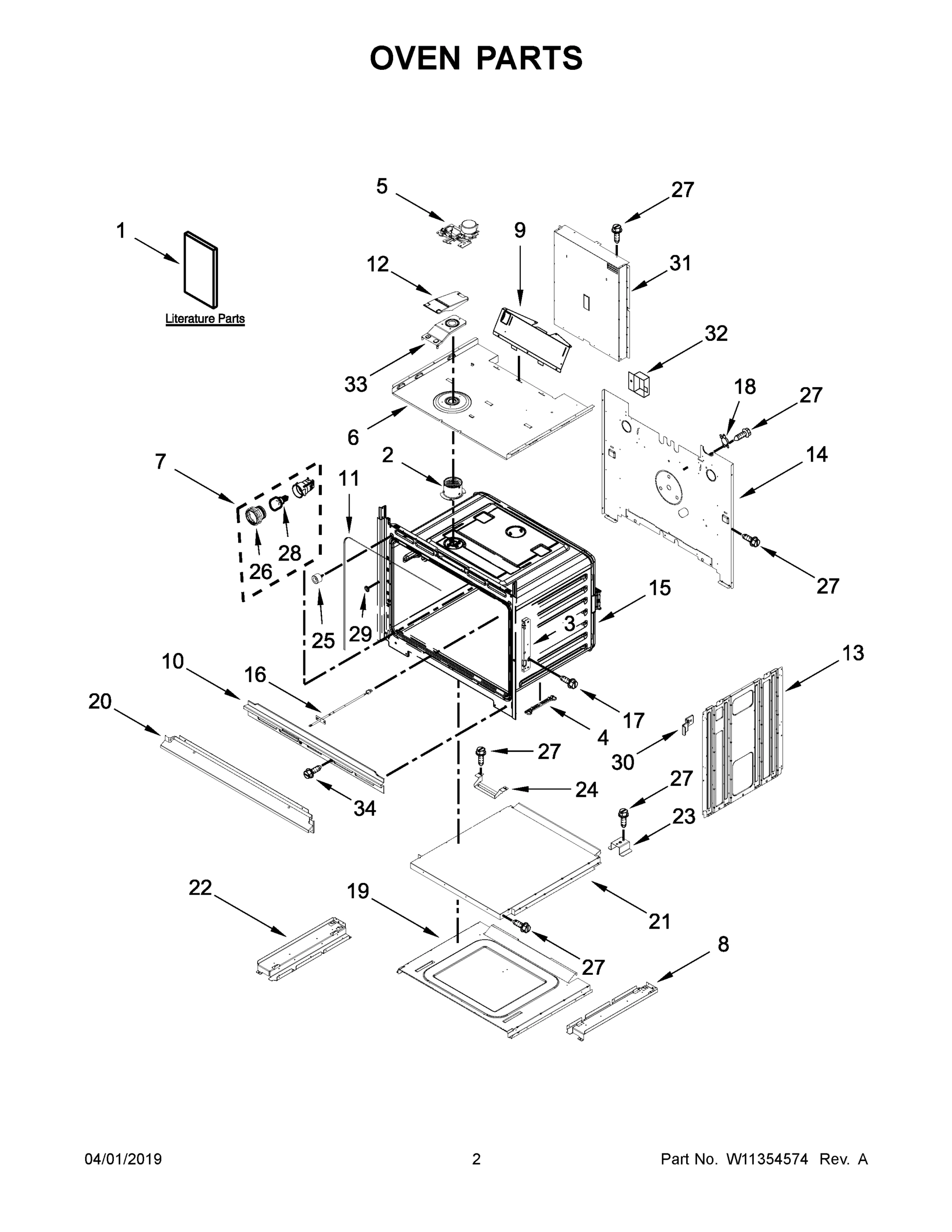

02 - OVEN PARTS

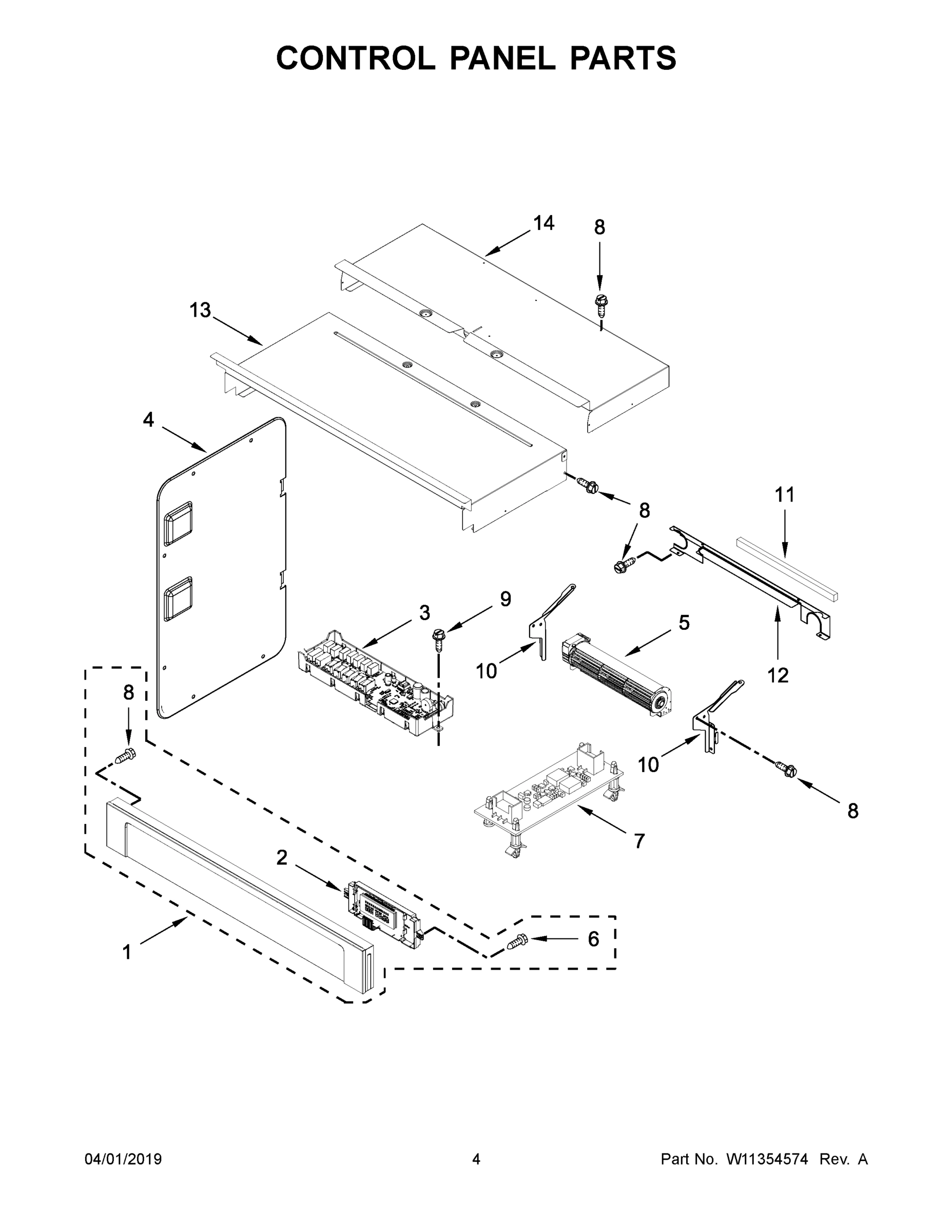

03 - CONTROL PANEL PARTS

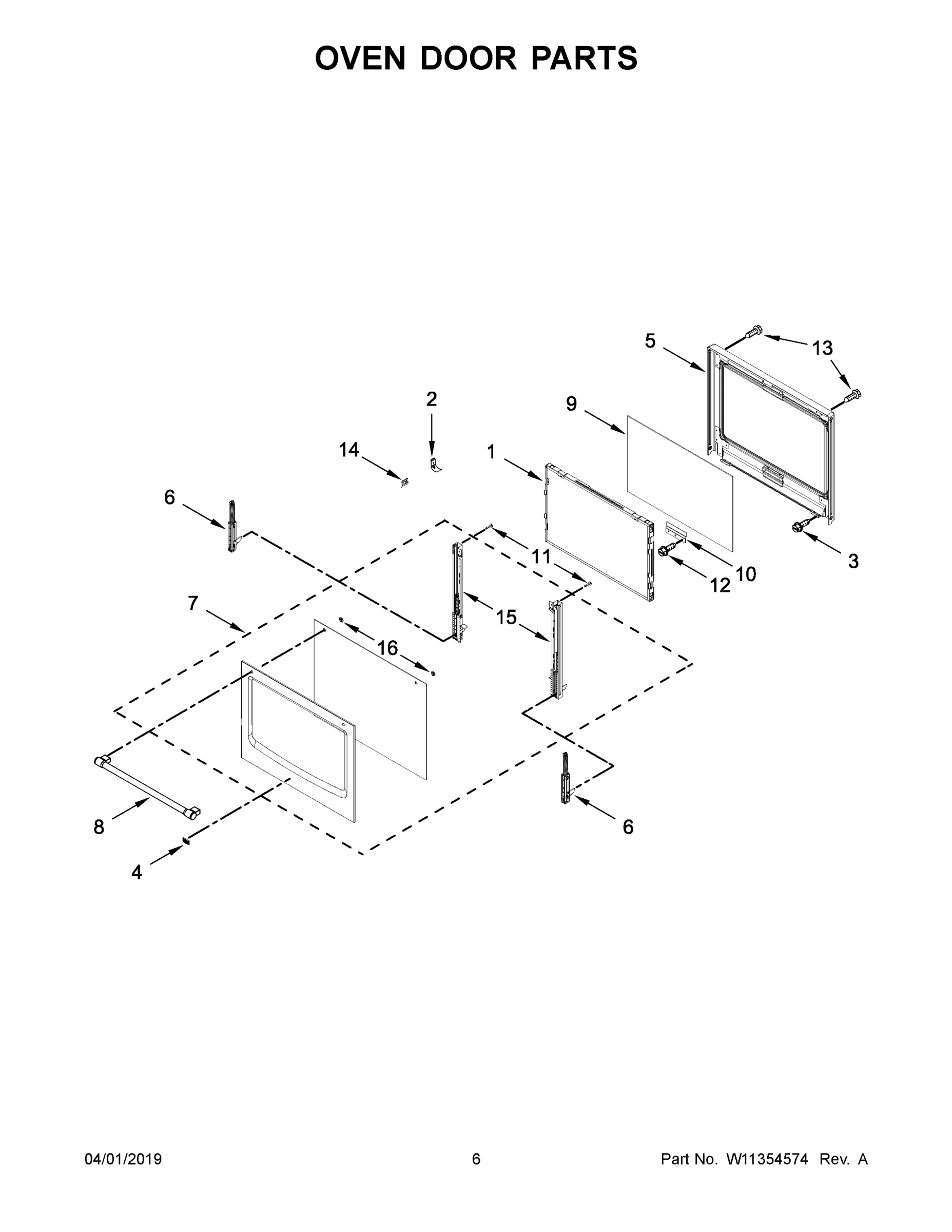

04 - OVEN DOOR PARTS

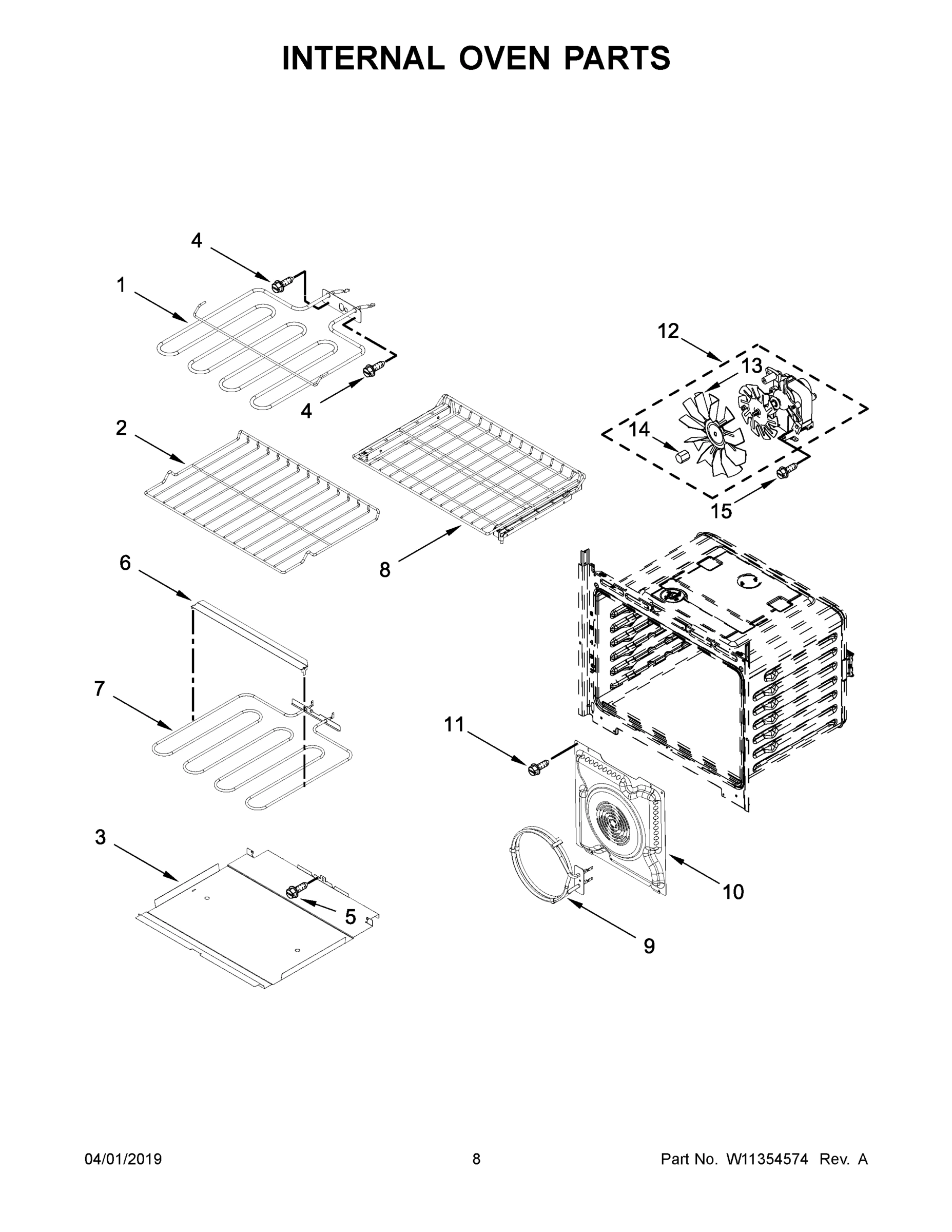

05 - INTERNAL OVEN PARTS

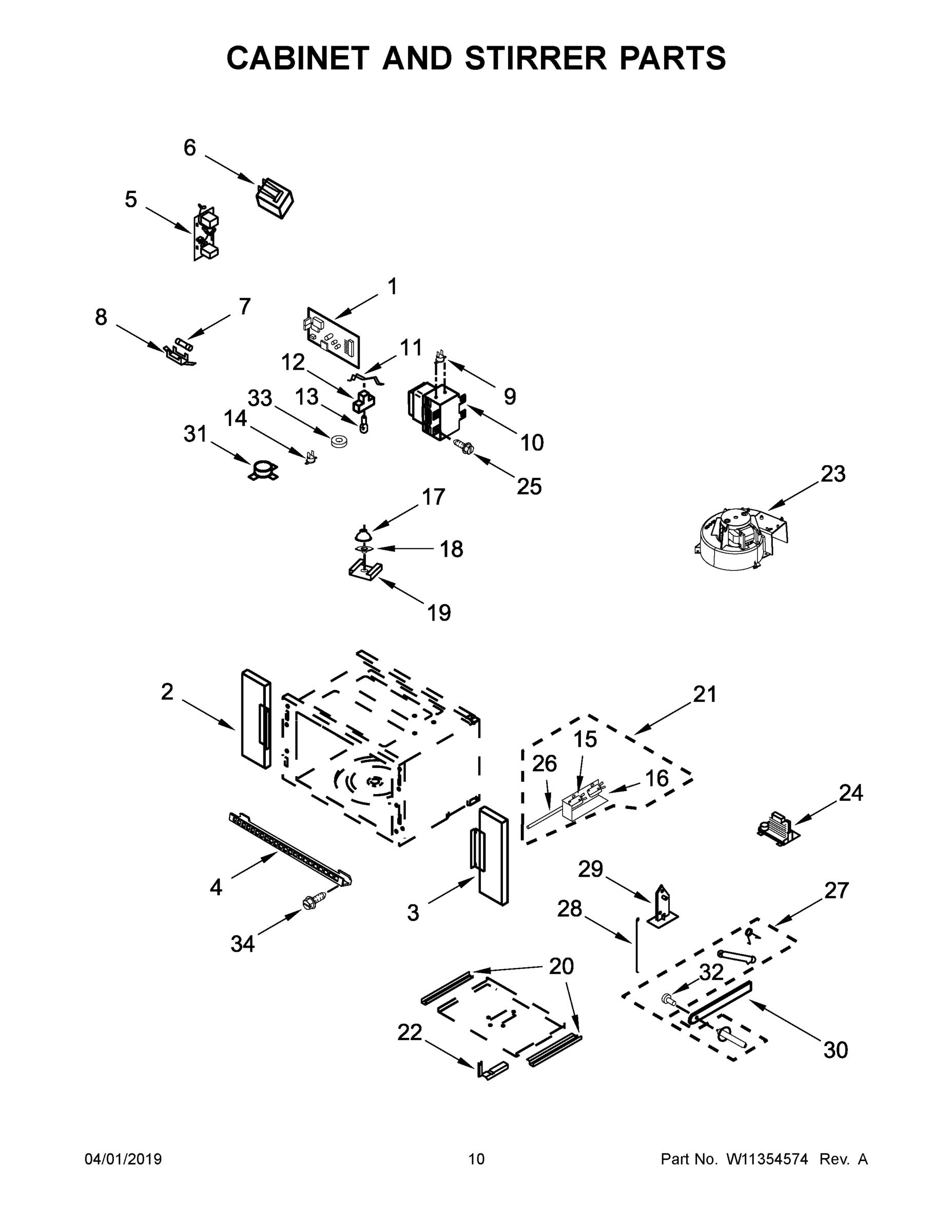

06 - CABINET AND STIRRER PARTS

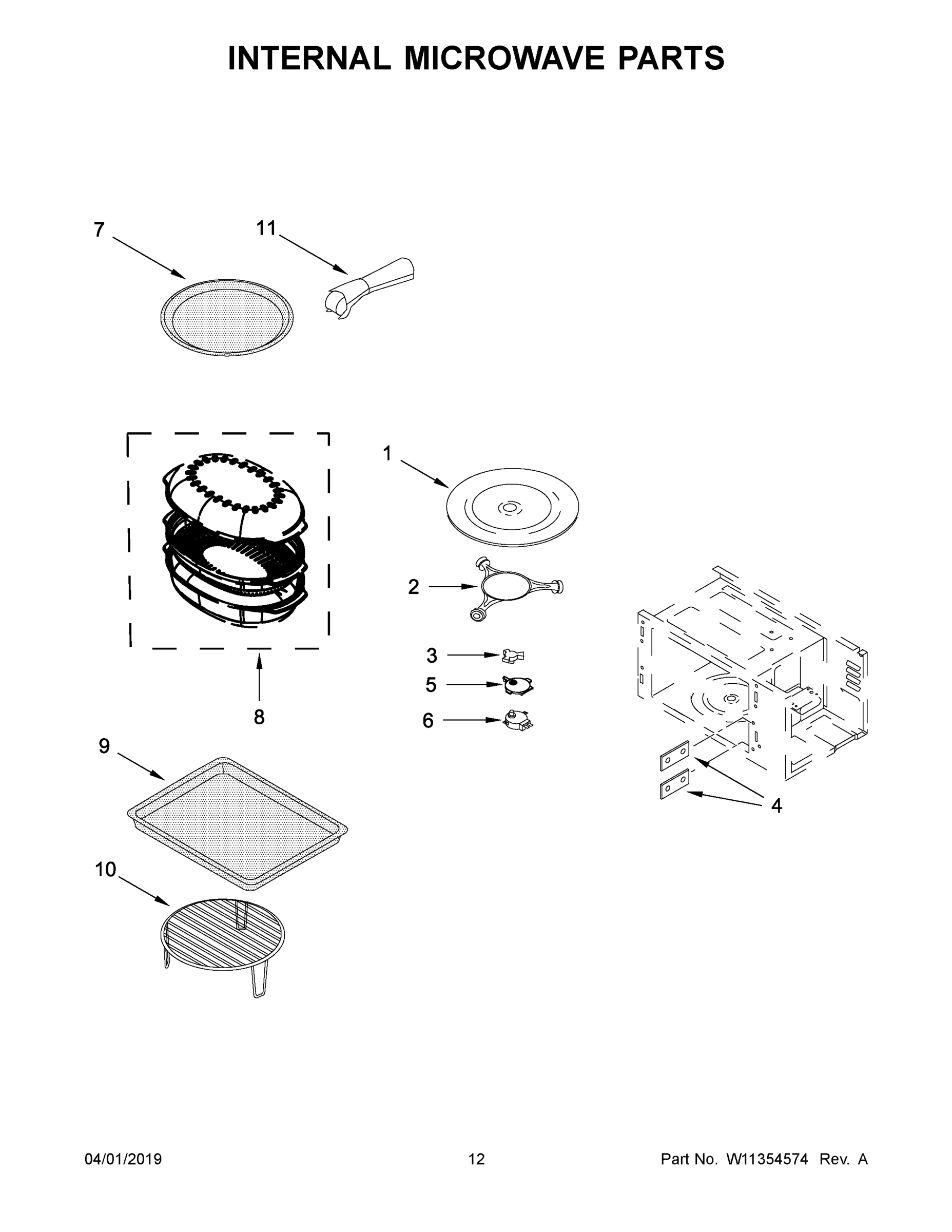

07 - INTERNAL MICROWAVE PARTS

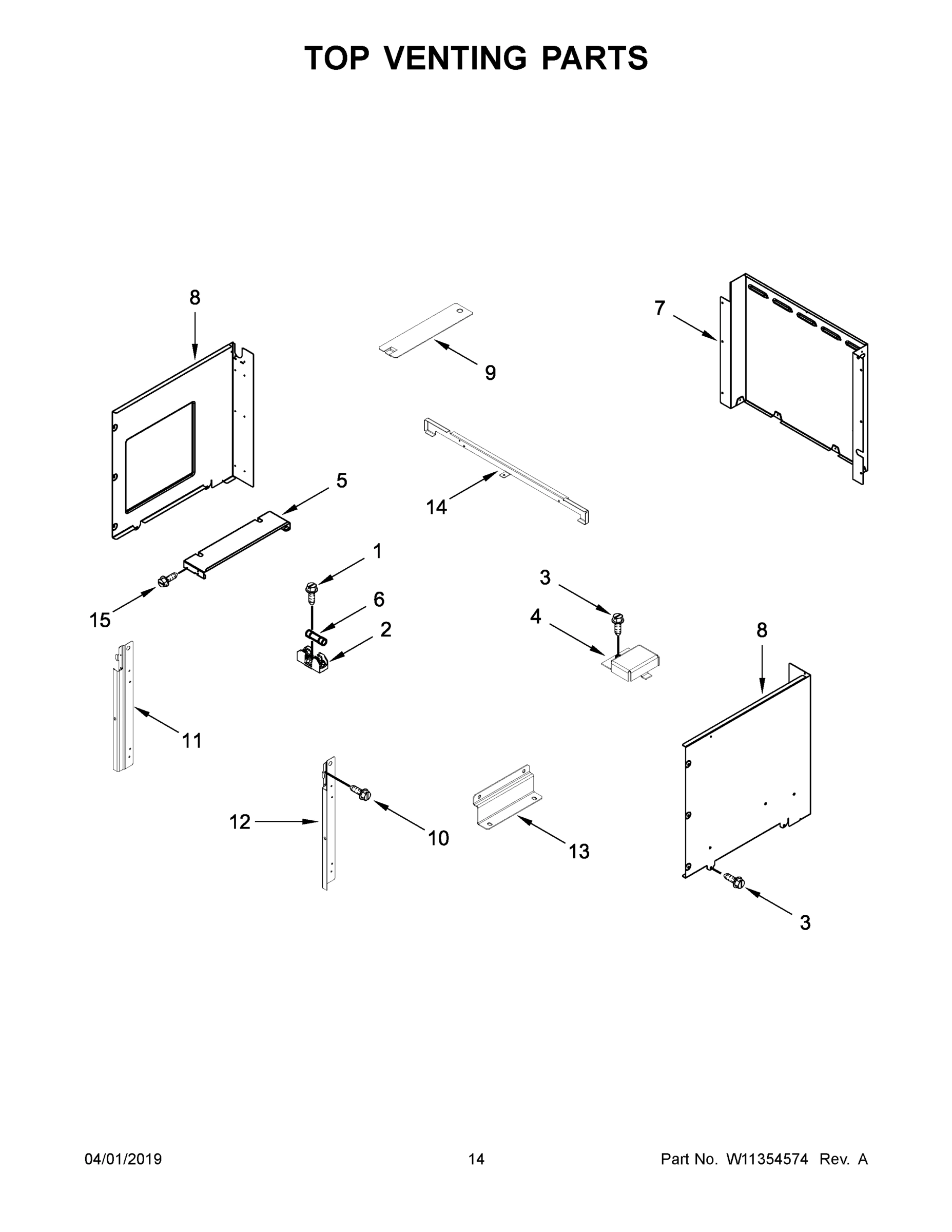

08 - TOP VENTING PARTS

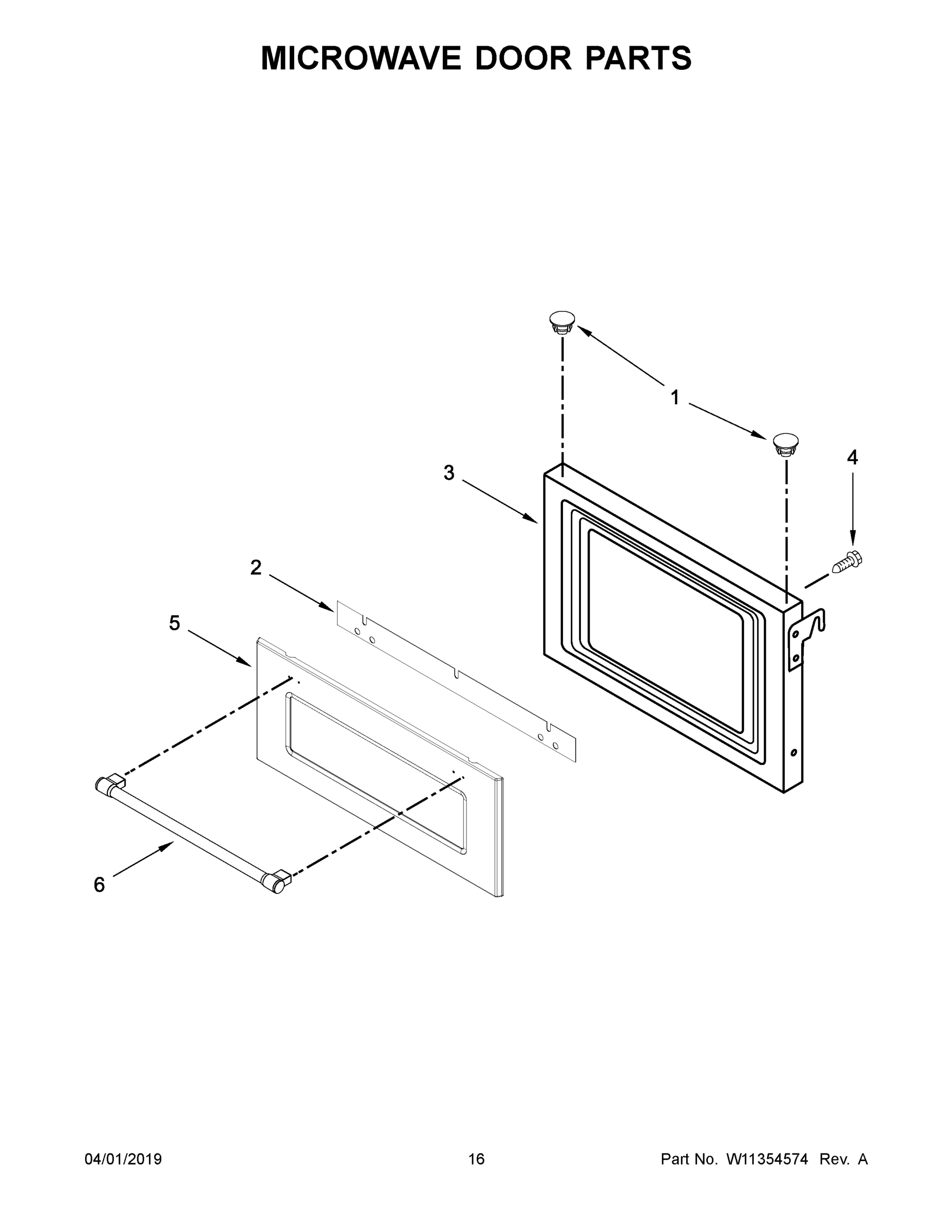

09 - MICROWAVE DOOR PARTS
10 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MMW9730FZ04 WALL OVEN, ELECTRIC, MICRO COMBO, 30 INCH
1
INSTRUCTIONS, INSTALLATION MAY W10696163 Contact Us For Availability
1
ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (S MAY W10877221 Contact Us For Availability
1
ASSEMBLY, WINDOW PACK MAY W10347596 Contact Us For Availability
1
ELEMENT, BROIL MAY W10260252 Contact Us For Availability
1
MAY W11290000 MAY W11290000 Contact Us For Availability
1
TRAY, COOK MAY 461967720541 Contact Us For Availability
1
SCREW MAY 7101P060-60 Contact Us For Availability
1
CAP, SCREW MAY 8304588BL Contact Us For Availability
1A
GUIDE (OVEN), USE & CARE MAY W10875903 Contact Us For Availability
1B
GUIDE (MICROWAVE), USE & CARE MAY W10875904 Contact Us For Availability
1C
SHEET, TECH MAY W10886884 Contact Us For Availability
2
TUBE, VENT MAY W11085298 Contact Us For Availability
2
INTERFACE (MAXWELL), USER BOARD MAY W10752316 Contact Us For Availability
2
SPRING, DOOR GLASS FIXATION MAY W10284285 Contact Us For Availability
2
RACK, OVEN MAY W10282967 Contact Us For Availability
2
TRIM, SIDE (LEFT) MAY 461967017491 Contact Us For Availability
2
RING, TURNTABLE MAY W10367316 Contact Us For Availability
2
HOLDER, FUSE MAY 4454949 Contact Us For Availability
2
FOAM, DOOR HANDLE MAY W10359769 Contact Us For Availability
3
RECEIVER, HINGE MAY W11044775 Contact Us For Availability
3
SCREW MAY 7101P426-60 Contact Us For Availability
3
ASSEMBLY (MAXWELL), CONTROL BOARD MAY W10878987 Contact Us For Availability
3
SCREW MAY 3196183 Contact Us For Availability
3
TRAY, HIDDEN BAKE MAY W10318198 Contact Us For Availability
3
TRIM, SIDE (RIGHT) MAY 461967017481 Contact Us For Availability
3
DRIVE, TURNTABLE MAY W10545578 Contact Us For Availability
3
ASSEMBLY, INNER DOOR MAY W10687342 Contact Us For Availability
4
SPACER, BASE MAY W10618102 Contact Us For Availability
4
COVER, CONNECTOR MAY 8285593 Contact Us For Availability
4
CHASSIS, COMBO SIDE MAY W10655467 Contact Us For Availability
4
SCREW MAY 7101P434-60 Contact Us For Availability
4
BADGE MAY W10612925 Contact Us For Availability
4
VENT, TOP MICROWAVE MAY 461968973241 Contact Us For Availability
4
PLATE, COVER MAY 461967451001 Contact Us For Availability
4
SCREW MAY 7101P338-60 Contact Us For Availability
5
LATCH, MOTORIZED MAY W10618131 Contact Us For Availability
5
BLOWER, DUAL SPEED MAY W11200130 Contact Us For Availability
5
ASSEMBLY, LINER MAY W10709147 Contact Us For Availability
5
FILTER, NOISE MAY W10692851 Contact Us For Availability
5
ADAPTER, TURNTABLE MOTOR MAY 461967753742 Contact Us For Availability
5
SUPPORT, MICROWAVE MODULE MAY W10356644 Contact Us For Availability
5
ASSEMBLY, OUTER DOOR (STAINLESS) MAY W10879763 Contact Us For Availability
6
TOP, CHASSIS MAY W10904158 Contact Us For Availability
6
SCREW MAY 7101P403-60 Contact Us For Availability
6
HINGE, DOOR MAY W10639069 Contact Us For Availability
6
ASSEMBLY, DOOR HANDLE (STAINLESS) MAY W10834521 Contact Us For Availability
6
CROSSBAR, HIDDEN BAKE TRAY MAY W10282957 Contact Us For Availability
6
TRANSFORMER, LIGHT (20V) MAY 461967848621 Contact Us For Availability
6
MOTOR, TURNTABLE MAY 461967848971 Contact Us For Availability
6
FUSE, TIME DELAY MAY W10017410 Contact Us For Availability
7
ASSEMBLY, LIGHT MAY W10734063 Contact Us For Availability
7
BOARD, WIDE INTERFACE MAY W10412514 Contact Us For Availability
7
ASSEMBLY, DOOR GLASS (STAINLESS) MAY W10879748 Contact Us For Availability
7
ELEMENT, BAKE MAY W10546517 Contact Us For Availability
7
FUSE MAY 241908600053 Contact Us For Availability
7
PLATE, CRISP MAY W10120480 Contact Us For Availability
7
COVER, BACK DUCT MAY W10519707 Contact Us For Availability
8
SUPPORT, BASE (RIGHT) MAY W10283021 Contact Us For Availability
8
RACK, SLIDING MAY W10282973 Contact Us For Availability
8
BLOCK, FUSE MAY 4375231 Contact Us For Availability
8
STEAMER, MICROWAVE MAY 8205262RB Contact Us For Availability
8
CHASSIS, COMBO SIDE (LEFT) MAY W10655466 Contact Us For Availability
8A
CHASSIS, COMBO SIDE (RIGHT) MAY W10283029 Contact Us For Availability
9
DEFLECTOR, BLOWER MAY W10904163 Contact Us For Availability
9
GLASS, INNER MAY W10678524 Contact Us For Availability
9
RING, ELEMENT MAY W10260248 Contact Us For Availability
9
THERMOSTAT, MAGNETRON MAY 461967846741 Contact Us For Availability
9
PLATE, BAKING MAY W10120486 Contact Us For Availability
9
COVER, SLOT MODULE MAY W10356437 Contact Us For Availability
10
VENT, COMBO CENTER MAY W10283042 Contact Us For Availability
10
BRACKET, BLOWER (LEFT) MAY W10655463 Contact Us For Availability
10
BRACKET, GLASS MAY W10284297 Contact Us For Availability
10
BAFFLE, CONVECTION MAY W10359278 Contact Us For Availability
10
MAY W11226473 MAY W11226473 Contact Us For Availability
10
RACK MAY W10120483 Contact Us For Availability
10
SCREW (BLACK) MAY 7101P633-60 Contact Us For Availability
10A
BRACKET, BLOWER (RIGHT) MAY W10655462 Contact Us For Availability
11
GASKET MAY W10282960 Contact Us For Availability
11
BLOCK, FOAM MAY 4451758 Contact Us For Availability
11
SCREW MAY W10480830 Contact Us For Availability
11
SCREW MAY W10906658 Contact Us For Availability
11
SPRING, LAMP MAY W10465869 Contact Us For Availability
11
HANDLE, PAN MAY W10120481 Contact Us For Availability
11
RAIL, SIDE (LEFT) MAY W10360516 Contact Us For Availability
12
COVER, VENT EXHAUST MAY W10616810 Contact Us For Availability
12
CHASSIS, BACK DIVIDER MAY W10618126 Contact Us For Availability
12
FAN, CONVECTION MAY W10722667 Contact Us For Availability
12
HOLDER, LAMP MAY W10490593 Contact Us For Availability
12
RAIL, SIDE (RIGHT) MAY W10360518 Contact Us For Availability
13
SIDE, CHASSIS MAY W10318190 Contact Us For Availability
13
CHASSIS, COVER TOP FRONT 30" MAY W10318158 Contact Us For Availability
13
SCREW (BLACK) MAY 7101P635-60 Contact Us For Availability
13
BLADE, FAN MAY W10631503 Contact Us For Availability
13
LAMP, HALOGEN MAY W10795595 Contact Us For Availability
13
SIDE, BRACKET MAY W10283024 Contact Us For Availability
14
BACK, CHASSIS MAY W10904160 Contact Us For Availability
14
CHASSIS, COVER TOP BACK 30" MAY W10588732 Contact Us For Availability
14
CLIP, SPRING METAL MAY W10653954 Contact Us For Availability
14
NUT, ACORN (LH) MAY W10631504 Contact Us For Availability
14
THERMOSTAT MAY W10389447 Contact Us For Availability
14
SUPPORT, CROSSBAR MAY W10283022 Contact Us For Availability
15
RAIL, DOOR SIDE (LEFT) MAY W10284278 Contact Us For Availability
15
SCREW MAY W10720084 Contact Us For Availability
15
SWITCH MAY W10330566 Contact Us For Availability
15
SCREW MAY 4449745 Contact Us For Availability
15A
RAIL, DOOR SIDE (RIGHT) MAY W10284279 Contact Us For Availability
16
PROBE, SENSOR MAY W10622170 Contact Us For Availability
16
WASHER, DOOR MAY W10319024 Contact Us For Availability
16
HOLDER, SWITCH MAY 8205683 Contact Us For Availability
17
SCREW MAY W10254050 Contact Us For Availability
17
REFLECTOR MAY 423107022541 Contact Us For Availability
18
THERMOSTAT (TOD) MAY 4449751 Contact Us For Availability
18
LENS, LAMP MAY 423107720491 Contact Us For Availability
19
BASE, CHASSIS MAY W11238787 Contact Us For Availability
19
CLIP, SPRING MAY 461967010591 Contact Us For Availability
20
ASSEMBLY, BOTTOM VENT (STAINLESS) MAY W10869571 Contact Us For Availability
20
SUPPORT, BOTTOM MAY 461967008461 Contact Us For Availability
21
CHASSIS, BOTTOM DUCT MAY W10283008 Contact Us For Availability
21
HARNESS, INTERLOCK MAY W10709980 Contact Us For Availability
22
SUPPORT, BASE (LEFT) MAY W10283020 Contact Us For Availability
22
HINGE, DOOR MAY 461968979601 Contact Us For Availability
23
SUPPORT, AIR CHANNEL MAY W10213759 Contact Us For Availability
23
MAY W11131760 MAY W11131760 Contact Us For Availability
24
SPACER, CHASSIS BOTTOM DUCT MAY W10351308 Contact Us For Availability
24
MAY W11237240 MAY W11237240 Contact Us For Availability
25
BUMPER & SCREW MAY W10351278 Contact Us For Availability
25
SCREW MAY 461967825971 Contact Us For Availability
26
LENS, LIGHT MAY W10412722 Contact Us For Availability
26
ROD, RELEASE MAY W10120235 Contact Us For Availability
27
ASSEMBLY, SLIDING ARM MAY W10128850 Contact Us For Availability
28
BULB, LIGHT MAY W10412711 Contact Us For Availability
28
SPRING, TORSION MAY 461967570351 Contact Us For Availability
29
GROMMET, FRONT FRAME MAY W10283016 Contact Us For Availability
29
SUPPORT MAY 461967750494 Contact Us For Availability
30
SPACERS, FRONT MAY W10347649 Contact Us For Availability
30
ARM, SLIDING MAY 461967750483 Contact Us For Availability
31
COVER, COMBO CHASSIS BACK DUCT (WITH HOLE) MAY W11037653 Contact Us For Availability
31
SENSOR, HUMIDITY MAY W10460457 Contact Us For Availability
32
BUSHING MAY 461967510191 Contact Us For Availability
33
BASE, VENT EXHAUST MAY W10616809 Contact Us For Availability
33
SEALING, LAMP MAY W10769147 Contact Us For Availability
34
SCREW MAY 7101P427-60 Contact Us For Availability
34
SCREW MAY 461967825321 Contact Us For Availability
NI
FOLLOWING ACCESSORIES NOT INCLUDED MAY N/P Contact Us For Availability
NI
CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
CLAMP, CONDUIT MAY 4448664 Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
INSULATION, CAVITY MAY W10282944 Contact Us For Availability
NI
BAG, HARDWARE MAY W10352612 Contact Us For Availability
NI
STRAP, GROUND MAY W10392129 Contact Us For Availability
NI
INSULATION, WRAP MAY W10520715 Contact Us For Availability
NI
HARNESS, DOOR LATCH MAY W11132989 Contact Us For Availability
NI
HARNESS, MAIN MAY W11157181 Contact Us For Availability
NI
HARNESS, COMMUNICATION MAY W11157222 Contact Us For Availability
NI
MAY W11198503 MAY W11198503 Contact Us For Availability
NI
STRAP, GROUND MAY W11226264 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, FAN & TURNTABLE MAY W10874059 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, INVERTER MAY W10874060 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, CABLE TREE ASSE MAY W10889134 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, SPRAY (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, SPRAY (WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, SPRAY (ALMOND) MAY 350956 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, SPRAY (BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL CLEANING MAY W10355049 Contact Us For Availability
× ![]()
Login and Registration Form
