Model Maytag MMV5220FZ6 MICROWAVE HOOD, 2.1 CUBIC FOOT – Common Parts & Diagrams

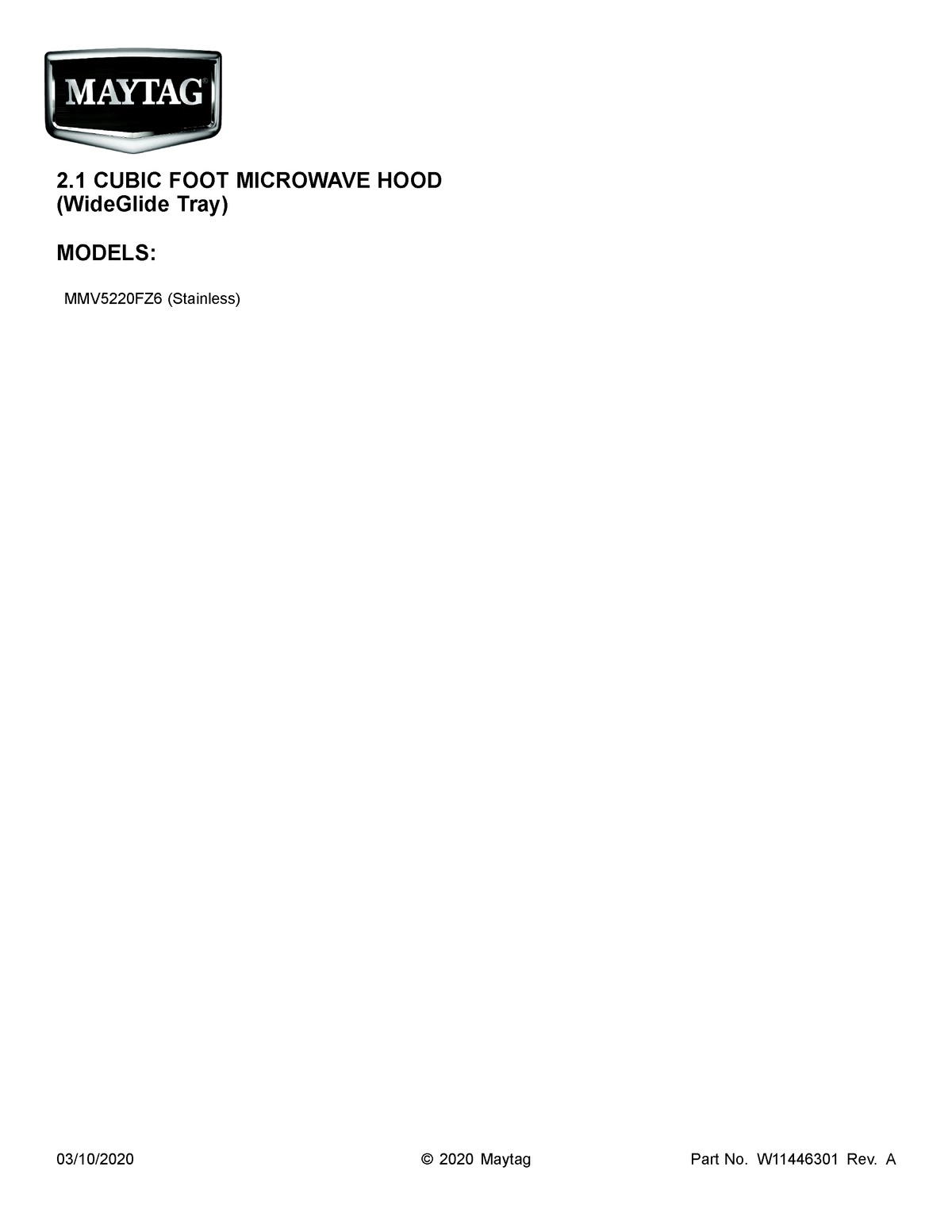

01 - COVER SHEET

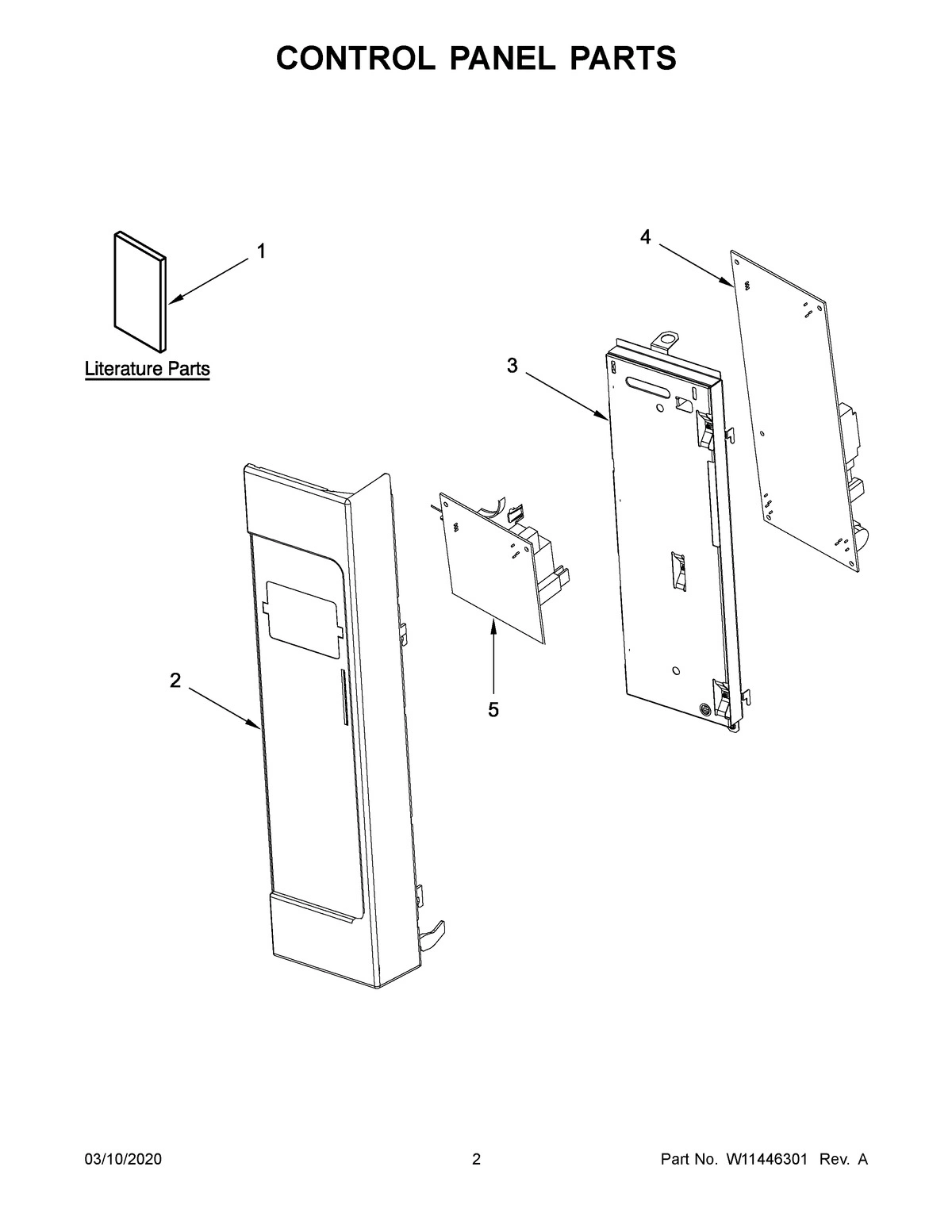

02 - CONTROL PANEL PARTS

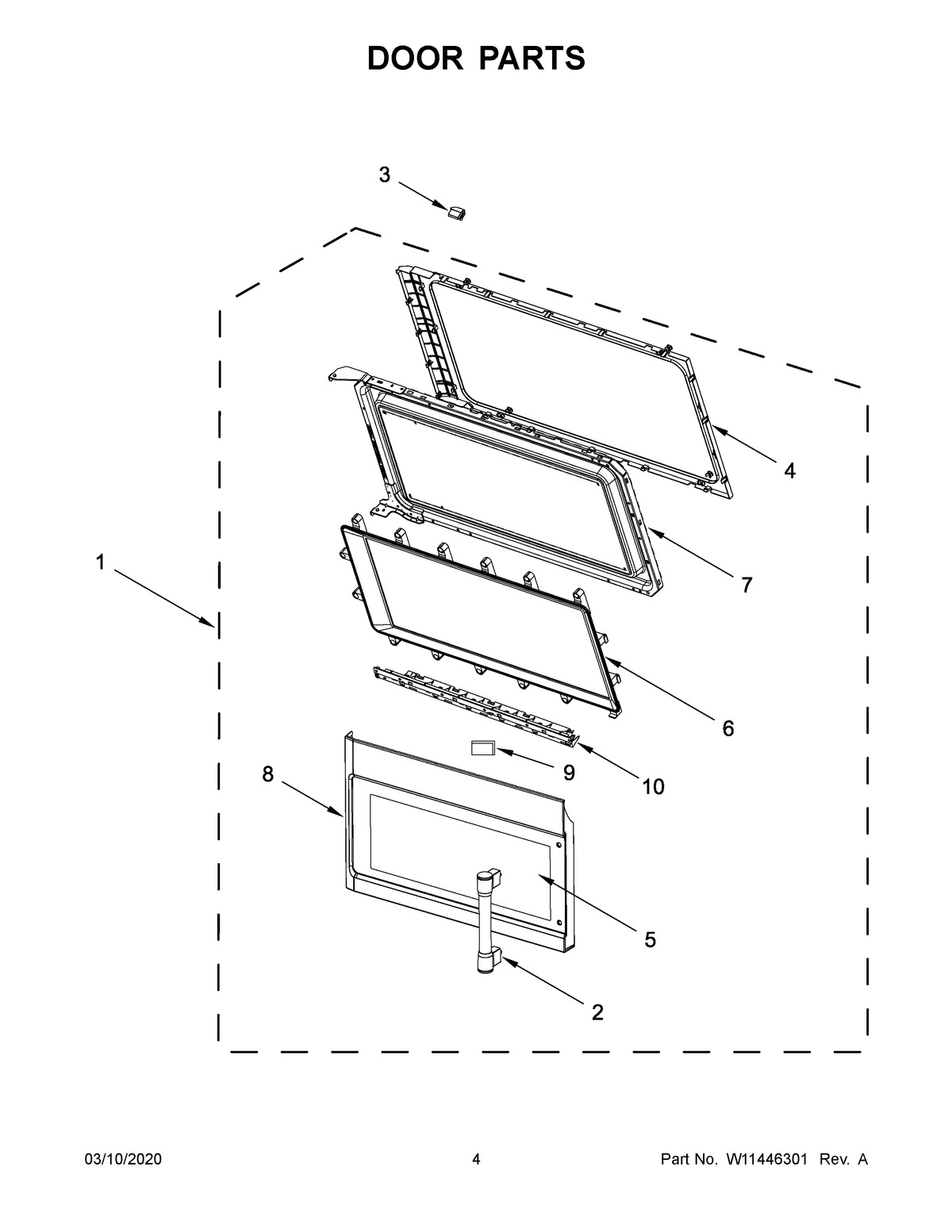

03 - DOOR PARTS

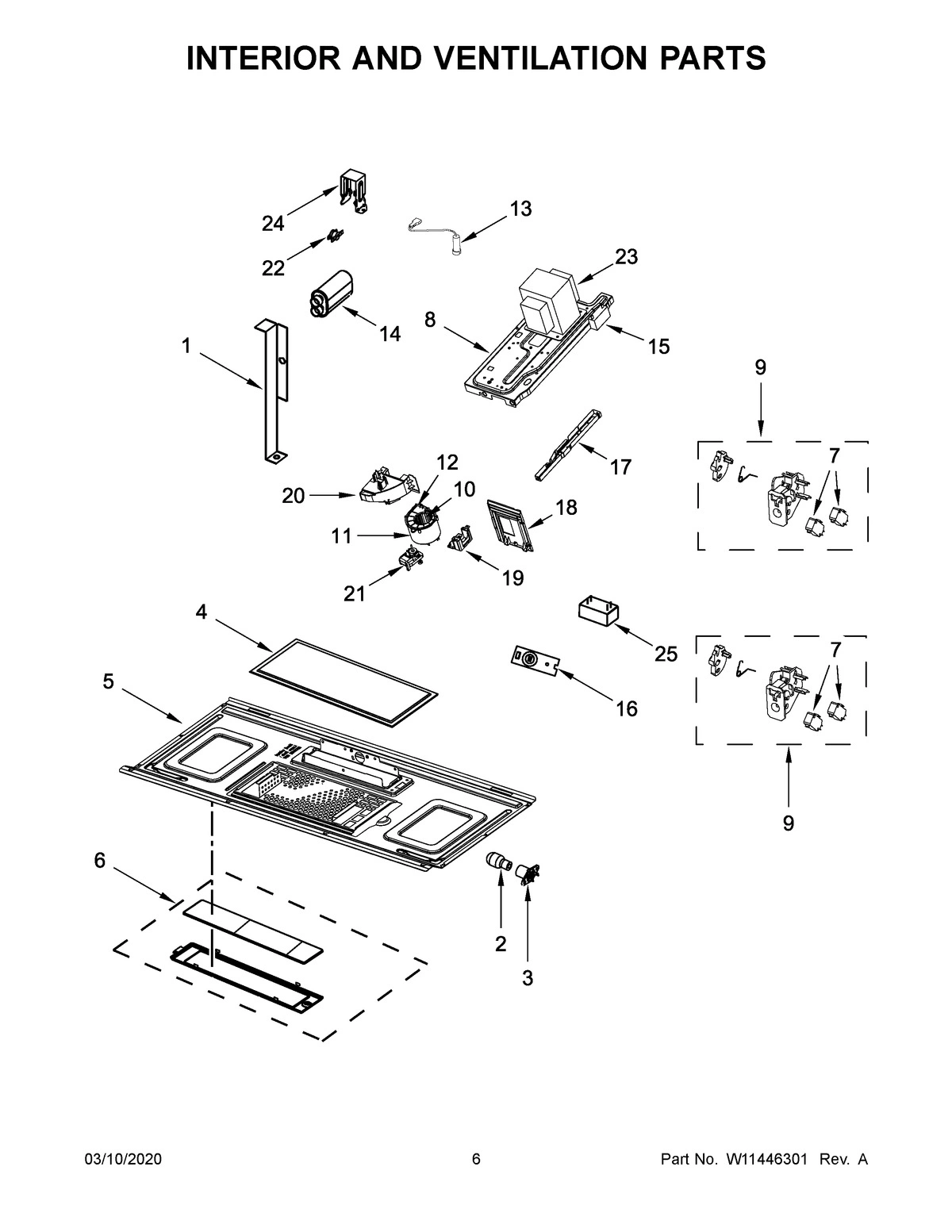

04 - INTERIOR AND VENTILATION PARTS

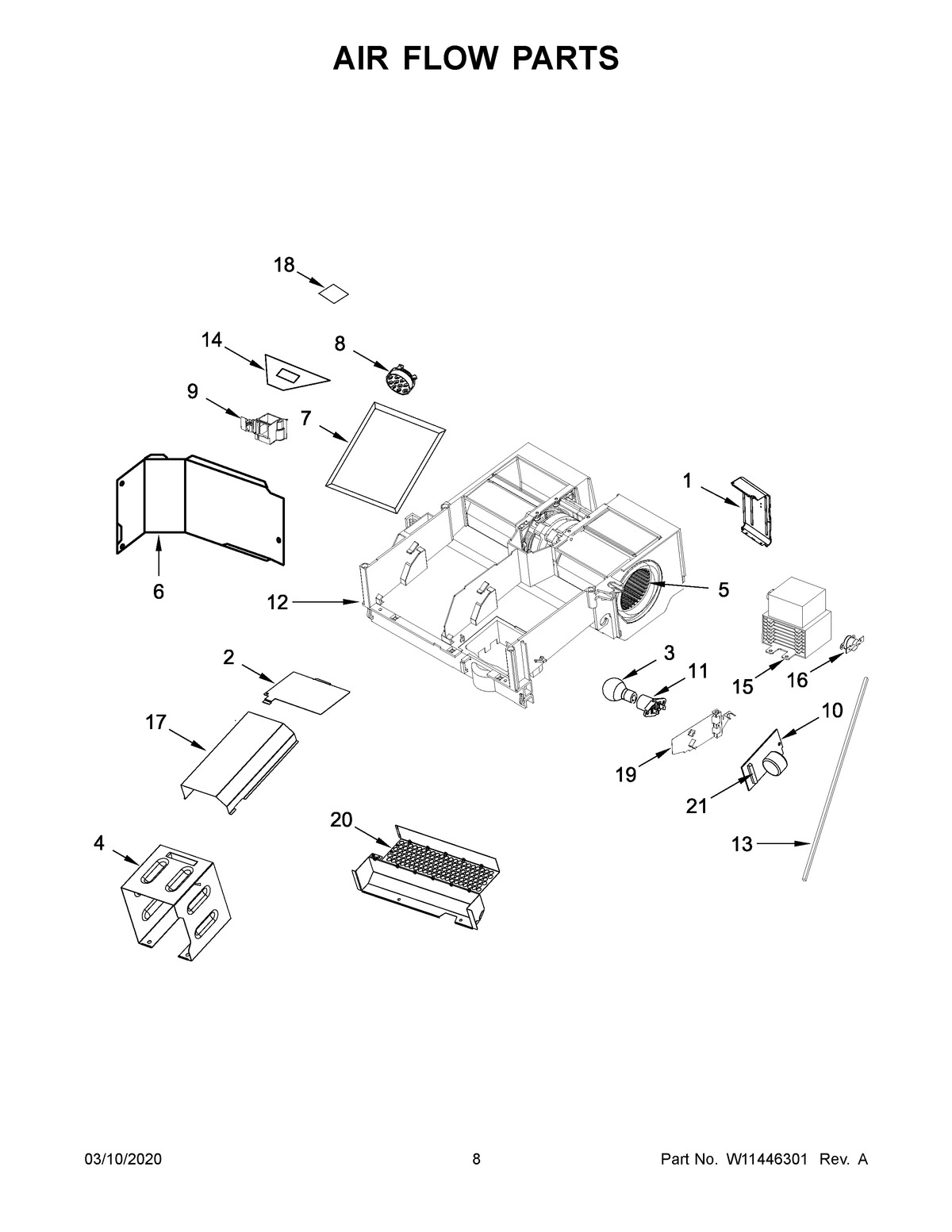

05 - AIR FLOW PARTS

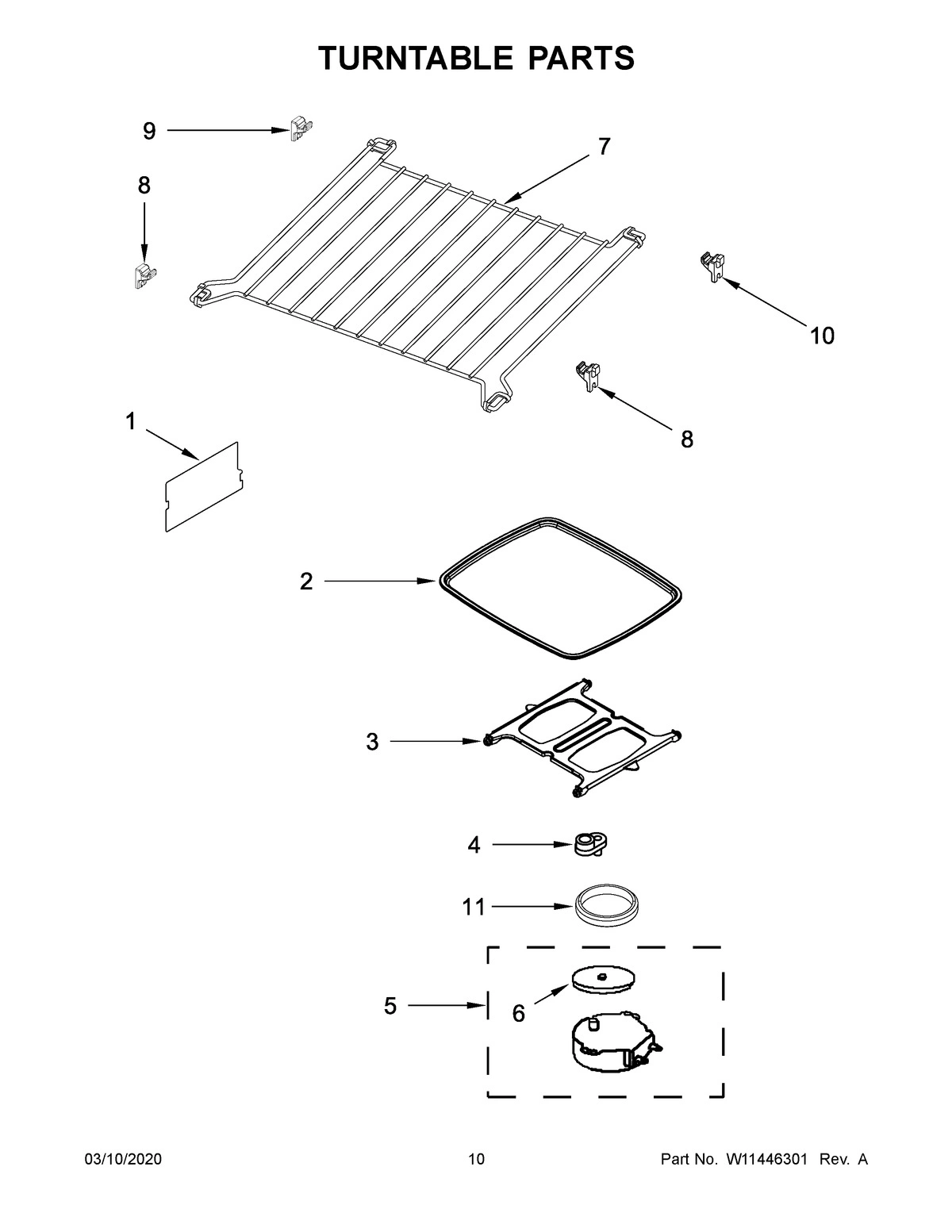

06 - TURNTABLE PARTS

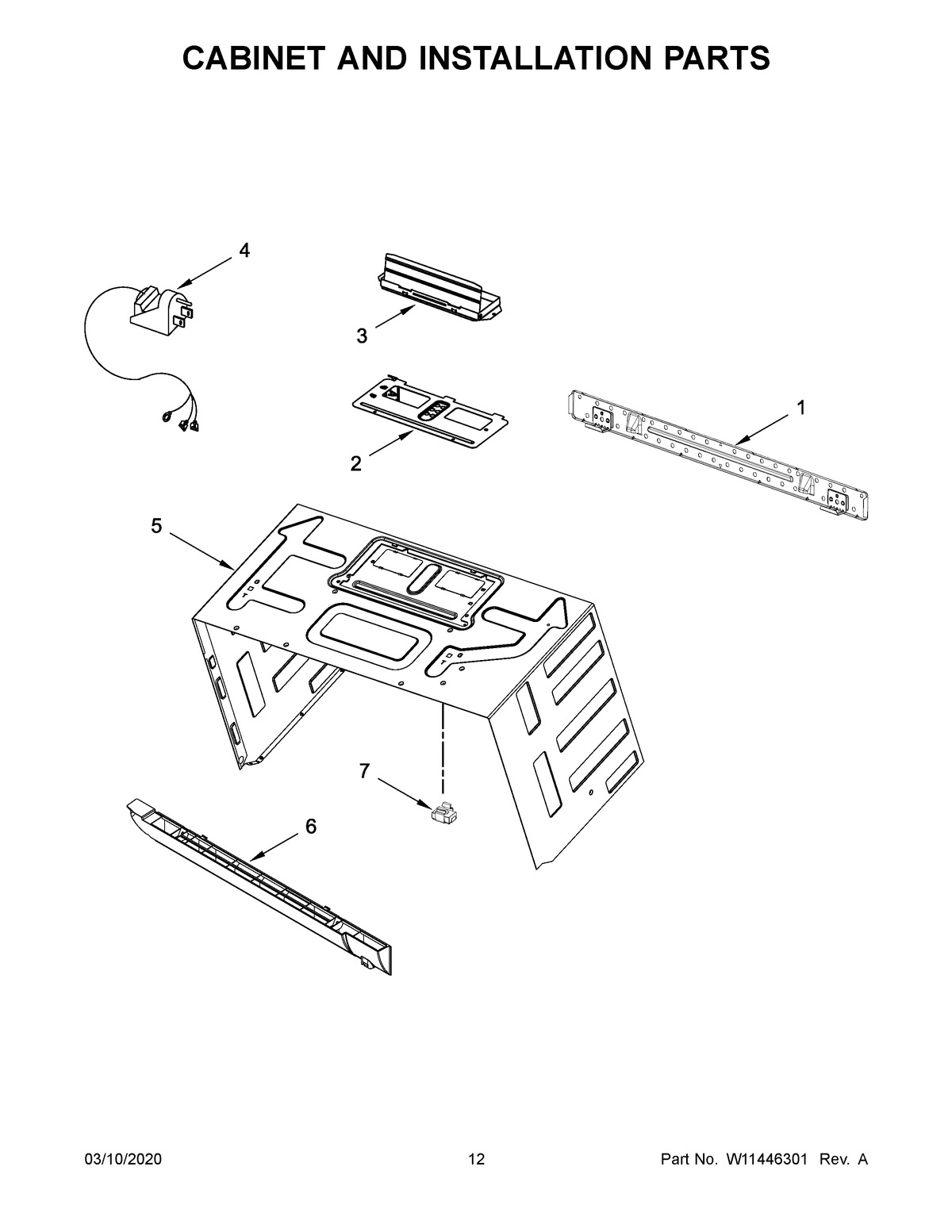

07 - CABINET AND INSTALLATION PARTS
Common parts from model Maytag MMV5220FZ6 MICROWAVE HOOD, 2.1 CUBIC FOOT
1
INSTALLATION INSTRUCTIONS MAY W10724870 Contact Us For Availability
1
DOOR, COMPLETE (STAINLESS) MAY W11031958 Contact Us For Availability
1
BRACKET, TOP CAVITY MAY W10540715 Contact Us For Availability
1
DEFLECTOR, AIR MAY W10631697 Contact Us For Availability
1
COVER, WAVEGUIDE MAY W11193296 Contact Us For Availability
1
PLATE, MOUNTING MAY W10440498 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W10721269 Contact Us For Availability
1B
QUICK REFERENCE GUIDE MAY W10666959 Contact Us For Availability
1C
MAY W11359201 MAY W11359201 Contact Us For Availability
2
ASSEMBLY, CONTROL PANEL (STAINLESS) MAY W10871383 Contact Us For Availability
2
HANDLE (STAINLESS) MAY W10858177 Contact Us For Availability
2
LAMP, 40 WATT MAY 8206232 Contact Us For Availability
2
COVER, LAMP MAY 8206382 Contact Us For Availability
2
TURNTABLE MAY W10289909 Contact Us For Availability
2
COVER, FAN MOTOR MAY W10625423 Contact Us For Availability
3
BACKER, CONTROL PANEL MAY W10639186 Contact Us For Availability
3
STOPPER, DOOR MAY W10643974 Contact Us For Availability
3
HOLDER, LAMP MAY W10210871 Contact Us For Availability
3
LAMP, CAVITY 30 WATT MAY 4393681 Contact Us For Availability
3
RING, TURNTABLE MAY W10640954 Contact Us For Availability
3
DAMPER MAY W10748710 Contact Us For Availability
4
MAY W11133803 MAY W11133803 Contact Us For Availability
4
FRAME, INNER MAY W10648086 Contact Us For Availability
4
FILTER, GREASE MAY W10208631 Contact Us For Availability
4
HOUSING, DAMPER MAY W10556824 Contact Us For Availability
4
DRIVER, TURNTABLE MAY W10709120 Contact Us For Availability
4
CORD, POWER MAY W10654511 Contact Us For Availability
5
PCBA, USER INTERFACE MAY W11131400 Contact Us For Availability
5
GLASS, OUTER DOOR (BLACK) MAY W10860865 Contact Us For Availability
5
PLATE, BOTTOM MAY W10571127 Contact Us For Availability
5
MOTOR, FAN MAY W11109701 Contact Us For Availability
5
MOTOR, TURNTABLE MAY W10466421 Contact Us For Availability
5
CASE, OUTER (BLACK) MAY W11178713 Contact Us For Availability
6
PLATE, STEAM PROTECTION MAY W10860860 Contact Us For Availability
6
ASSEMBLY, LAMP GLASS AND HOLDER MAY W10240330 Contact Us For Availability
6
PLATE, AIR DEFLECTOR MAY W10869223 Contact Us For Availability
6
SEAL, WATERPROOF MAY 8184109 Contact Us For Availability
6
GRILLE, VENT (BLACK) MAY W10701697 Contact Us For Availability
7
FOIL, DOOR MAY W10891966 Contact Us For Availability
7
SWITCHES, INTERLOCK (NOT SERVICED, ORDER INTE MAY N/P Contact Us For Availability
7
FILTER, CHARCOAL MAY 8206230 Contact Us For Availability
7
RACK, MICROWAVE MAY W10637159 Contact Us For Availability
7
ASSEMBLY, MOUNTING NUT MAY W11122643 Contact Us For Availability
8
FRAME, DOOR (STAINLESS) MAY W10865172 Contact Us For Availability
8
CHASSIS, COMPONENT MAY W11350925 Contact Us For Availability
8
SENSOR, HUMIDITY MAY W10557536 Contact Us For Availability
8
HOOK, MICROWAVE (LEFT FRONT & RIGHT FRONT) MAY W10740485 Contact Us For Availability
9
BADGE MAY W10612925 Contact Us For Availability
9
ASSEMBLY, INTERLOCK (INCLUDES SWITCHES) MAY W11187757 Contact Us For Availability
9
OUTLET, CAVITY (FRONT) MAY W10570208 Contact Us For Availability
9
HOOK, MICROWAVE (LEFT REAR) MAY W10749119 Contact Us For Availability
10
TRIM, DOOR (BLACK) MAY W10892375 Contact Us For Availability
10
WHEEL, COOLING FAN MAY W10533503 Contact Us For Availability
10
BOARD, FILTER MAY W10531156 Contact Us For Availability
10
HOOK, MICROWAVE (RIGHT REAR) MAY W10749120 Contact Us For Availability
11
HOUSING, COOLING FAN MAY W10533501 Contact Us For Availability
11
SOCKET, CAVITY LAMP MAY W10210878 Contact Us For Availability
11
SEAL, TURNTABLE BLOCK MAY W10568148 Contact Us For Availability
12
COVER, COOLING FAN MAY W10533502 Contact Us For Availability
12
BASEPLATE, AIR GUIDE MAY W10892373 Contact Us For Availability
13
DIODE, HIGH VOLTAGE MAY W10575765 Contact Us For Availability
13
SEAL, FOAM MAY W10571180 Contact Us For Availability
14
CAPACITOR, HIGH VOLTAGE MAY W10561770 Contact Us For Availability
14
SOCKET, MOTOR WIRE MAY W10139750 Contact Us For Availability
15
CAPACITOR, HOOD MOTOR MAY W10605897 Contact Us For Availability
15
MAGNETRON MAY W10754514 Contact Us For Availability
16
THERMISTOR, PCBA MAY W10536989 Contact Us For Availability
16
THERMOSTAT, MAGNETRON MAY W10598693 Contact Us For Availability
17
BRACKET, CAVITY MAY W10540718 Contact Us For Availability
17
OUTLET, CAVITY (BACK) MAY W10533111 Contact Us For Availability
18
DEFLECTOR, AIR MAY W10533481 Contact Us For Availability
18
GLASS, LAMP MAY W10531724 Contact Us For Availability
19
HOLDER, NTC MAY W10533480 Contact Us For Availability
19
COVER, DUCT (RIGHT) MAY W10533484 Contact Us For Availability
20
AIR GUIDE, MAGNETRON MAY W10631700 Contact Us For Availability
20
SHIELD, FINGER (INCLUDES SEAL) MAY W10629803 Contact Us For Availability
21
MOTOR, COOLING MAY W10536556 Contact Us For Availability
21
FUSE MAY W10138793 Contact Us For Availability
22
THERMOSTAT, CAVITY MAY W10840013 Contact Us For Availability
23
TRANSFORMER, HIGH VOLTAGE MAY W11087316 Contact Us For Availability
24
BRACKET, CAPACITOR MAY W10633730 Contact Us For Availability
25
RESISTOR, CEMENT MAY W11259892 Contact Us For Availability
NI
MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW MAY 8169704 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH MAY W10190018 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH MAY W10190020 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR MAY W10539840 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARDWARE, INSTALLATION MAY W10821385 Contact Us For Availability
NI
MAY W11297736 MAY W11297736 Contact Us For Availability
× ![]()
