Model LG MMV5156ACS MWO-OTR – Common Parts & Diagrams
Diagram 0

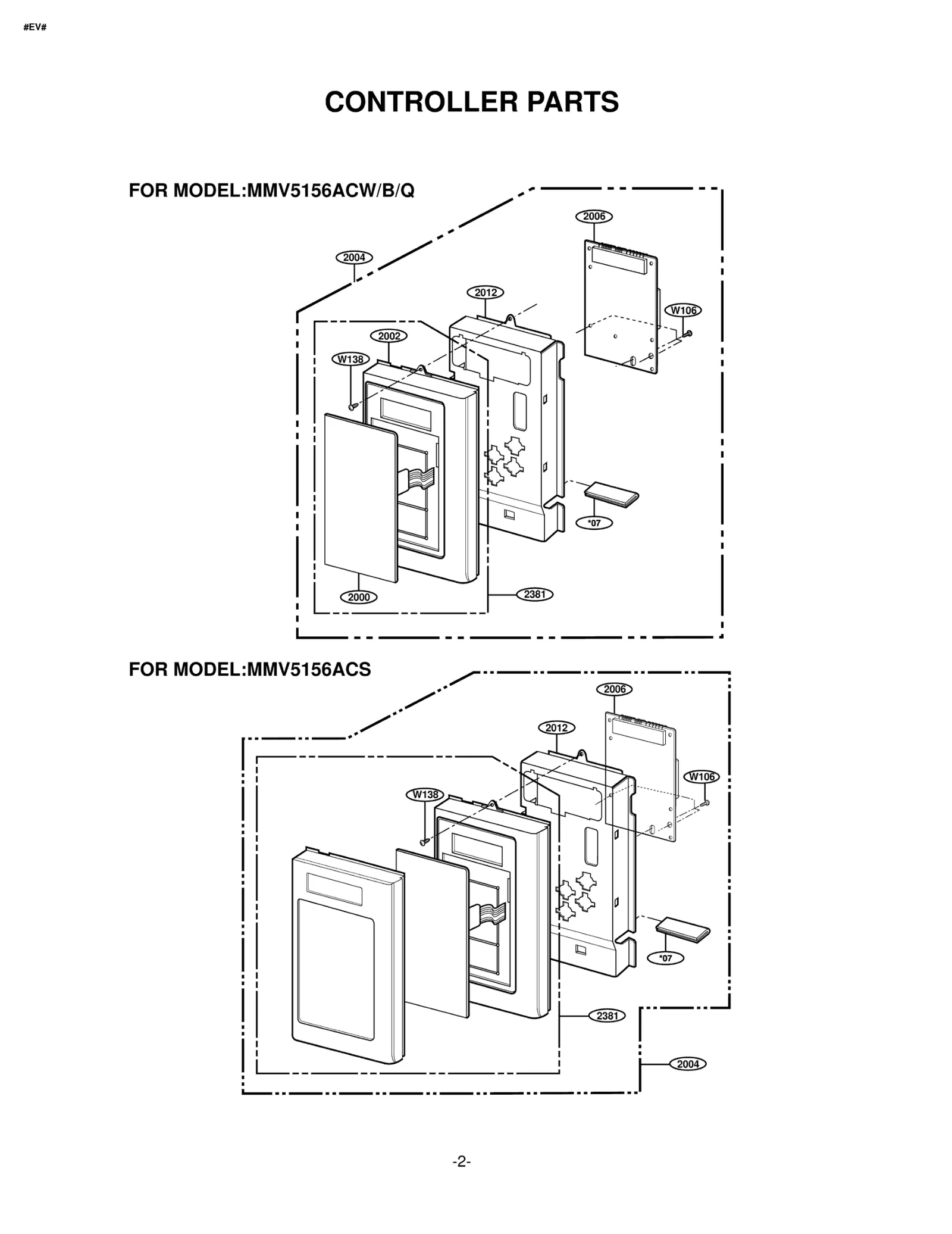

Diagram 1

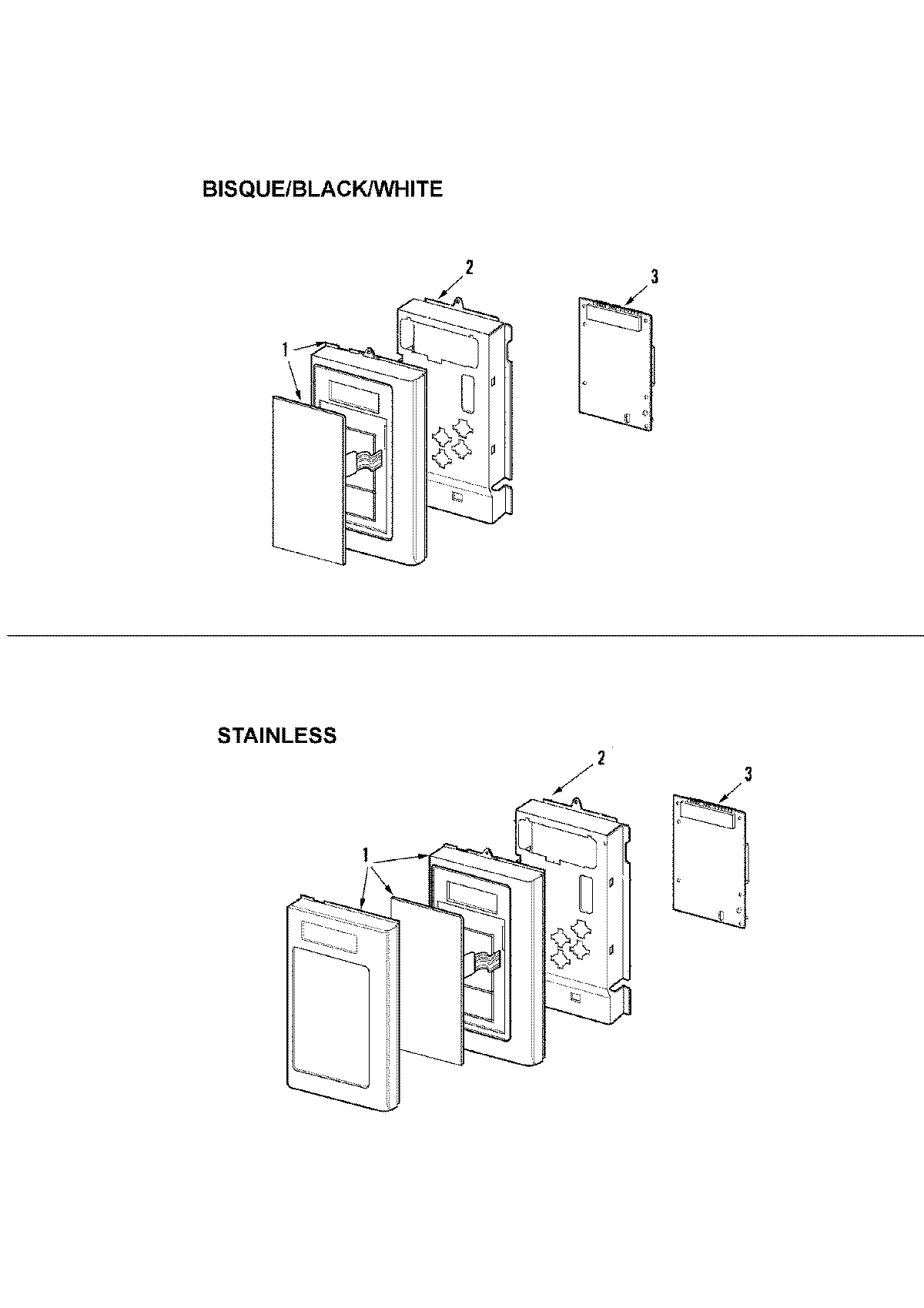

Diagram 2

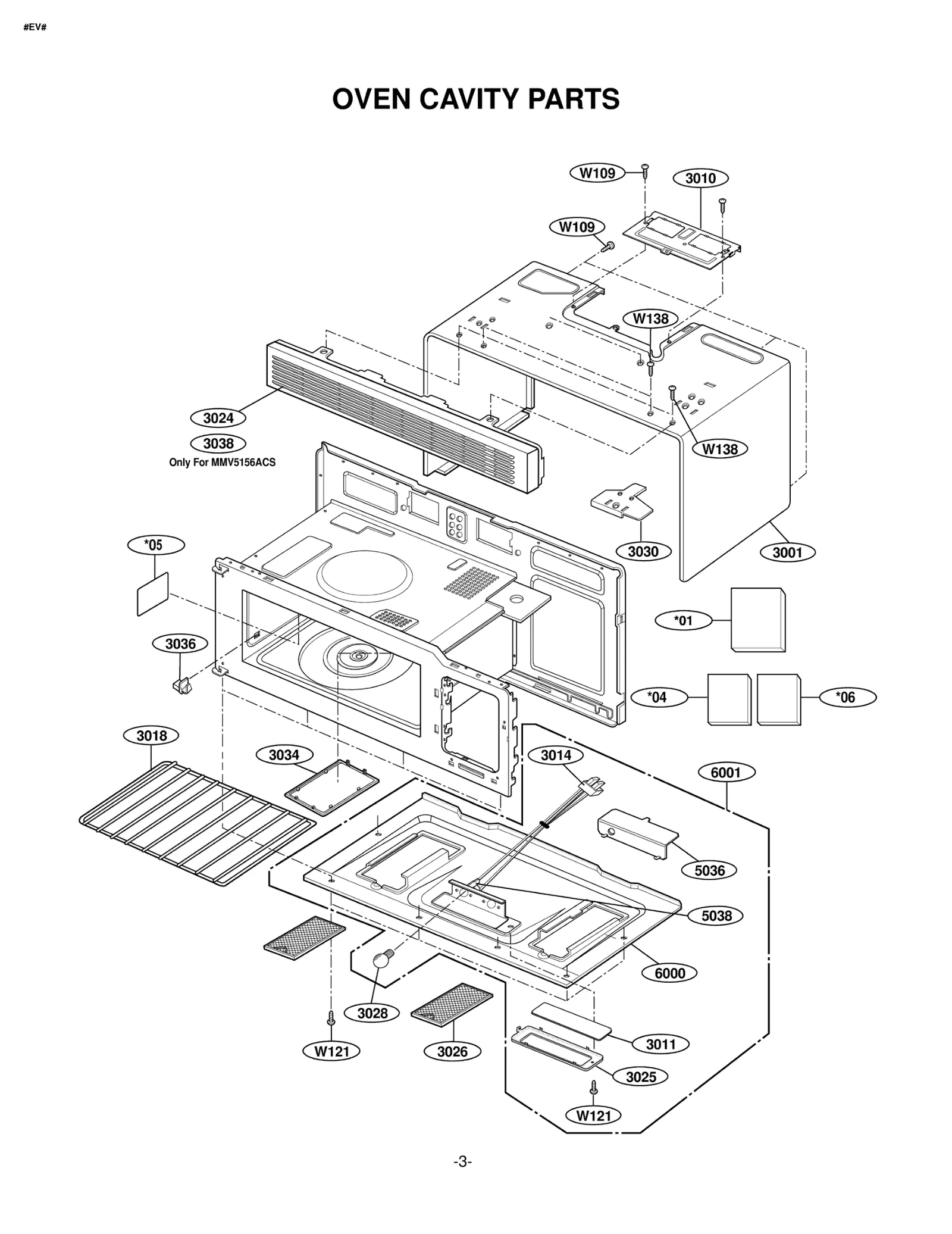

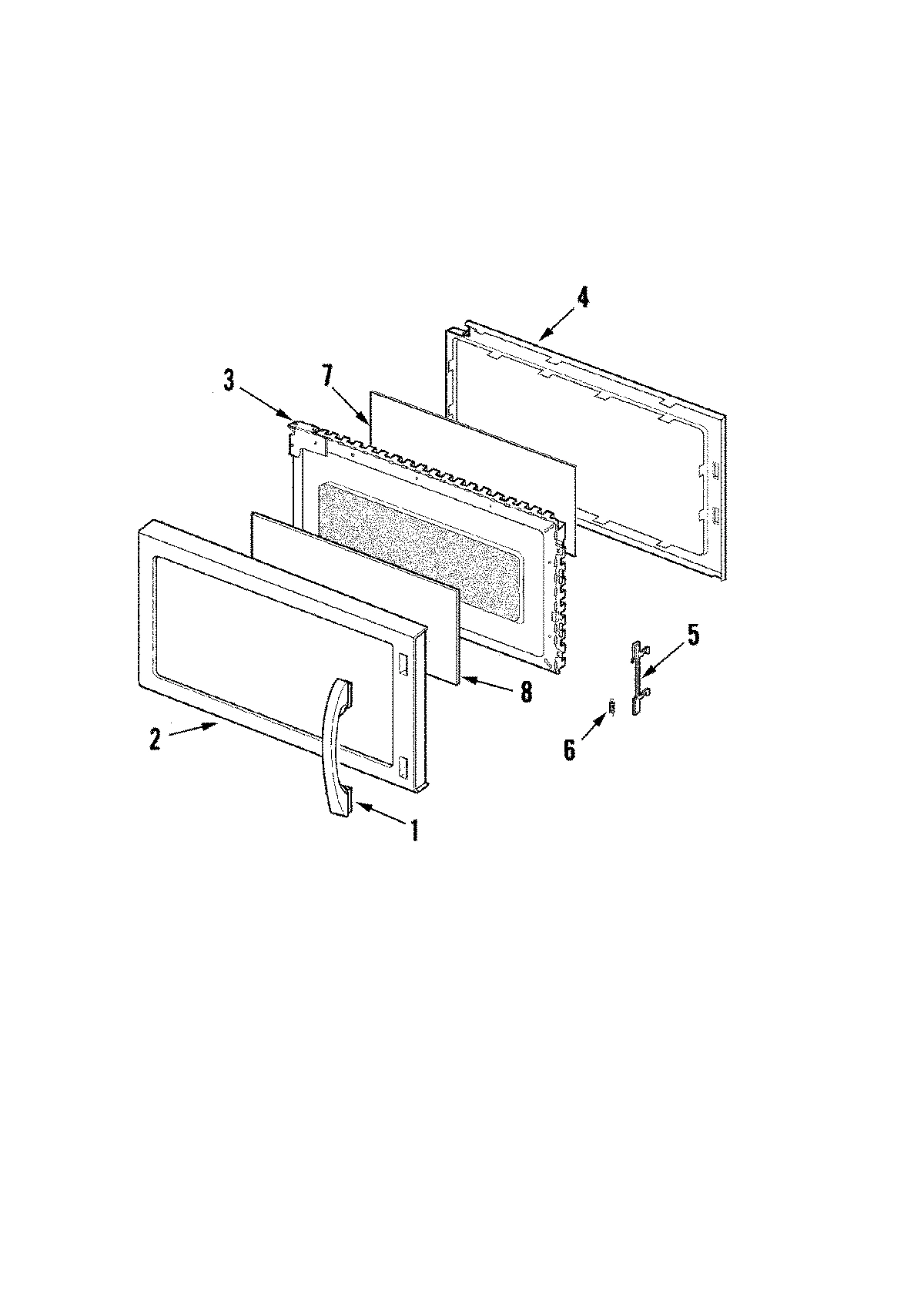

Diagram 3

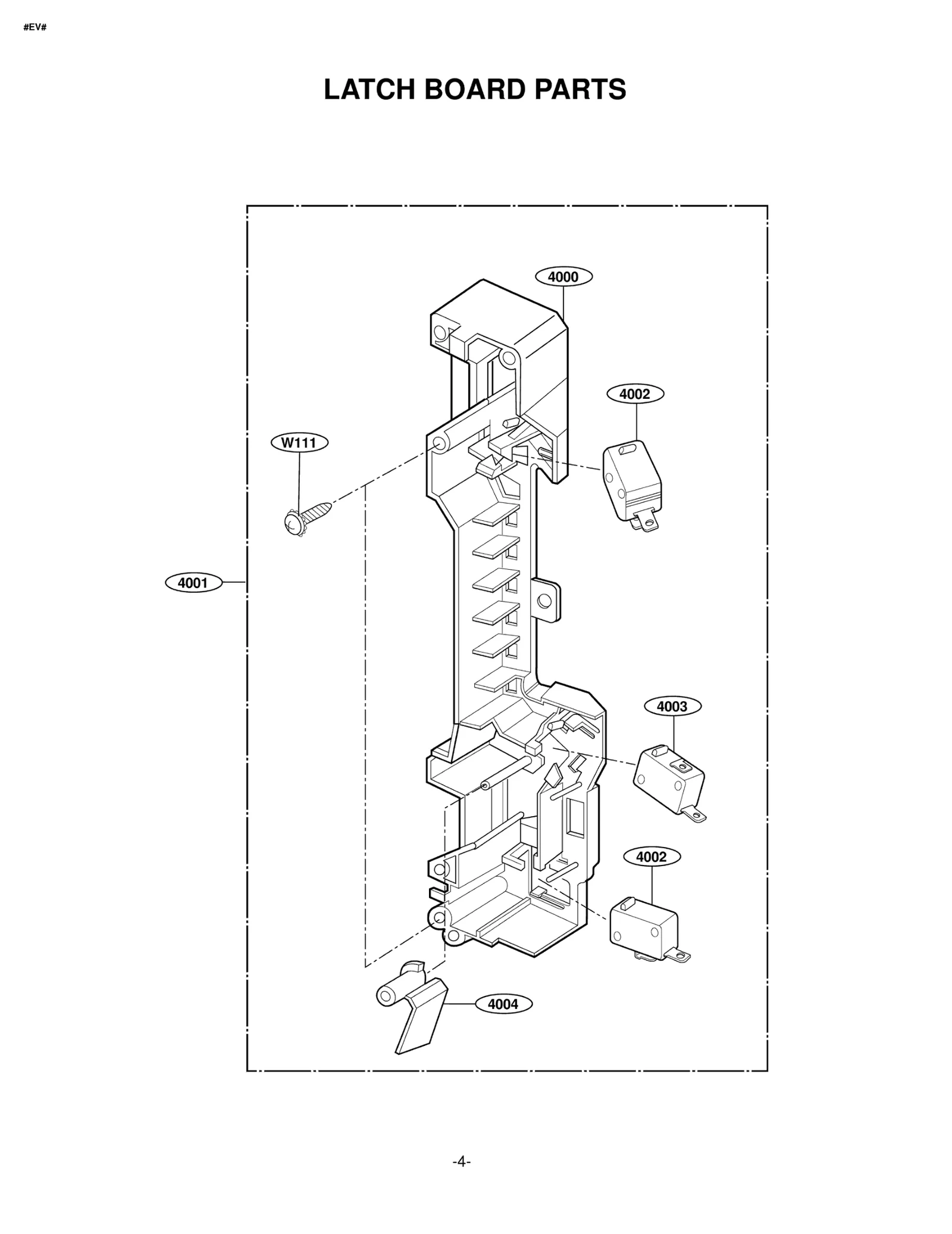

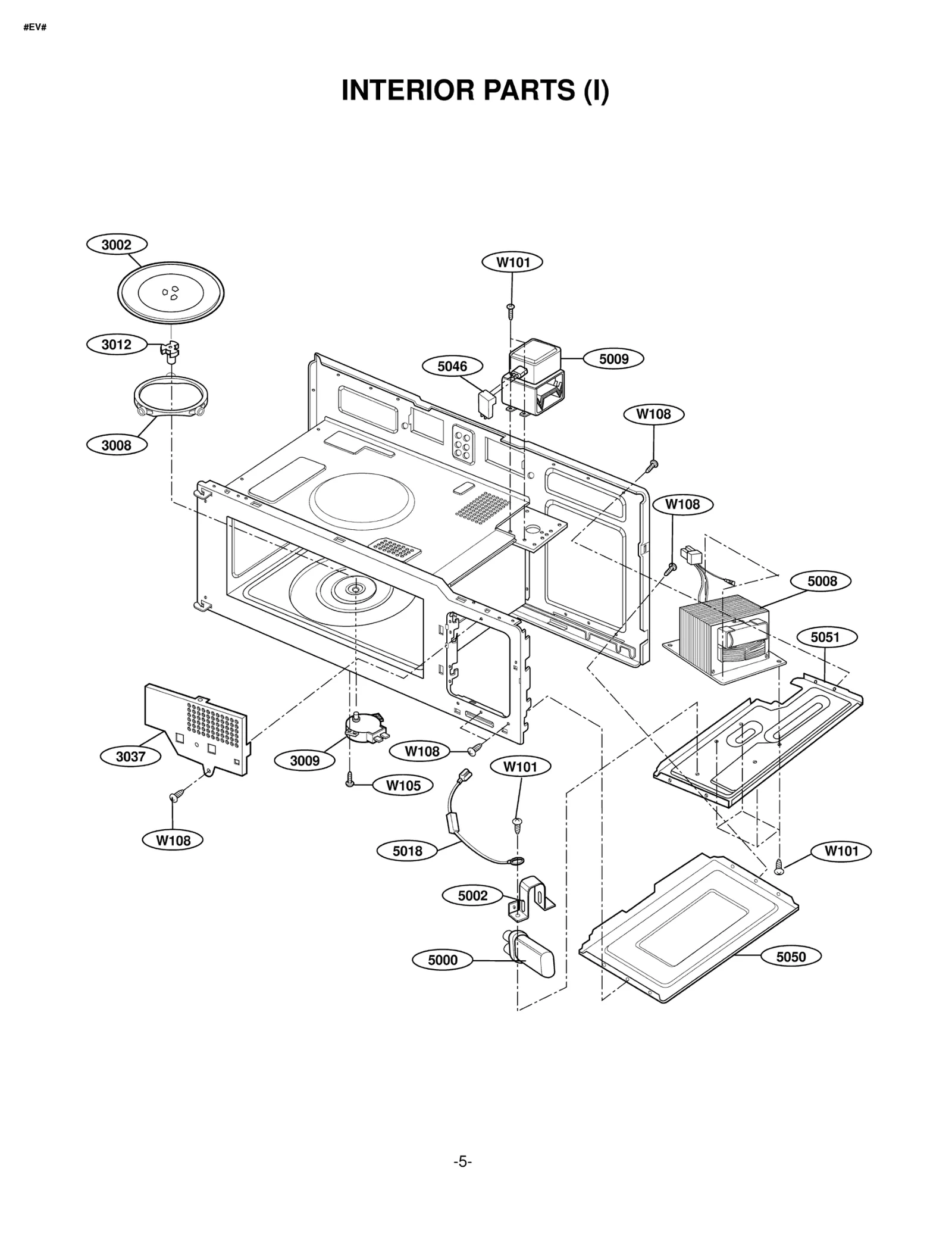

Diagram 4

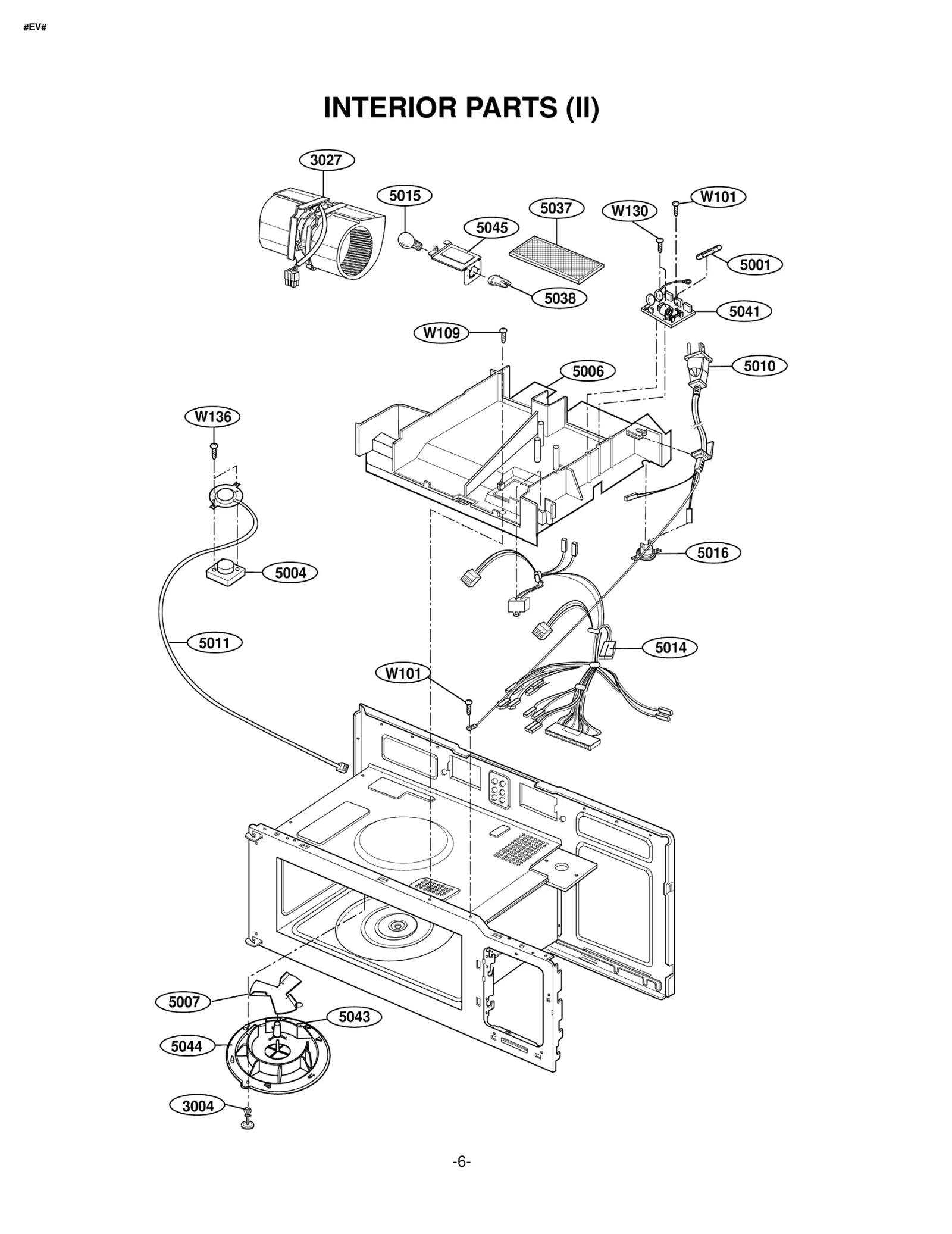

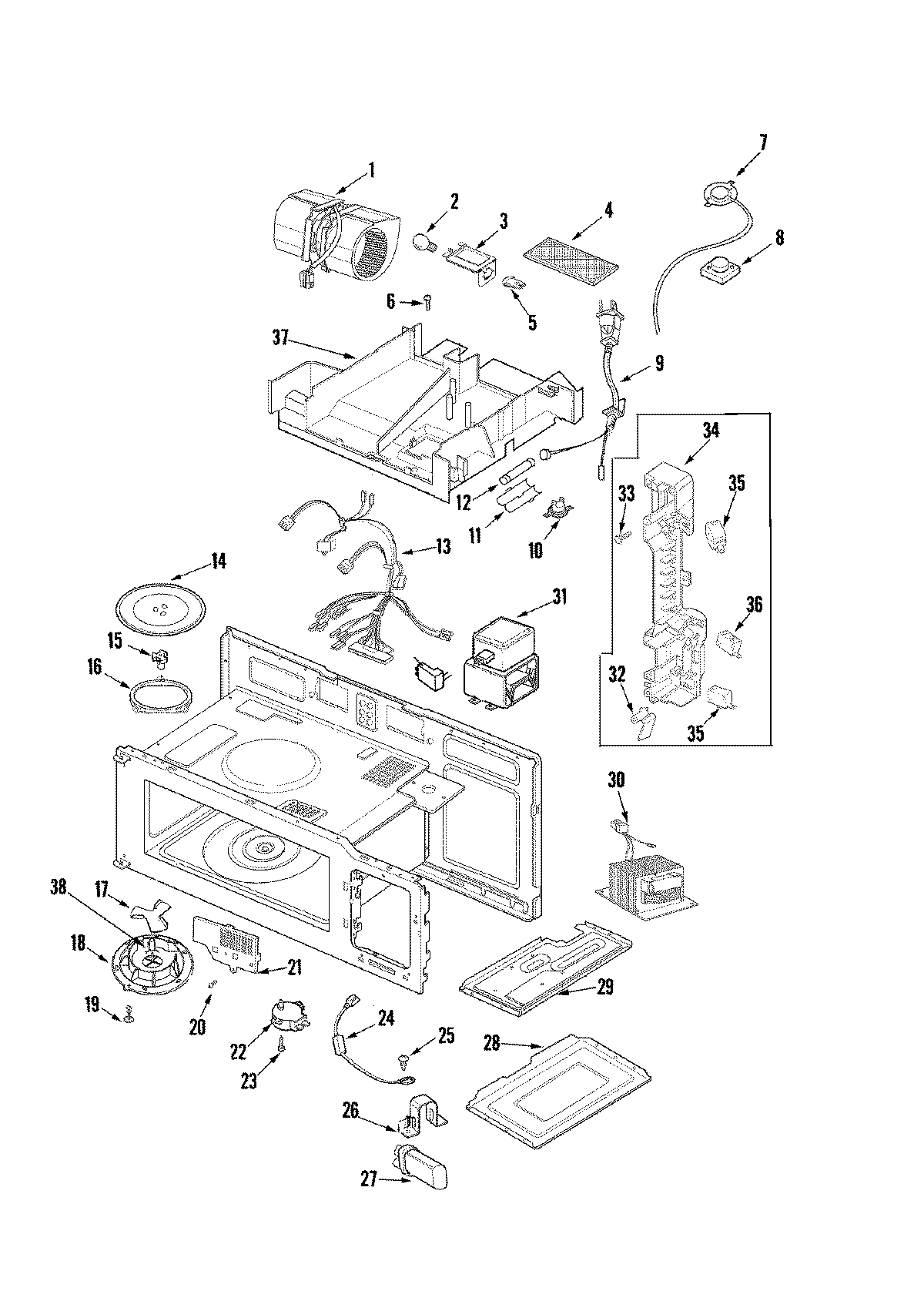

Diagram 5

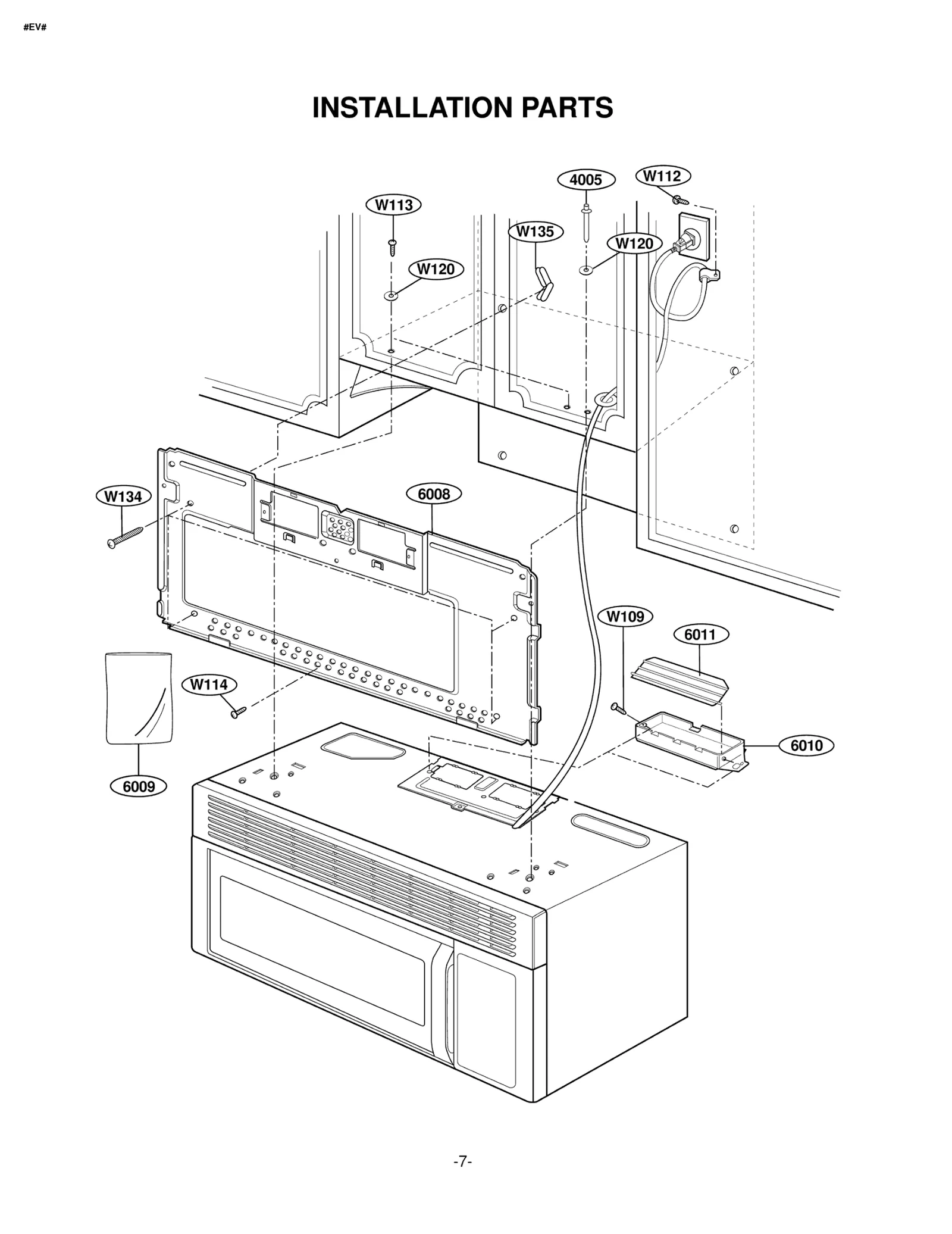

Diagram 6
Diagram 7
Common parts from model LG MMV5156ACS MWO-OTR
*01
MANUAL,OWNERS LGE 3828W5A2756 Contact Us For Availability
*04

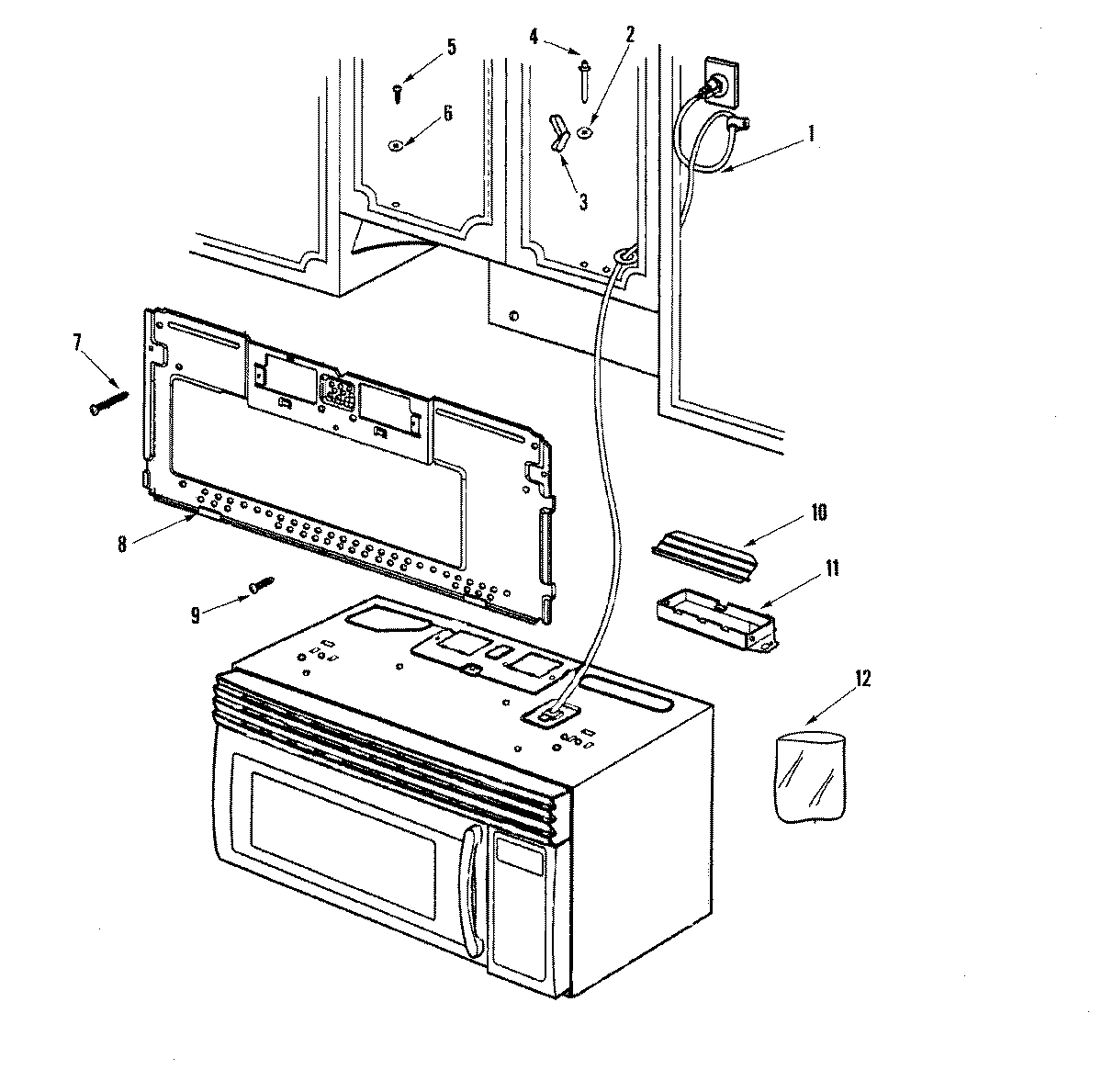

Manual,Installation LGE 3828W5U0312 Contact Us For Availability
*05
LABEL,COOKING GUIDE LGE 3850W1D013A Contact Us For Availability
*06
TEMPLATE LGE 4922W5A031A Contact Us For Availability
*07
CARD,TECHNICAL LGE 3840W1T004B Contact Us For Availability
*10
LGE 3890W3Y554E LGE 3890W3Y554E Contact Us For Availability
3008
ROTATING RING ASSEMBLY LGE 5889W2A012D Contact Us For Availability
3027
MOTOR(CIRC),VENTILATION LGE 6549W1V006C Contact Us For Availability
3030
BRACKET ASSEMBLY LGE 4811W1A008A Contact Us For Availability
3034
CANOPY WAVE GUIDE MA-880M/680M LGE 3052WRA002A Contact Us For Availability
3036
HOLDER,COOK AUXILIARY LGE 4930W1A026A Contact Us For Availability
3037
PROTECTOR (MECH) LGE 3740W1A005A Contact Us For Availability
3038
GRILLE ASSEMBLY LGE 3531W1A014A Contact Us For Availability
4004
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
5002
BRACKET HVC MV-1320,SECC 0.5T LGE 4810W3C002A Contact Us For Availability
5004
BRACKET,SENSOR LGE 4810W1A065A Contact Us For Availability
5006
DUCT LGE 5208W0A006A Contact Us For Availability
5008
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D052B Contact Us For Availability
5010
POWER CORD ASSY LGE 6411W1A010L Contact Us For Availability
5014
HARNESS LGE 6877W1A409B Contact Us For Availability
5015
OVEN LAMP 125V 30W E17, ER-71 LGE 3B70067A Contact Us For Availability
5016
THERMOSTAT,BIMETAL LGE 6930W1A002K Contact Us For Availability
5035
PLATE,[BOTTOM PLATE] LGE 3300W1A003A Contact Us For Availability
5036
COVER,MWO LGE 3550W3A095A Contact Us For Availability
5038
LAMP HOLDER - ALL LGE 6804W3A001A Contact Us For Availability
5041
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
5044
COVER,STIRRER FAN LGE 3550W1A126A Contact Us For Availability
5045
COVER ALL MV-1320,OVEN LAMP,SE LGE 3550W3A082A Contact Us For Availability
5046
FILTER ASSY,CHOKE LGE 6201W2A019D Contact Us For Availability
5050
PLATE ASSEMBLY LGE 3301W1A031F Contact Us For Availability
5051
PLATE ASSEMBLY LGE 3301W1A033B Contact Us For Availability
6000
BASE PLATE LGE 3302W0A013H Contact Us For Availability
6001
BASE PLATE ASSY LGE 3303W1A041N Contact Us For Availability
6008
PLATE,[MOUNTING PLATE] LGE 3300W0M003A Contact Us For Availability
6009
MOUNTING KIT (OTR) LGE 2B72771A Contact Us For Availability
6011
EXHAUST DAMPER ER-841PV CBESE LGE 3B71432A Contact Us For Availability
AR1
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
C01
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4776H618 Contact Us For Availability
C05
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C09
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C11
CAPACITOR ELECTROLYTIC LGE 0CE1076K638 Contact Us For Availability
C12
CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability
C61
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C93
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK2210K518 Contact Us For Availability
CN1
CONNECTOR YW396-08AV 8PIN,2VOI LGE 6630W5YA10F Contact Us For Availability
CN2
CONNECTOR YW396-03, #3 VOID 8 LGE CQ52212A Contact Us For Availability
CN3
LGE 6630W5YA19E LGE 6630W5YA19E Contact Us For Availability
CN5
CONNECTOR (CIRC) LGE 6630W5V013A Contact Us For Availability
D10
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D41
DIODE 1N4004TA(06220071)MV-100 LGE 0DD400409AA Contact Us For Availability
D61
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
DP1
DIGITRON, ALL LGE 6302W5A002A Contact Us For Availability
IC1
IC,SAMSUNG ELECTRONICS LGE 0ISS791500A Contact Us For Availability
IC2
IC KIA4558P(8DIP LIN OP-AMP/BI LGE 0IKE455800A Contact Us For Availability
PT1
POWER TRANS 120/60 UL,12V/277M LGE 6010W2P008A Contact Us For Availability
Q20
TANSISTOR KRC 106M KEC (MA-693 LGE 0TR106009AF Contact Us For Availability
Q40
TRANSISTOR,BIPOLARS LGE 0TRAU90012A Contact Us For Availability
R03
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R04
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R06
LGE 0RD0471G608 LGE 0RD0471G608 Contact Us For Availability
R08
LGE 0RD1003G608 LGE 0RD1003G608 Contact Us For Availability
R10
RESISTOR,FIXED CARBON FILM LGE 0RD0202G608 Contact Us For Availability
R51
RESISTOR FIXED CARBON FILM /R LGE 0RD1000G608 Contact Us For Availability
R61
Resistor,Carbon Film LGE 0RD1201F608 Contact Us For Availability
R62
LGE 0RN2003F408 LGE 0RN2003F408 Contact Us For Availability
R63
LGE 0RN1001G408 LGE 0RN1001G408 Contact Us For Availability
R67
LGE 0RN1072G408 LGE 0RN1072G408 Contact Us For Availability
R68
LGE 0RN1002G408 LGE 0RN1002G408 Contact Us For Availability
R70
RESISTOR,FIXED CARBON FILM LGE 0RD6600H602 Contact Us For Availability
R71
Resistor,Carbon Film LGE 0RD1503F608 Contact Us For Availability
R72
LGE 0RD2703F608 LGE 0RD2703F608 Contact Us For Availability
R73
Resistor,Carbon Film LGE 0RD5103F608 Contact Us For Availability
R74
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R75
LGE 0RD2004G608 LGE 0RD2004G608 Contact Us For Availability
R80
LGE 0RD1202G608 LGE 0RD1202G608 Contact Us For Availability
R91
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R107
RESISTOR FIXED CARBON FILM MV- LGE 0RD4702G608 Contact Us For Availability
R108
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
RY6
RELAY LGE 6920WRD008A Contact Us For Availability
U01
IC,DRAWING LGE 0IZZW5A154A Contact Us For Availability
W121
TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
ZD2
DIODE ZENER LGE 0DZ750009AC Contact Us For Availability
× ![]()
